2010 Ford Ranger 2WD L4-2.3LFACTORY OEM SERVICE PROCEDURE
Positive Crankcase Ventilation: Description and Operation
POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM
Overview
The PCV system cycles crankcase gases back through the intake air system into the engine where they are burned. The PCV valve regulates the amount of ventilated air and blow-by gases to the intake manifold.
Currently, both heated and non-heated PCV systems are used. The heated systems use either water heated valve, an electrically heated valve, or an electrically heated tube. Engine coolant flows around the water heated valve to prevent it from freezing. Electrically heated systems use heating element enclosed in the PCV valve, PCV fitting or the PCV tube to prevent the valve or tube from freezing. The valve or the tube heater is controlled by the powertrain control module (PCM).
When the intake air temperature is less than 0°C (32°F) the PCM grounds the positive crankcase ventilation valve heater control (PCVHC) circuit and turns the heater on. When the intake air temperature exceeds 9°C (48°F) the heater is turned off. The PCV heater is also off when the engine is not running to prevent unnecessary battery drain. The heater is also off if the vehicle charging system is greater than 16 volts. This minimizes heater element overload.
PCV systems that comply with on board diagnostics (OBD) PCV monitoring requirements use a quarter-turn cam-lock thread design at one end to prevent accidental disconnection from the valve cover. For more information about the PCV monitor refer to Positive Crankcase Ventilation (PCV) System Monitor. Positive Crankcase Ventilation (PCV) System Monitor
PCV Types
Heated Fittings or Tube
- non-heated
- water heated
- with PCM-controlled heating element
PCV Valves
- non-heated
- with PCM-controlled heating element
Refer to the following figures for examples of these types of PCV valves.
Hardware
Overview
The PCV system cycles crankcase gases back through the intake air system into the engine where they are burned. The PCV valve regulates the amount of ventilated air and blow-by gases to the intake manifold.
Currently, both heated and non-heated PCV systems are used. The heated systems use either water heated valve, an electrically heated valve, or an electrically heated tube. Engine coolant flows around the water heated valve to prevent it from freezing. Electrically heated systems use heating element enclosed in the PCV valve, PCV fitting or the PCV tube to prevent the valve or tube from freezing. The valve or the tube heater is controlled by the powertrain control module (PCM).
When the intake air temperature is less than 0°C (32°F) the PCM grounds the positive crankcase ventilation valve heater control (PCVHC) circuit and turns the heater on. When the intake air temperature exceeds 9°C (48°F) the heater is turned off. The PCV heater is also off when the engine is not running to prevent unnecessary battery drain. The heater is also off if the vehicle charging system is greater than 16 volts. This minimizes heater element overload.
PCV systems that comply with on board diagnostics (OBD) PCV monitoring requirements use a quarter-turn cam-lock thread design at one end to prevent accidental disconnection from the valve cover. For more information about the PCV monitor refer to Positive Crankcase Ventilation (PCV) System Monitor. Positive Crankcase Ventilation (PCV) System Monitor
PCV Types
Heated Fittings or Tube
- non-heated
- water heated
- with PCM-controlled heating element
PCV Valves
- non-heated
- with PCM-controlled heating element
Refer to the following figures for examples of these types of PCV valves.

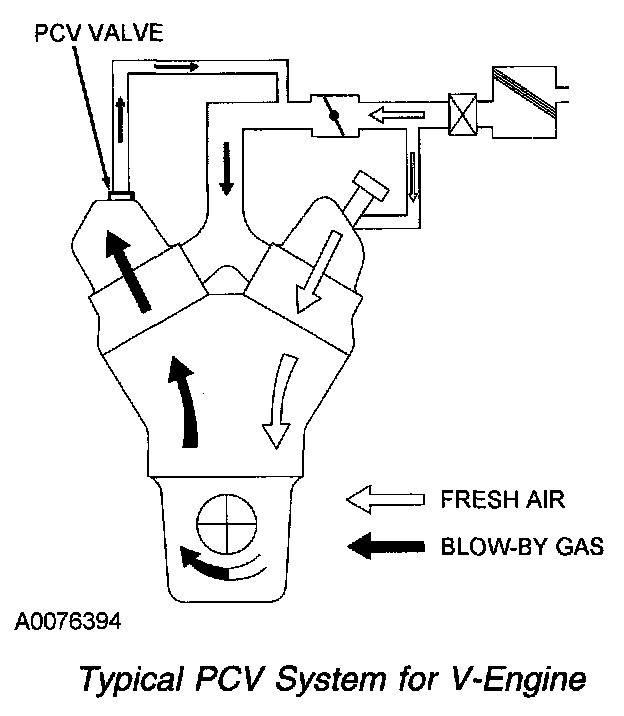

Typical PCV System For V-Engine:
Hardware

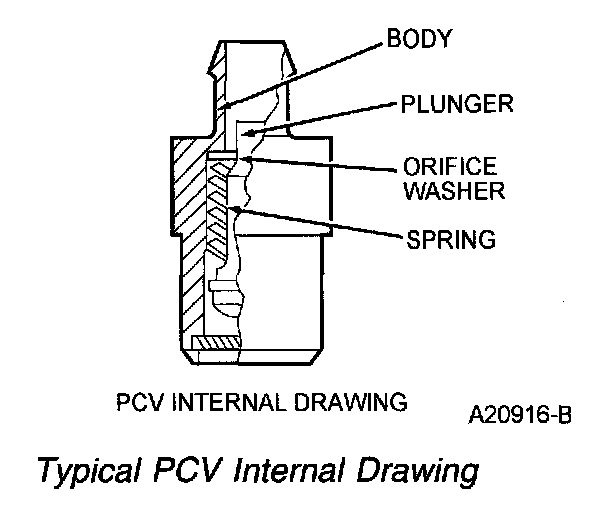

Typical PCV Internal Drawing:

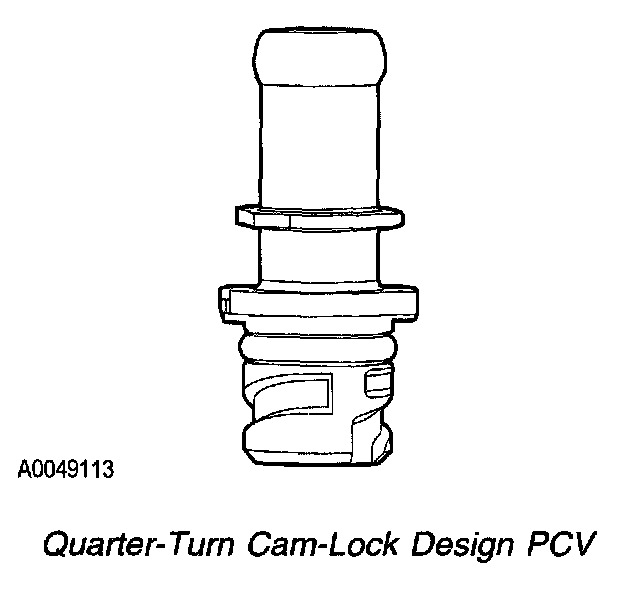

Quarter-Turn Cam-Lock Design PCV:
