2010 Ford Ranger 2WD L4-2.3LFACTORY OEM SERVICE PROCEDURE
Test HH: Exhaust Gas Recirculation System Module (ESM)
PINPOINT TEST HH: EXHAUST GAS RECIRCULATION SYSTEM MODULE (ESM)

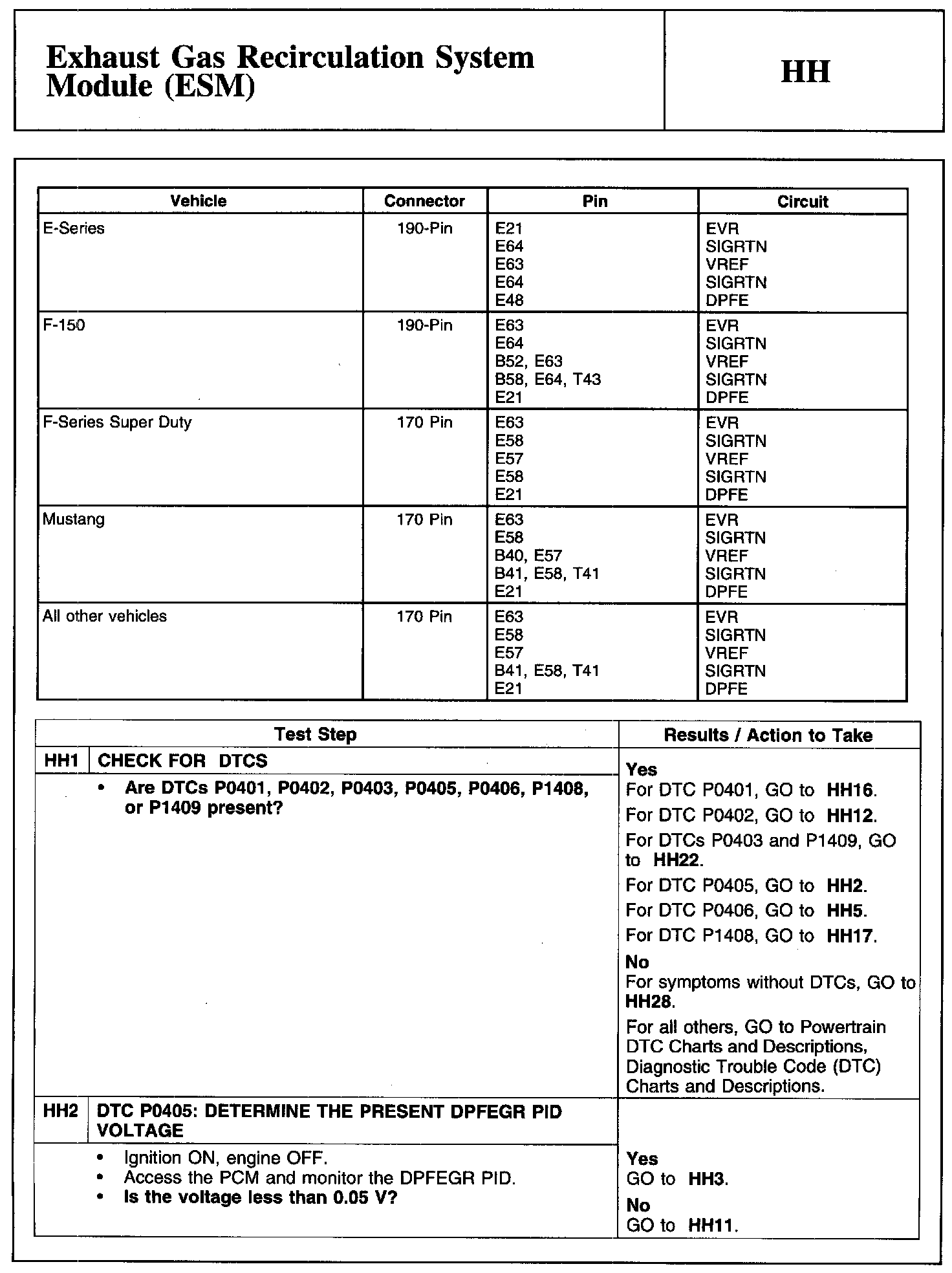

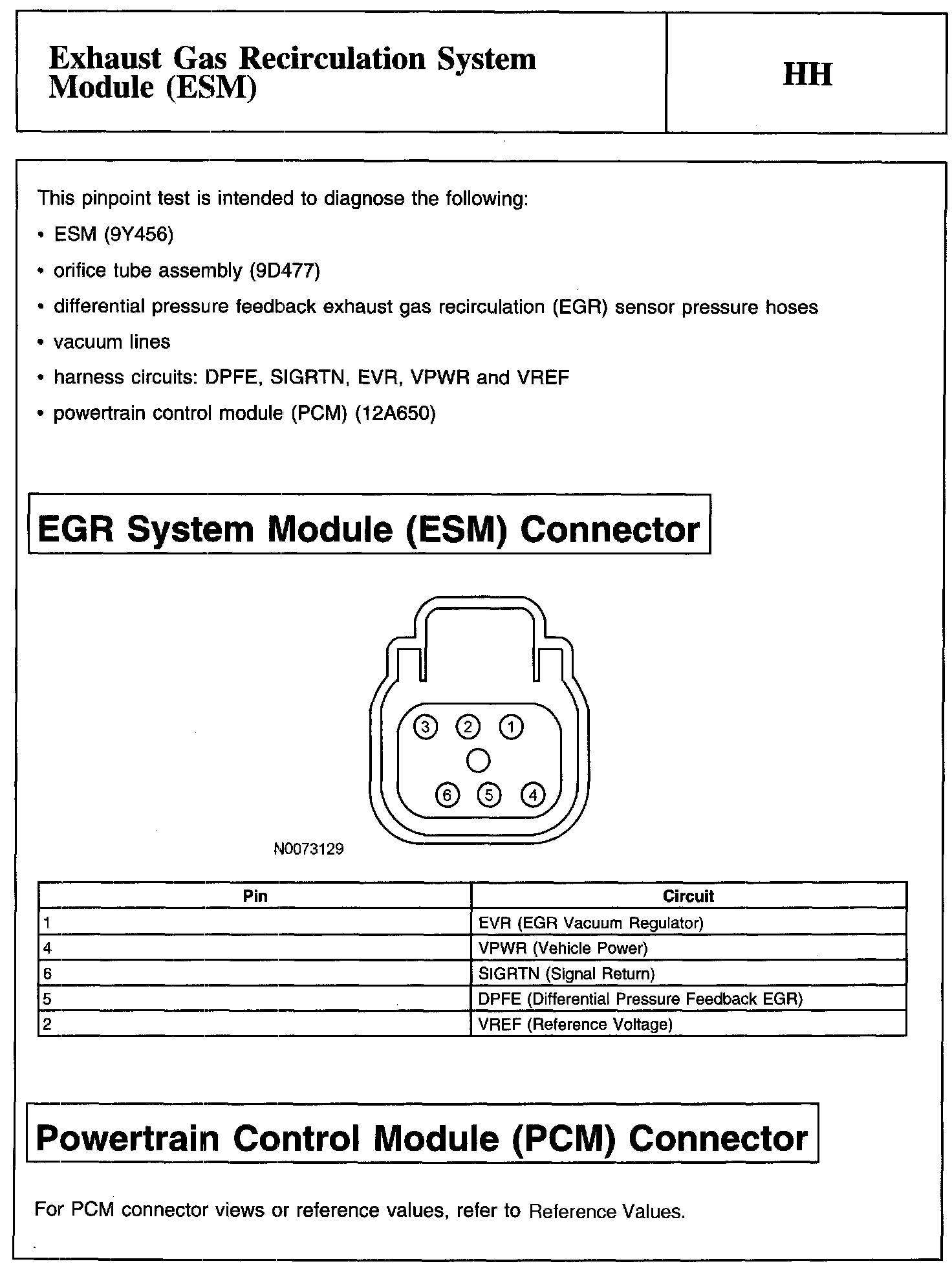

EGR System Module (ESM) Connector And Powertrain Control Module (PCM) Connector:
HH1-HH2:

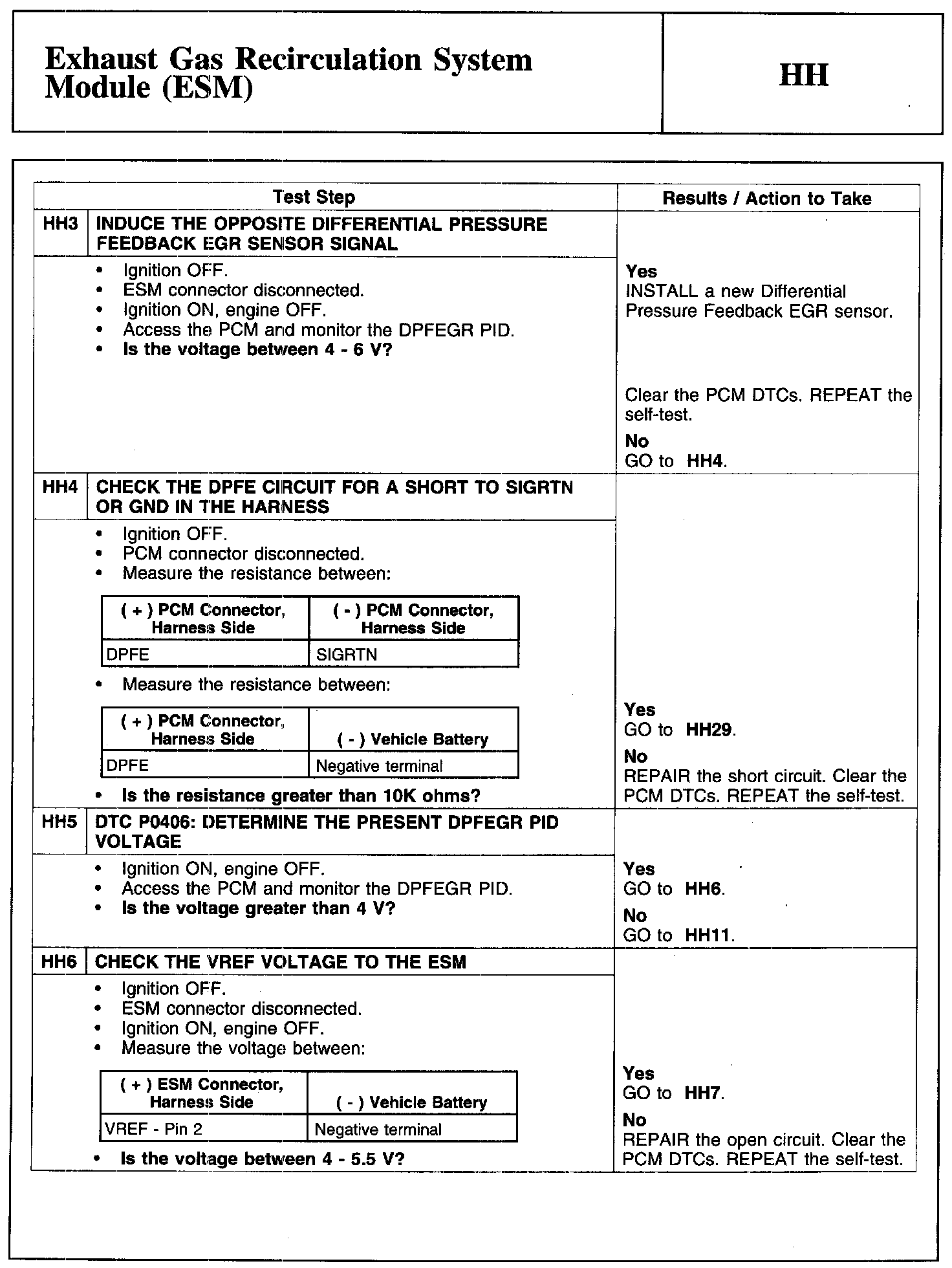

HH3-HH6:

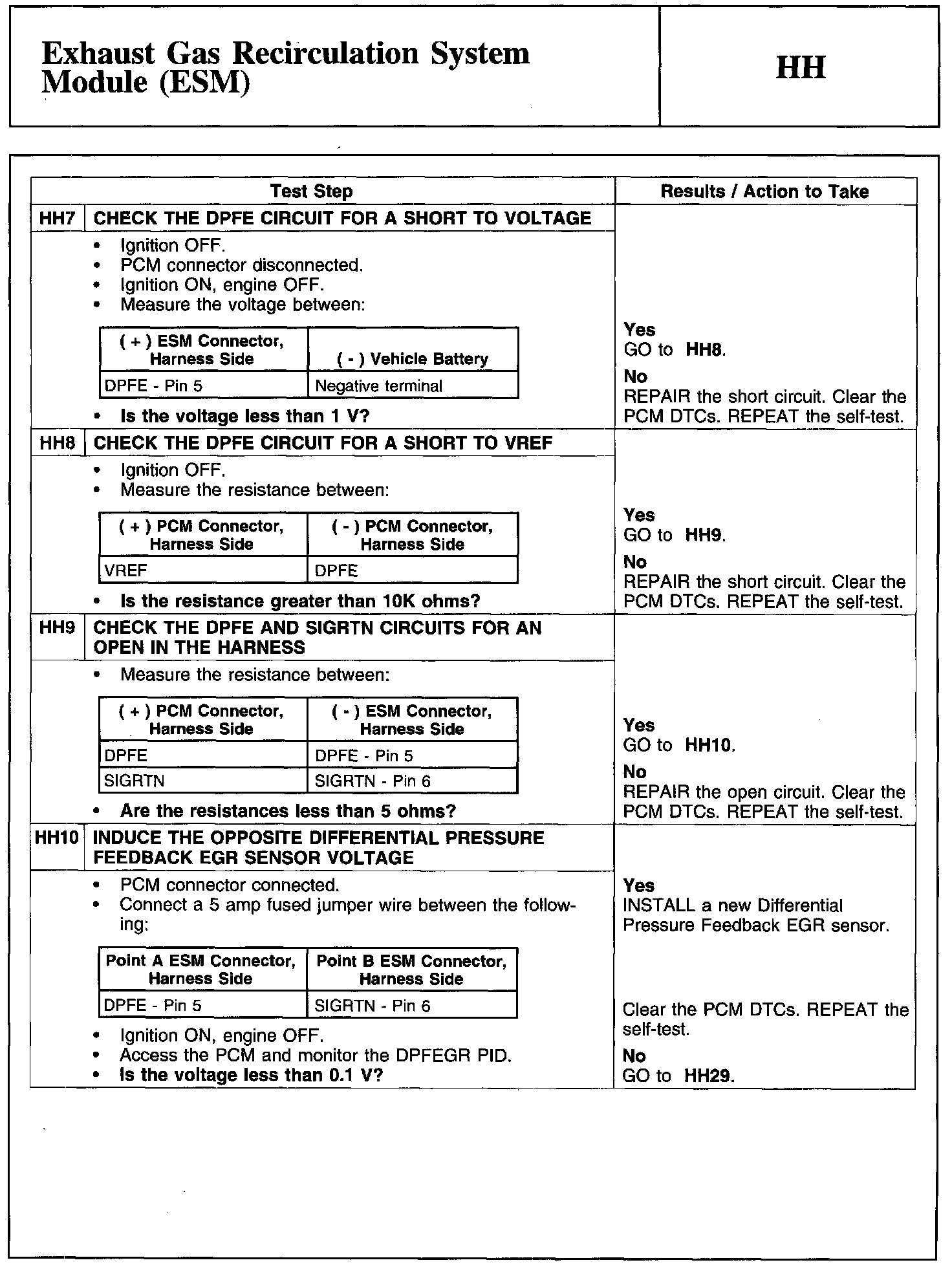

HH7-HH10:

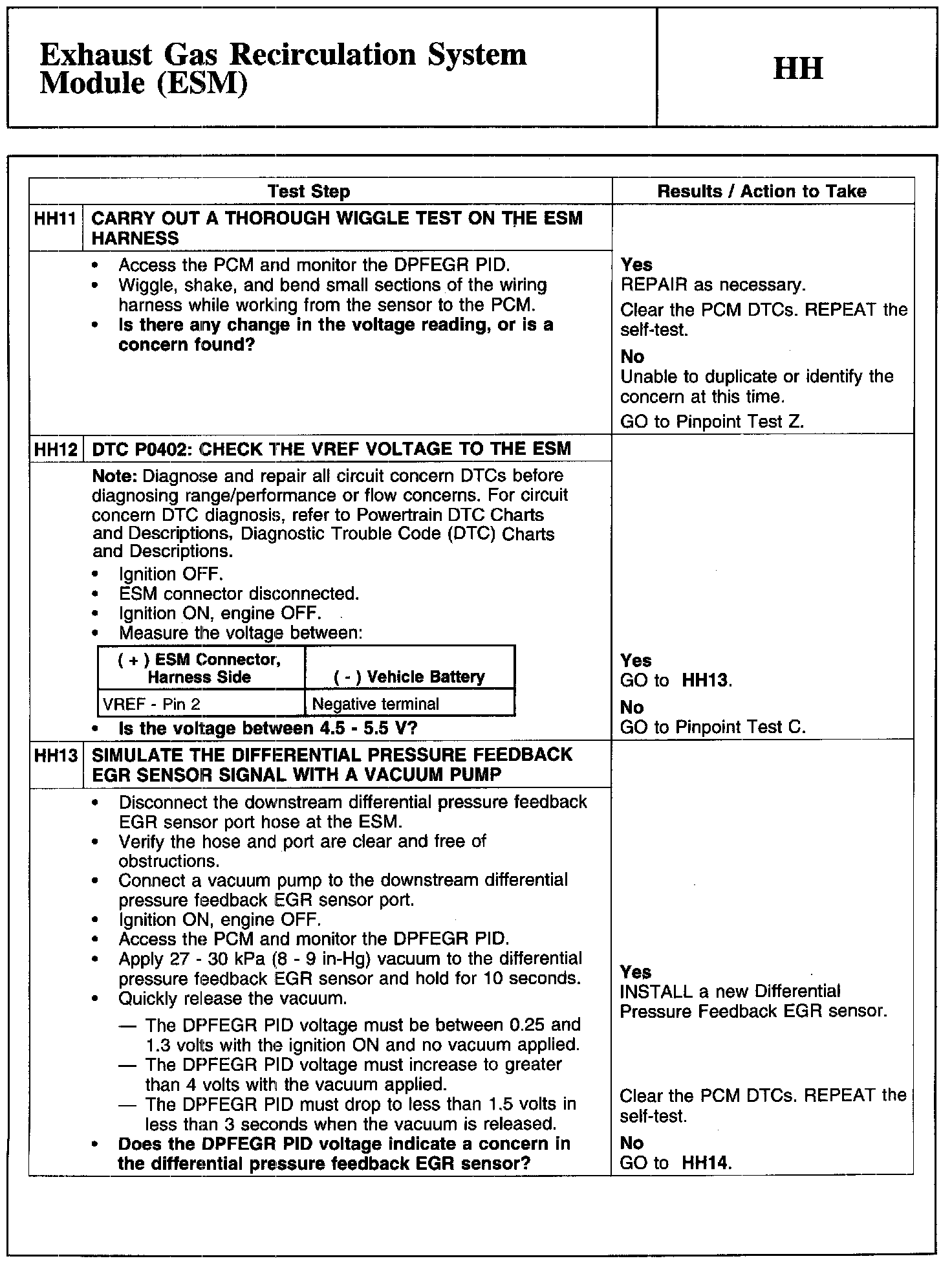

HH11-HH13:

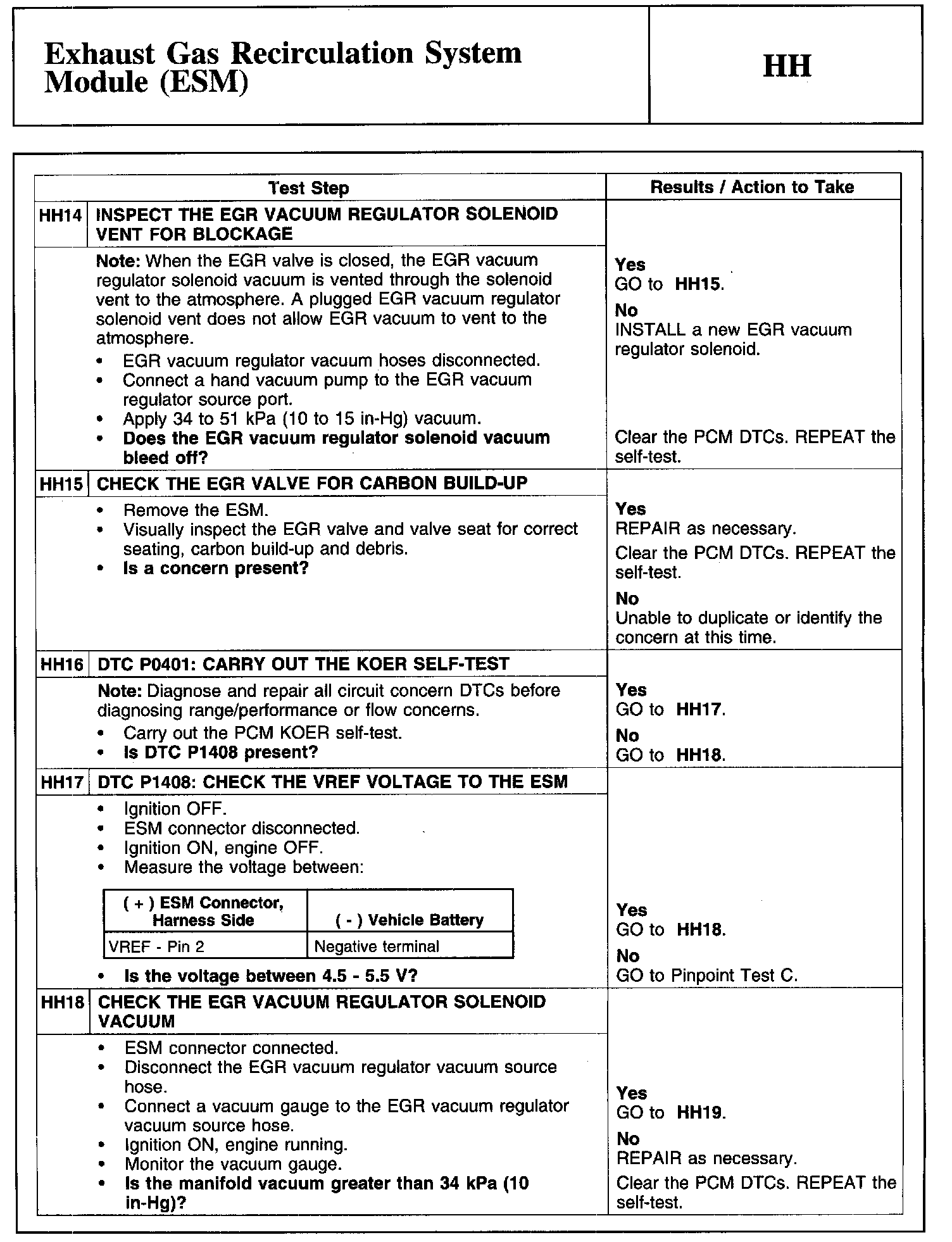

HH14-HH18:

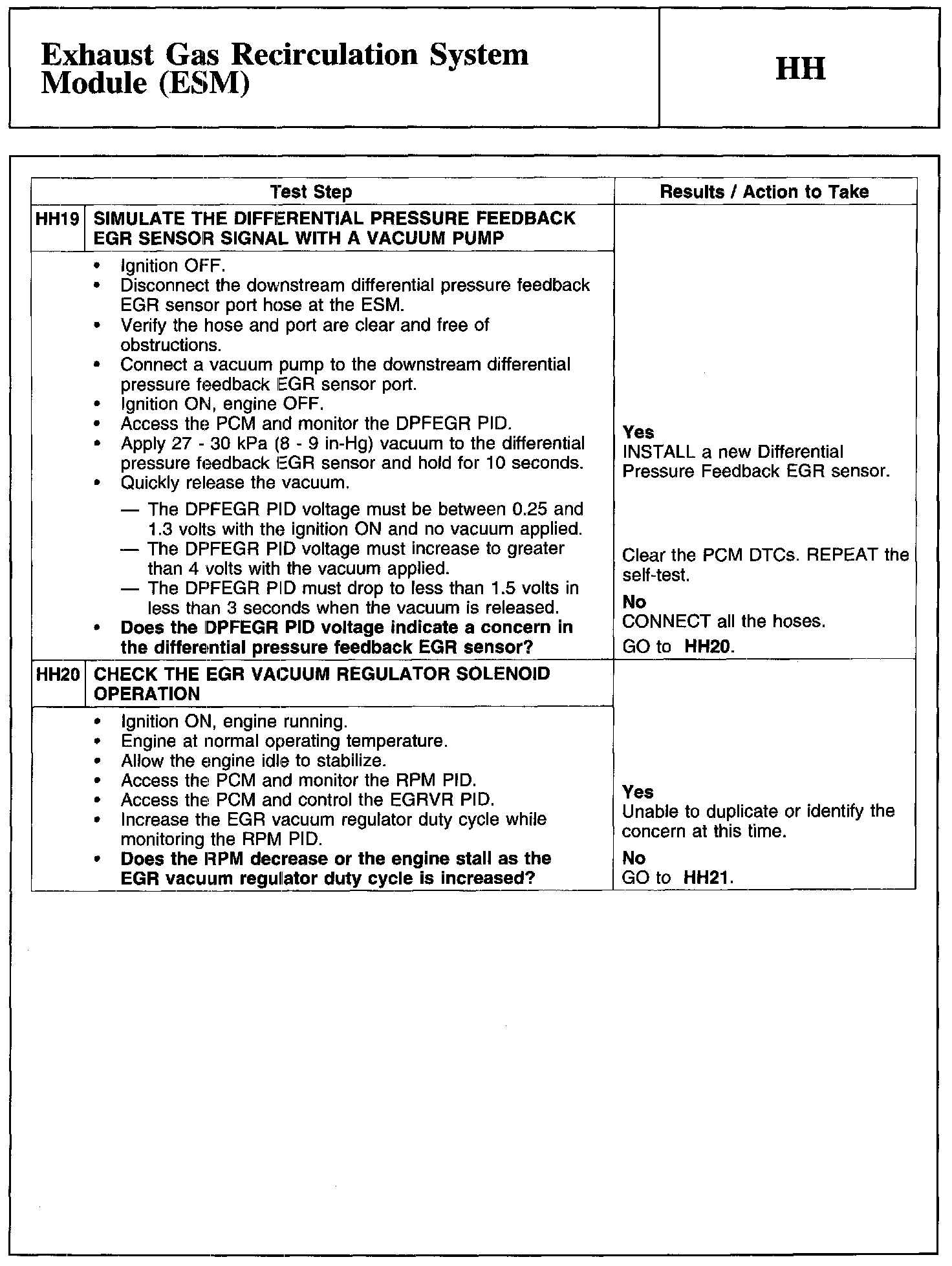

HH19-HH20:

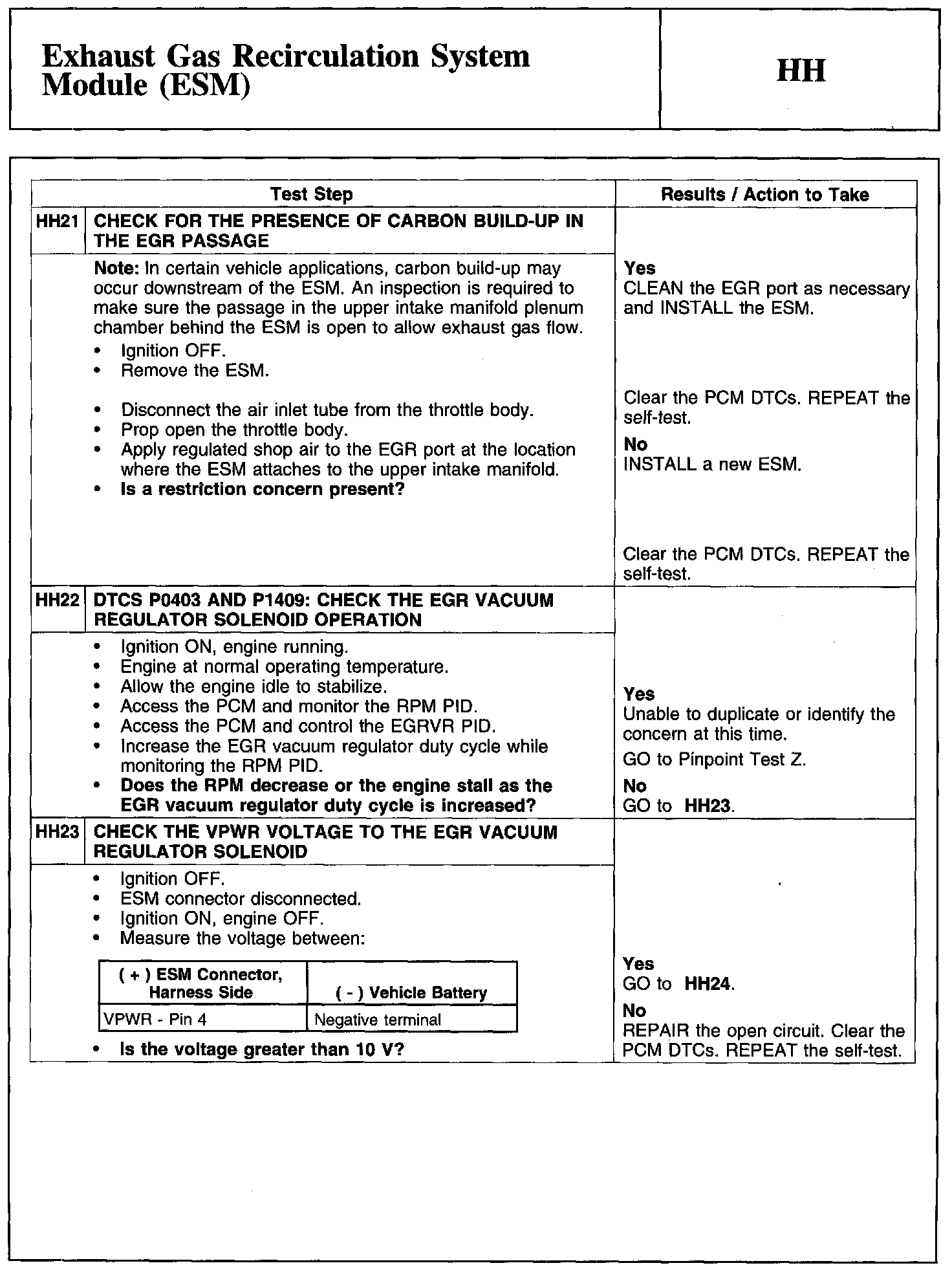

HH21-HH23:
HH24-HH27:

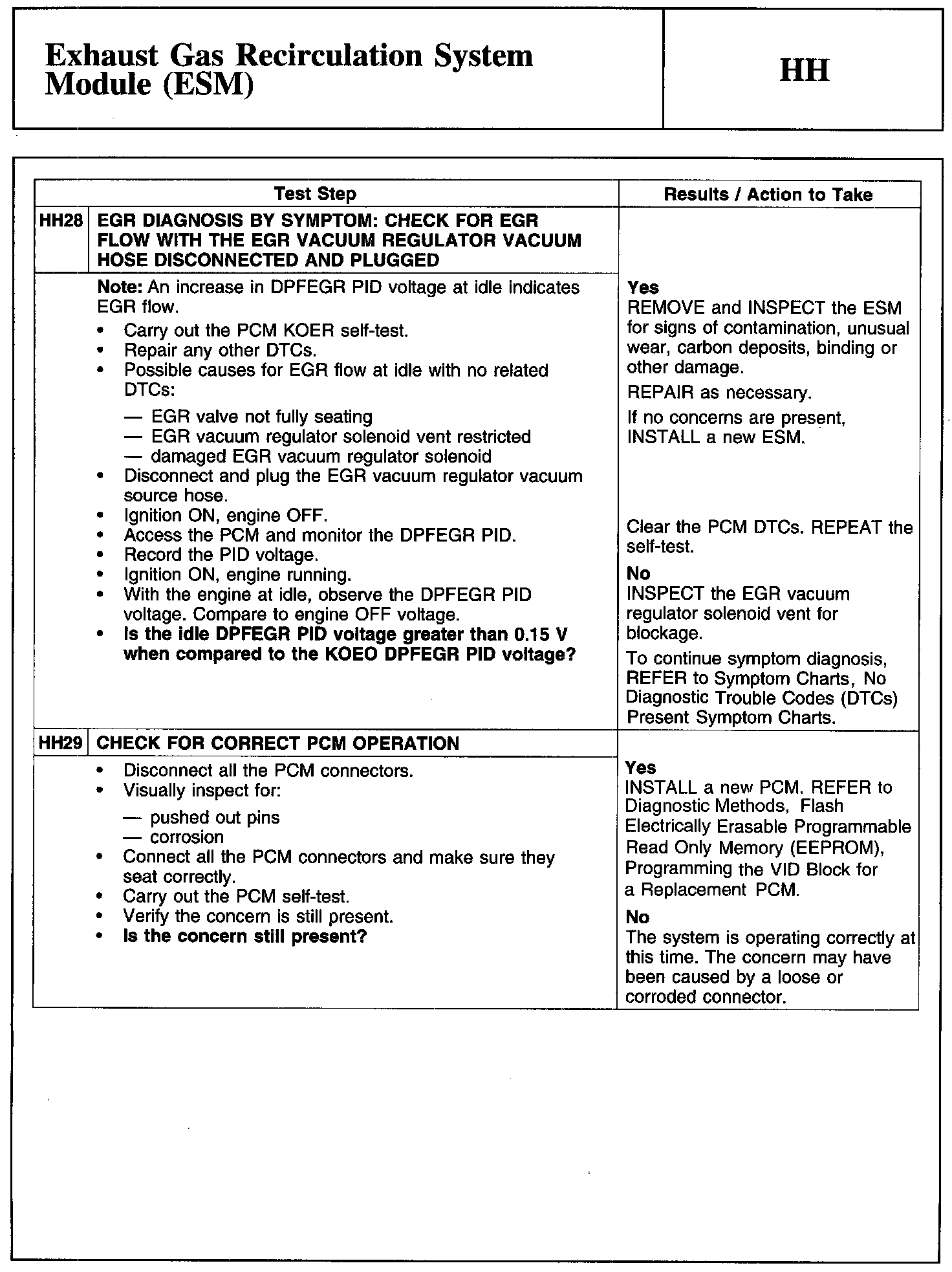

HH28-HH29:
