2010 Ford Ranger 2WD L4-2.3LFACTORY OEM SERVICE PROCEDURE
Air Flow Meter/Sensor: Service and Repair
Mass Air Flow (MAF) Sensor
Removal and Installation

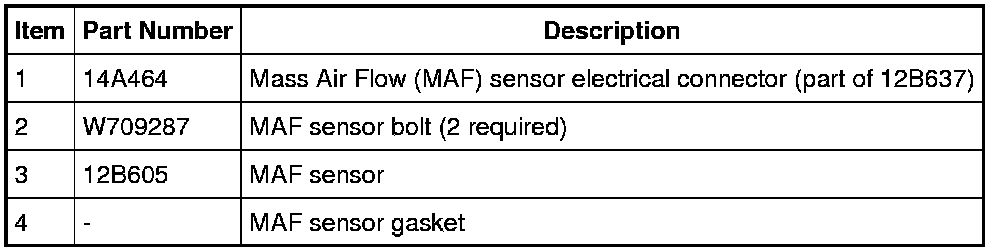

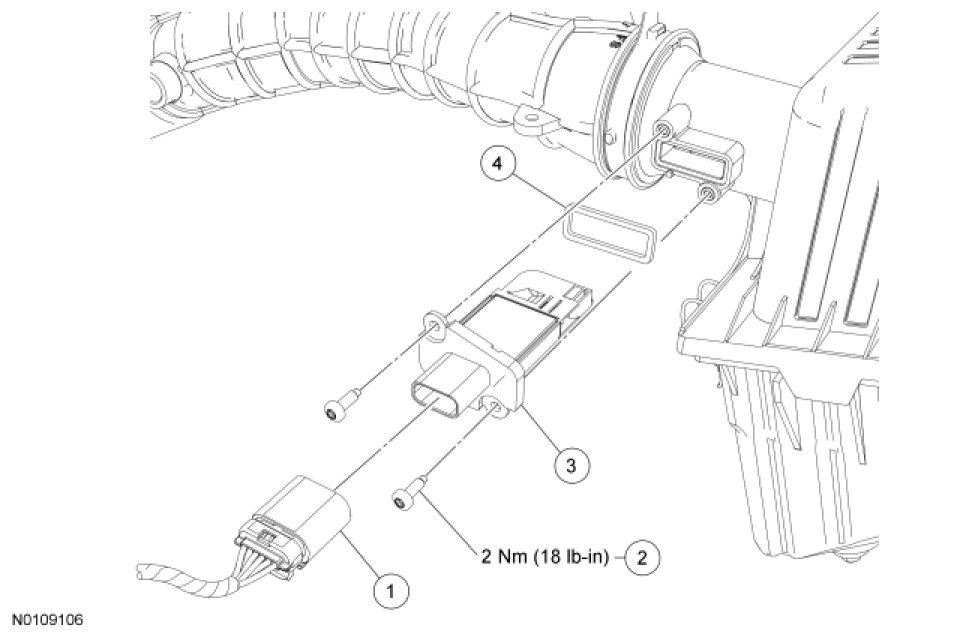

1. Disconnect the Mass Air Flow (MAF) sensor electrical connector.
2. Remove the 2 bolts, the MAF sensor and discard the gasket.
- To install, tighten to 2 Nm (18 lb-in).
3. NOTICE: Do not tamper with the Mass Air Flow (MAF) sensing elements located in the airflow bypass. Tampering may result in failure.
NOTE: The MAF sensor module and body are calibrated and installed as a unit.
To install, reverse the removal procedure.
- Install a new gasket.
