2010 Ford Crown Victoria V8-4.6L Flex FuelFACTORY OEM SERVICE PROCEDURE
Test DN: Pressure And Temperature Sensors
PINPOINT TEST DN: PRESSURE AND TEMPERATURE SENSORS

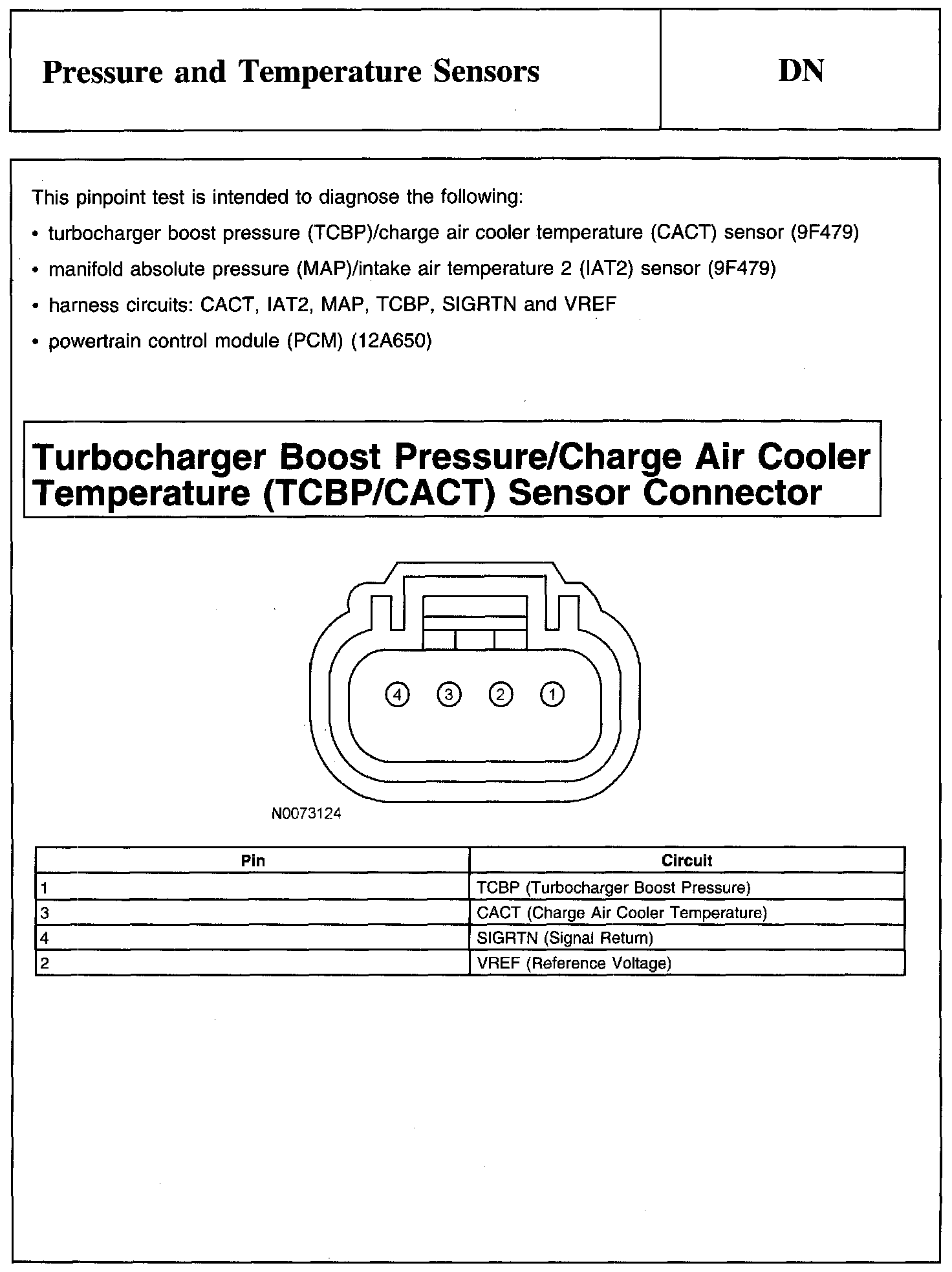

Turbocharger Boost Pressure/Charge Air Cooler Temperature (TCBP/CACT) Sensor Connector:

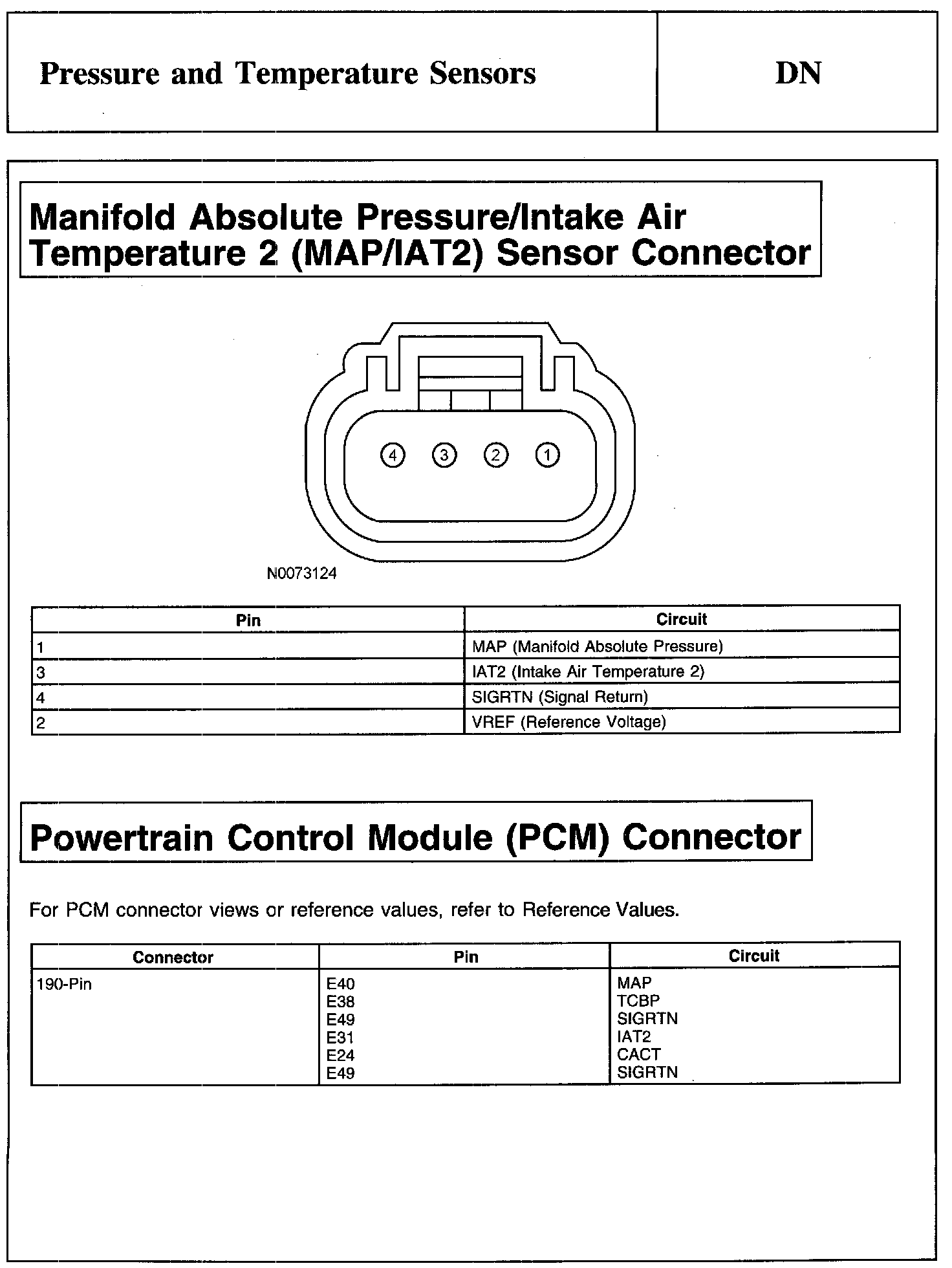

Manifold Absolute Pressure/Intake Air Temperature 2 (MAP/IAT2) Sensor Connector And Powertrain Control Module (PCM) Connector:

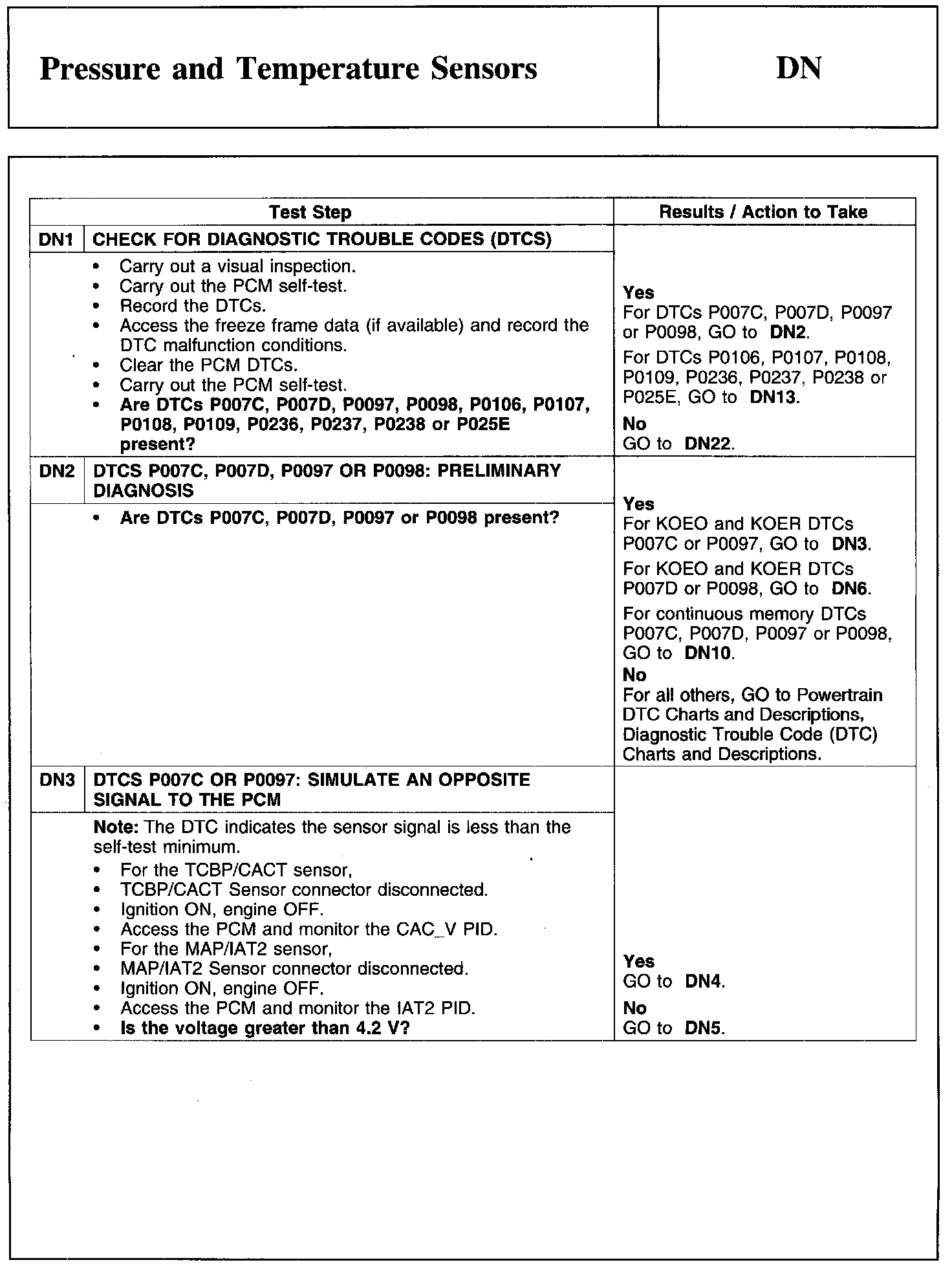

DN1-DN3:

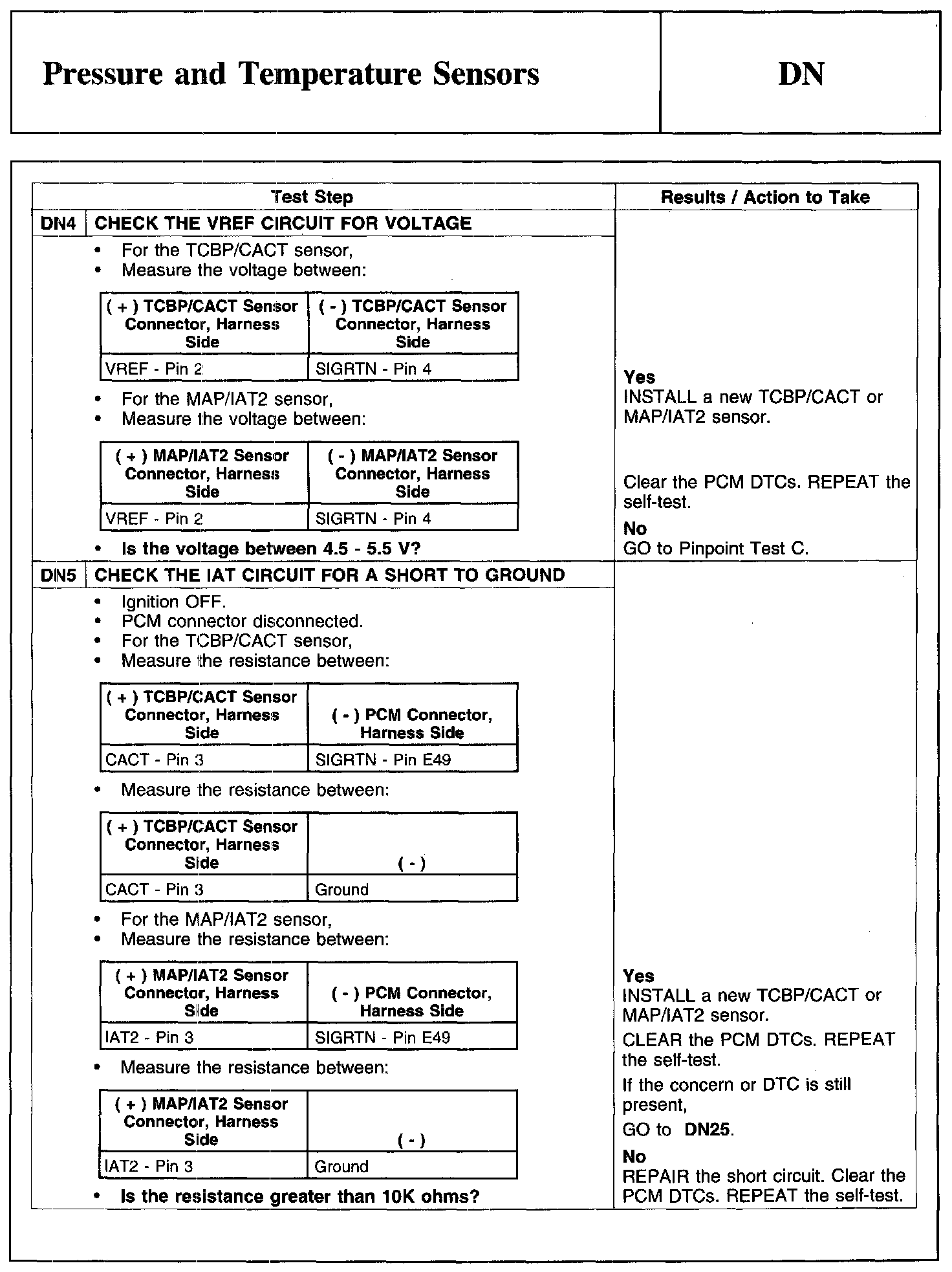

DN4-DN5:

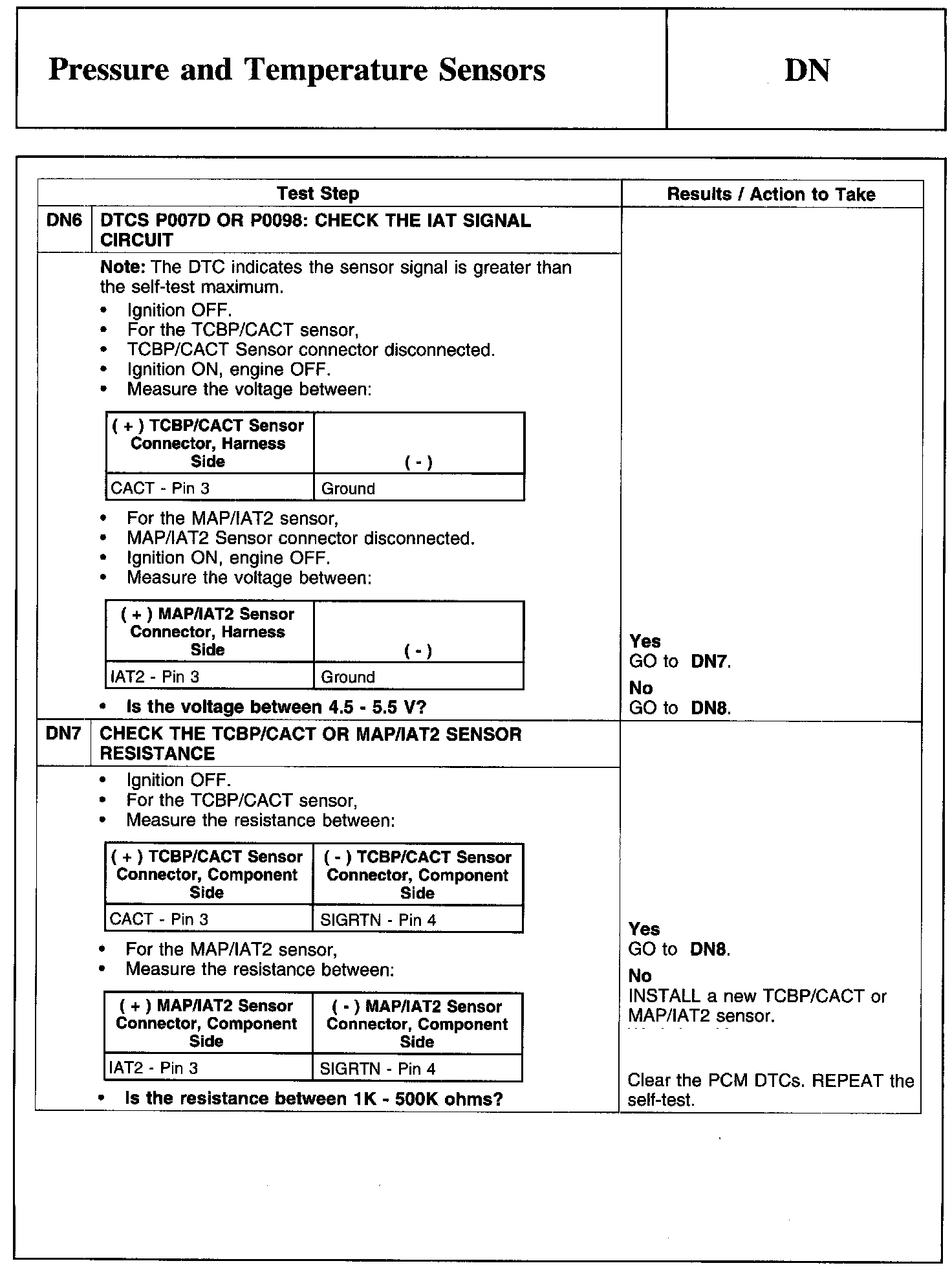

DN6-DN7:

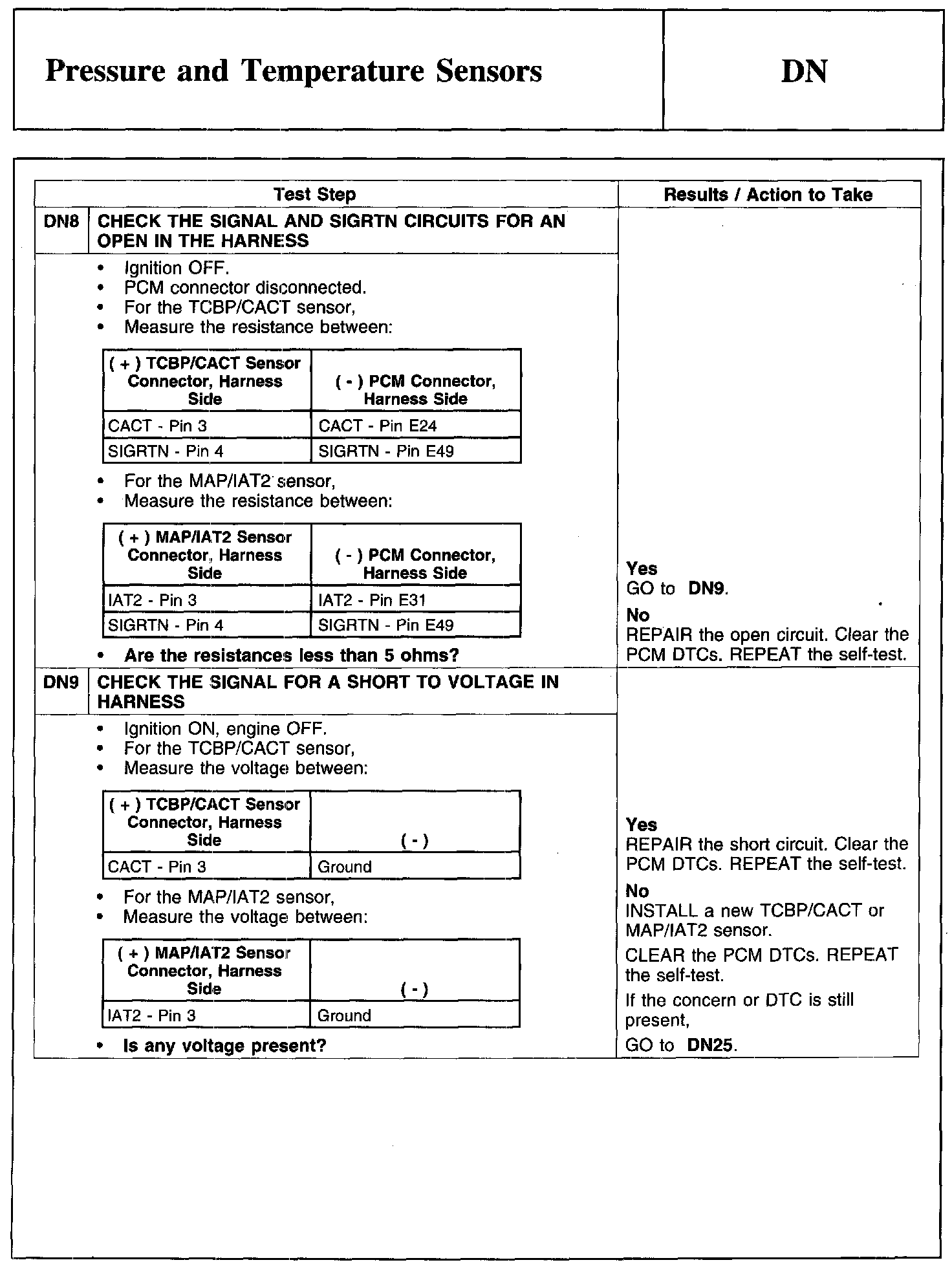

DN8-DN9:

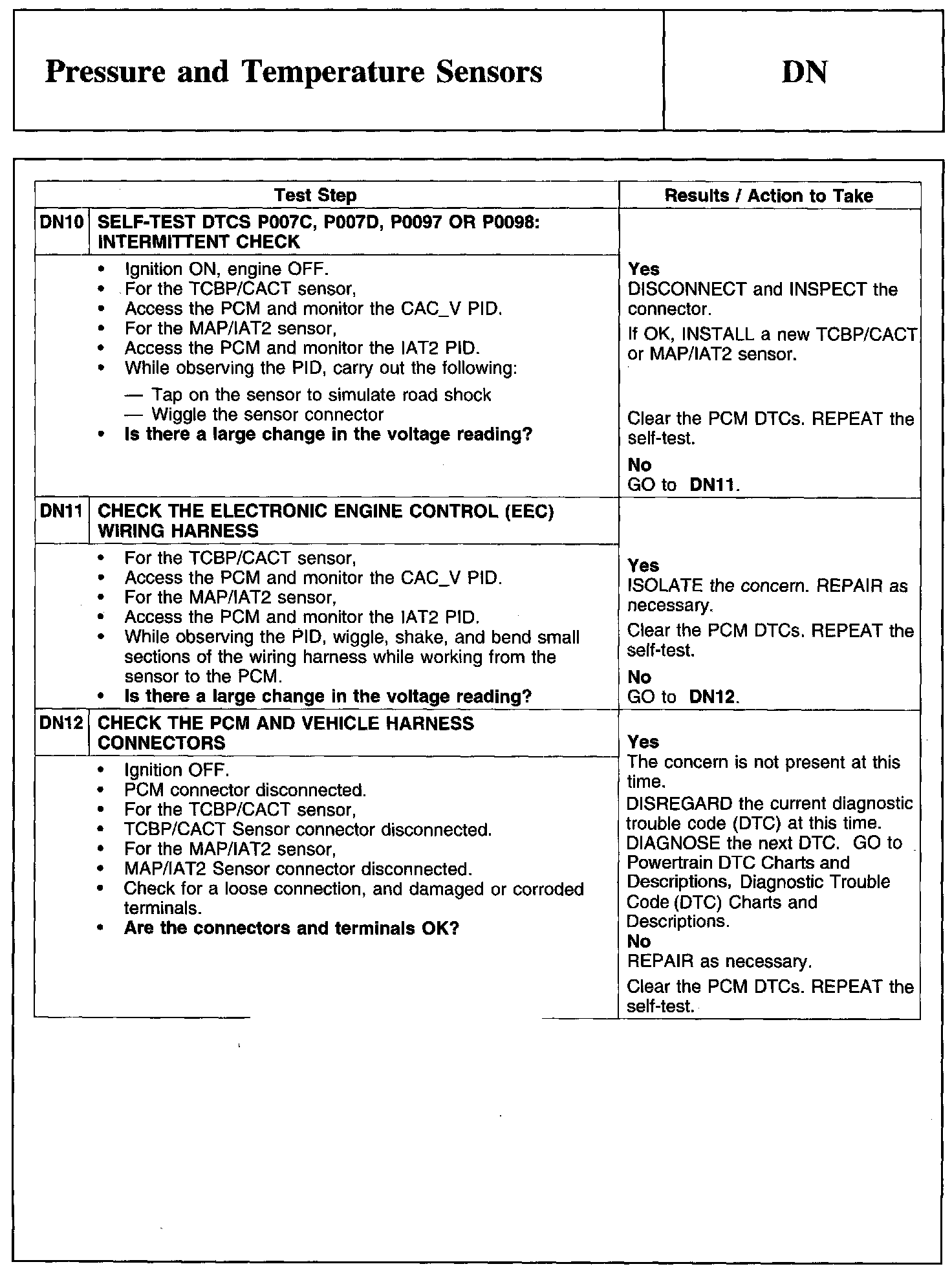

DN10-DN12:

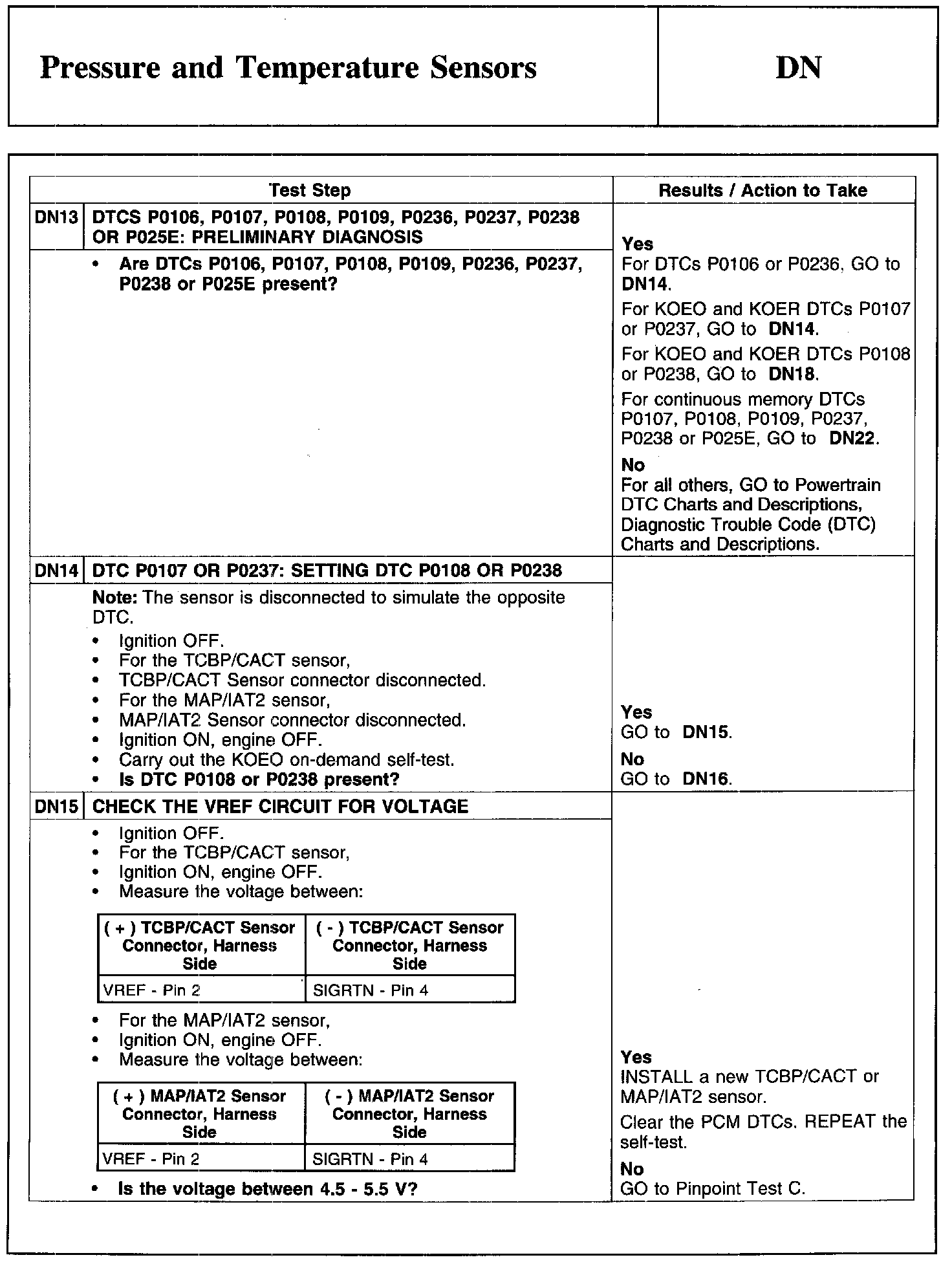

DN13-DN15:

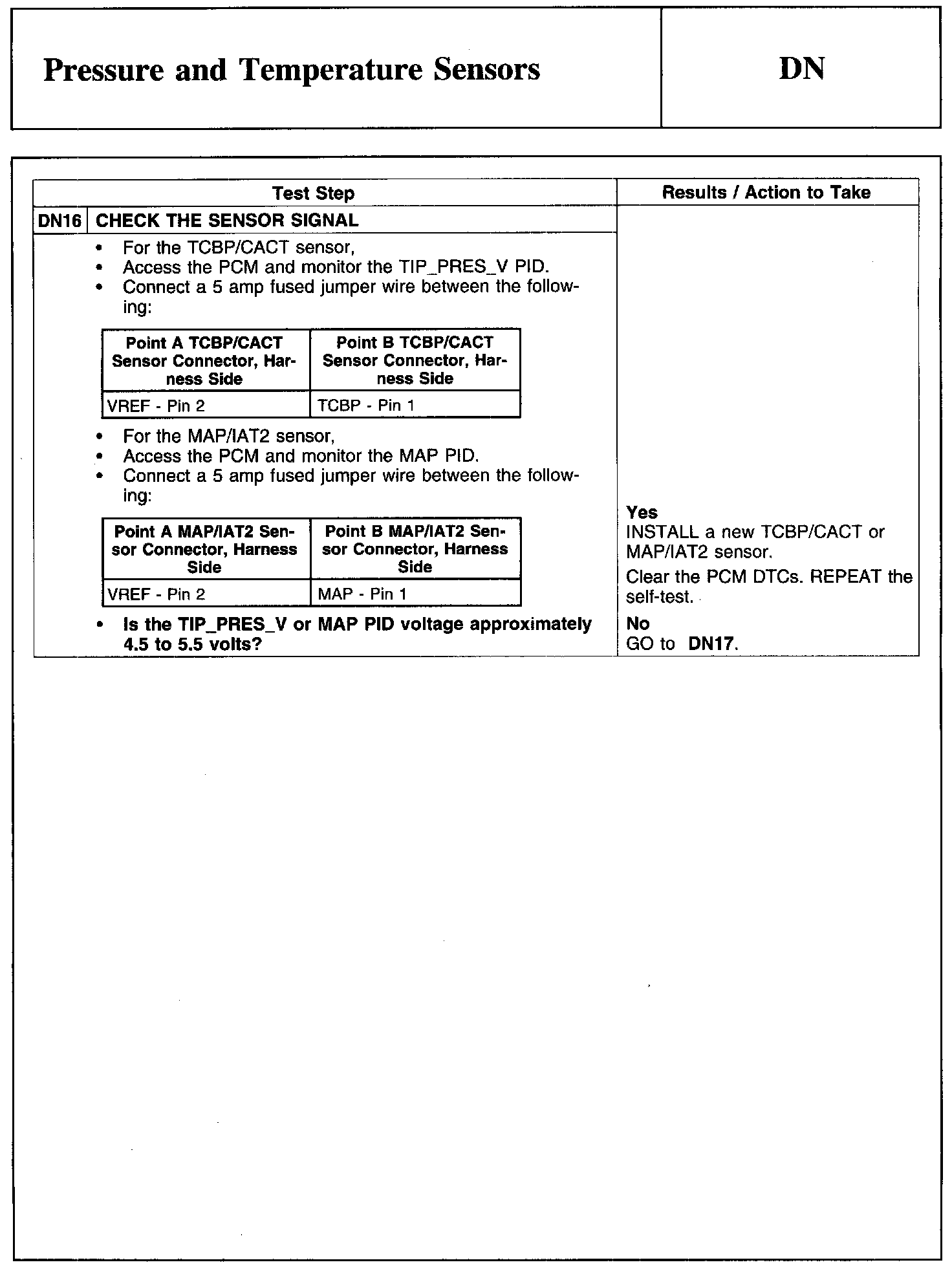

DN16:

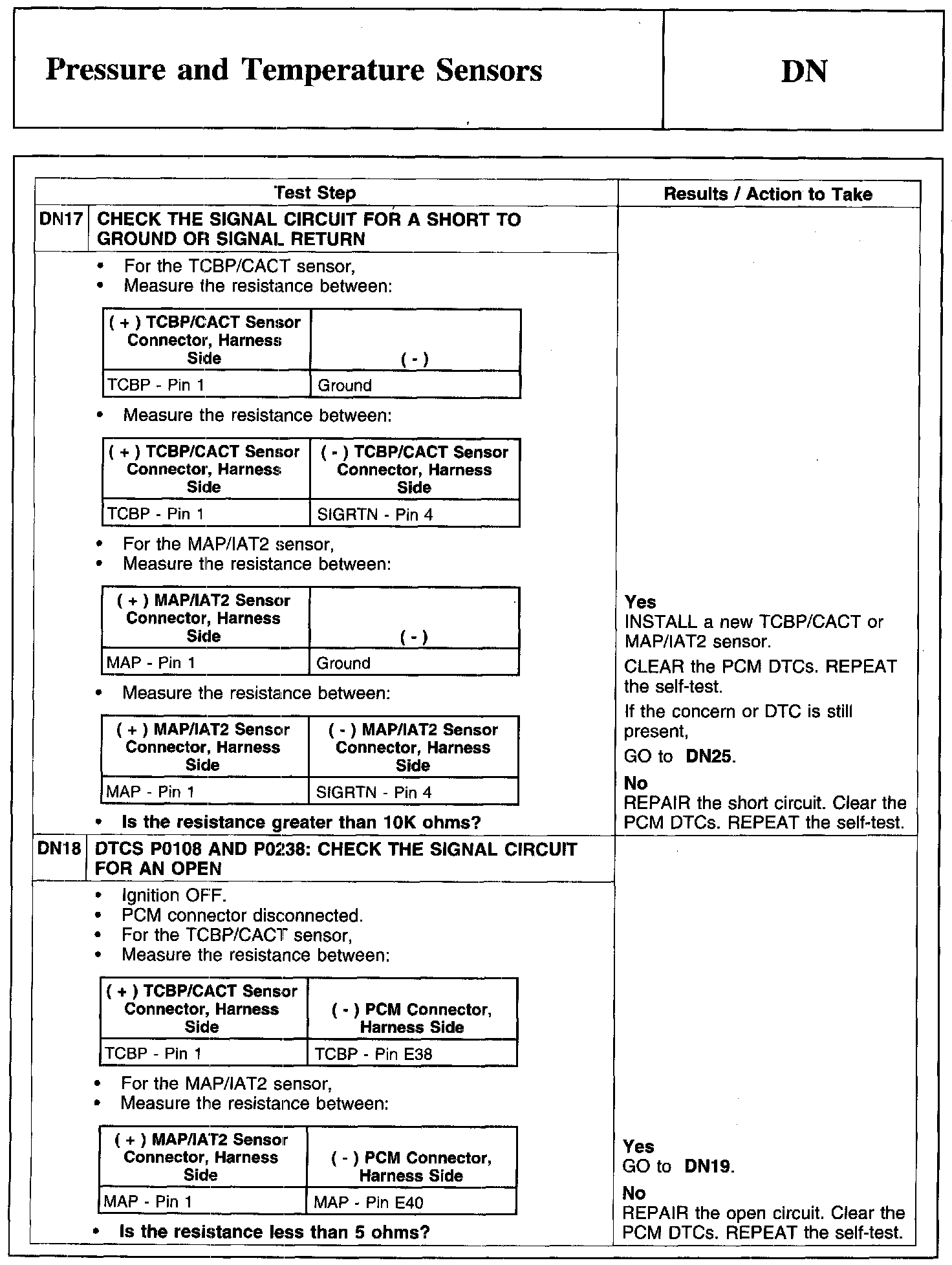

DN17-DN18:

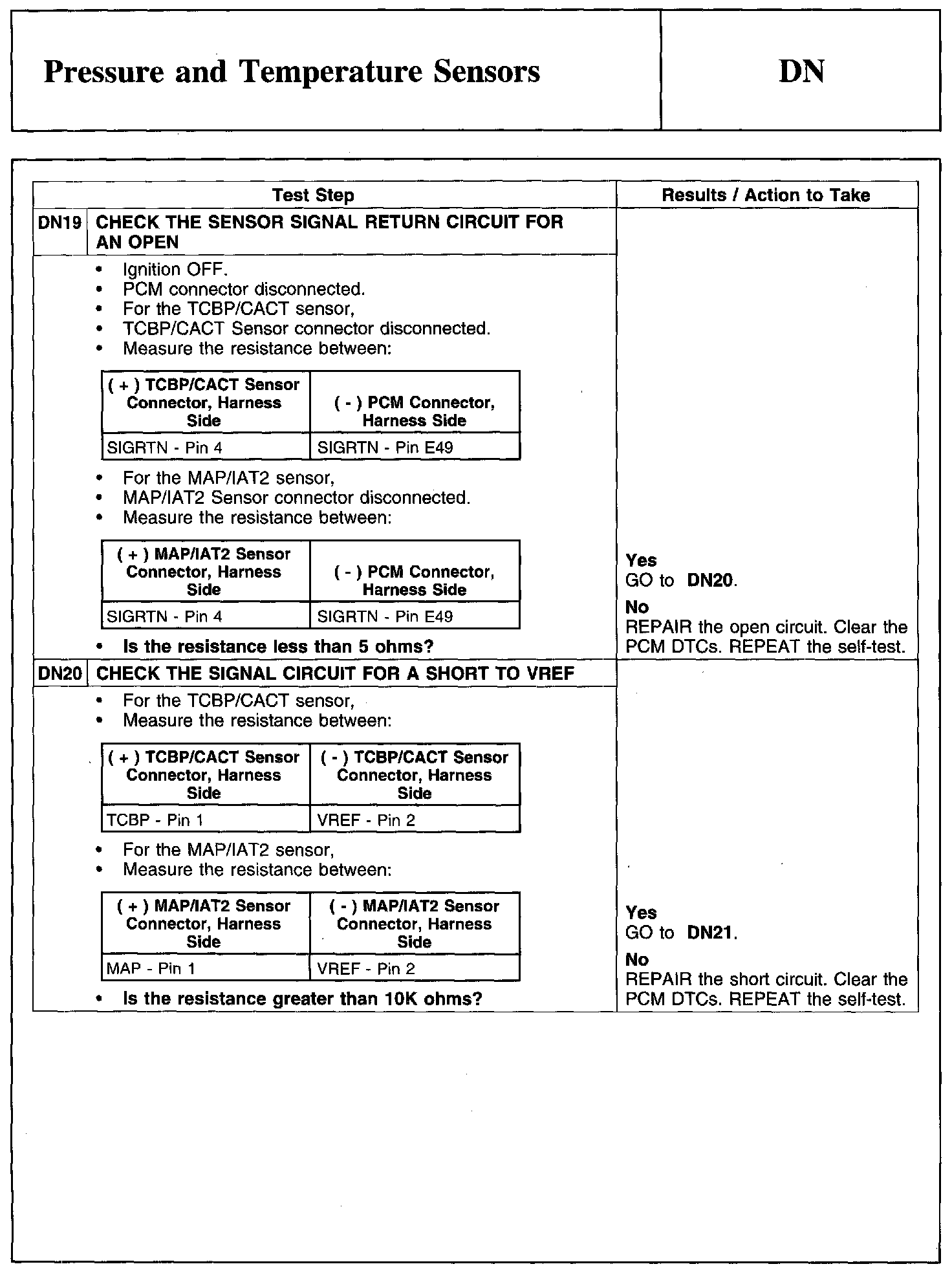

DN19-DN20:

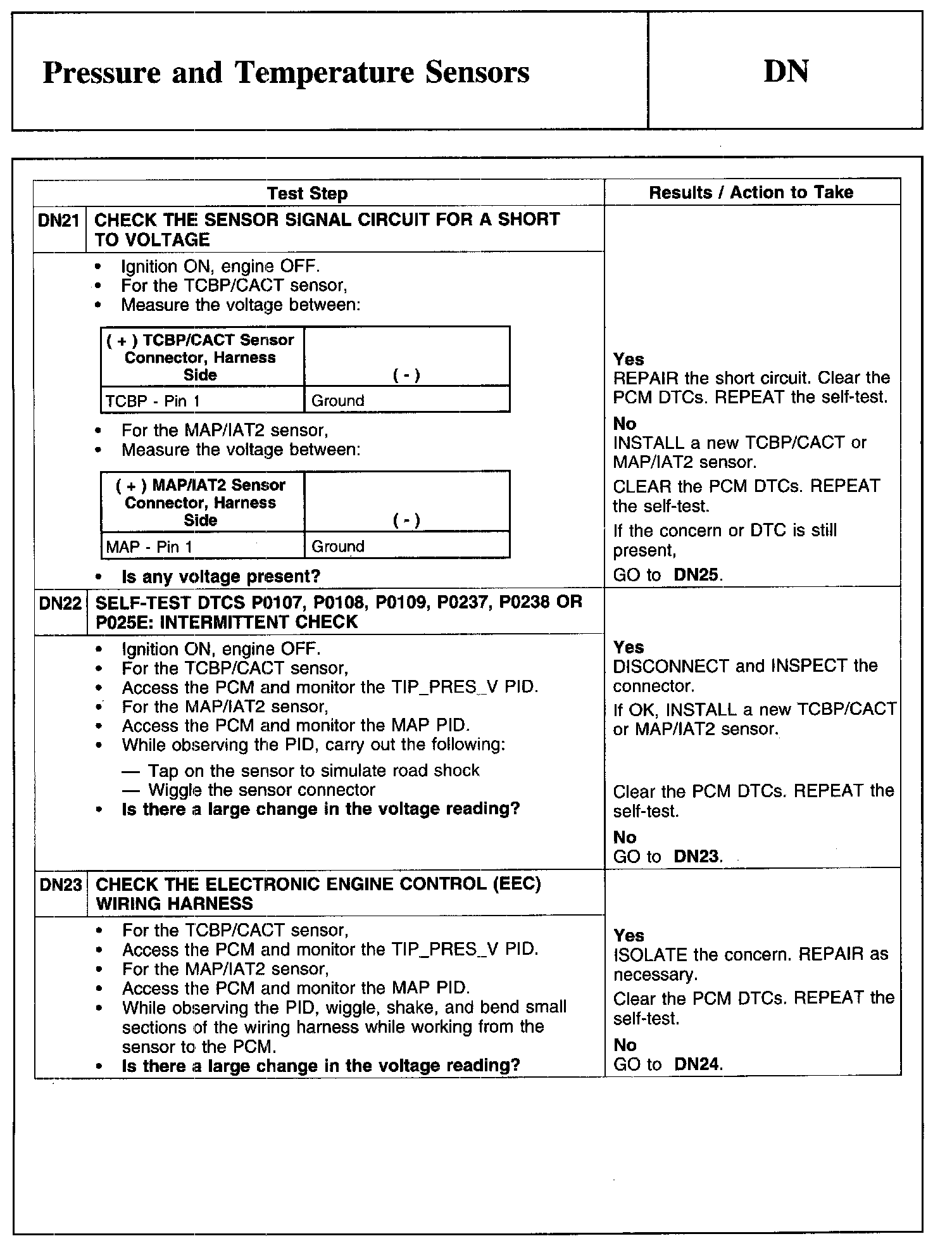

DN21-DN23:

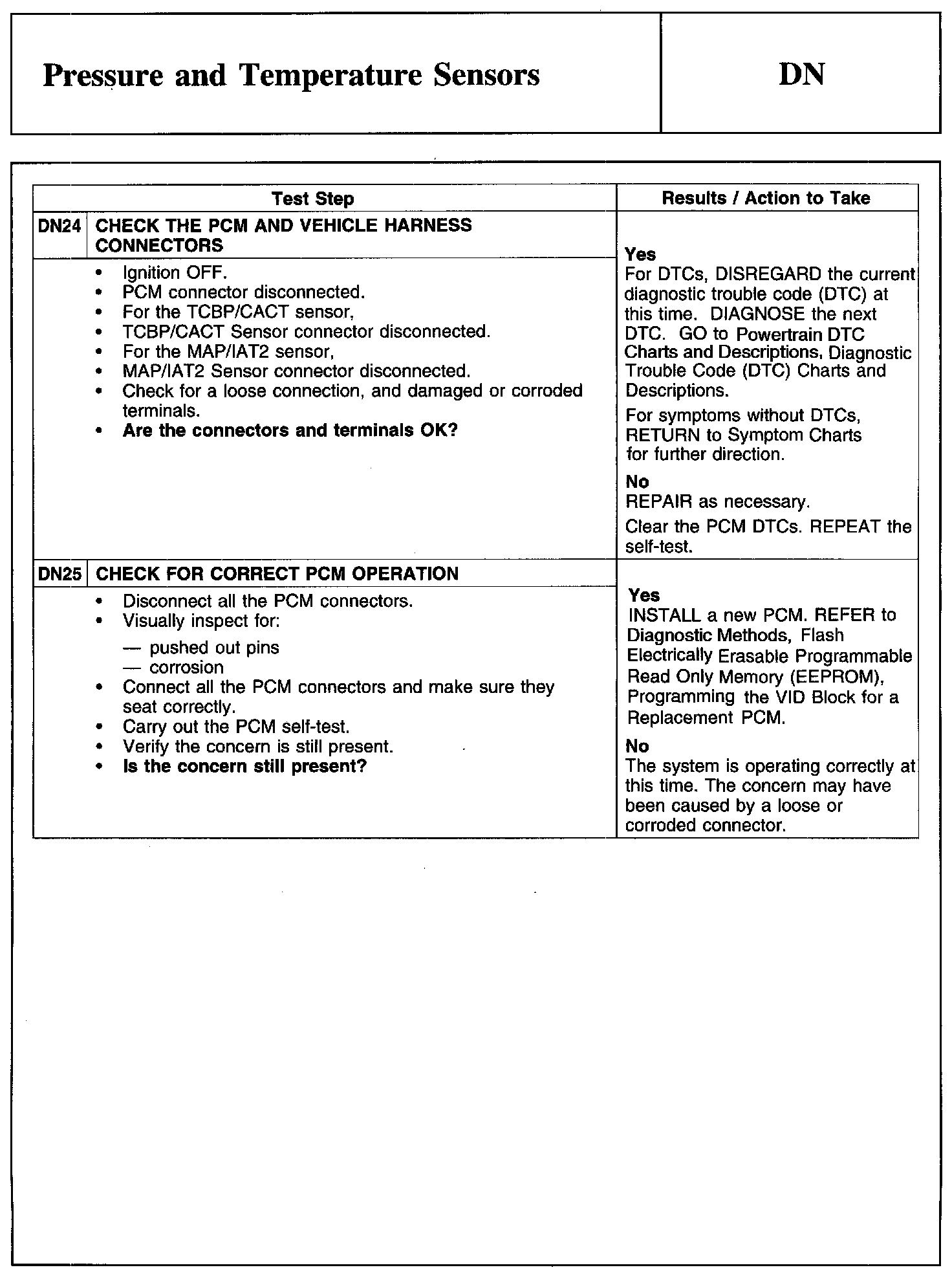

DN24-DN25:
