2010 Ford Crown Victoria V8-4.6L Flex FuelFACTORY OEM SERVICE PROCEDURE
Engine Control Module: Service and Repair
Powertrain Control Module (PCM)
Removal
1. NOTE: Any PCM replacement will require that ALL customer keys are available to be programmed at the time of installation. PCM replacement DOES NOT require new keys.
Retrieve the module configuration. Carry out the module configuration retrieval steps of the Programmable Module Installation (PMI) procedure. For additional information, refer to Information Bus. Programming and Relearning

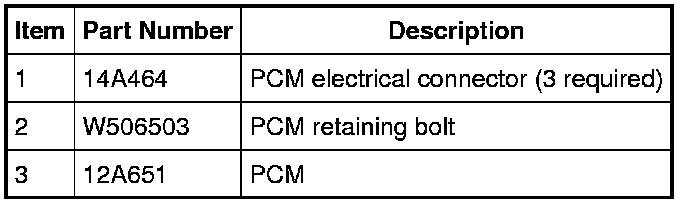

2. Release the clips and disconnect the 3 PCM electrical connectors.

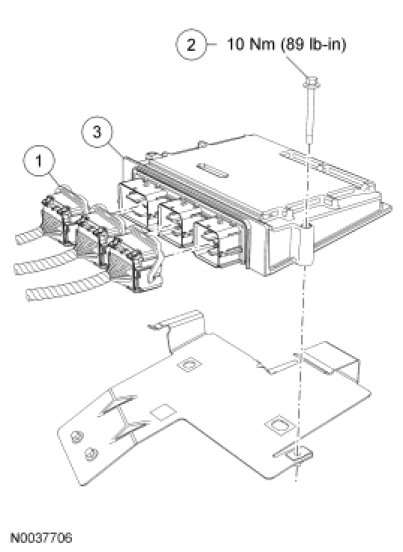

3. Remove the bolt and the PCM.
Installation
1. Install the PCM and the bolt.
- Tighten to 10 Nm (89 lb-in).
2. Connect the 3 PCM electrical connectors and install the clips.
3. Restore the module configuration. Carry out the module configuration restore steps of the Programmable Module Installation (PMI) procedure. For additional information, refer to Information Bus. Programming and Relearning
4. Reprogram the Passive Anti-Theft System (PATS). Carry out the Key Programming Using Two Programmed Keys procedure. For additional information, refer to Antitheft and Alarm Systems. Using Two Programmed Keys
