2009 Ford Mustang V8-5.4L SCFACTORY OEM SERVICE PROCEDURE
KB - Fuel Pump Driver Module
PINPOINT TEST KB: FUEL PUMP DRIVER MODULE

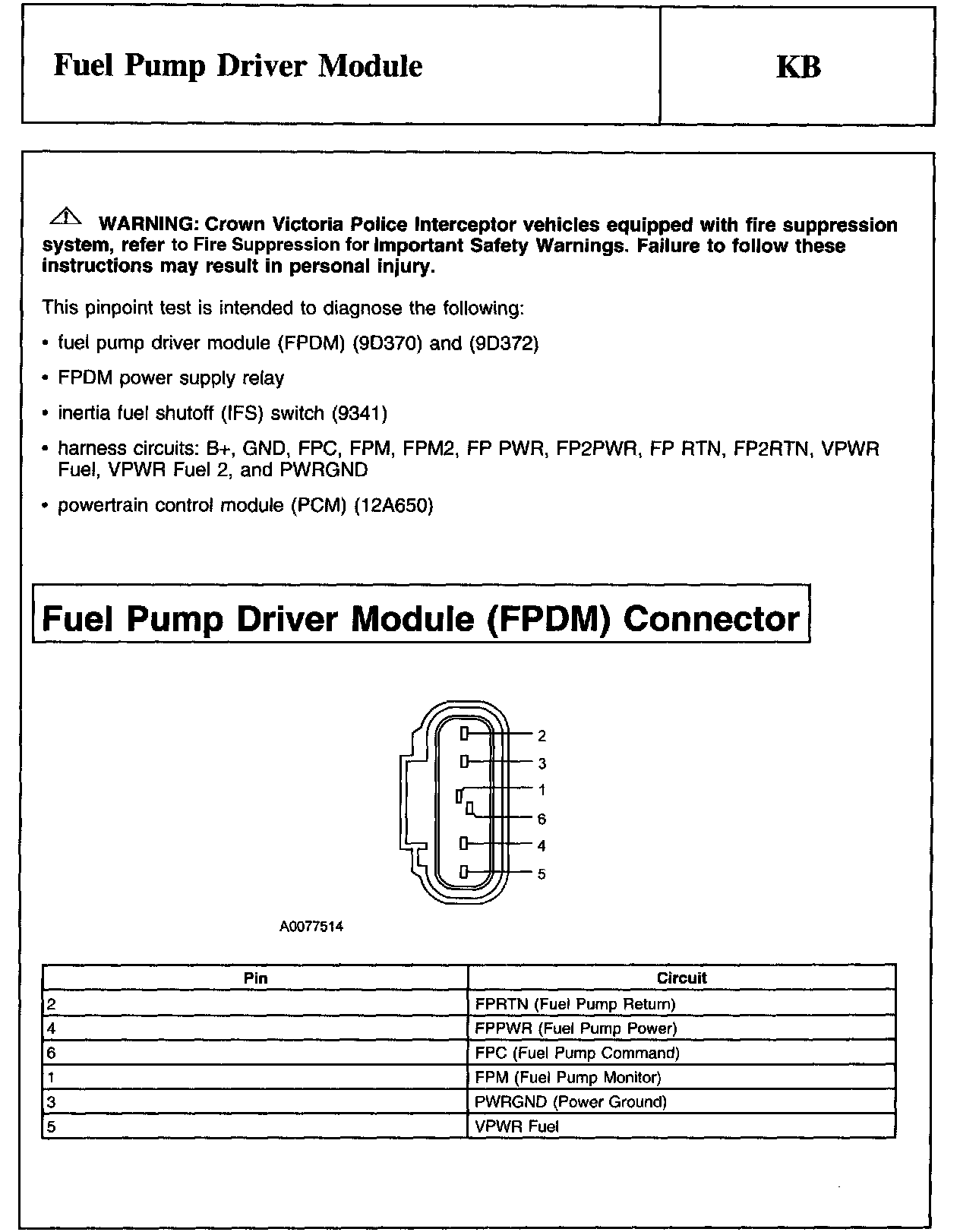

WARNING And Fuel Pump Driver Module Connector:

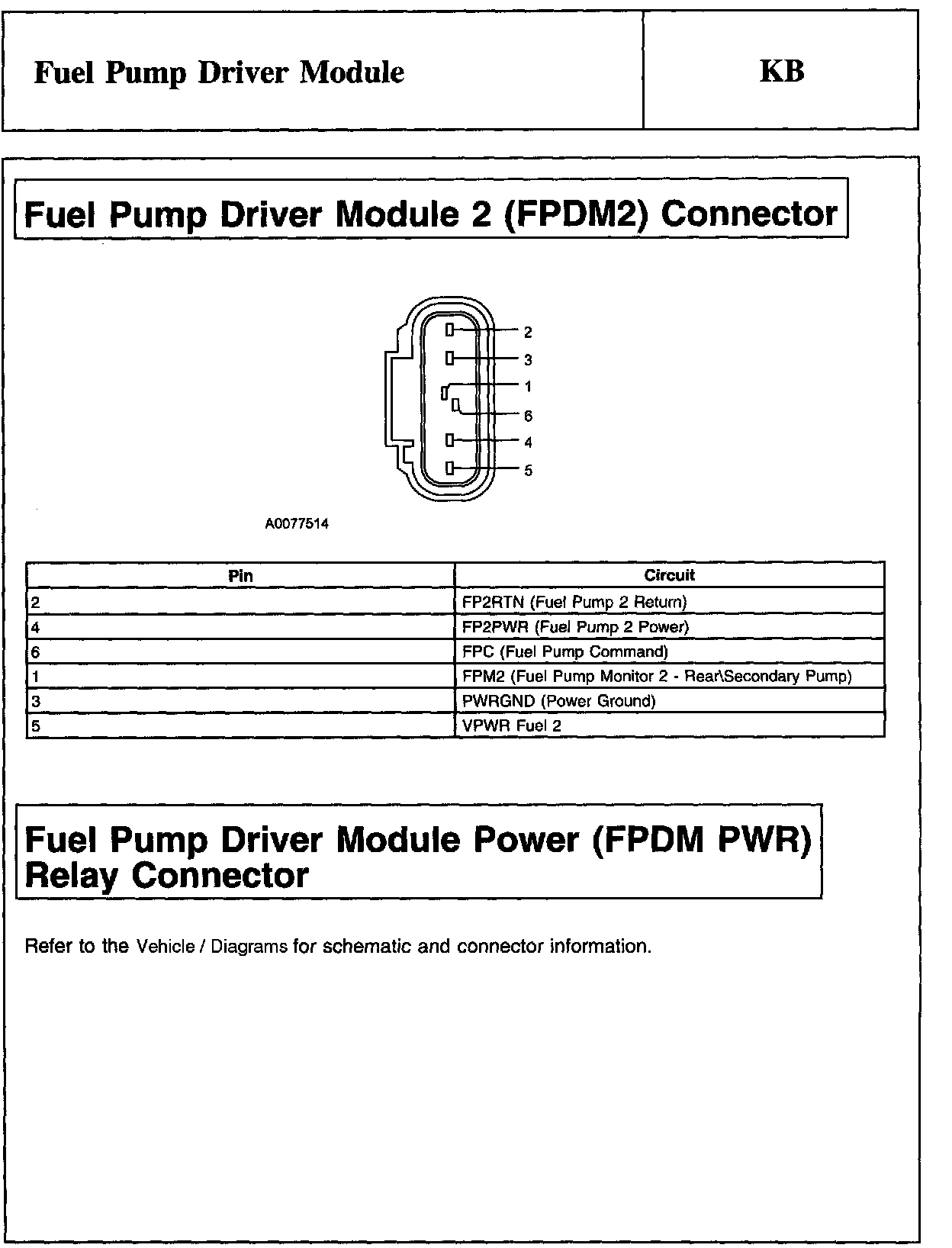

Fuel Pump Driver Module 2 And Fuel Pump Driver Module Power Relay Connector:

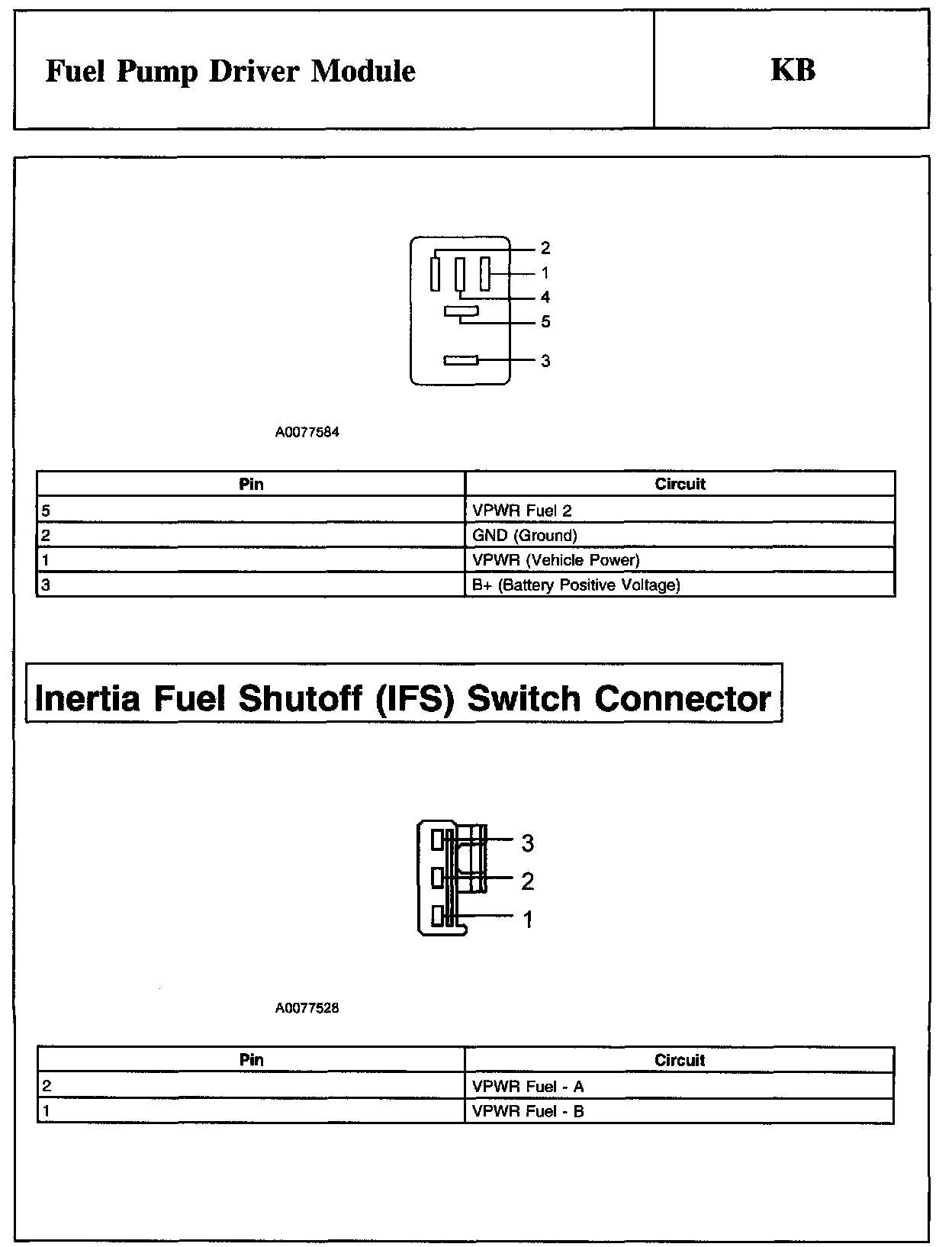

Fuel Pump Driver Module 2 Power Relay Connector:
Inertia Fuel Shutoff Switch Connector:

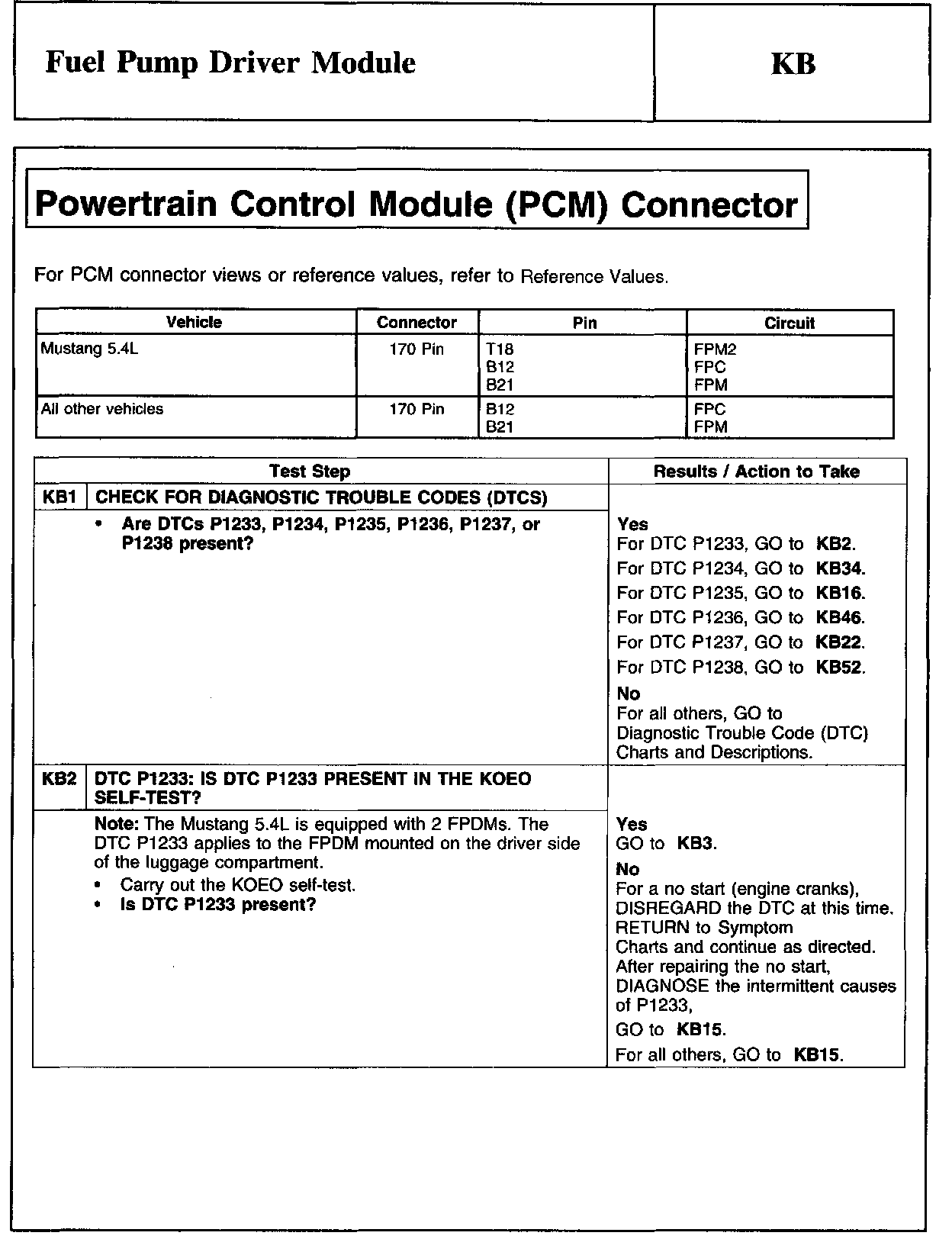

KB1-KB2:

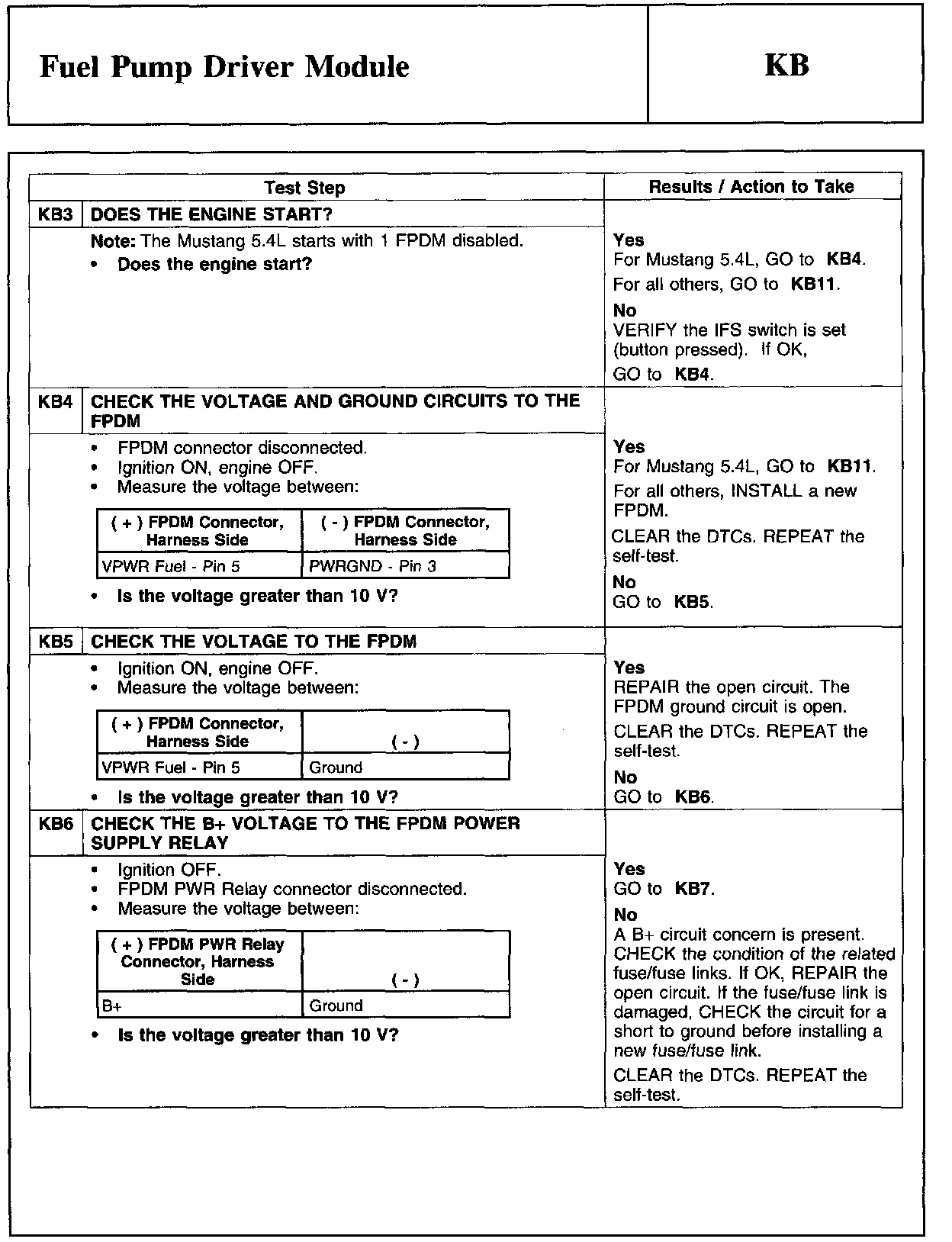

KB3-KB6:

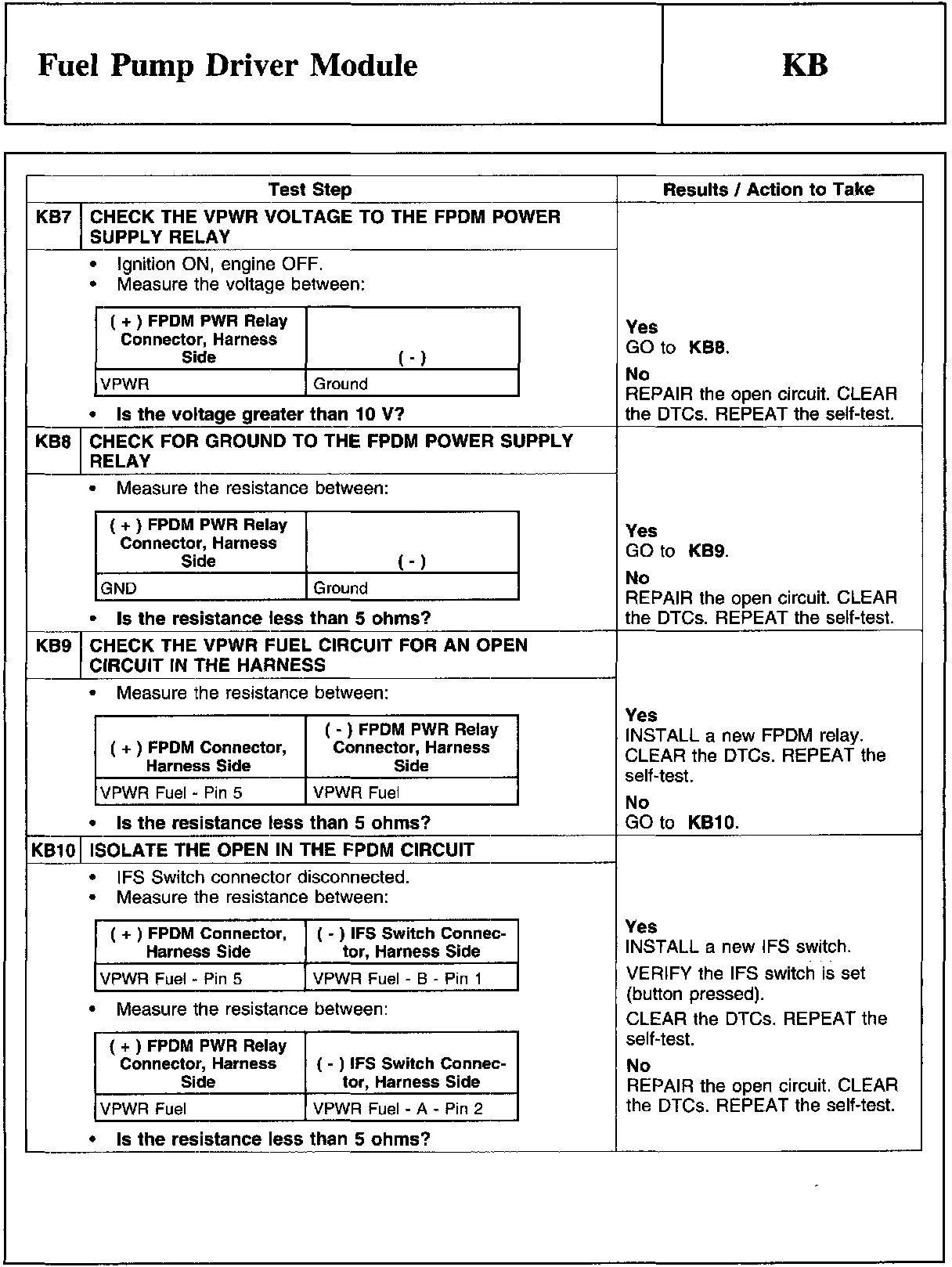

KB7-KB10:
KB11-KB14:
KB15-KB17:

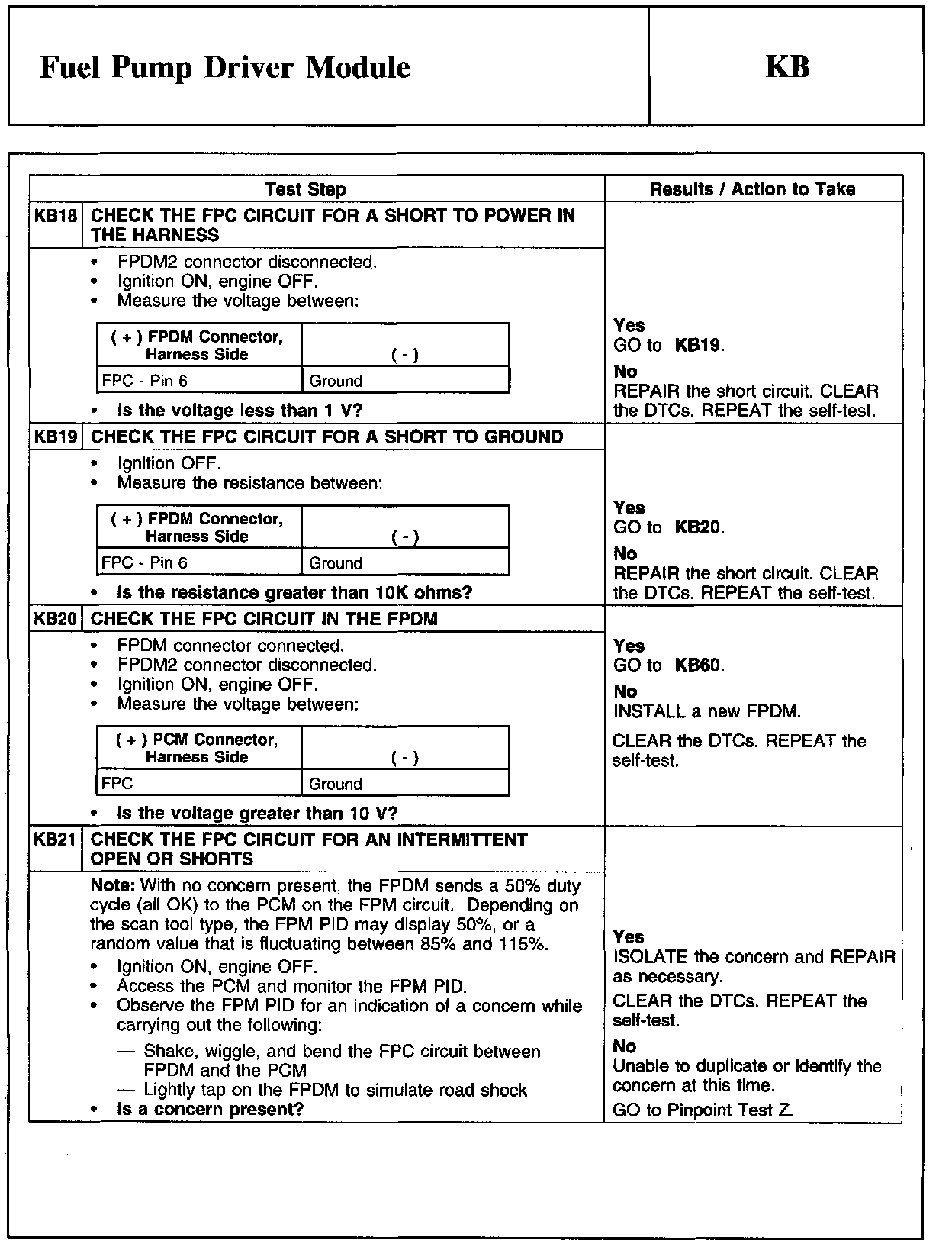

KB18-KB21:
KB22-KB26:

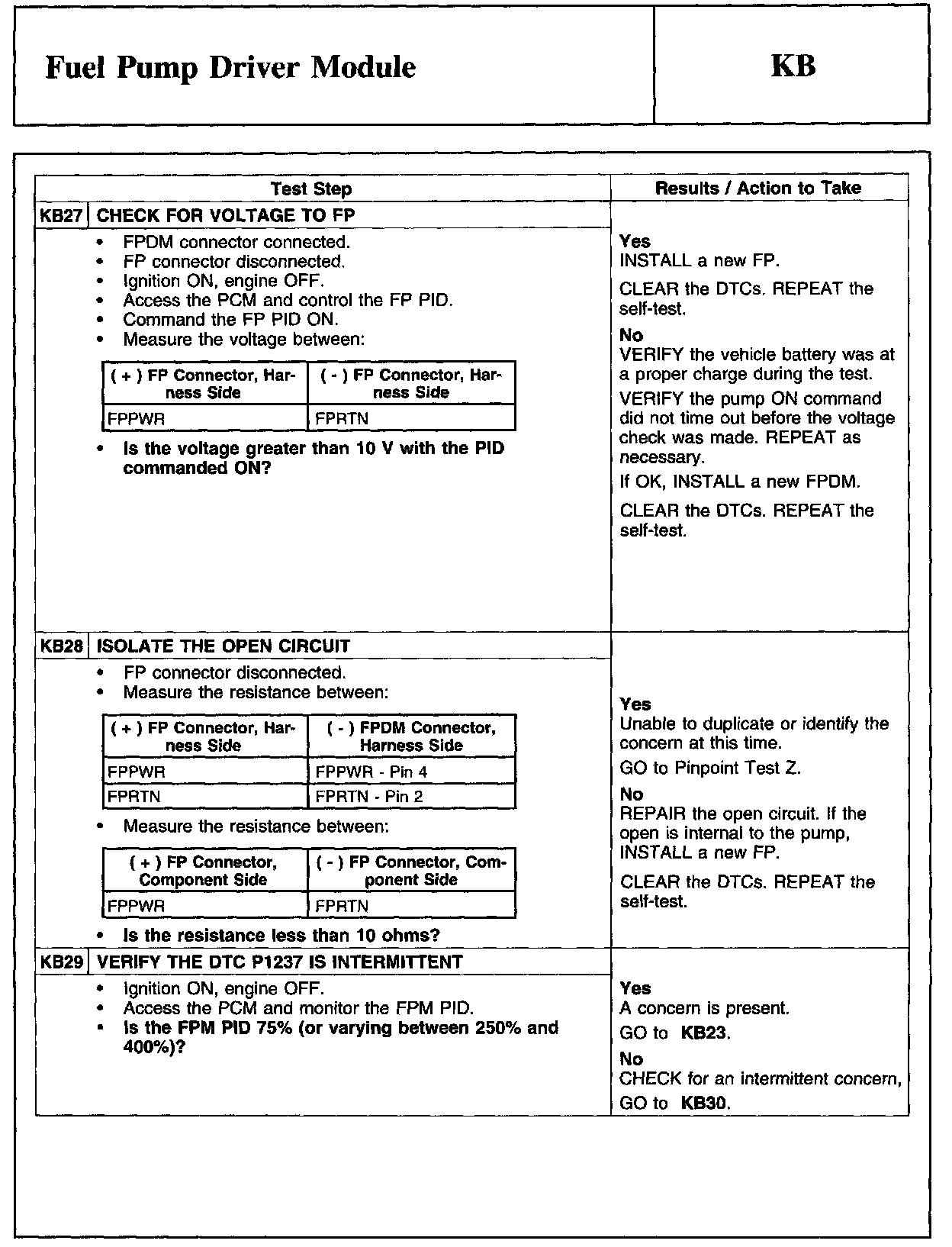

KB27-KB29:

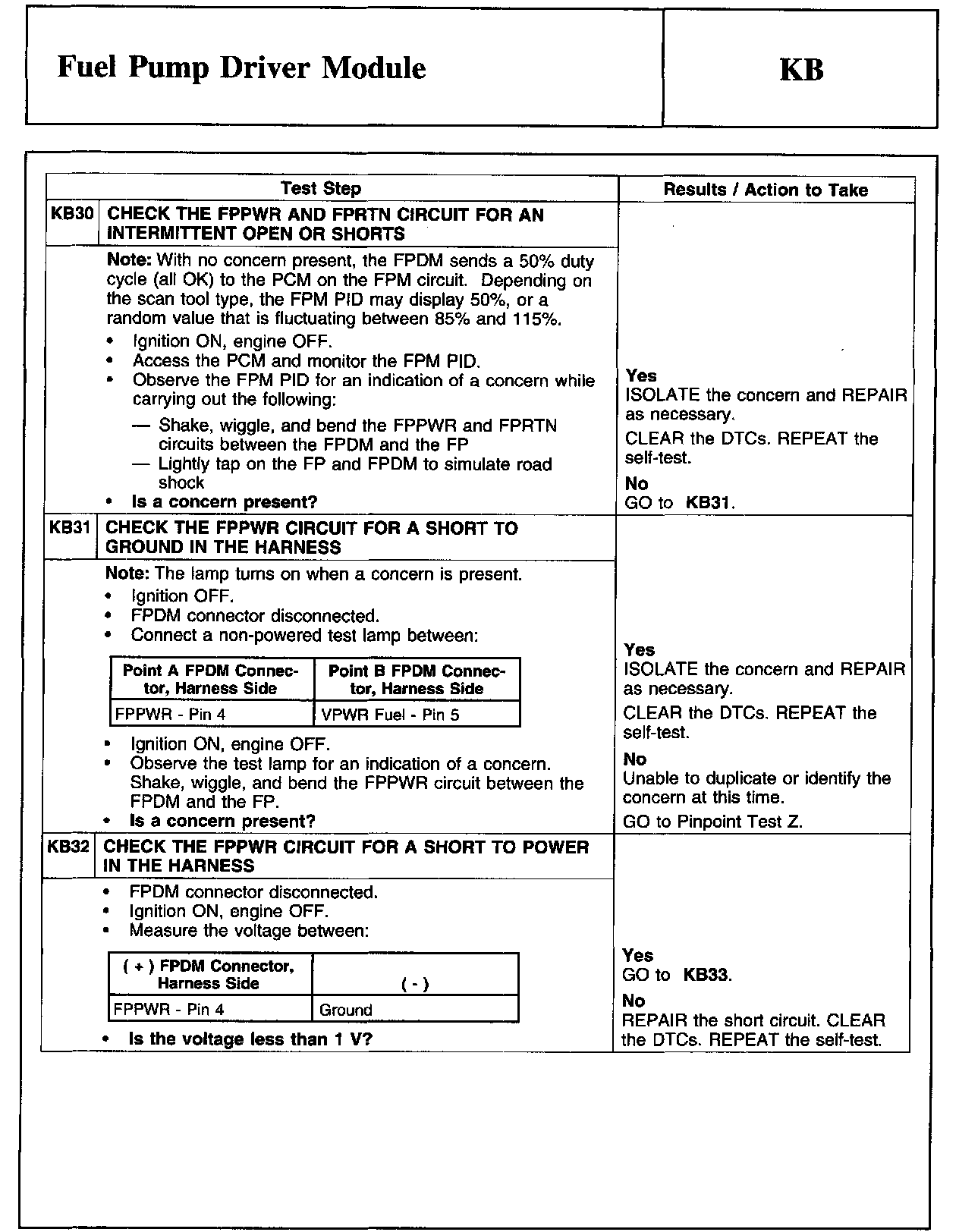

KB30-KB32:
KB33-KB36:

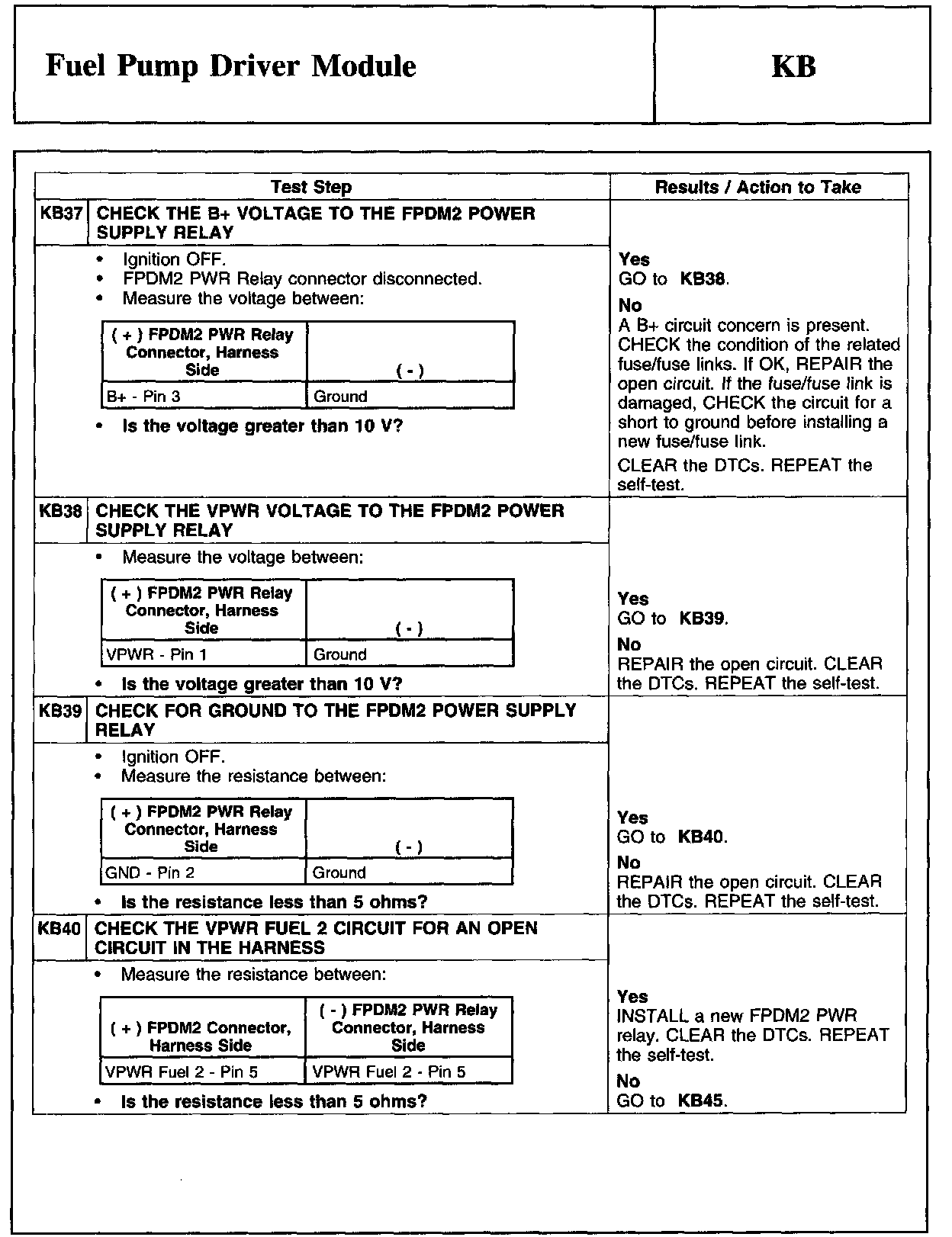

KB37-KB40:

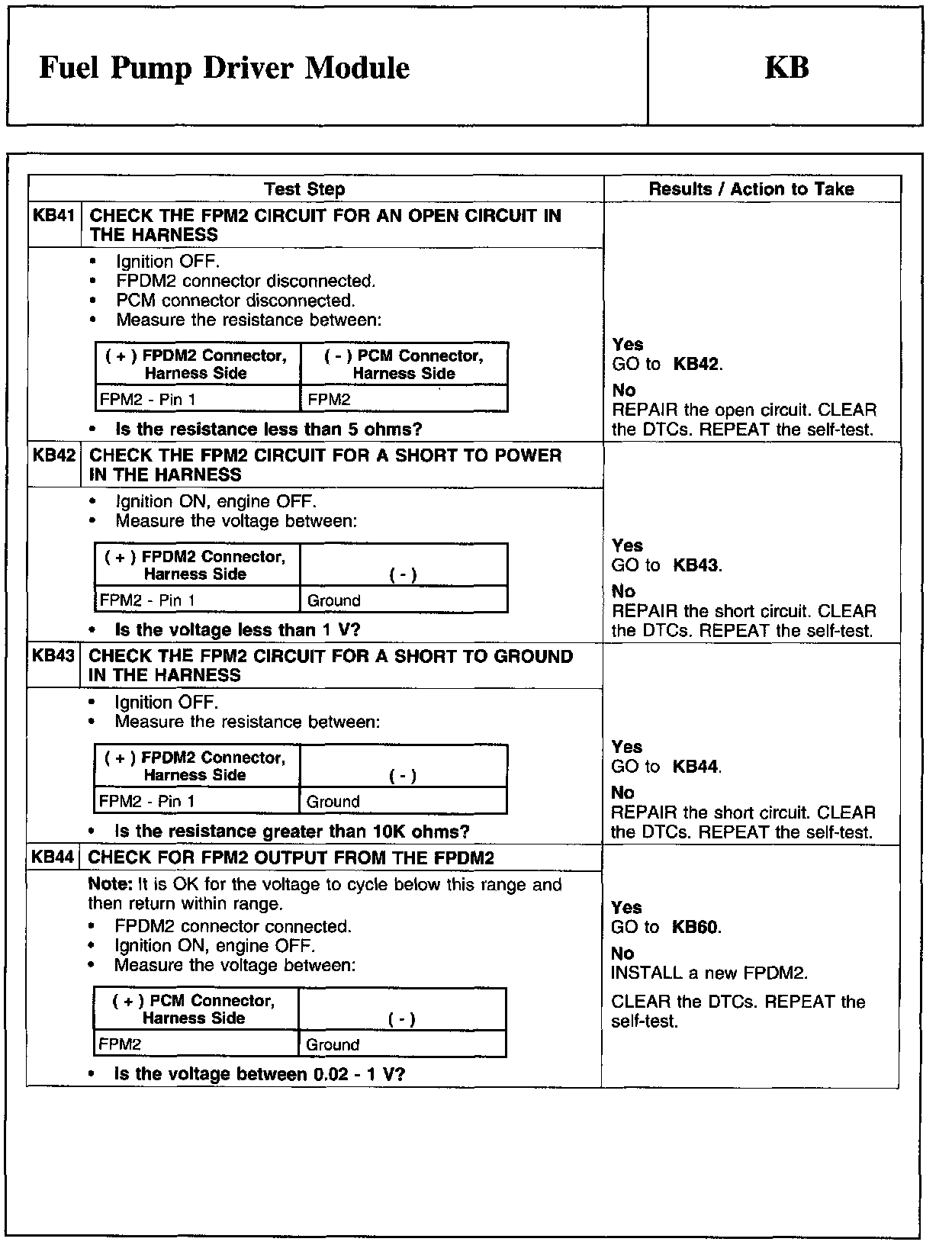

KB41-KB44:

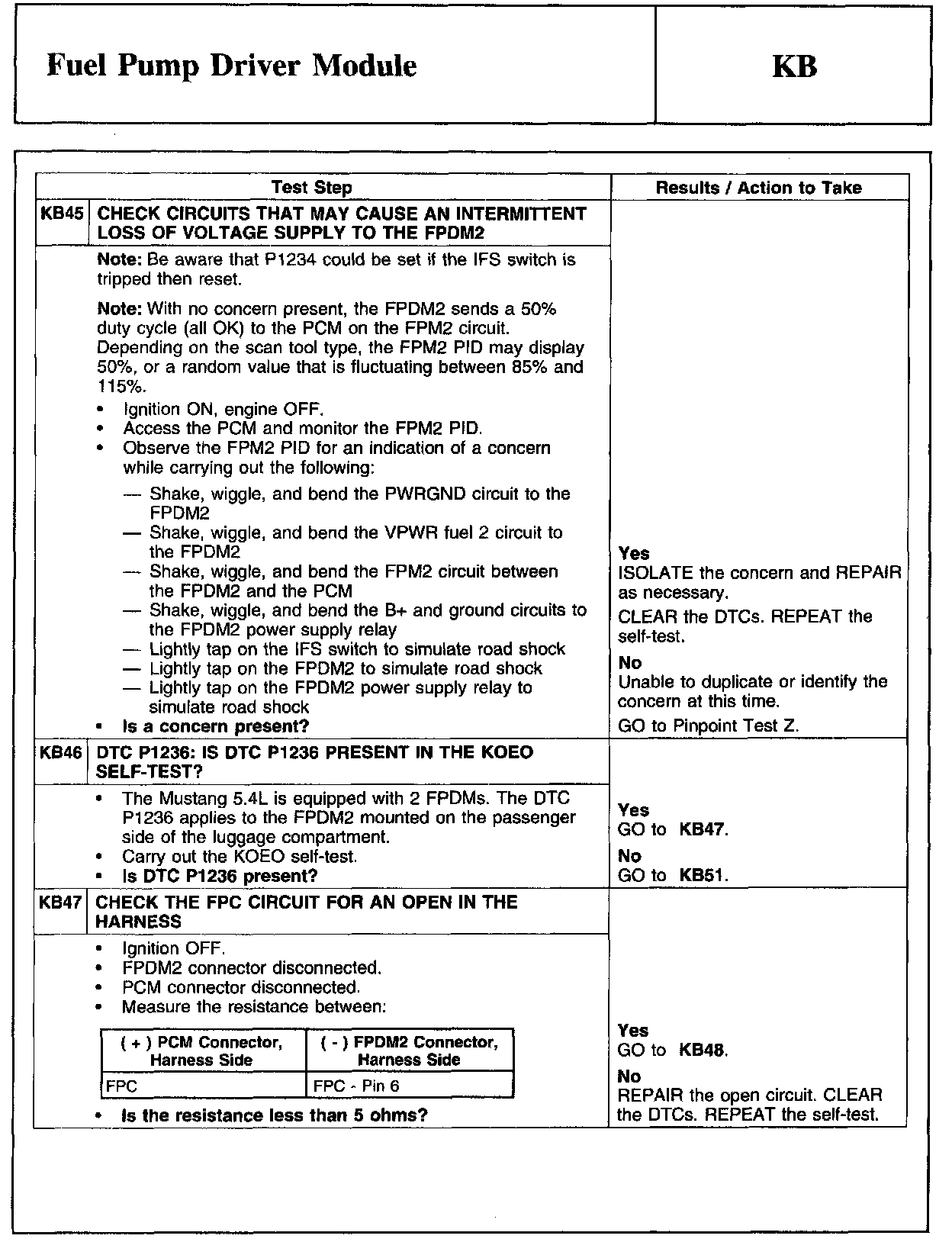

KB45-KB47:
KB48-KB51:
KB52-KB55:
KB56-KB58:
KB59-KB60:
