2009 Ford Mustang V8-5.4L SCFACTORY OEM SERVICE PROCEDURE

B - Powertrain Control Module (PCM) Power Relay

PINPOINT TEST B: POWERTRAIN CONTROL MODULE (PCM) POWER RELAY

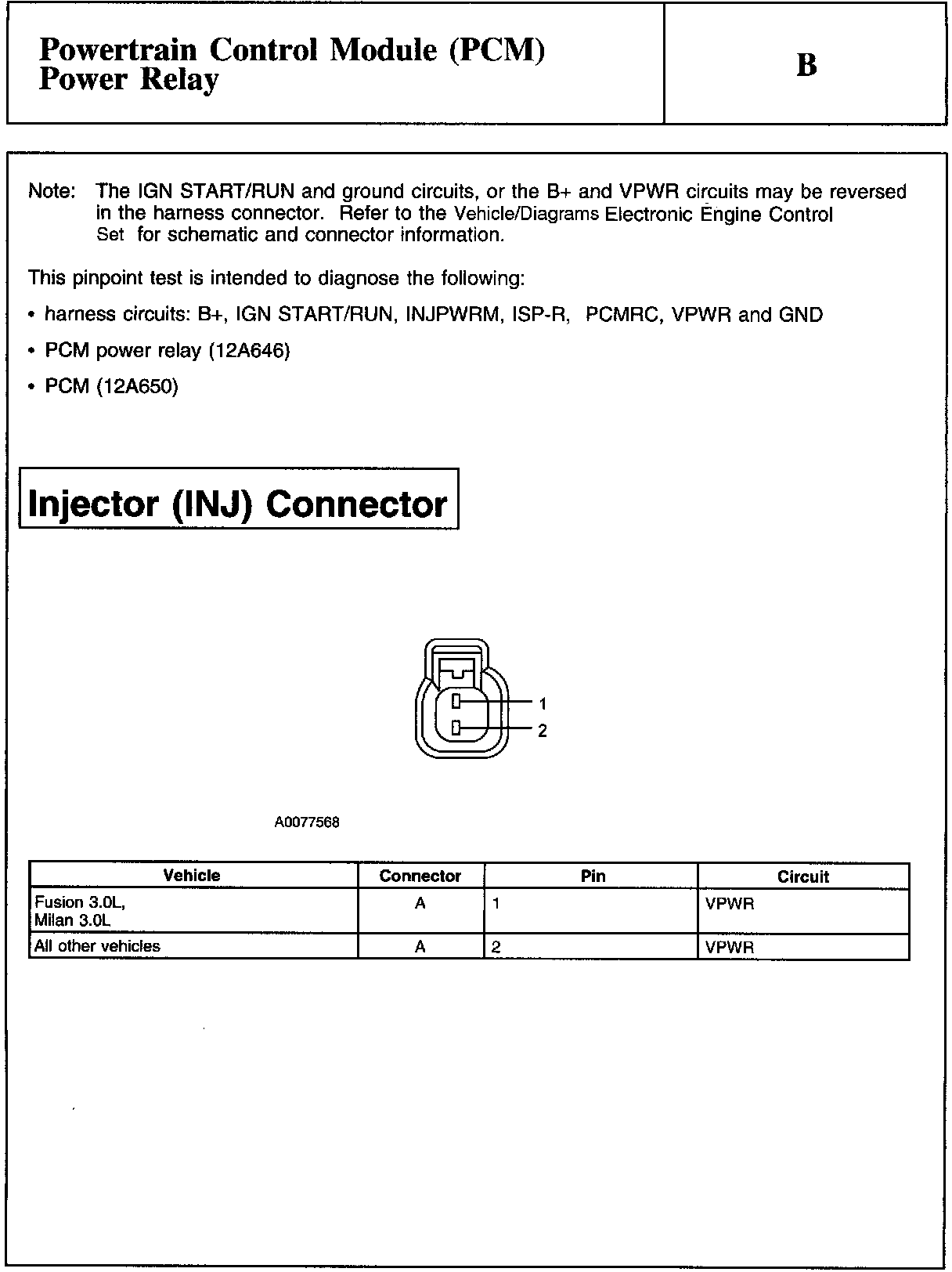

Note And Injector Connector:

Factory service manual diagram

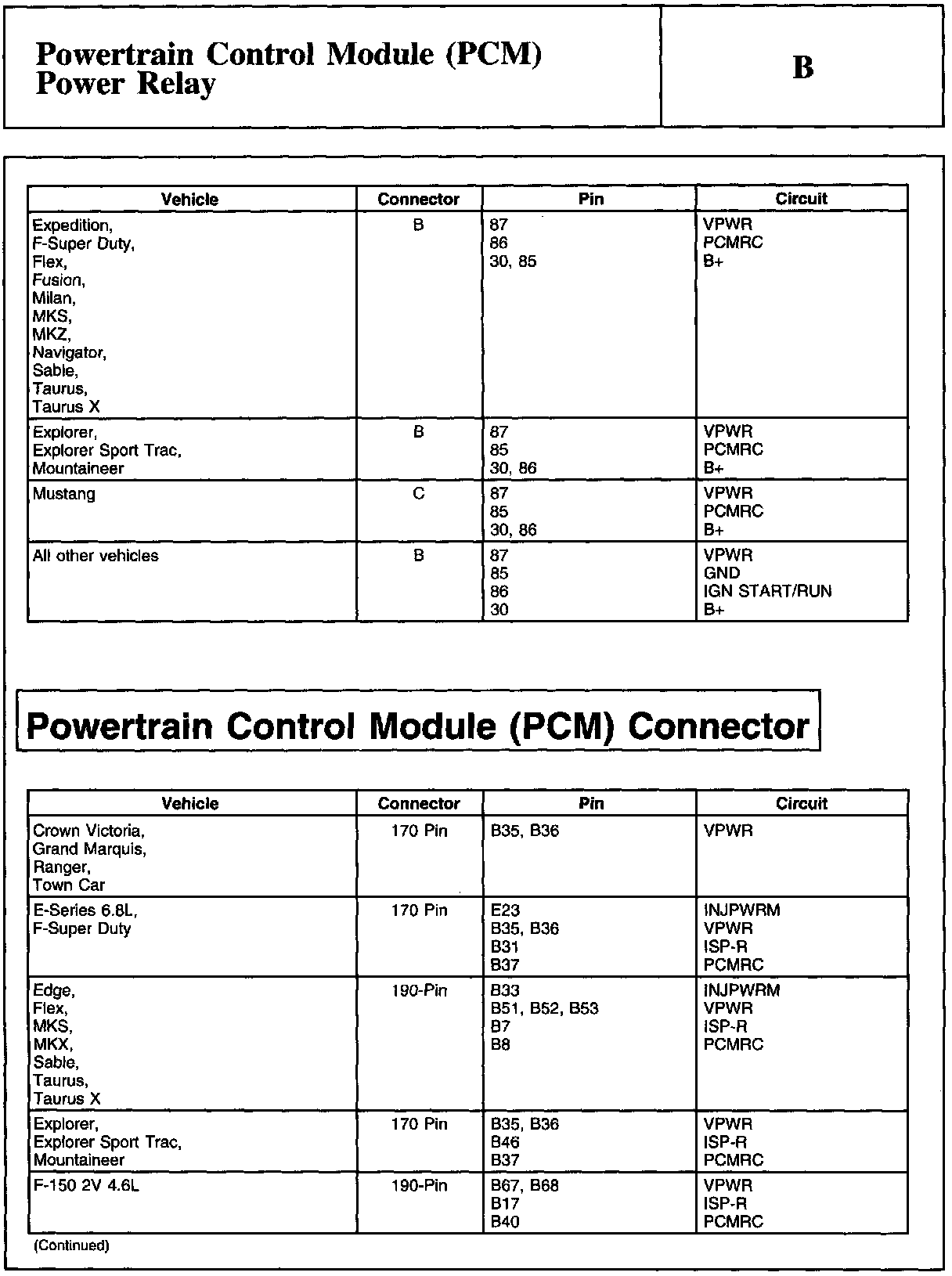

PCM Power Relay Connector:

Factory service manual diagram




PCM Connector:

Factory service manual diagram




B1-B3:

Factory service manual diagram




B4-B7:

Factory service manual diagram

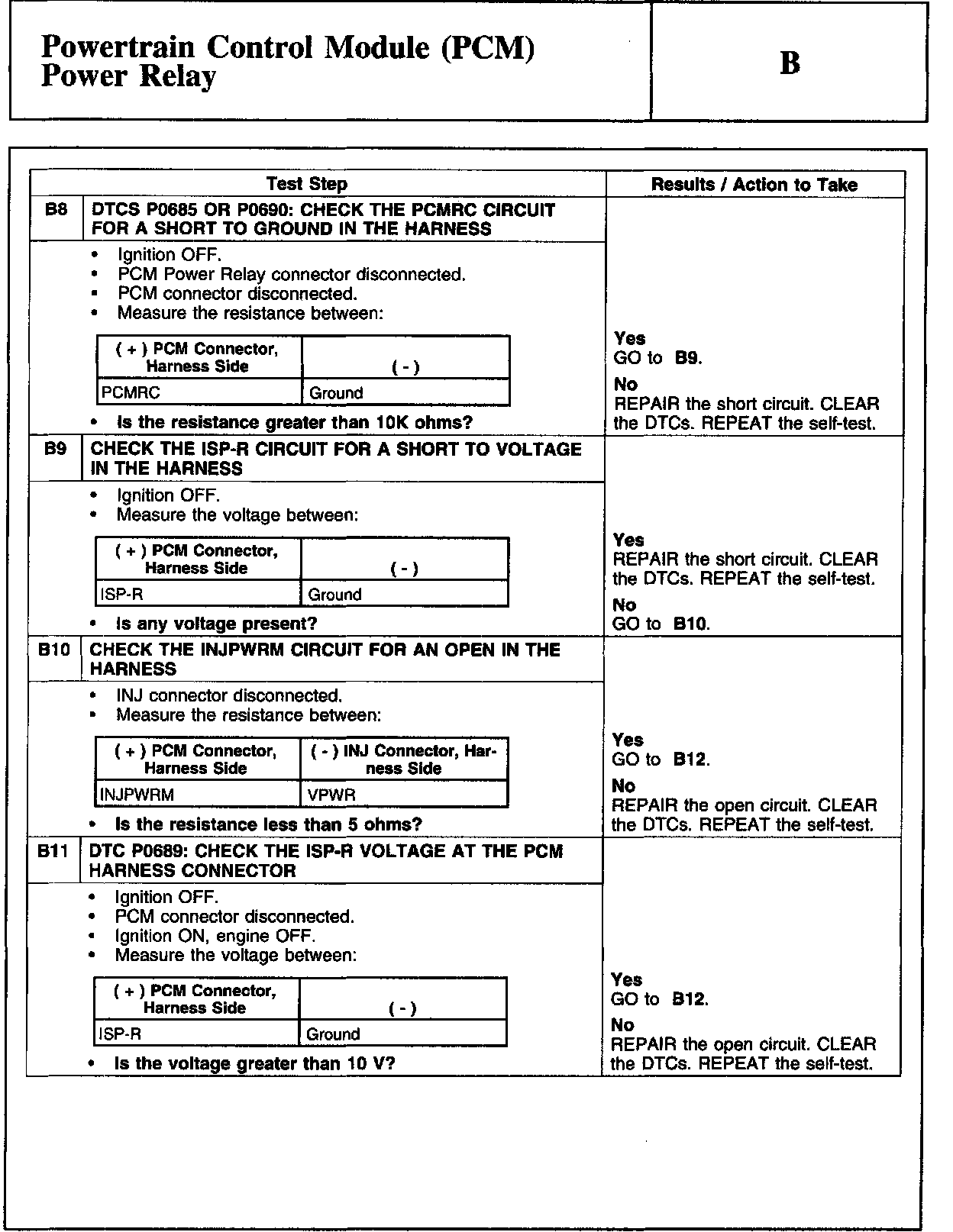

B8-B11:

Factory service manual diagram

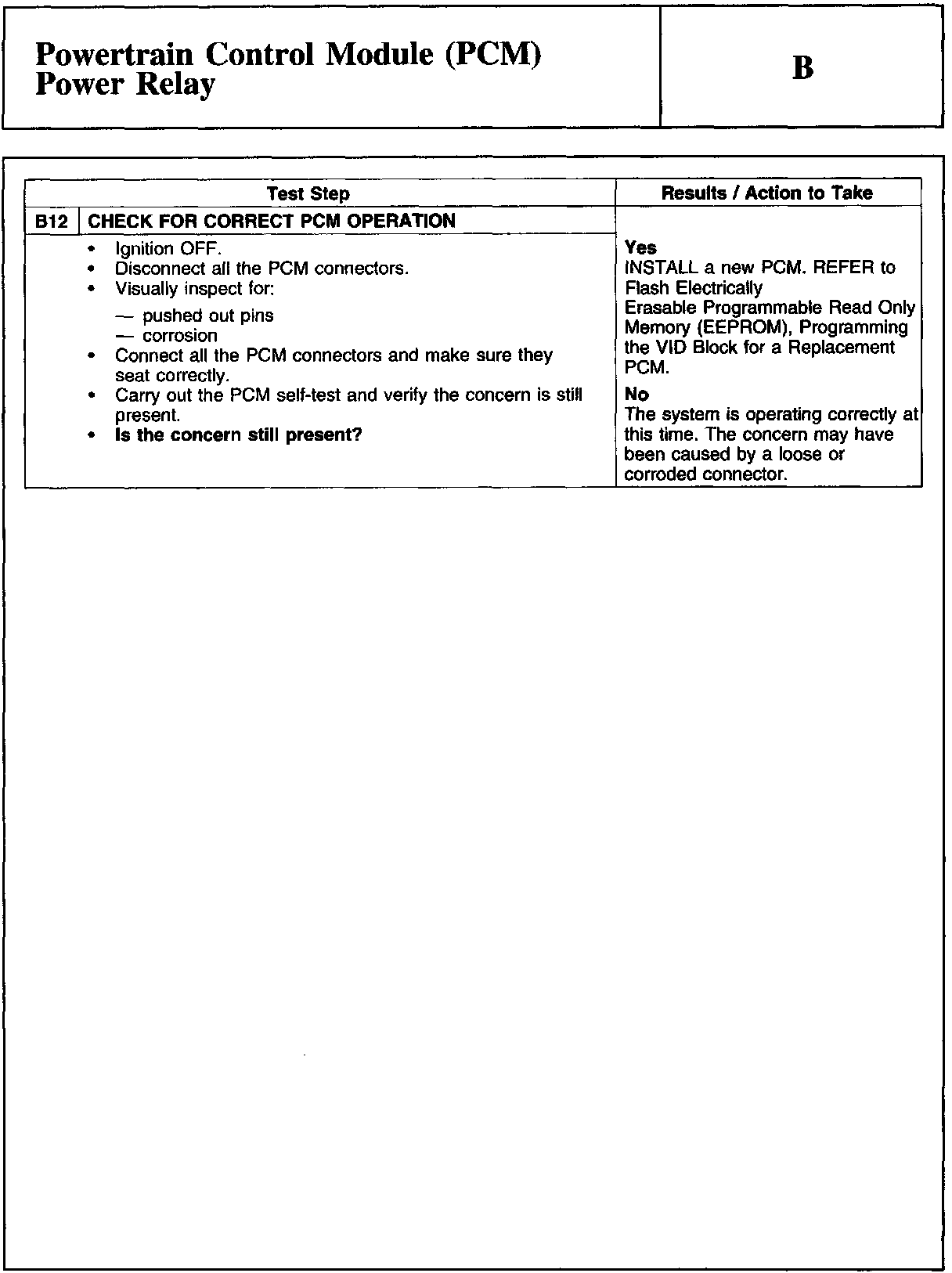

B12:

Factory service manual diagram
