2008 Ford Ranger 2WD L4-2.3LFACTORY OEM SERVICE PROCEDURE
Climate Control Assembly
CLIMATE CONTROL ASSEMBLY
Removal and Installation
1. Remove the audio unit.
2. Remove the 2 screws and the instrument panel center finish panel.
- Disconnect the electrical connector.

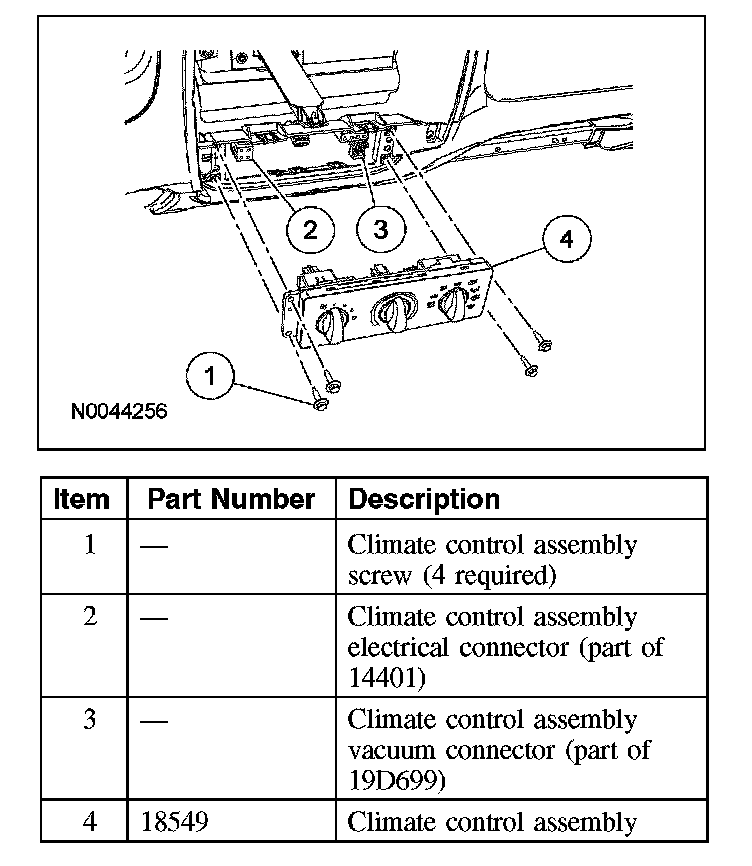

3. Remove the 4 climate control assembly screws.
4. Disconnect the climate control assembly electrical connectors and vacuum connector.
5. Remove the climate control assembly.
6. To install, reverse the removal procedure.
Removal and Installation
1. Remove the audio unit.
2. Remove the 2 screws and the instrument panel center finish panel.
- Disconnect the electrical connector.
3. Remove the 4 climate control assembly screws.
4. Disconnect the climate control assembly electrical connectors and vacuum connector.
5. Remove the climate control assembly.
6. To install, reverse the removal procedure.
