2008 Ford Mustang V8-5.4L SCFACTORY OEM SERVICE PROCEDURE
System Specifications
Timing Chain Tensioner Bolts 25 Nm (18 lb-ft).
Crankshaft Pulley Bolt
Discard the bolt.
First pass 120 Nm (88 lb-ft).
Second pass Loosen one full turn
Third pass 50 Nm (37 lb-ft).
Final pass Tighten an additional 90°

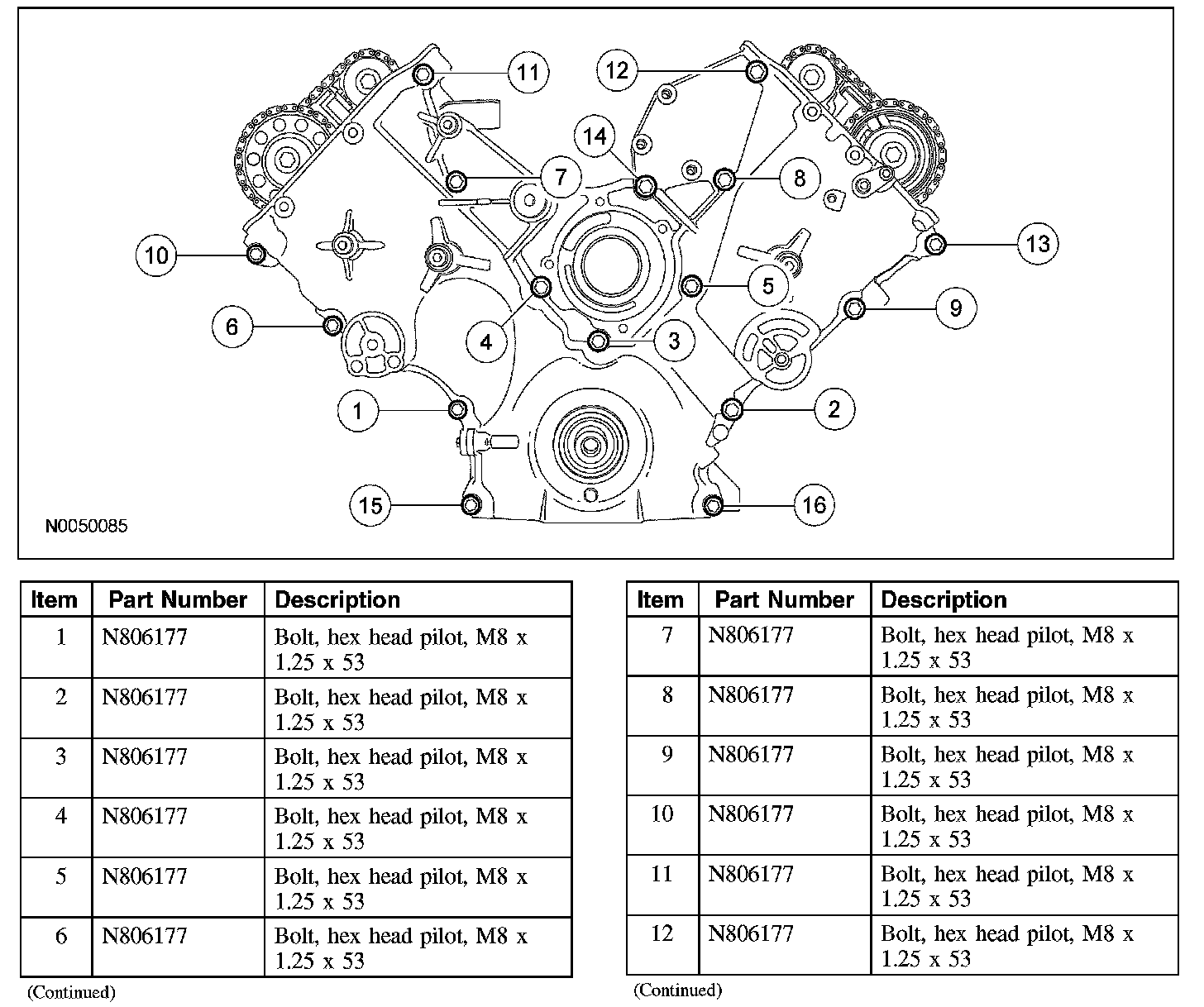

Engine Front Cover Bolts
First pass: Bolts 1 through 14 25 Nm (18 lb-ft).

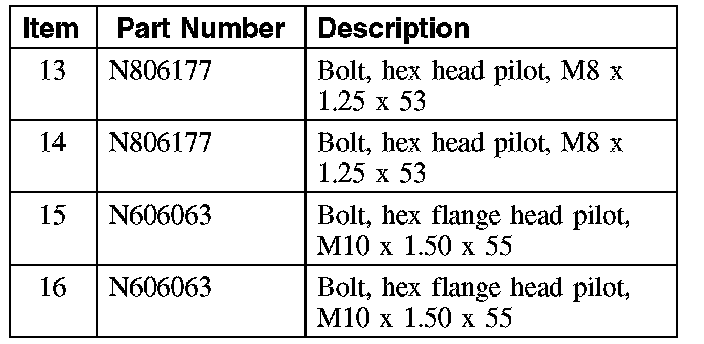

Final pass: Bolts 15 and 16 50 Nm (37 lb-ft).
Crankshaft Pulley Bolt
Discard the bolt.
First pass 120 Nm (88 lb-ft).
Second pass Loosen one full turn
Third pass 50 Nm (37 lb-ft).
Final pass Tighten an additional 90°
Engine Front Cover Bolts
First pass: Bolts 1 through 14 25 Nm (18 lb-ft).
Final pass: Bolts 15 and 16 50 Nm (37 lb-ft).
