2008 Ford Fusion AWD V6-3.0LFACTORY OEM SERVICE PROCEDURE
System Specifications
Timing Chain Tensioner Bolts 25 Nm (18 lb-ft).
Crankshaft Pulley Bolt
First pass 120 Nm (89 lb-ft).
Second pass Loosen one full turn
Third pass 50 Nm (37 lb-ft).
Final pass Tighten an additional 90°

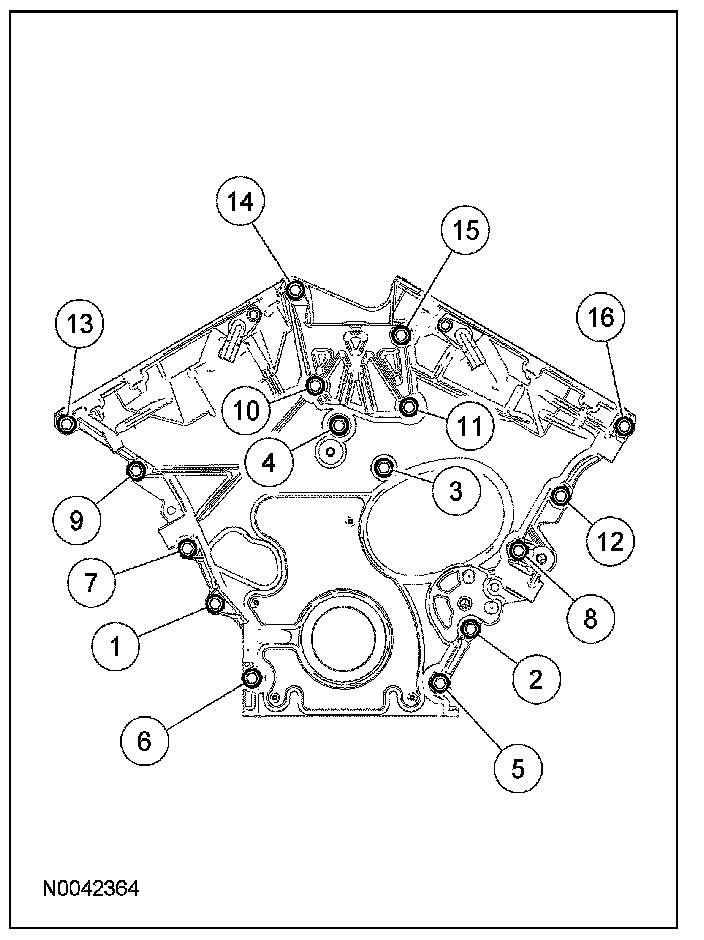

Engine Front Cover Bolts 25 Nm (18 lb-ft).
NOTE: Fasteners 1 and 13 are stud bolts.
Crankshaft Pulley Bolt
First pass 120 Nm (89 lb-ft).
Second pass Loosen one full turn
Third pass 50 Nm (37 lb-ft).
Final pass Tighten an additional 90°
Engine Front Cover Bolts 25 Nm (18 lb-ft).
NOTE: Fasteners 1 and 13 are stud bolts.
