2008 Ford Fusion AWD V6-3.0LFACTORY OEM SERVICE PROCEDURE
Engine Control Module: Service and Repair
POWERTRAIN CONTROL MODULE (PCM)
Removal
1. NOTE: PCM replacement DOES NOT require new keys or programming of keys.
Retrieve the module configuration. Carry out the module configuration retrieval steps of the Programmable Module Installation procedure.
2. Remove the battery tray.

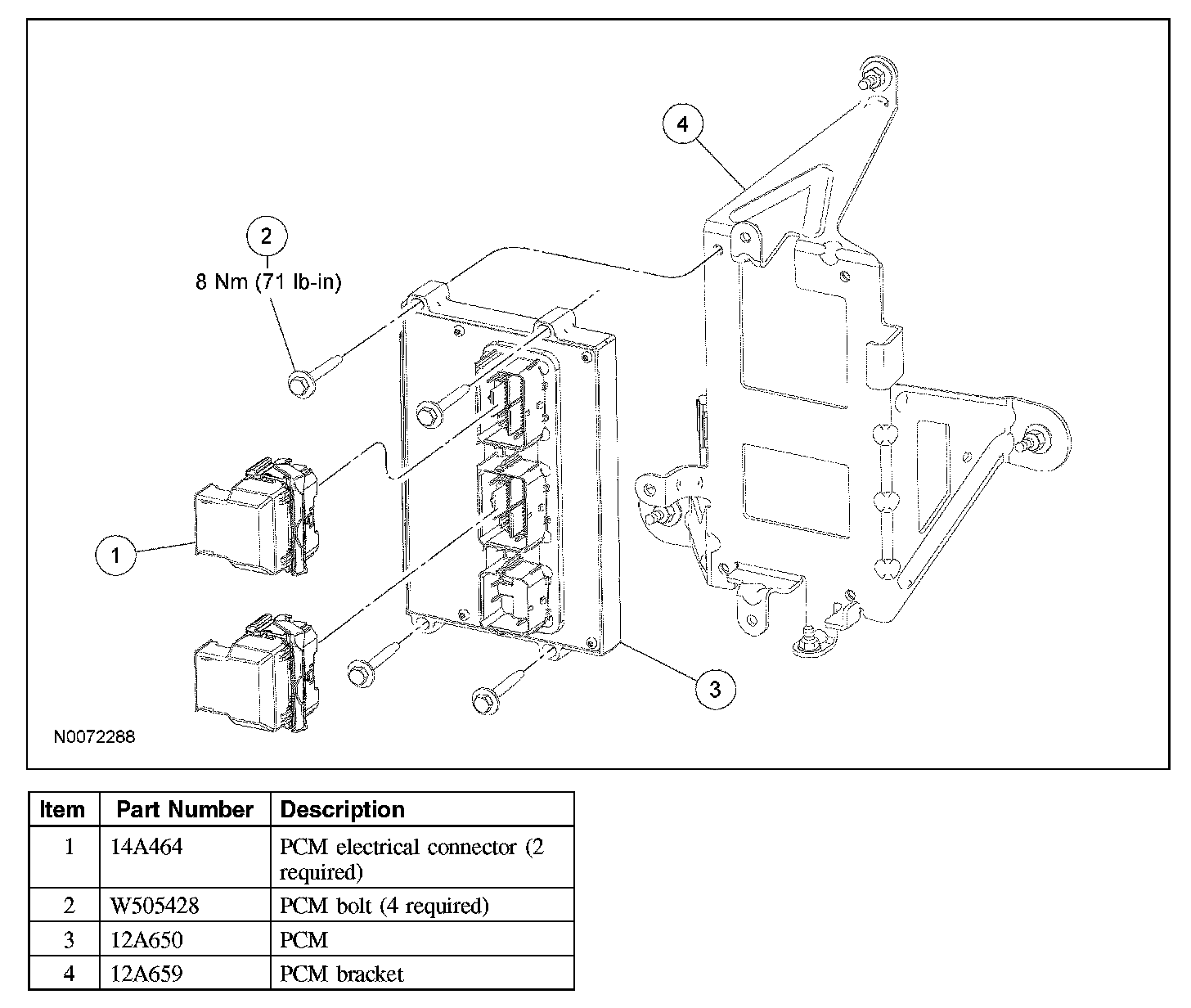

3. Disconnect the 2 PCM electrical connectors.
4. Remove the 4 bolts and the PCM.
Installation
1. Install the PCM and the bolts.
- Tighten to 8 Nm (71 lb-in).
2. Connect the 2 PCM electrical connectors.
3. Install the battery tray.
4. Restore the module configuration. Carry out the module configuration restore steps of the Programmable Module Installation procedure.
5. Reprogram the passive anti-theft system (PATS). Carry out the Parameter Reset procedure.
Removal
1. NOTE: PCM replacement DOES NOT require new keys or programming of keys.
Retrieve the module configuration. Carry out the module configuration retrieval steps of the Programmable Module Installation procedure.
2. Remove the battery tray.
3. Disconnect the 2 PCM electrical connectors.
4. Remove the 4 bolts and the PCM.
Installation
1. Install the PCM and the bolts.
- Tighten to 8 Nm (71 lb-in).
2. Connect the 2 PCM electrical connectors.
3. Install the battery tray.
4. Restore the module configuration. Carry out the module configuration restore steps of the Programmable Module Installation procedure.
5. Reprogram the passive anti-theft system (PATS). Carry out the Parameter Reset procedure.
