2008 Ford Explorer 2WD V8-4.6LFACTORY OEM SERVICE PROCEDURE
System Specifications

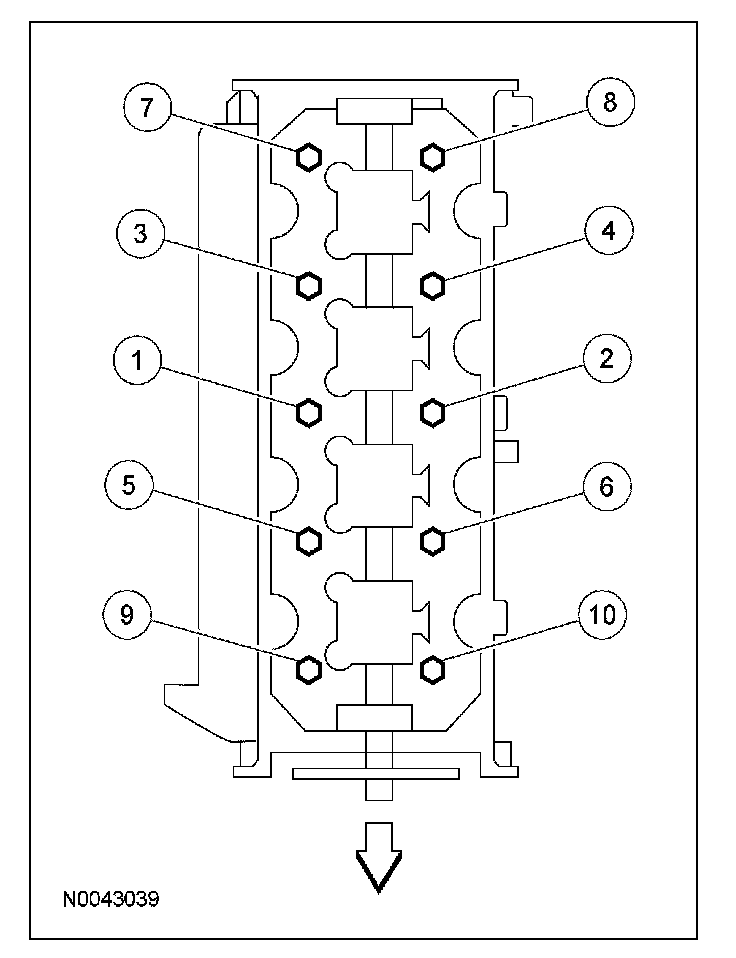

Cylinder Head Bolts
CAUTION: The cylinder head bolts must be discarded and new bolts installed. They are a tighten-to-yield design and cannot be reused.
First pass 40 Nm (30 lb-ft).
Second pass Tighten an additional 90°
Final pass Tighten an additional 90°
Cylinder Head Gasket Surface Flatness
The cylinder heads must not have depressions deeper than 0.0254 mm (0.001 in) across a 38.1 mm (1.5 in) square area, or scratches longer than 0.0254 mm (0.001 in).
Intake Manifold Bolts
First pass 2 Nm (18 lb-in).
Final pass 10 Nm (89 lb-in).
Throttle Body Bolts 10 Nm (89 lb-in).
Camshaft Bearing Cap Bolts 10 Nm (89 lb-in).
Camshaft Phaser Sprocket Bolts
Discard the bolts.
First pass 40 Nm (30 lb-ft).
Final pass Tighten an additional 90°
Exhaust Manifold Studs 12 Nm (9 lb-ft).
Discard the studs.

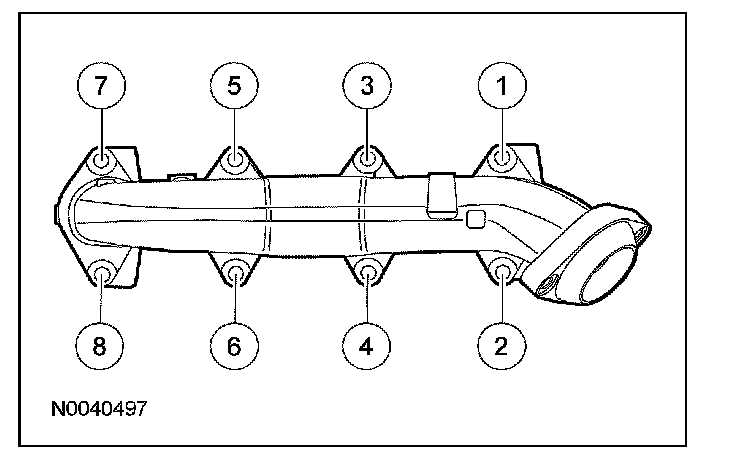

Exhaust Manifold Nuts 25 Nm (18 lb-ft).
Discard the nuts.

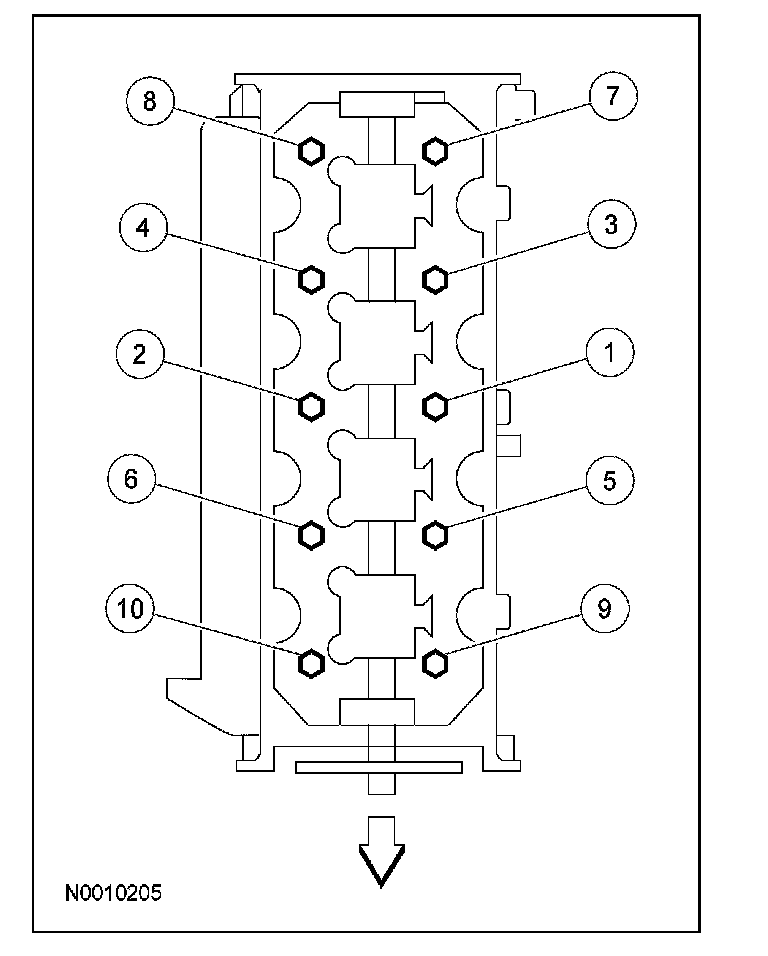

CAUTION: The cylinder head bolts must be discarded and new bolts installed. They are a tighten-to-yield design and cannot be reused.
First pass 40 Nm (30 lb-ft).
Second pass Tighten an additional 90°
Final pass Tighten an additional 90°
Cylinder Head Gasket Surface Flatness
The cylinder heads must not have depressions deeper than 0.0254 mm (0.001 in) across a 38.1 mm (1.5 in) square area, or scratches longer than 0.0254 mm (0.001 in).
Intake Manifold Bolts
First pass 2 Nm (18 lb-in).
Final pass 10 Nm (89 lb-in).
Throttle Body Bolts 10 Nm (89 lb-in).
Camshaft Bearing Cap Bolts 10 Nm (89 lb-in).
Camshaft Phaser Sprocket Bolts
Discard the bolts.
First pass 40 Nm (30 lb-ft).
Final pass Tighten an additional 90°
Exhaust Manifold Studs 12 Nm (9 lb-ft).
Discard the studs.

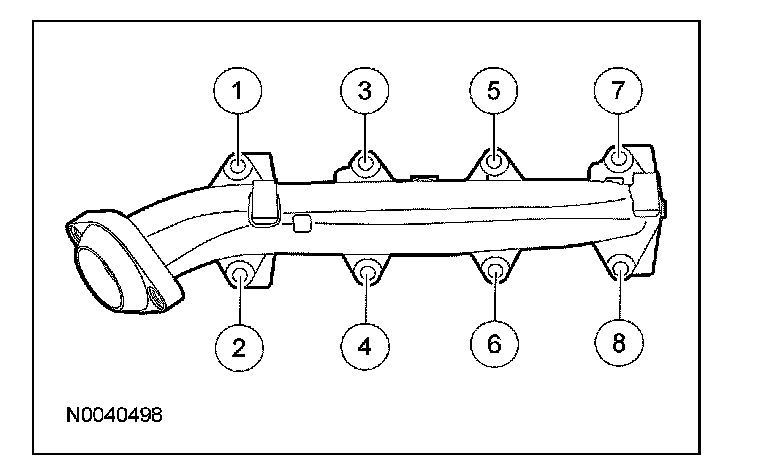

Exhaust Manifold Nuts 25 Nm (18 lb-ft).
Discard the nuts.
