Transmission Position Sensor/Switch: Service and Repair

Digital Transmission Range (TR) Sensor - 5R55S

Factory service manual diagram



Factory service manual diagram




Removal
1. With the vehicle in NEUTRAL, position it on a hoist.

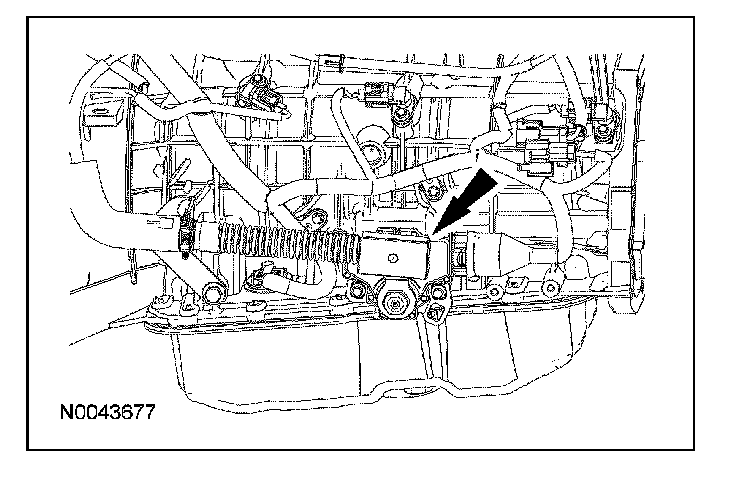

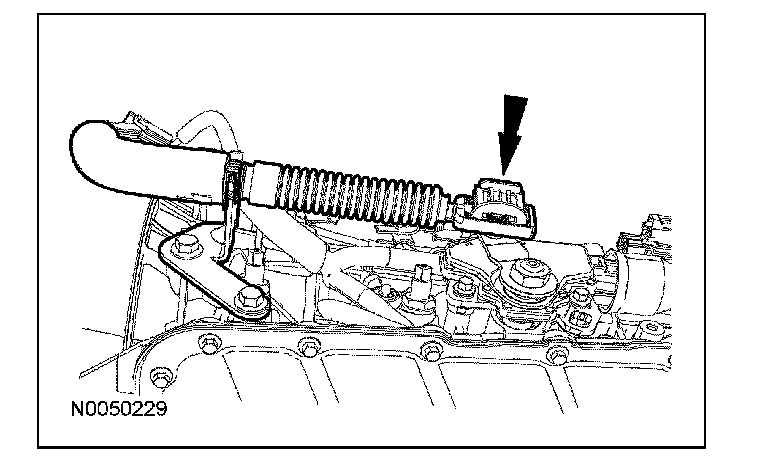

2. Remove the selector lever cable shield by prying on the side of the selector lever cable shield closest to the boot, then sliding the selector lever cable shield away from the boot.

Factory service manual diagram

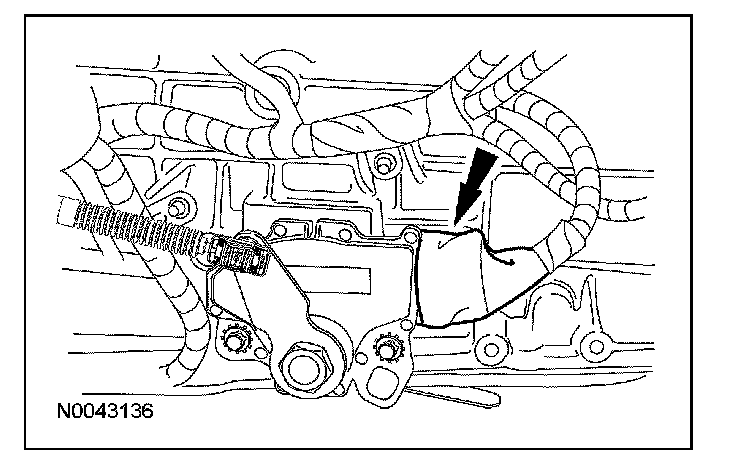

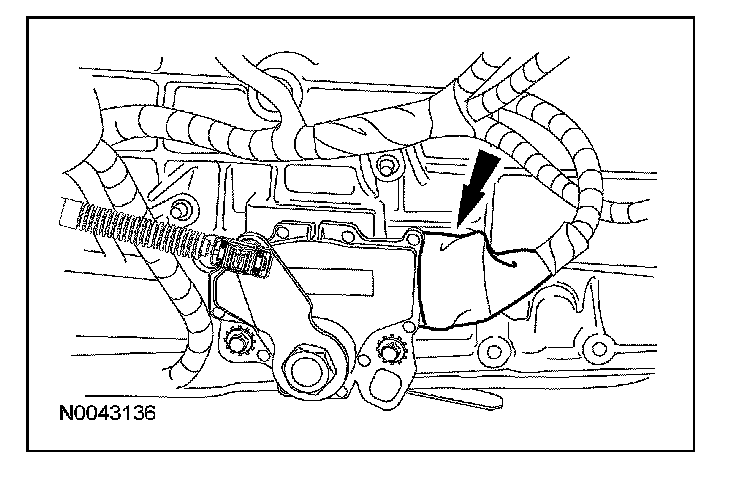

3. Move the rubber boot back to gain access to the digital transmission range (TR) sensor electrical connector.

Factory service manual diagram

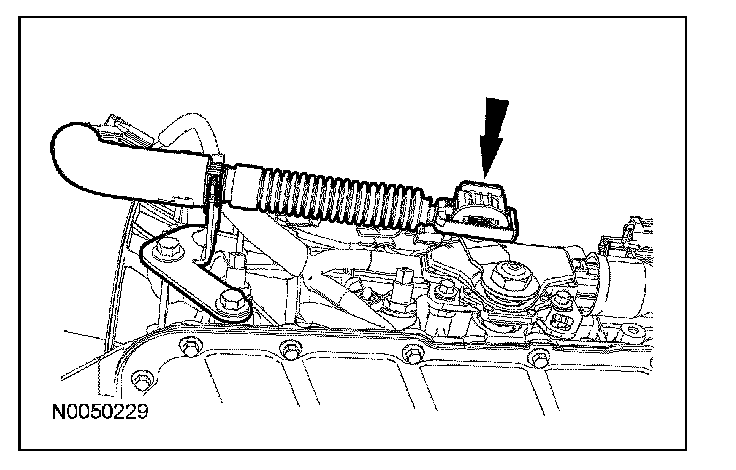

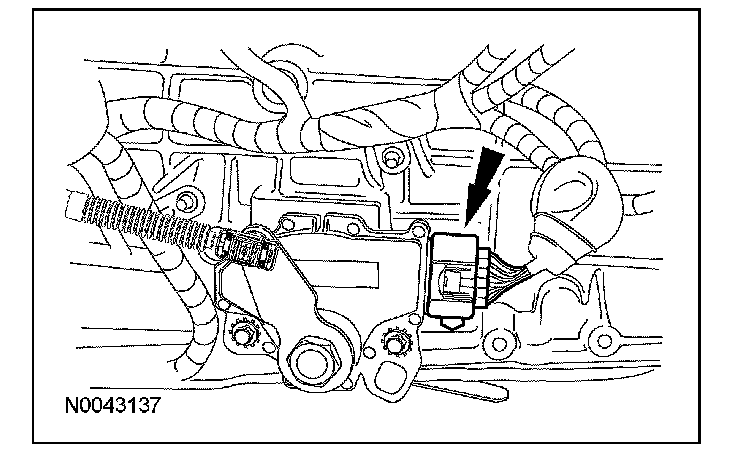

4. Disconnect the digital TR sensor electrical connector.

Factory service manual diagram




5. Remove the selector lever cable from the manual control lever.

Factory service manual diagram

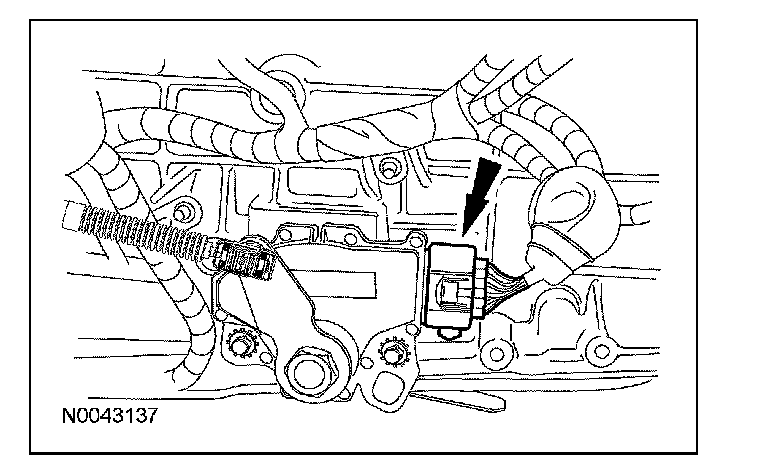

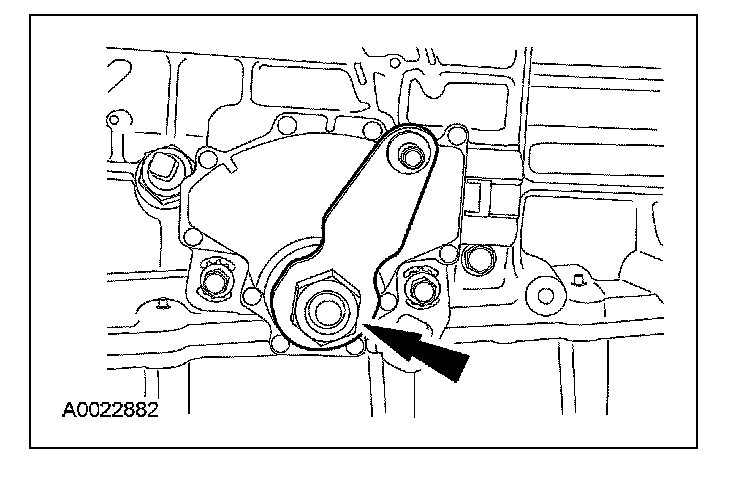

6. Remove the outer manual control lever.

Factory service manual diagram

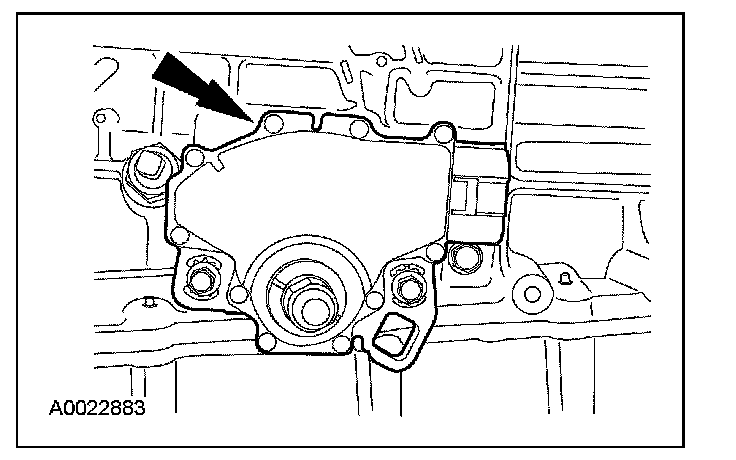

7. Remove the digital TR sensor.

Factory service manual diagram




Installation

1. CAUTION: The digital transmission range (TR) sensor must fit flush against the boss on the case to prevent damage to the sensor.

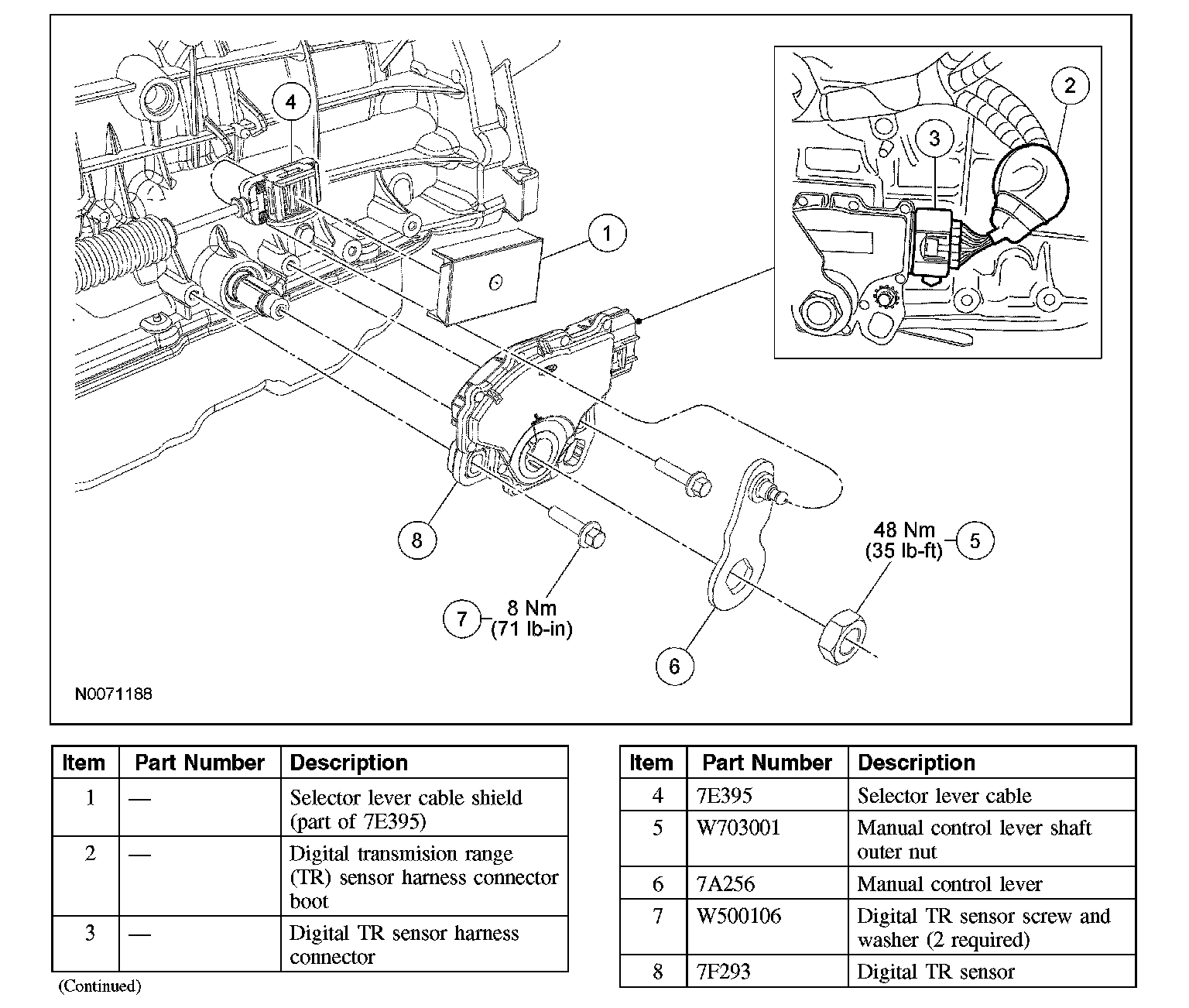

Install the digital TR sensor and loosely install the screws.

Factory service manual diagram




2. CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

NOTE: The manual lever must be in the NEUTRAL position.

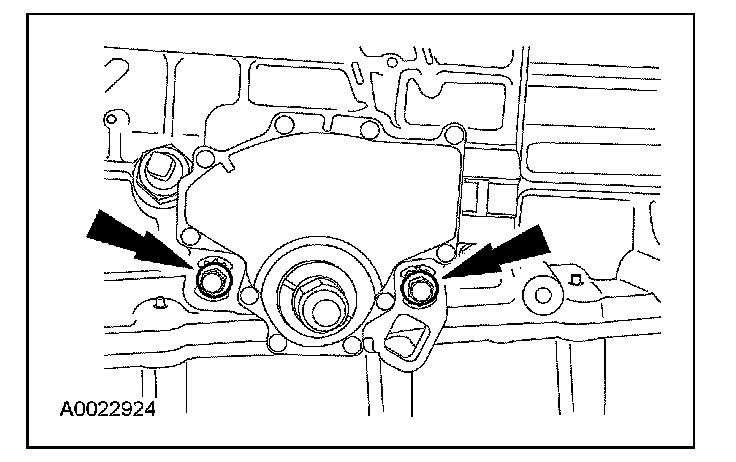

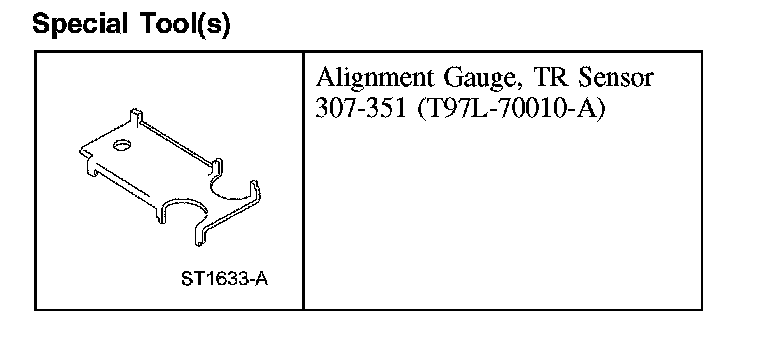

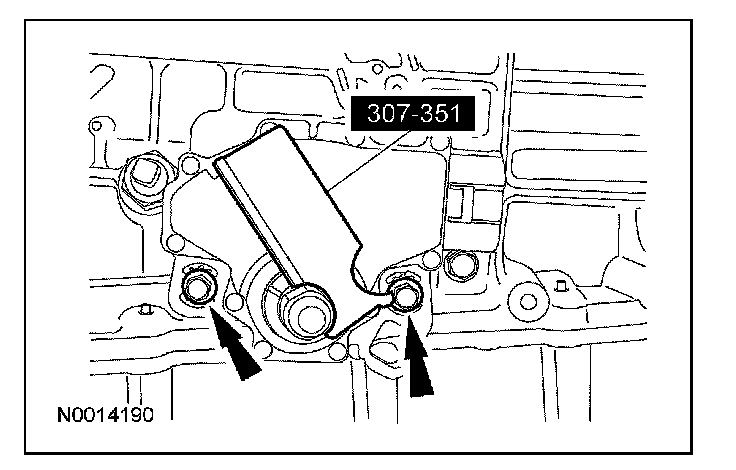

Using the special tool, align the digital TR sensor and tighten the screws in an alternating sequence.
^ Tighten to 8 Nm (71 lb-inch).

Factory service manual diagram




3. Install the outer manual lever.
^ Tighten to 48 Nm (35 lb-ft).

Factory service manual diagram




4. NOTE: When installing the selector lever cable, make sure that the selector lever cable locking tabs are locked in place and the selector lever cable end is snapped onto the ball stud. Press the selector lever cable into the bracket and listen for the selector lever cable to click in place. Pull back on the selector lever cable to make sure that it is locked into the selector lever cable bracket. Also make sure that the selector lever cable end is correctly installed onto the ball stud. Pull back on the selector lever cable end to make sure that the selector lever cable end is correctly installed.

Install the selector lever cable to the manual control lever.

Factory service manual diagram

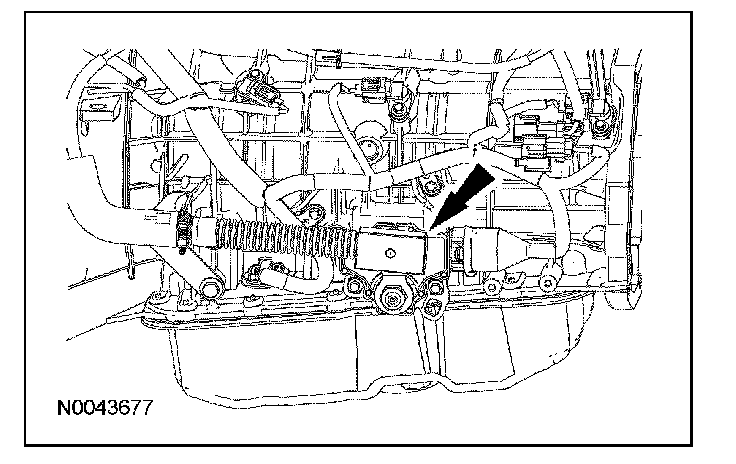

5. Connect the digital TR sensor electrical connector.

Factory service manual diagram




6. Move the rubber boot back over the TR sensor electrical connector.

Factory service manual diagram




7. NOTE: If the selector lever cable shield is loose on the selector lever cable, install a new selector lever cable shield.

Install the selector lever cable shield.

Factory service manual diagram




8. Verify that the selector lever cable is adjusted correctly.
