2008 Ford Explorer 2WD V8-4.6LFACTORY OEM SERVICE PROCEDURE

Transmission Position Sensor/Switch: Adjustments

Transmission Range (TR) Sensor Adjustment - 5R55S

Factory service manual diagram




Adjust

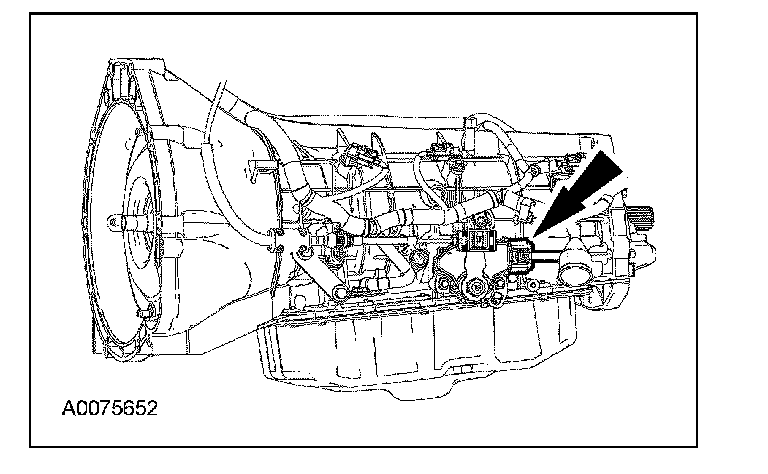

1. With the vehicle in NEUTRAL, position it on a hoist.

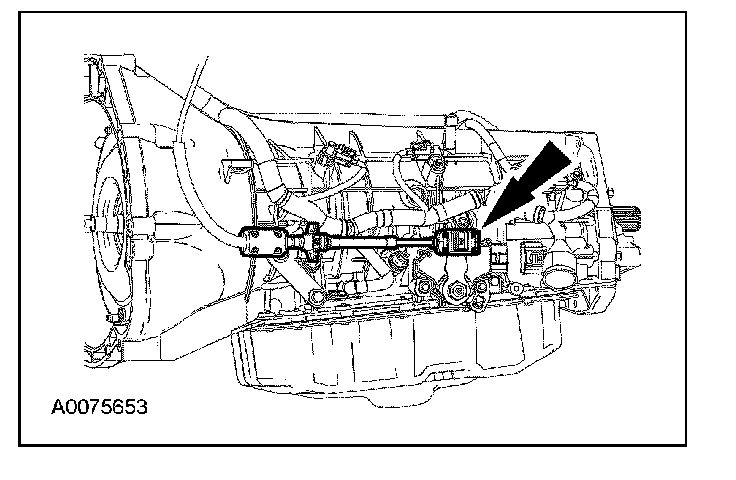

2. Remove the selector lever cable shield by prying on the side of the shield closest to the boot, then sliding the shield away from the boot.

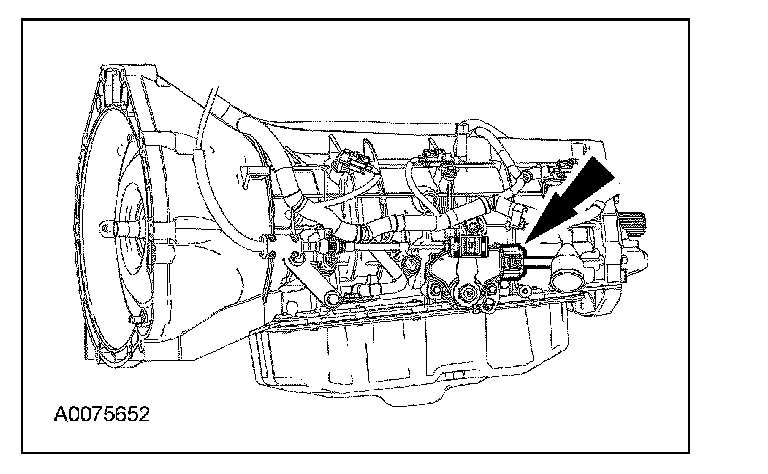

Factory service manual diagram

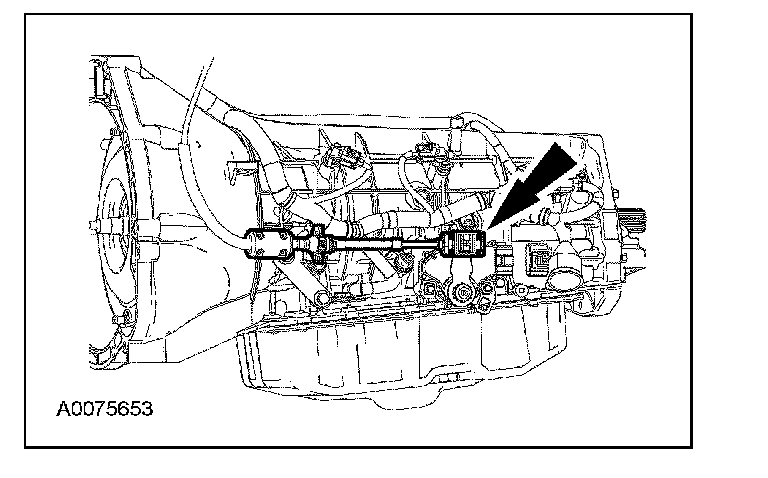

3. Move the rubber boot back to gain access to the digital transmission range (TR) sensor electrical connector.

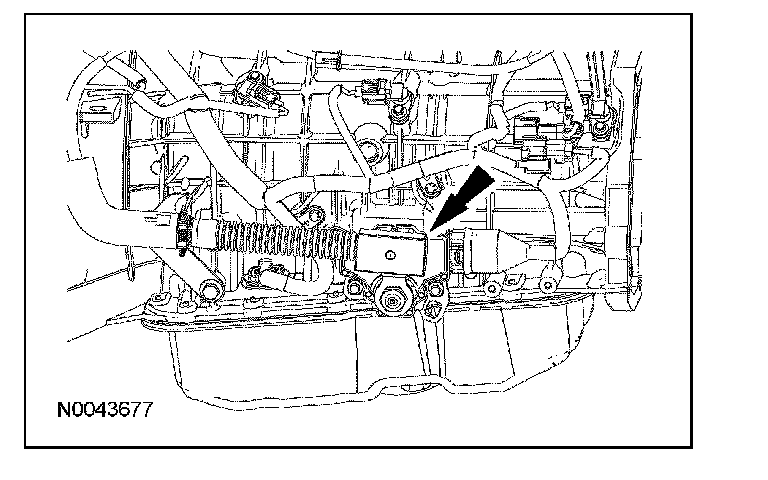

Factory service manual diagram

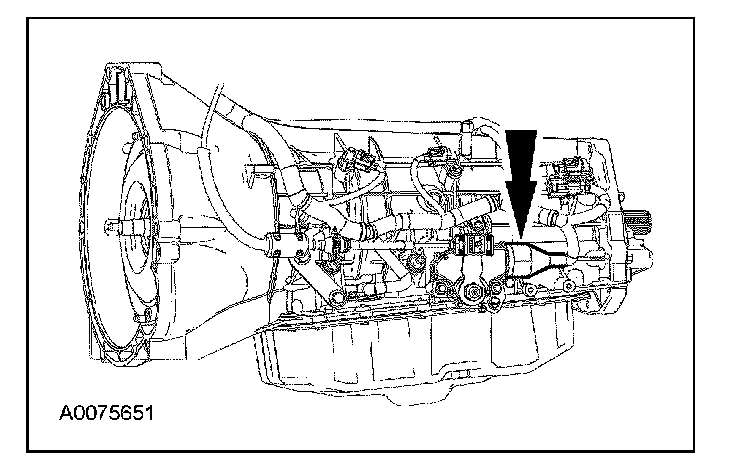

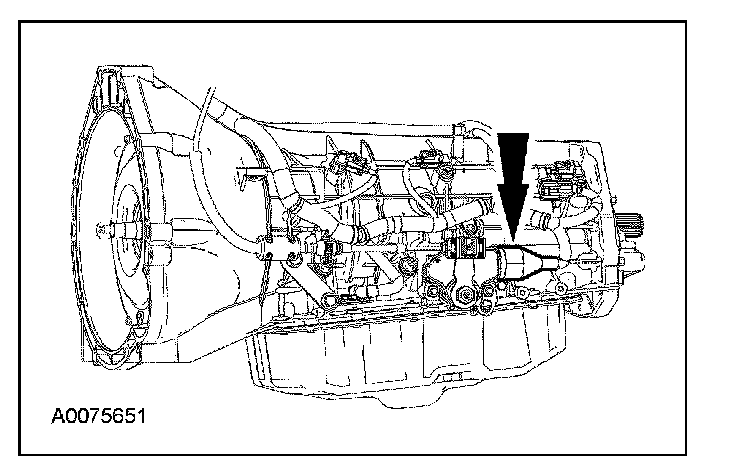

4. Disconnect the digital TR sensor electrical connector.

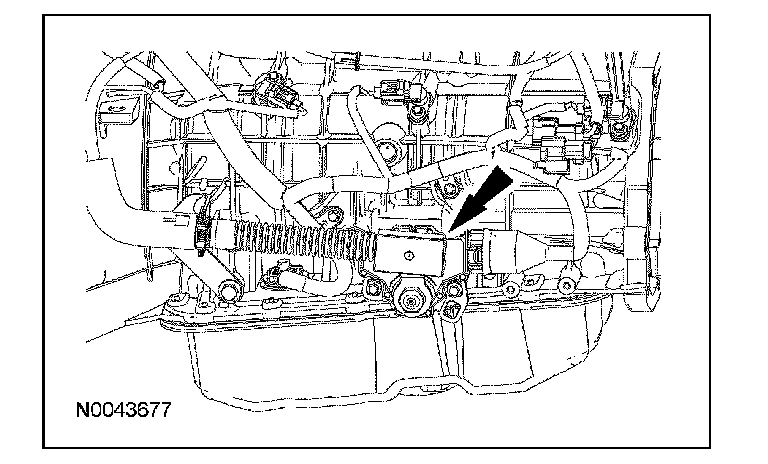

Factory service manual diagram

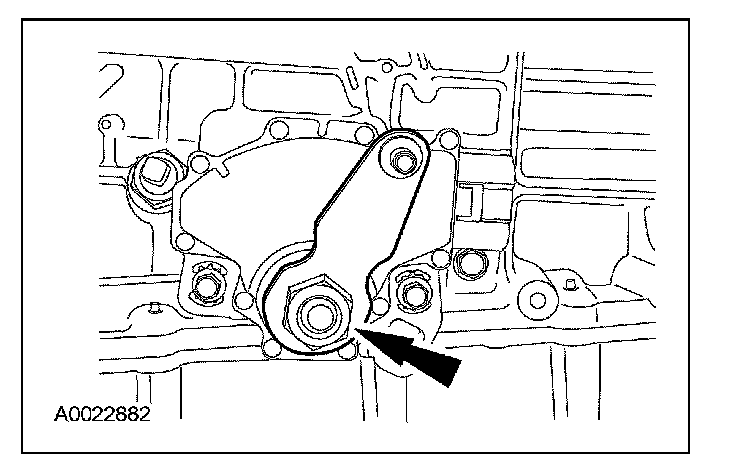

5. Remove the selector lever cable end from the manual control lever.

Factory service manual diagram

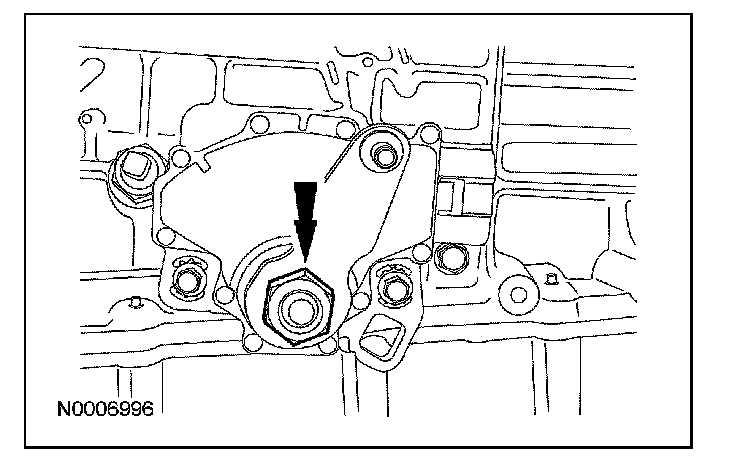

6. Remove the outer manual control lever nut and the manual control lever.

Factory service manual diagram

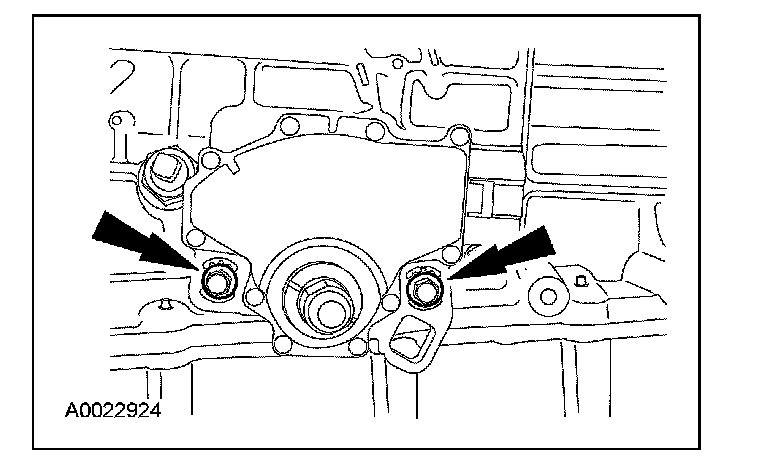

7. Loosen but do not remove the digital TR sensor screws.

Factory service manual diagram

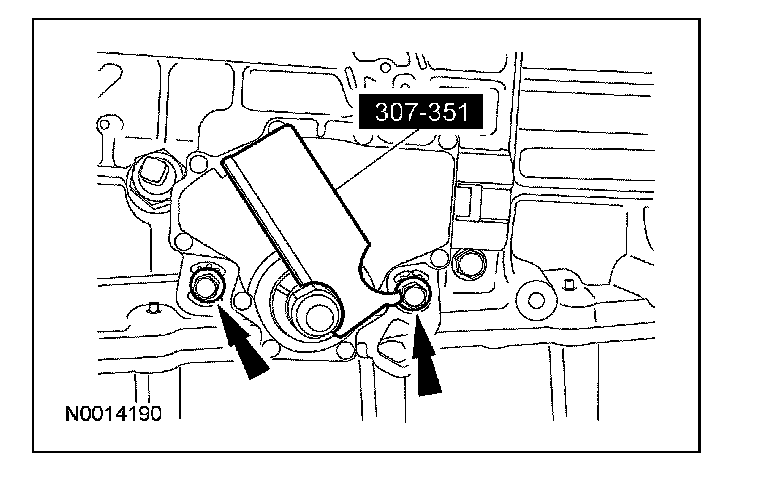

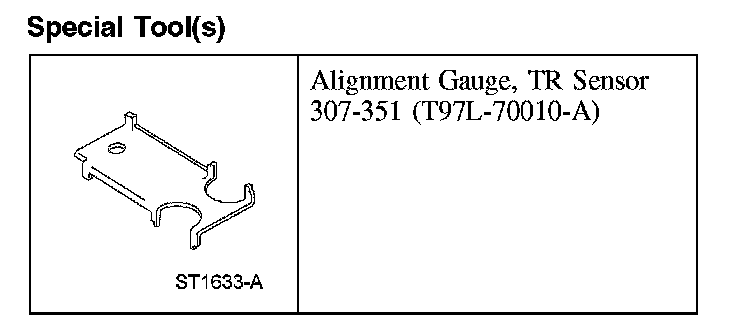

8. Using the special tool, align the digital TR sensor and tighten the screws in an alternating sequence.
^ Tighten to 8 Nm (71 lb-inch).

Factory service manual diagram




9. Install the outer manual lever and nut.
^ Tighten to 48 Nm (35 lb-ft).

Factory service manual diagram




10. NOTE: When installing the selector lever cable, make sure that the selector lever cable locking tabs are locked in place and the selector lever cable end is snapped onto the ball stud. Press the selector lever cable into the selector lever cable bracket and listen for the selector lever cable to click in place. Pull back on the selector lever cable to make sure that it is locked into the selector lever cable bracket. Also make sure that the selector lever cable end is correctly installed onto the ball stud. Pull back on the selector lever cable end to make sure that the selector lever cable end is correctly installed.

Install the selector lever cable end onto the manual control lever.

Factory service manual diagram




11. Reconnect the digital TR sensor electrical connector.

Factory service manual diagram




12. Move the rubber boot back over the TR electrical connector.

Factory service manual diagram




13. NOTE: If the selector lever cable shield is loose on the selector lever cable, replace the selector lever cable shield.

Install the selector lever cable shield.

Factory service manual diagram




14. Verify that the selector lever cable is adjusted correctly.
15. Verify that the vehicle will start in PARK and NEUTRAL and that the reverse lamps illuminate in REVERSE.
