2008 Ford Explorer 2WD V8-4.6LFACTORY OEM SERVICE PROCEDURE
Oil Temperature Sensor For ECM: Service and Repair
OIL TEMPERATURE SENSOR

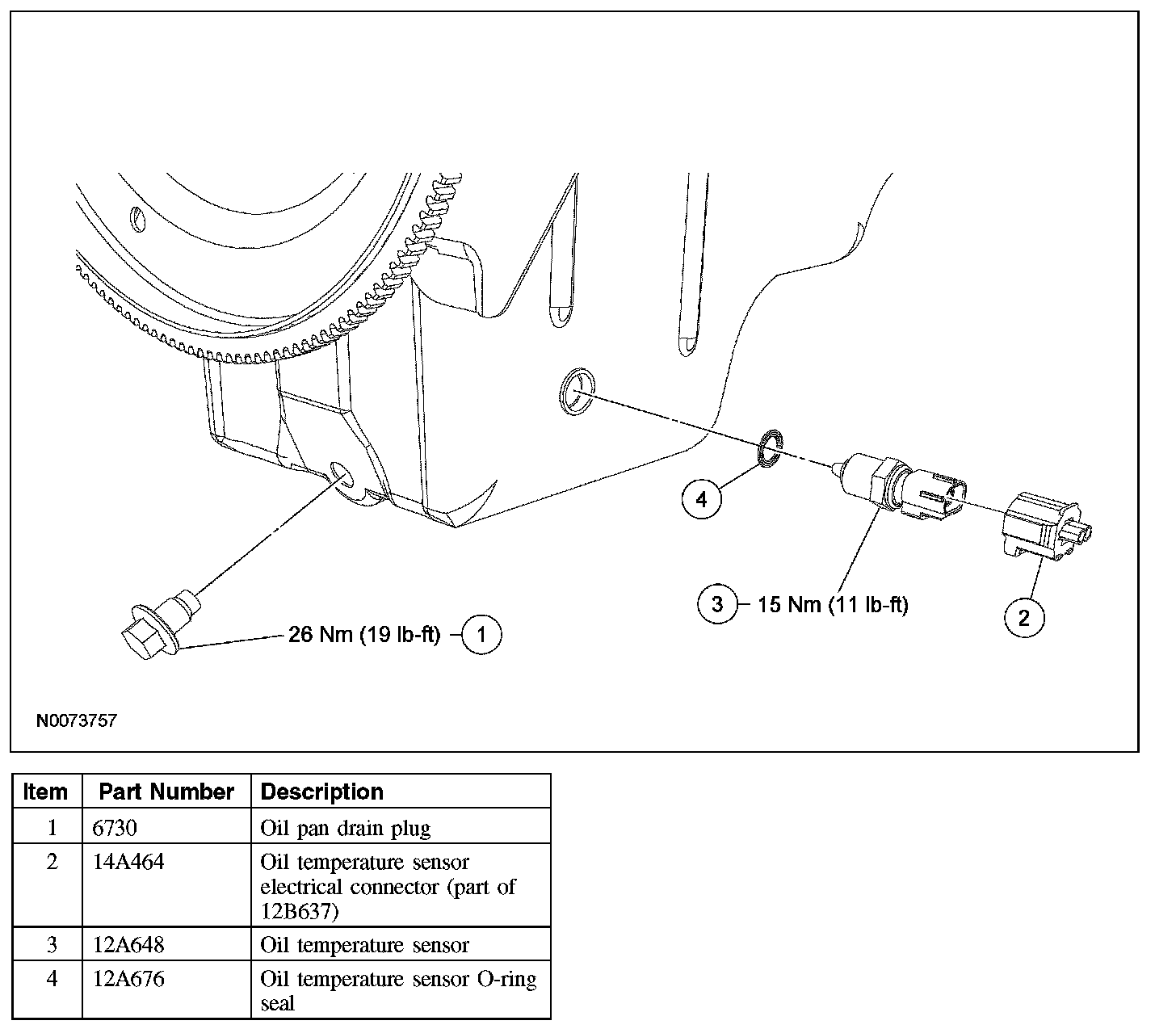

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Drain the engine oil.
- Install the drain plug and tighten to 26 Nm (19 lb-ft).
3. Disconnect the oil temperature sensor electrical connector.
4. Remove the oil temperature sensor.
- To install, tighten to 15 Nm (11 lb-ft).
5. To install, reverse the removal procedure.
- Inspect the O-ring seal and install a new O-ring seal if necessary.
- Fill the engine with clean engine oil.
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Drain the engine oil.
- Install the drain plug and tighten to 26 Nm (19 lb-ft).
3. Disconnect the oil temperature sensor electrical connector.
4. Remove the oil temperature sensor.
- To install, tighten to 15 Nm (11 lb-ft).
5. To install, reverse the removal procedure.
- Inspect the O-ring seal and install a new O-ring seal if necessary.
- Fill the engine with clean engine oil.
