2008 Ford Explorer 2WD V8-4.6LFACTORY OEM SERVICE PROCEDURE
Toe Adjustment - Front
Toe Adjustment - Front
1. Using alignment equipment and the manufacturer's instructions, measure the front toe.
2. Start the engine and center the steering wheel.
3. Turn the engine OFF and, using a suitable holding device, lock the steering wheel in the straight ahead position.

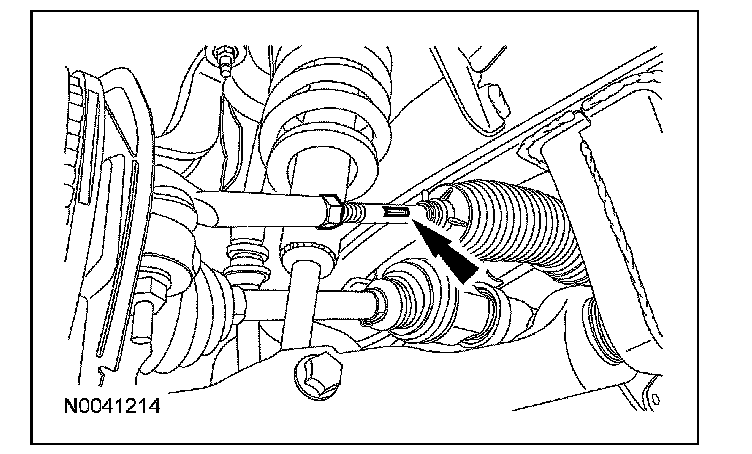

4. NOTE: Do not allow the steering gear bellows to twist when the front wheel inner tie rod is rotated.
Remove the clamps.

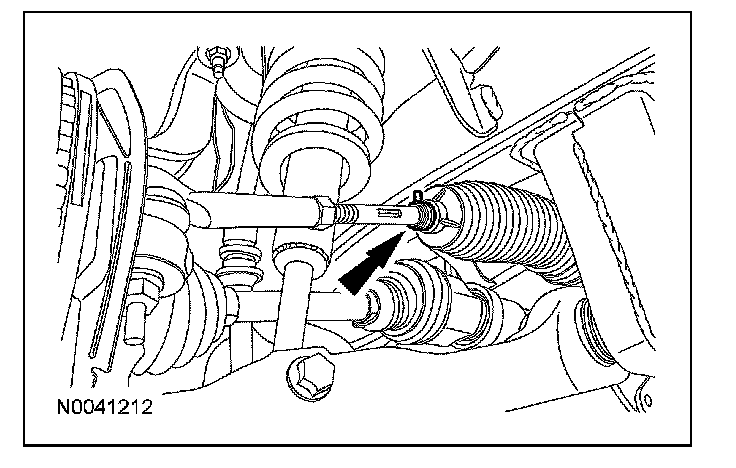

5. Loosen the tie-rod jam nuts.

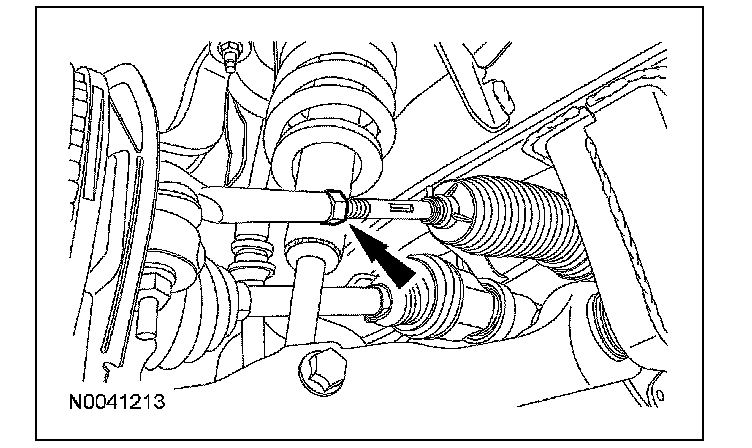

6. Rotate the front wheel inner tie rods until the toe setting is within specification.
7. CAUTION: Make sure to hold the tie-rod end stationary while tightening the nut or damage to the steering gear bellows can occur.
NOTE: Make sure that the toe settings are not disturbed while tightening the nuts.
Tighten the tie-rod jam nuts to 70 Nm (52 lb-ft).
8. Install the clamps.
9. Recheck the toe settings and adjust if necessary.
1. Using alignment equipment and the manufacturer's instructions, measure the front toe.
2. Start the engine and center the steering wheel.
3. Turn the engine OFF and, using a suitable holding device, lock the steering wheel in the straight ahead position.
4. NOTE: Do not allow the steering gear bellows to twist when the front wheel inner tie rod is rotated.
Remove the clamps.
5. Loosen the tie-rod jam nuts.
6. Rotate the front wheel inner tie rods until the toe setting is within specification.
7. CAUTION: Make sure to hold the tie-rod end stationary while tightening the nut or damage to the steering gear bellows can occur.
NOTE: Make sure that the toe settings are not disturbed while tightening the nuts.
Tighten the tie-rod jam nuts to 70 Nm (52 lb-ft).
8. Install the clamps.
9. Recheck the toe settings and adjust if necessary.
