2008 Ford Explorer 2WD V8-4.6LFACTORY OEM SERVICE PROCEDURE
Diagnostic Trouble Code Descriptions

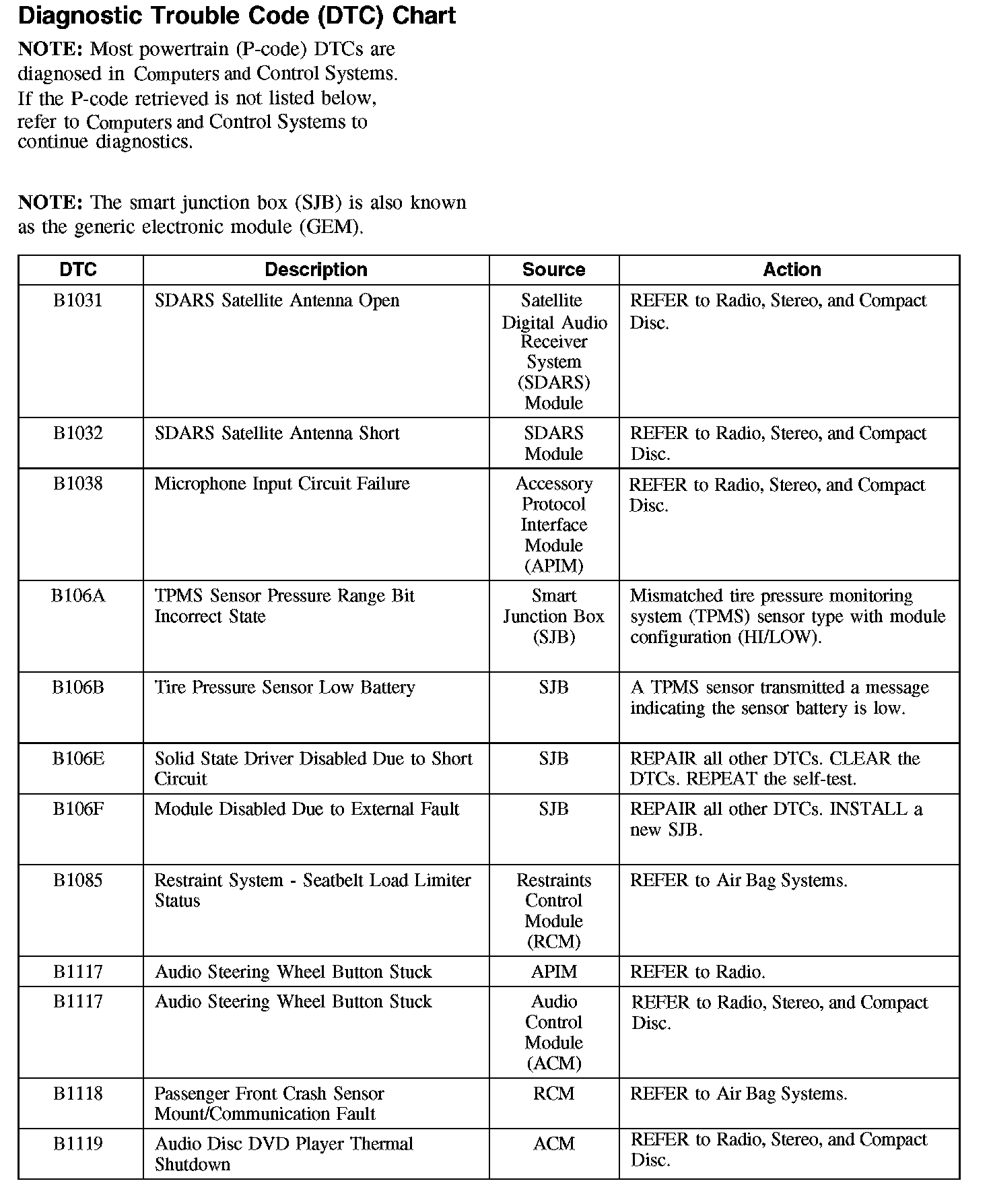

B106A-B1119:
B111F-B1178:

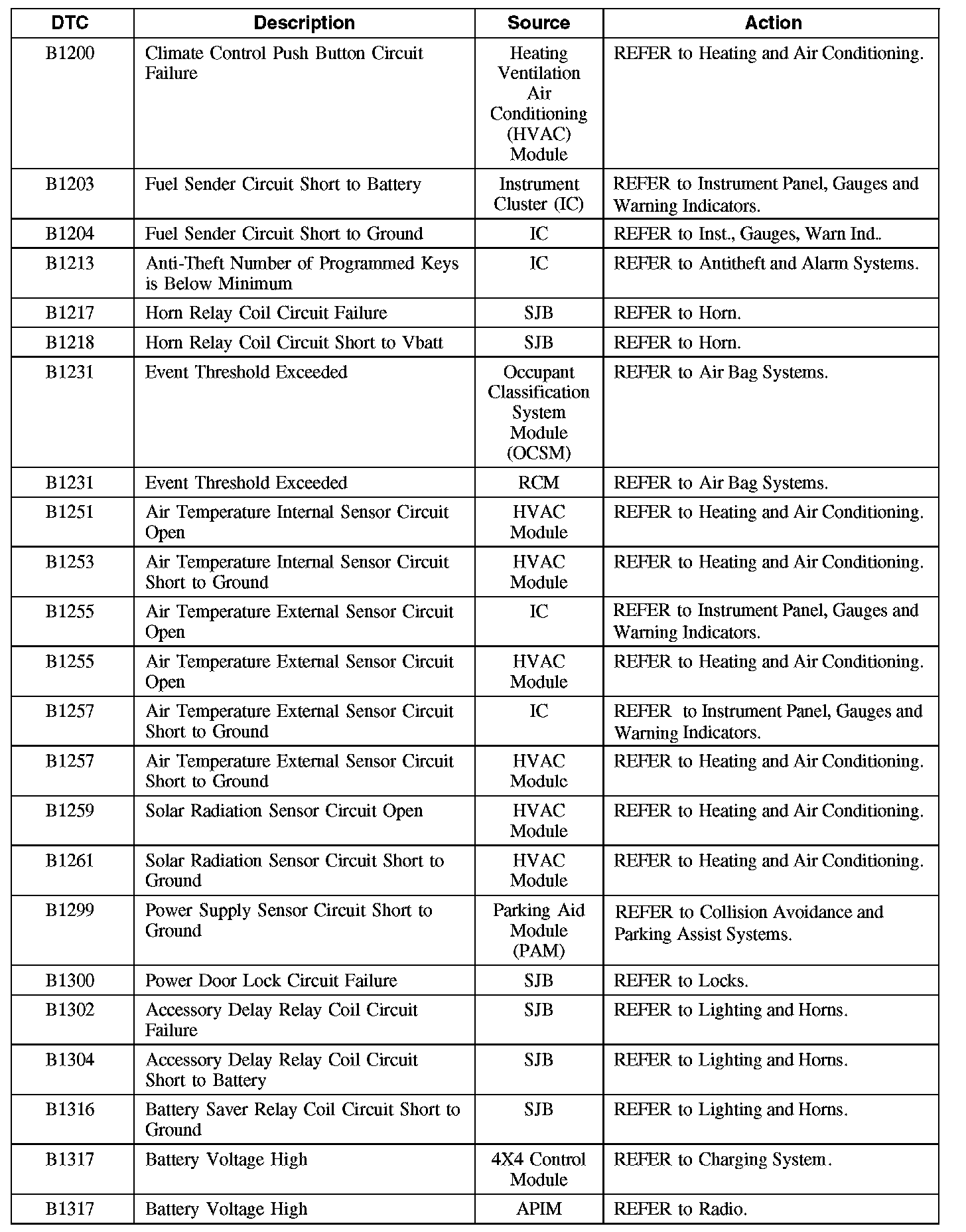

B1200-B1317:

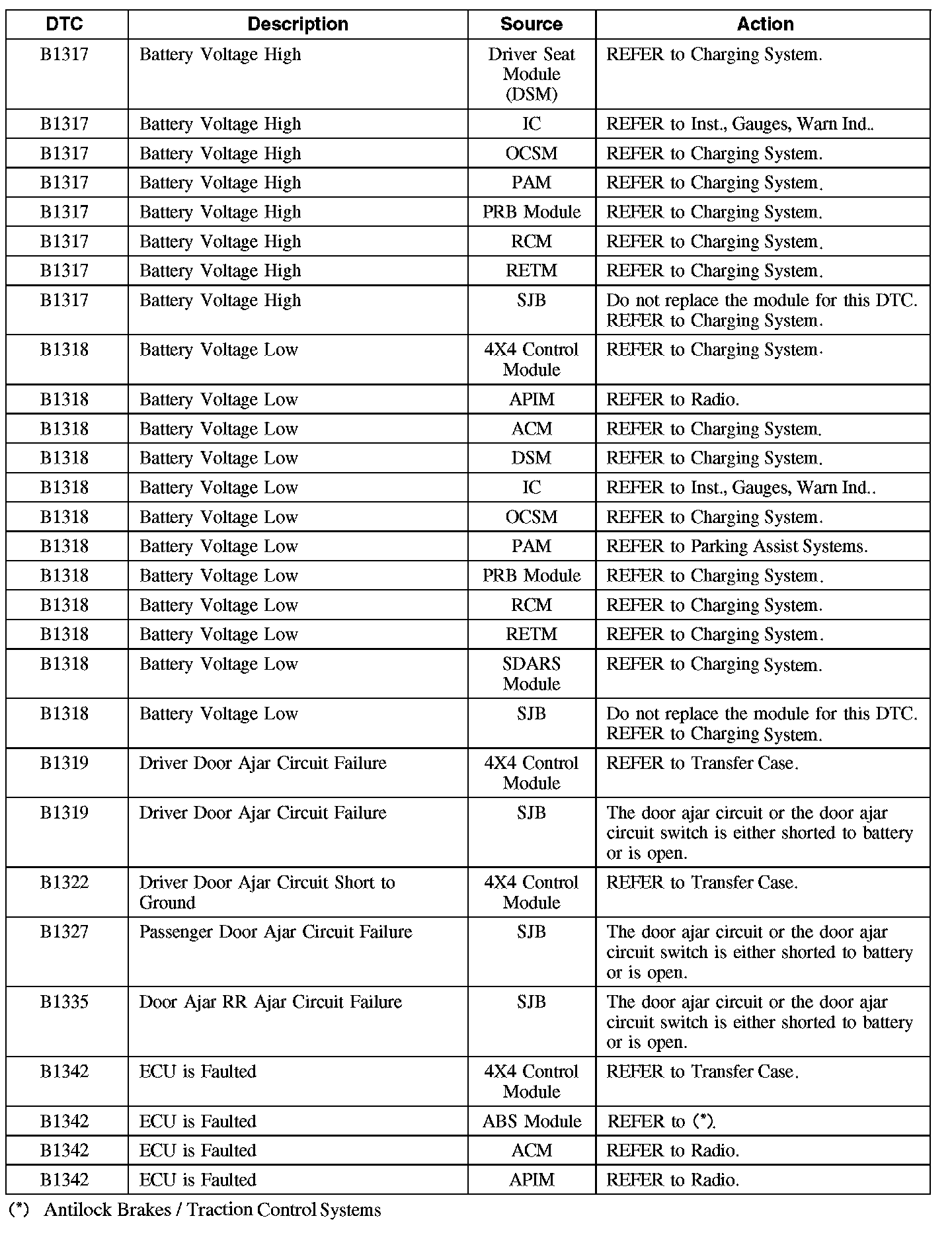

B1317-B1342:

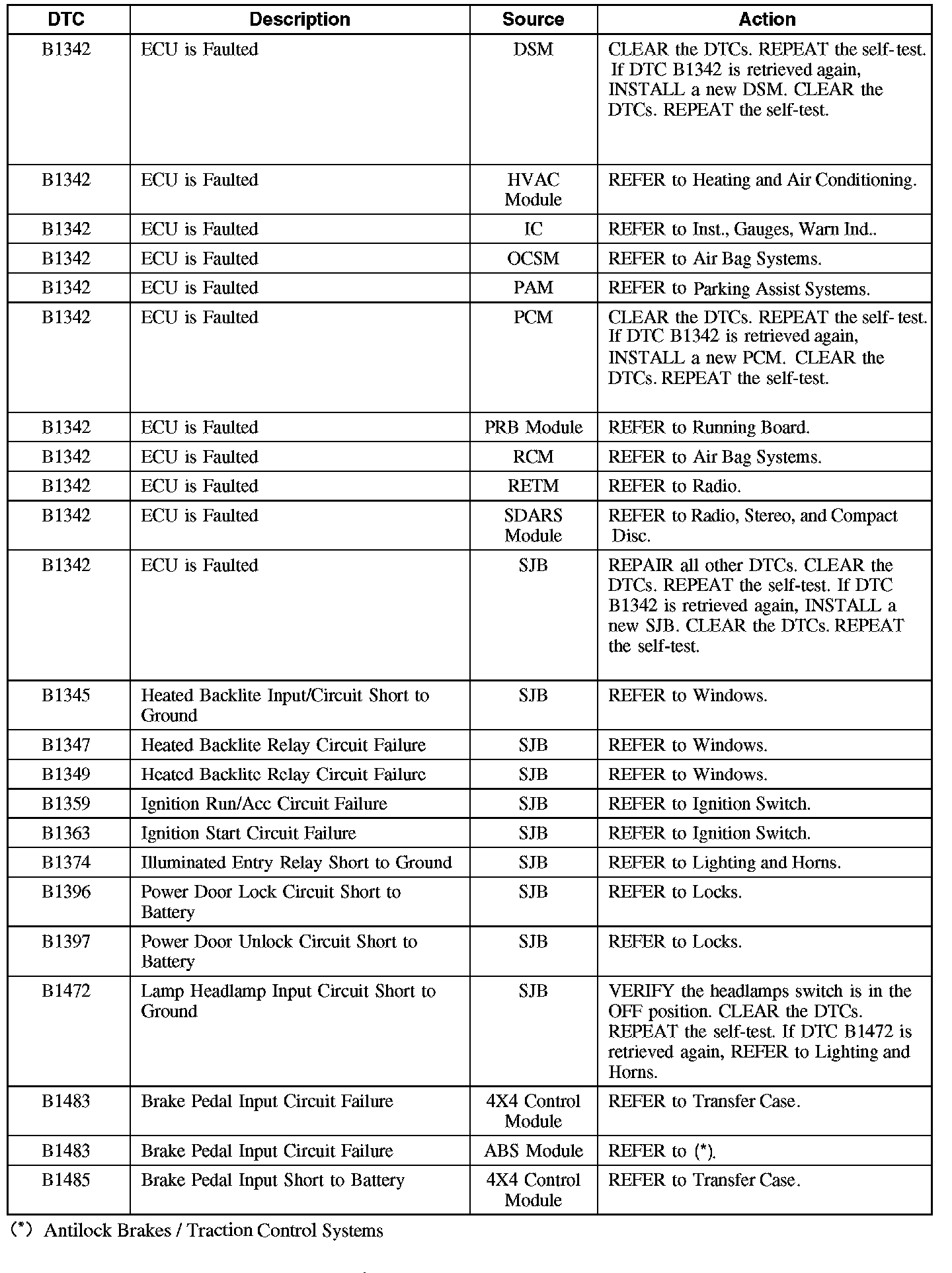

B1342-B1485:

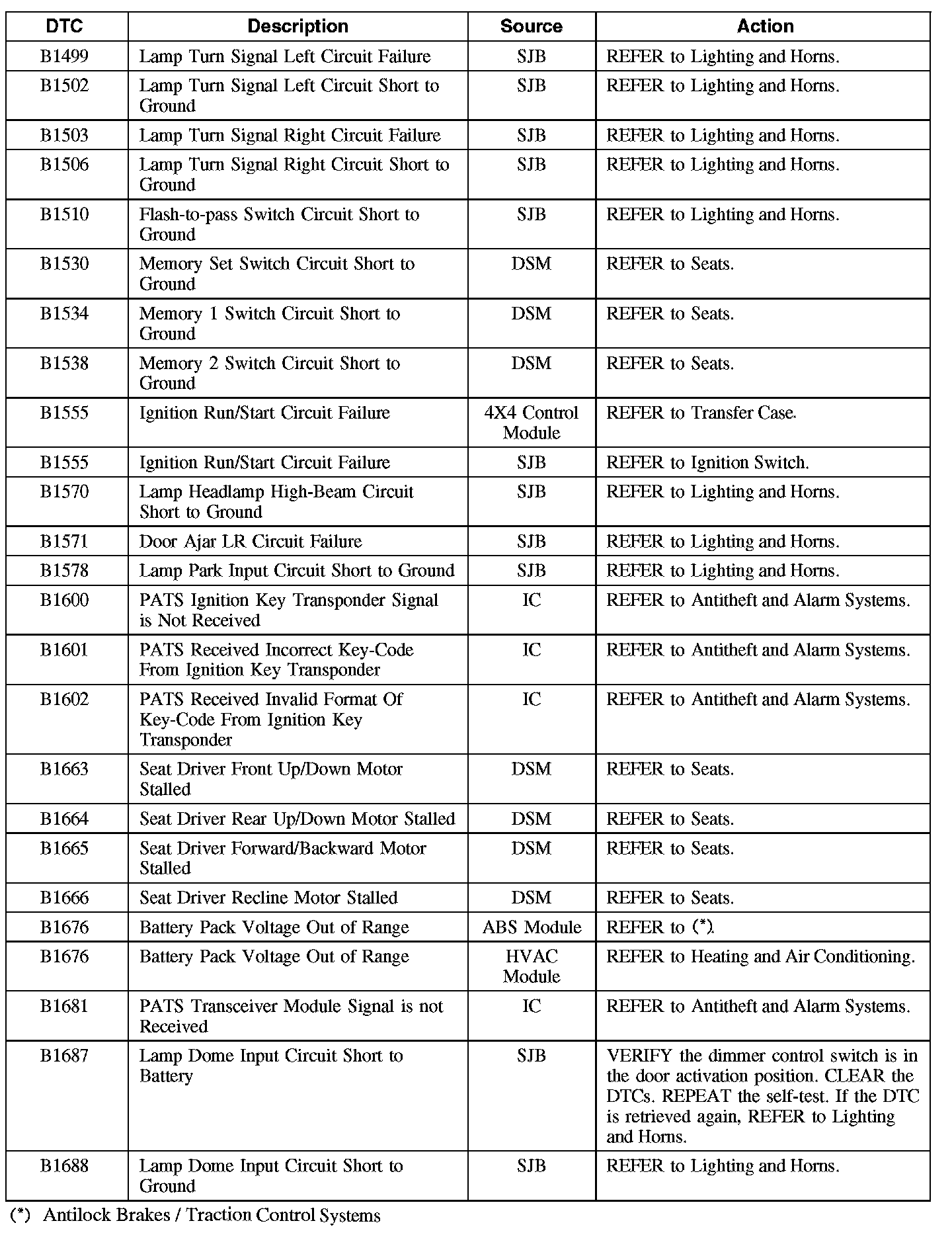

B1499-B1688:

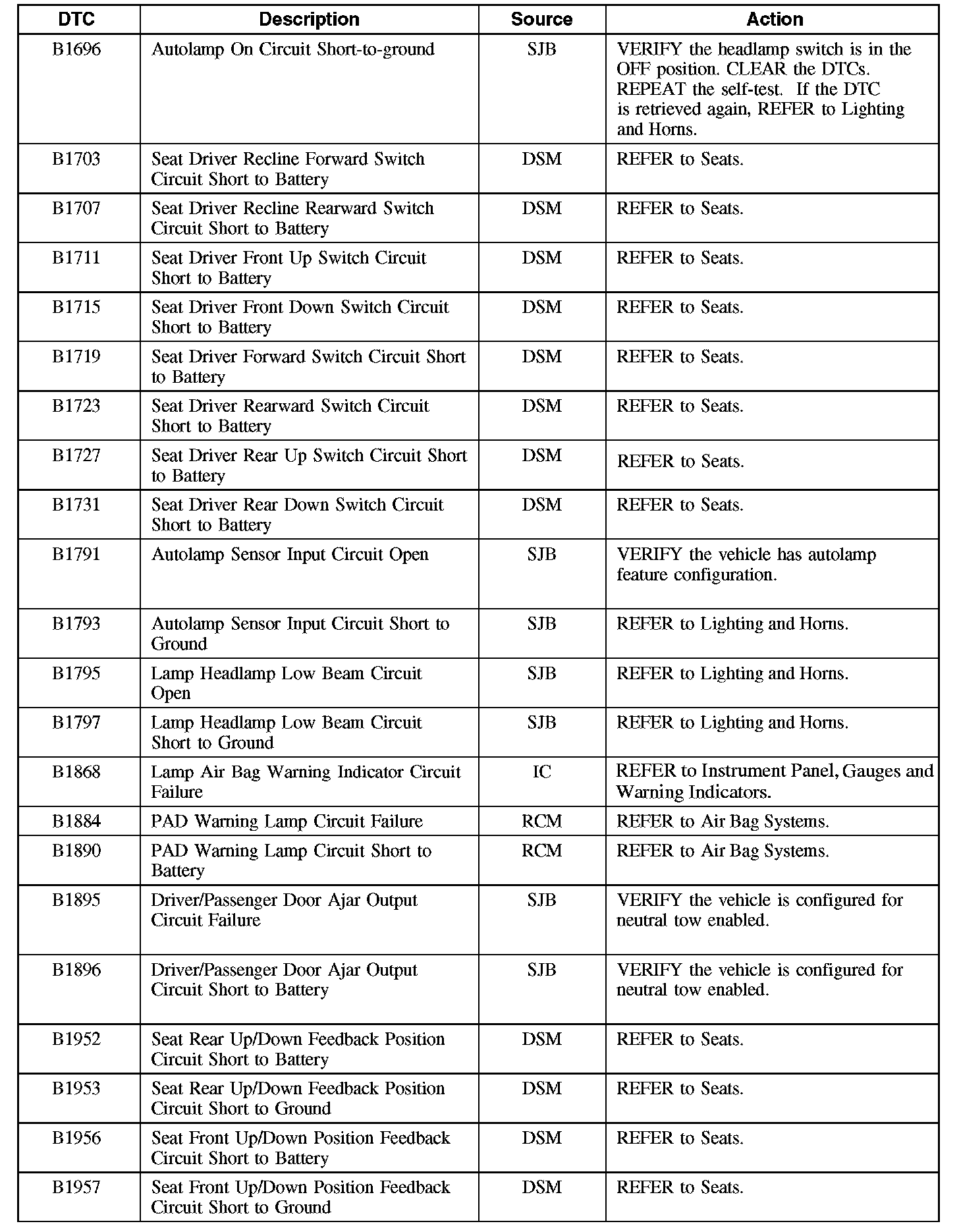

B1696-B1957:

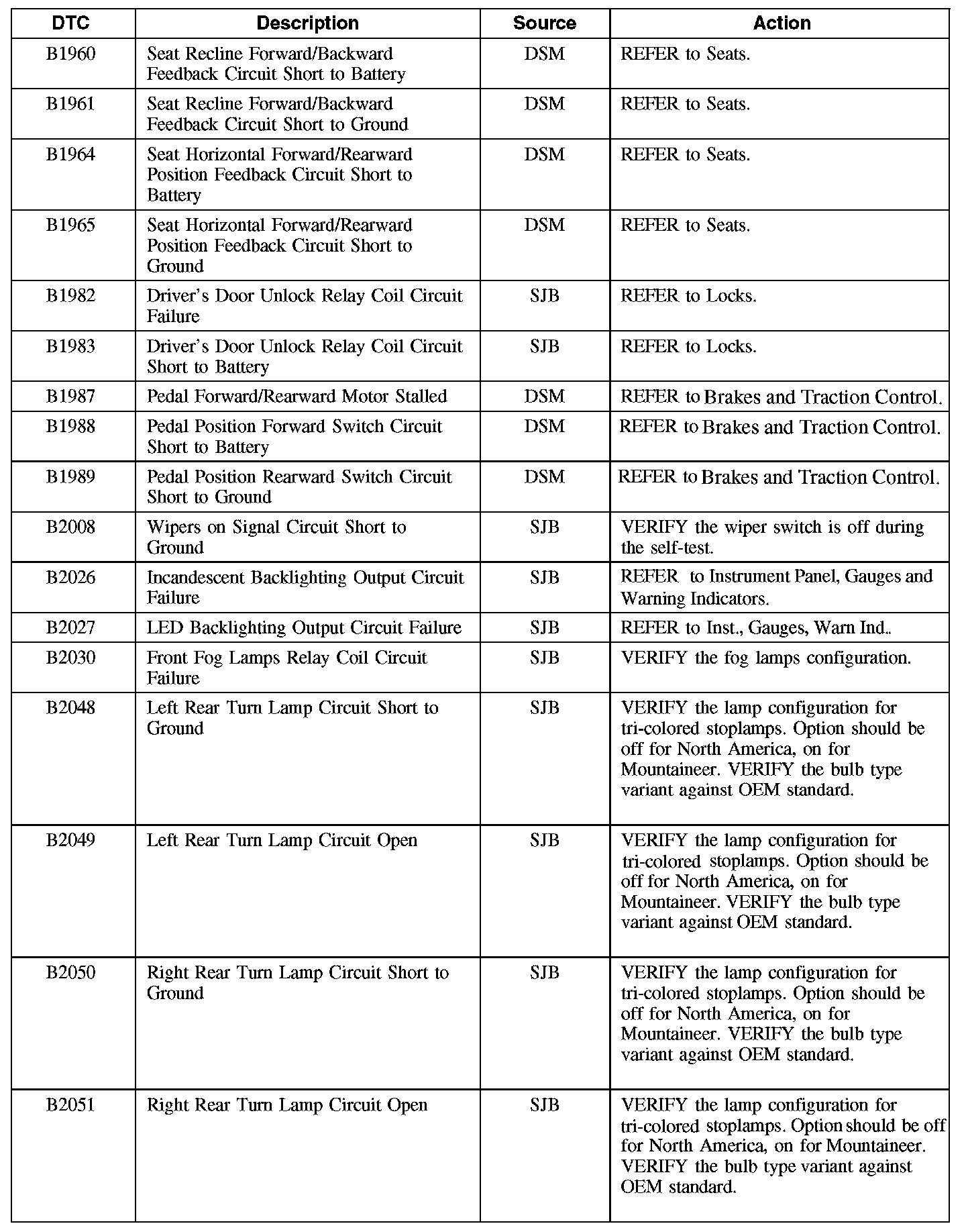

B1960-B2051:

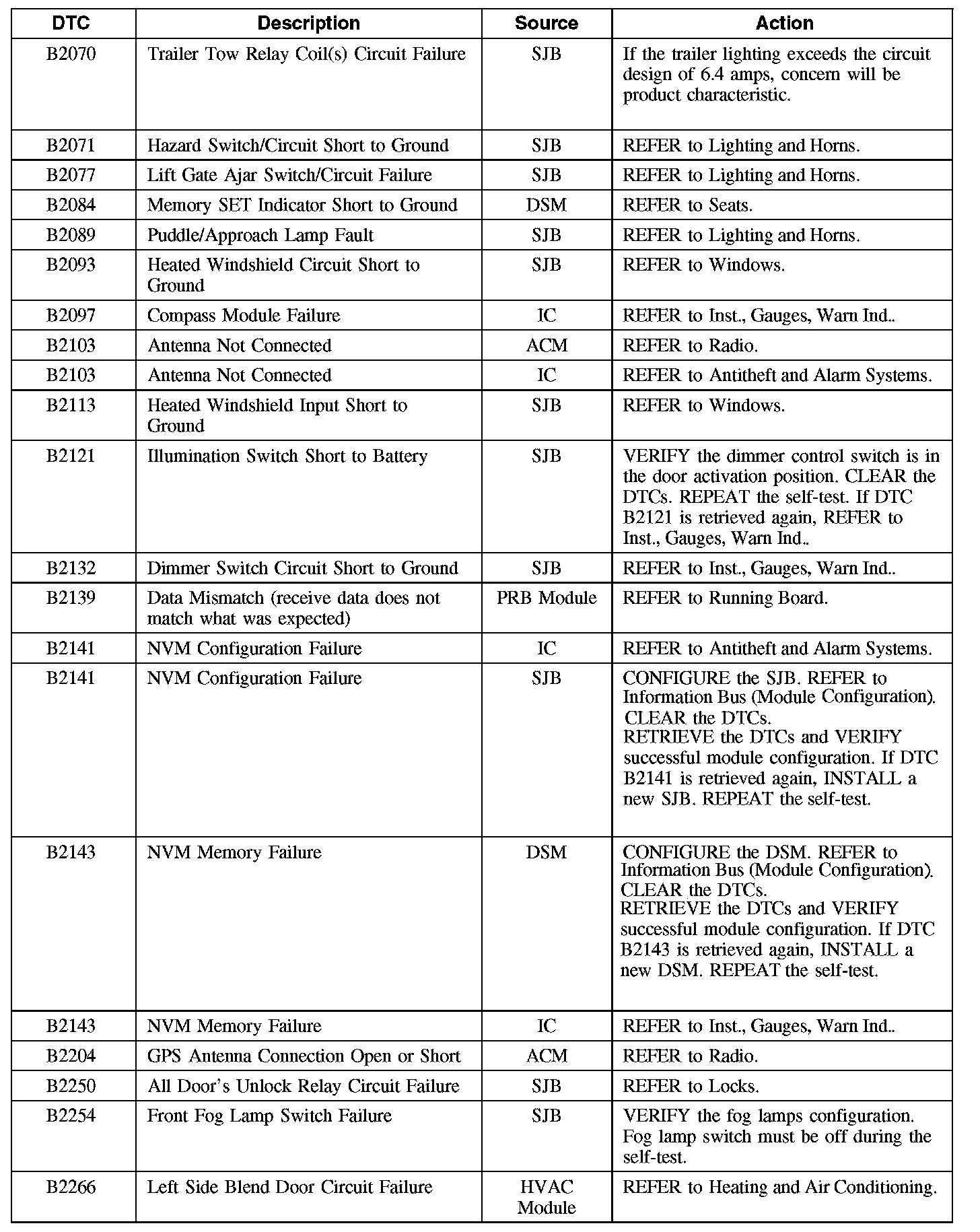

B2070-B2266:
B229A-B2439:

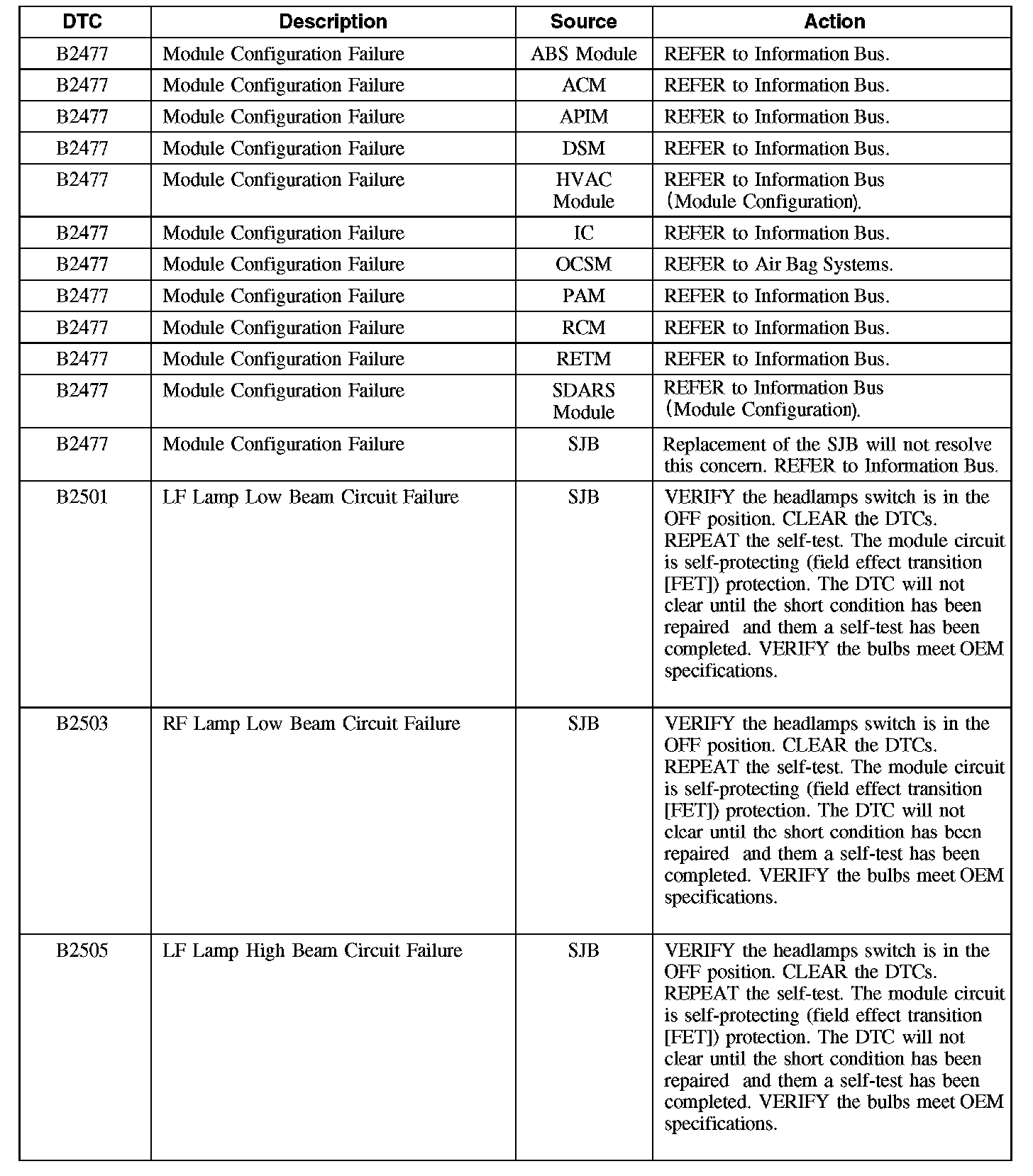

B2477-B2505:

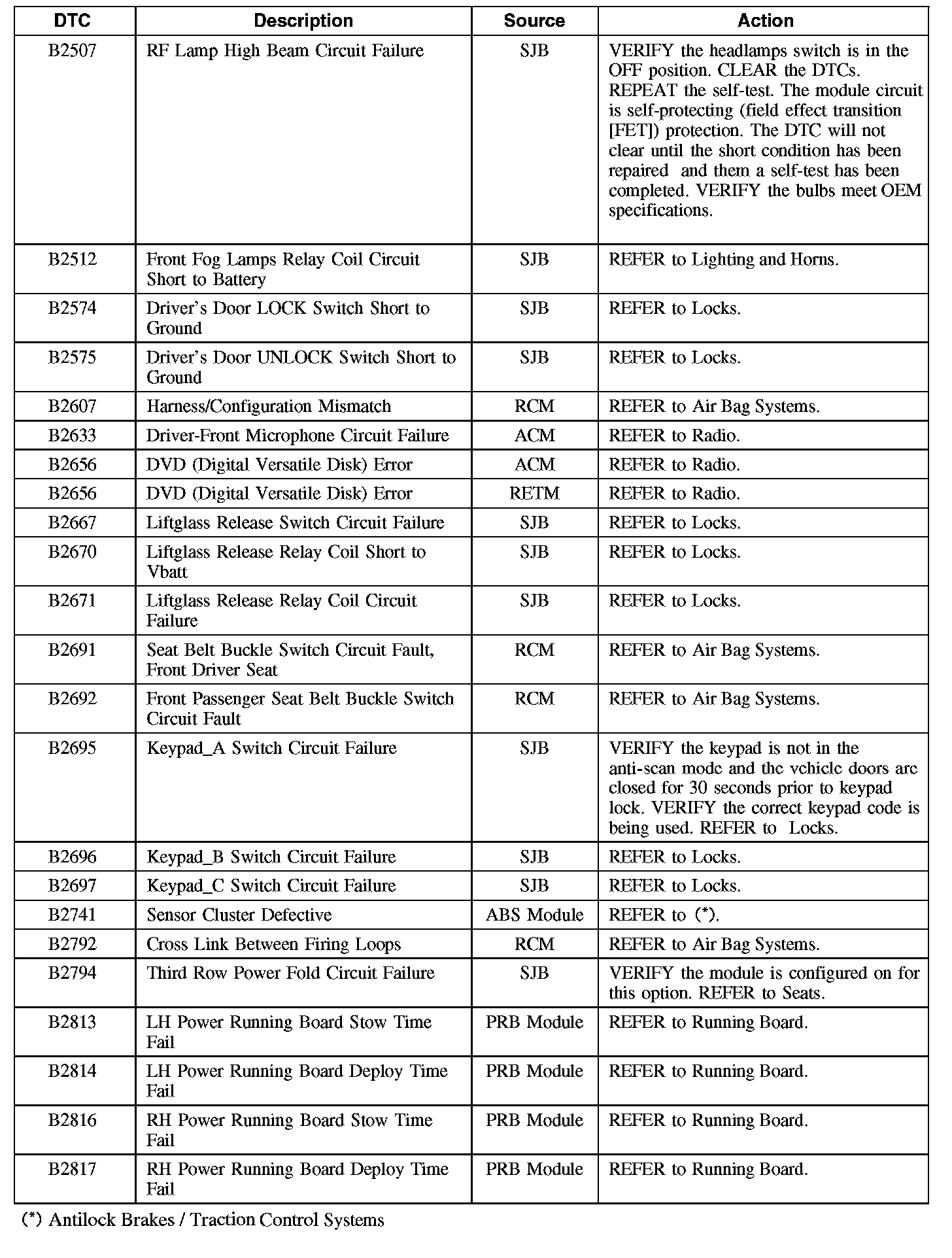

B2507-B2817:

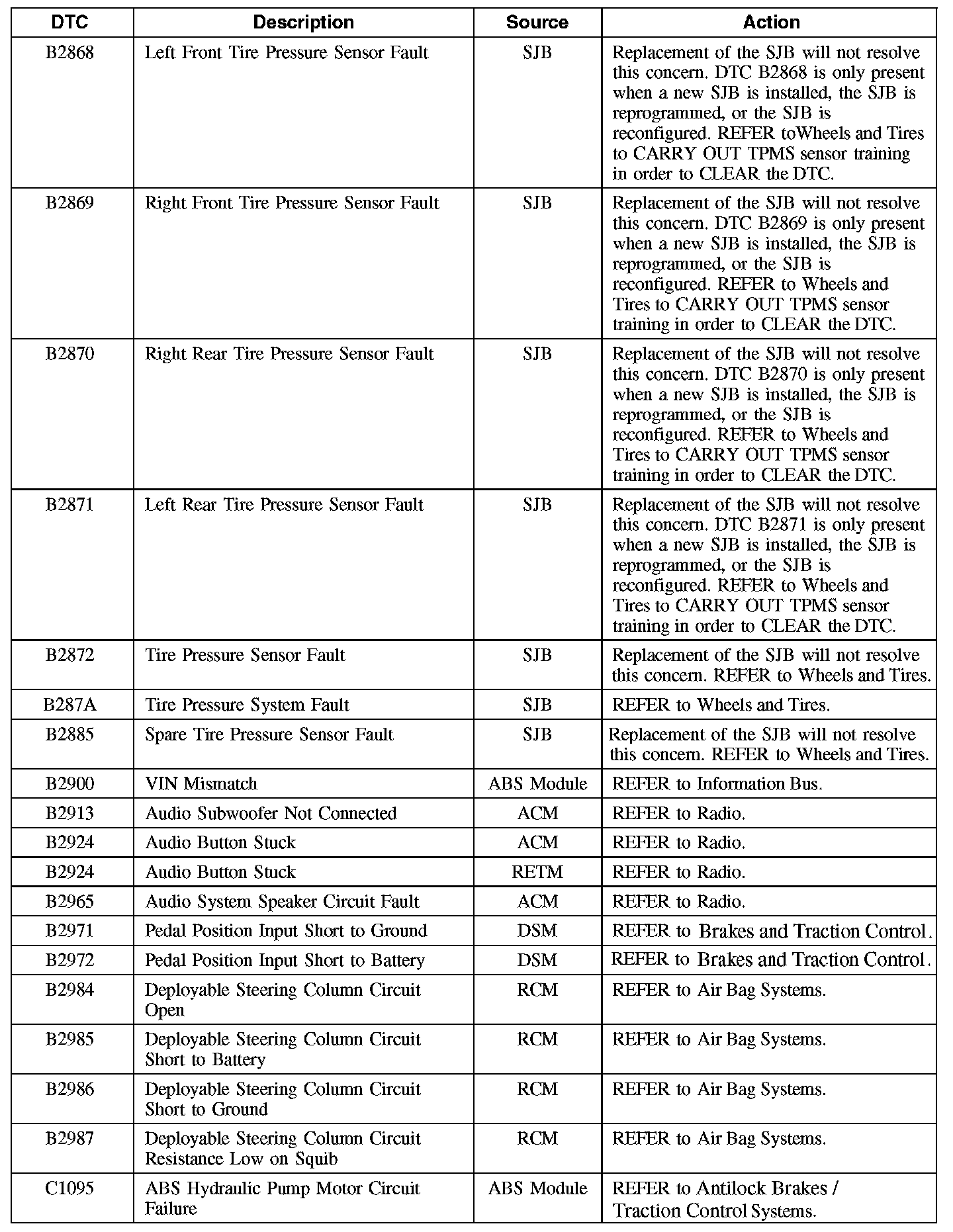

B287A-B2987 / C1095:

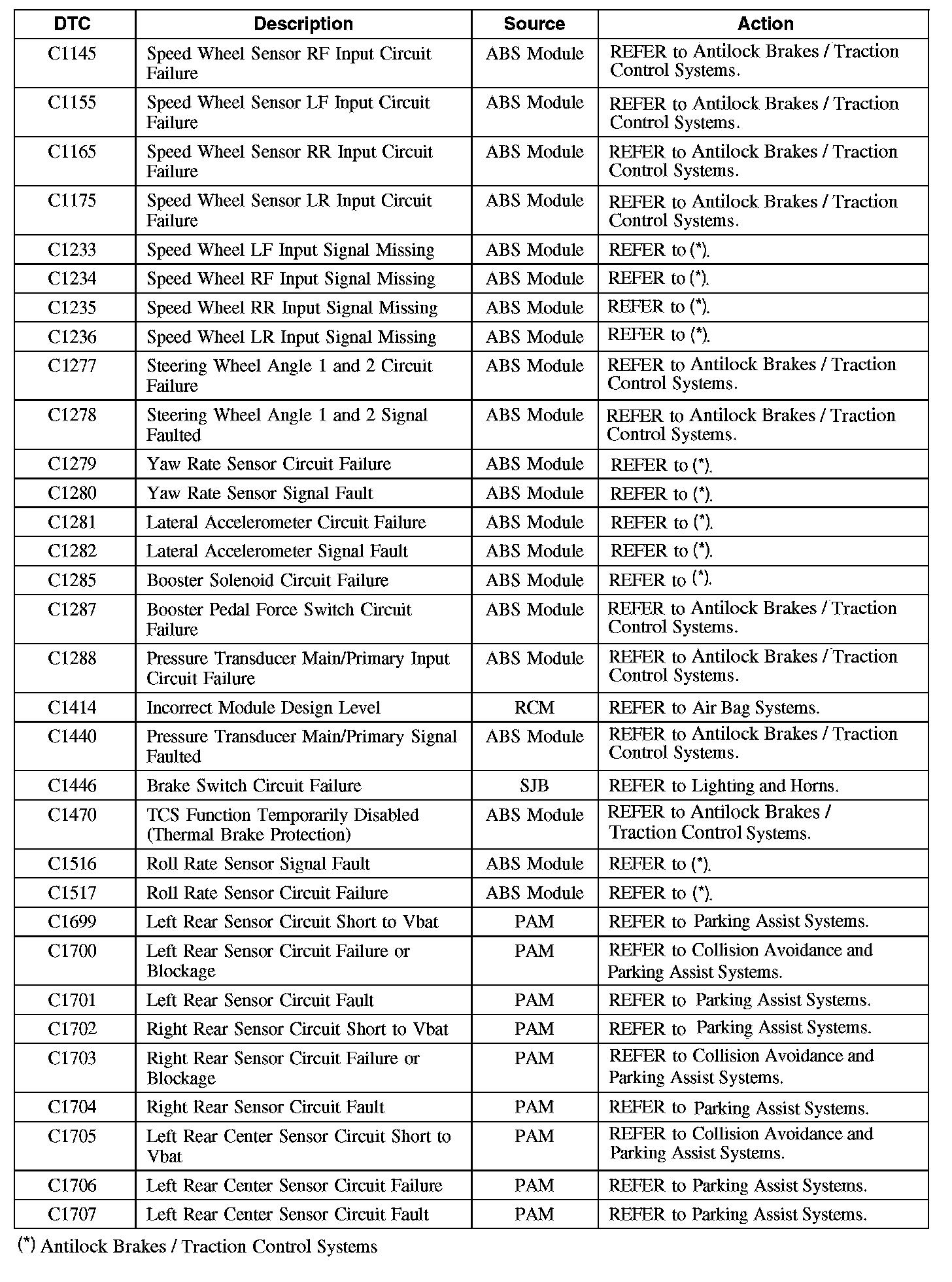

C1145-C1707:

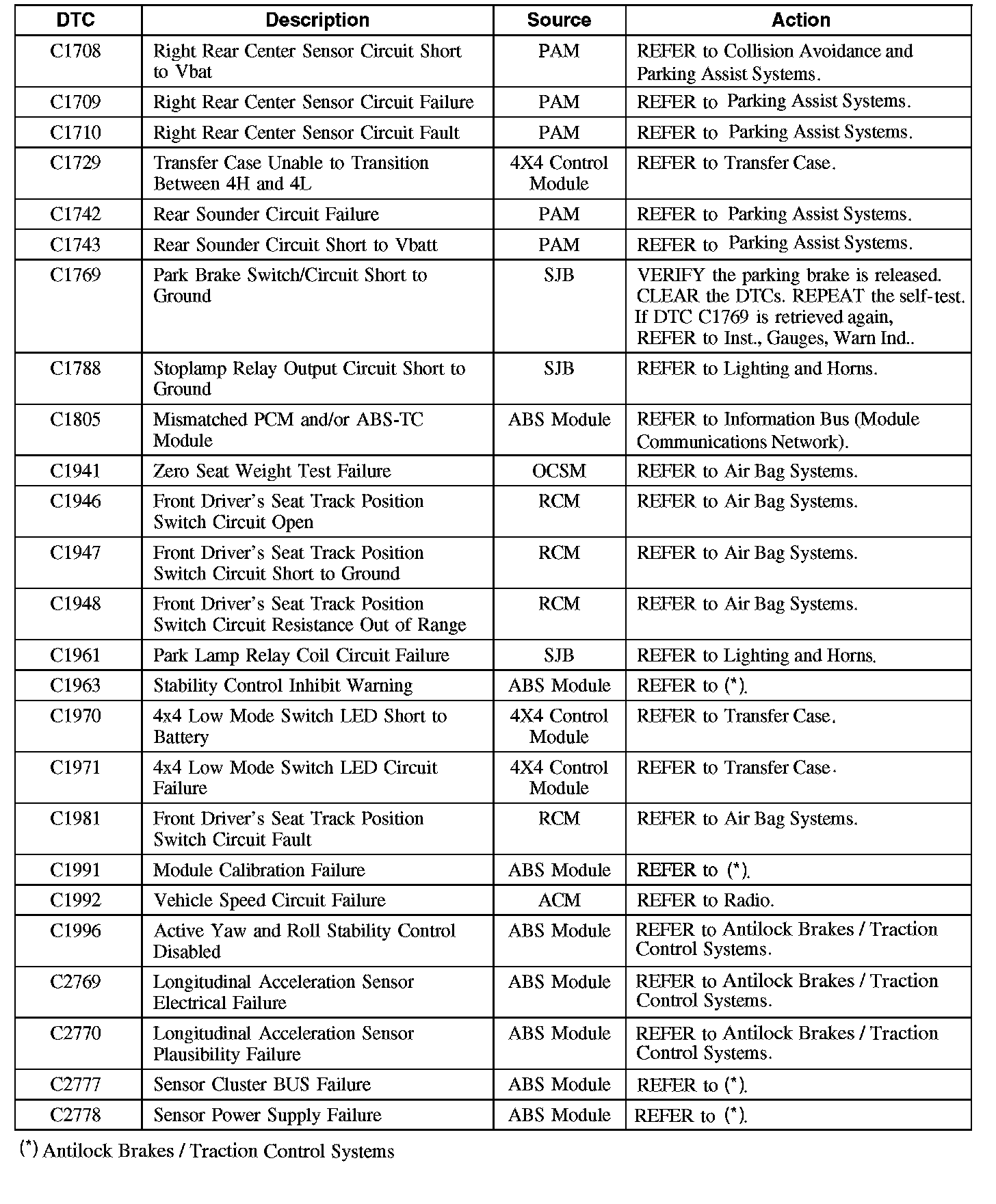

C1708-C2278:

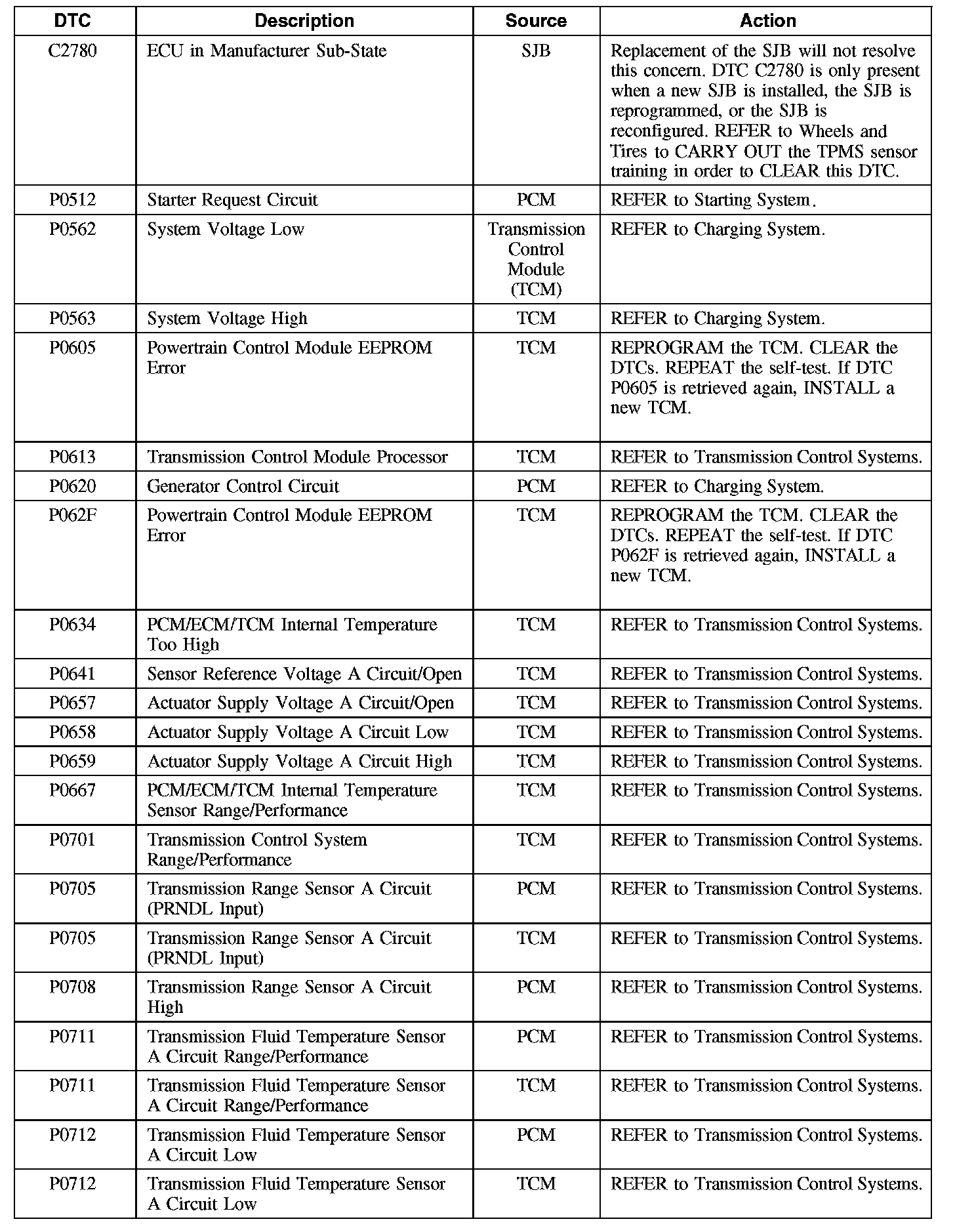

C2780 / P062F-P0712:
P0713-P0741:

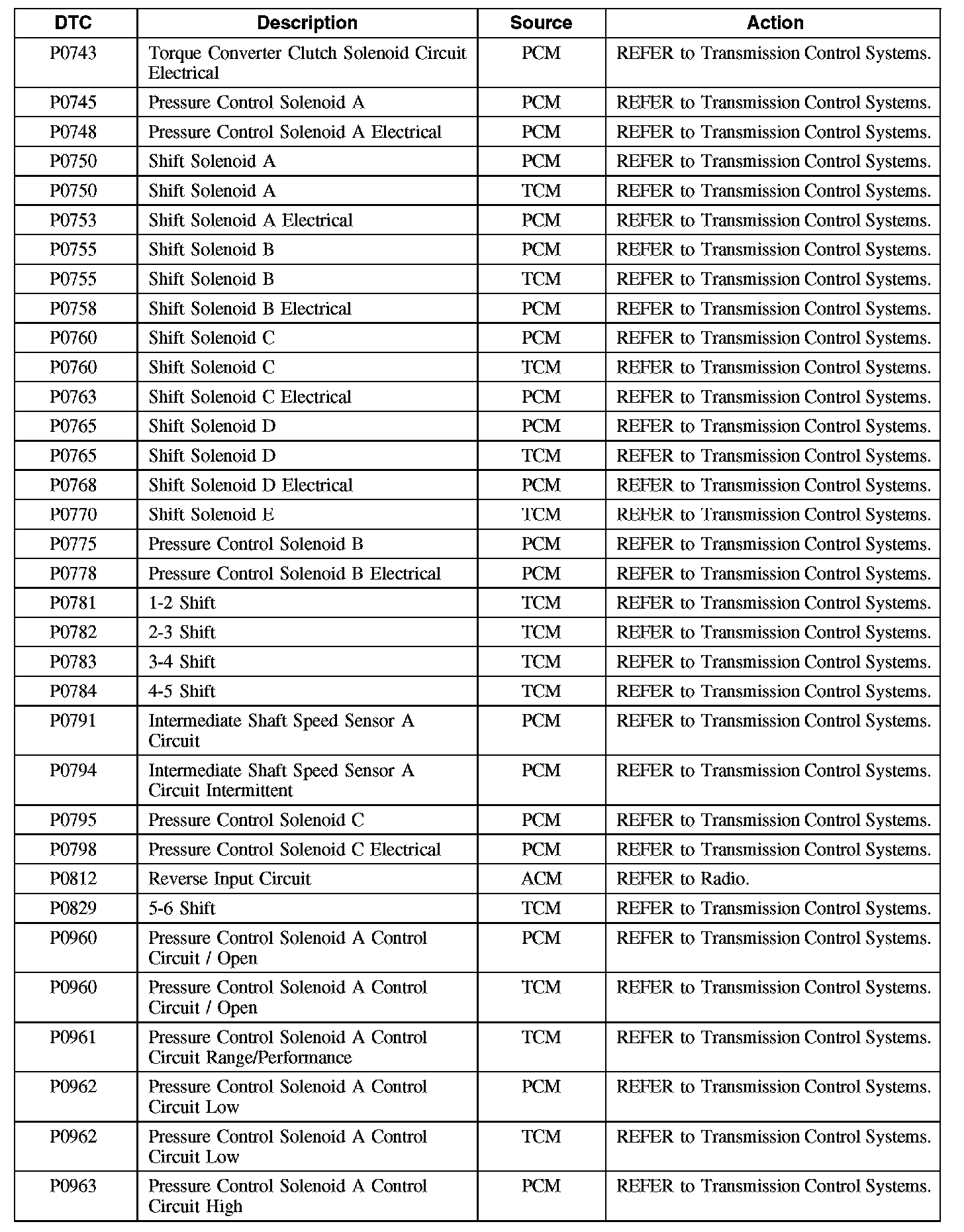

P0743-P0963:
P0963-P1705:
P1707-P2763:

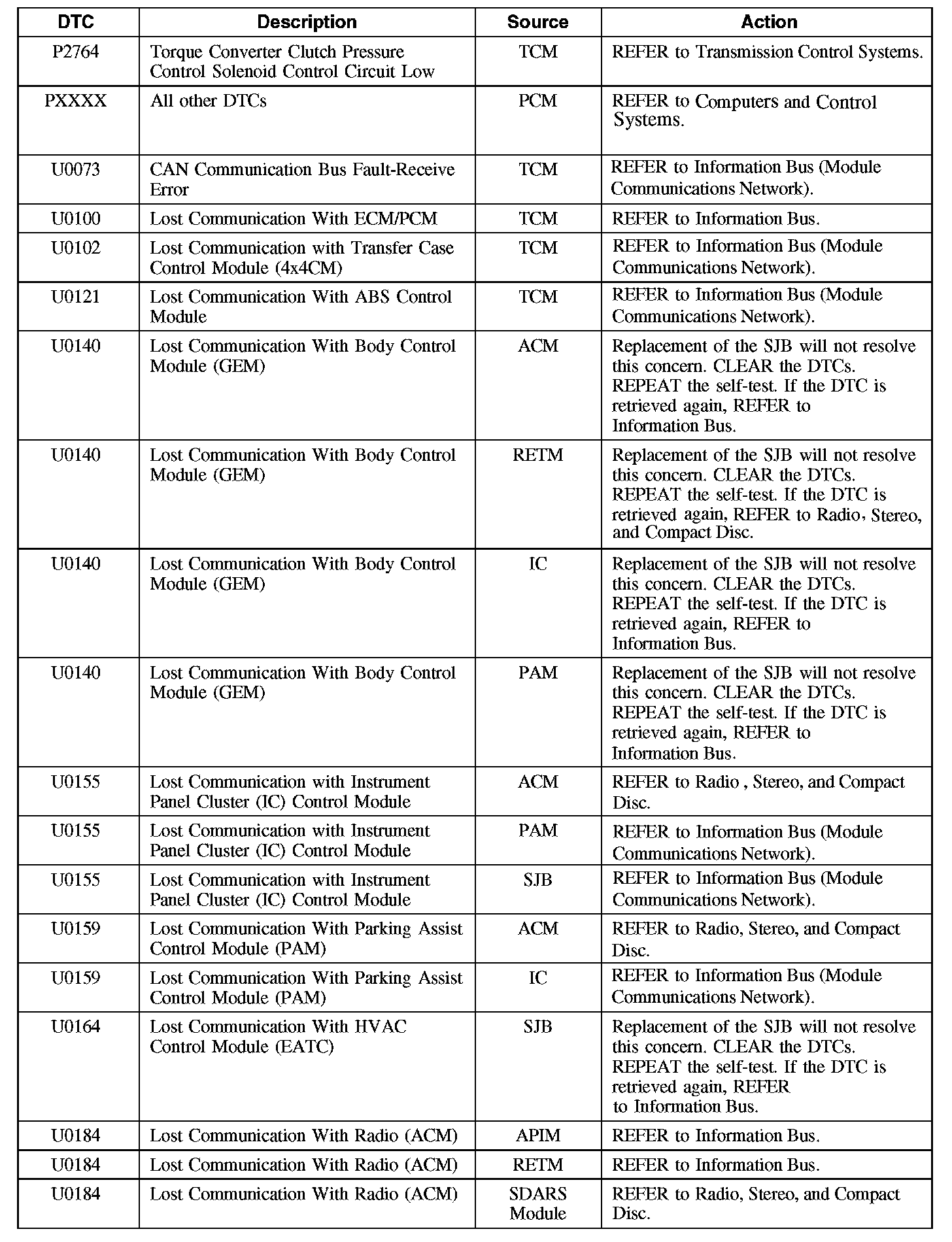

P2764 / U0073-U0184:

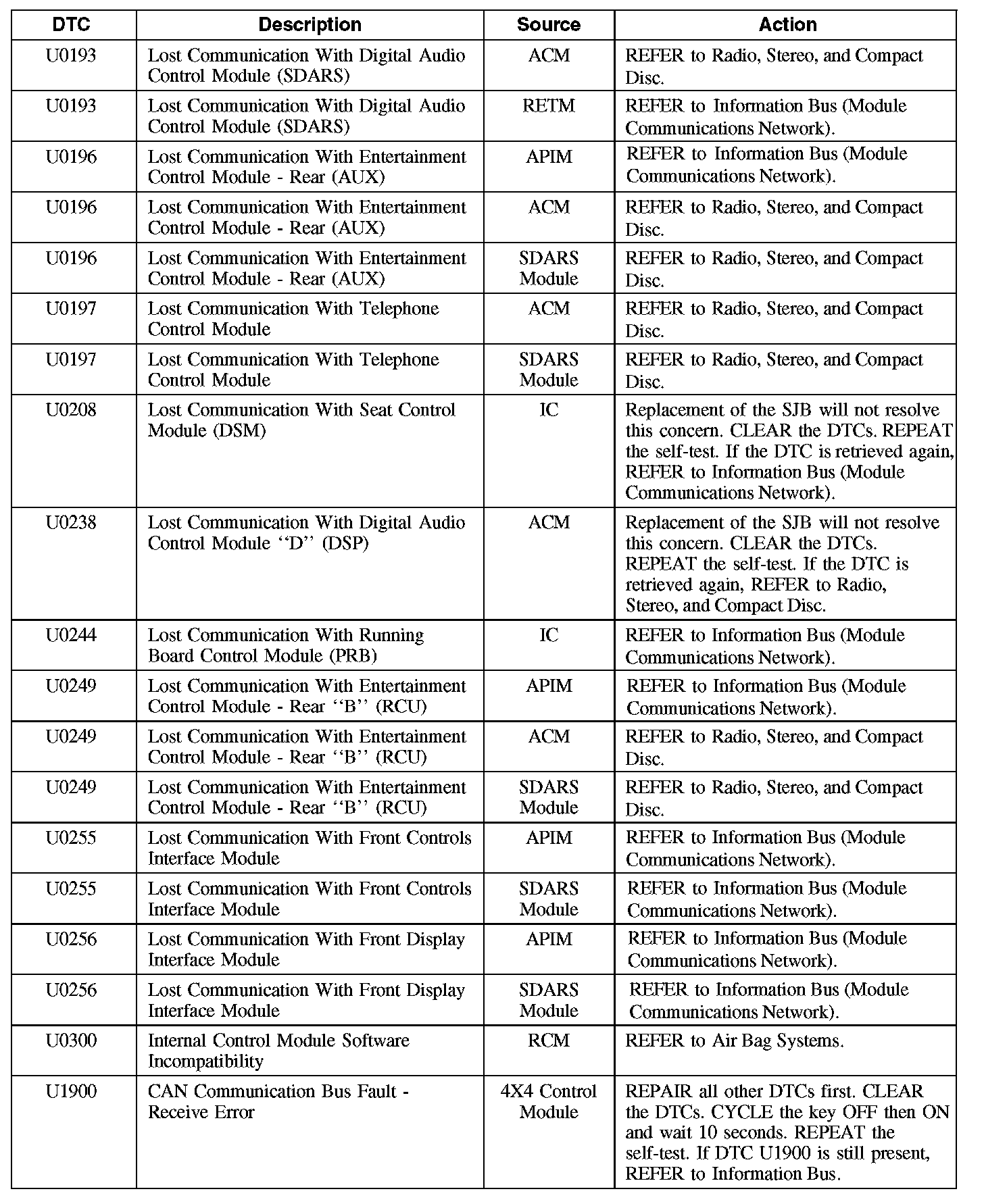

U0193-U1900:

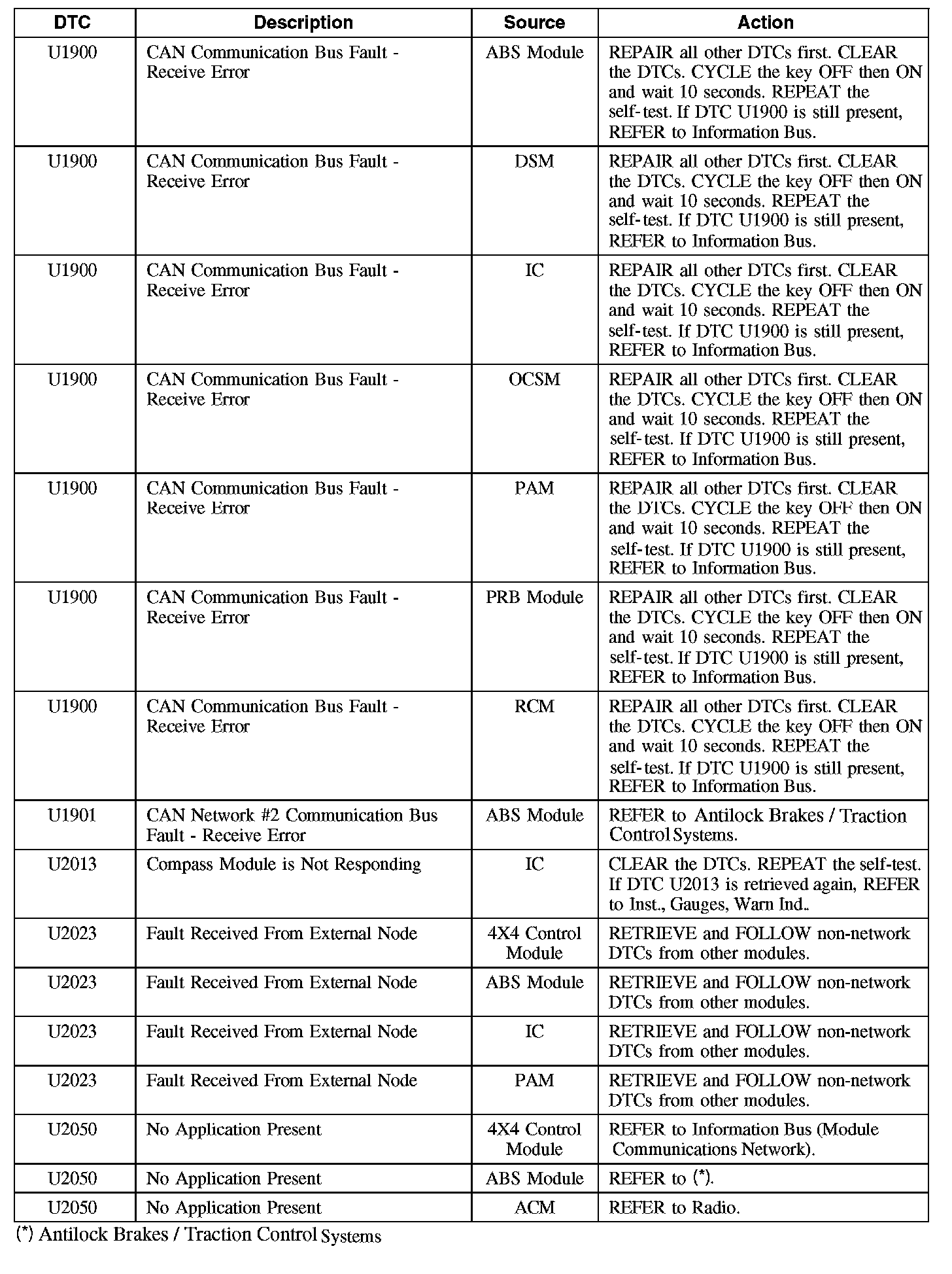

U1900-U2050:

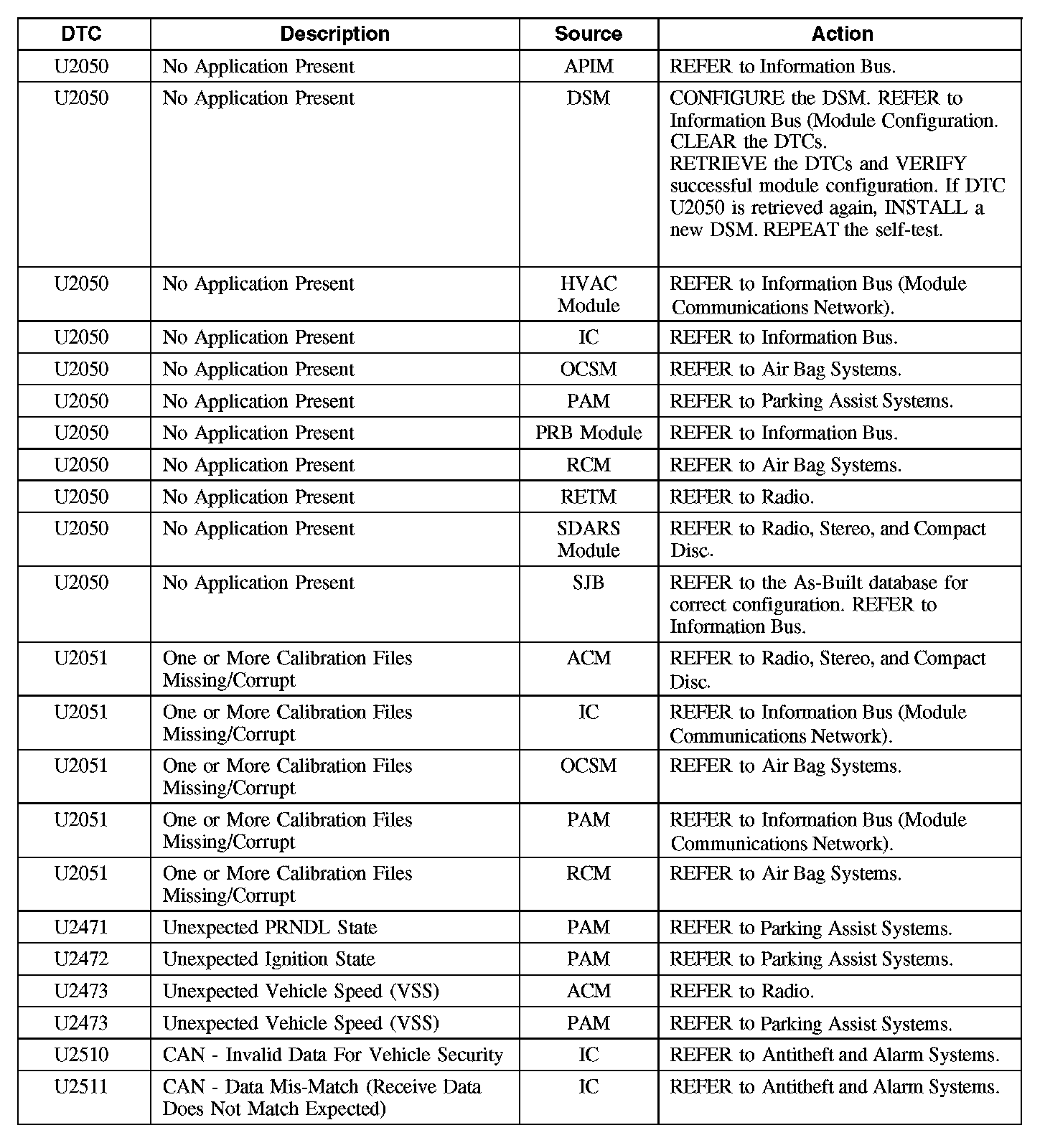

U2050-U2511:
