2008 Ford Escape 2WD V6-3.0LFACTORY OEM SERVICE PROCEDURE
Transmission Position Sensor/Switch: Adjustments
Transmission Range (TR) Sensor Adjustment
1. Remove the battery and tray.

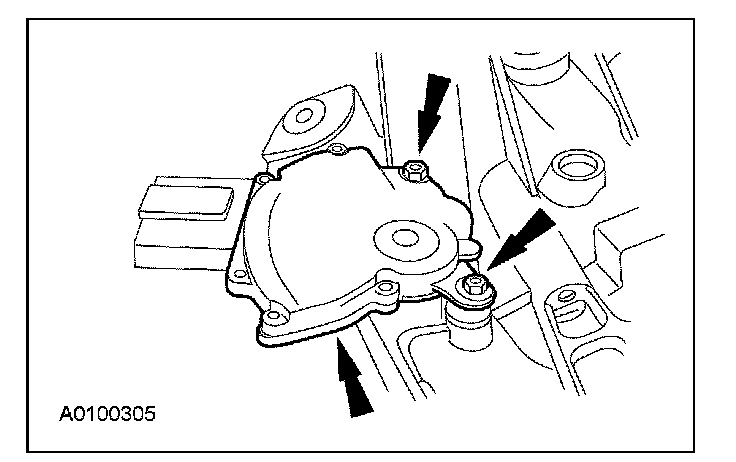

2. NOTE: Make sure the transaxle is in the NEUTRAL position.
Loosen the transmission range (TR) sensor bolts.

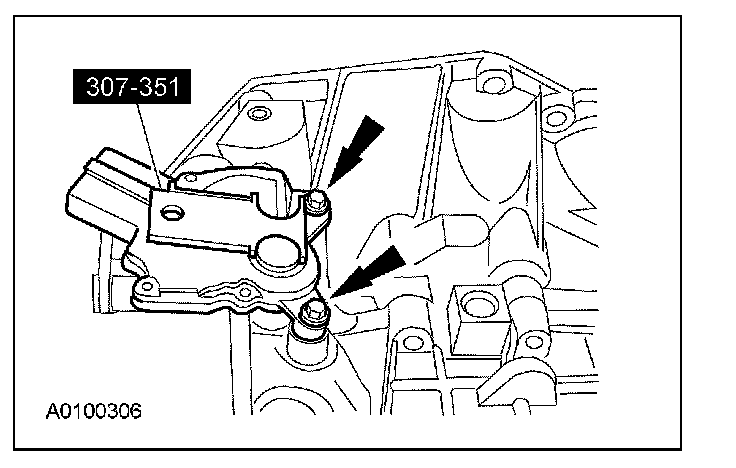

3. Using the special tool, align the TR sensor and tighten the bolts.
^ Tighten to 11 Nm (8 lb-ft).
4. Install the battery and tray.
5. Check for correct operation. The engine should start only in PARK or NEUTRAL. The reverse lamps should illuminate in the REVERSE position.

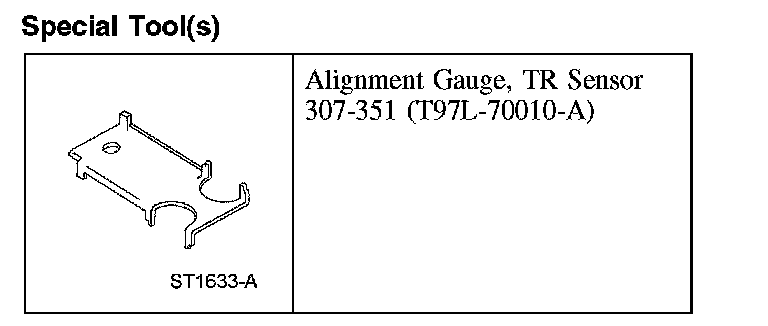

Special Tool(s):
1. Remove the battery and tray.
2. NOTE: Make sure the transaxle is in the NEUTRAL position.
Loosen the transmission range (TR) sensor bolts.
3. Using the special tool, align the TR sensor and tighten the bolts.
^ Tighten to 11 Nm (8 lb-ft).
4. Install the battery and tray.
5. Check for correct operation. The engine should start only in PARK or NEUTRAL. The reverse lamps should illuminate in the REVERSE position.
