2008 Ford E 450 V10-6.8LFACTORY OEM SERVICE PROCEDURE
Air Flow Meter/Sensor: Service and Repair
MASS AIR FLOW (MAF) SENSOR
Removal and Installation
1. Remove the air cleaner.
2. CAUTION: Do not tamper with the mass air flow (MAF) sensing elements located in the airflow meter. Tampering can result in unit failure.
Open the air cleaner.

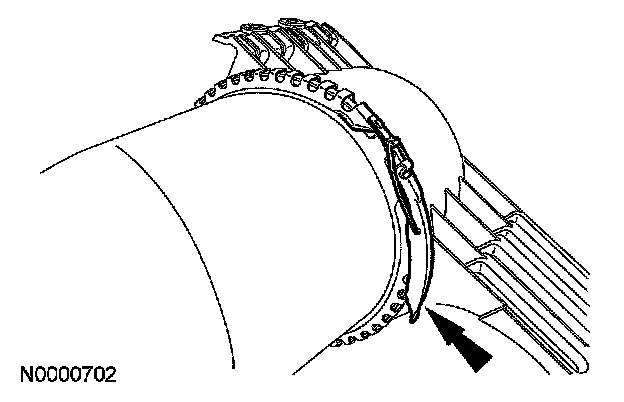

- Release the air box clamp.
- Separate the inlet side from the outlet side of the air cleaner.

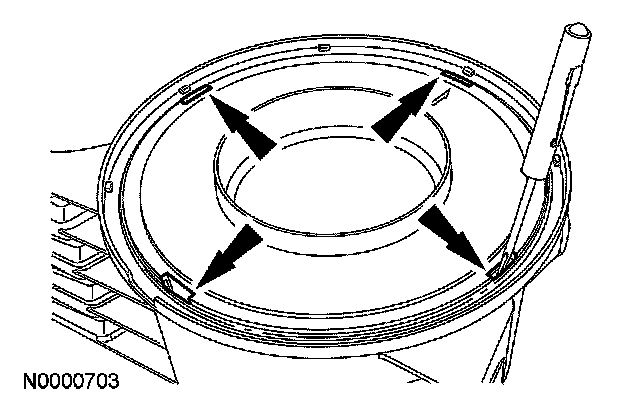

3. Release the latches and remove the MAF assembly.

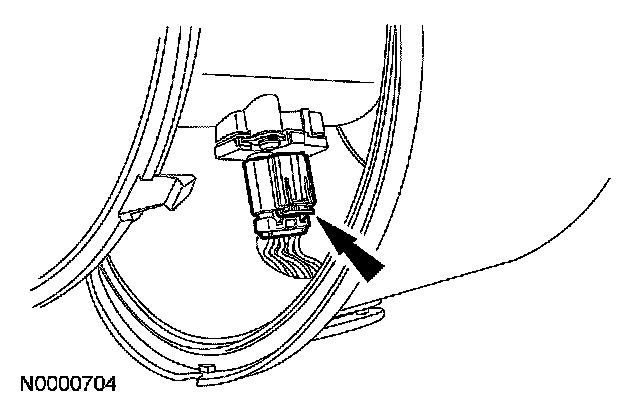

4. NOTE: The red clip must be pulled out before disconnecting the electrical connector.
Disconnect the MAF sensor electrical connector.
5. Remove the screws and MAF sensor.
- To install, tighten to 2 Nm (18 lb-in).
6. NOTE:
- The grommet used to seal the engine air cleaner housing at the extension harness must be fully seated. Failure to do so will result in unmetered air entering the engine.
- Use the alignment notch to correctly align the inlet side and the outlet side of the engine air cleaner.
To install, reverse the removal procedure.

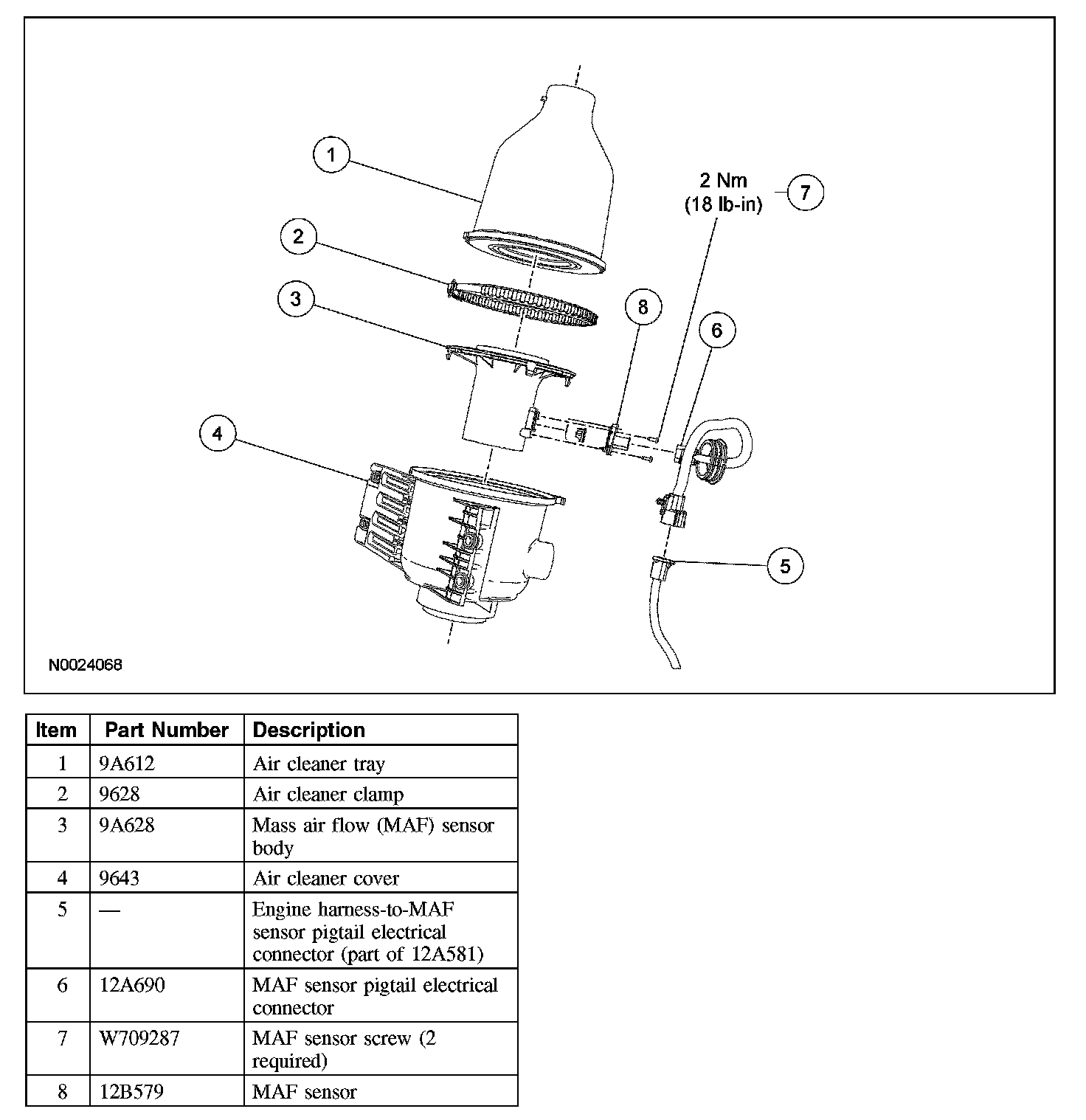

Removal and Installation
1. Remove the air cleaner.
2. CAUTION: Do not tamper with the mass air flow (MAF) sensing elements located in the airflow meter. Tampering can result in unit failure.
Open the air cleaner.
- Release the air box clamp.
- Separate the inlet side from the outlet side of the air cleaner.
3. Release the latches and remove the MAF assembly.
4. NOTE: The red clip must be pulled out before disconnecting the electrical connector.
Disconnect the MAF sensor electrical connector.
5. Remove the screws and MAF sensor.
- To install, tighten to 2 Nm (18 lb-in).
6. NOTE:
- The grommet used to seal the engine air cleaner housing at the extension harness must be fully seated. Failure to do so will result in unmetered air entering the engine.
- Use the alignment notch to correctly align the inlet side and the outlet side of the engine air cleaner.
To install, reverse the removal procedure.
