2007 Ford Edge SE, AWDFACTORY OEM SERVICE PROCEDURE

Cover Assembly: Disassembly

  1. Remove the bolt and the turbine shaft speed (TSS) sensor.
    2. Fig 1: Identifying Turbine Shaft Speed (TSS) Sensor & Bolt
    GF0031876Courtesy of FORD MOTOR CO.
  2. Using the special tools, compress the intermediate clutch return spring and remove the snap ring.

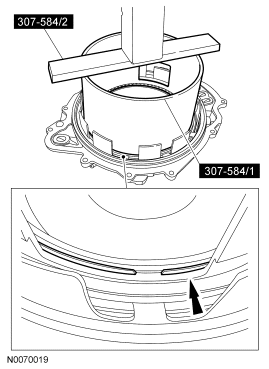

    3. Fig 2: Compressing Intermediate Clutch Return Spring Using Special Tools (307-584/1) & (307-584/2)
    GF0031877Courtesy of FORD MOTOR CO.
  3. Remove the special tools.
    4. Fig 3: Removing Special Tools (307-584/1) & (307-584/2)
    GF0031878Courtesy of FORD MOTOR CO.
  4. Remove the intermediate clutch return spring.
    5. Fig 4: Identifying Intermediate Clutch Return Spring
    GF0031879Courtesy of FORD MOTOR CO.
  5. Remove and discard the intermediate clutch piston.
    6. Fig 5: Identifying Intermediate Clutch Piston
    GF0031880Courtesy of FORD MOTOR CO.
  6. Install the special tools, compress the low/reverse clutch return spring and remove the snap ring.

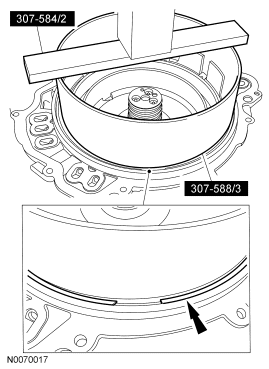

    7. Fig 6: Installing Special Tools (307-584/2, 307-588/3) & Compressing Low/Reverse Clutch Return Spring
    GF0031881Courtesy of FORD MOTOR CO.
  7. Remove the special tools.
    8. Fig 7: Removing Special Tools (307-584/2, 307-588/3)
    GF0031882Courtesy of FORD MOTOR CO.
  8. Remove the low/reverse clutch return spring.
    9. Fig 8: Identifying Low/Reverse Clutch Return Spring
    GF0031883Courtesy of FORD MOTOR CO.
  9. Remove and discard the low/reverse clutch piston.
    10. Fig 9: Identifying Low/Reverse Clutch Piston
    GF0031884Courtesy of FORD MOTOR CO.
  10. Using a suitable tool, remove and discard the 4 Teflon® seals.
    11. Fig 10: Identifying Teflon® Seals
    GF0031885Courtesy of FORD MOTOR CO.
  11. Clean and inspect the cover for damage. Install a new cover if damaged.
