2003 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE
Spring Lock Coupling: Connect
WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

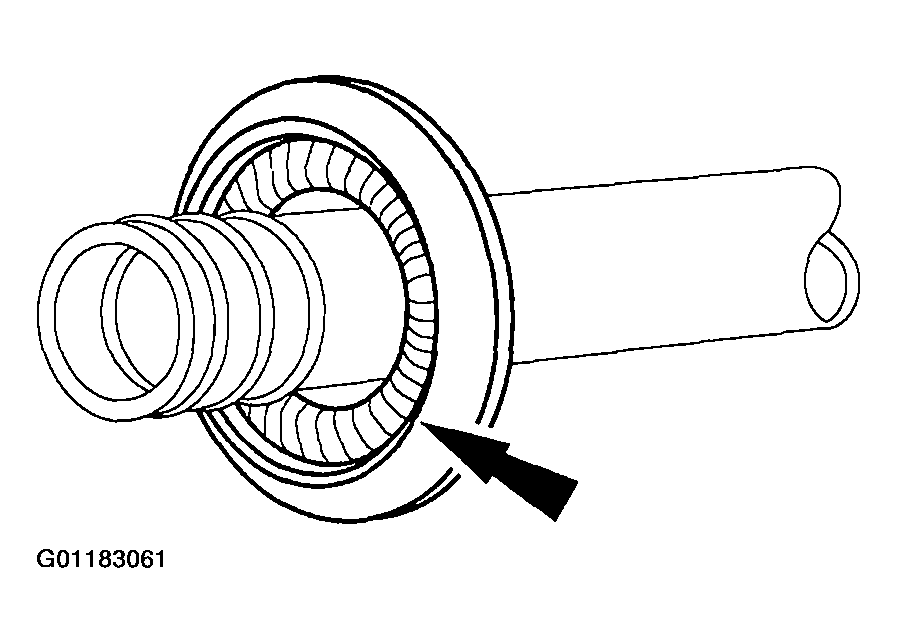

- Install the A/C tube lock coupling spring

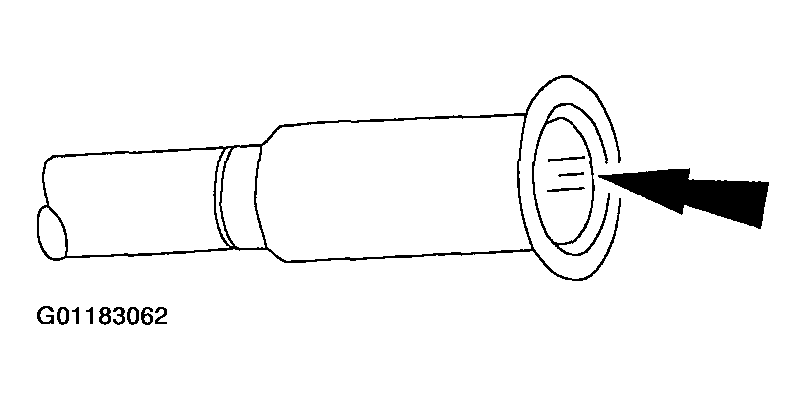

- Lubricate the inside of the coupling with PAG Refrigerant Compressor Oil (R-134a Systems) or equivalent.
CAUTION:
Use only the new O-ring seals. The use of any O-ring seals other than those specified in the Ford Master Parts catalog may result in intermittent leakage during vehicle operation.
