2003 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE
Spring Lock Coupling: Cleaning
WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

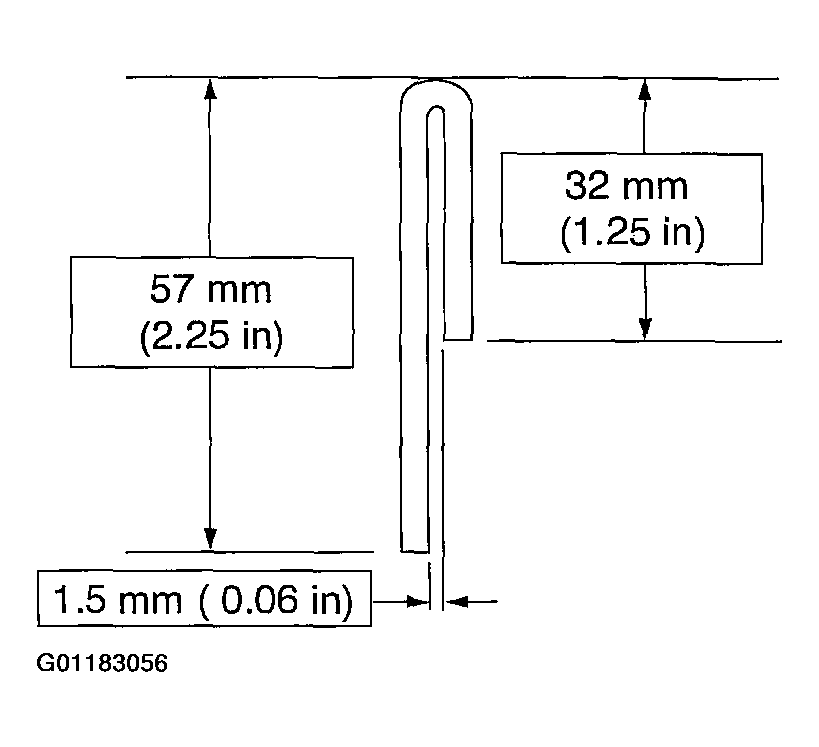

- Fabricate a cleaning tool from a 1/8 inch diameter brazing rod.

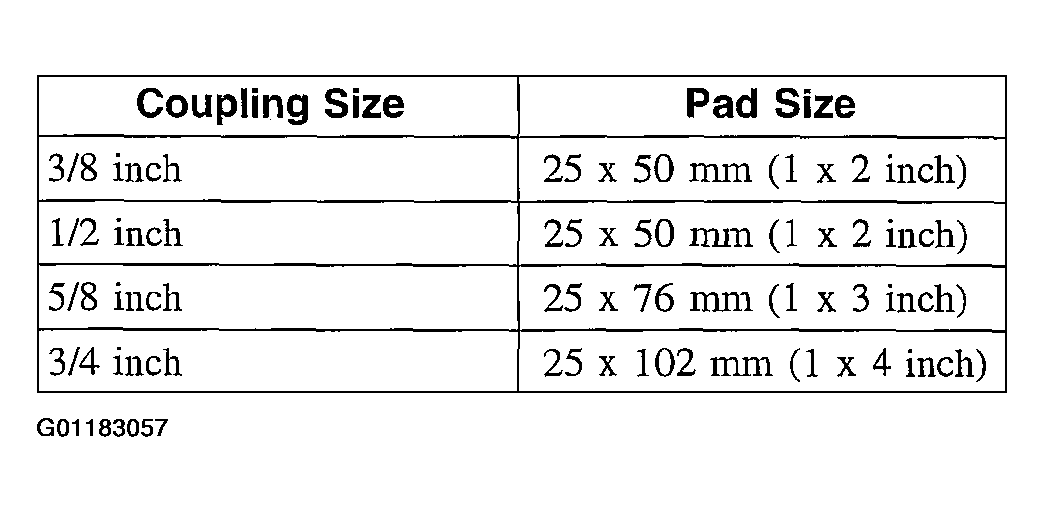

- Cut an abrasive pad from maroon colored 3M Scotch Brite® with dimensions corresponding to the coupling size.

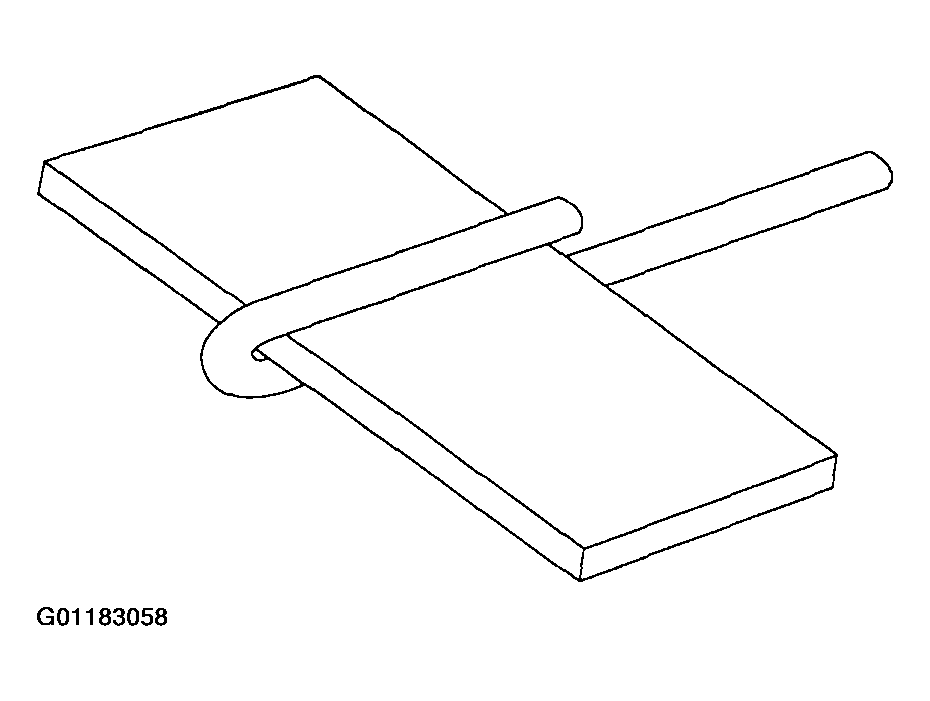

- Assemble the pad to the tool.
- Coat the abrasive pad with PAG Refrigerant Compressor Oil (R-134a Systems) or equivalent.
- Roll the pad on the tool and install it in a variable speed drill motor.
CAUTION:
Maintain low speed drill rotation when inserting or removing the cleaning tool to prevent axial scratches which may cause future leaks.
