2003 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE

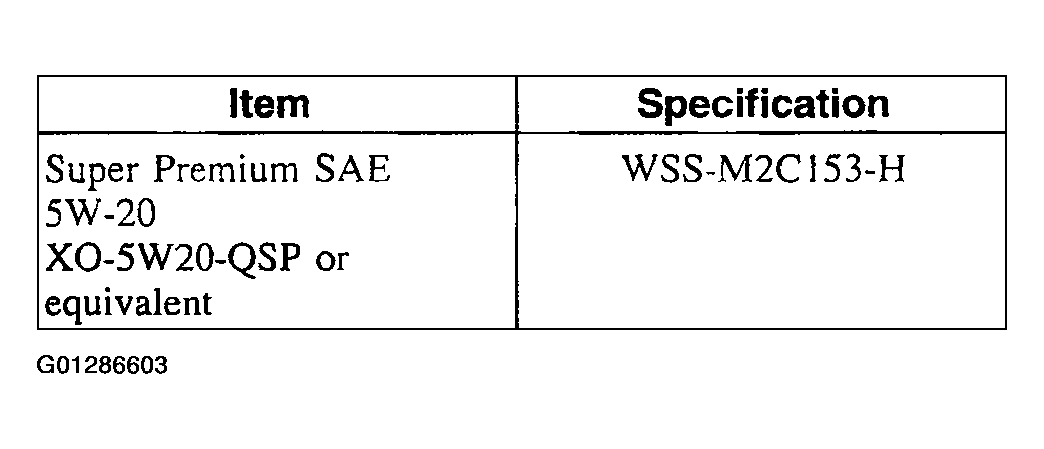

Section 340 (Engine-3.9L): Installation: Engine: Material
WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

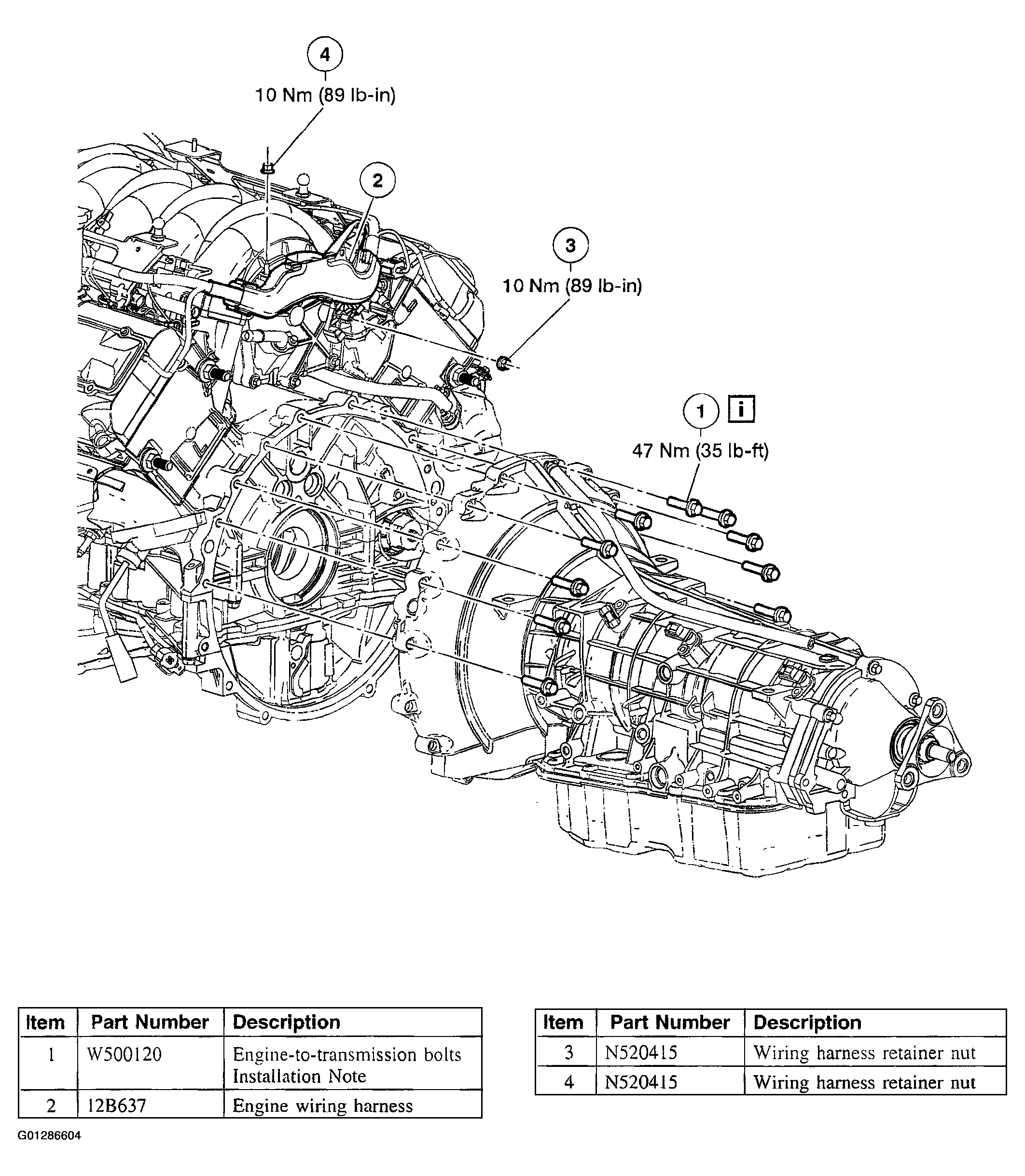

- Illustration 1 of 13. Install the components in the order indicated in the following illustration and table.

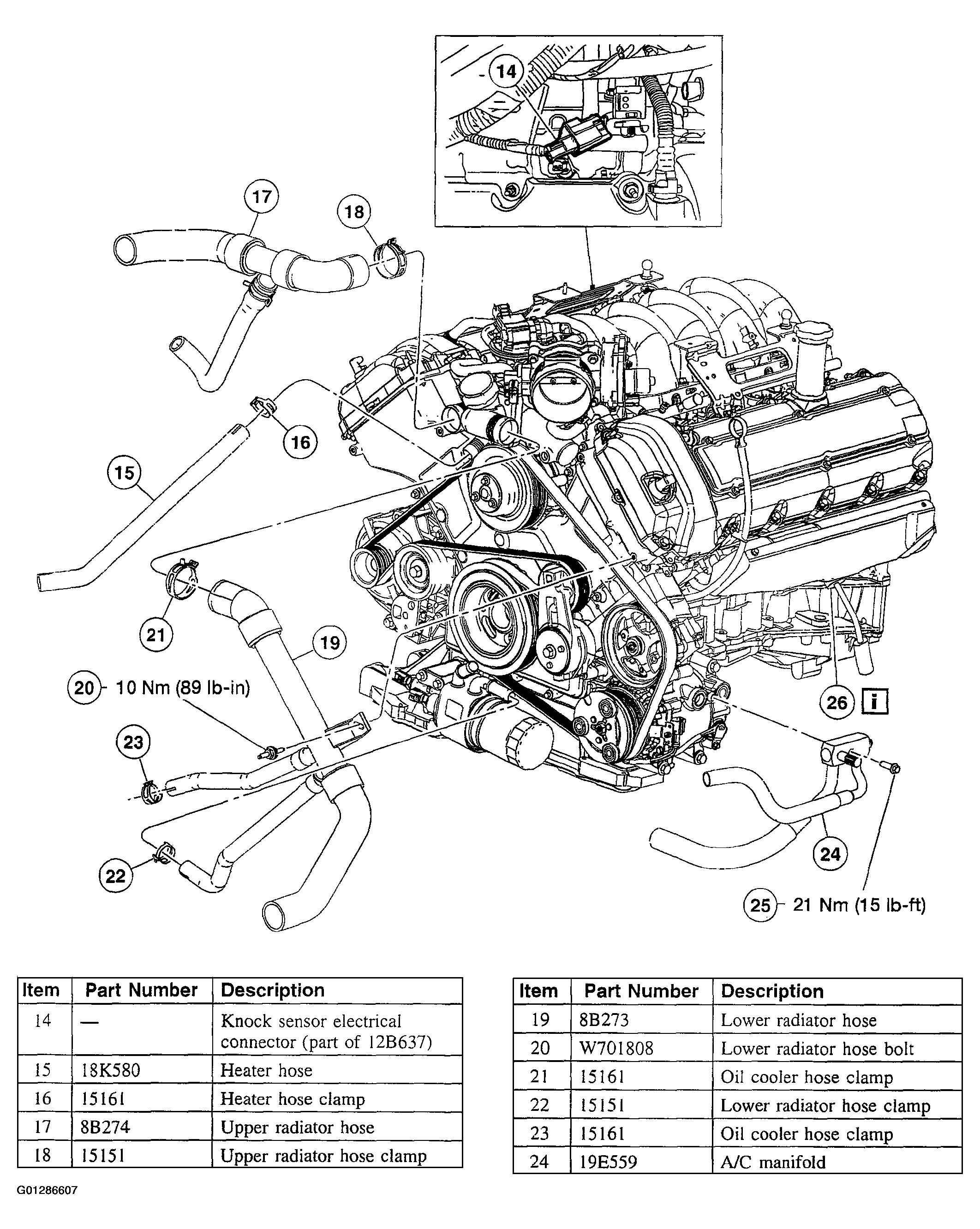

- Illustration 2 of 13. Install the components in the order indicated in the following illustration and table.

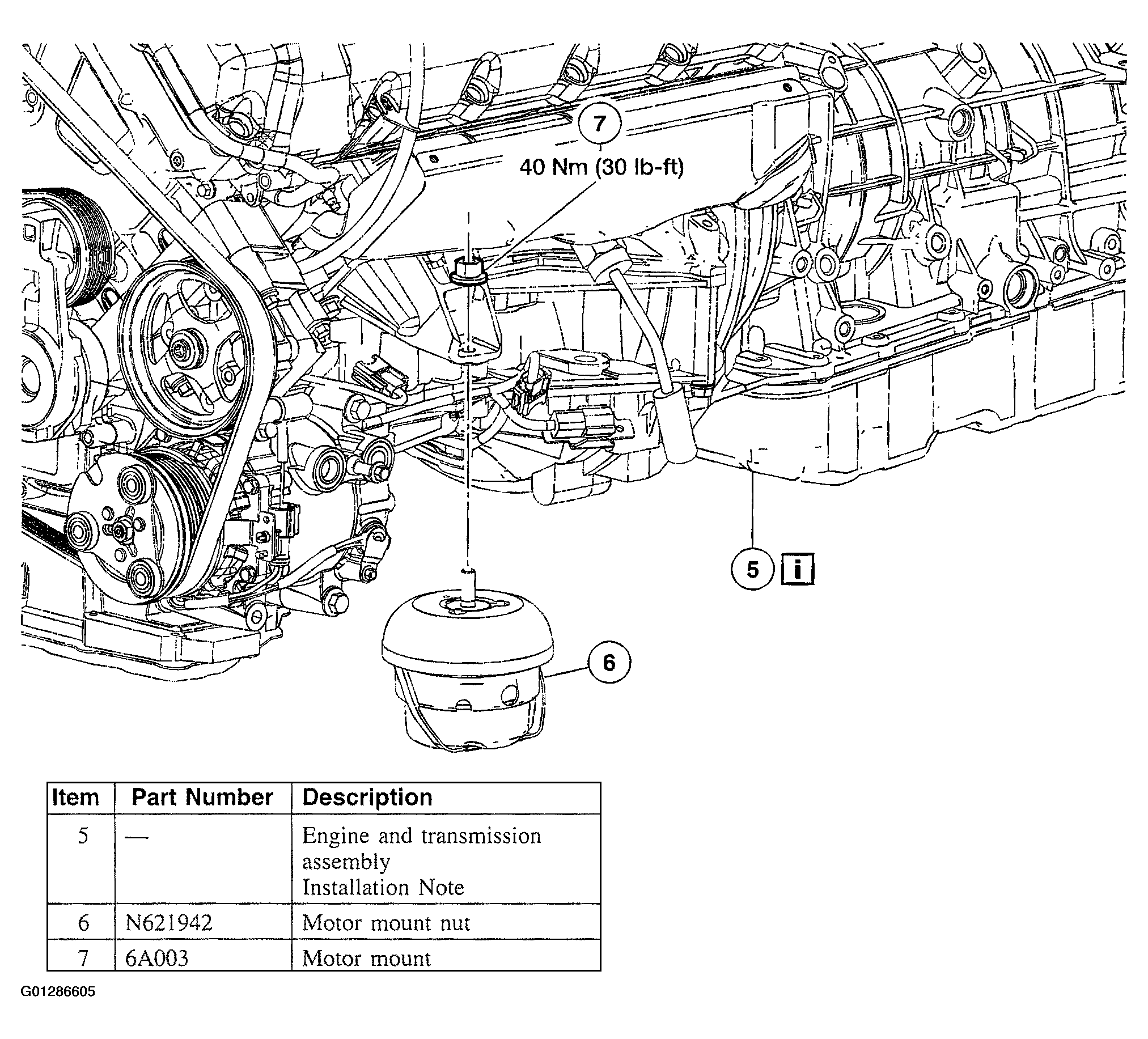

- Illustration 3 of 13. Install the components in the order indicated in the following illustration and table.

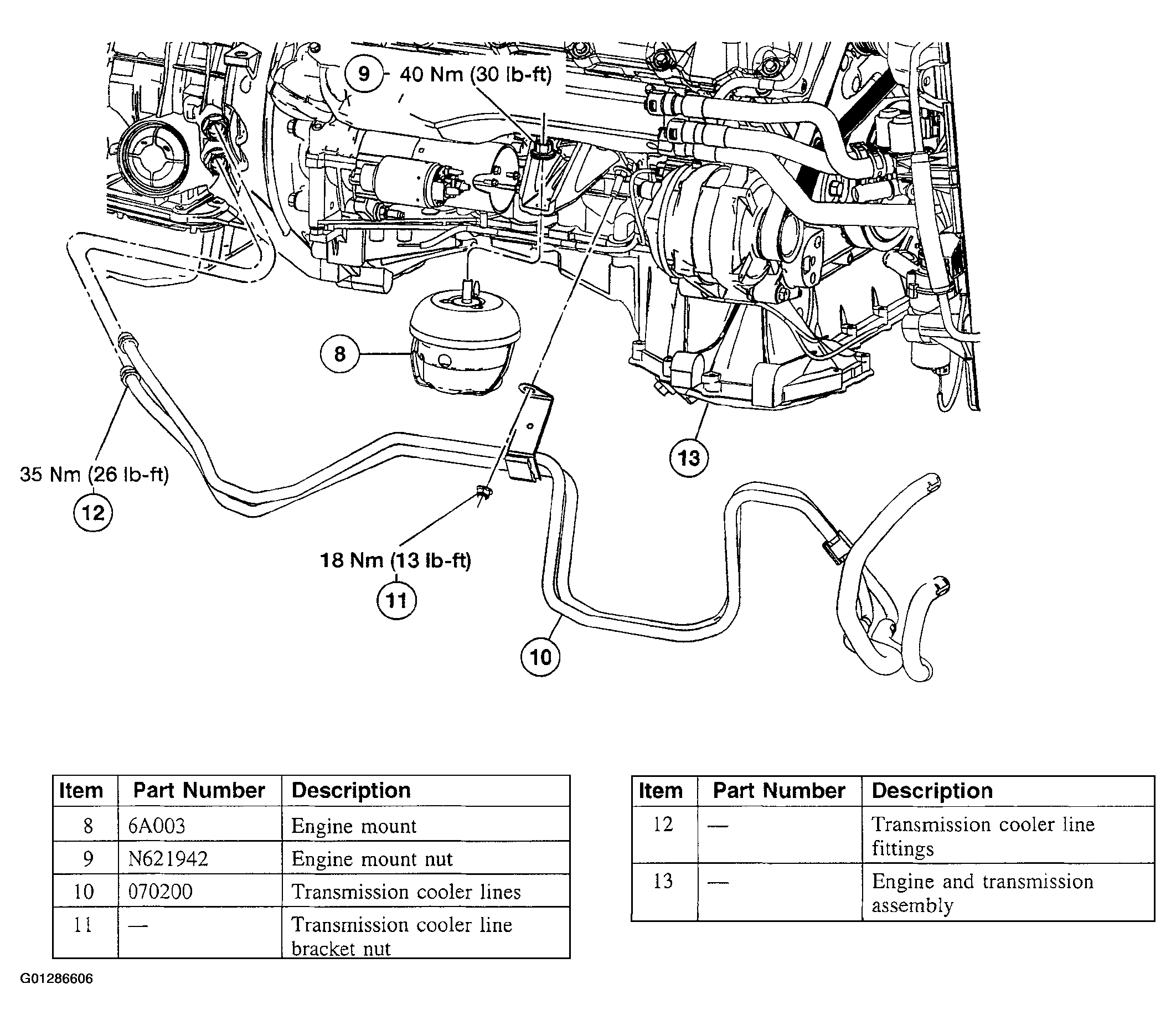

- Illustration 4 of 13. Install the components in the order indicated in the following illustration and table.
