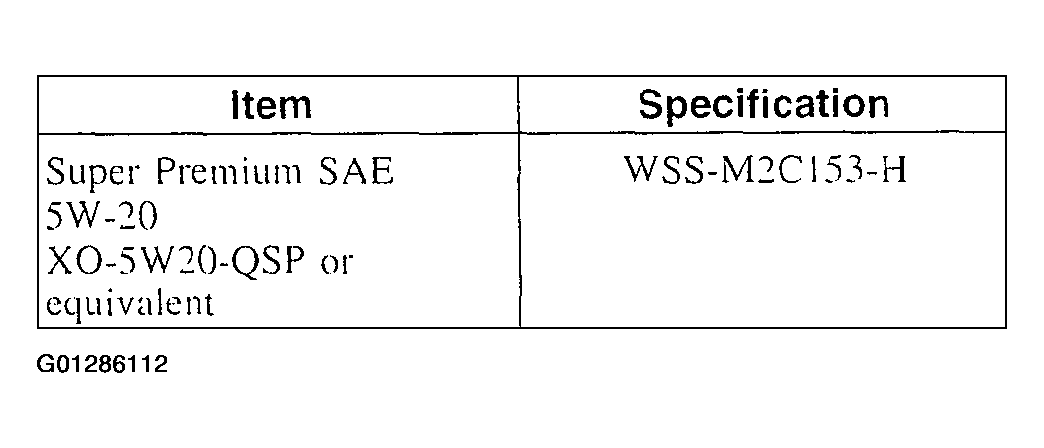

Fig 1: Material Specification

Courtesy of FORD MOTOR CO.

Remove the engine front cover. For additional information, Refer to ENGINE FRONT COVER .
Remove the components in the order indicated in the following illustration and table. To remove individual components, only carry out the listed steps.

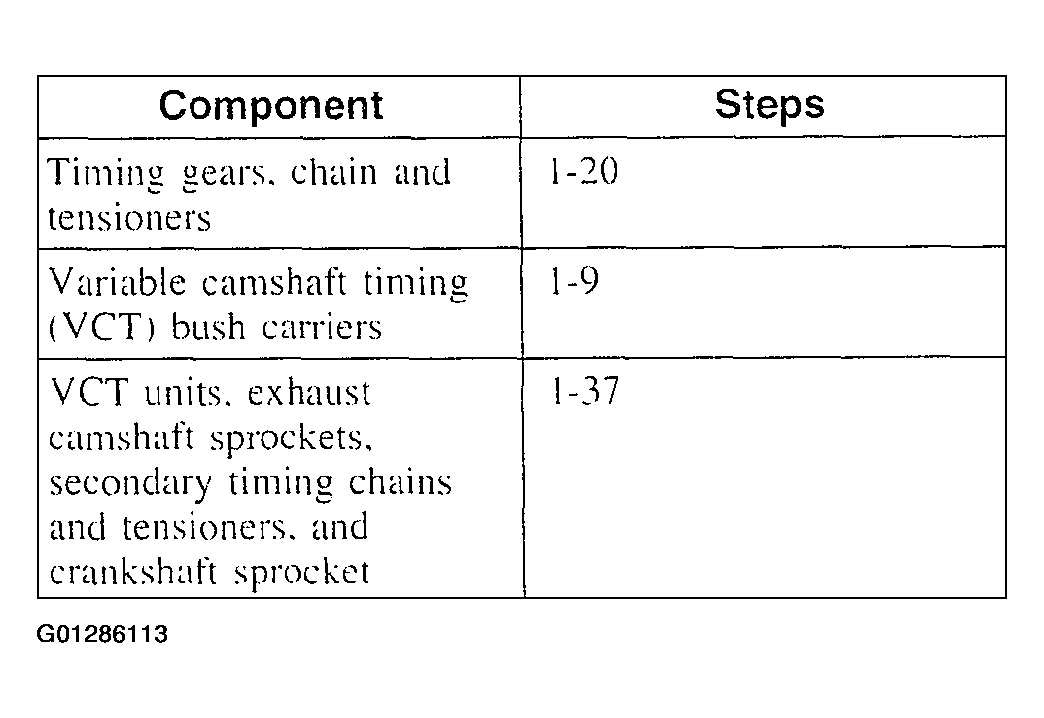

Fig 2: Removing Components Steps Chart
Courtesy of FORD MOTOR CO.
Illustration 1 of 4. Remove the components in the order indicated in the following illustration and table.

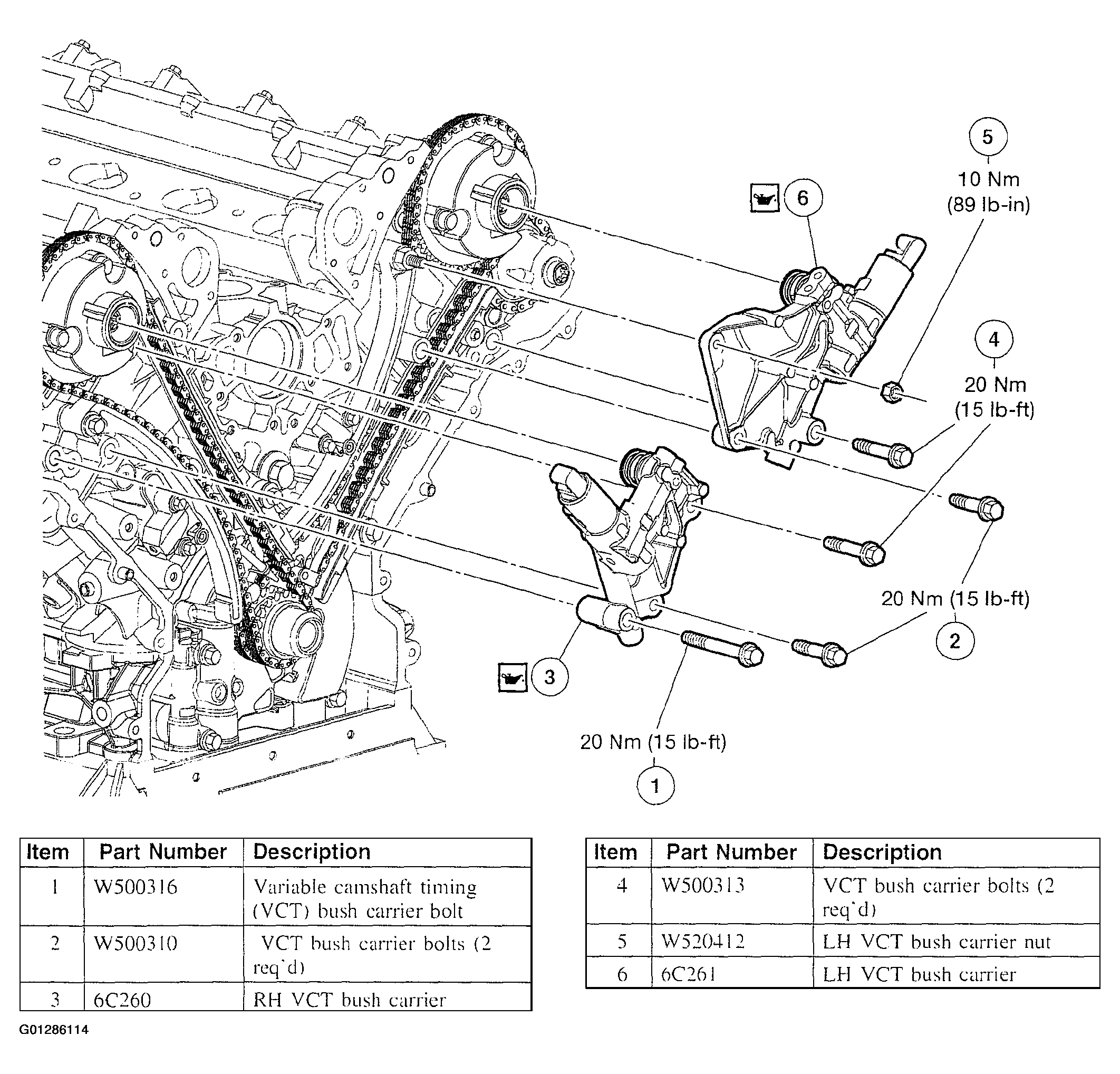

Fig 3: Removing VCT Bush Carrier (LH And RH)
Courtesy of FORD MOTOR CO.
Illustration 2 of 4. Remove the components in the order indicated in the following illustration and table.

Fig 4: Removing RH Timing Chain Tensioner
Courtesy of FORD MOTOR CO.

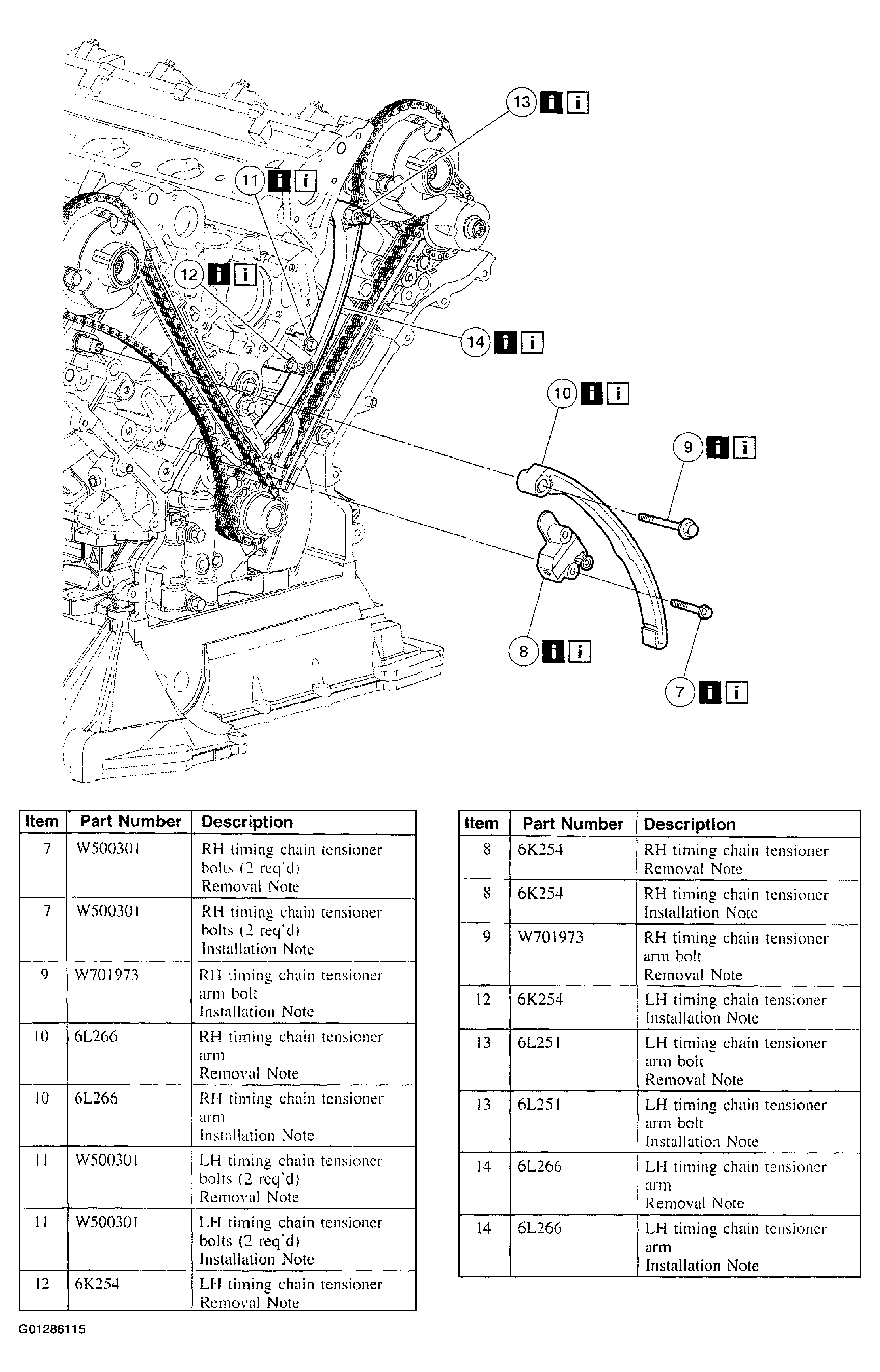

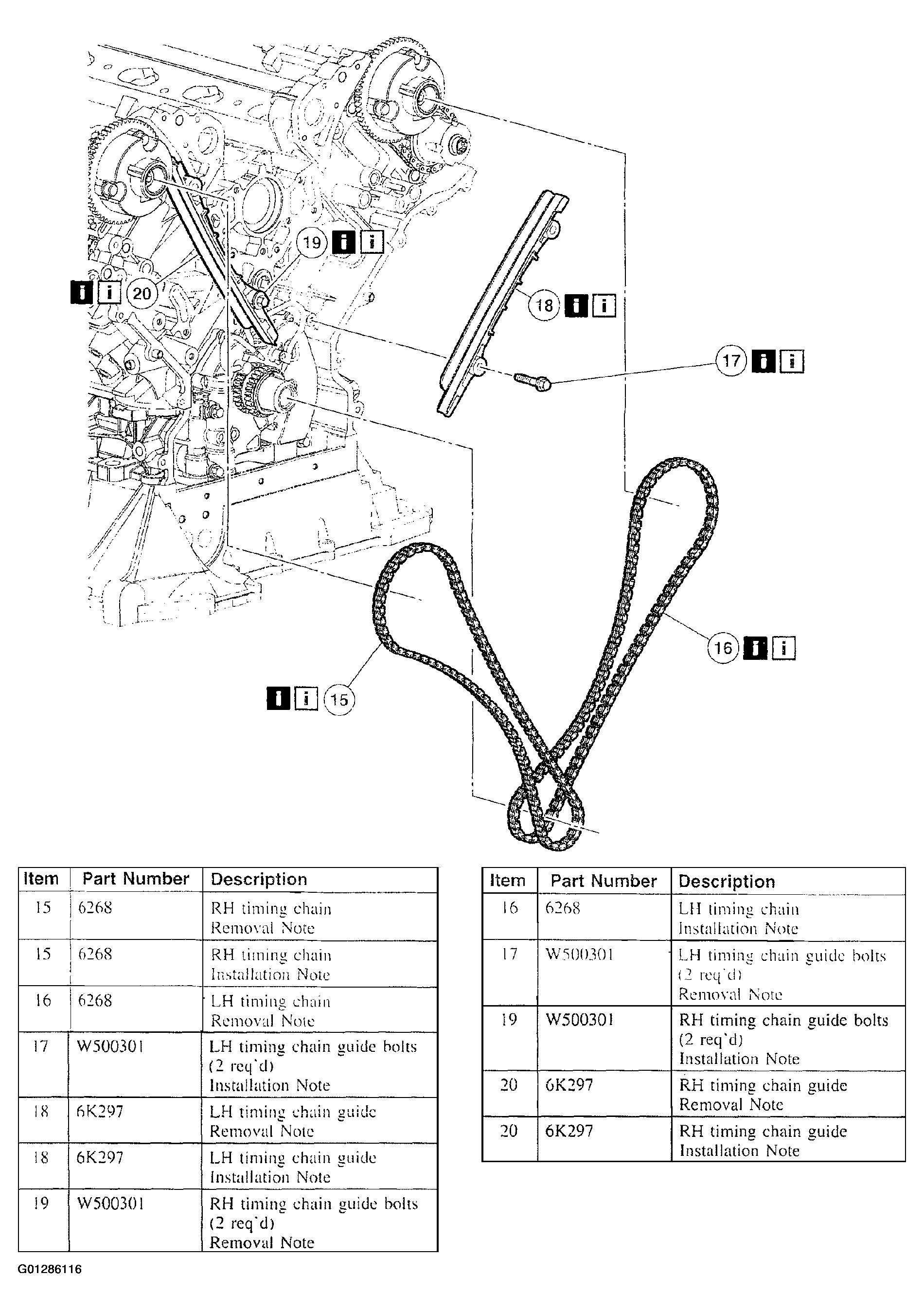

Illustration 3 of 4. Remove the components in the order indicated in the following illustration and table.

Fig 5: Removing Timing Chain (RH And LH) And Timing Chain Guide
Courtesy of FORD MOTOR CO.

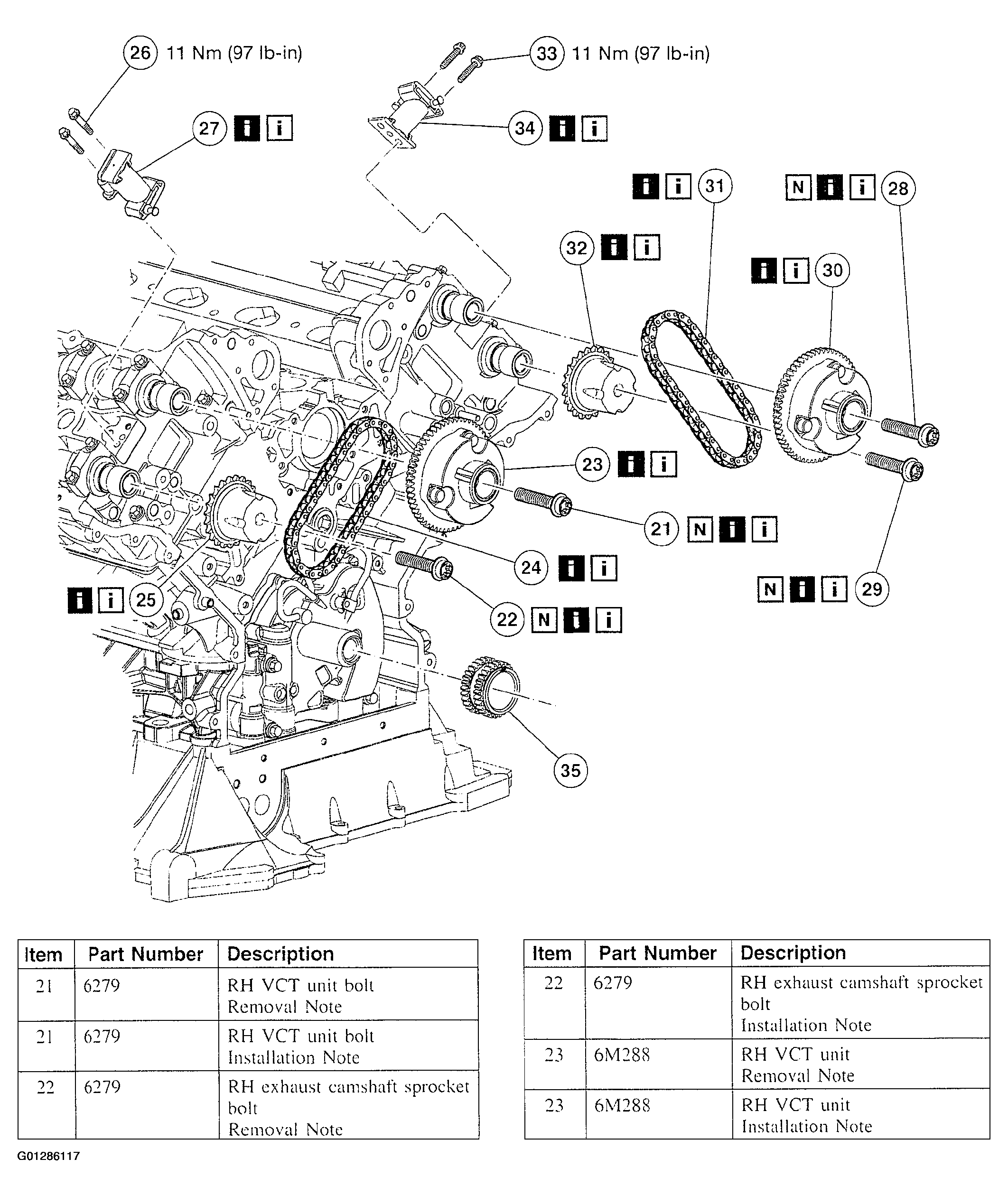

Illustration 4 of 4. Remove the components in the order indicated in the following illustration and table.

Fig 6: Removing LH VCT Unit, LH Secondary Timing Chain And LH Exhaust Cam Shaft Sprocket
Courtesy of FORD MOTOR CO.
