2003 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE
Items 7-20: Timing Drive Components Installation Note
WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

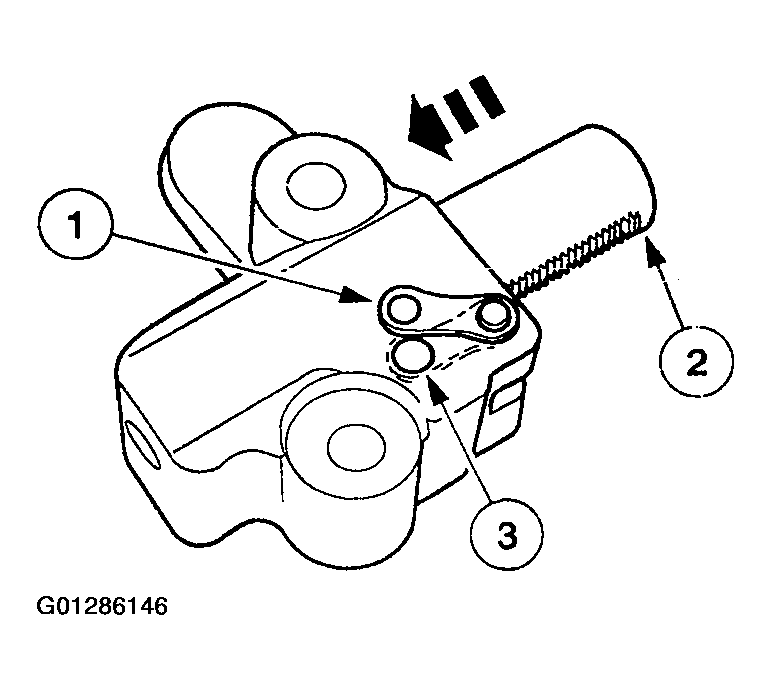

- Reset the timing chain tensioners.
- Hold the lever toward the tensioner piston.
- Using finger pressure, compress the tensioner until it is completely collapsed.
- Push the lever down and install a drill rod to lock the piston.
CAUTION:
The camshaft holding tool should still be installed on the LH cylinder head.
