Intake Manifold: Material

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

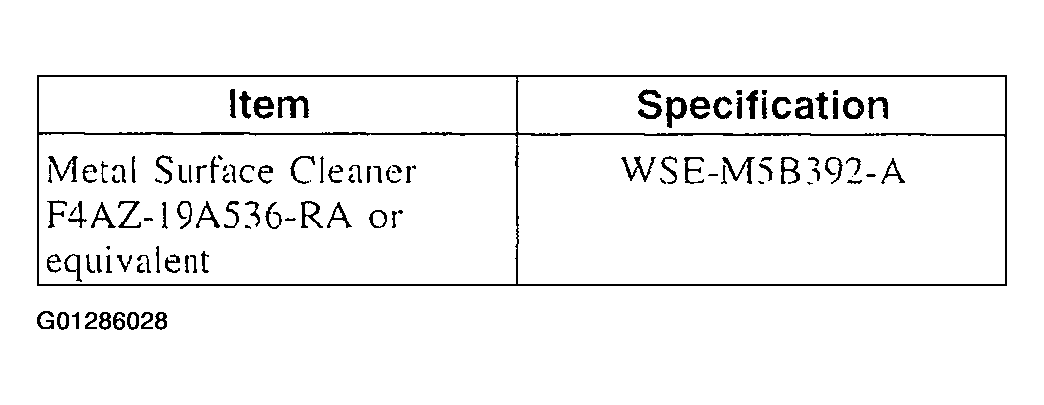

Fig 1: Material Specification Chart
G01286028Courtesy of FORD MOTOR CO.
  1. Disconnect the battery ground cable. For additional information, Refer to BATTERY AND CHARGING SYSTEM .
  2. Remove the air cleaner outlet tube.
    3. CAUTION: The coolant drain procedure must be followed exactly or damage to the engine can occur.
  3. Drain the engine cooling system. For additional information, Refer to ENGINE COOLING .
  4. Remove the cowl vent screen. For additional information, Refer to BODY SYSTEM - INTERIOR .
  5. Remove the engine compartment brace.

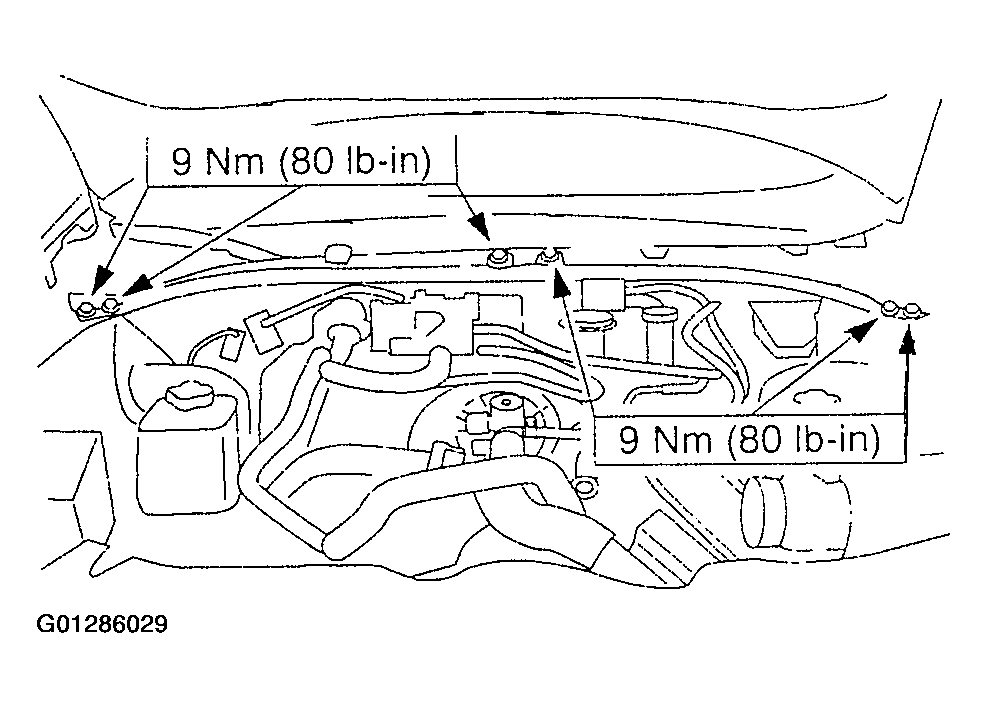

    Fig 2: Removing Engine Compartment Brace
    G01286029Courtesy of FORD MOTOR CO.
  6. Disconnect the fuel line. For additional information, Refer to FUEL SYSTEM .
  7. Remove the exhaust gas recirculation (EGR) system module. For additional information, Refer to EXHAUST GAS RECIRCULATION (EGR) VALVE .
  8. Illustration 1 of 4. Remove the components in the order indicated in the following illustration and table.

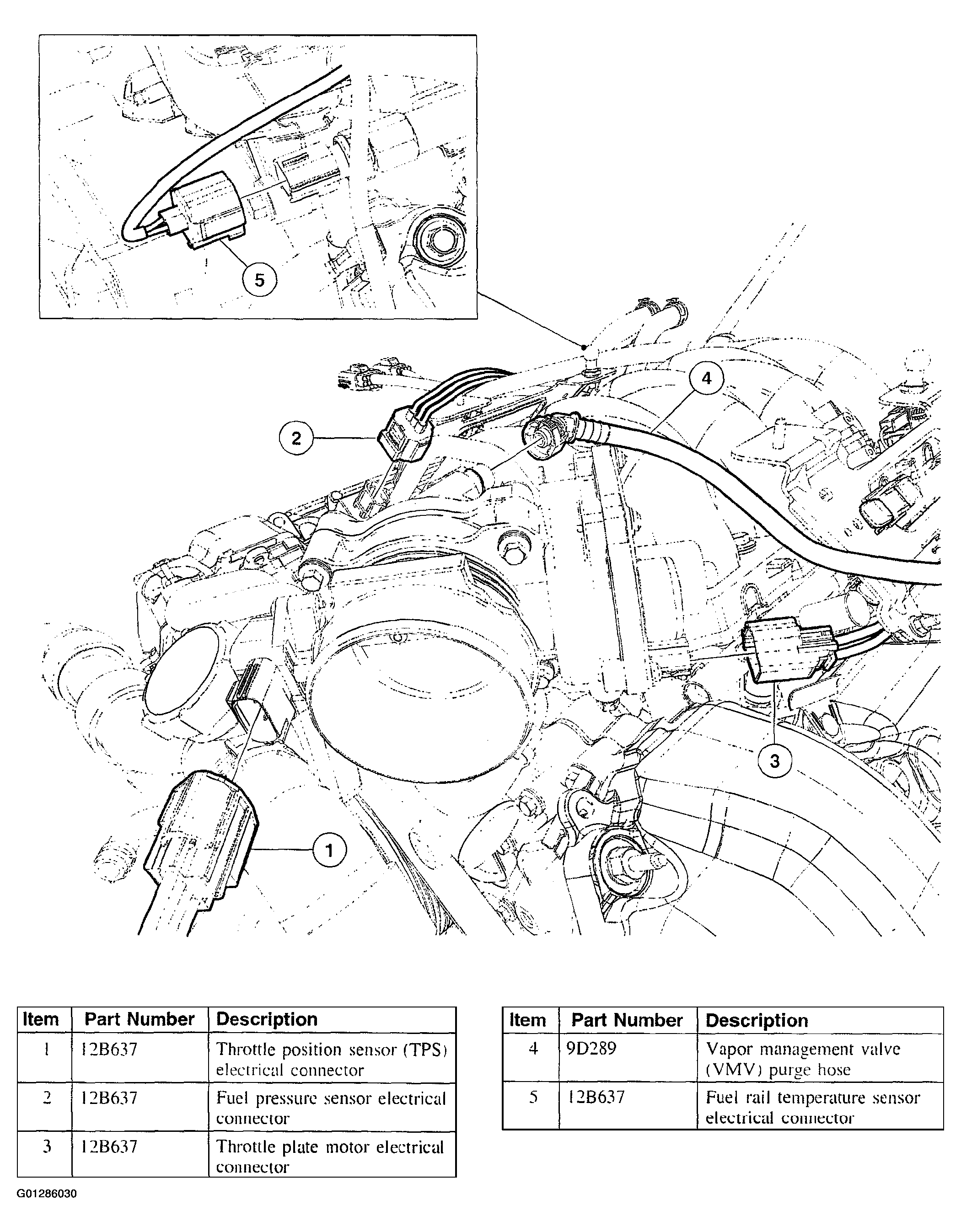

    Fig 3: Identifying Intake Manifold Connectors And Hose Pipe
    G01286030Courtesy of FORD MOTOR CO.
  9. Illustration 2 of 4. Remove the components in the order indicated in the following illustration and table.

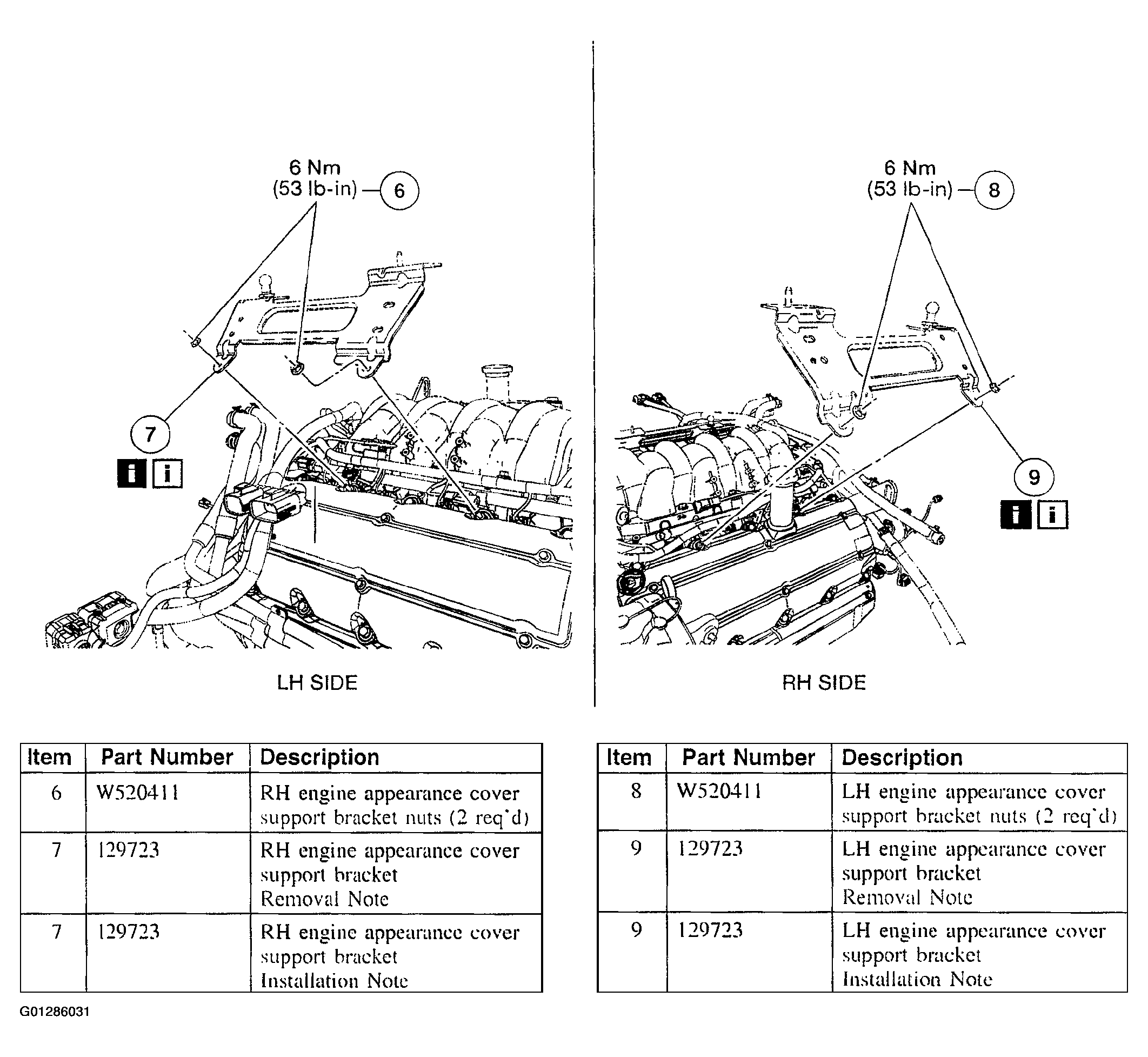

    Fig 4: Identifying Intake Manifold Engine Appearance Cover Support Bracket (RH And LH Side)
    G01286031Courtesy of FORD MOTOR CO.
  10. Illustration 3 of 4. Remove the components in the order indicated in the following illustration and table.

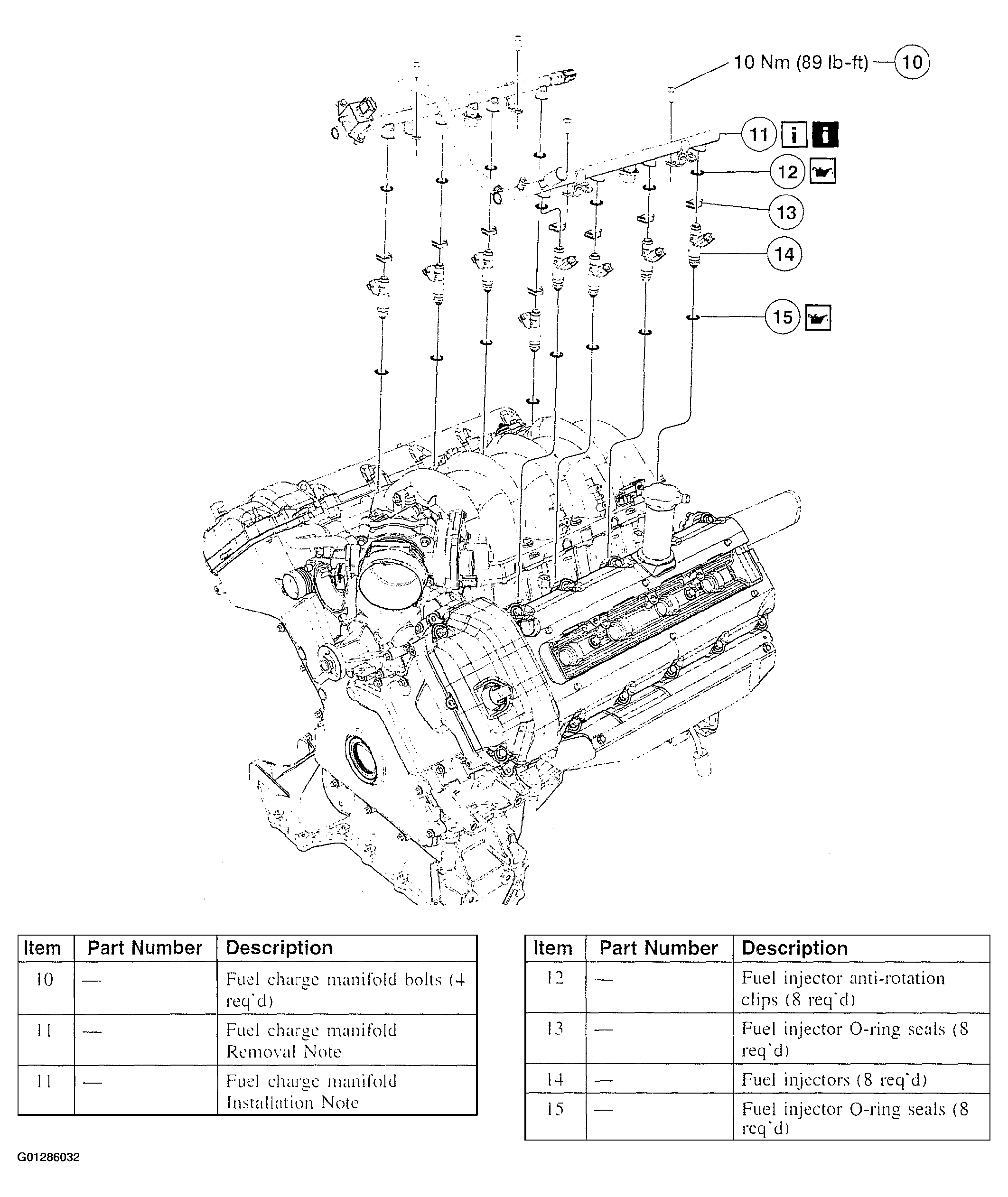

    Fig 5: Removing Injectors
    G01286032Courtesy of FORD MOTOR CO.
  11. Illustration 4 of 4. Remove the components in the order indicated in the following illustration and table.

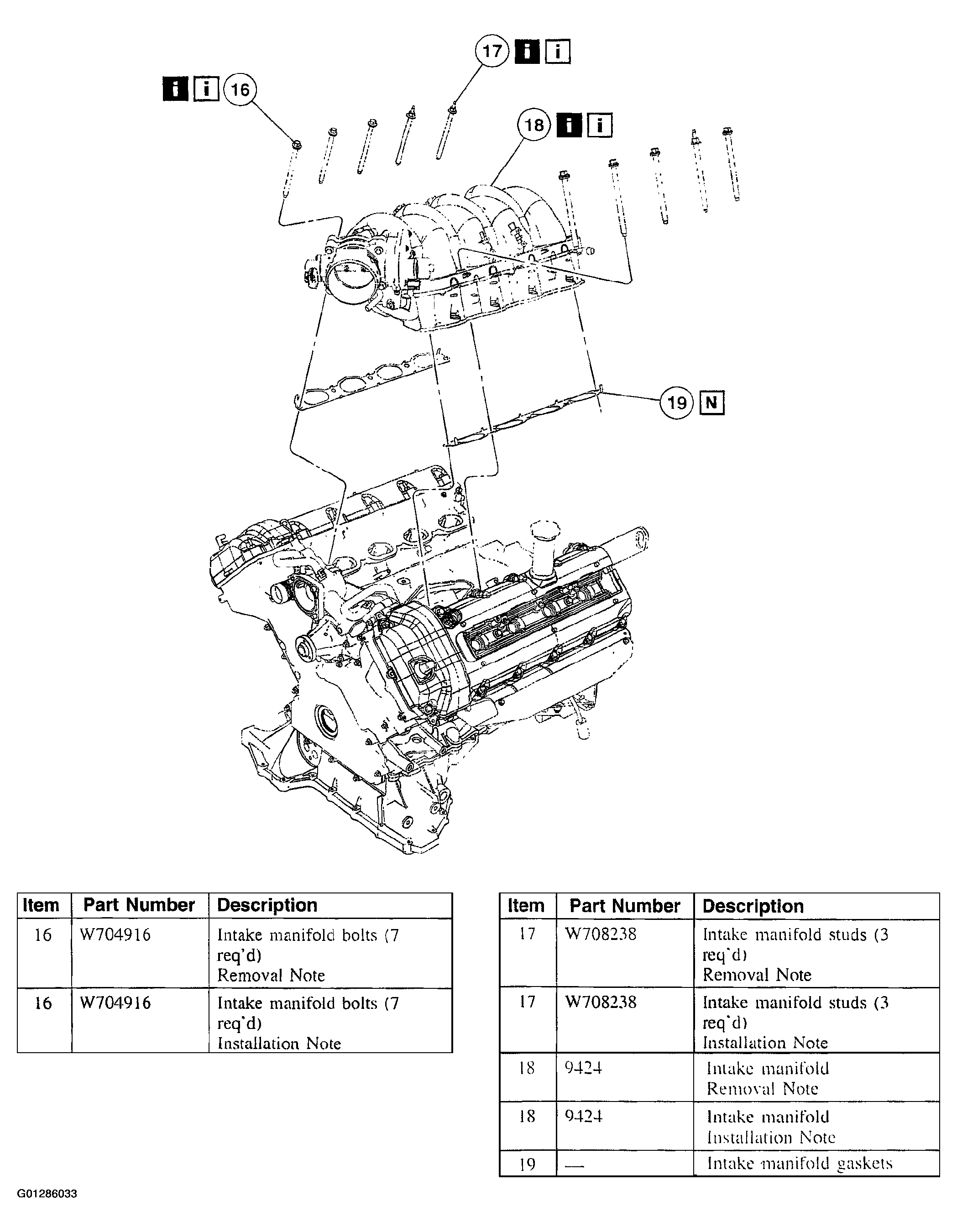

    Fig 6: Removing Intake Manifold
    G01286033Courtesy of FORD MOTOR CO.
  12. To install, reverse the removal procedure.
