2003 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE

Items 92-94: Intake Manifold Assembly Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Install new intake manifold gaskets.

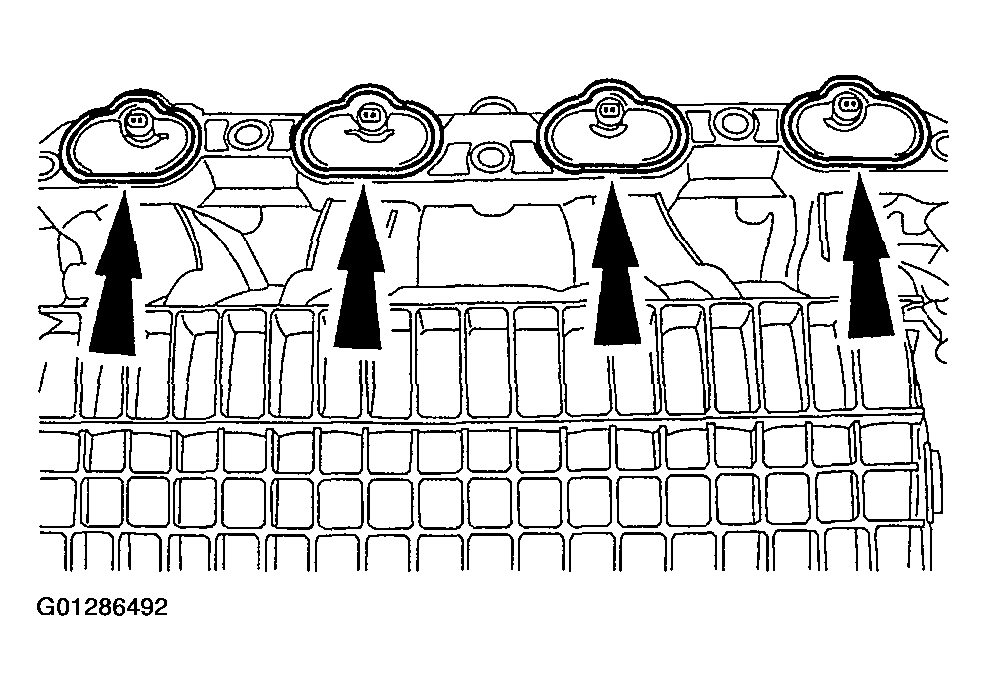

Fig 1: Installing Intake Manifold Gaskets
Courtesy of FORD MOTOR CO.

NOTE: The throttle body and adapter are shown removed for clarity. It is not necessary to remove the throttle body and adapter to remove the intake manifold.
