2003 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE
Items 25-52: Timing Drive Components Assembly Note
WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
- Install the crankshaft sprocket and turn the crankshaft to 45 degrees ATDC. The crankshaft keyway will be in the 6 o'clock position.

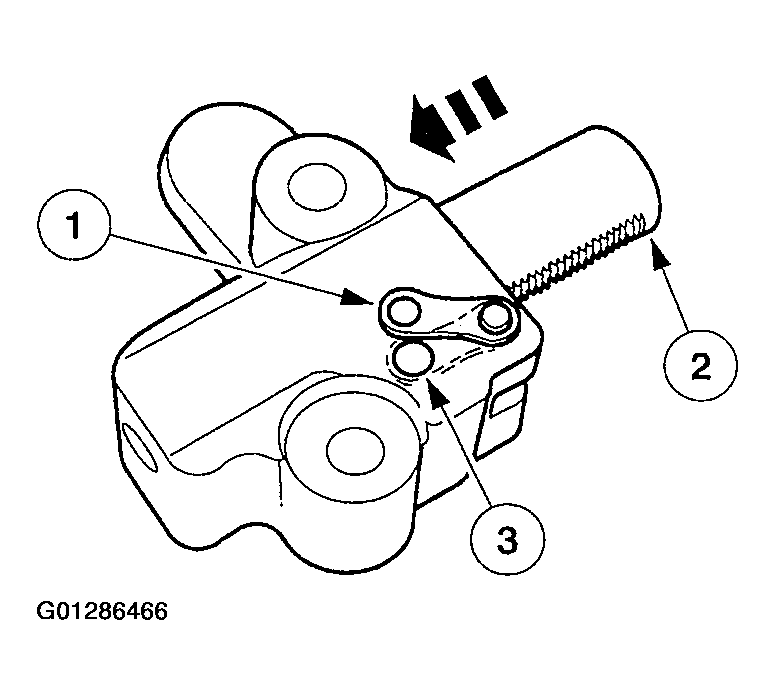

- Reset the timing chain tensioners.
- Hold the lever toward the tensioner piston.
- Using finger pressure, compress the tensioner.
- Push the lever down and install a drill rod to lock the piston.
CAUTION:
The camshaft holding tool should still be installed on the LH cylinder head.
