Timing Drive Components: Notes
WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the engine front cover. For additional information, Refer to VALVE COVER RH in this article.
- If antecessor, install a. new variable camshaft timing (VCT) system oil filters. For additional information, Refer to VARIABLE CAMSHAFT TIMING (VCT) SYSTEM OIL FILTER in this article.

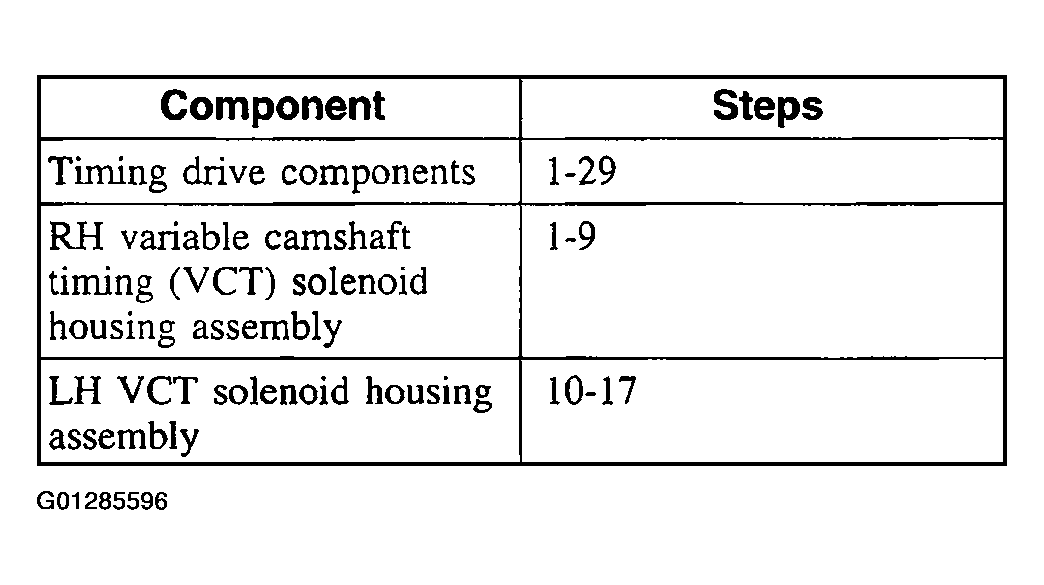

- Remove the components in the order indicated in the following 2 illustration and table. To remove individual components, only carry out the listed steps.
