2003 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE

Section 339 (Engine-3.0L): Assembly: Engine: Material

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

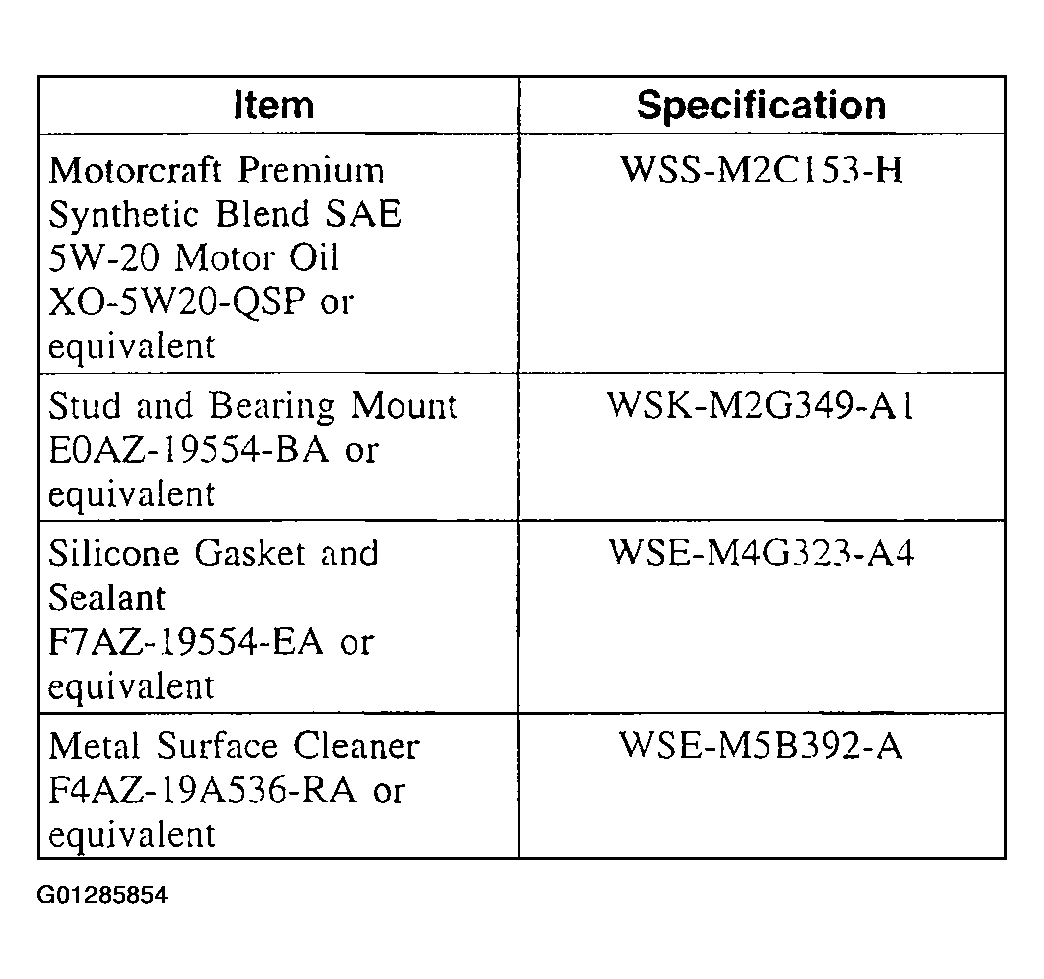

Fig 1: Specification Material
G01285854Courtesy of FORD MOTOR CO.
  1. Install the components in the order indicated in the following illustration and table. Illustration 1 of 21.

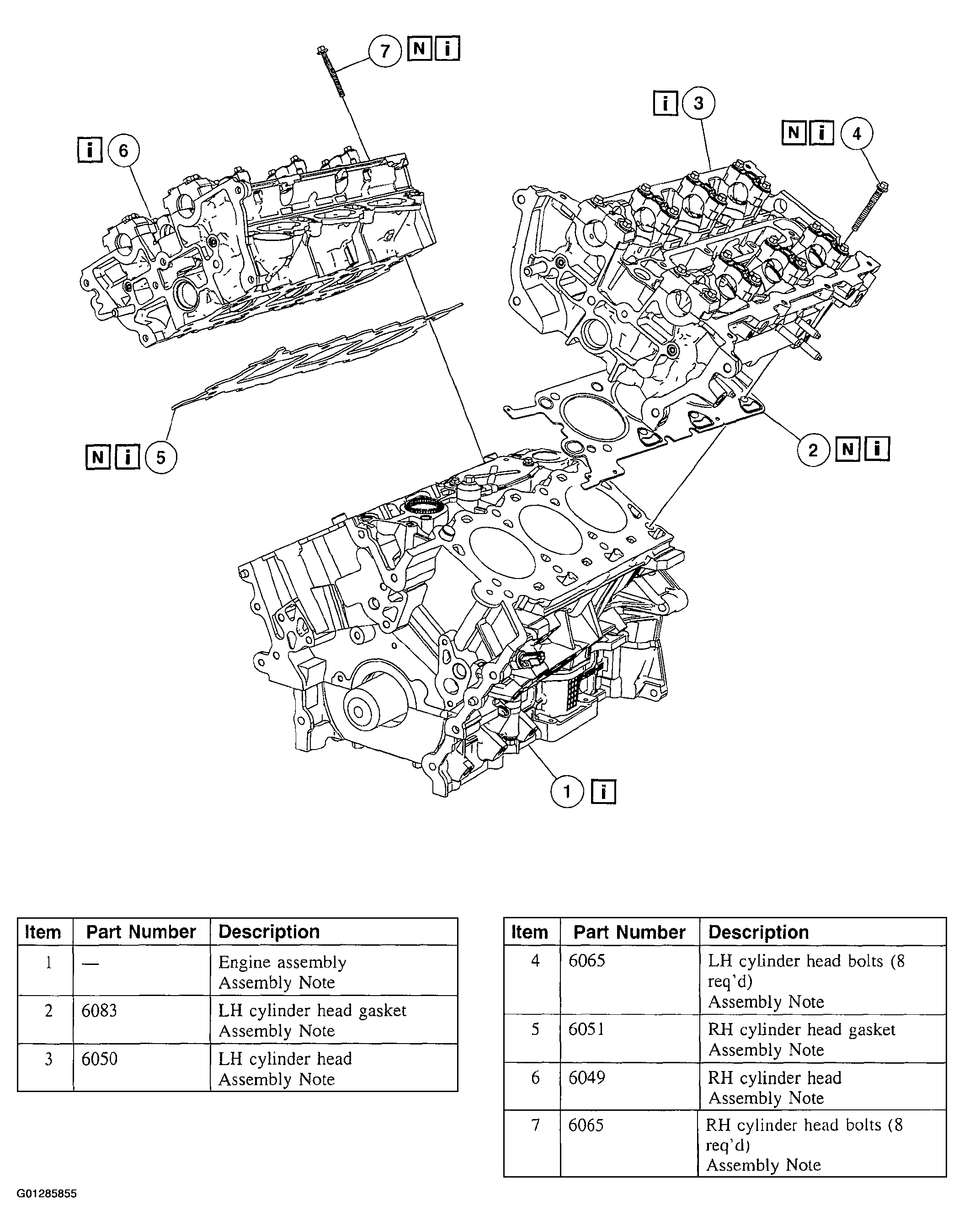

    Fig 2: Installing Cylinder Head
    G01285855Courtesy of FORD MOTOR CO.
  2. Install the components in the order indicated in the following illustration and table. Illustration 2 of 21.

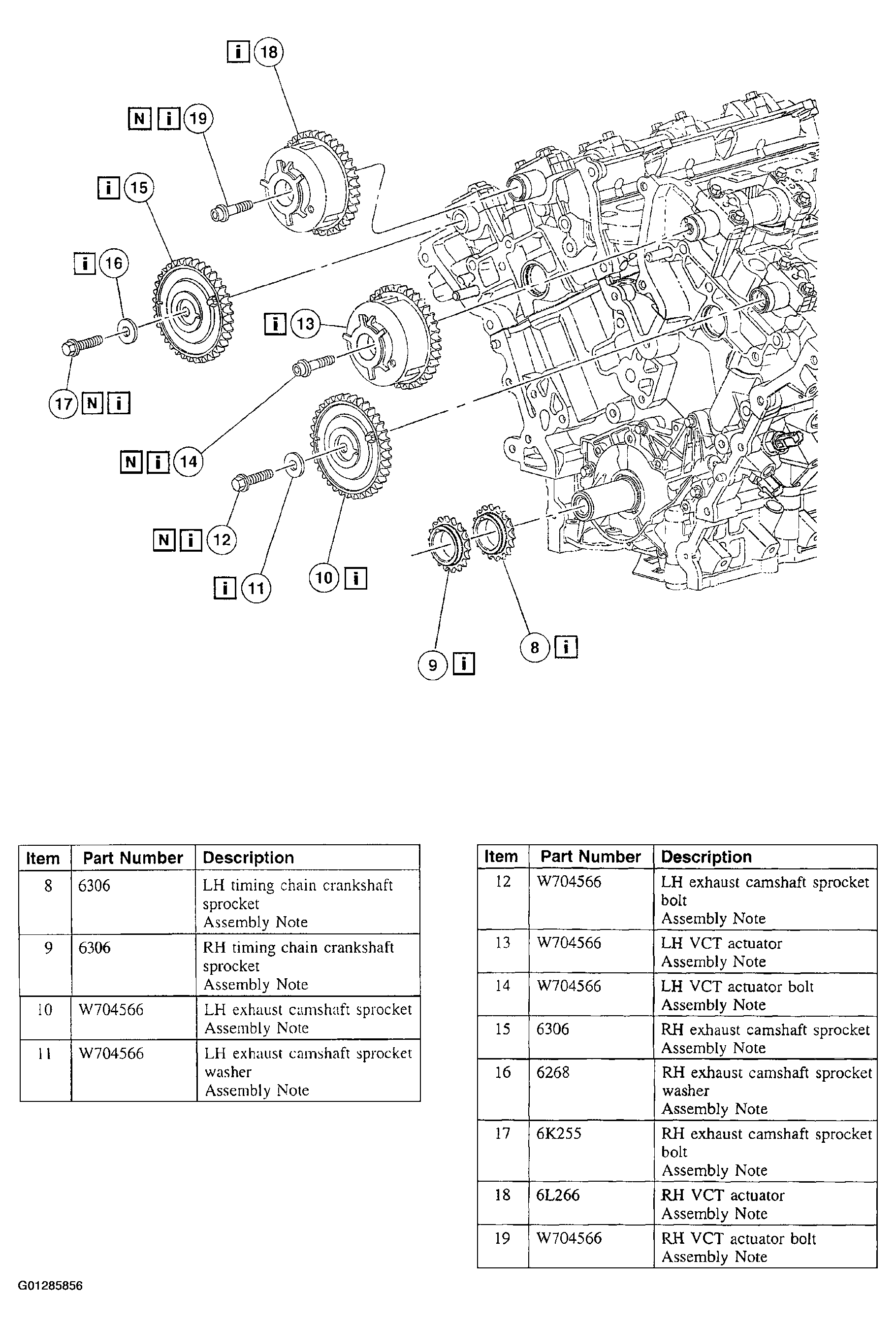

    Fig 3: Installing LH Timing Chain Sprocket
    G01285856Courtesy of FORD MOTOR CO.
  3. Install the components in the order indicated in the following illustration and table. Illustration 3 of 21.

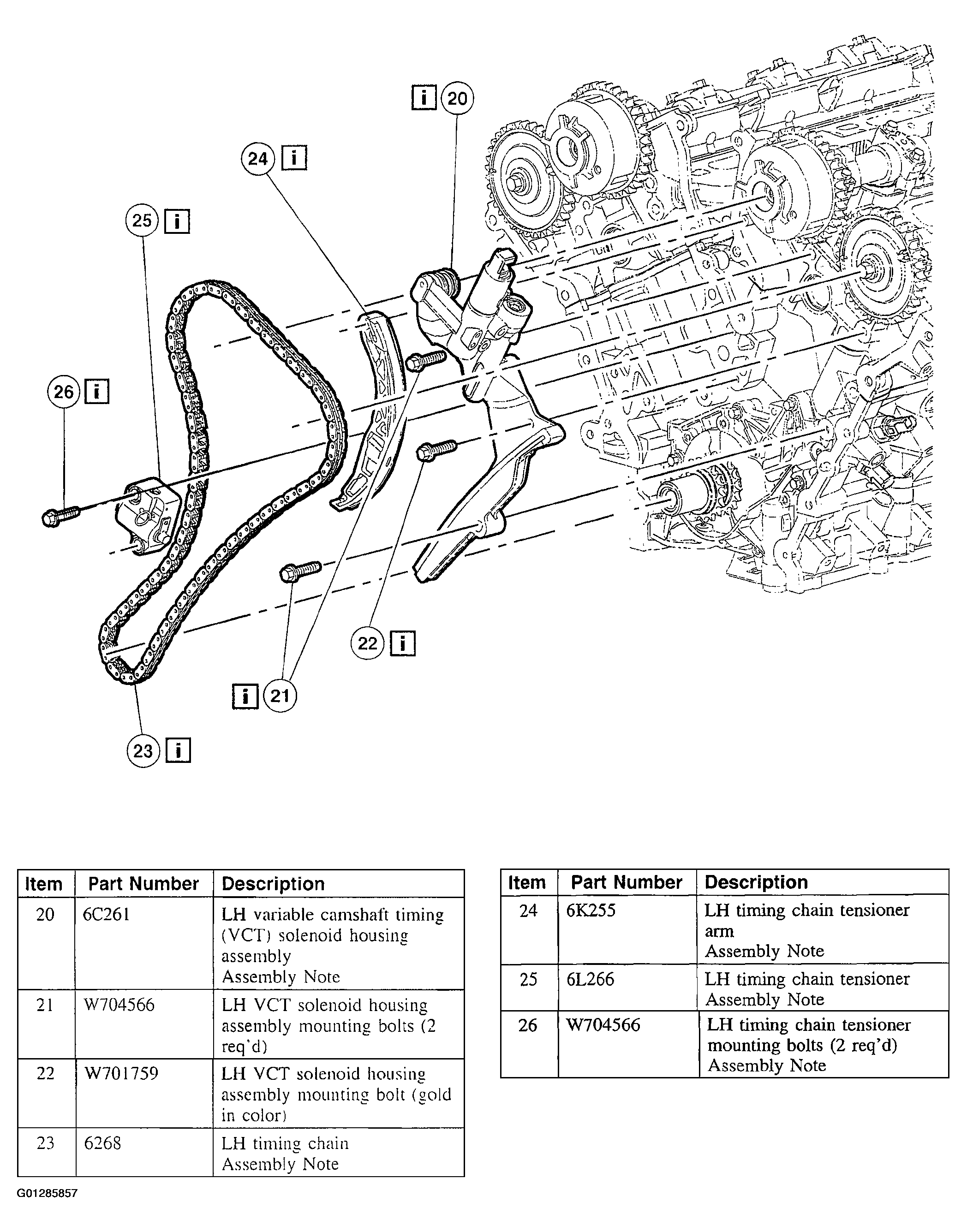

    Fig 4: Installing Cam Timing Housing Assembly
    G01285857Courtesy of FORD MOTOR CO.
  4. Install the components in the order indicated in the following illustration and table. Illustration 4 of 21.

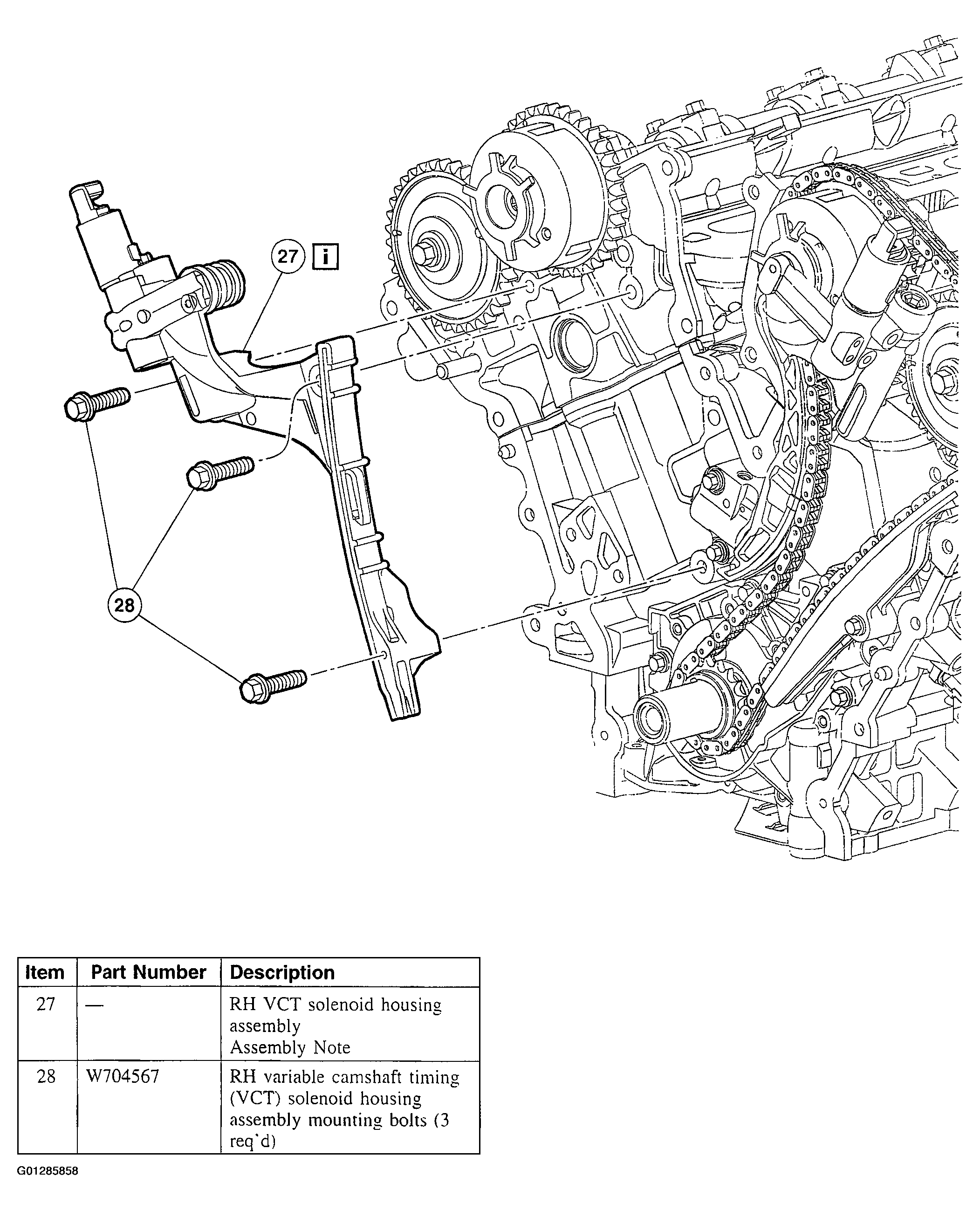

    Fig 5: Installing RH VCT Solenoid Housing Assembly
    G01285858Courtesy of FORD MOTOR CO.
  5. Install the components in the order indicated in the following illustration and table. Illustration 5 of 21.

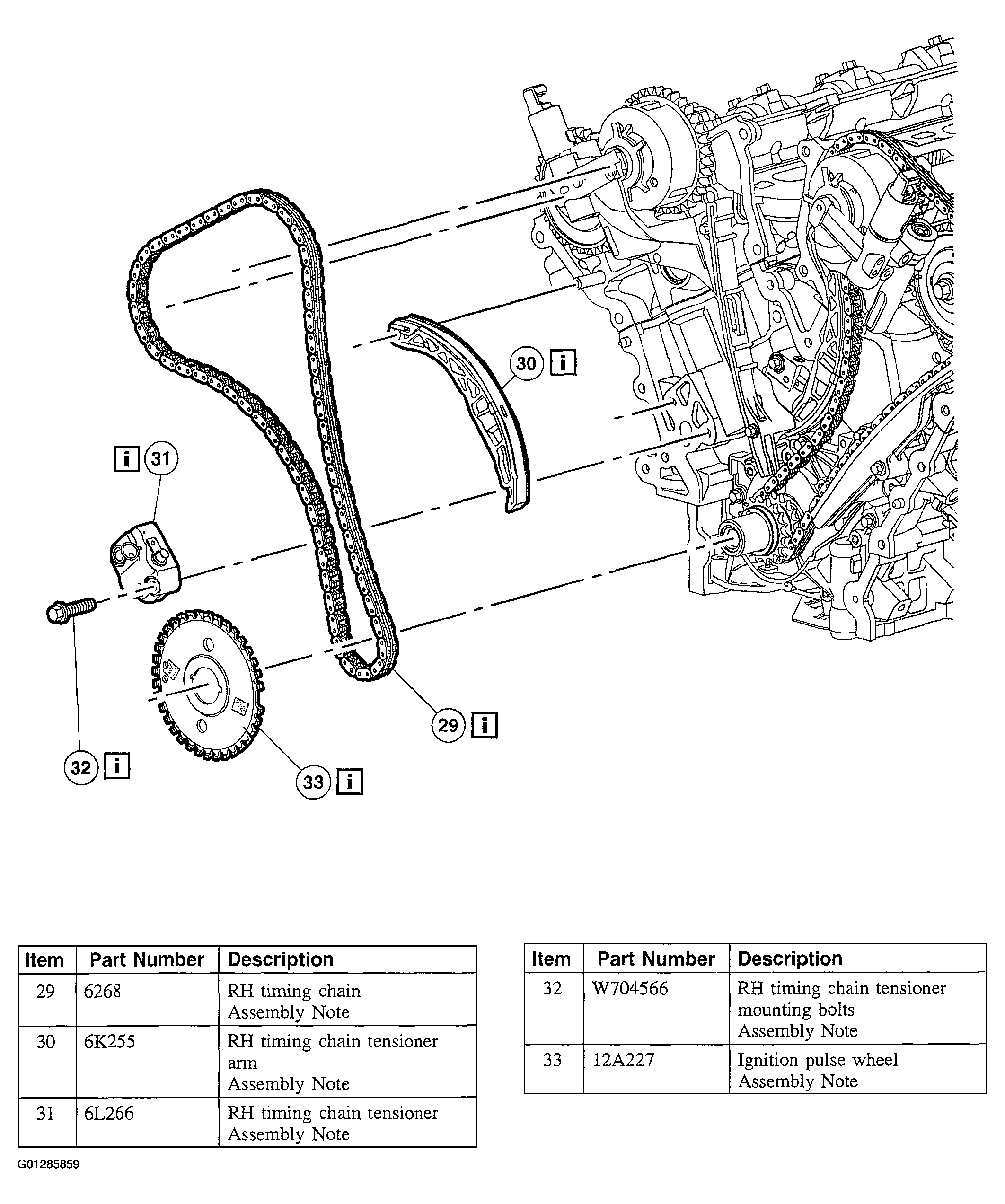

    Fig 6: Installing Timing Chain Assembly Material
    G01285859Courtesy of FORD MOTOR CO.
  6. Install the components in the order indicated in the following illustration and table. Illustration 6 of 21.

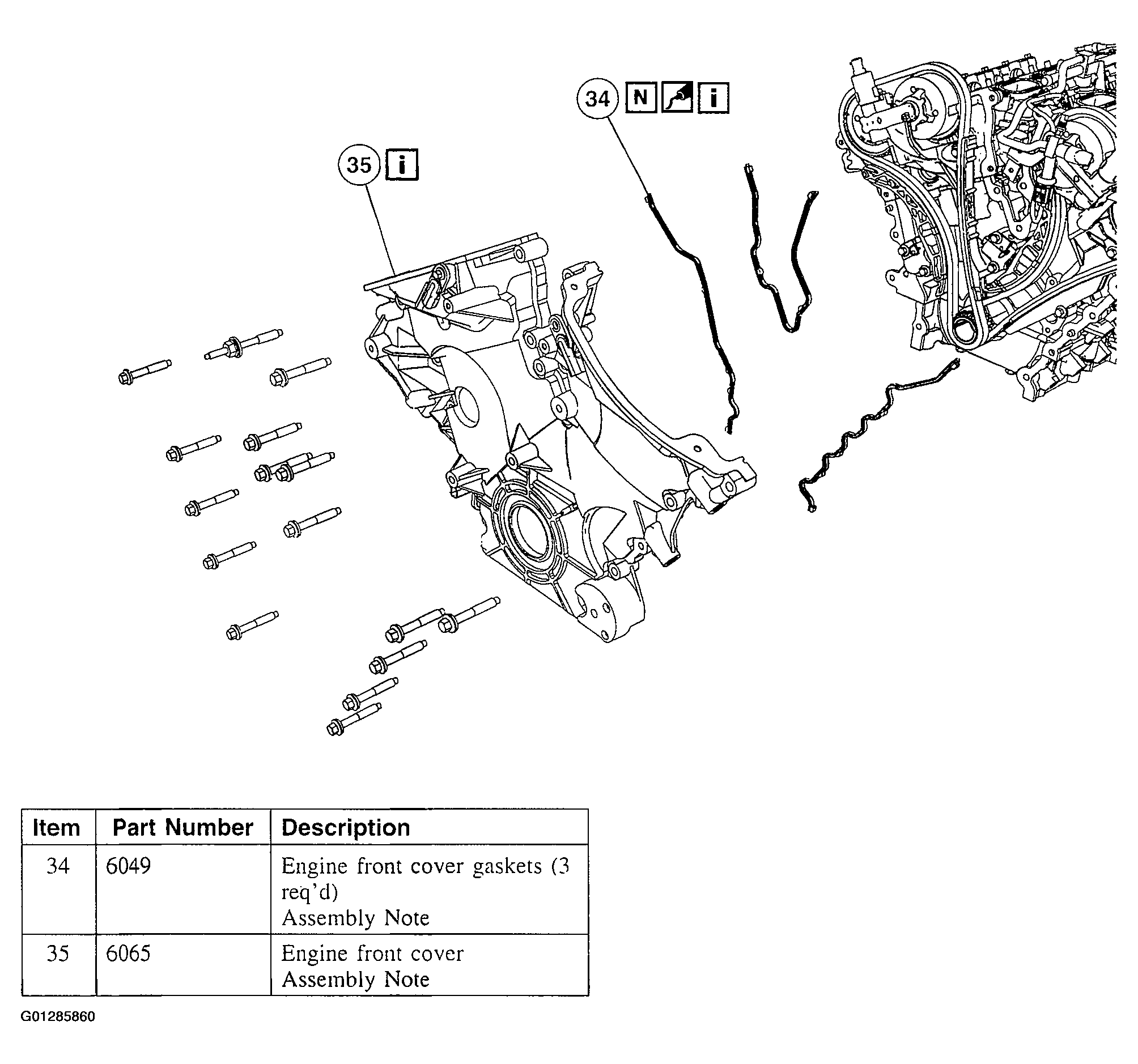

    Fig 7: Installing Front Cover Gasket
    G01285860Courtesy of FORD MOTOR CO.
  7. Install the components in the order indicated in the following illustration and table. Illustration 7 of 21.

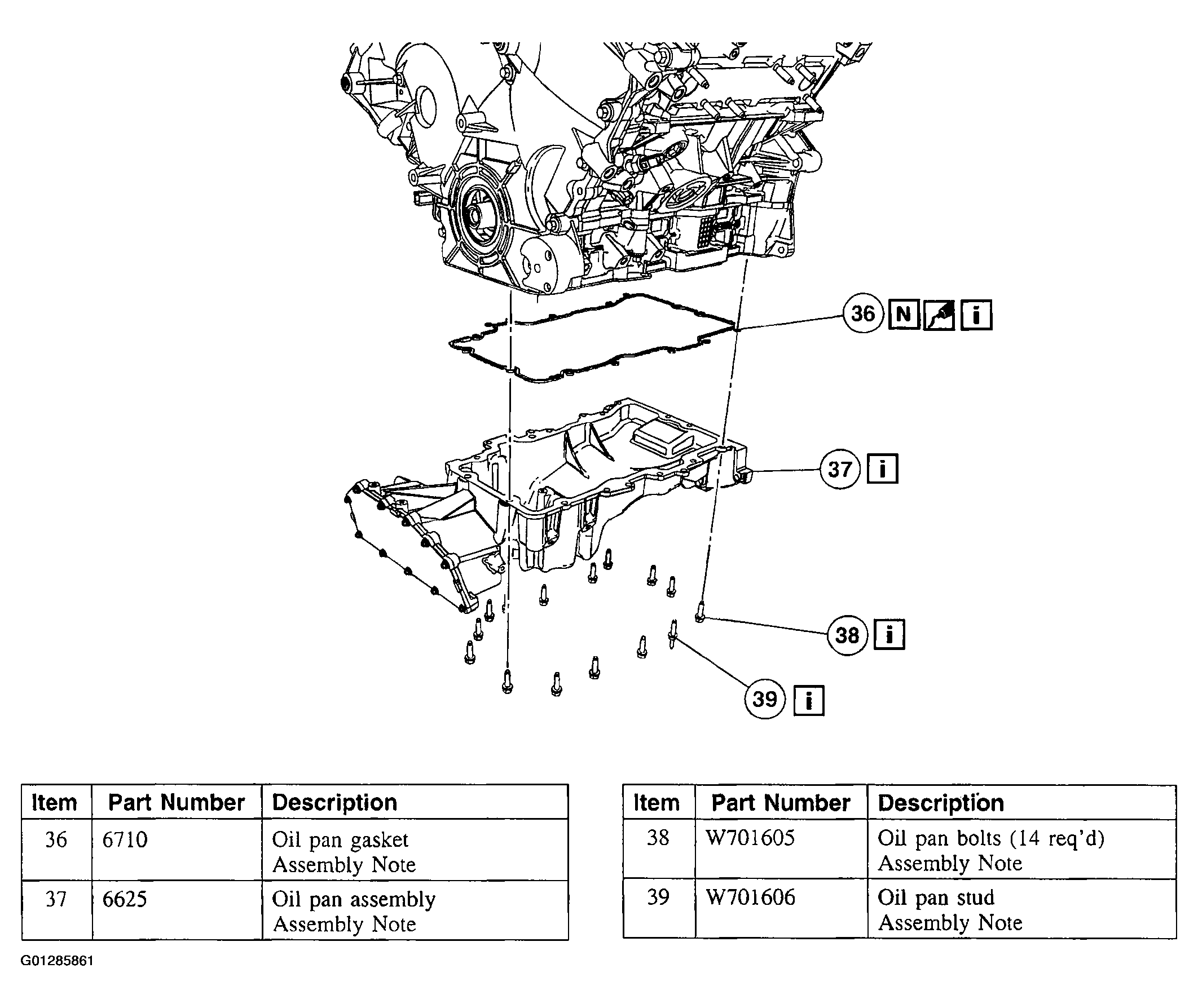

    Fig 8: Installing Oil Sump Gasket
    G01285861Courtesy of FORD MOTOR CO.
  8. Install the components in the order indicated in the following illustration and table. Illustration 8 of 21.

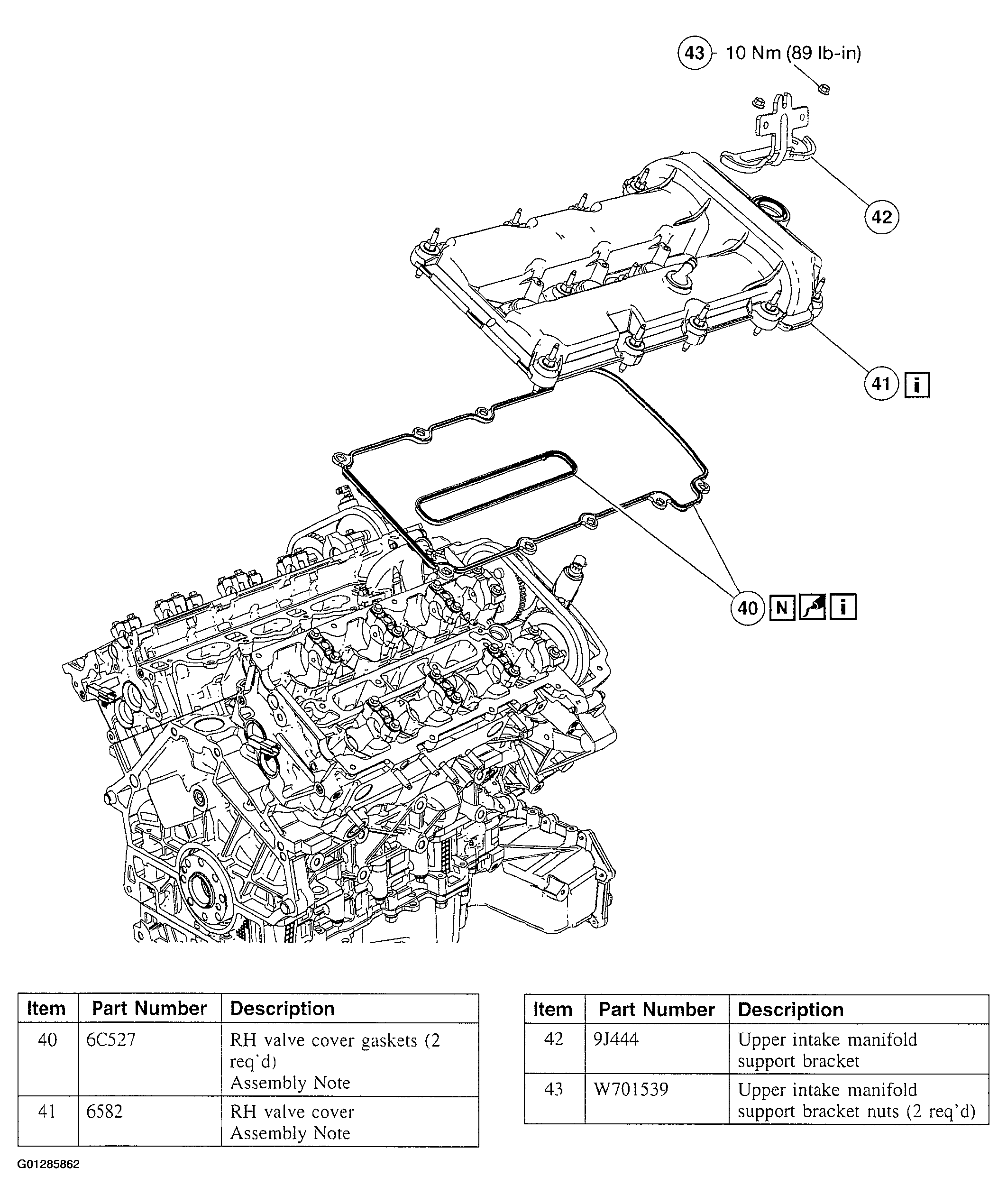

    Fig 9: Installing RH Cover Gasket
    G01285862Courtesy of FORD MOTOR CO.
  9. Install the components in the order indicated in the following illustration and table. Illustration 9 of 21.

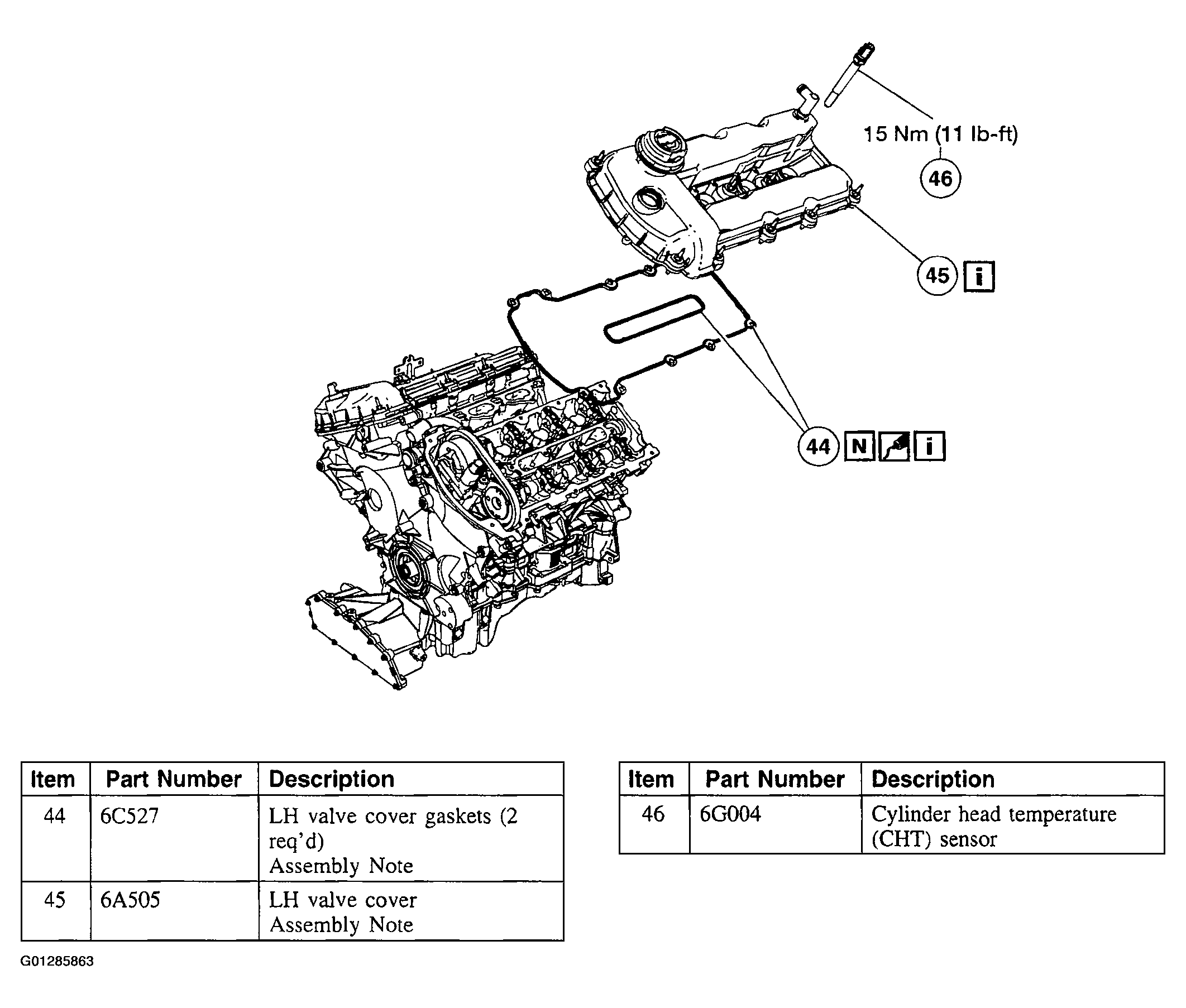

    Fig 10: Installing LH Valve Cover Gasket
    G01285863Courtesy of FORD MOTOR CO.
  10. Install the components in the order indicated in the following illustration and table. Illustration 10 of 21.

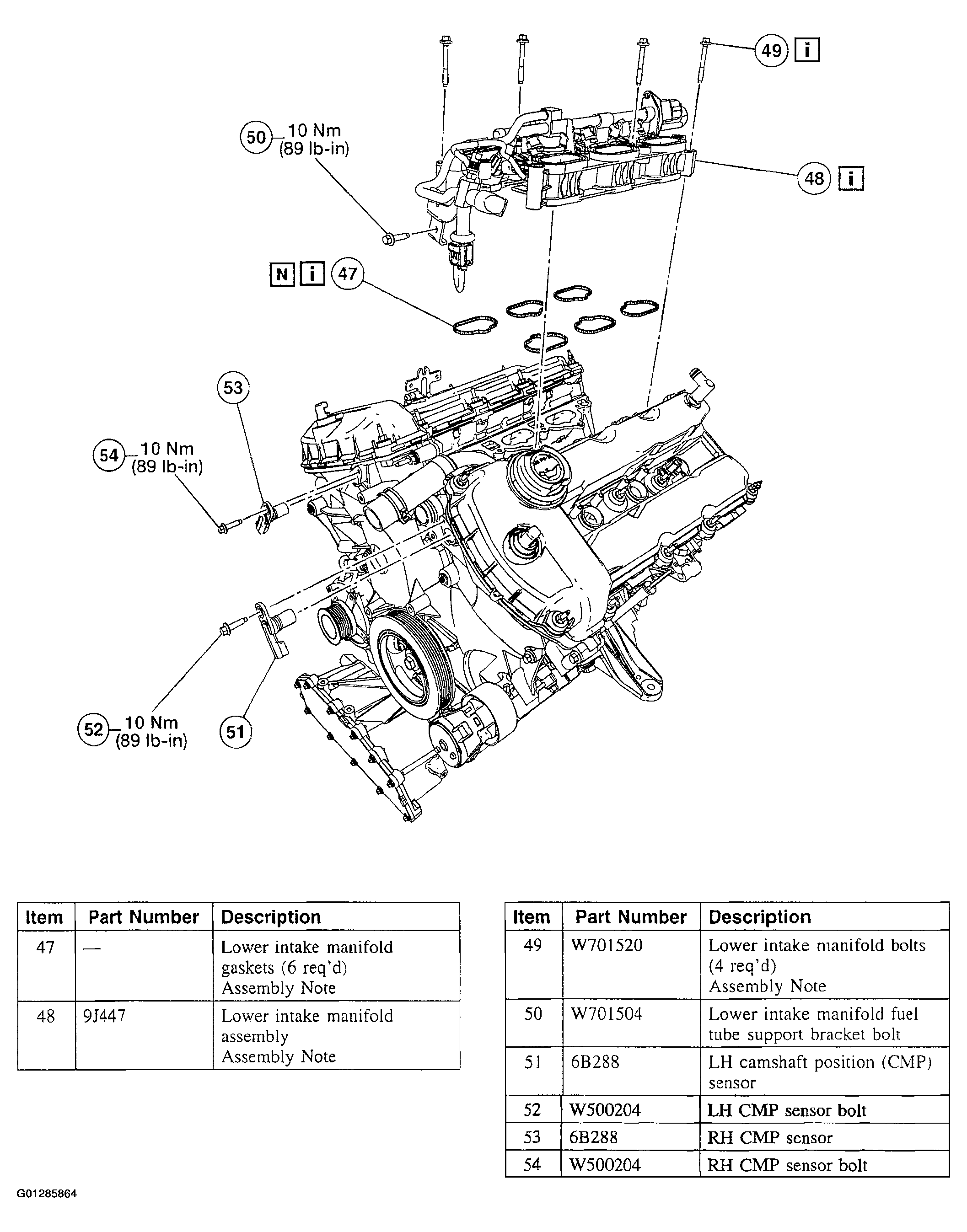

    Fig 11: Installing Lower Intake Manifold Gasket
    G01285864Courtesy of FORD MOTOR CO.
  11. Install the components in the order indicated in the following illustration and table. Illustration 11 of 21.

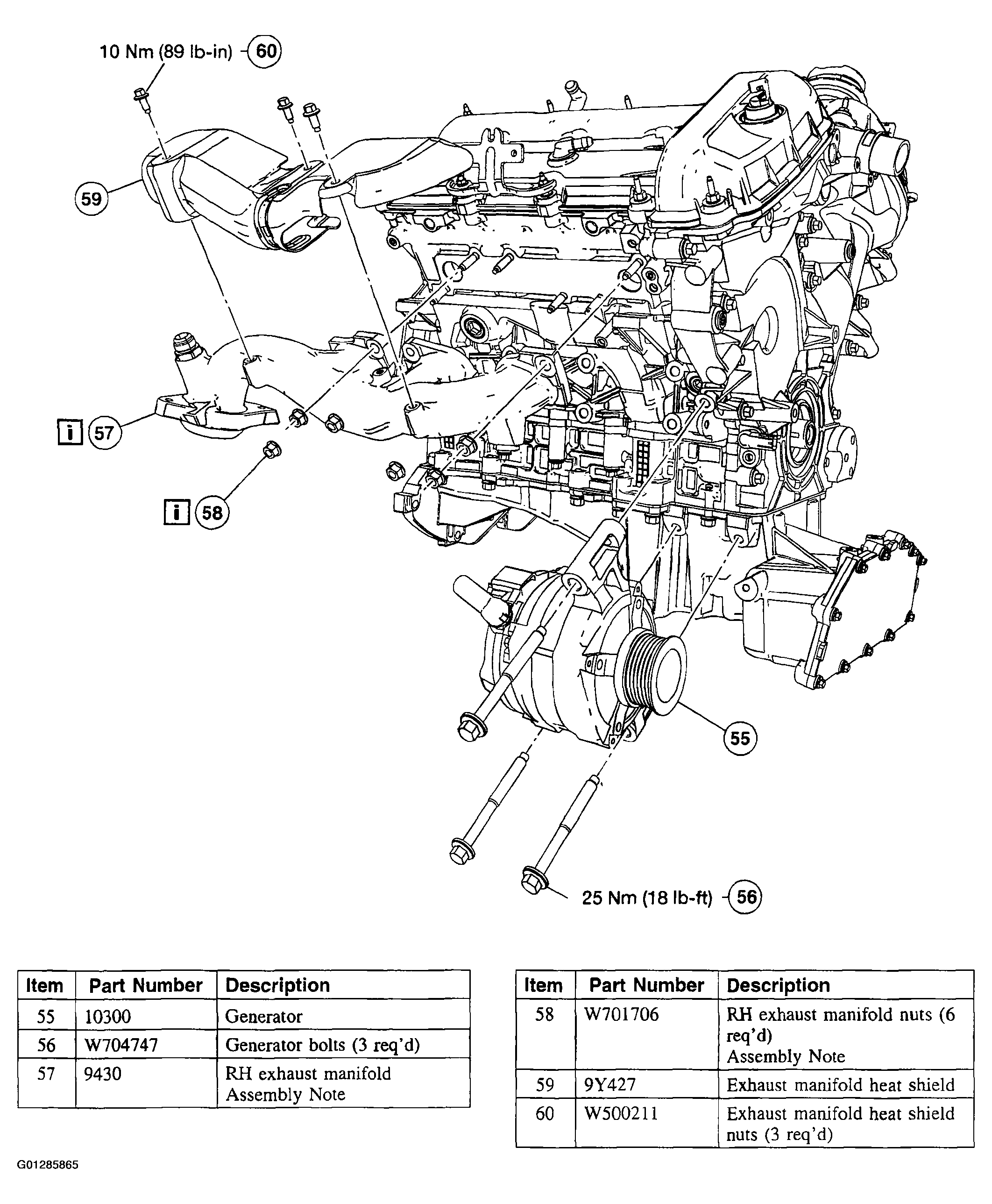

    Fig 12: Installing Alternator Assembly
    G01285865Courtesy of FORD MOTOR CO.
  12. Install the components in the order indicated in the following illustration and table. Illustration 12 of 21.

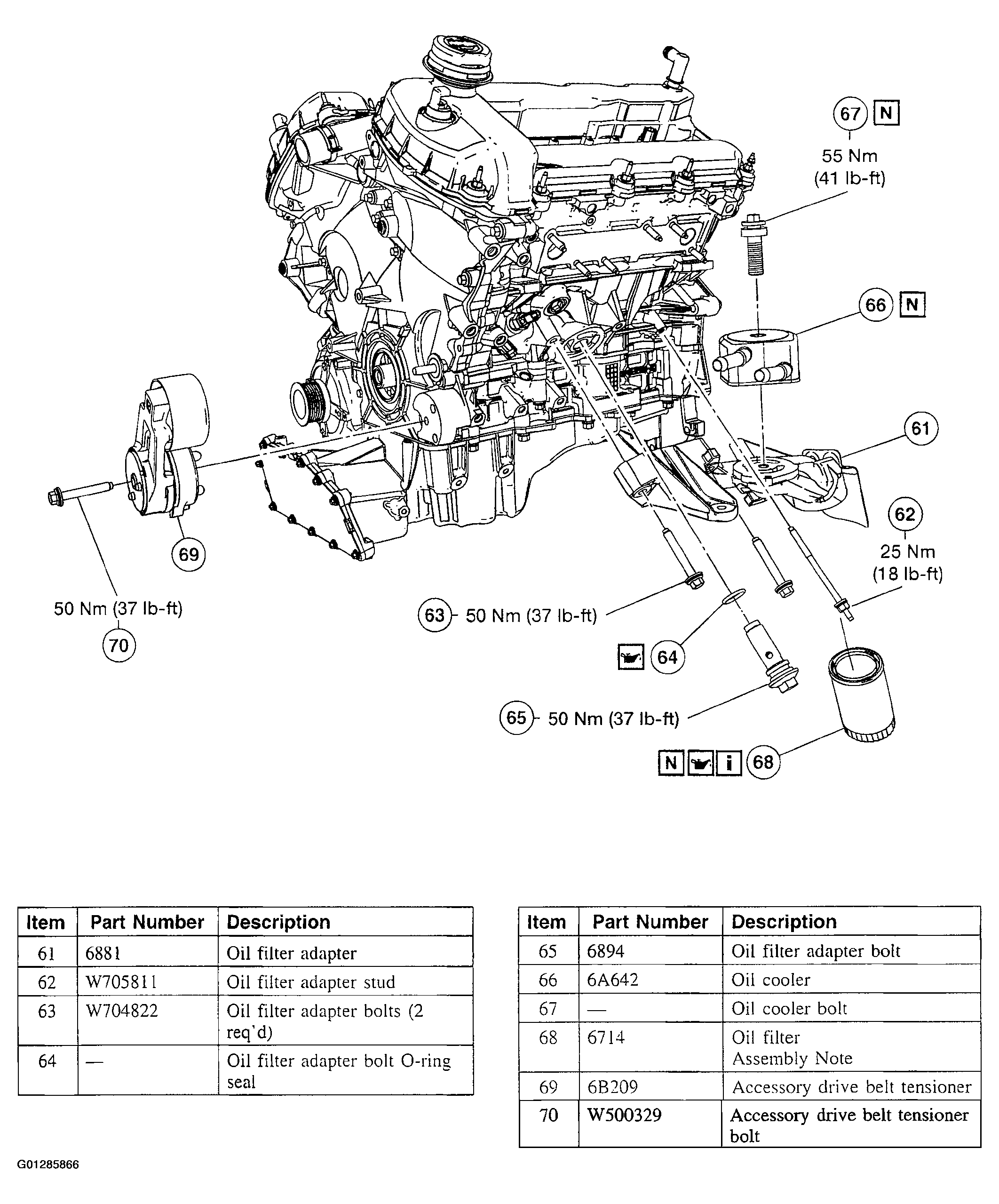

    Fig 13: Installing Oil Filter Adapter
    G01285866Courtesy of FORD MOTOR CO.
  13. Install the components in the order indicated in the following illustration and table. Illustration 13 of 21.

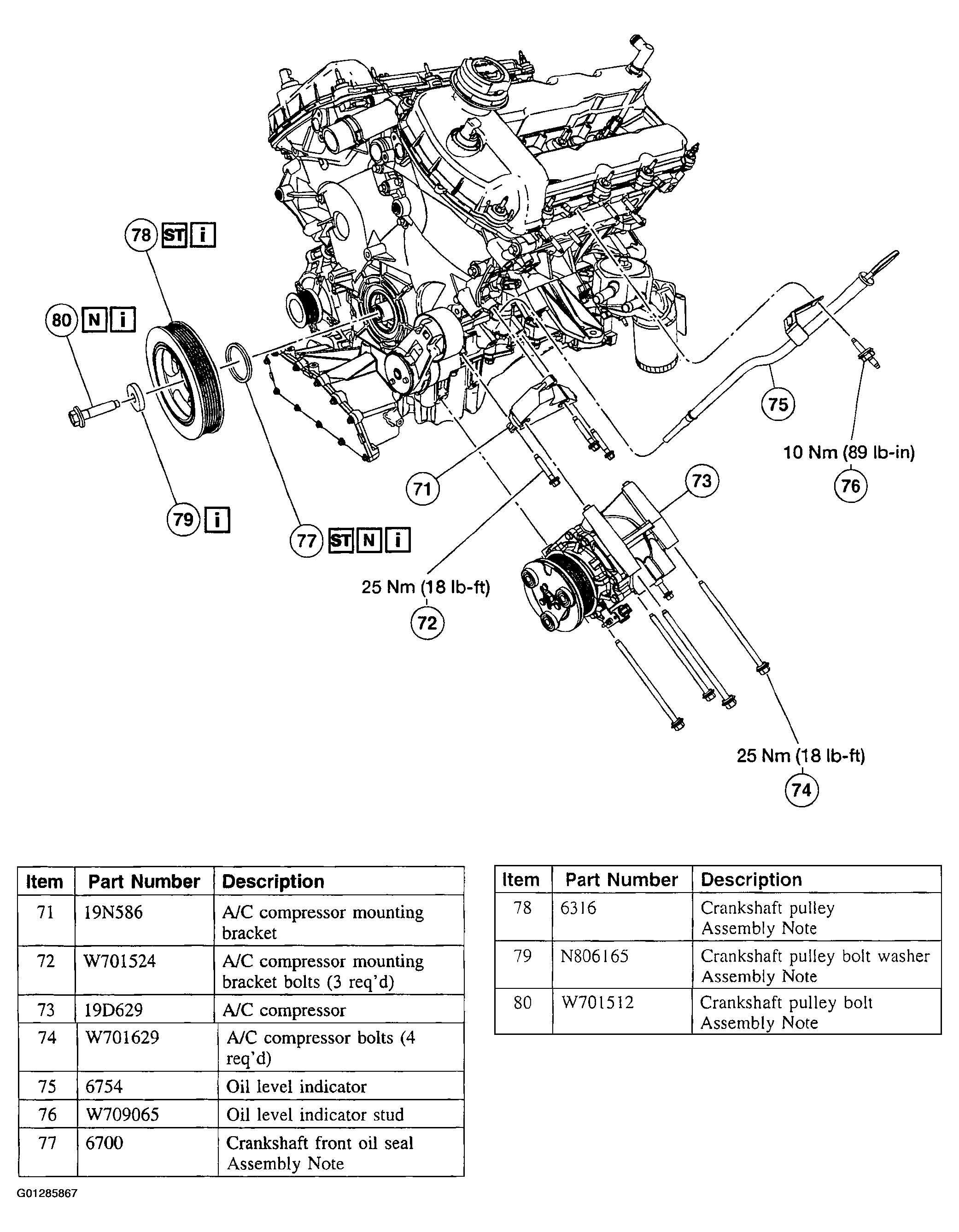

    Fig 14: Installing A/C Compressor Mounting
    G01285867Courtesy of FORD MOTOR CO.
  14. Install the components in the order indicated in the following illustration and table. Illustration 14 of 21.

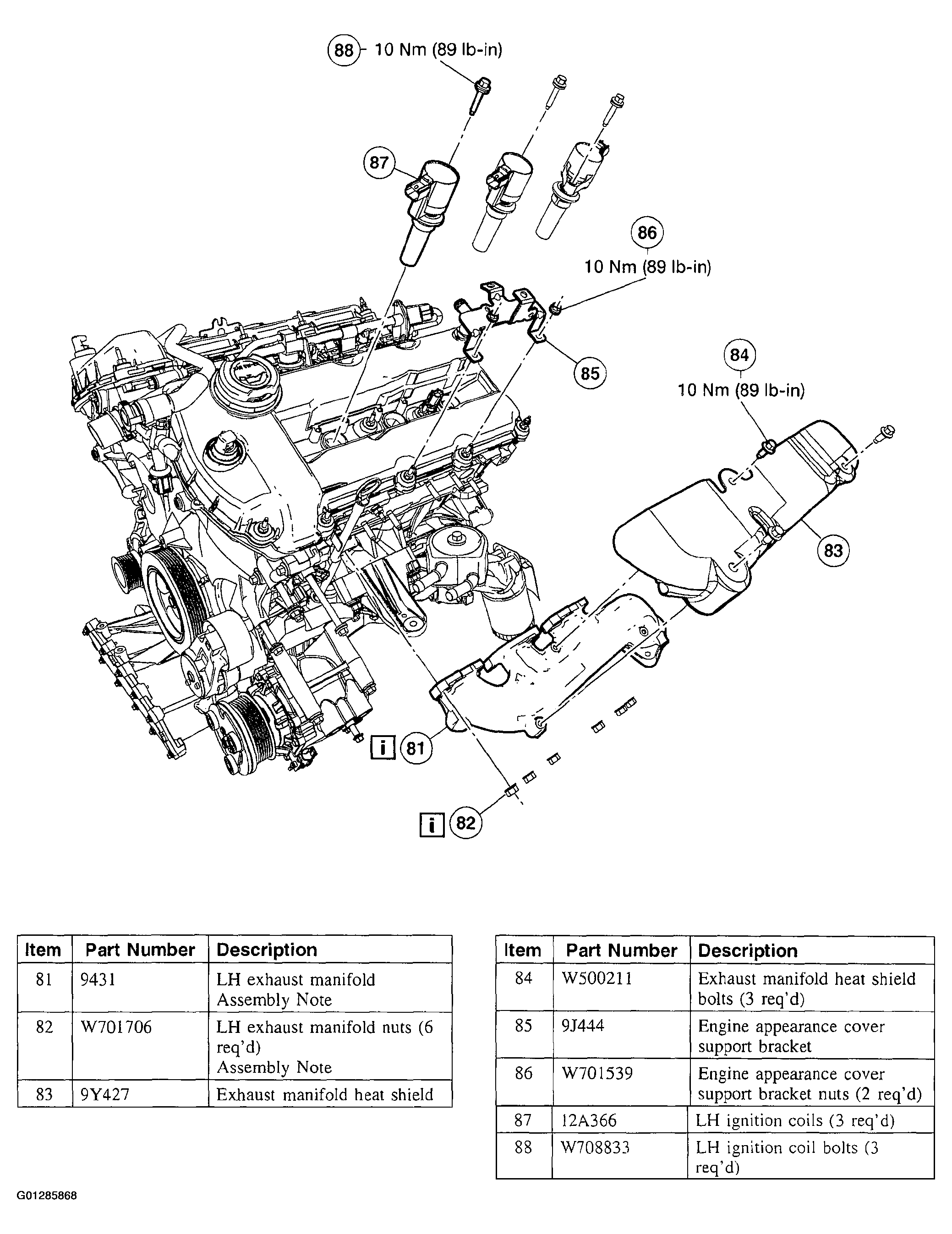

    Fig 15: Installing LH Exhaust manifold assembly
    G01285868Courtesy of FORD MOTOR CO.
  15. Install the components in the order indicated in the following illustration and table. Illustration 15 of 21.

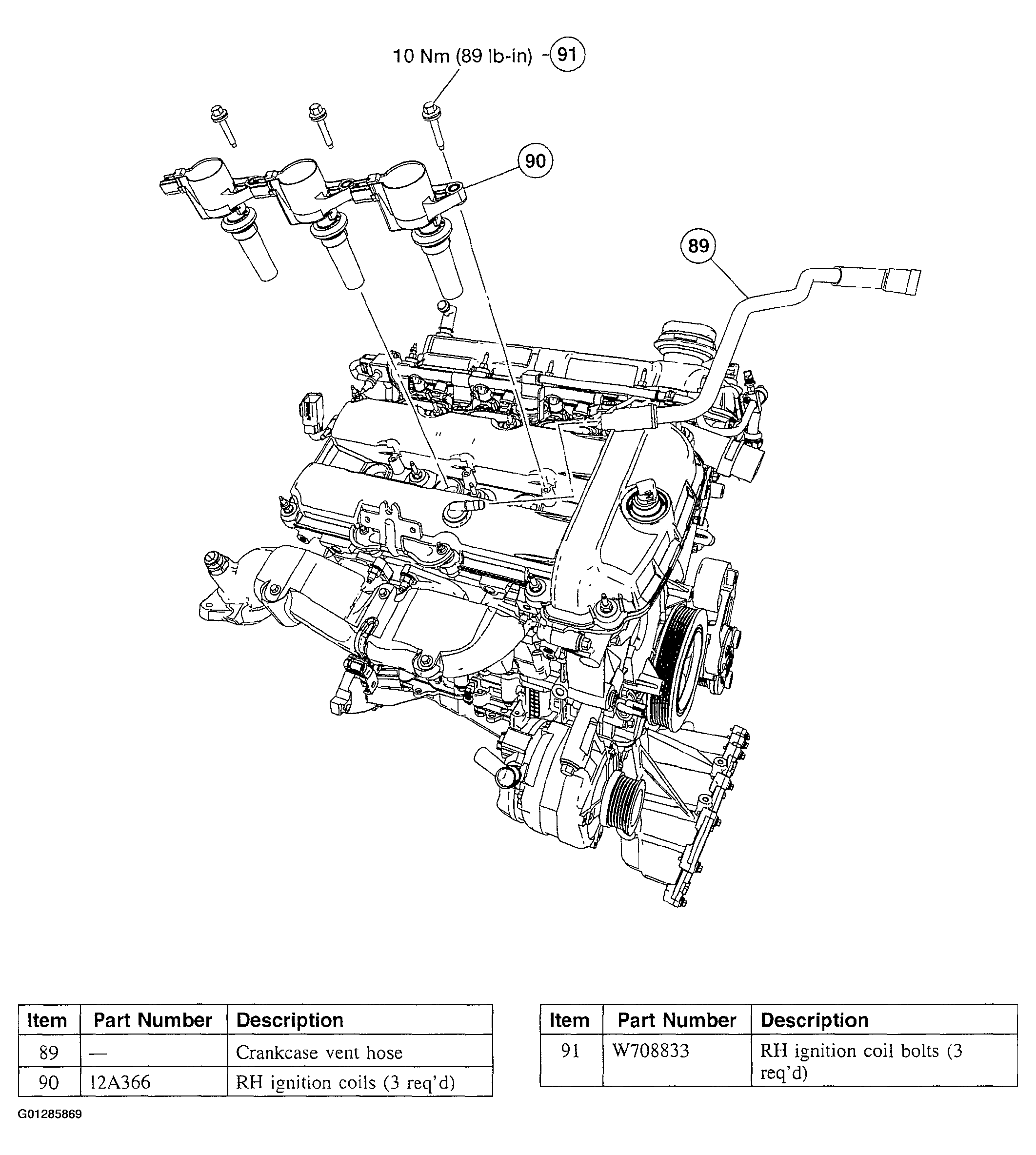

    Fig 16: Installing Crankcase Vent Hose
    G01285869Courtesy of FORD MOTOR CO.
  16. Install the components in the order indicated in the following illustration and table. Illustration 16 of 21.

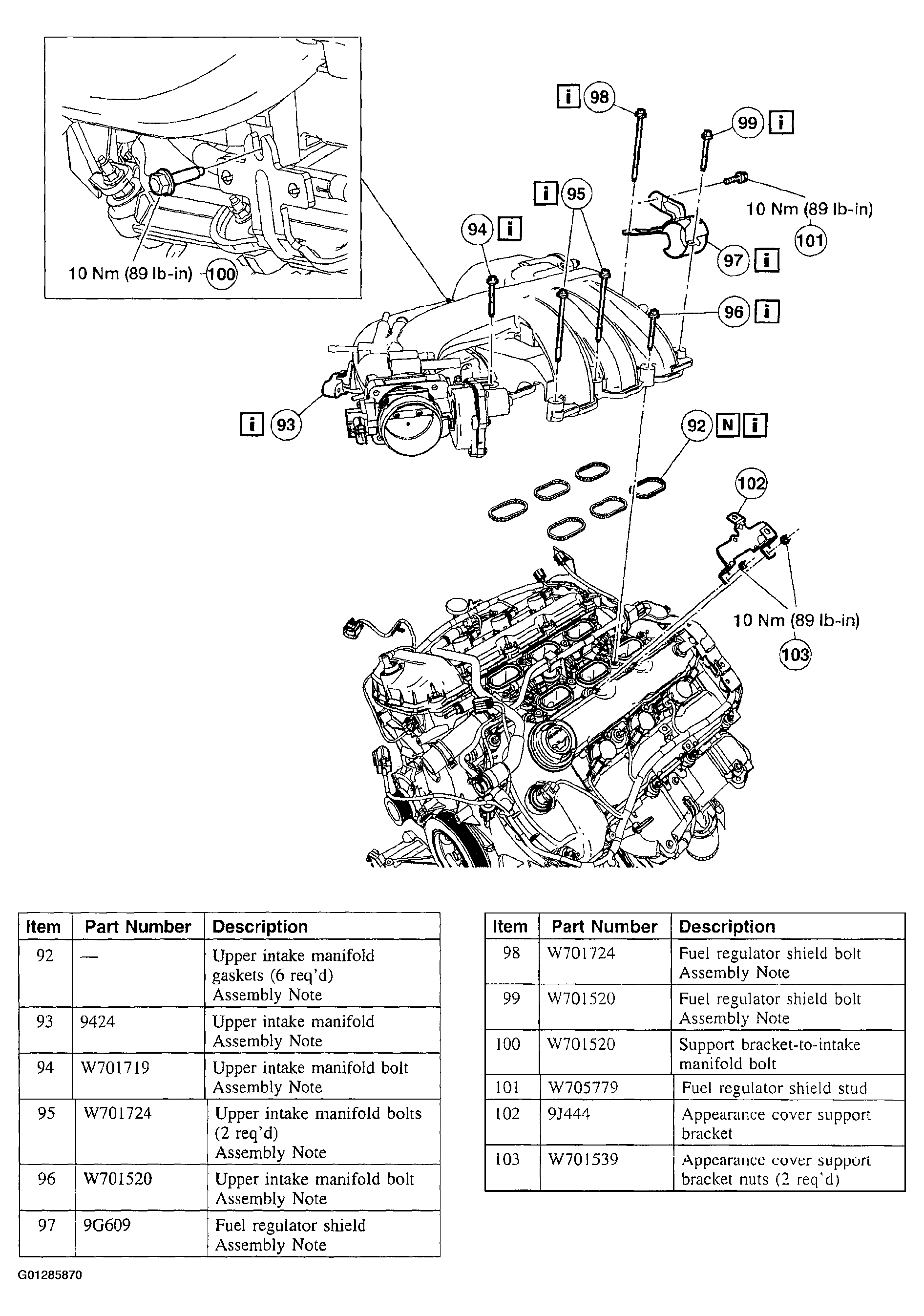

    Fig 17: Installing Upper Intake Manifold
    G01285870Courtesy of FORD MOTOR CO.
  17. Install the components in the order indicated in the following illustration and table. Illustration 17 of 21.

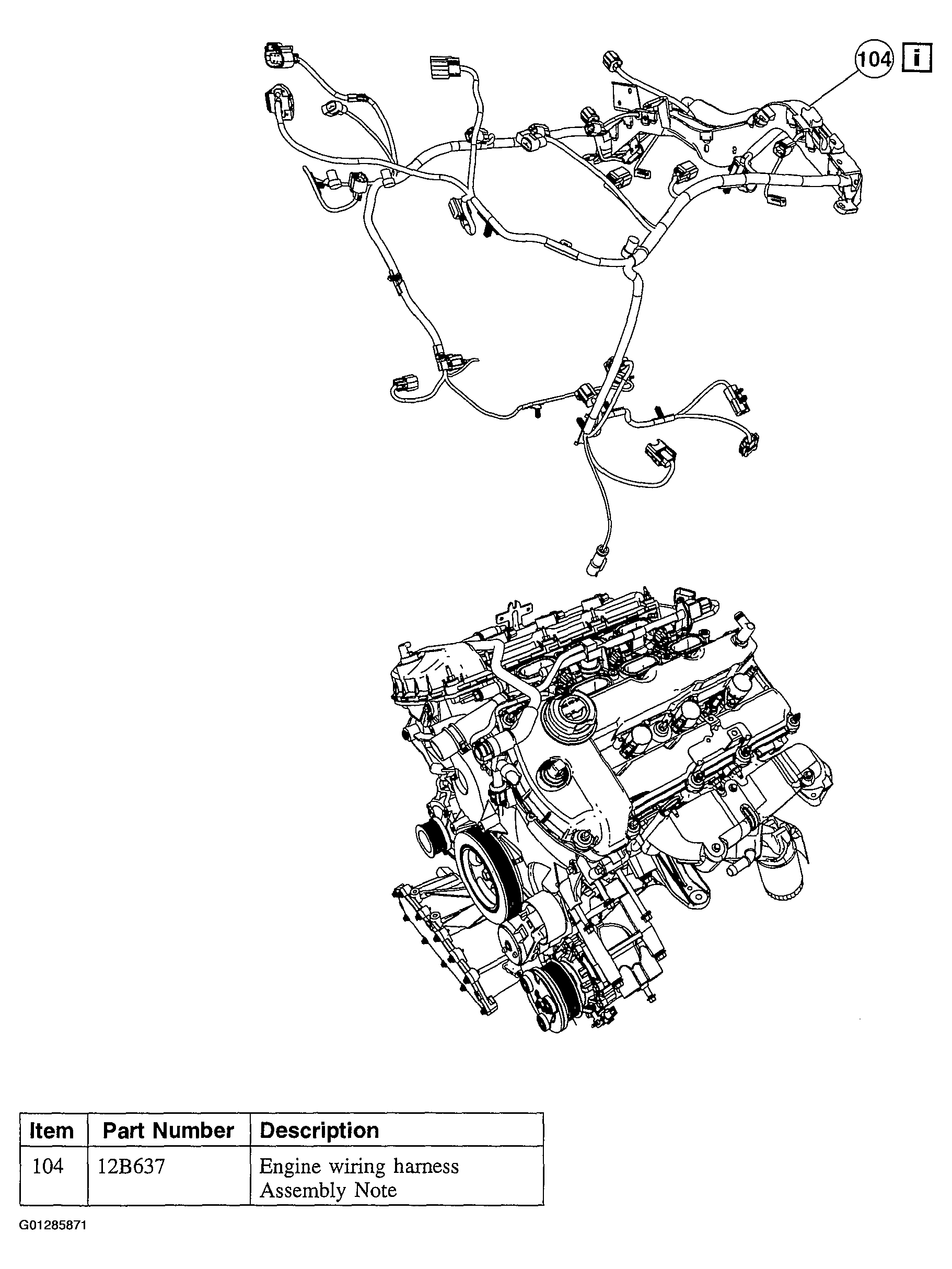

    Fig 18: Installing Engine Wiring Harness
    G01285871Courtesy of FORD MOTOR CO.
  18. Install the components in the order indicated in the following illustration and table. Illustration 18 of 21.

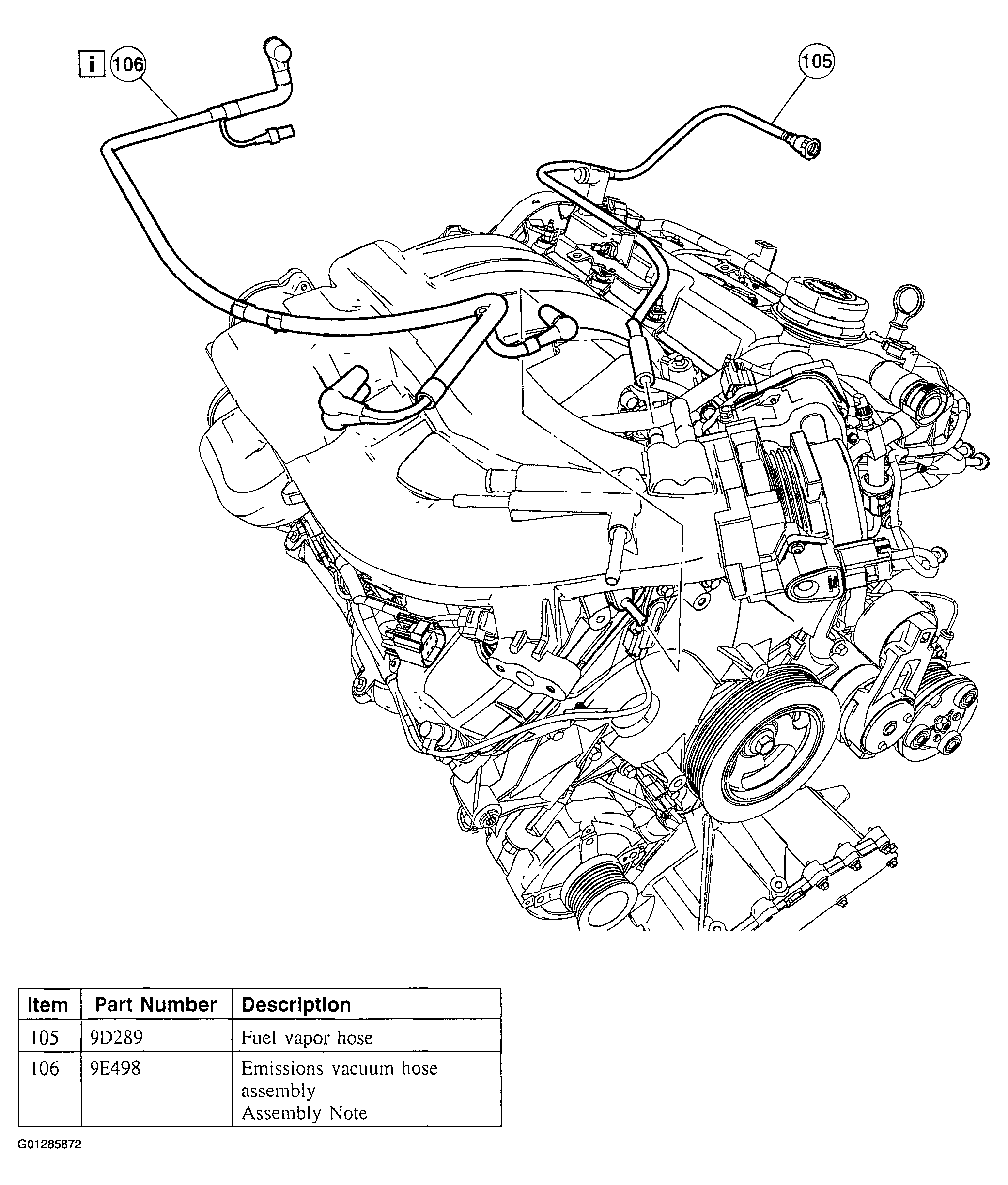

    Fig 19: Installing Fuel Vapor Hose
    G01285872Courtesy of FORD MOTOR CO.
  19. Install the components in the order indicated in the following illustration and table. Illustration 19 of 21.

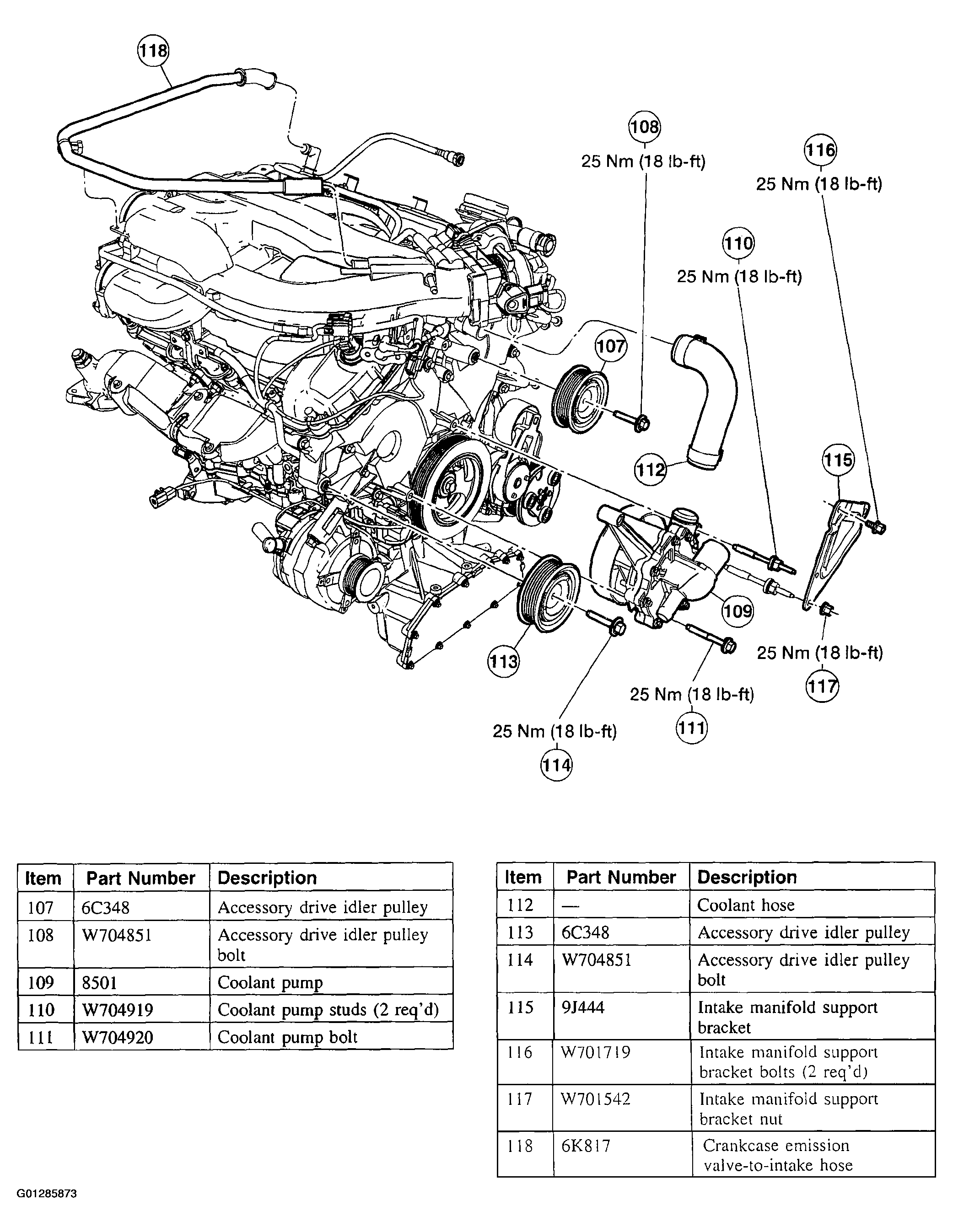

    Fig 20: Installing Accessory Drive Idler Pulley
    G01285873Courtesy of FORD MOTOR CO.
  20. Install the components in the order indicated in the following illustration and table. Illustration 20 of 21.

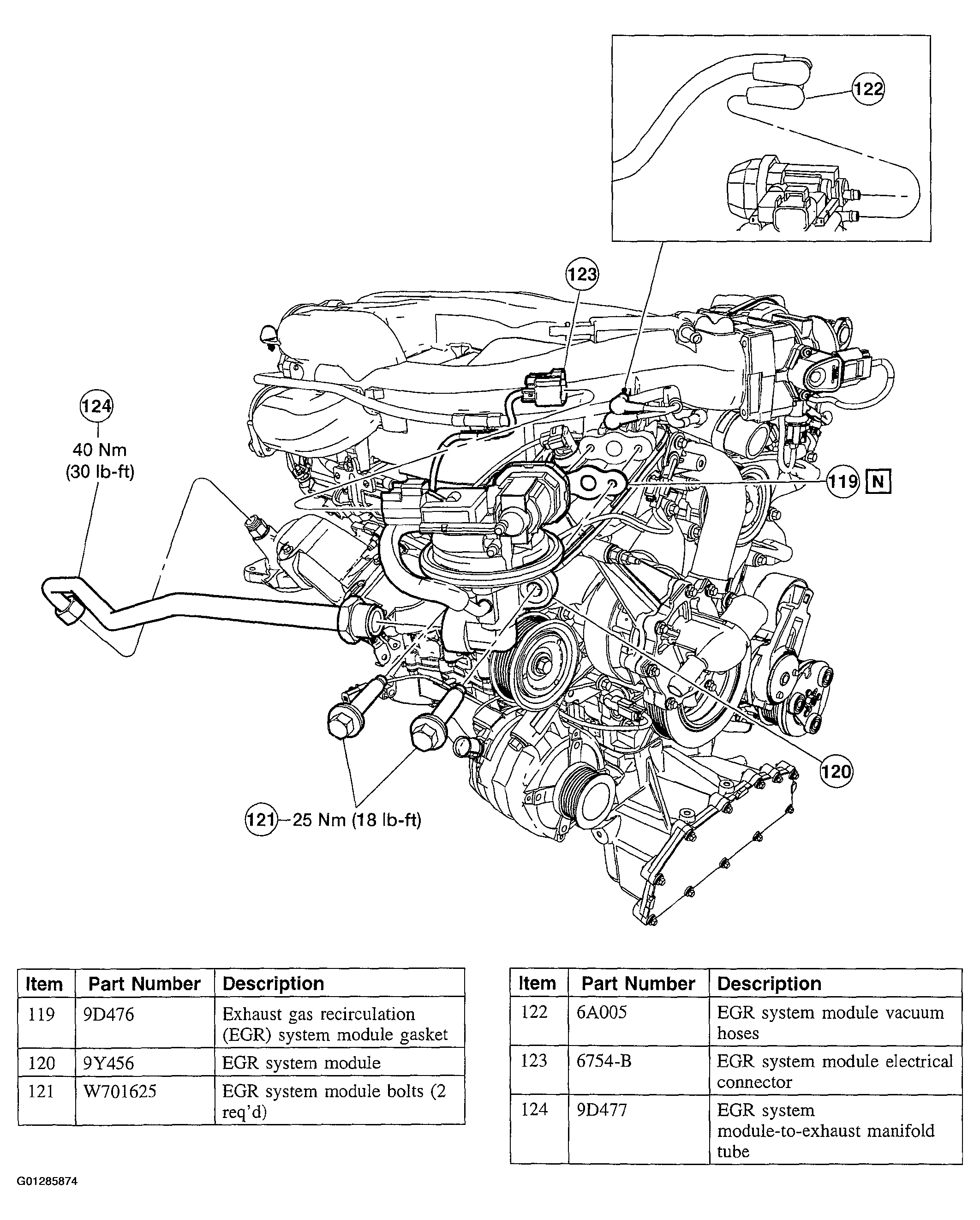

    Fig 21: Installing Exhaust Recirculation
    G01285874Courtesy of FORD MOTOR CO.
  21. Install the components in the order indicated in the following illustration and table. Illustration 21 of 21.

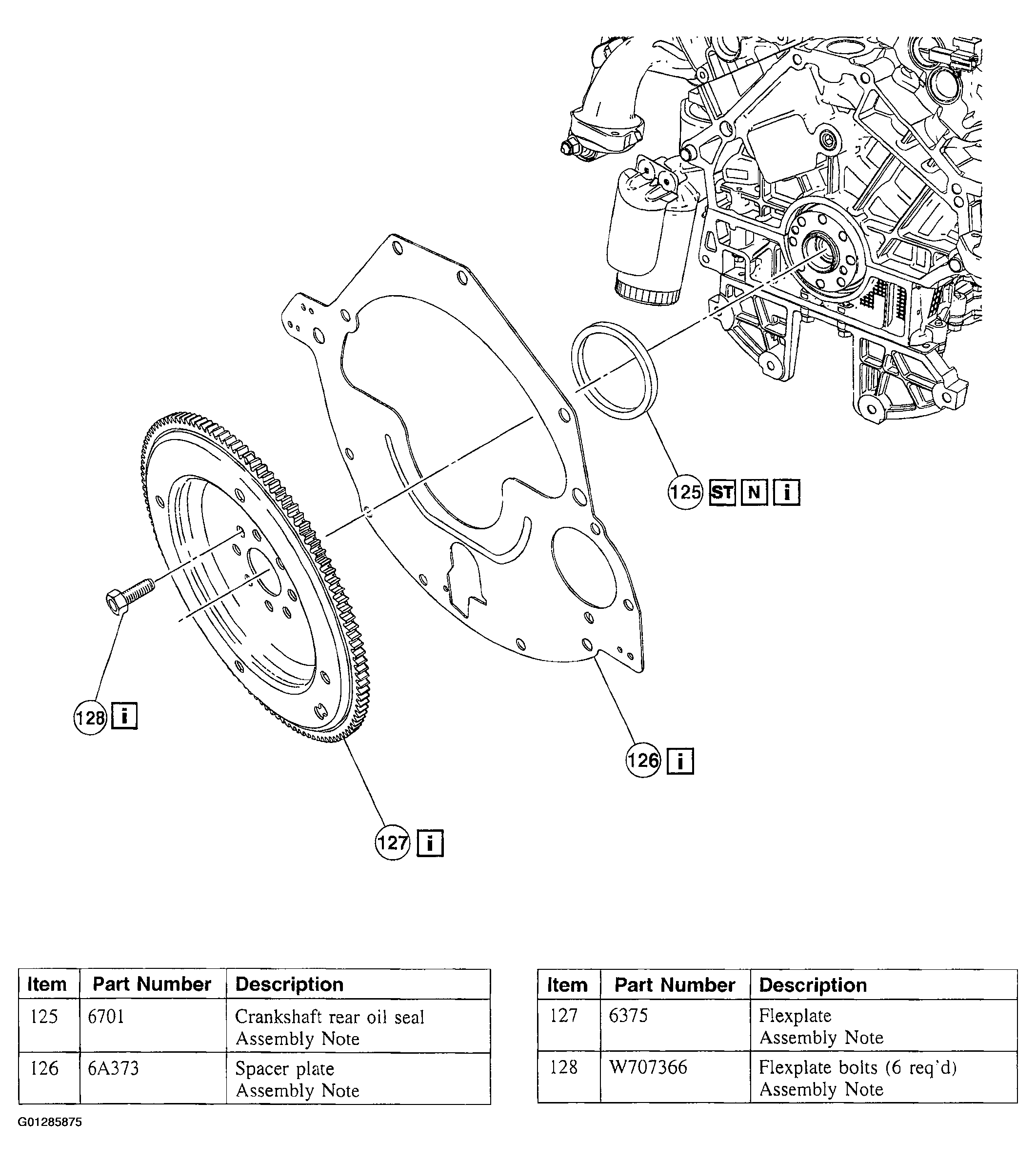

Fig 22: Installing Rear Oil Seal Assembly
G01285875Courtesy of FORD MOTOR CO.
