If timing marks in the timing chains are not evident, use a permanent-type marker to mark the crankshaft and camshaft timing marks on the LH and RH timing chains.
1. Mark any link to use as the exhaust camshaft timing mark.
2. Starting with the exhaust camshaft timing mark, count 16 links and mark the link as the intake camshaft sprocket timing mark.
3. Starting with the intake camshaft timing mark, count 25 links and mark the link as the crankshaft sprocket timing mark.

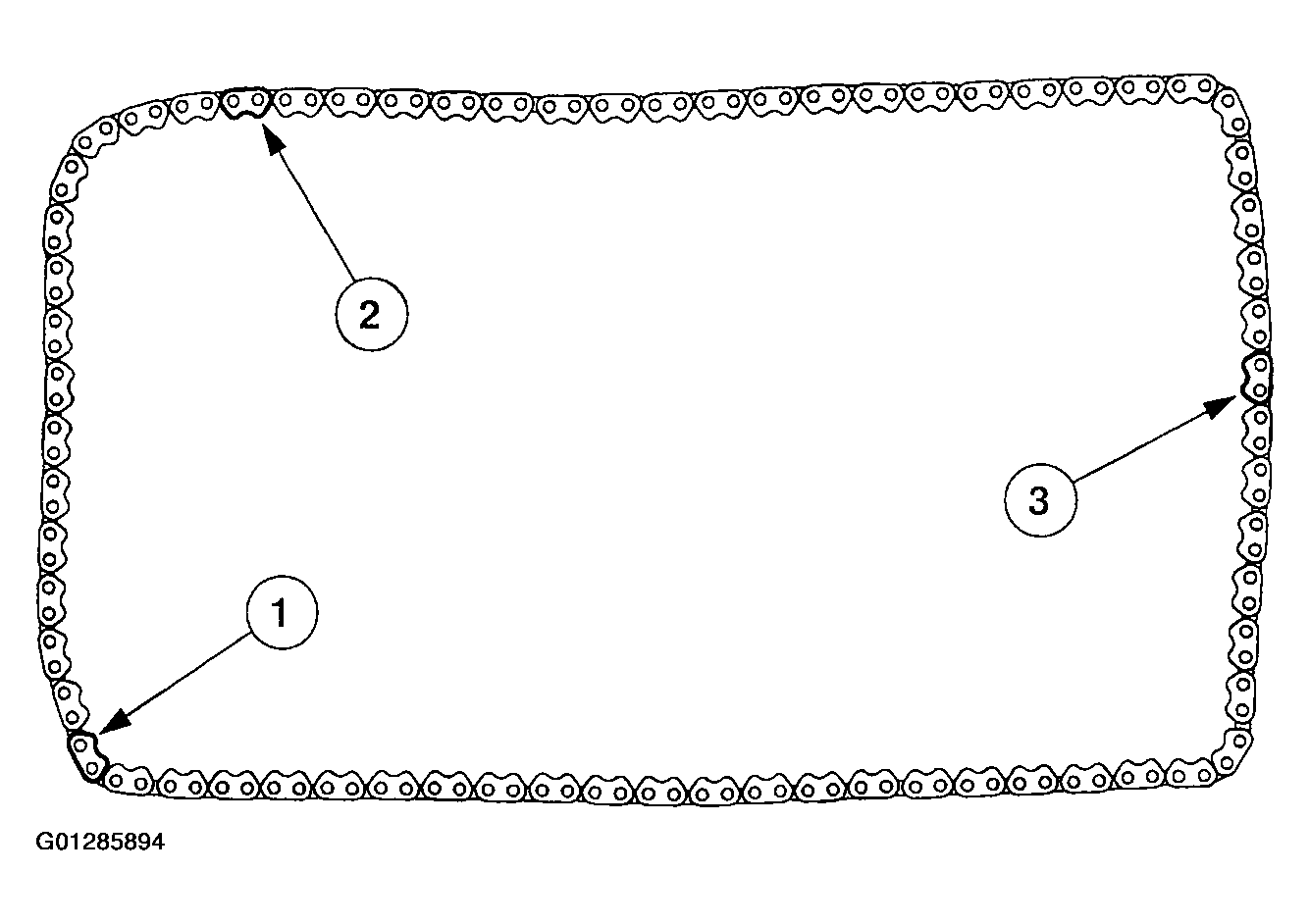

Fig 1: Identifying Timing Chain Marks
Courtesy of FORD MOTOR CO.
Verify that the crankshaft keyway is in the eleven o'clock position.

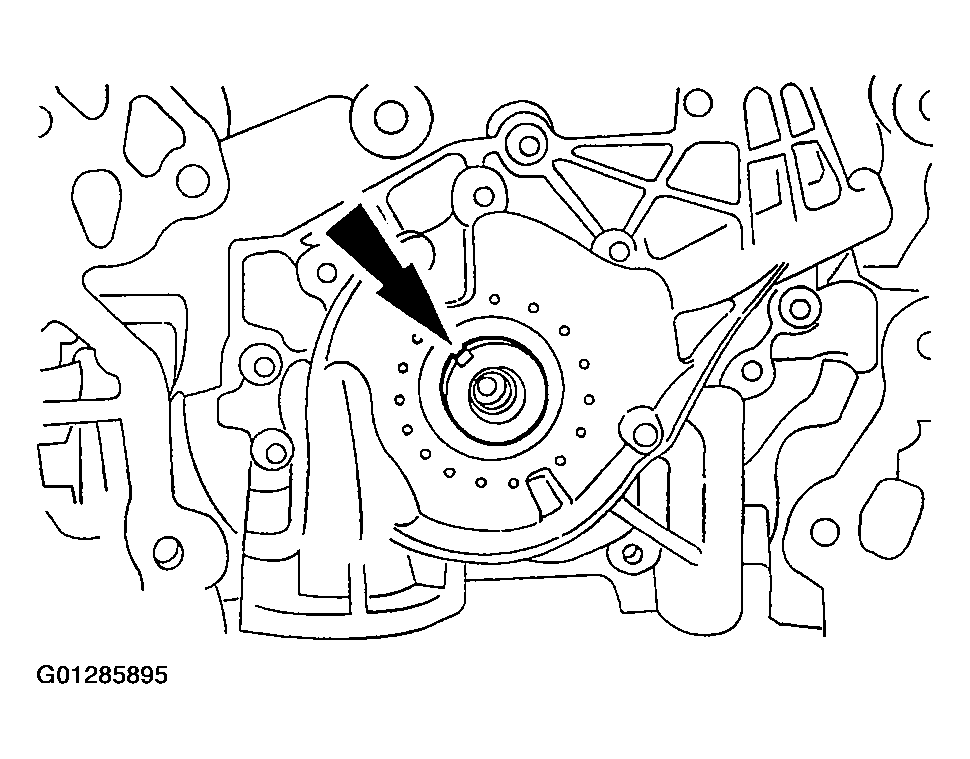

Fig 2: Verifying Crankshaft Keyway Is In Eleven O'Clock Position
Courtesy of FORD MOTOR CO.

CAUTION: The crankshaft keyway must remain in the eleven o'clock position until the cams are located in the neutral position, or damage to the valves can occur.
