Module - Anti-Lock Brake Control: Removal

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Prior to removal of module, it is necessary to upload module configuration information to the scan tool. This information needs to be downloaded into the new module once installed. For additional information, refer to MODULE CONFIGURATION .
  1. Disconnect the battery ground cable.
  2. Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
  3. Remove the hydraulic control unit (HCU) dust shield.
    1. Remove the screw.
    2. Remove the bolts.

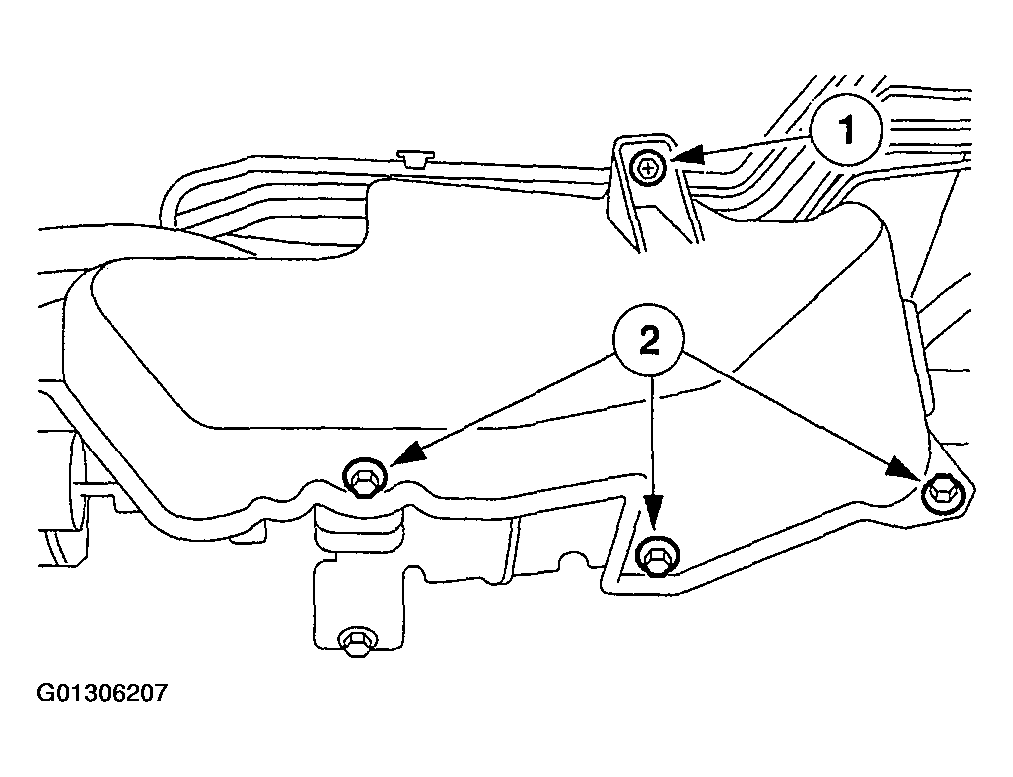

      Fig 1: Removing Hydraulic Control Unit (HCU) Dust Shield
      G01306207Courtesy of FORD MOTOR CO.
  4. Disconnect the anti-lock brake control module electrical connector.
    • Slide the connector lock rearward.

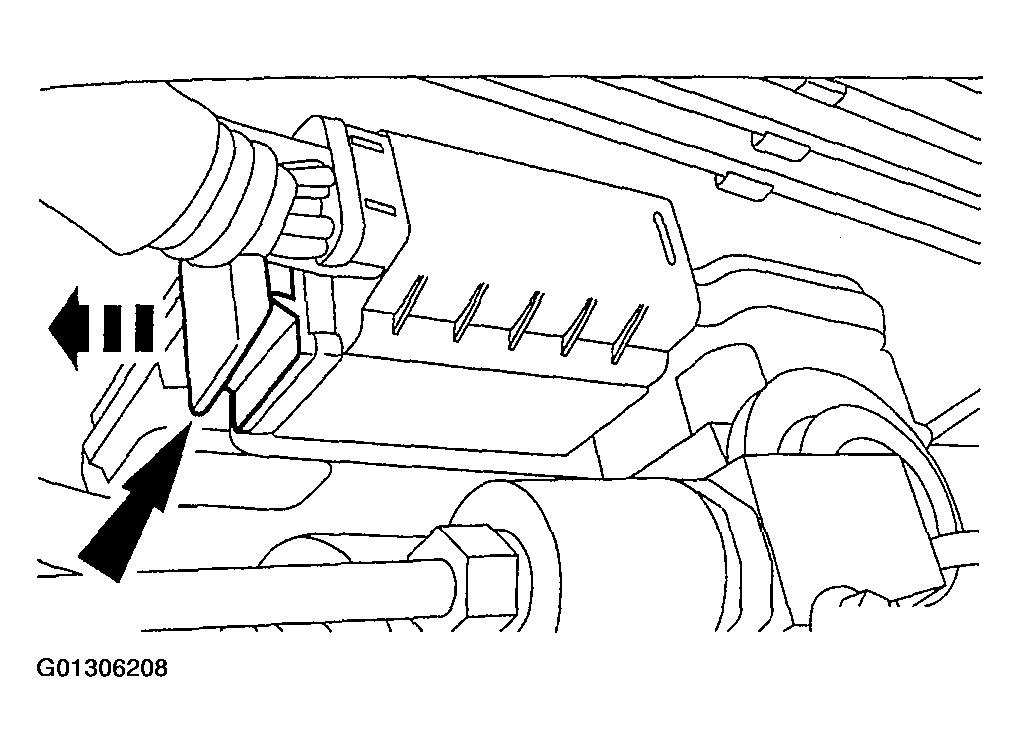

      Fig 2: Removing Anti-Lock Brake Control Module Electrical Connector
      G01306208Courtesy of FORD MOTOR CO.
  5. Remove the three HCU bracket to frame bolts.

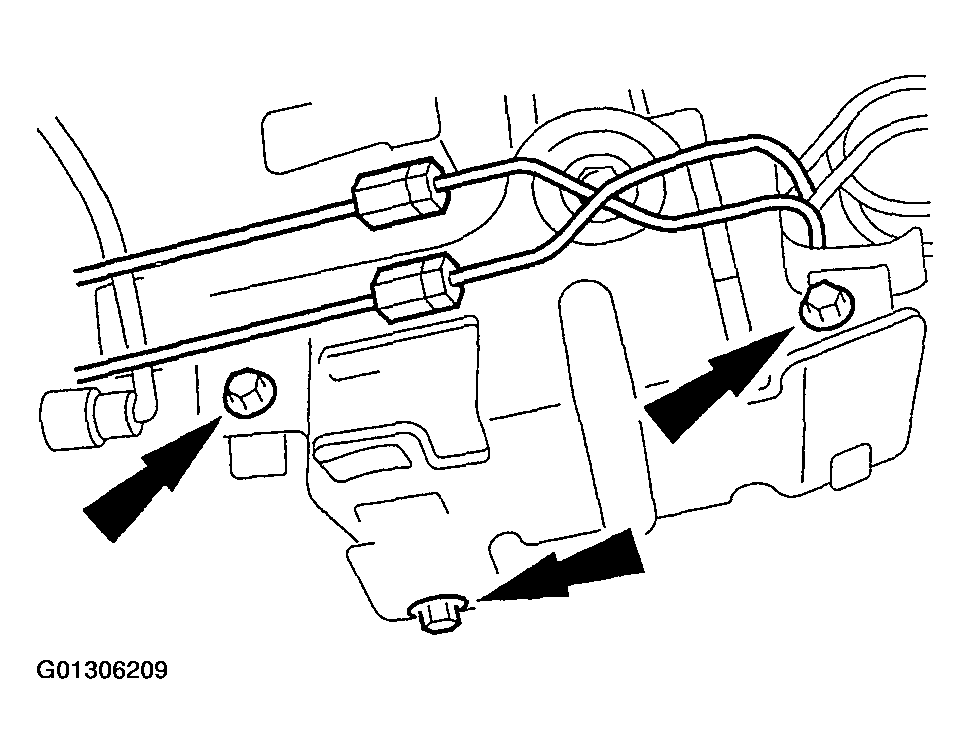

    Fig 3: Removing HCU Bracket To Frame Bolts
    G01306209Courtesy of FORD MOTOR CO.
  6. Lift the bracket hooks from the frame and lower the HCU to access the anti-lock brake module.

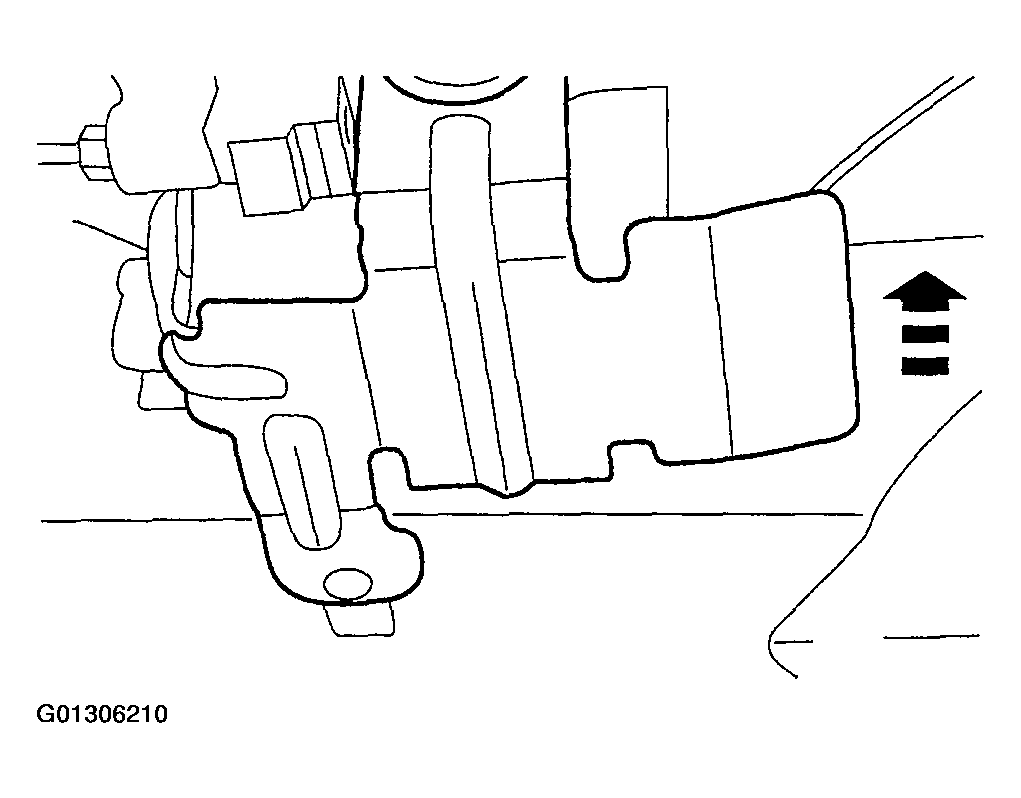

    Fig 4: Removing Bracket Hooks From Frame And Lower HCU
    G01306210Courtesy of FORD MOTOR CO.
    7. CAUTION: Be sure to lift straight up to avoid damage to the HCU components.
  7. Remove the anti-lock brake module.
    • Remove the bolts.

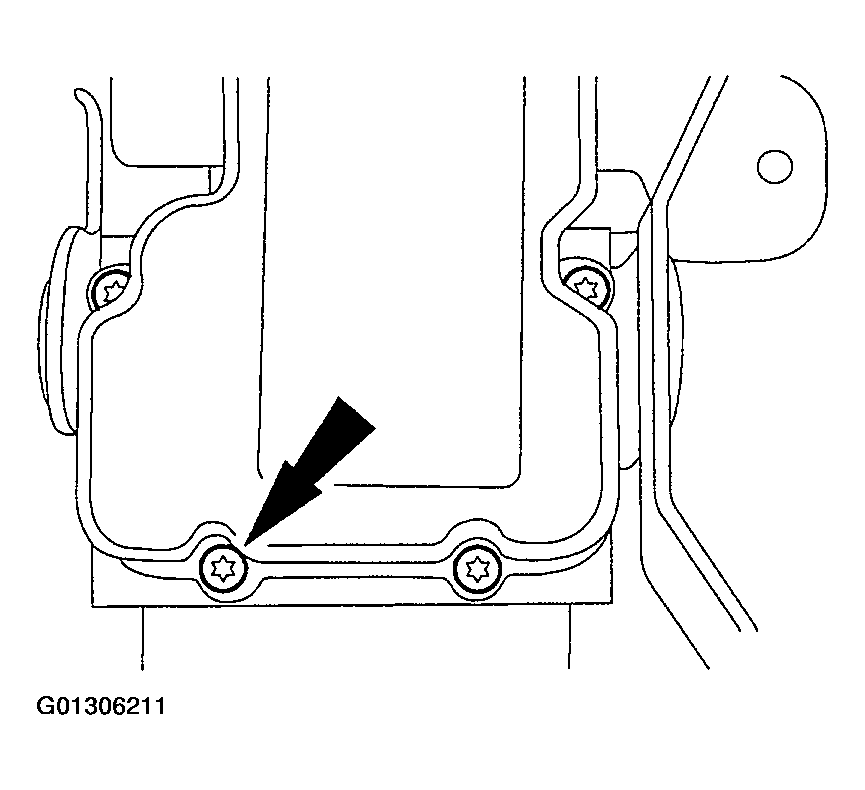

      Fig 5: Removing Anti-Lock Brake Module
      G01306211Courtesy of FORD MOTOR CO.
