2003 Ford Excursion 4WD V8-6.0L DSL TurboFACTORY OEM SERVICE PROCEDURE
Body Control Module
PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.
Diagrams -- Other diagrams referred to by number (See Diagram ##-#, etc.) within these diagrams can be found at Diagrams by Number.
Locations -- Location views (reference numbers starting with 151-) referred to within these diagrams can be found at Component Location Views.

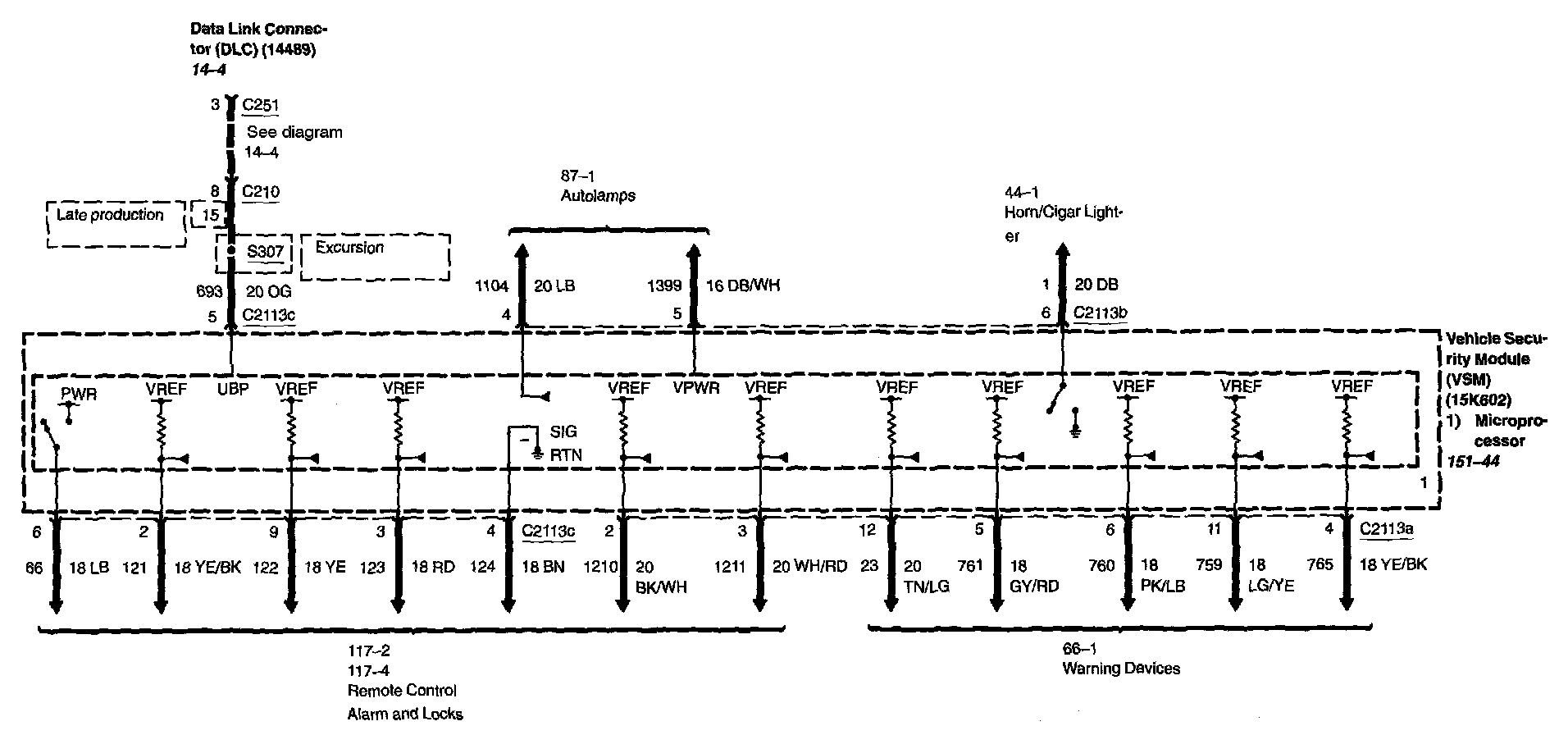

59-1:

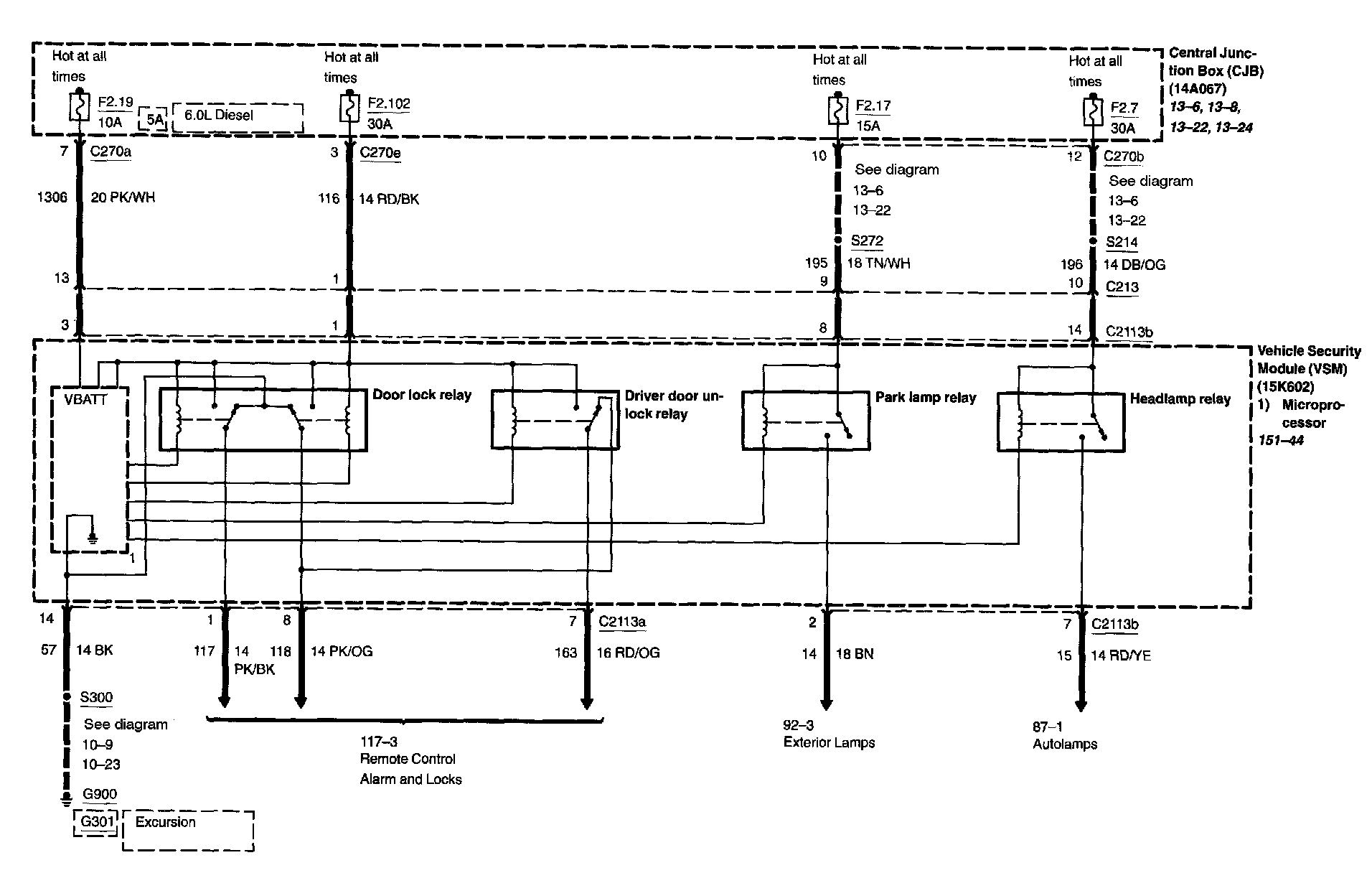

59-2:
Diagrams -- Other diagrams referred to by number (See Diagram ##-#, etc.) within these diagrams can be found at Diagrams by Number.
Locations -- Location views (reference numbers starting with 151-) referred to within these diagrams can be found at Component Location Views.
