2002 Ford Windstar BaseFACTORY OEM SERVICE PROCEDURE
Heated Seat Module: Installation

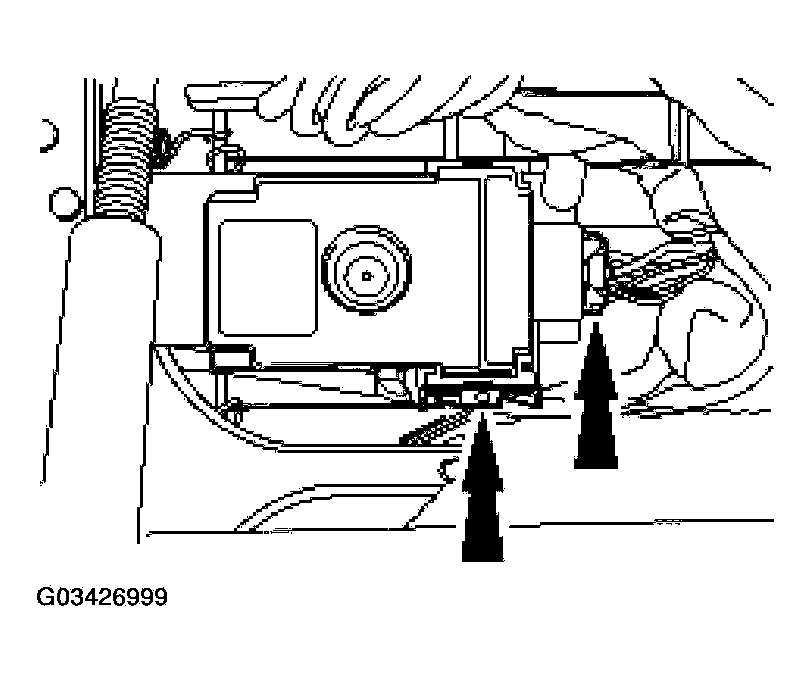

- Install the heated seat module on the heated seat module bracket and install the electrical connector.
- Install the affected seat. Refer to DRIVER SEAT or PASSENGER SEAT in the this section.
- Repower the SRS. Refer to ACTIVATING SYSTEM .
- Check the active restraint system for correct operation.
