2002 Ford Excursion 2WD V10-6.8LFACTORY OEM SERVICE PROCEDURE

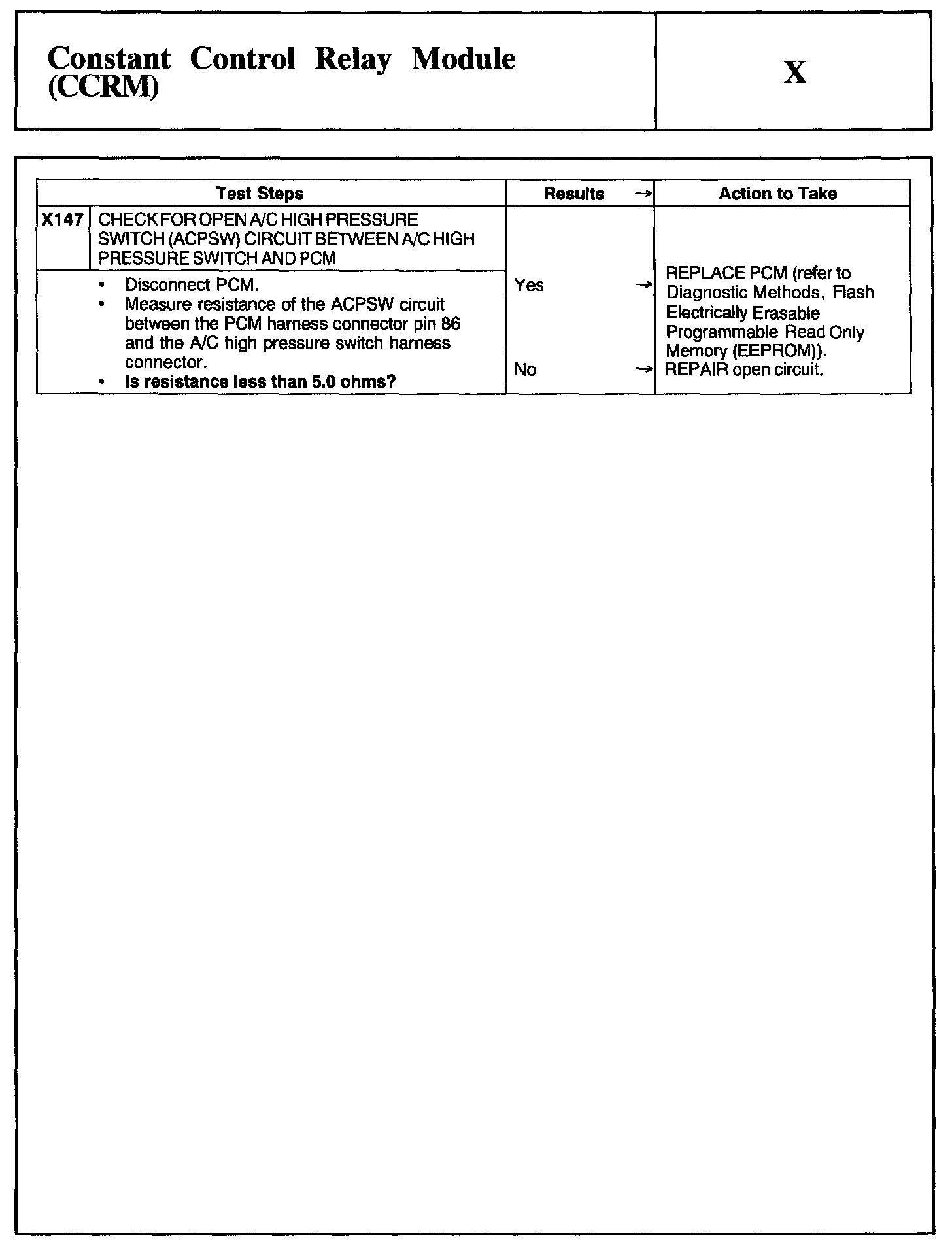

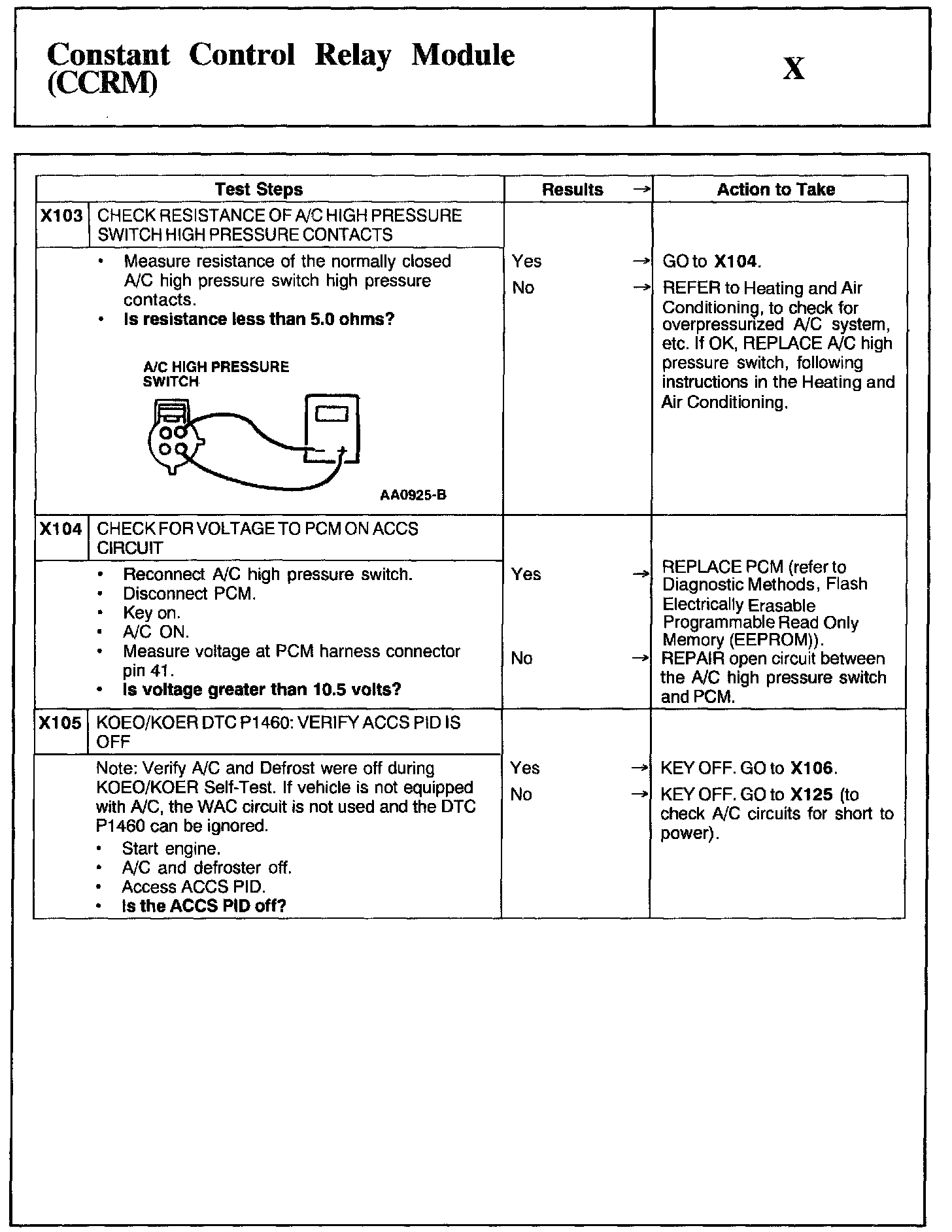

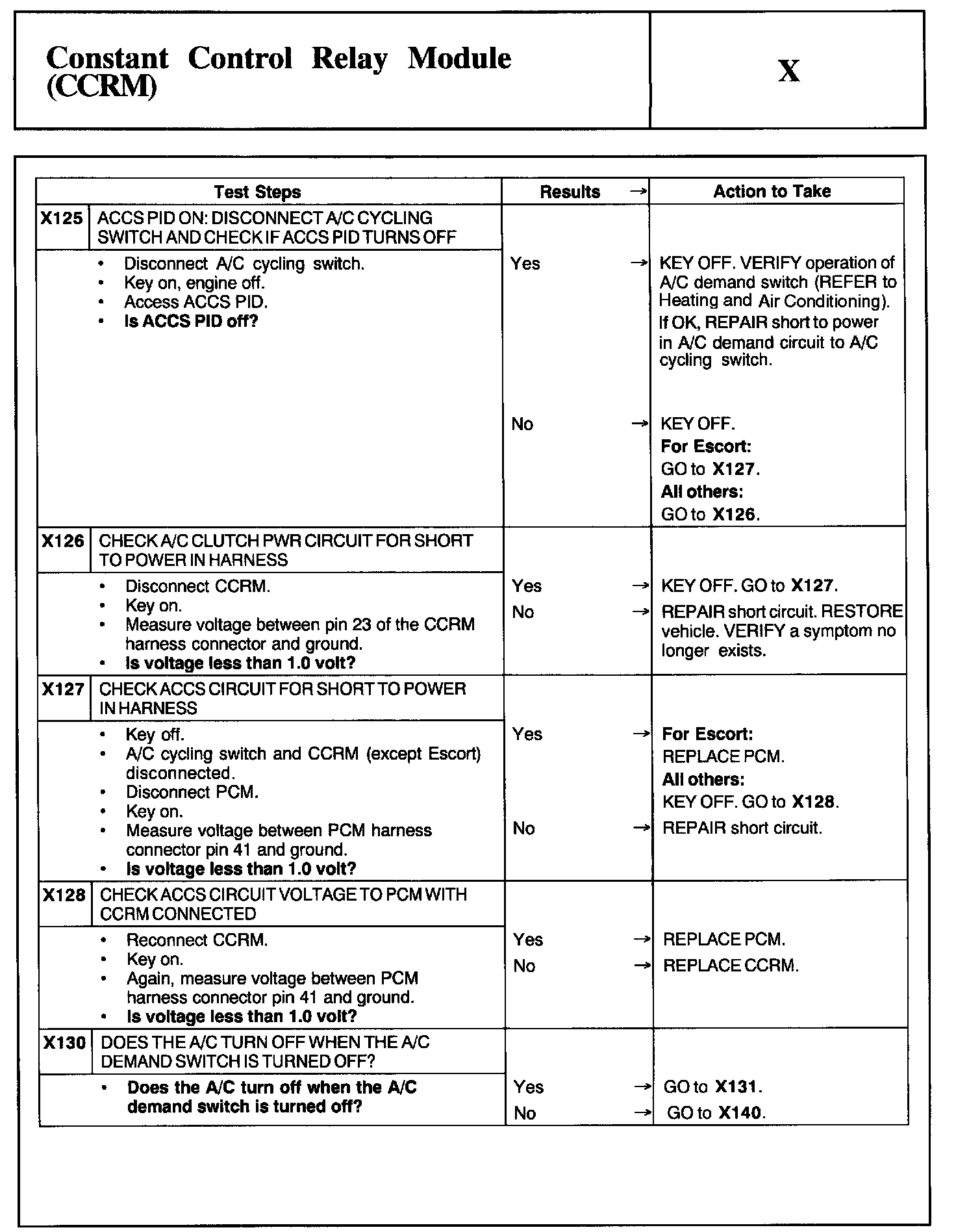

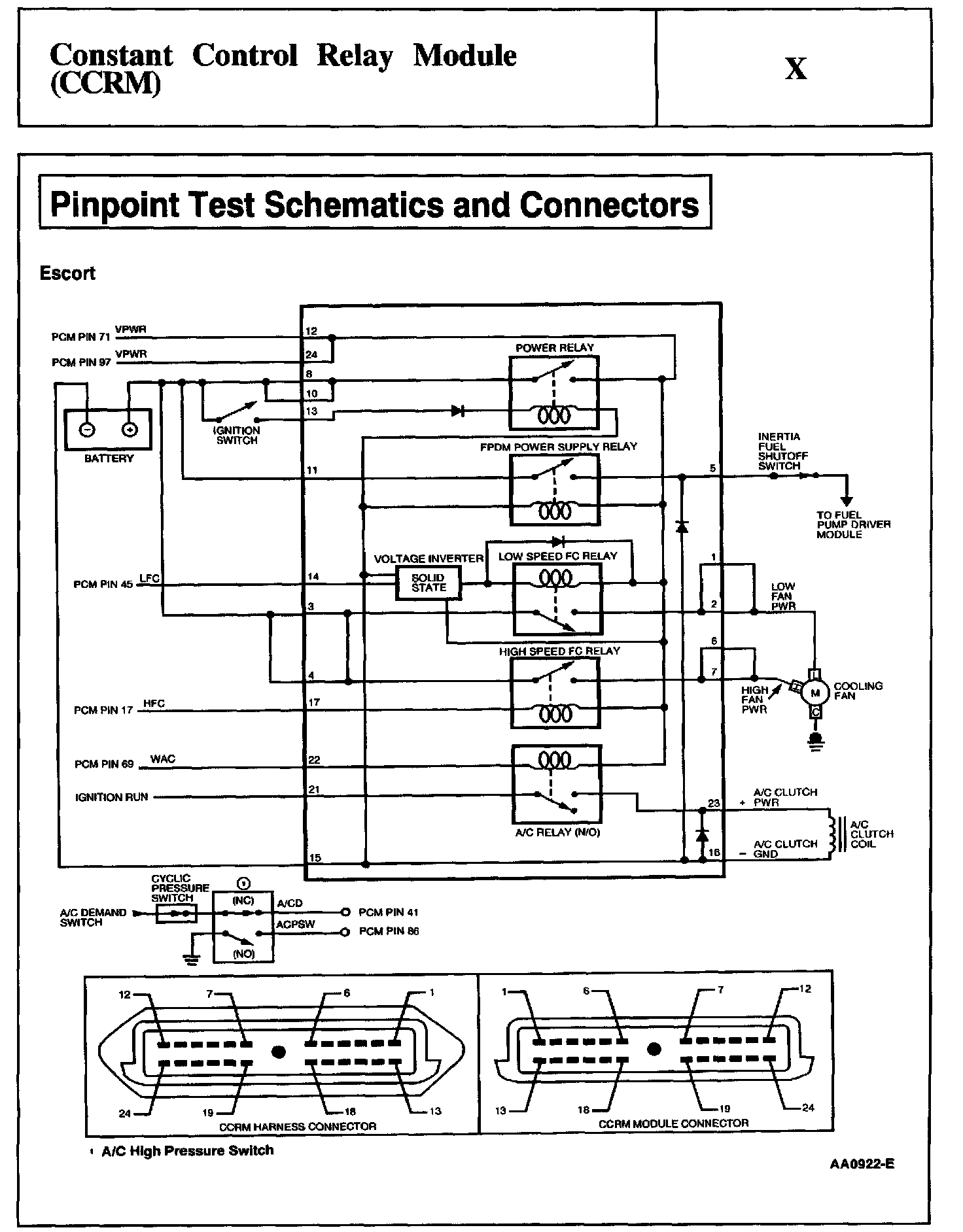

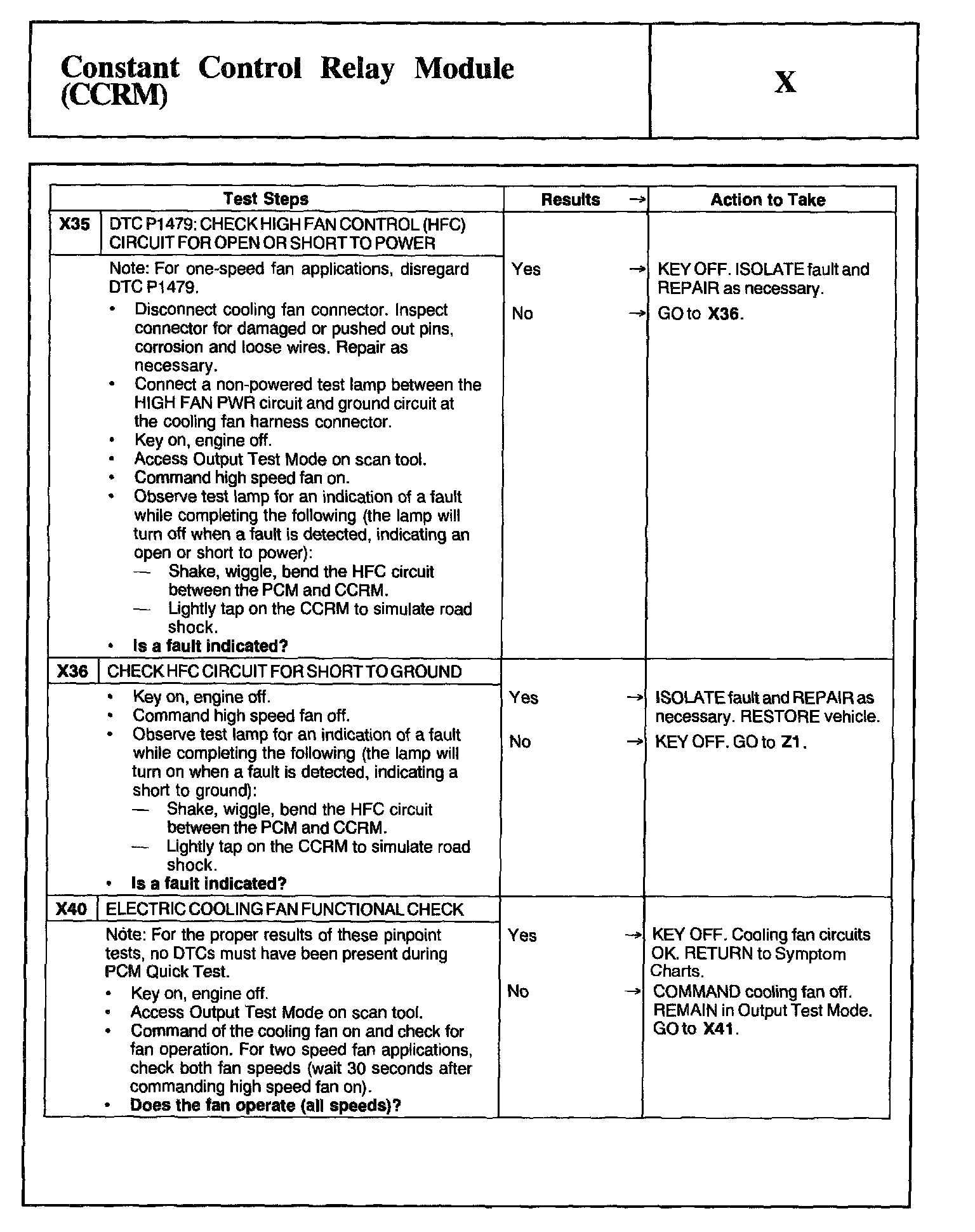

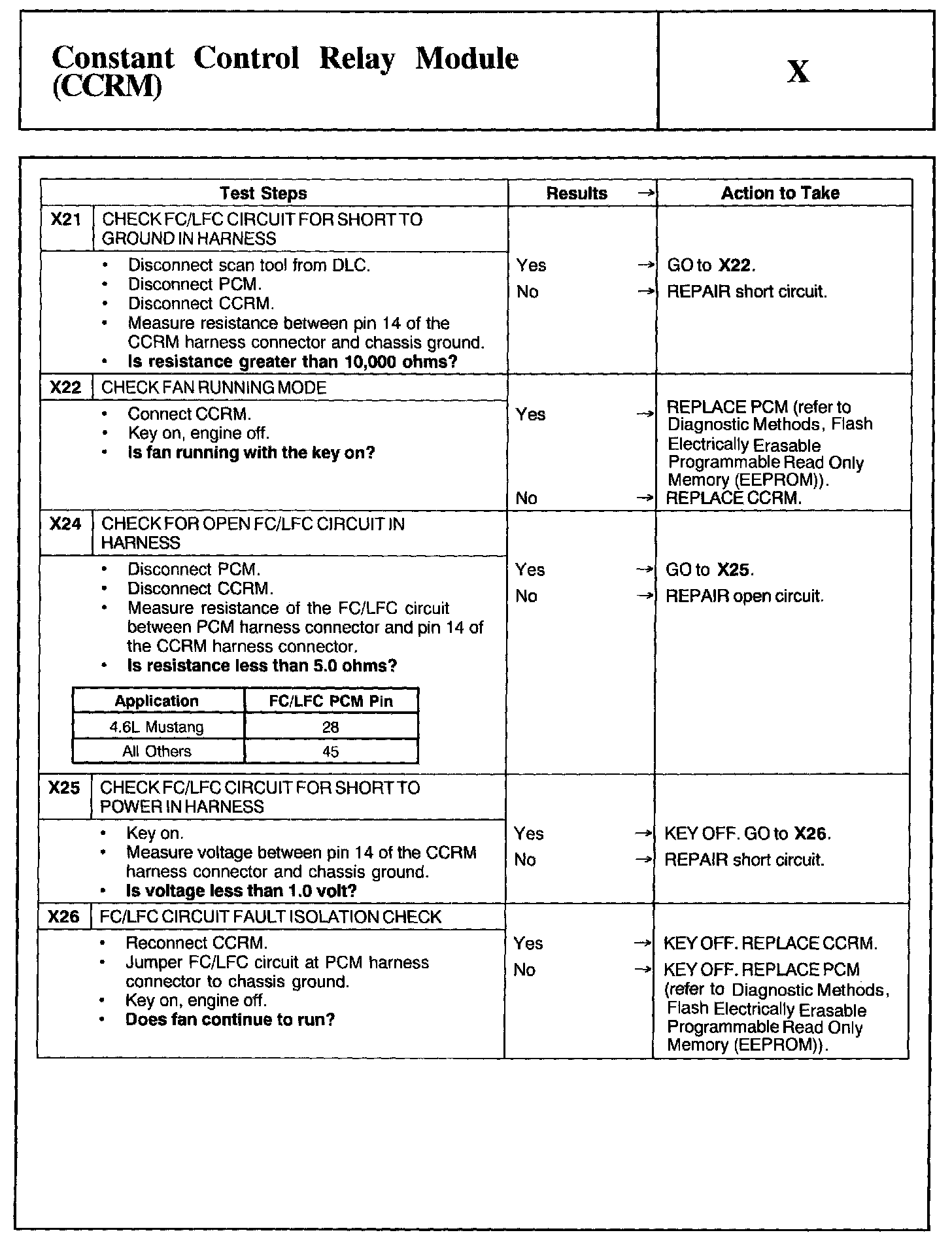

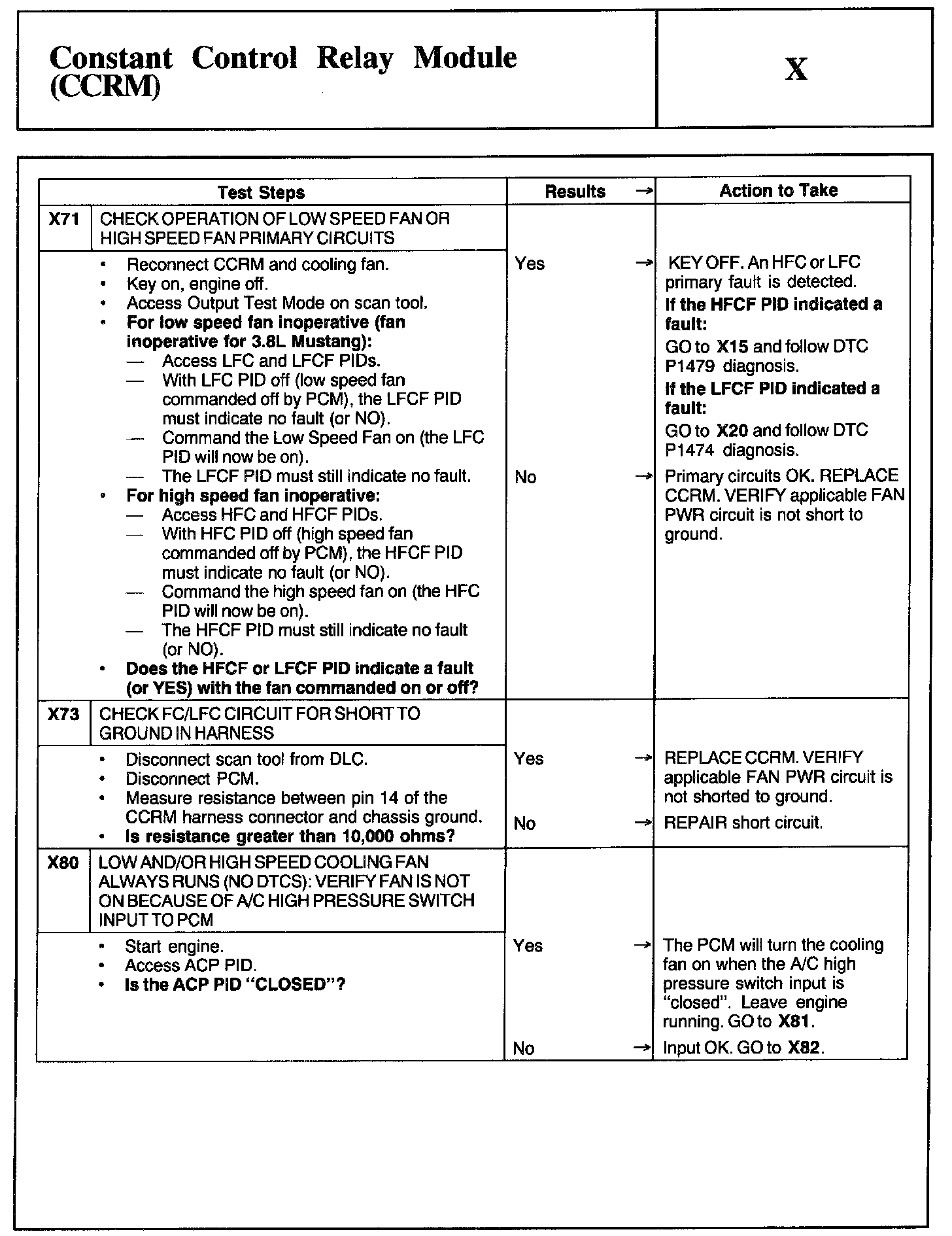

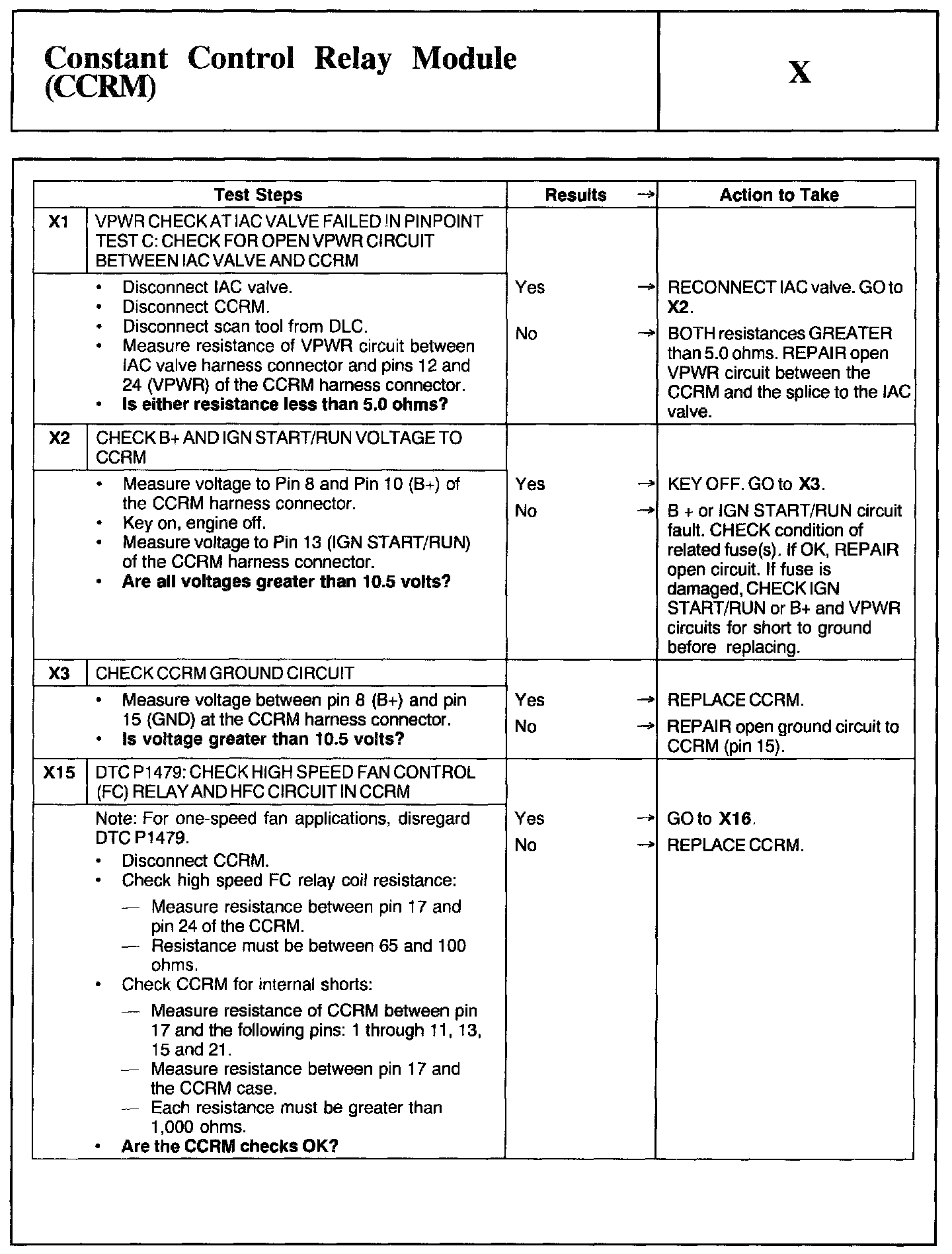

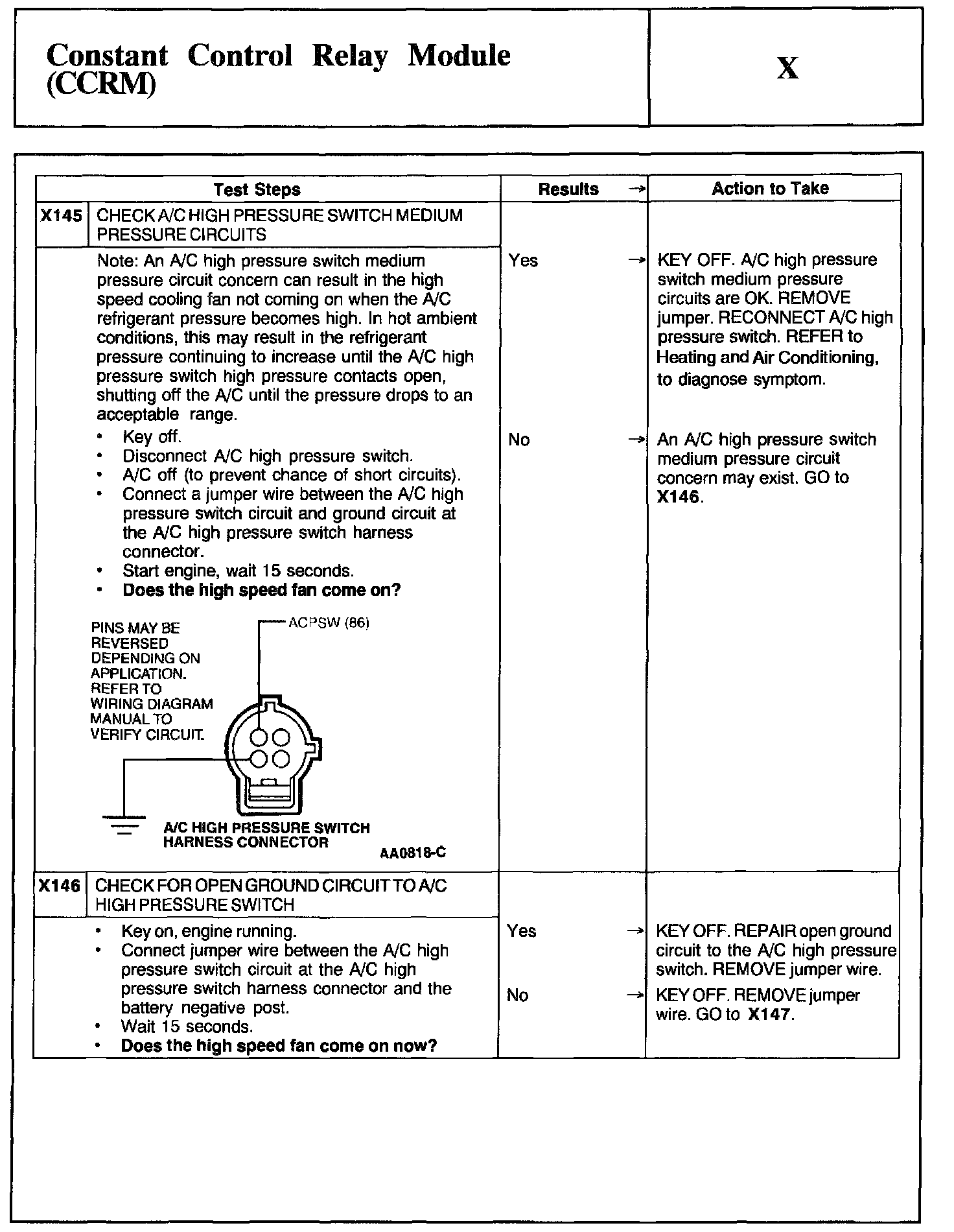

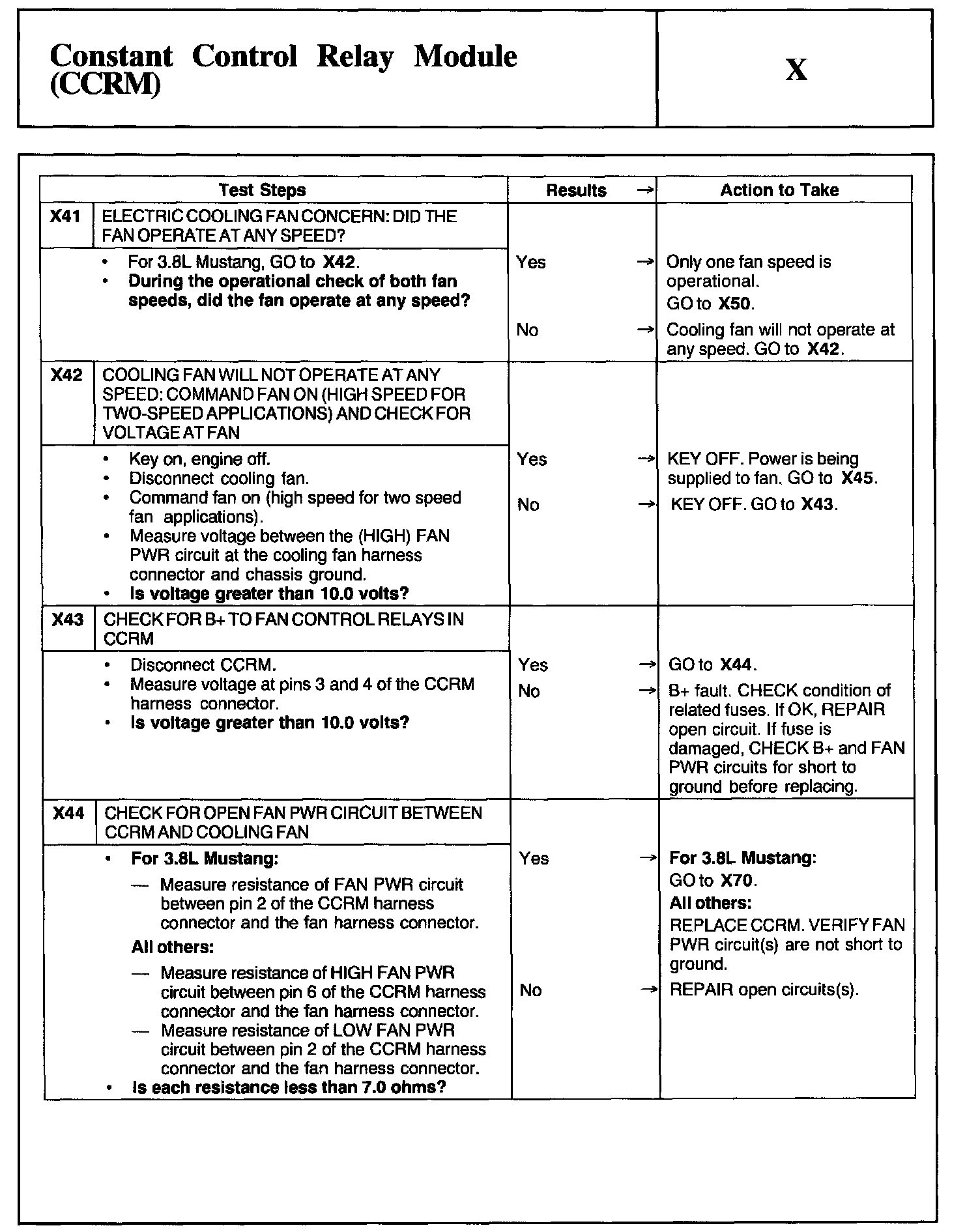

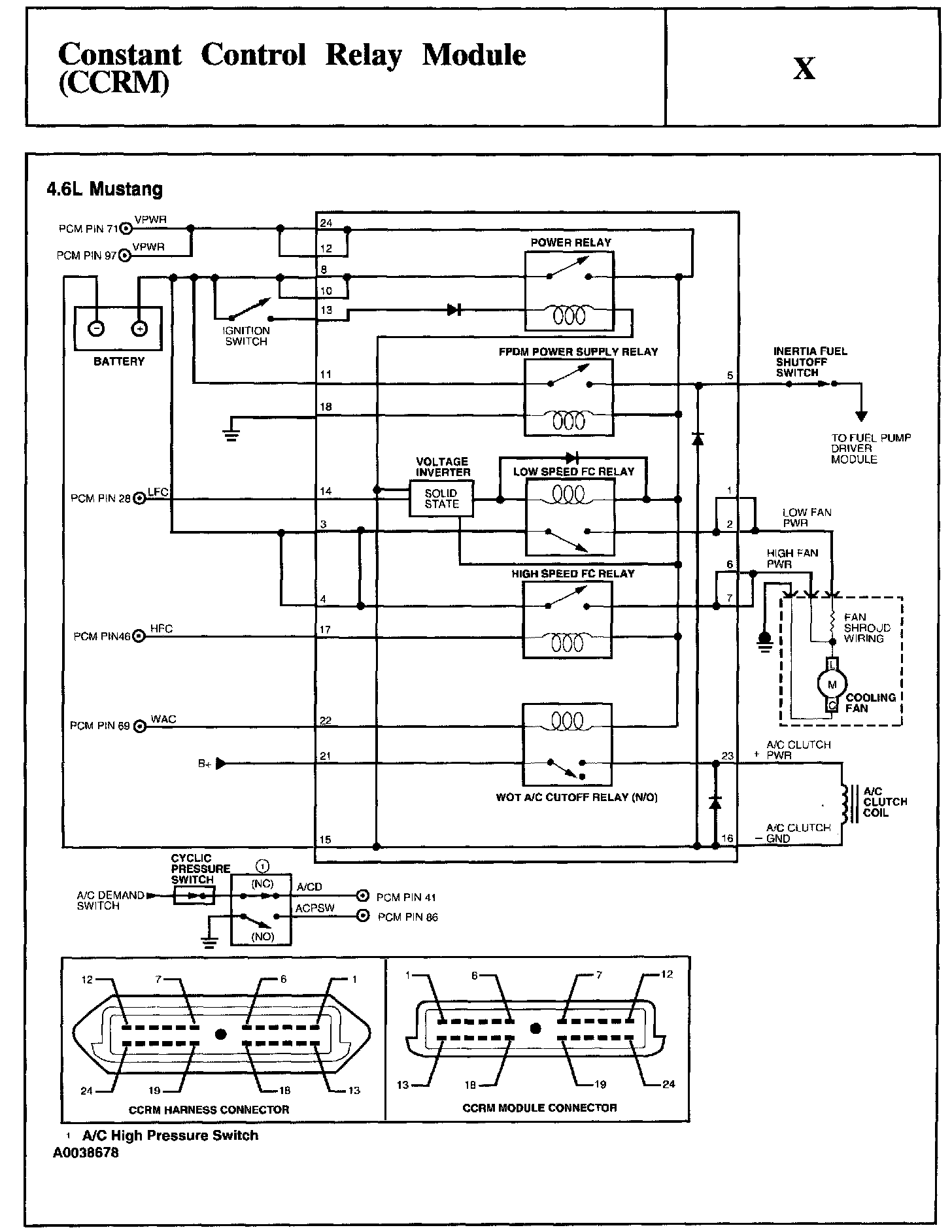

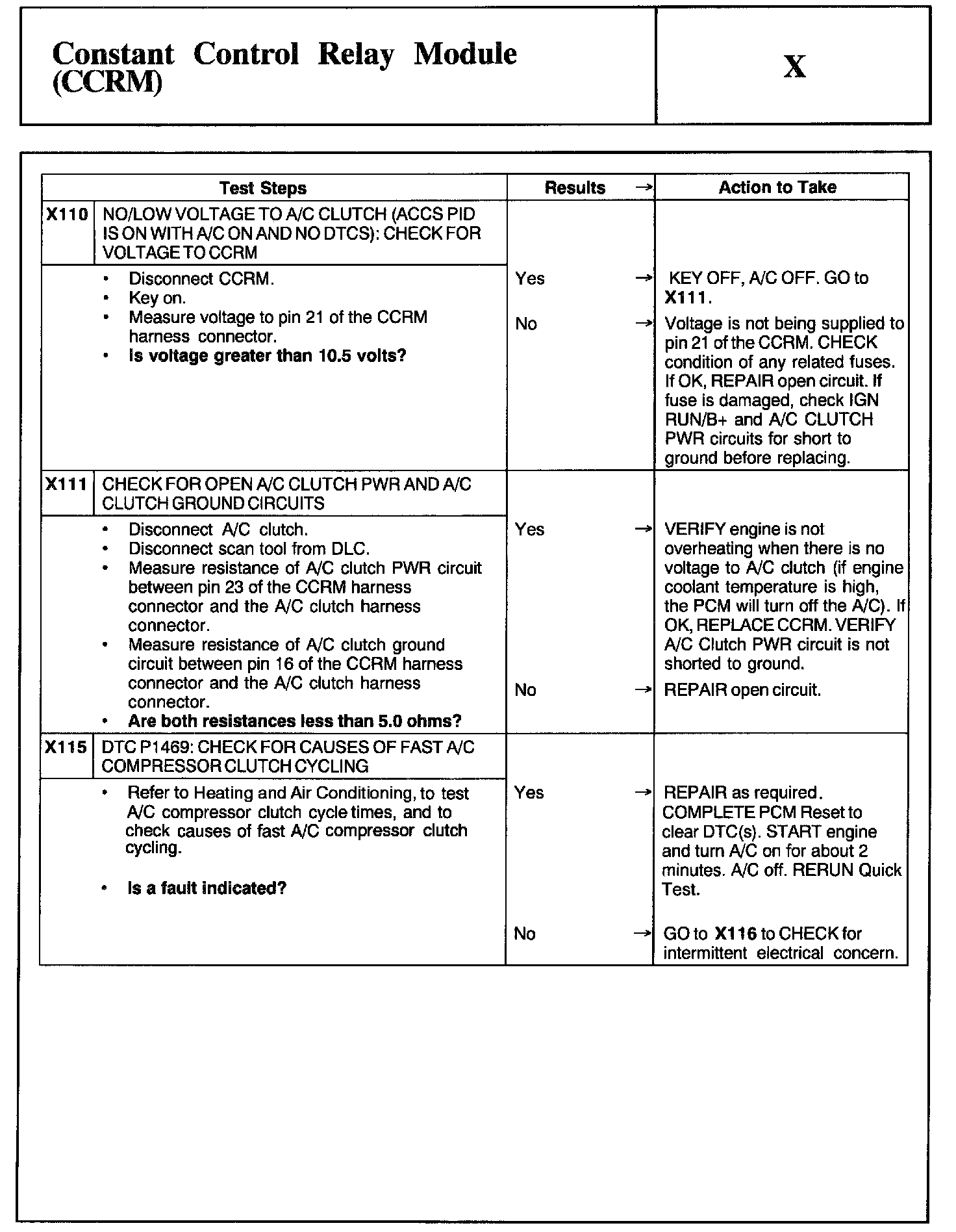

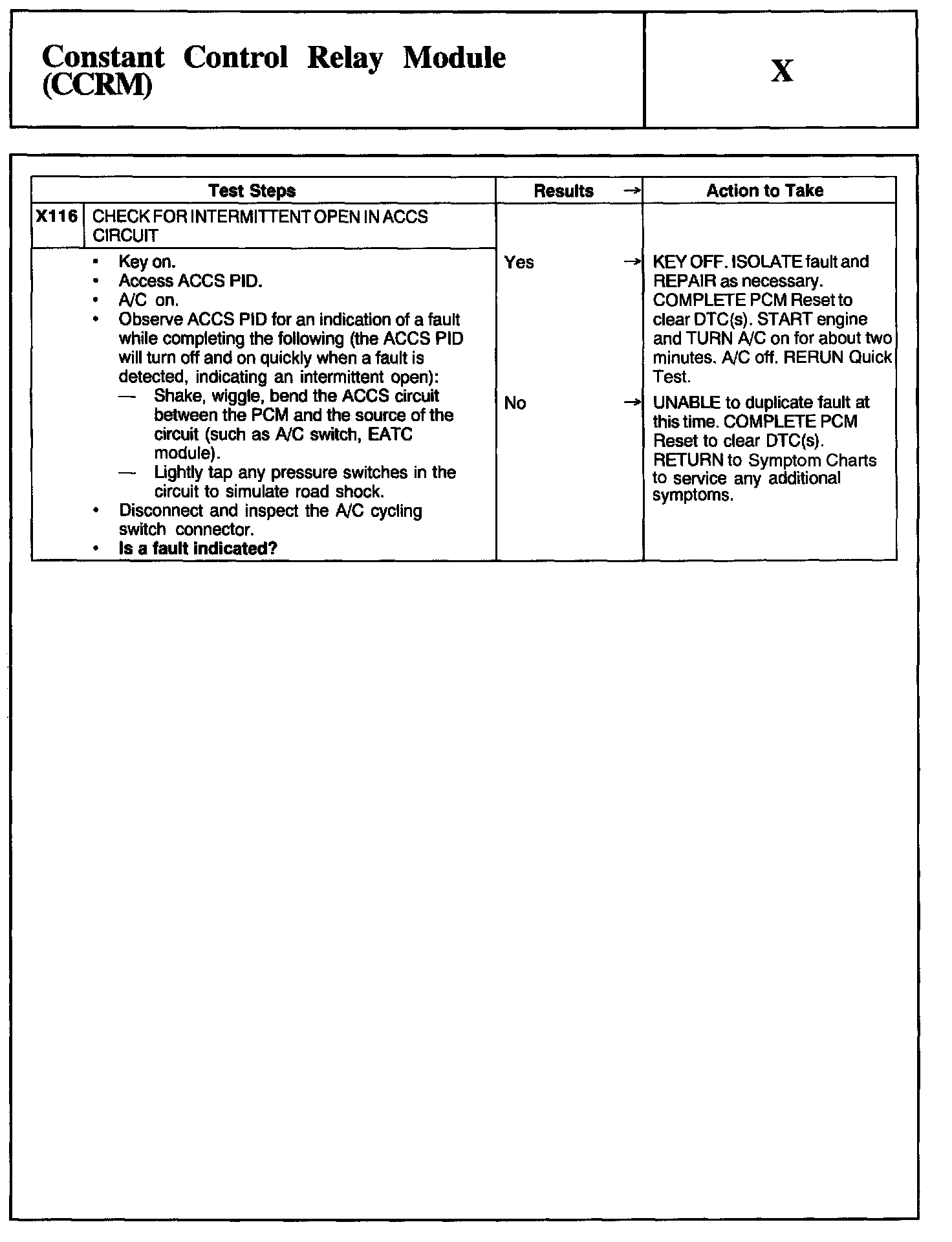

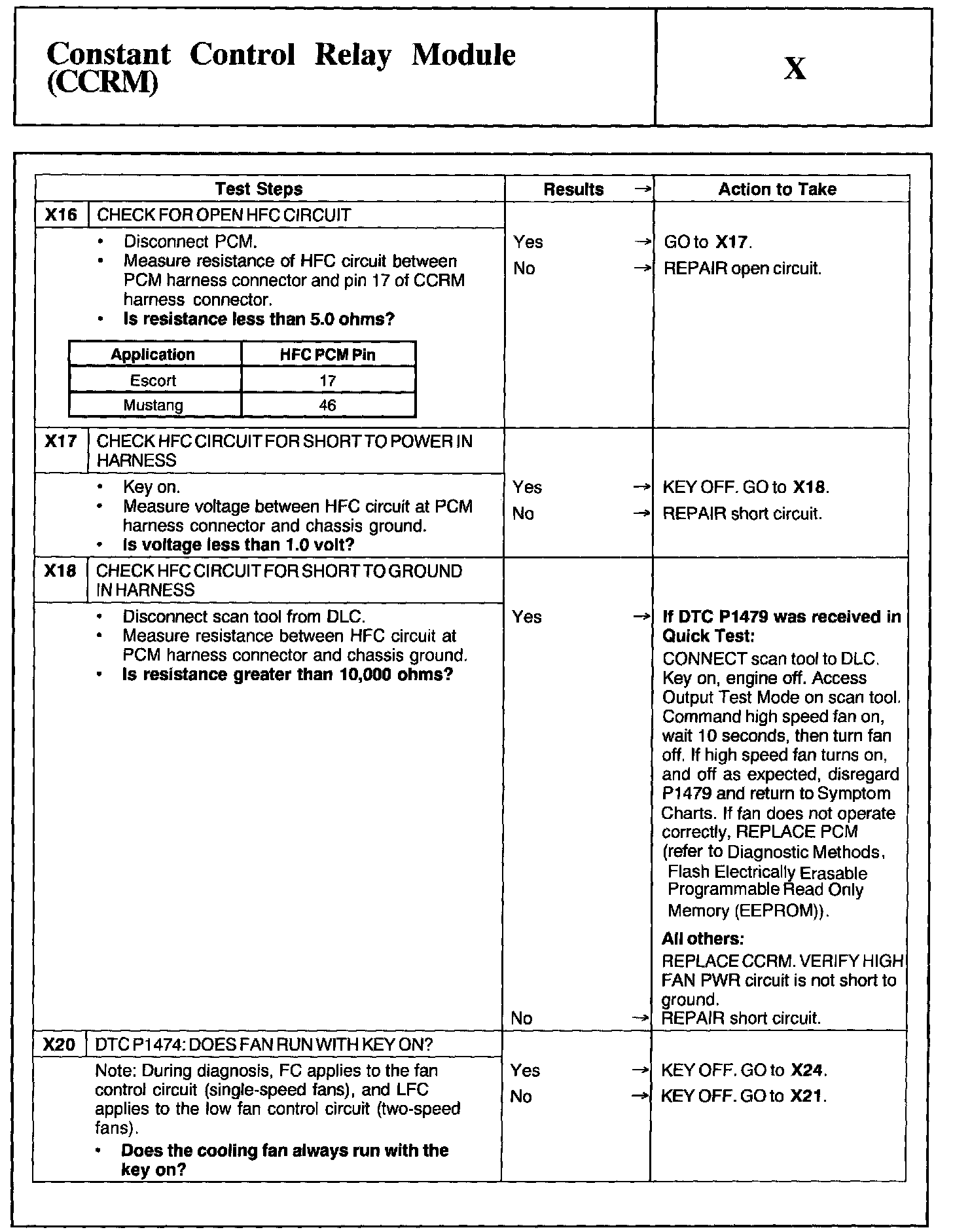

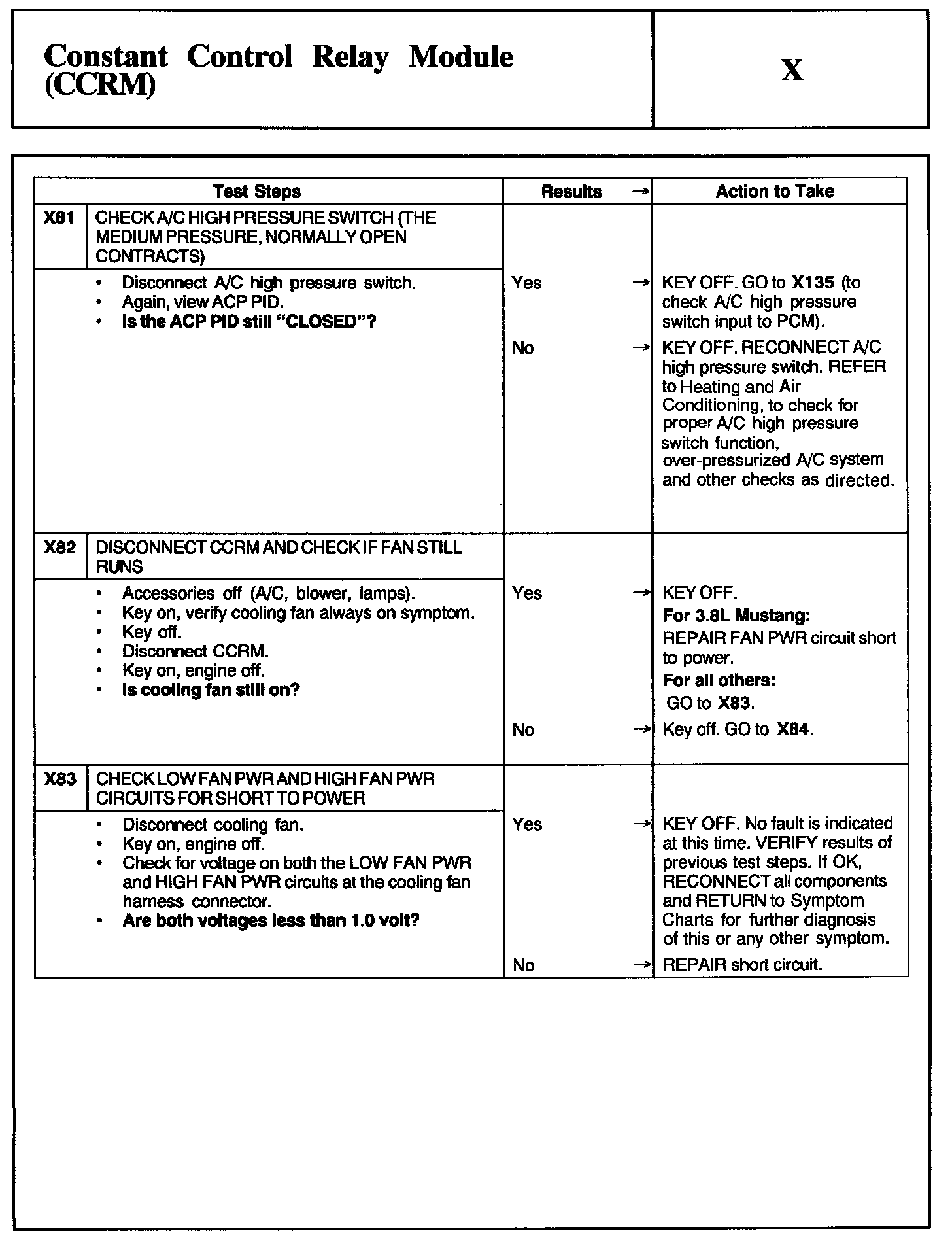

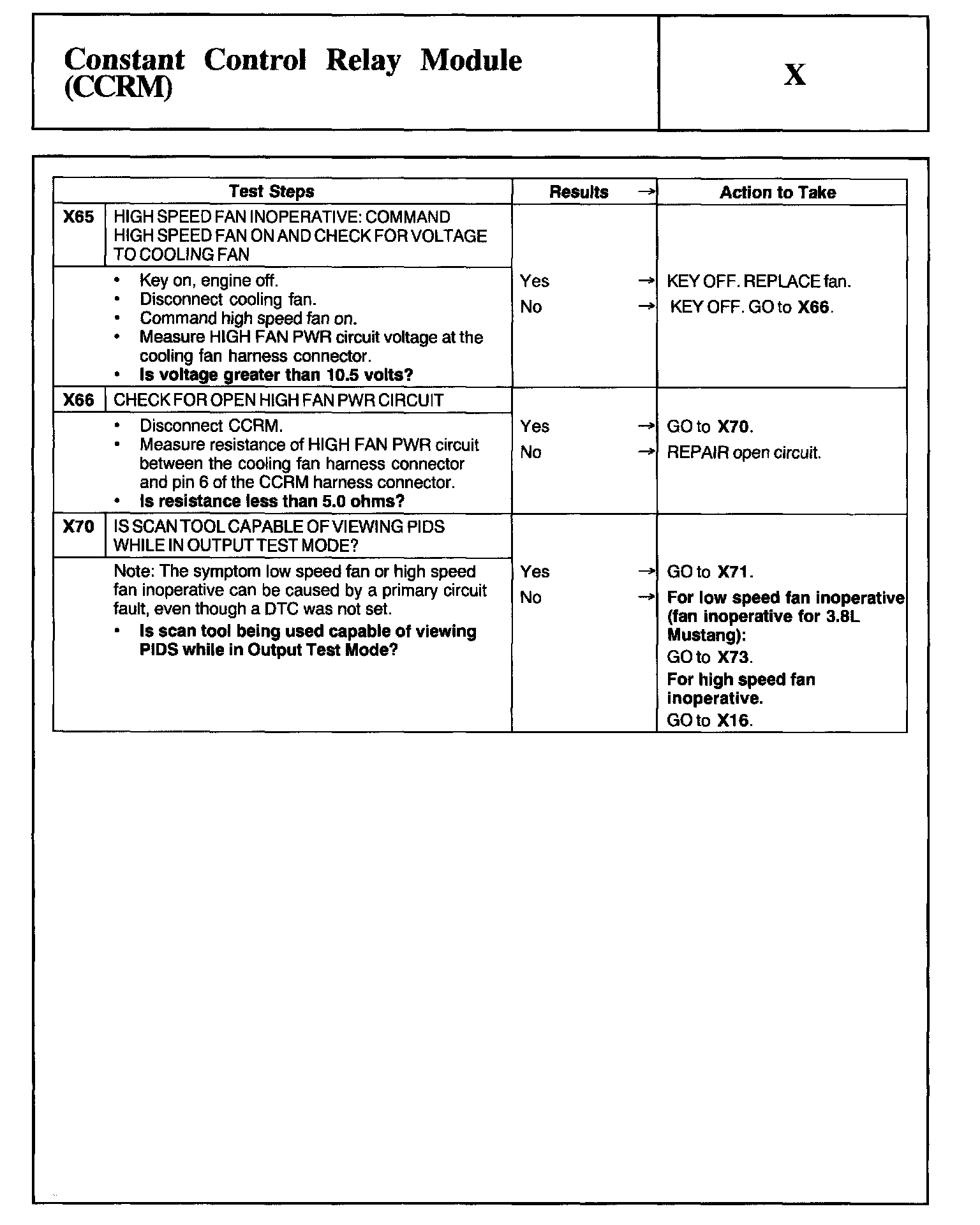

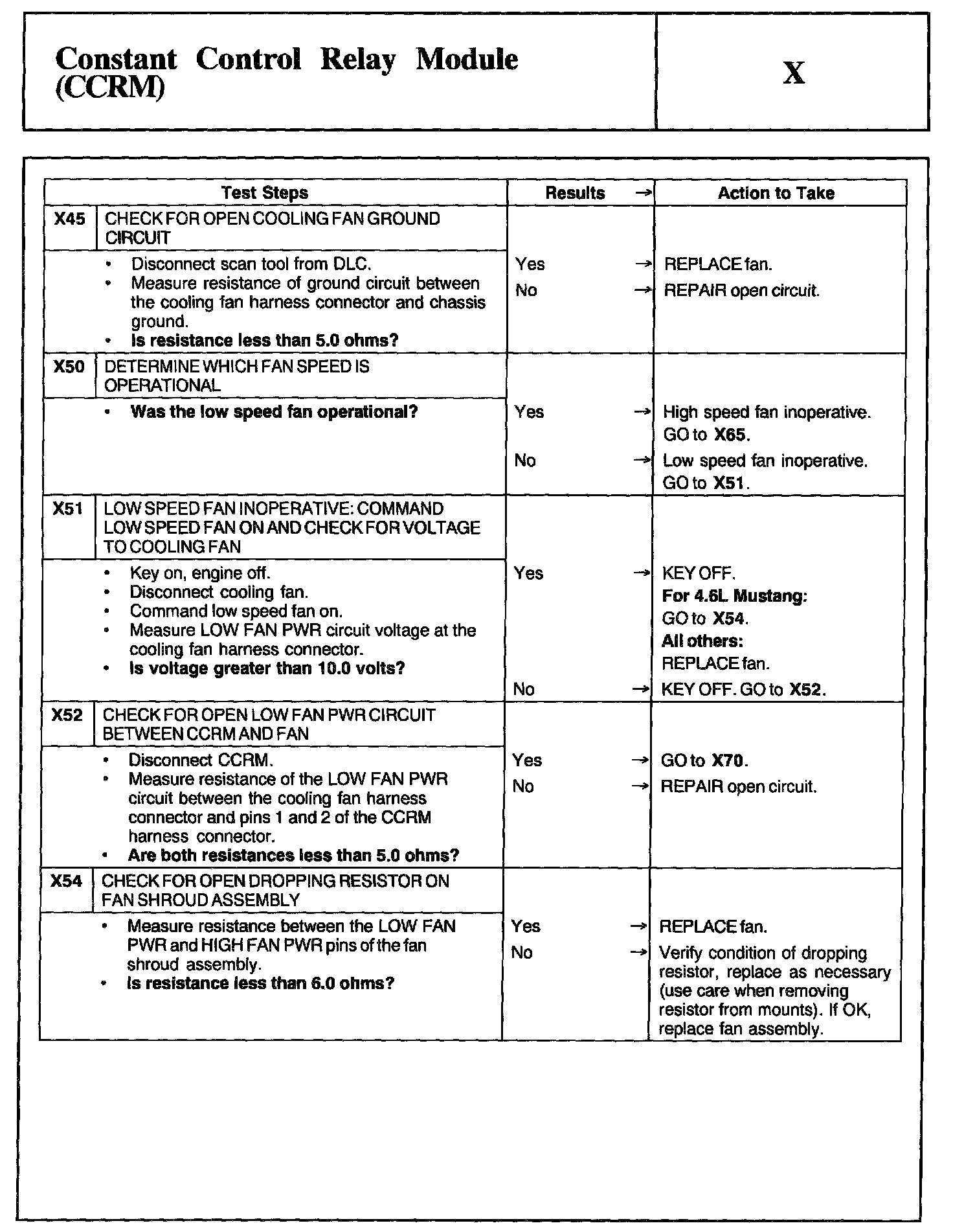

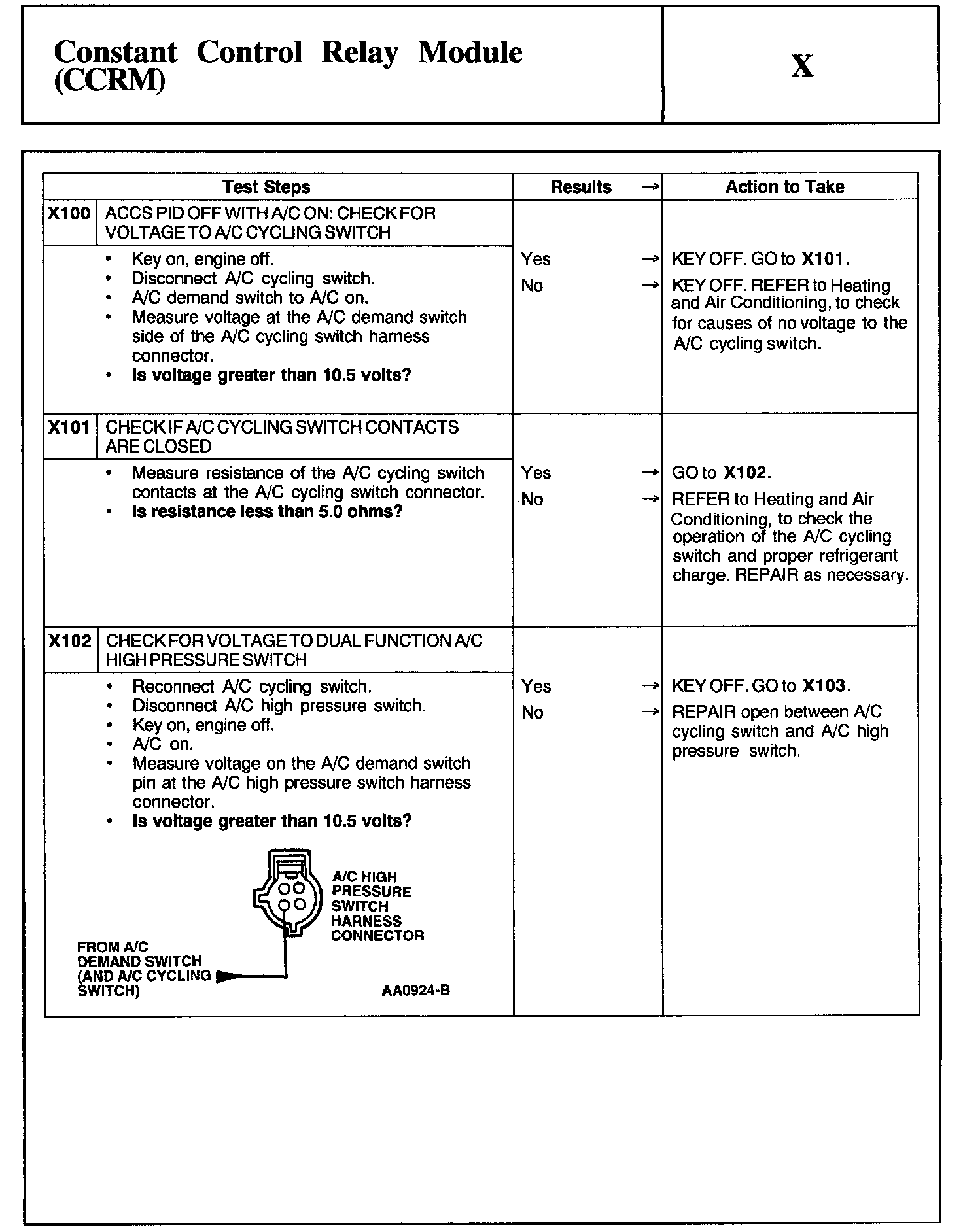

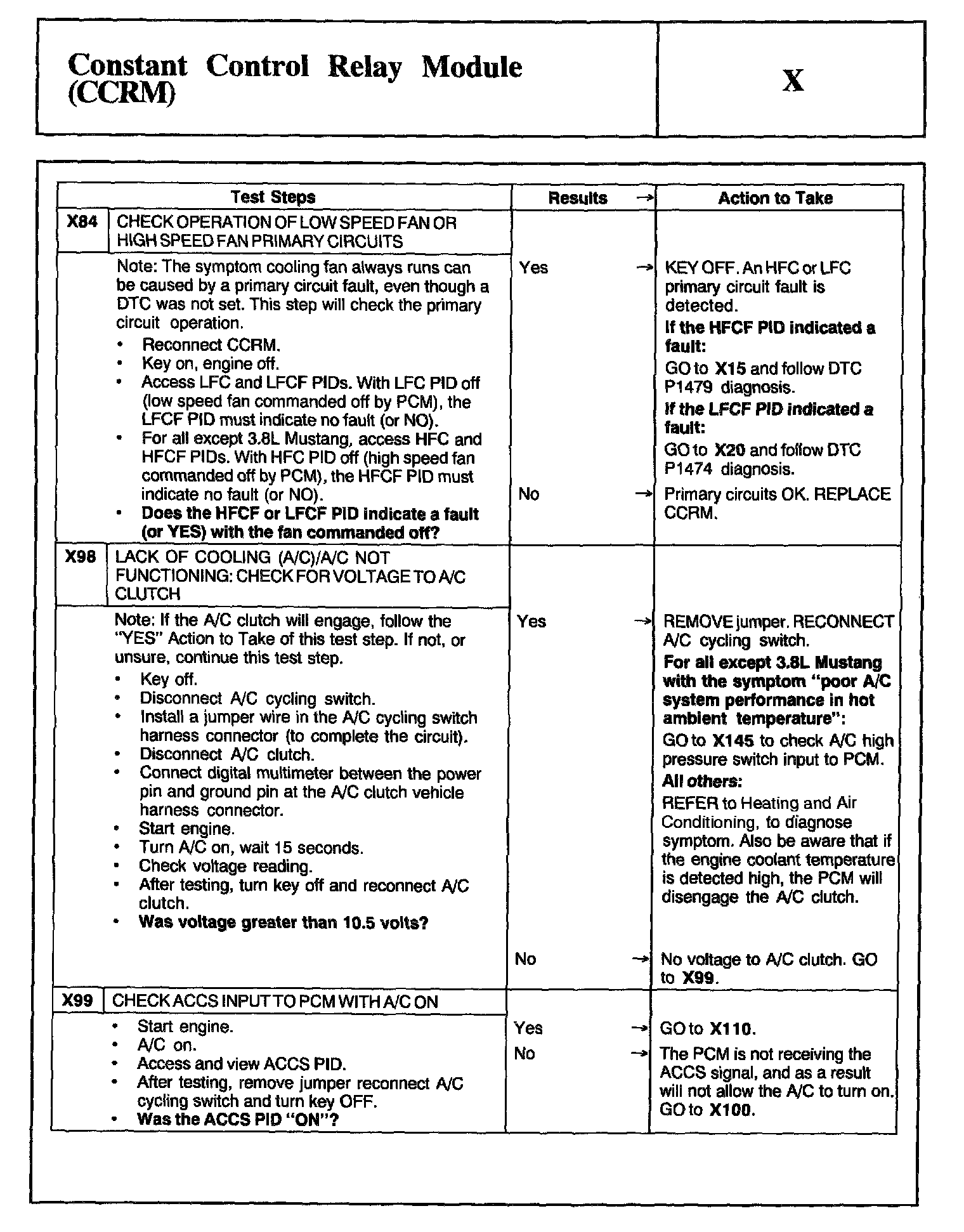

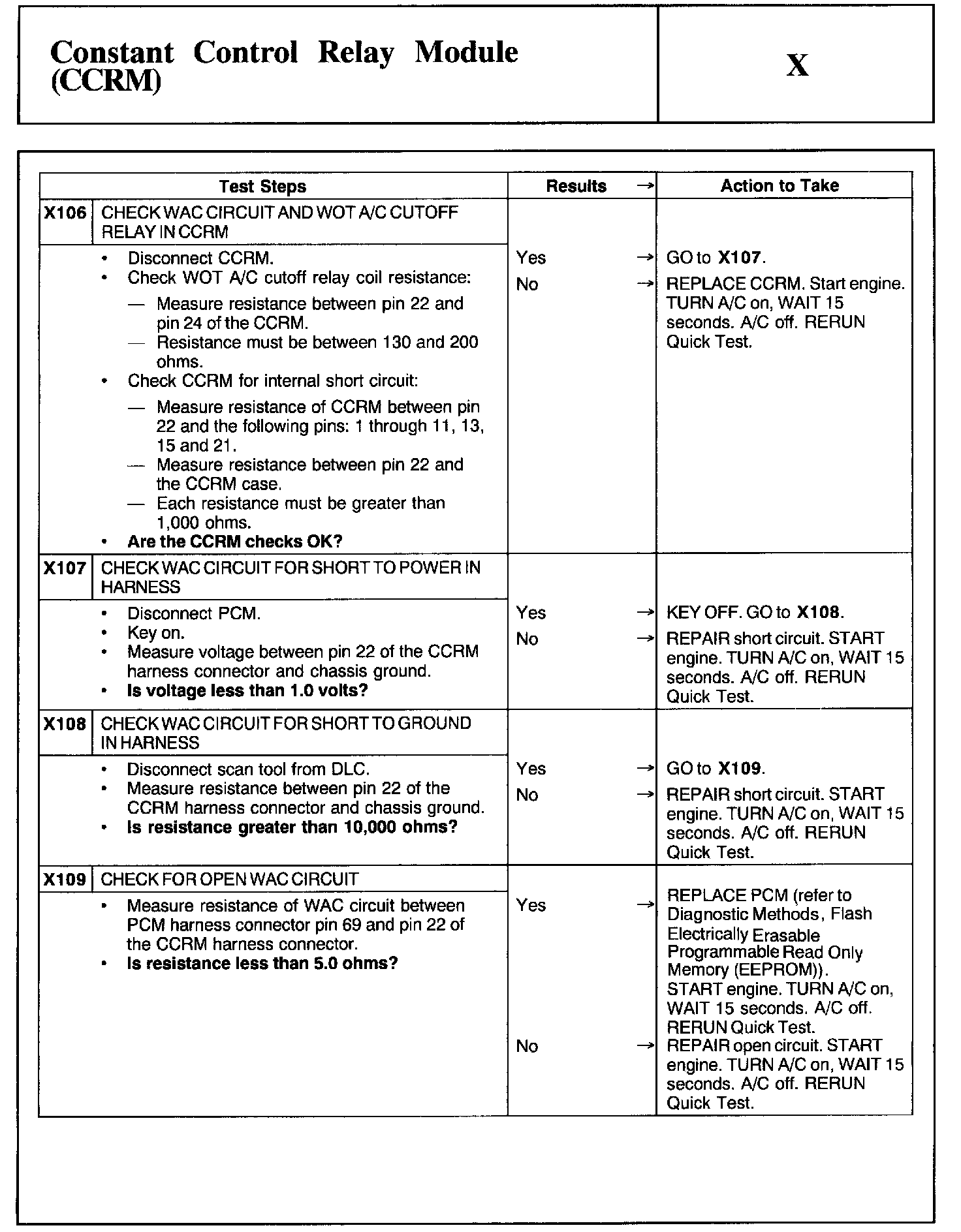

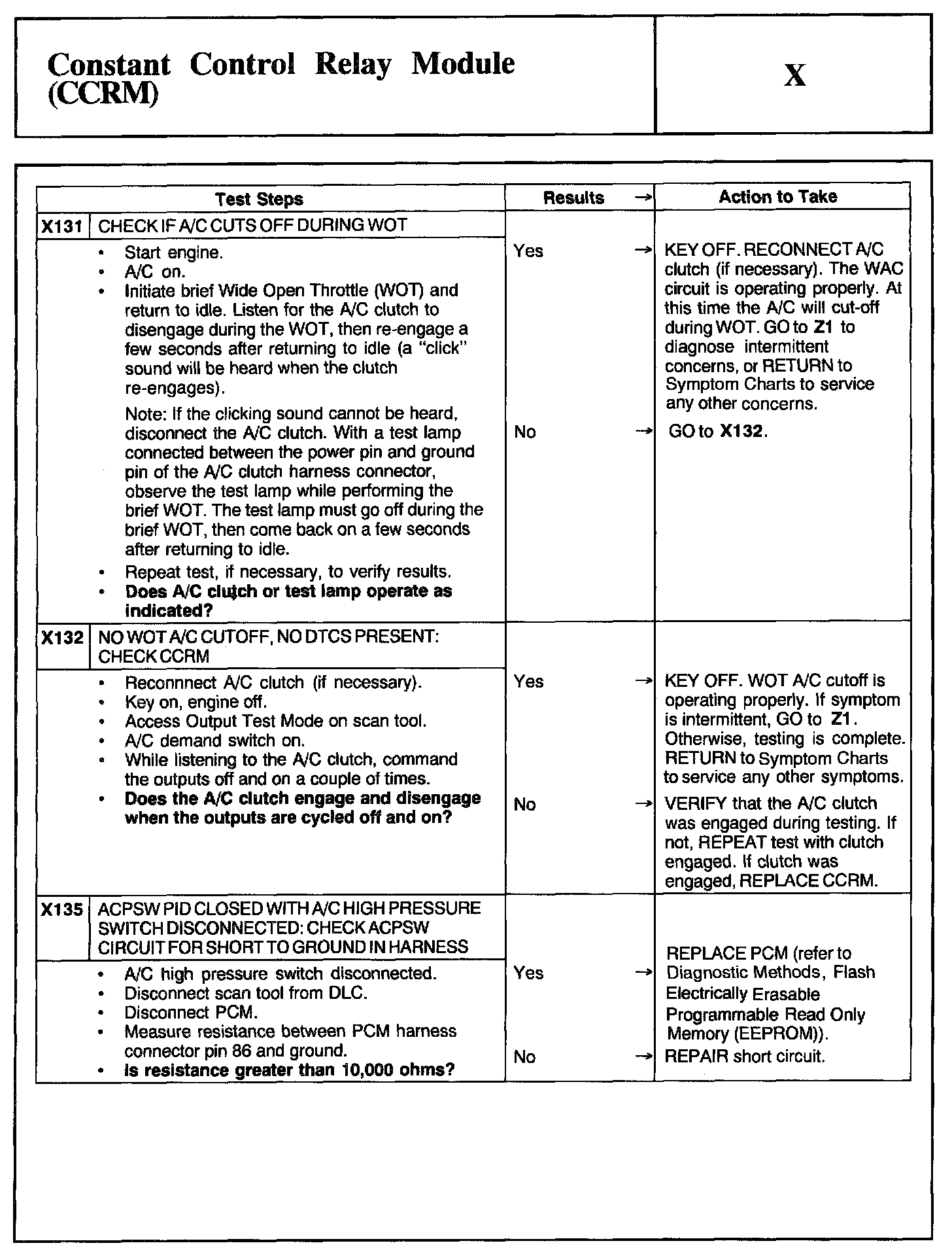

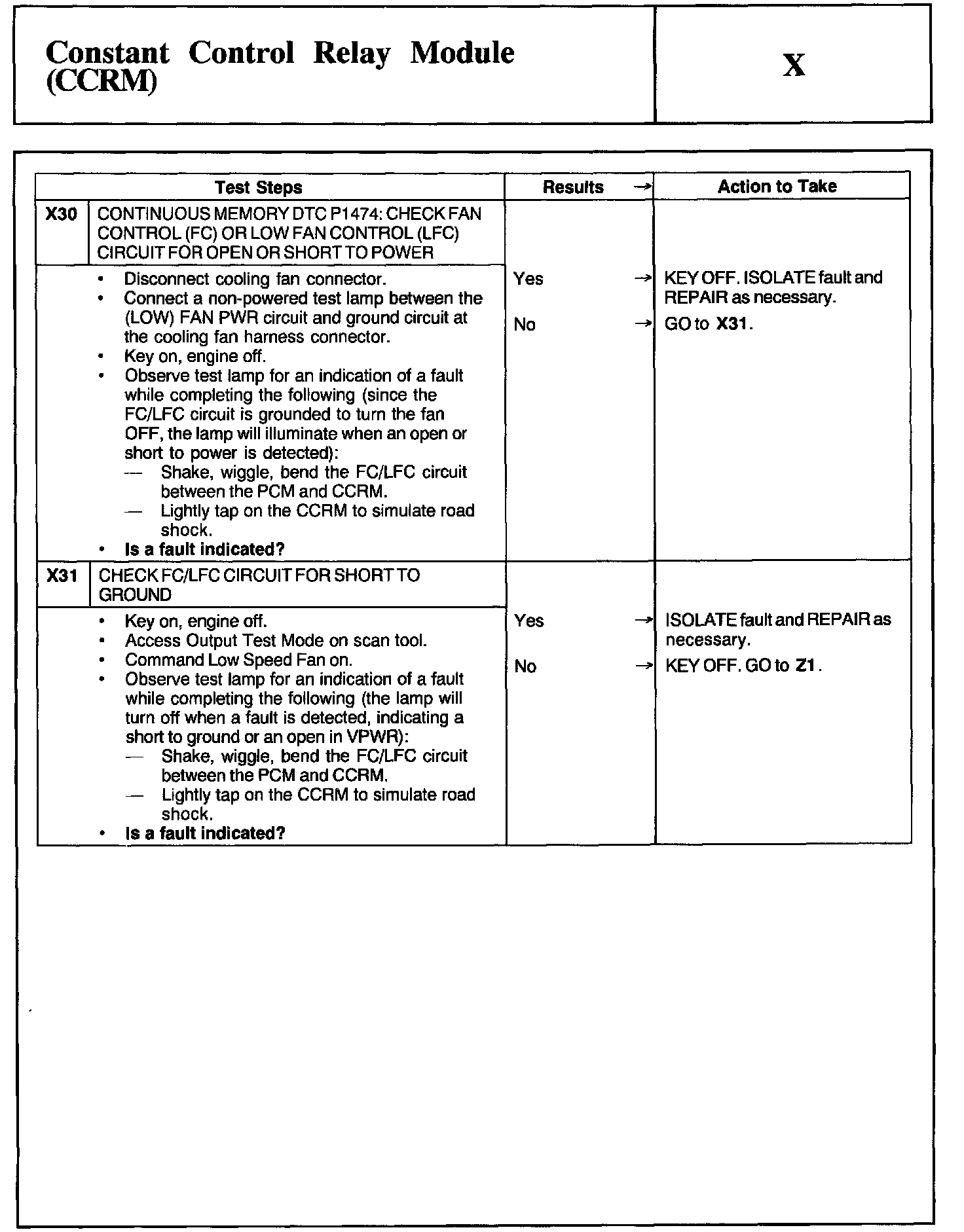

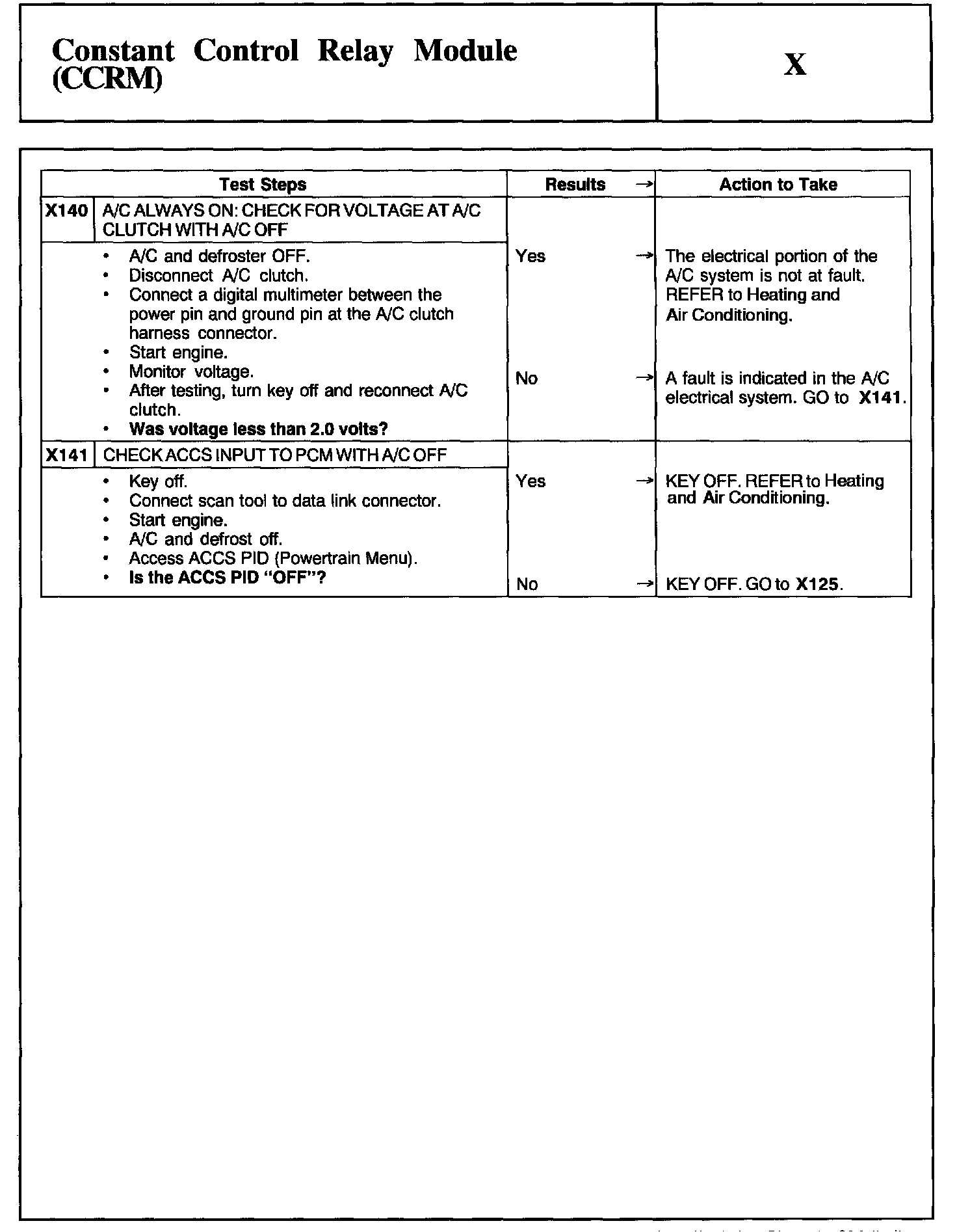

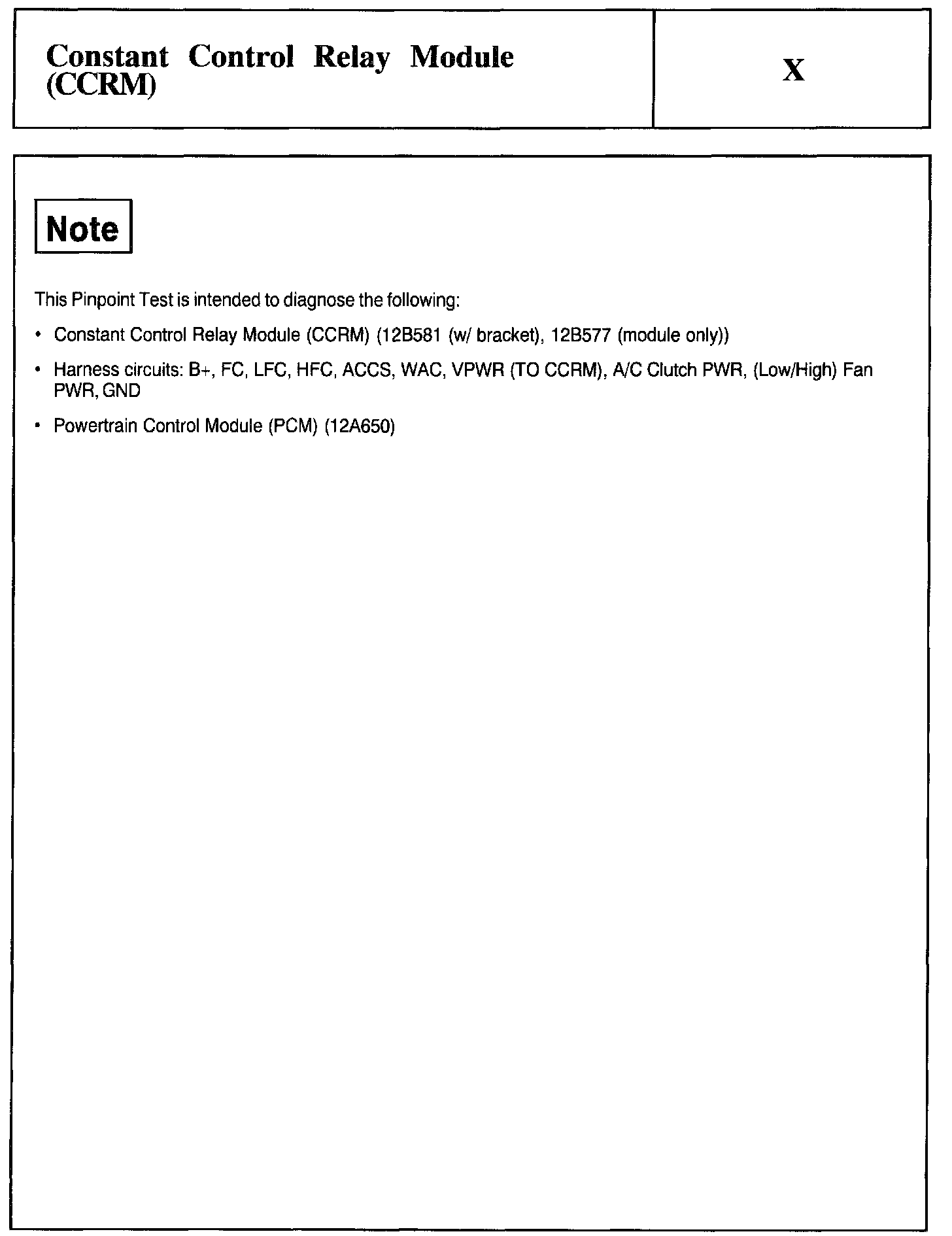

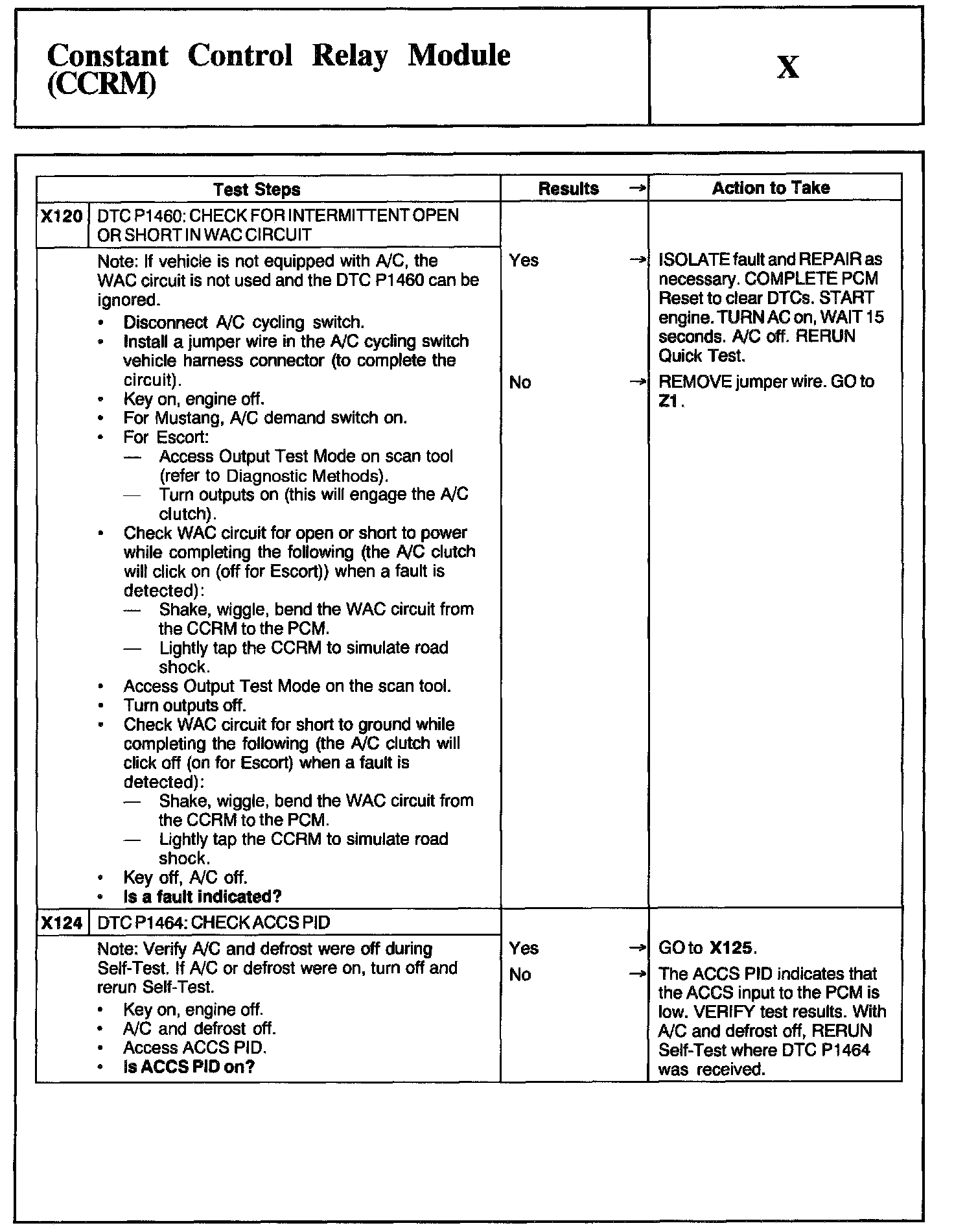

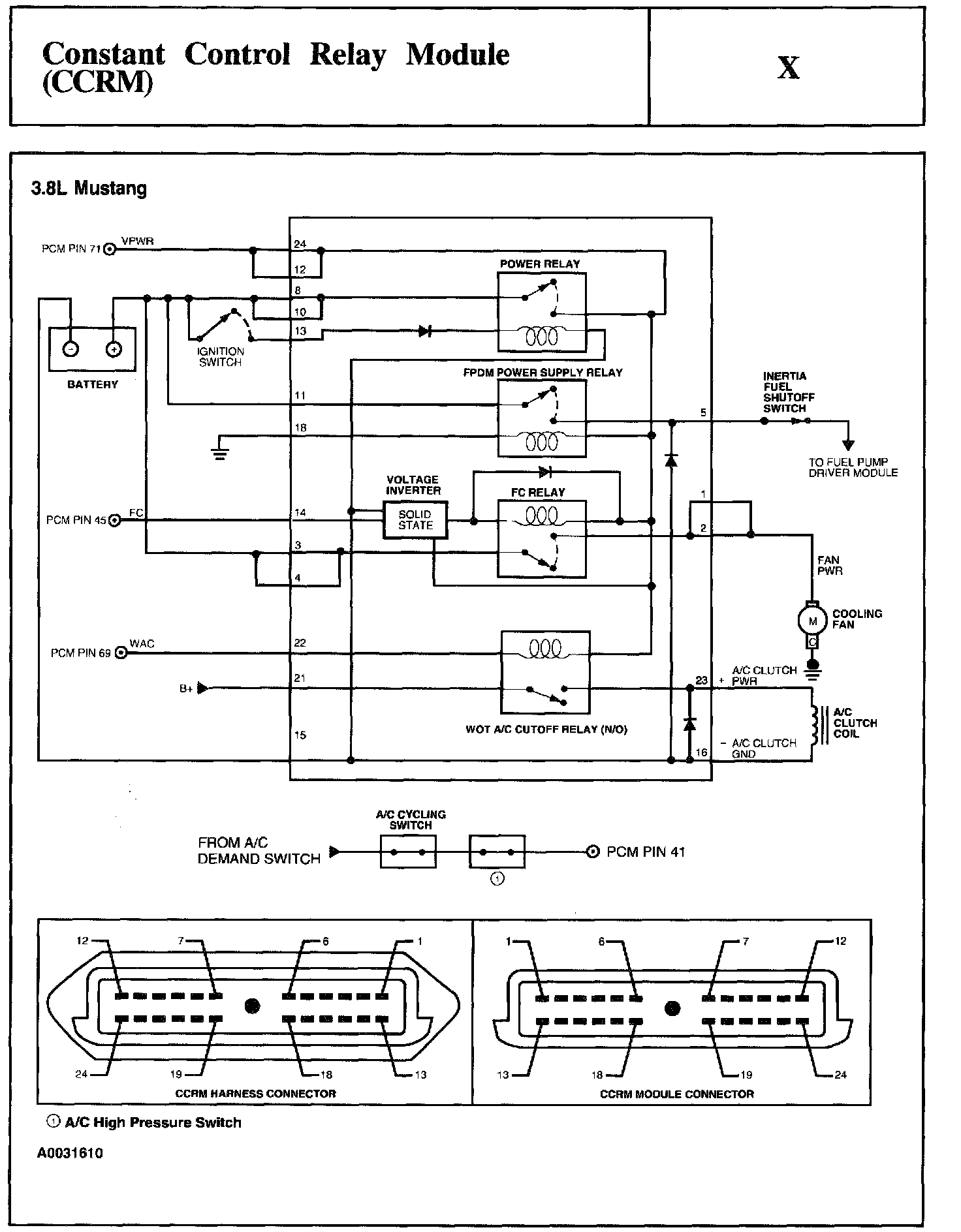

Test X: Constant Control Relay Module (CCRM)
