2002 Ford Excursion 2WD V10-6.8LFACTORY OEM SERVICE PROCEDURE
Automatic Transmission/Transaxle
Disassembled Views

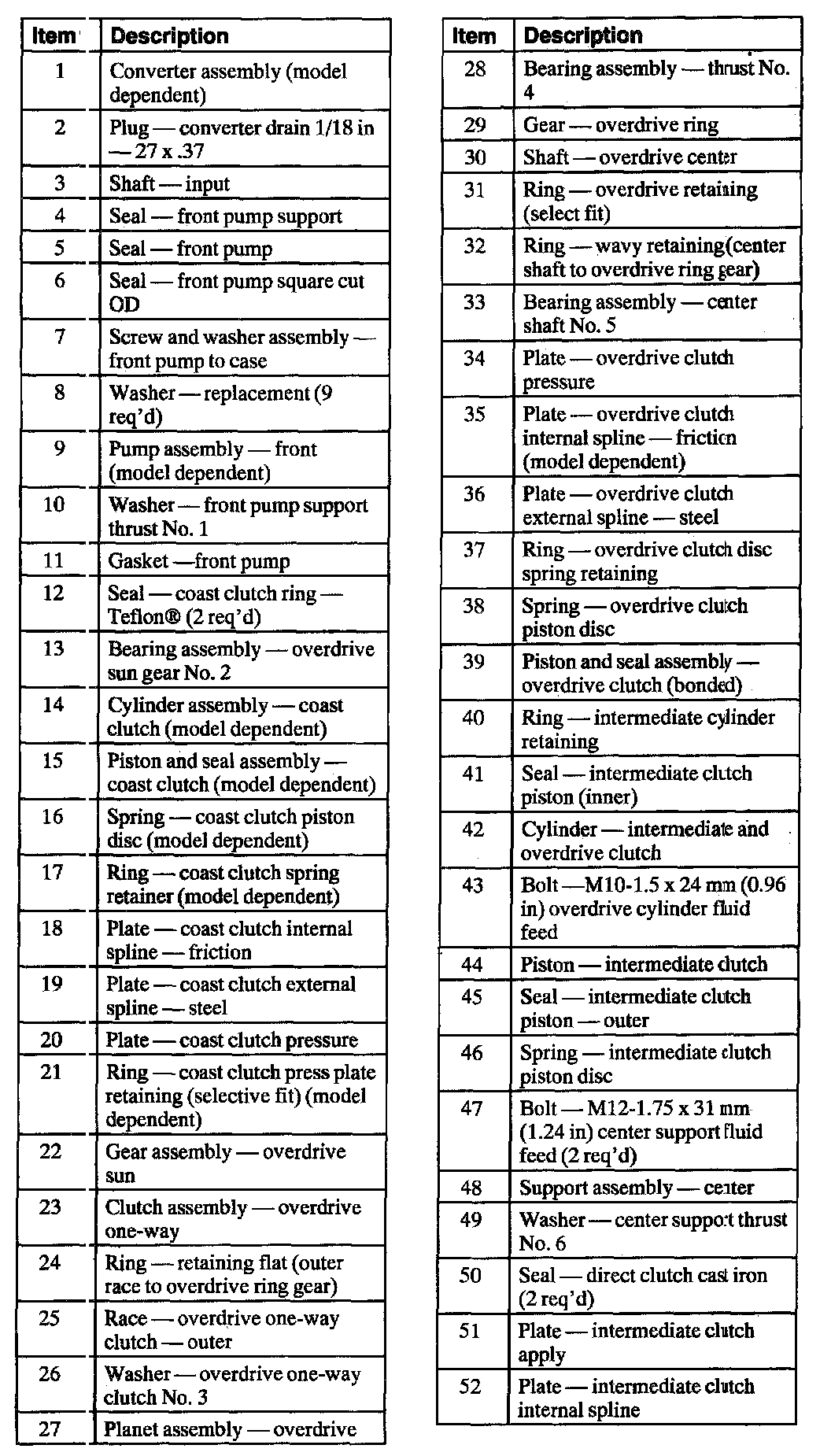

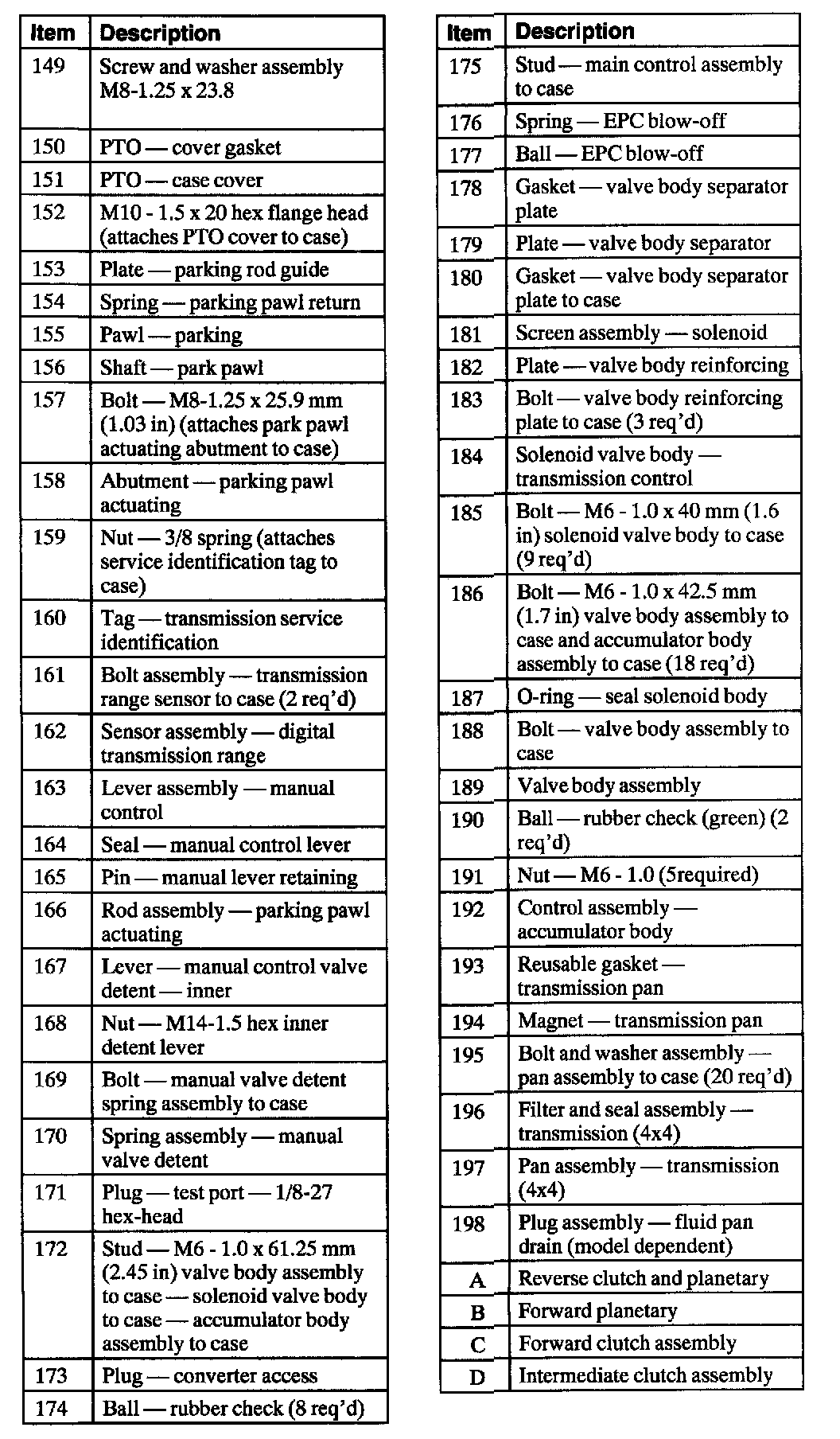

Item 1 - 52

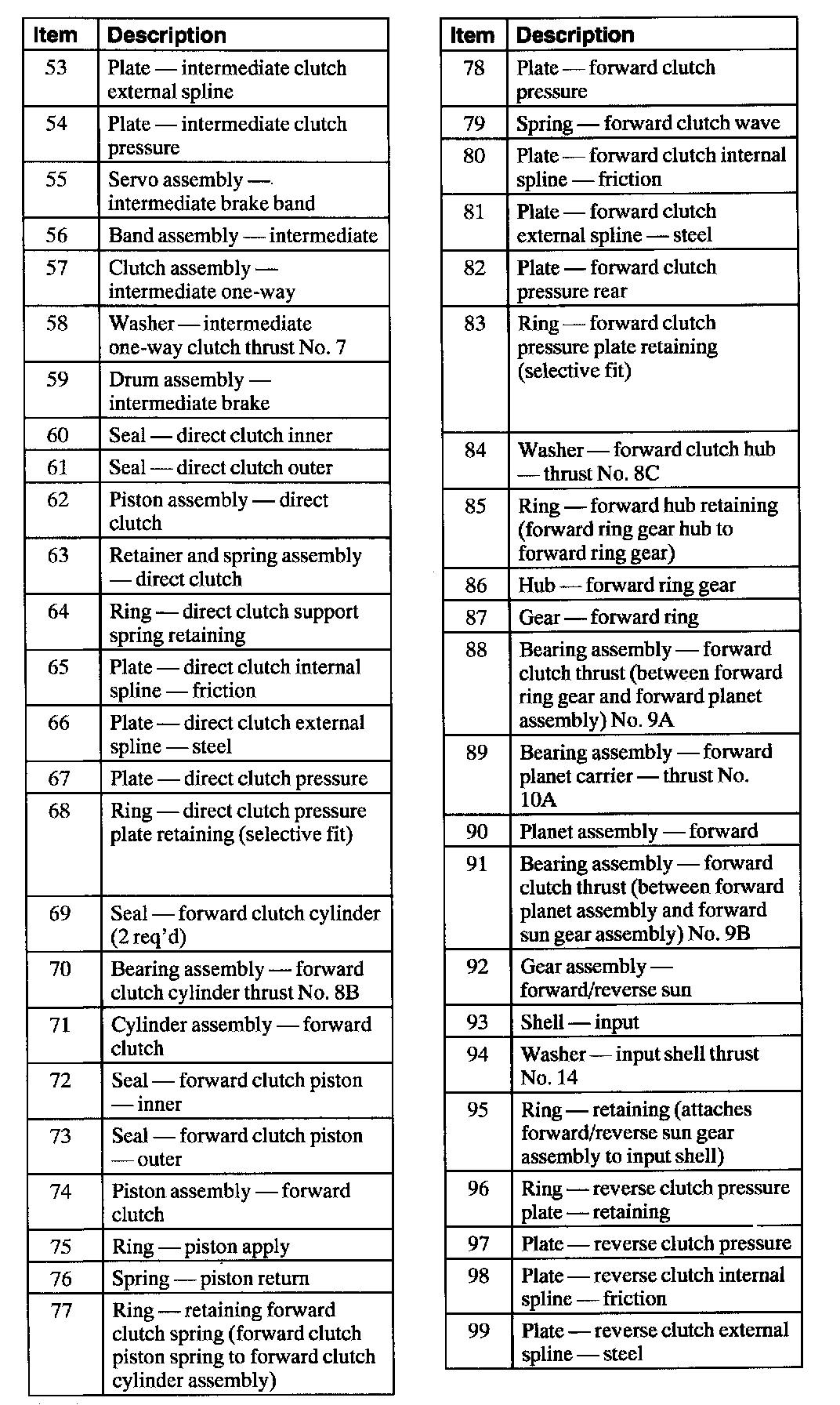

Item 53 - 99

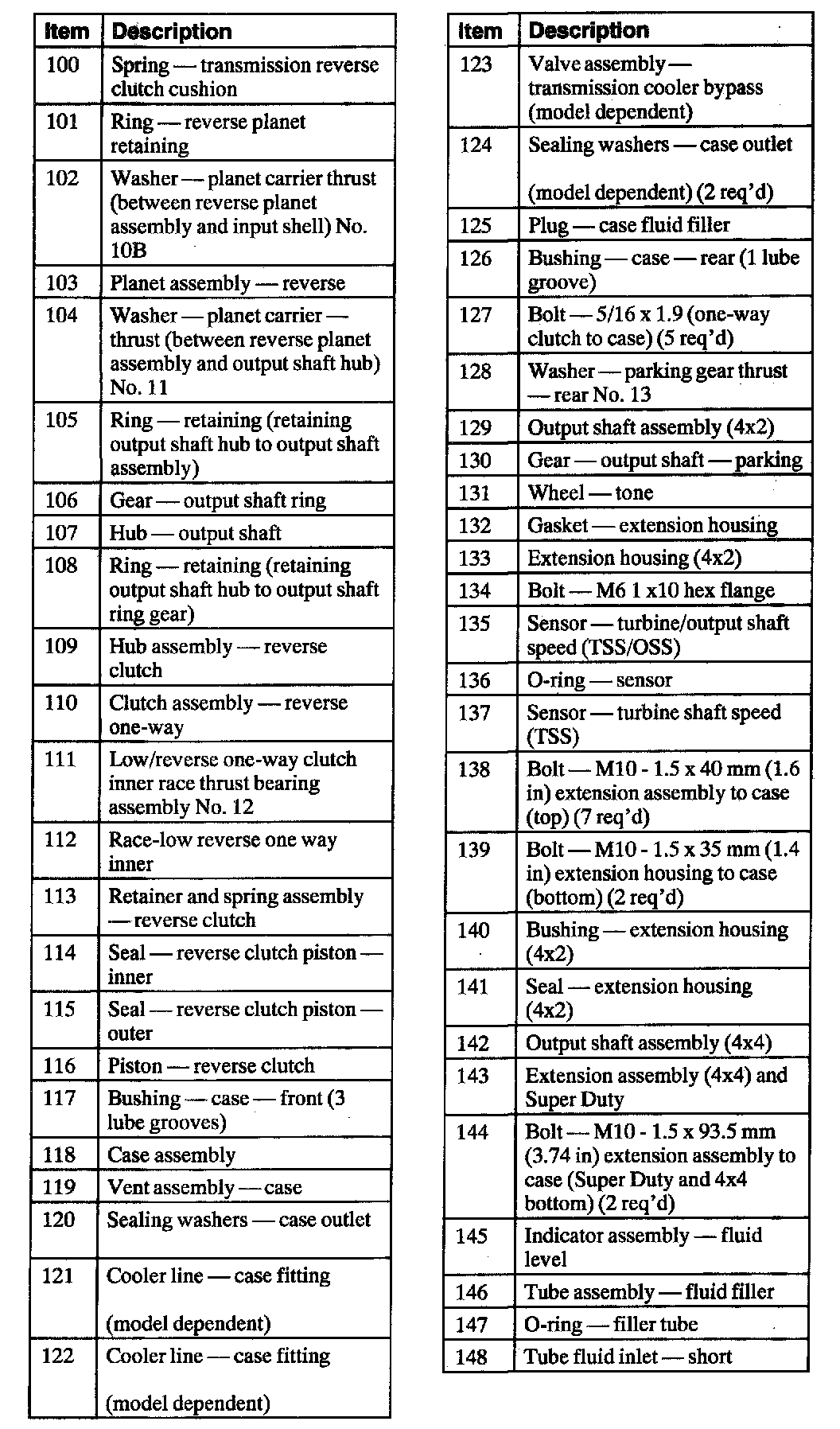

Item 100 - 148
Item 149 - D

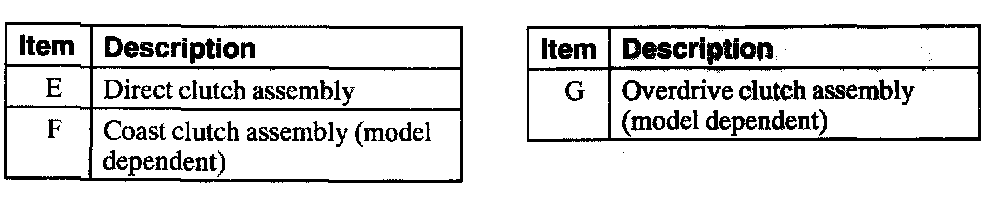

Item E - G

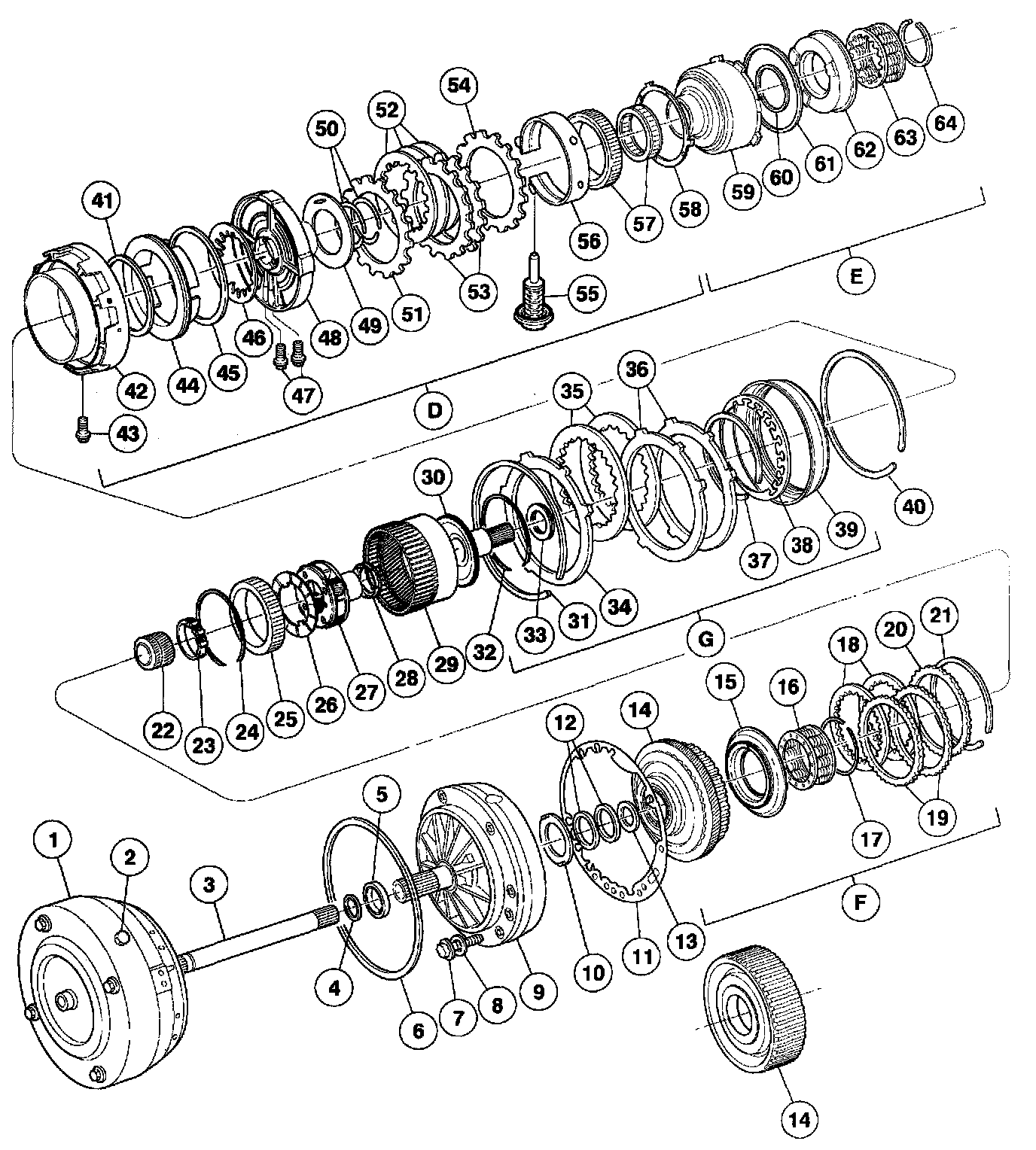

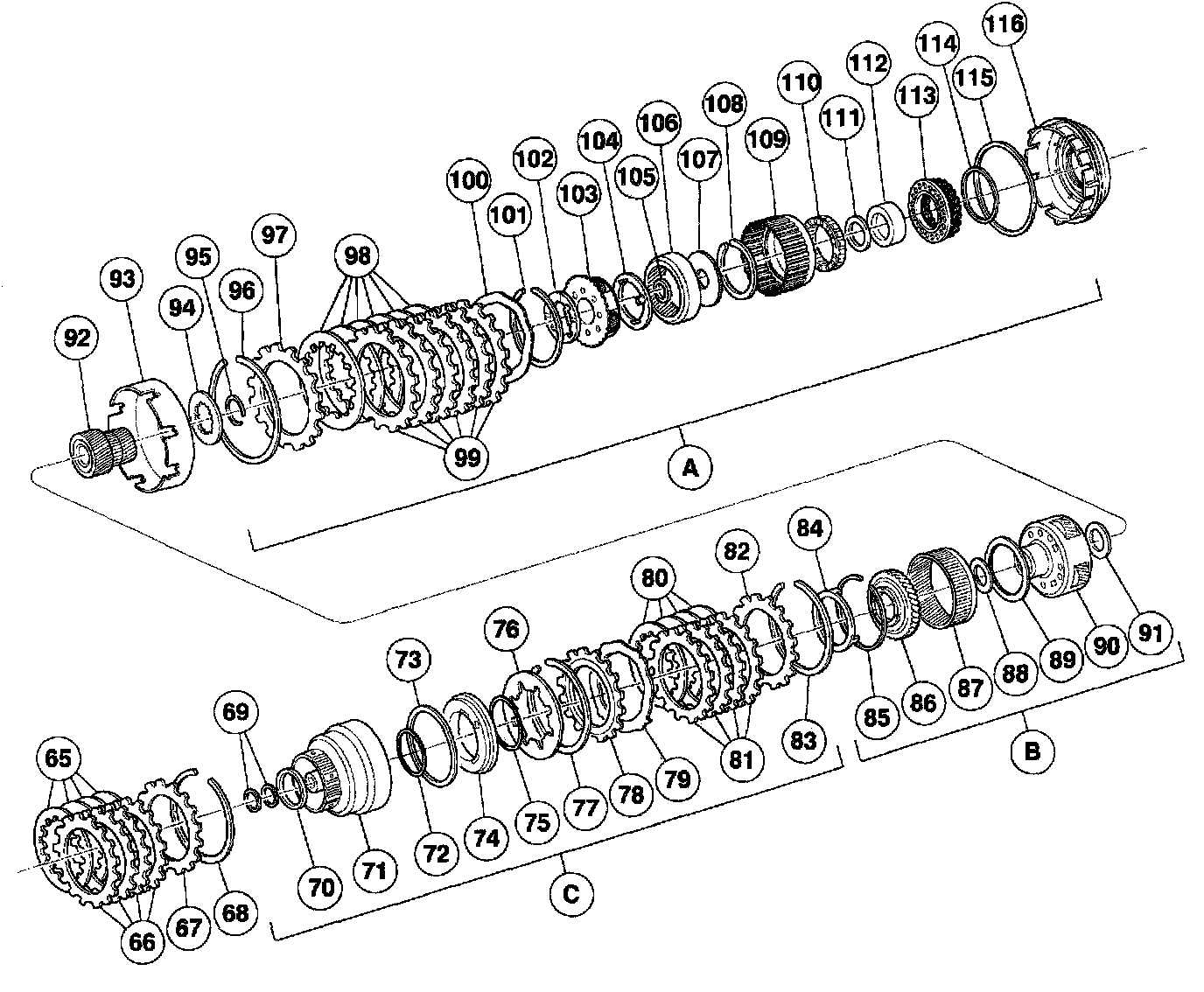

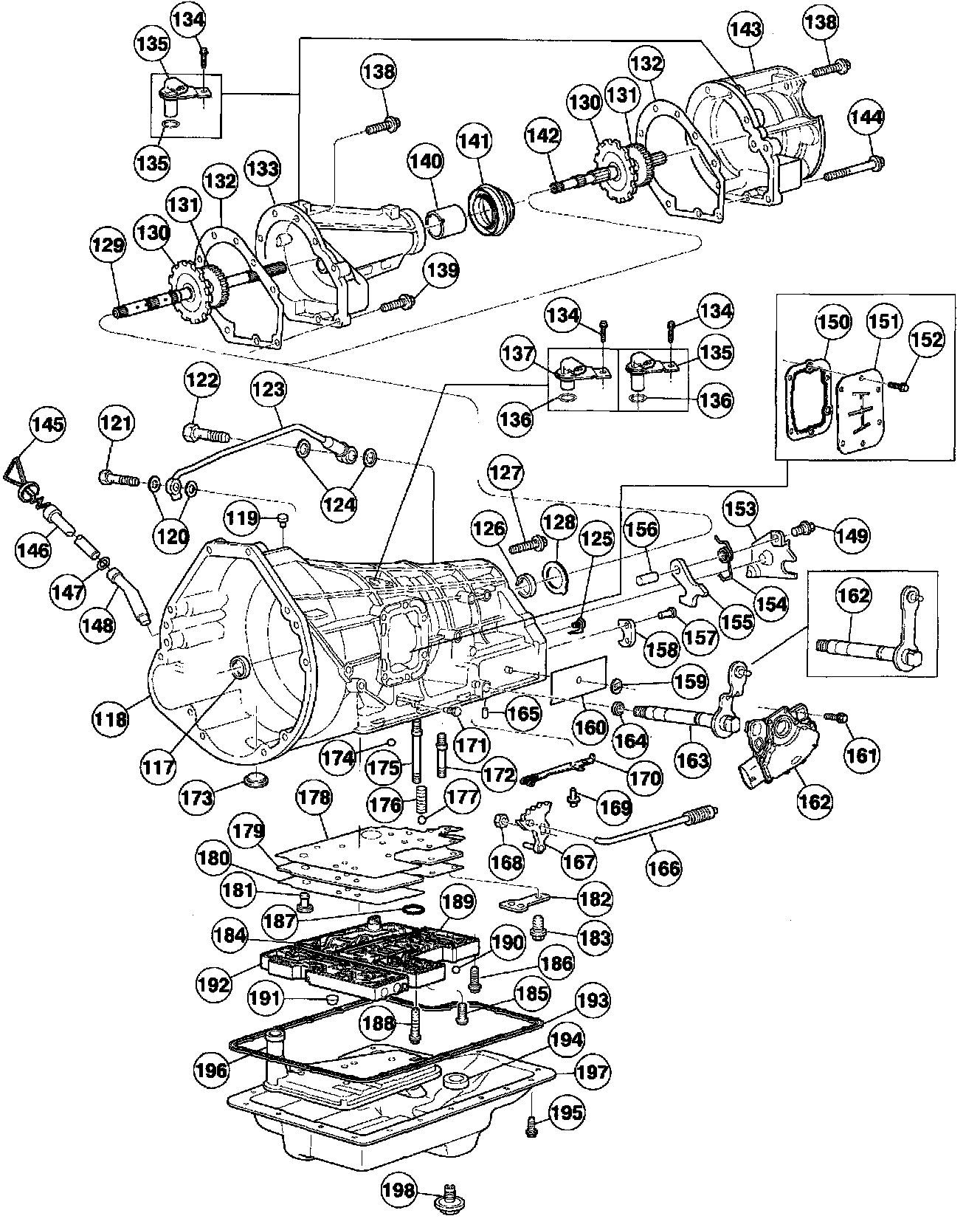

Transmission, Disassembled View
Item 1 - 14
Item 15 - 28

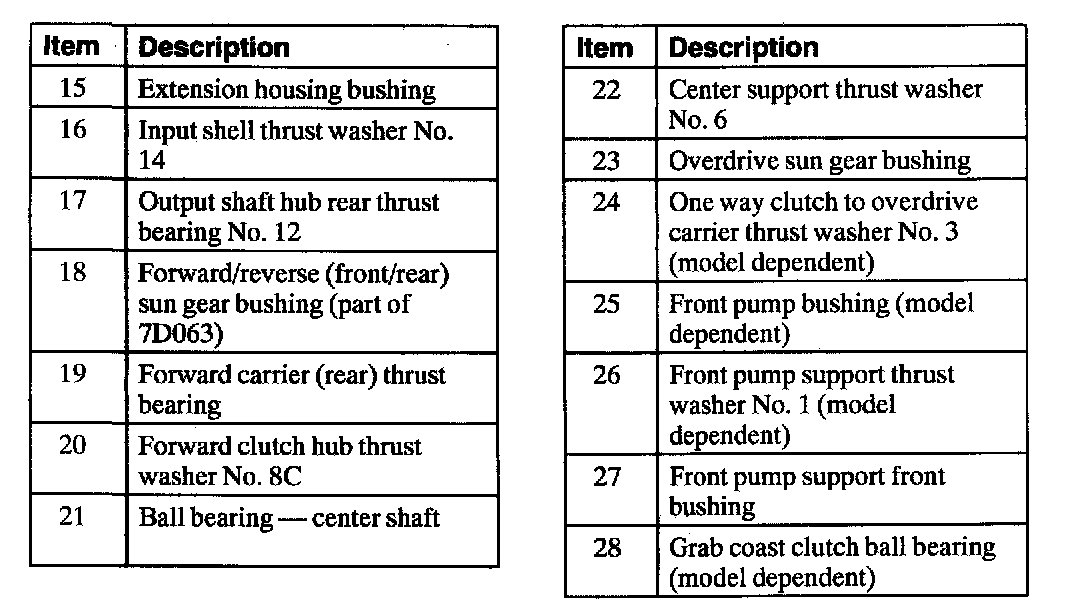

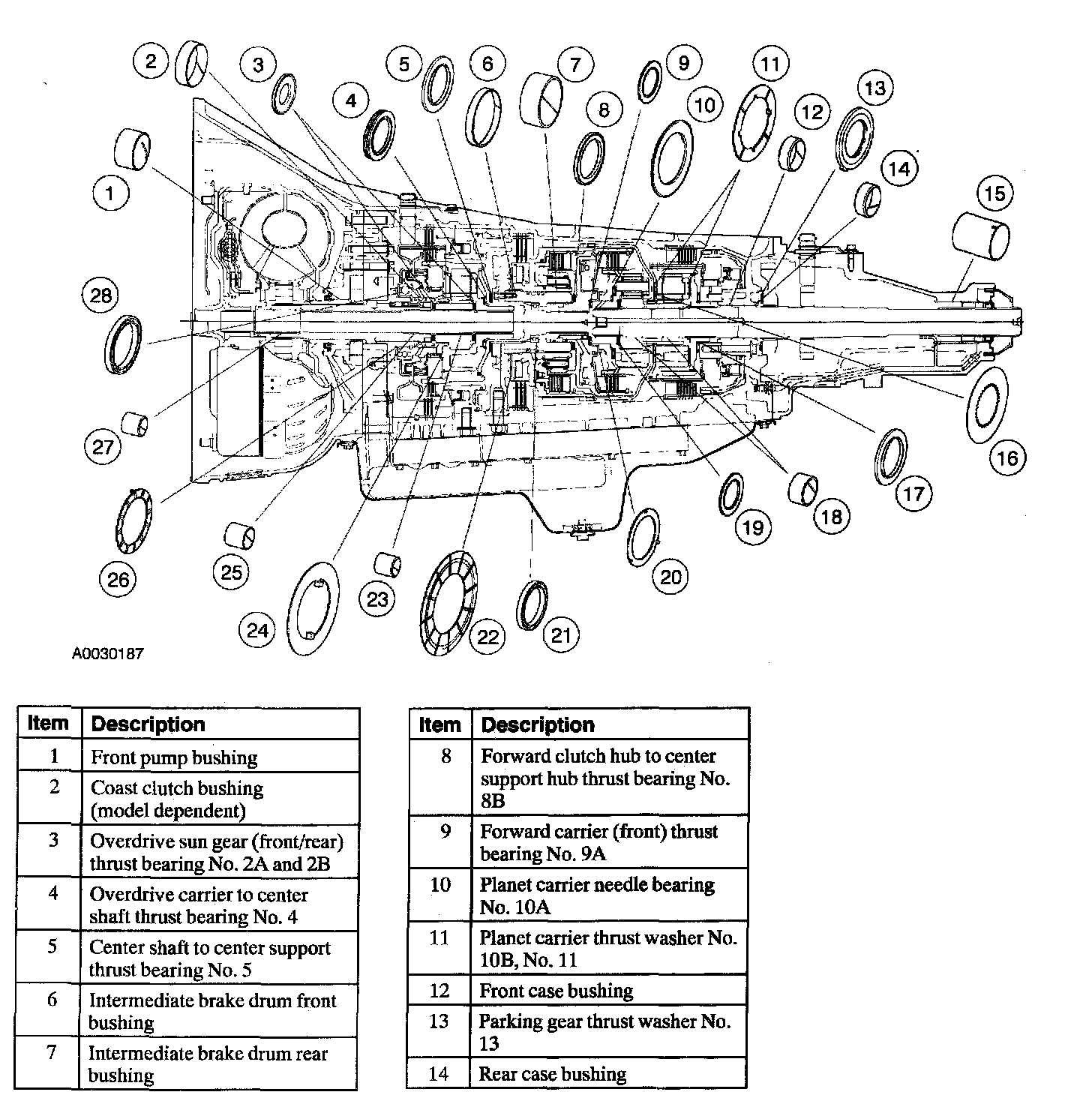

Bushings, Bearing and Thrust Washer Locator
Item 1 - 3

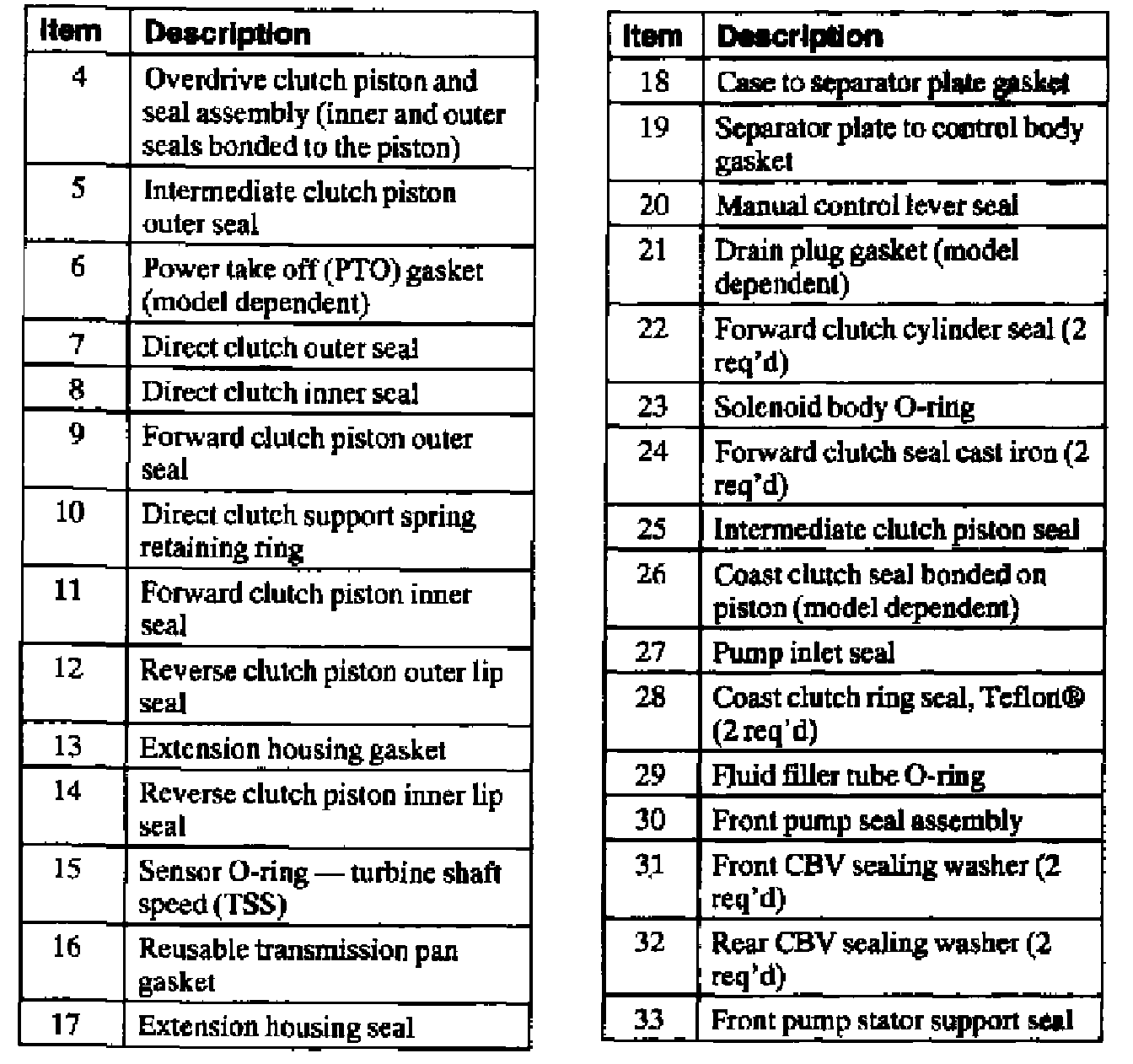

Item 4 - 33

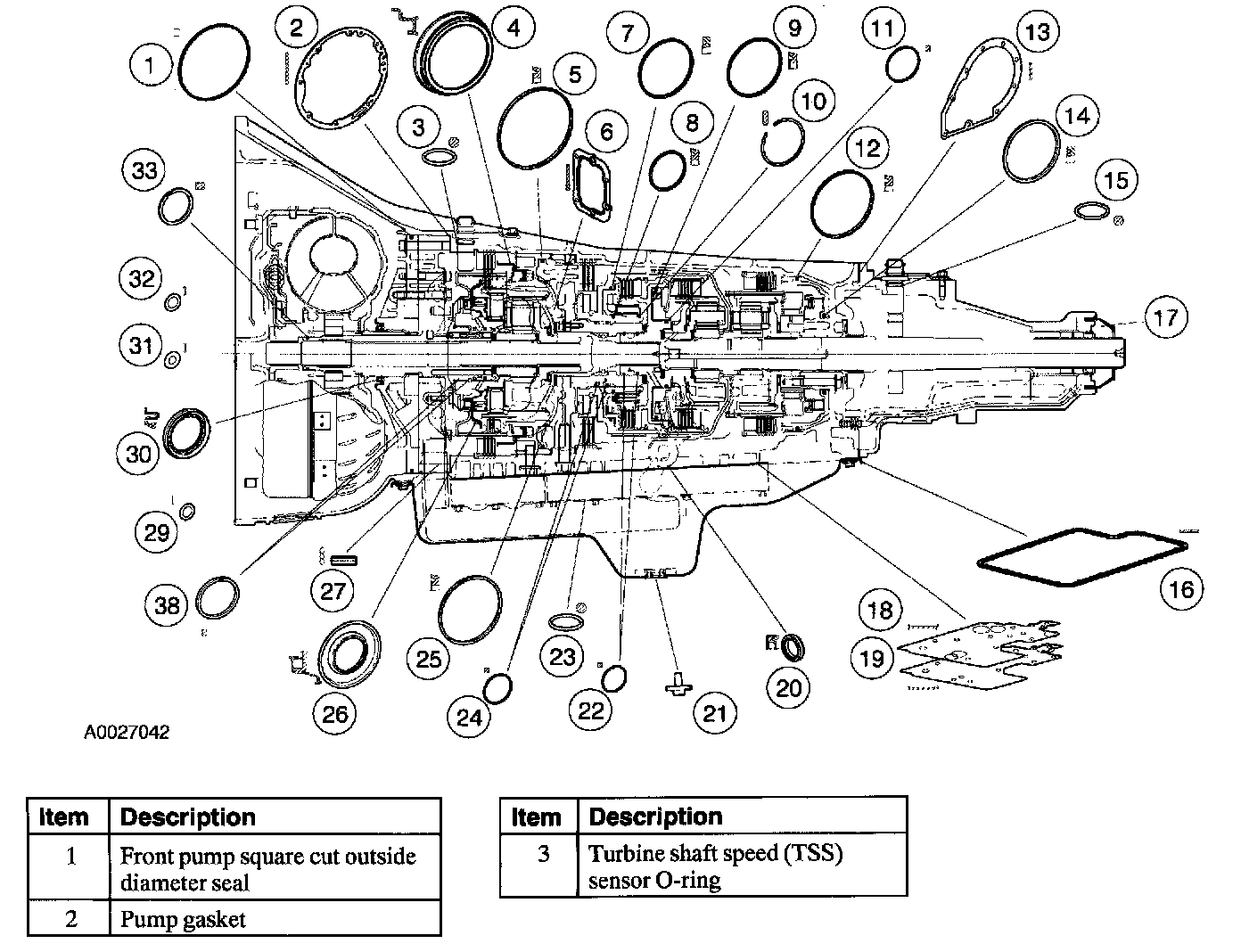

Seals, Rings and Gasket Locator
Item 1 - 52
Item 53 - 99
Item 100 - 148
Item 149 - D
Item E - G
Transmission, Disassembled View
Item 1 - 14
Item 15 - 28
Bushings, Bearing and Thrust Washer Locator
Item 1 - 3
Item 4 - 33
Seals, Rings and Gasket Locator
Factory Service Tools
