2000 Ford Excursion 2WD V10-6.8L VIN SFACTORY OEM SERVICE PROCEDURE
Torque Specifications
STEERING SYSTEM
Torque Specifications
POWER STEERING
Torque Specifications - All Except Motorhome (Part 1)
Torque Specifications - All Except Motorhome (Part 2)
Torque Specifications - Motorhome Chassis (Part 1)
Torque Specifications - Motorhome Chassis (Part 2)
STEERING LINKAGE
Torque Specifications (Part 1)
Torque Specifications (Part 2)
Torque Specifications (Part 3)

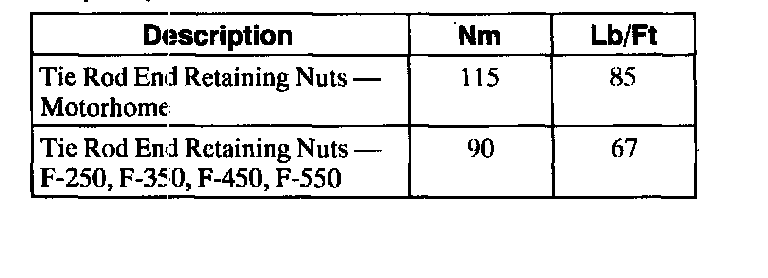

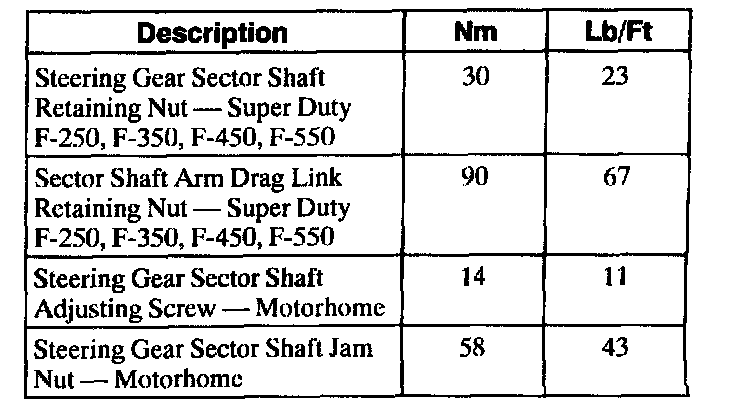

Torque Specifications:
Torque Specifications
POWER STEERING

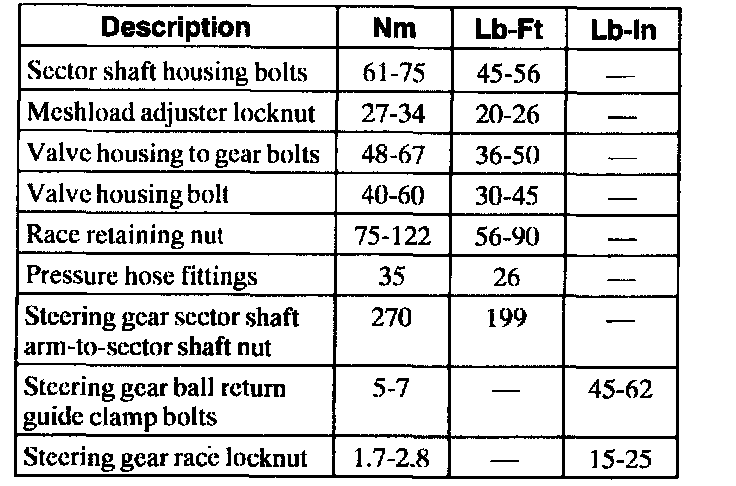

Torque Specifications - All Except Motorhome (Part 1):
Torque Specifications - All Except Motorhome (Part 1)

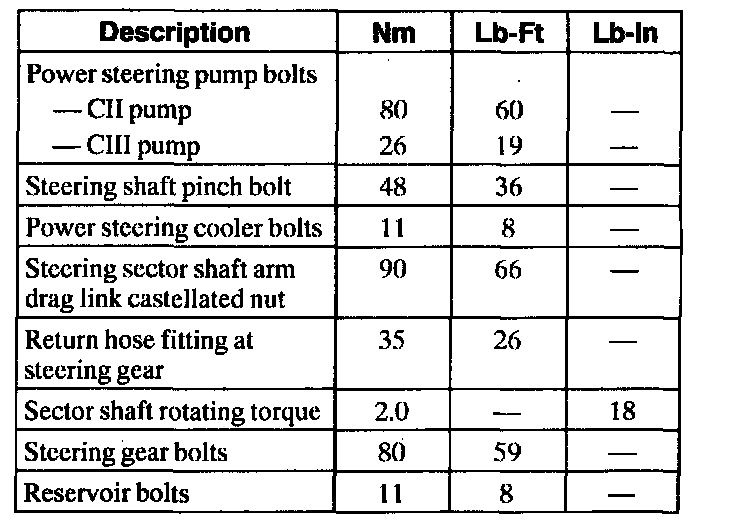

Torque Specifications - All Except Motorhome (Part 2):
Torque Specifications - All Except Motorhome (Part 2)

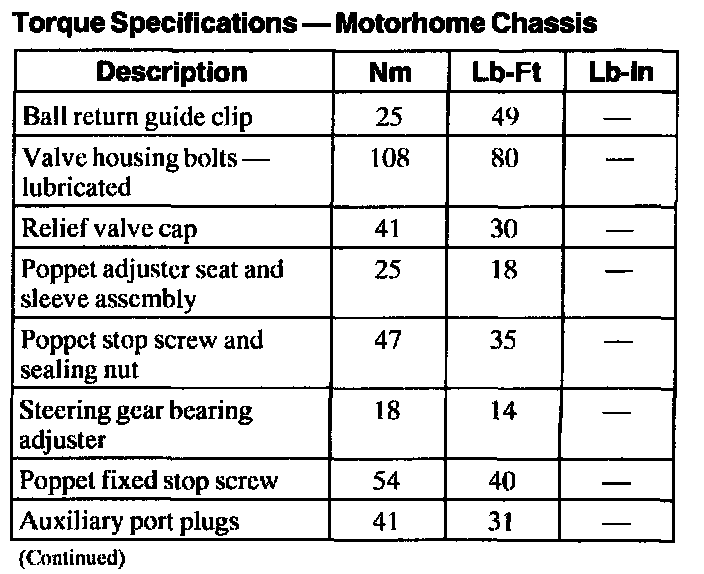

Torque Specifications - Motorhome Chassis (Part 1):
Torque Specifications - Motorhome Chassis (Part 1)
Torque Specifications - Motorhome Chassis (Part 2):
Torque Specifications - Motorhome Chassis (Part 2)
STEERING LINKAGE

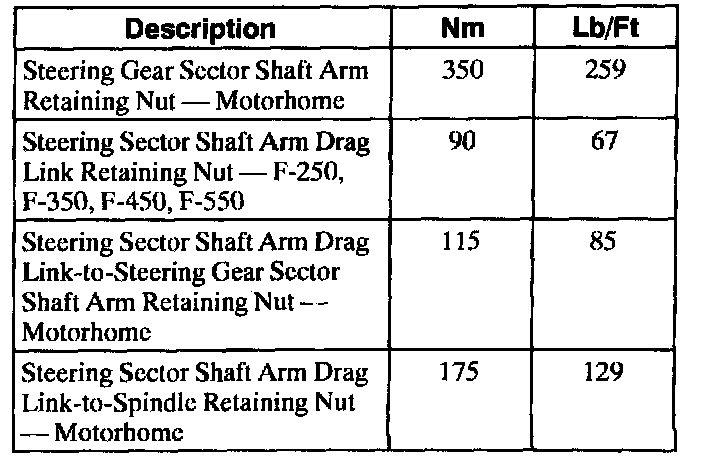

Torque Specifications (Part 1):
Torque Specifications (Part 1)

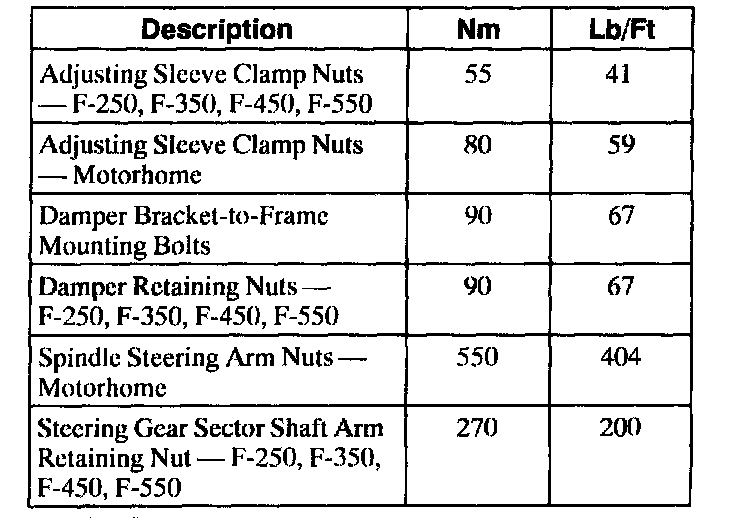

Torque Specifications (Part 2):
Torque Specifications (Part 2)
Torque Specifications (Part 3):
Torque Specifications (Part 3)
