2000 Ford Excursion 2WD V10-6.8L VIN SFACTORY OEM SERVICE PROCEDURE
Engine Control Module: Service and Repair
Powertrain Control Module (PCM) - Pickup Chassis
REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Remove the LH wheel and tire. For additional information, refer to Wheels, Tires and Alignment.

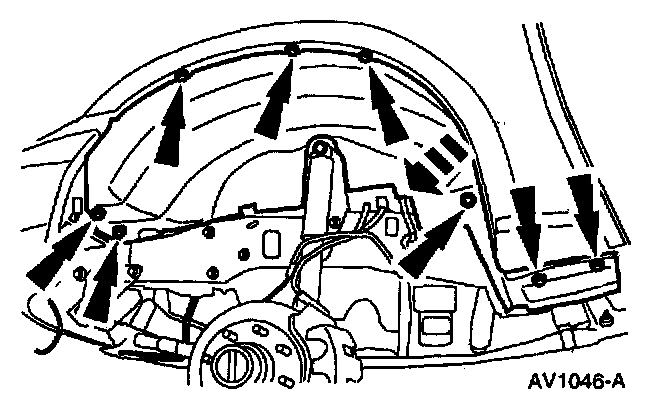

3. Remove the LH fender apron.
^ Remove the bolts.
^ Remove the pin-type retainers.

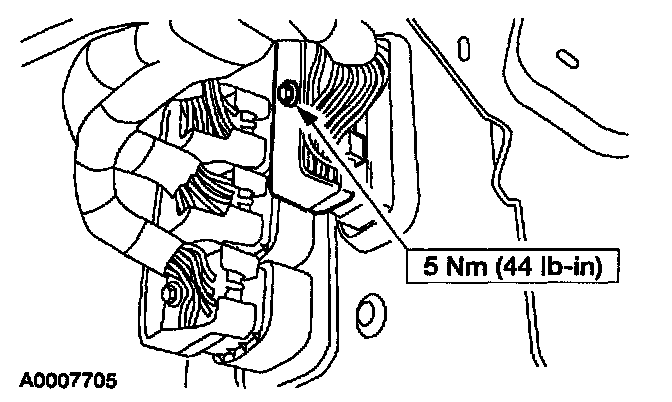

4. Loosen the bolt and disconnect the powertrain control module (PCM) electrical connector.

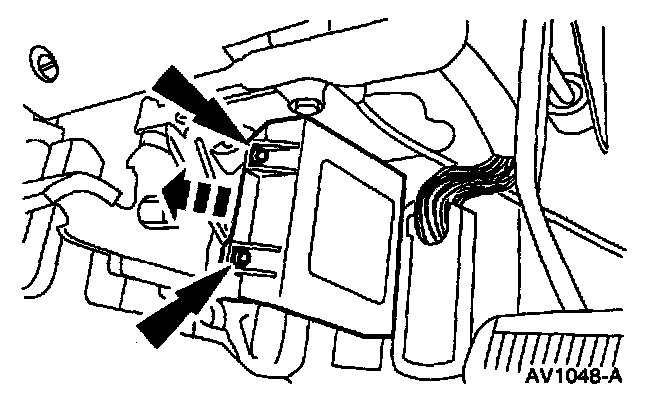

5. Remove the screws and remove the PCM and bracket assembly.

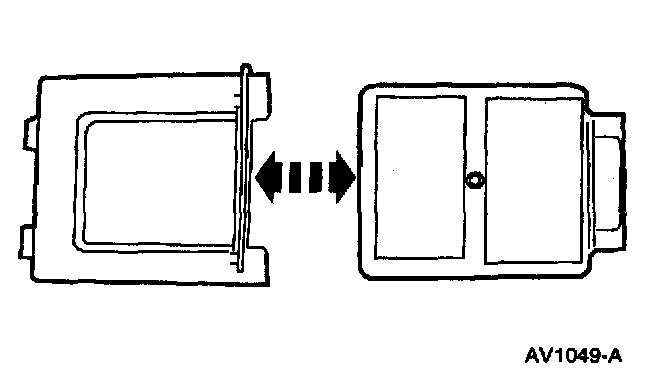

6. Separate the PCM from the bracket.
INSTALLATION
1. To install, reverse the removal procedure.
REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Remove the LH wheel and tire. For additional information, refer to Wheels, Tires and Alignment.
3. Remove the LH fender apron.
^ Remove the bolts.
^ Remove the pin-type retainers.
4. Loosen the bolt and disconnect the powertrain control module (PCM) electrical connector.
5. Remove the screws and remove the PCM and bracket assembly.
6. Separate the PCM from the bracket.
INSTALLATION
1. To install, reverse the removal procedure.
