2000 Ford Excursion 2WD V10-6.8L VIN SFACTORY OEM SERVICE PROCEDURE
Tests KB: Fuel Pump Driver Module (FPDM)
NOTE
This Pinpoint Test is intended to diagnose the following:
- Harness circuits: VPWR, GND and B+ to FPDM power supply relay; GND to FPDM; FPM; FP; FP PWR; FP RTN: FPDM PWR
- Inertia Fuel Shutoff (IFS) switch
- Fuel Pump Driver Module (FPDM)
- FPDM power supply relay
- Powertrain Control Module (PCM)

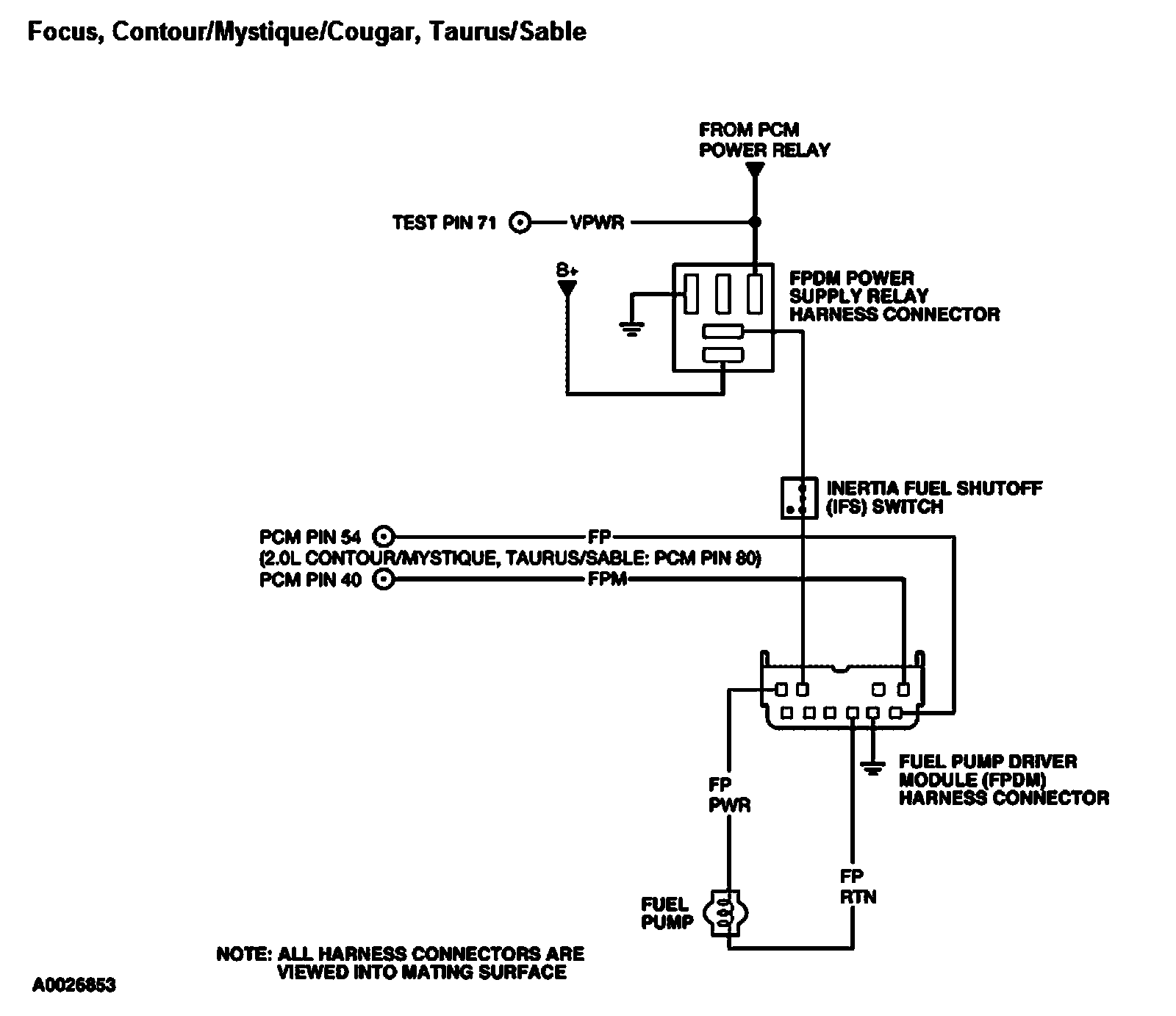

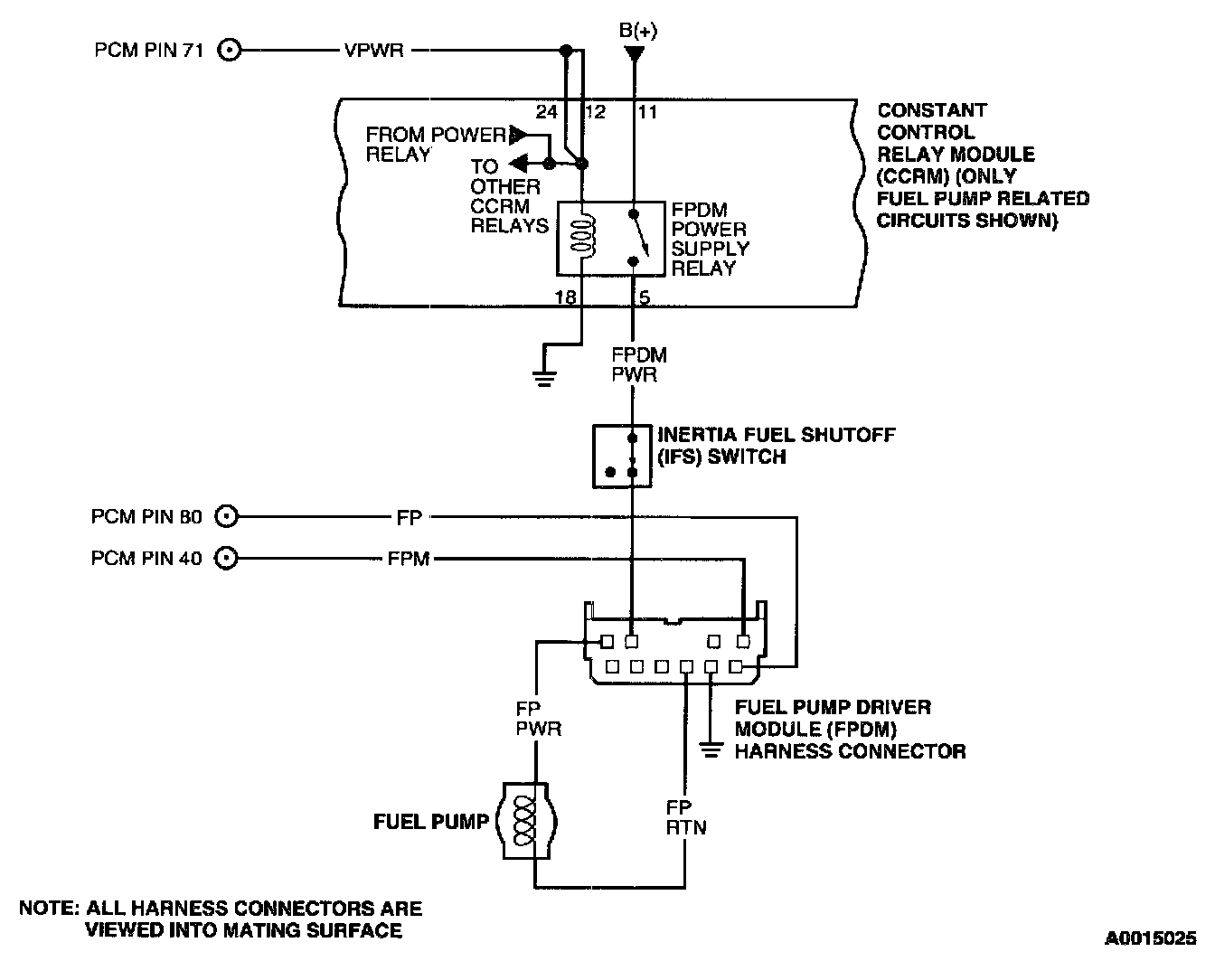

Pinpoint Test Schematics and connectors
Escort (CCRM And FPDM):
Mustang (CCRM FPDM):
Continental (FPDM):

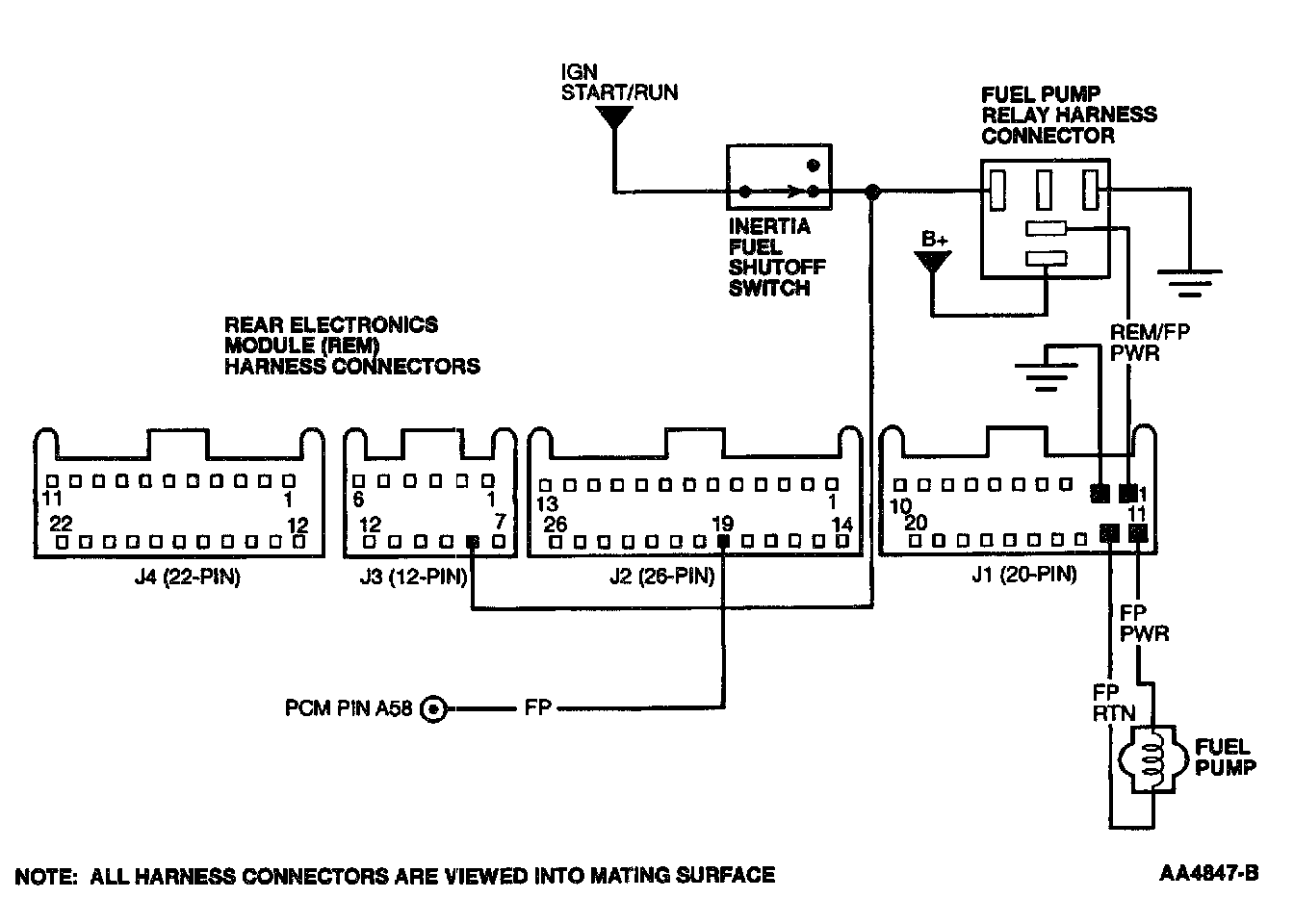

LS6/LS8 (Fuel Pump Relay and REM Connectors):

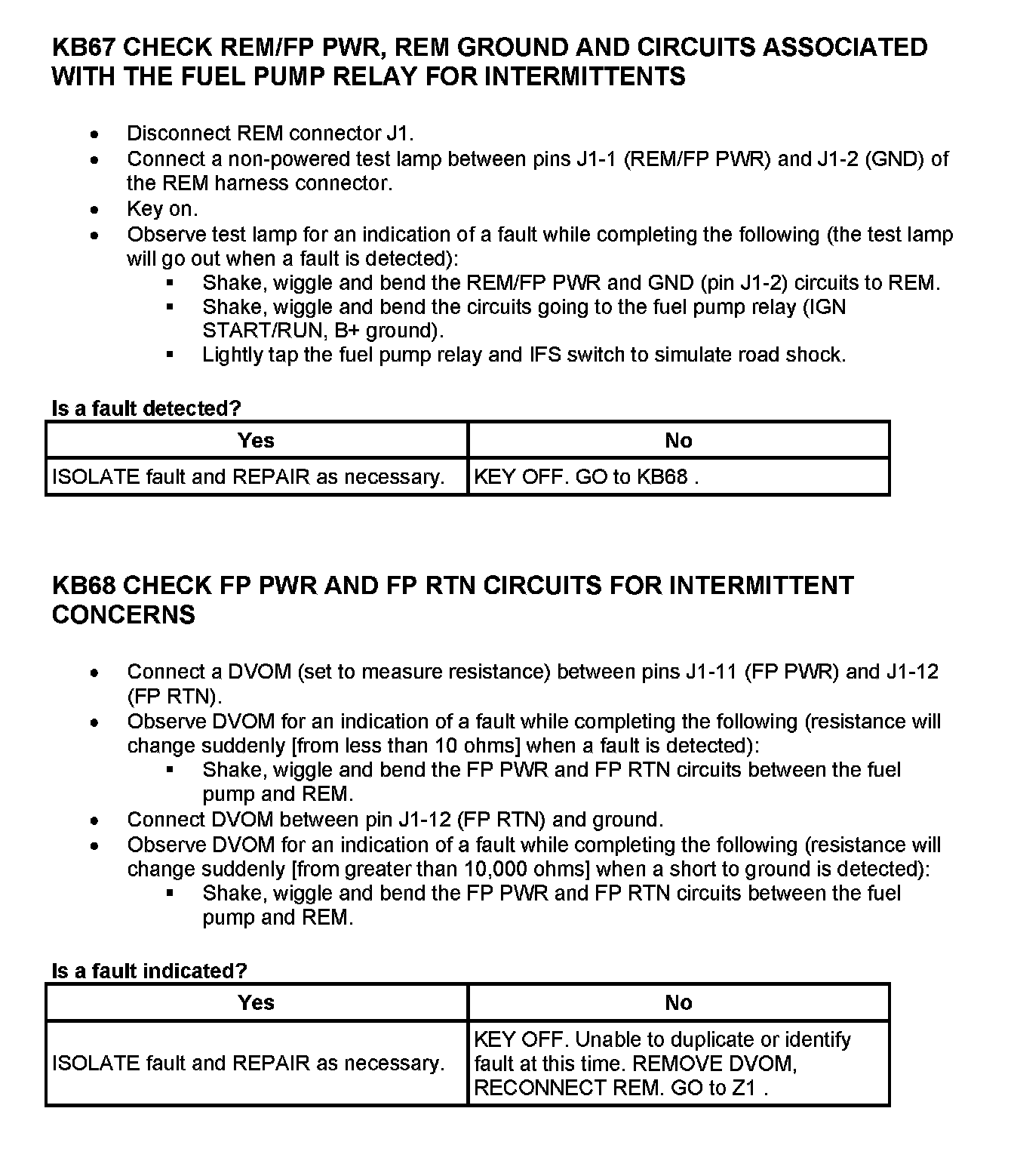

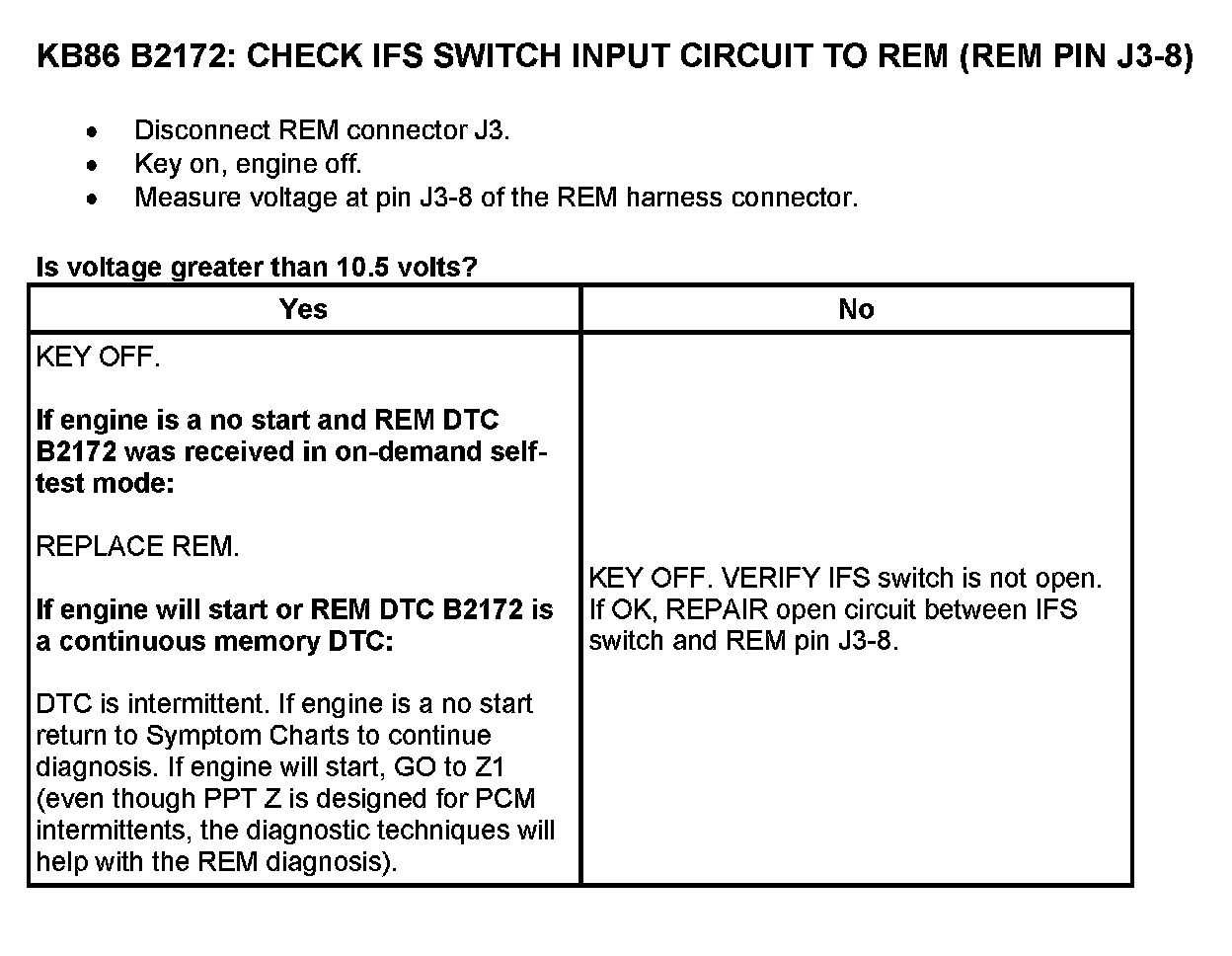

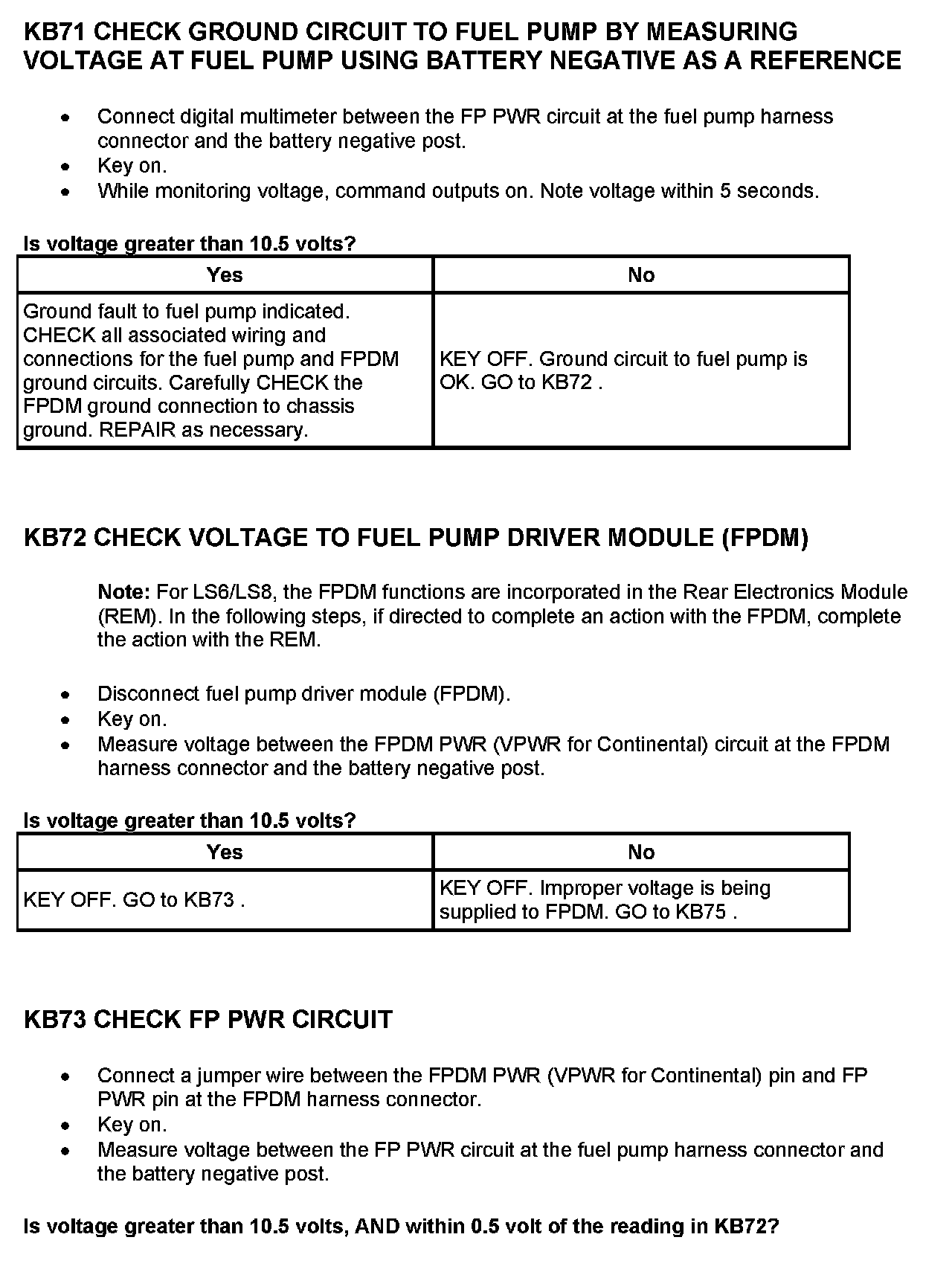

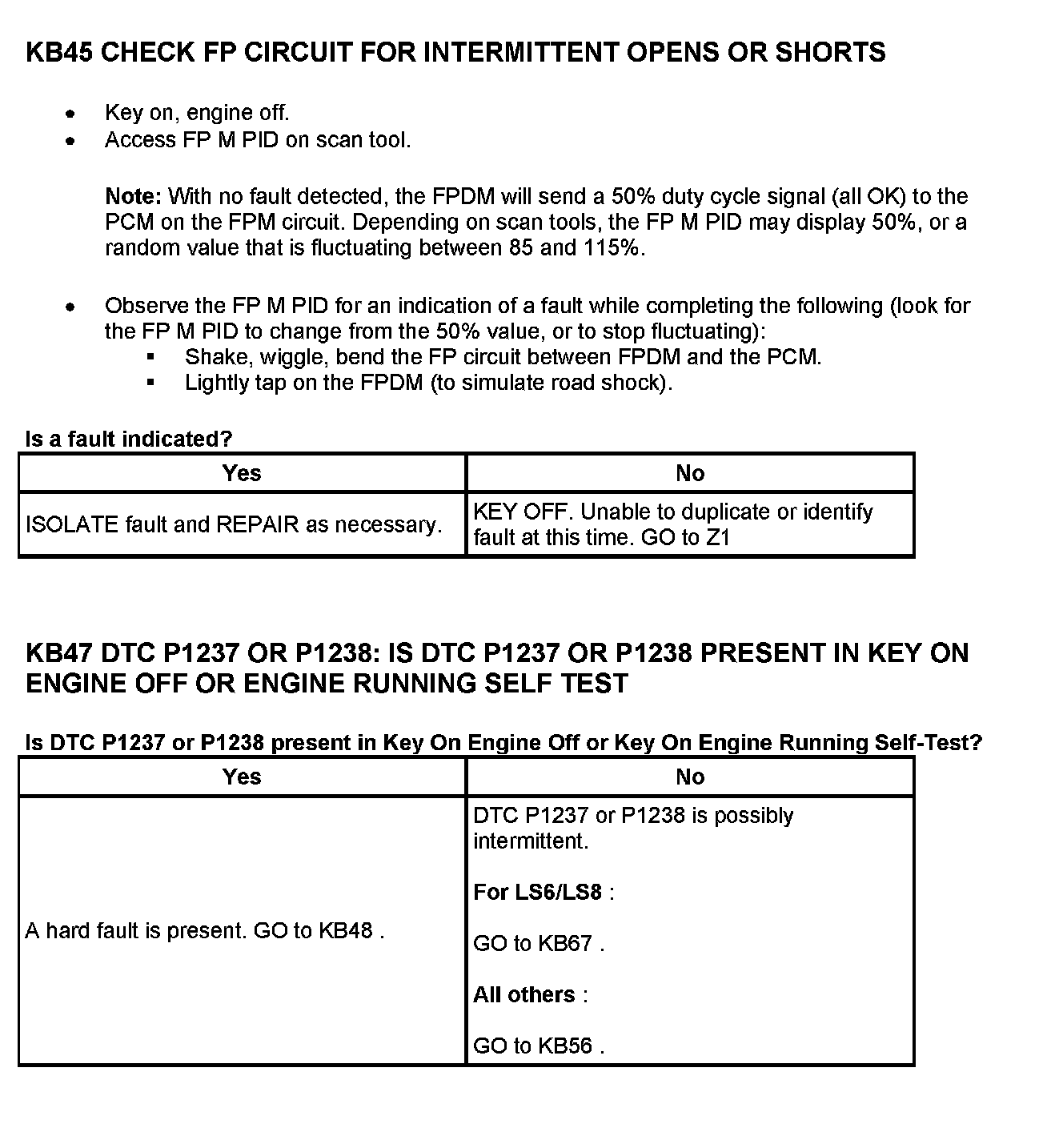

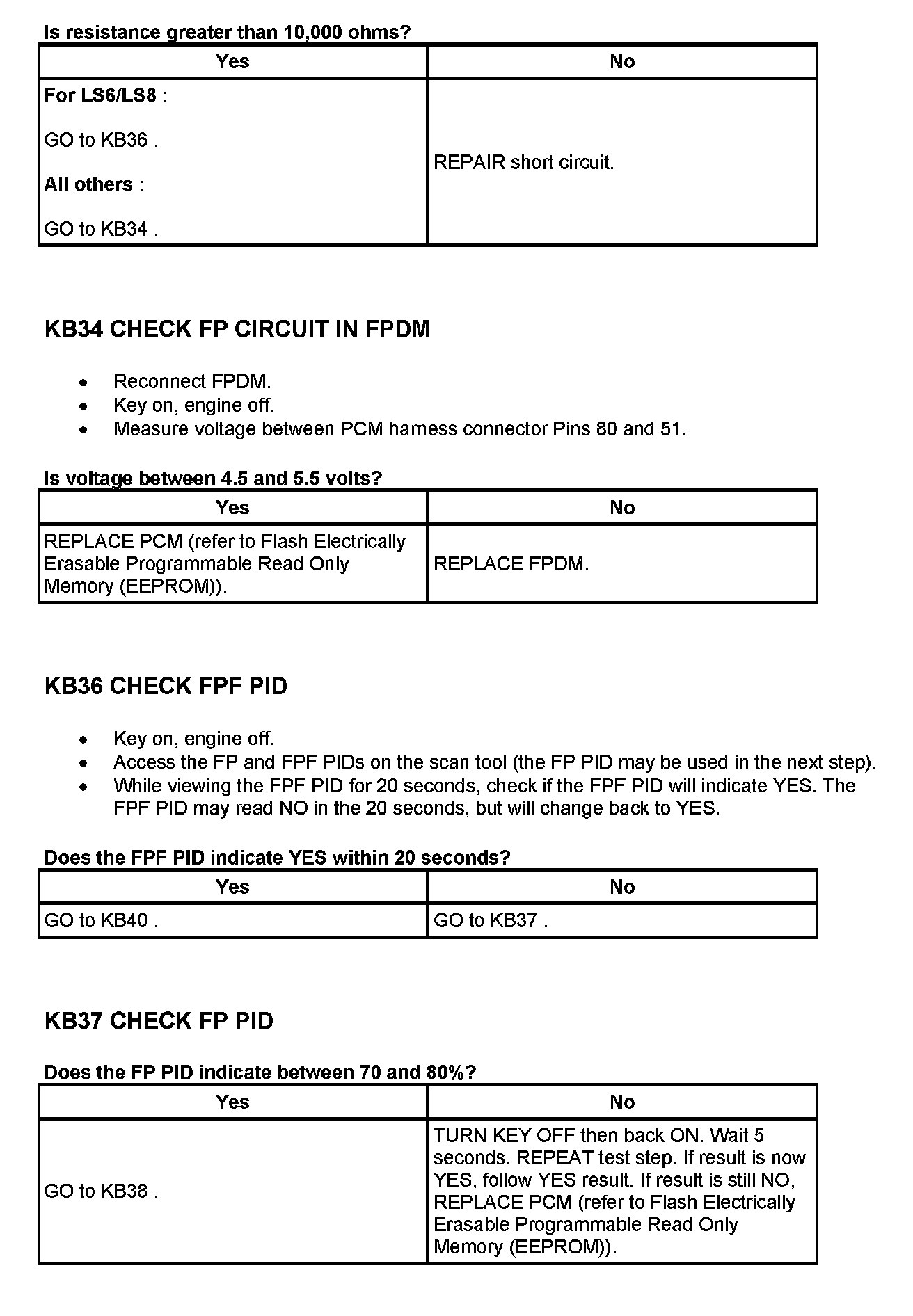

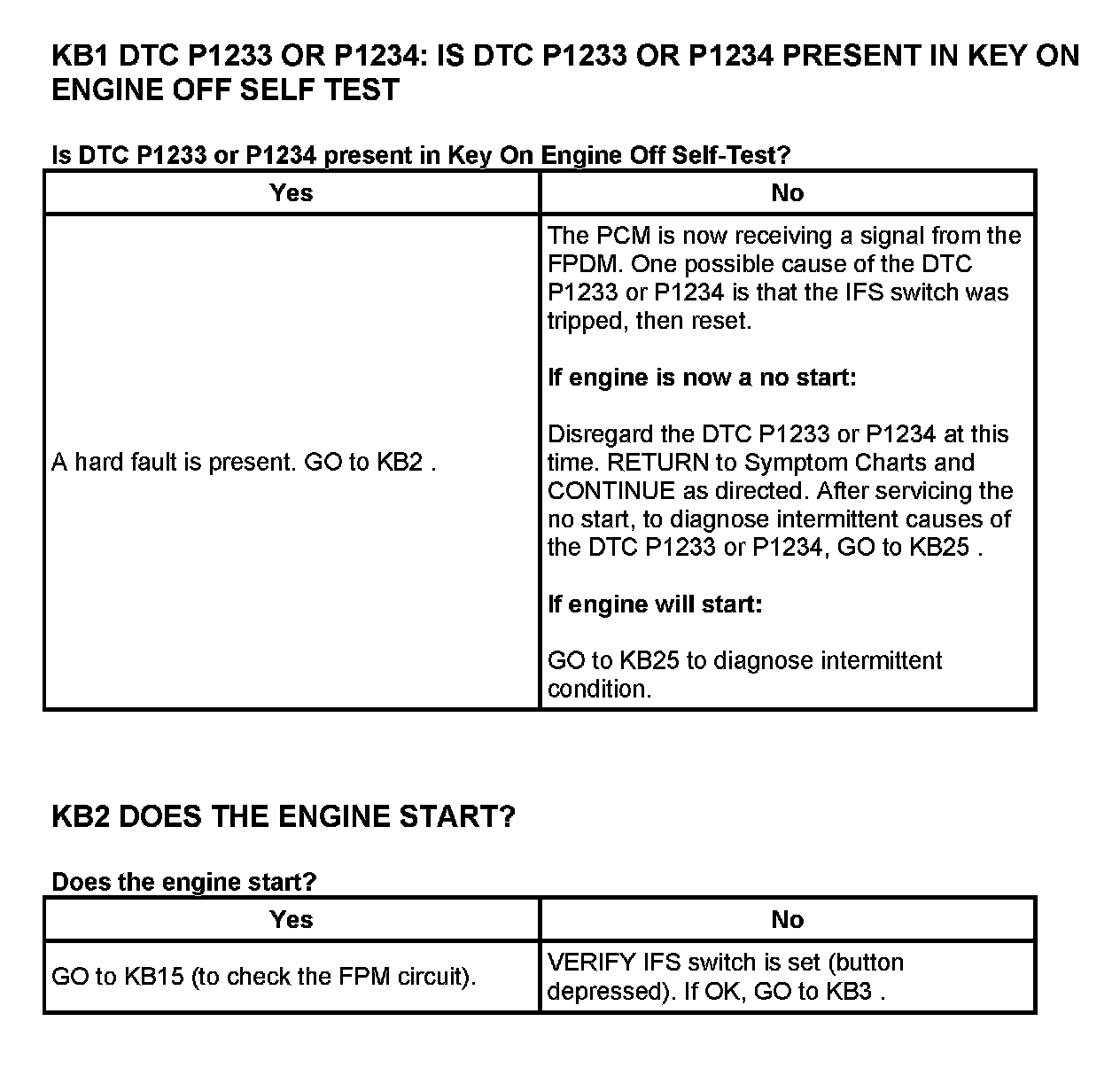

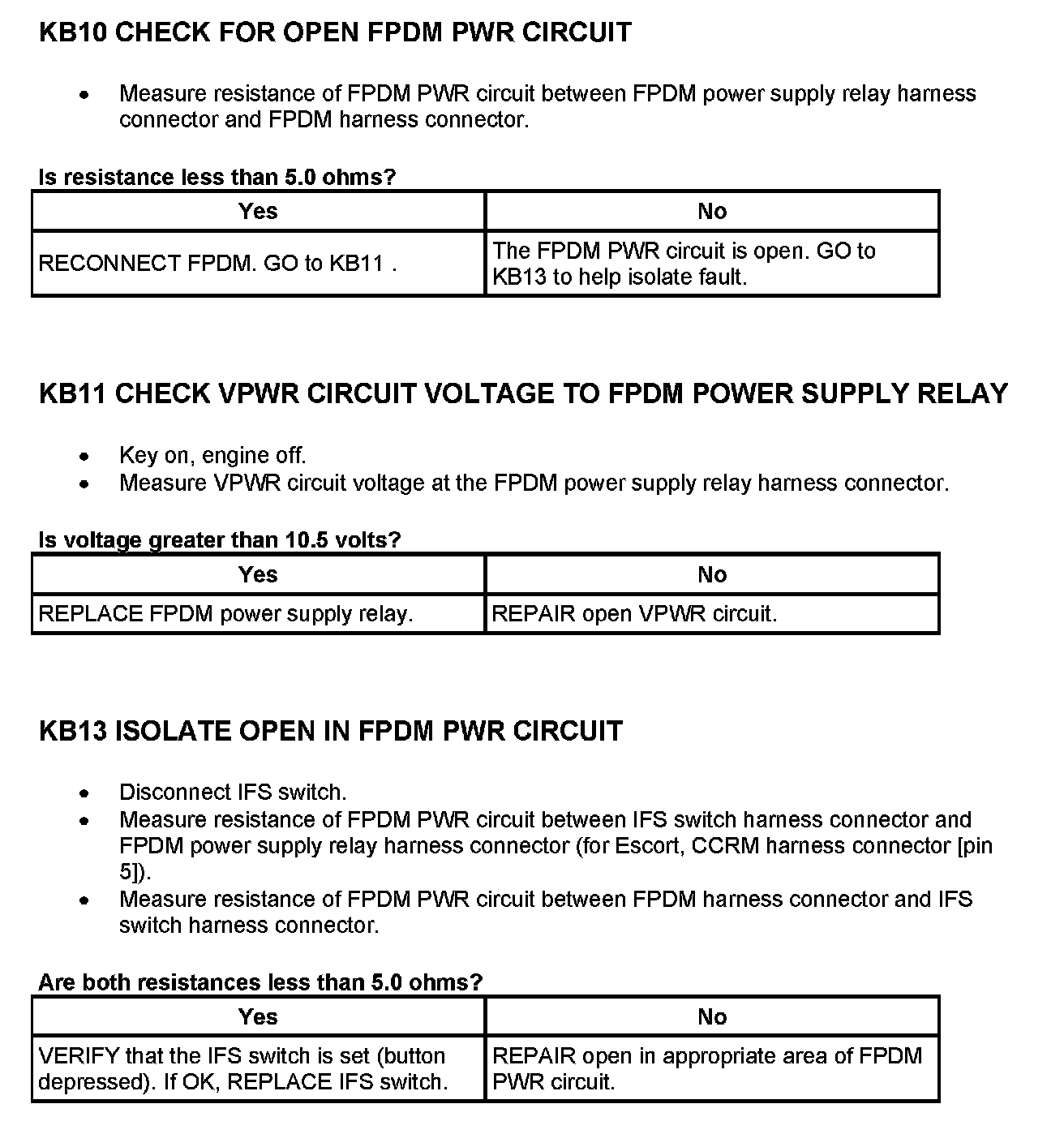

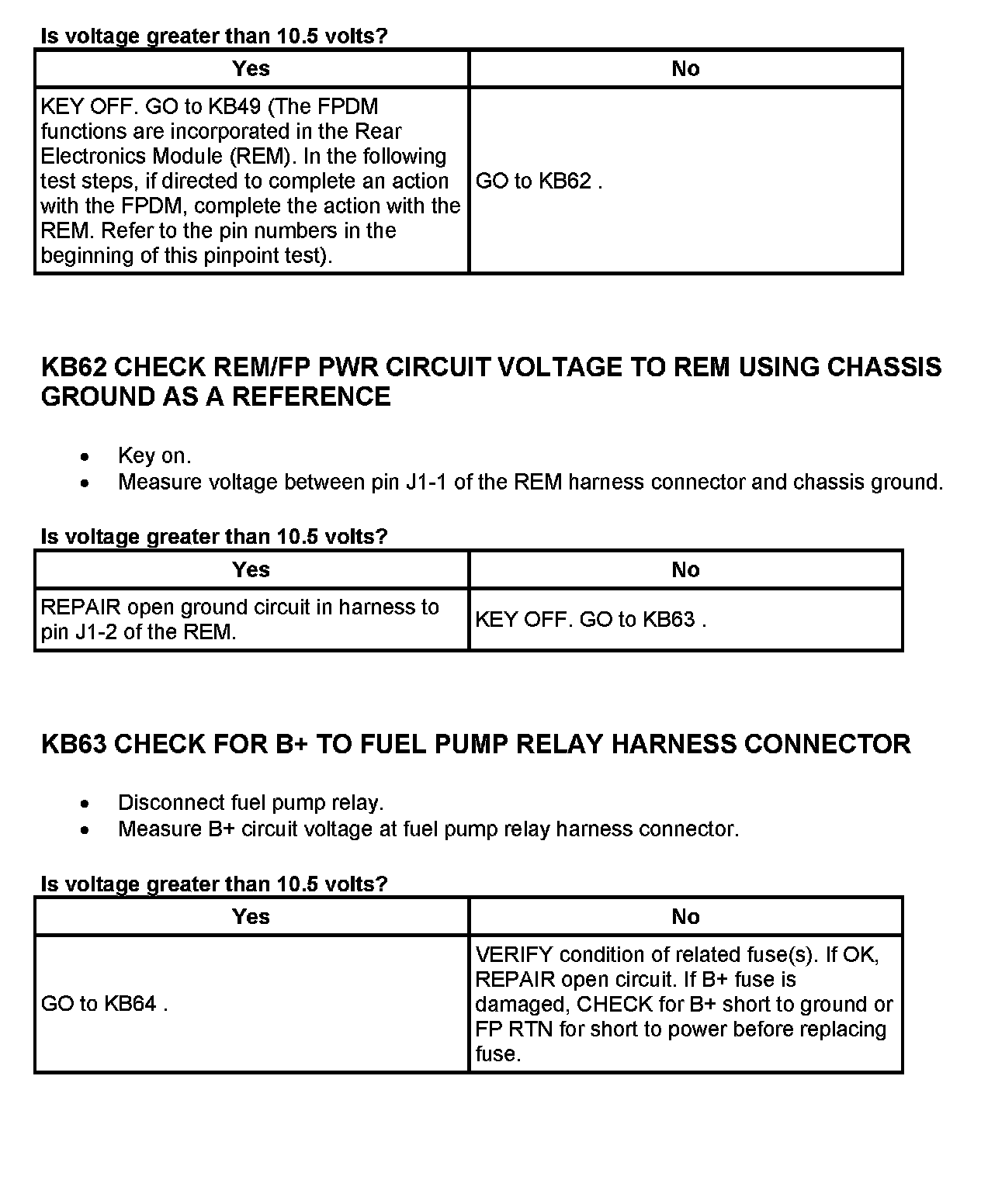

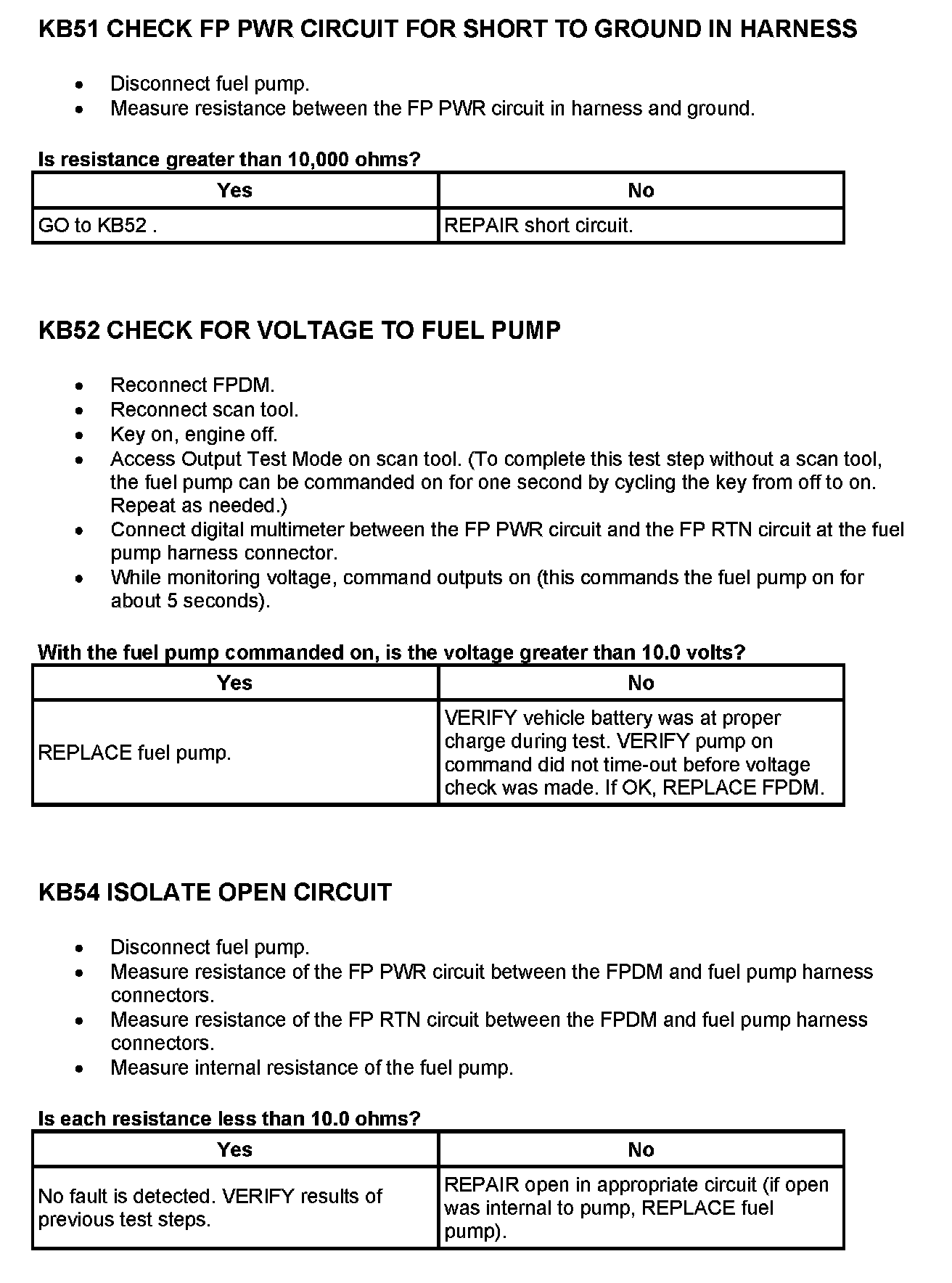

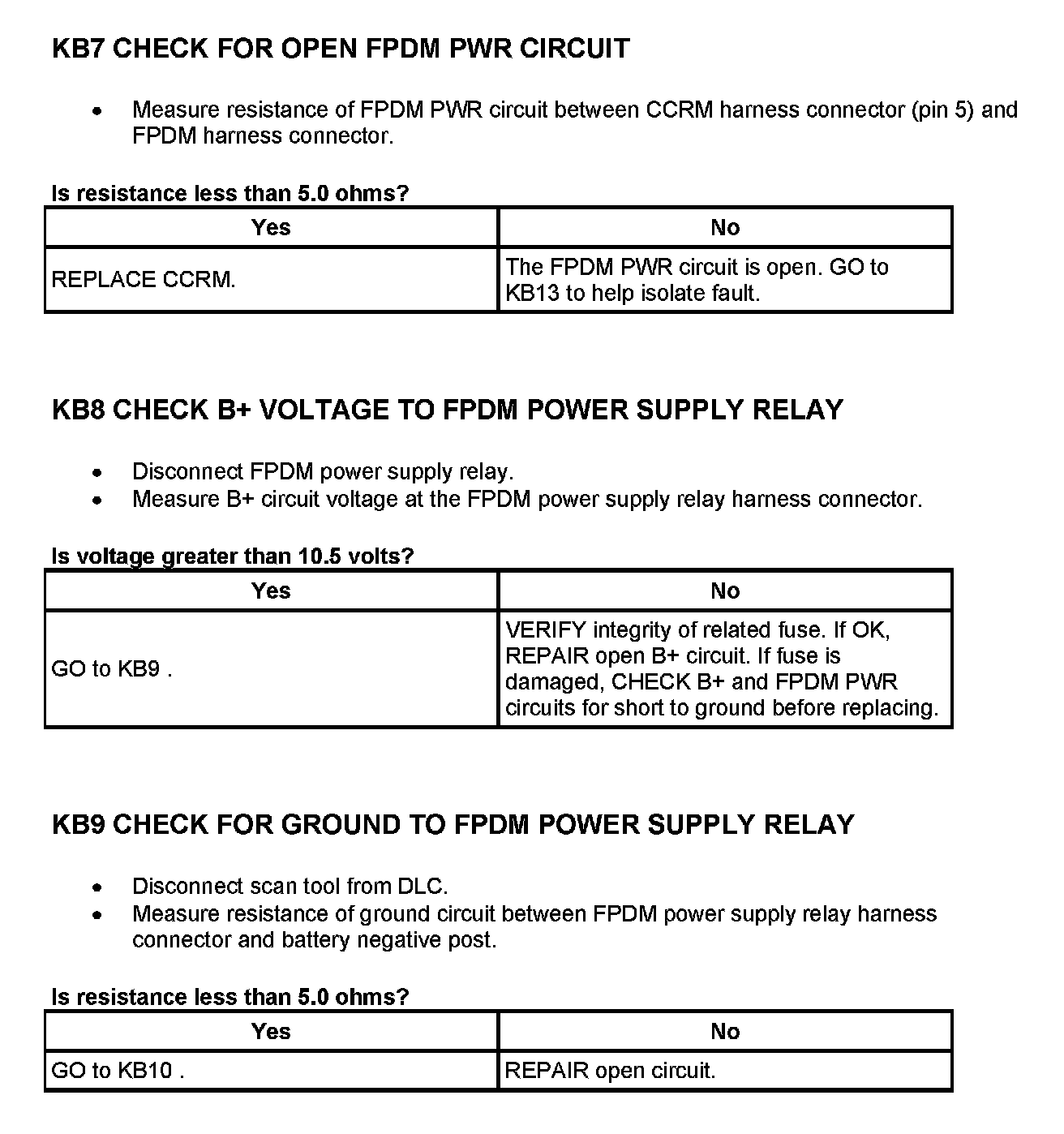

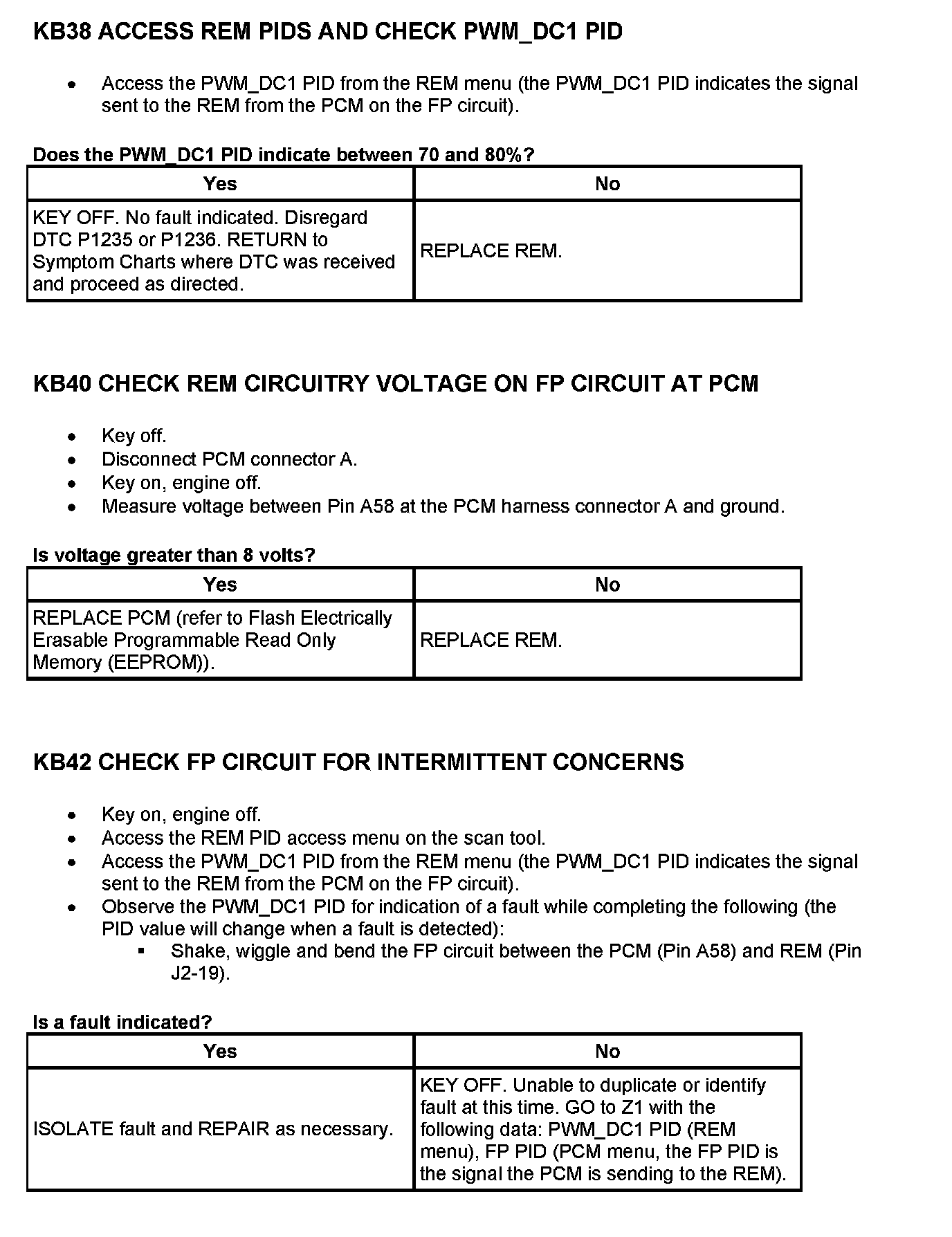

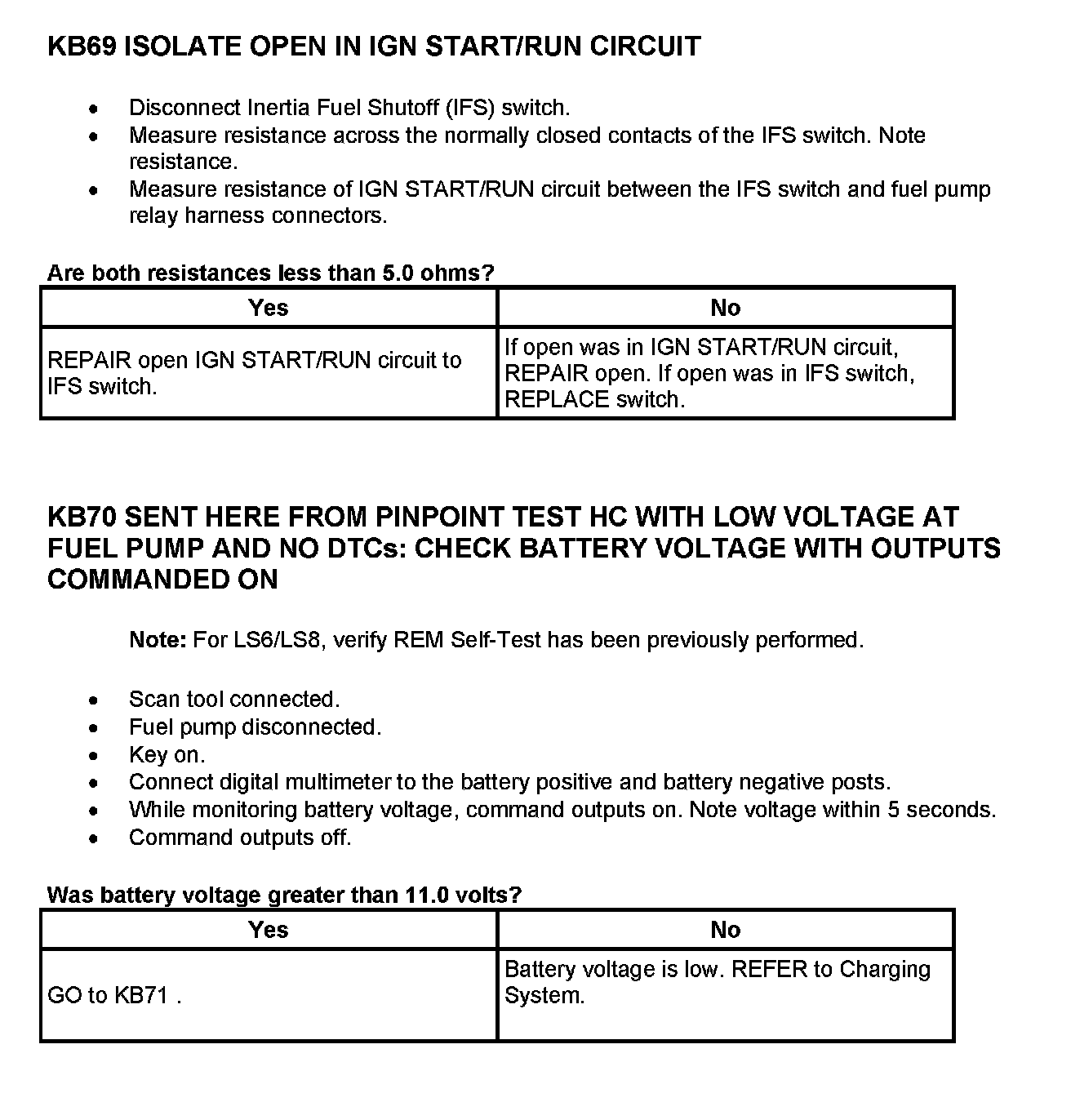

Pinpoint Tests
