2000 Ford Excursion 2WD V10-6.8L VIN SFACTORY OEM SERVICE PROCEDURE
Test X: Constant Control Relay Module (CCRM)
NOTE
This Pinpoint Test is intended to diagnose the following:
- Constant Control Relay Module (CCRM)
- Harness Circuits: B+, FC, LFC, HFC, ACCS, WAC, VPWR (TO CCRM), A/C Clutch PWR, (Low/High) Fan PWR,GND
- Powertrain Control Module (PCM)

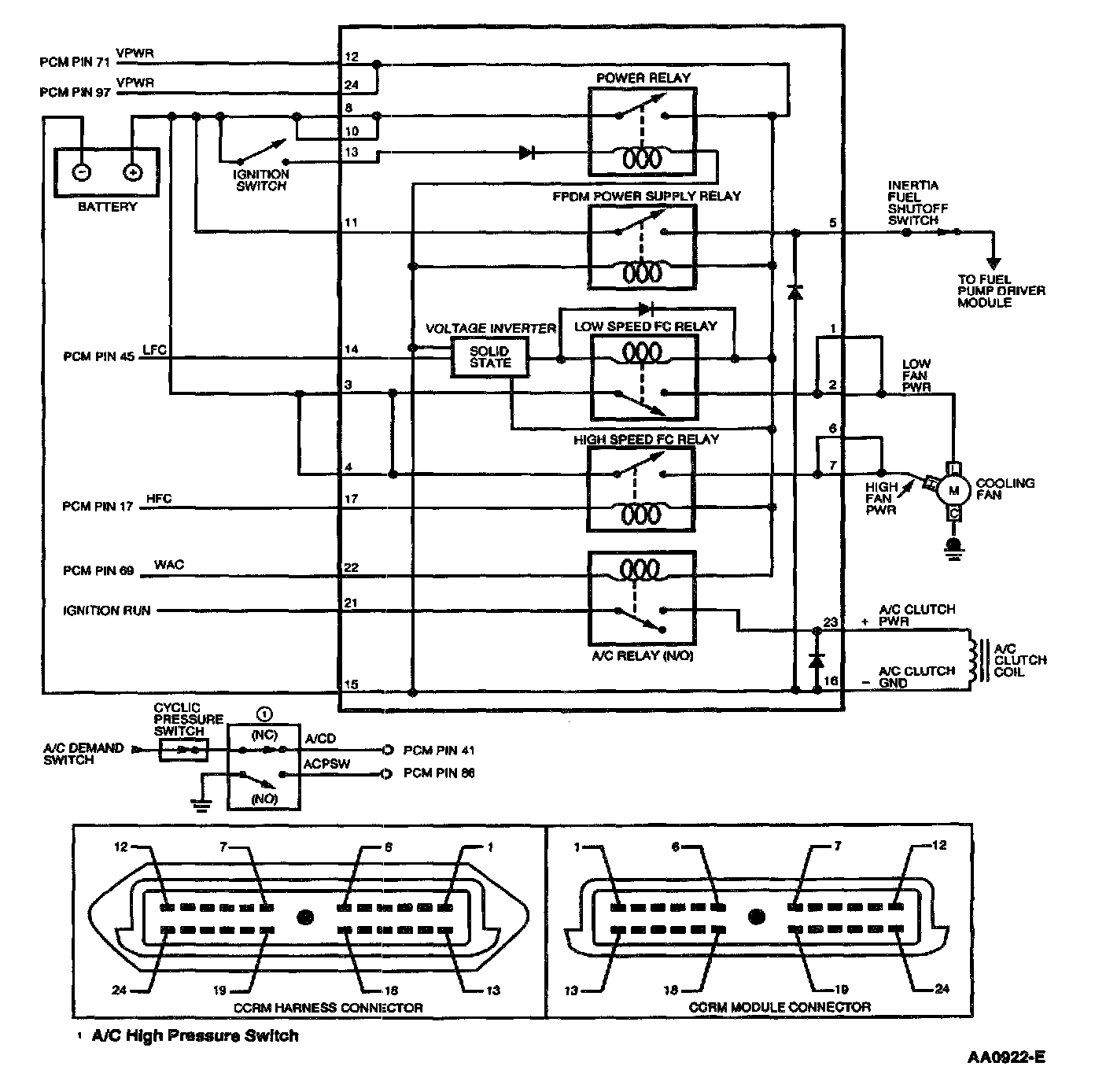

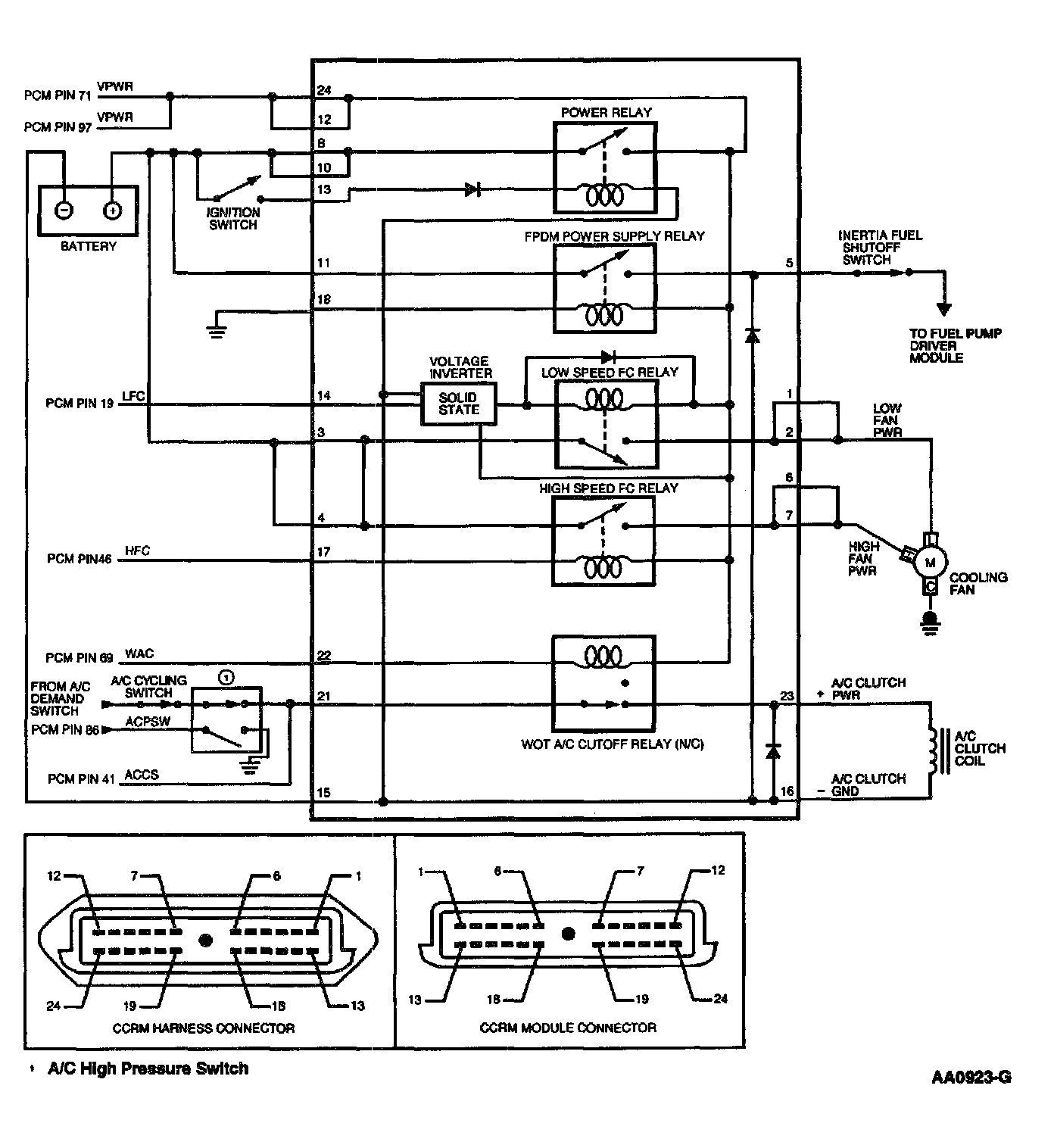

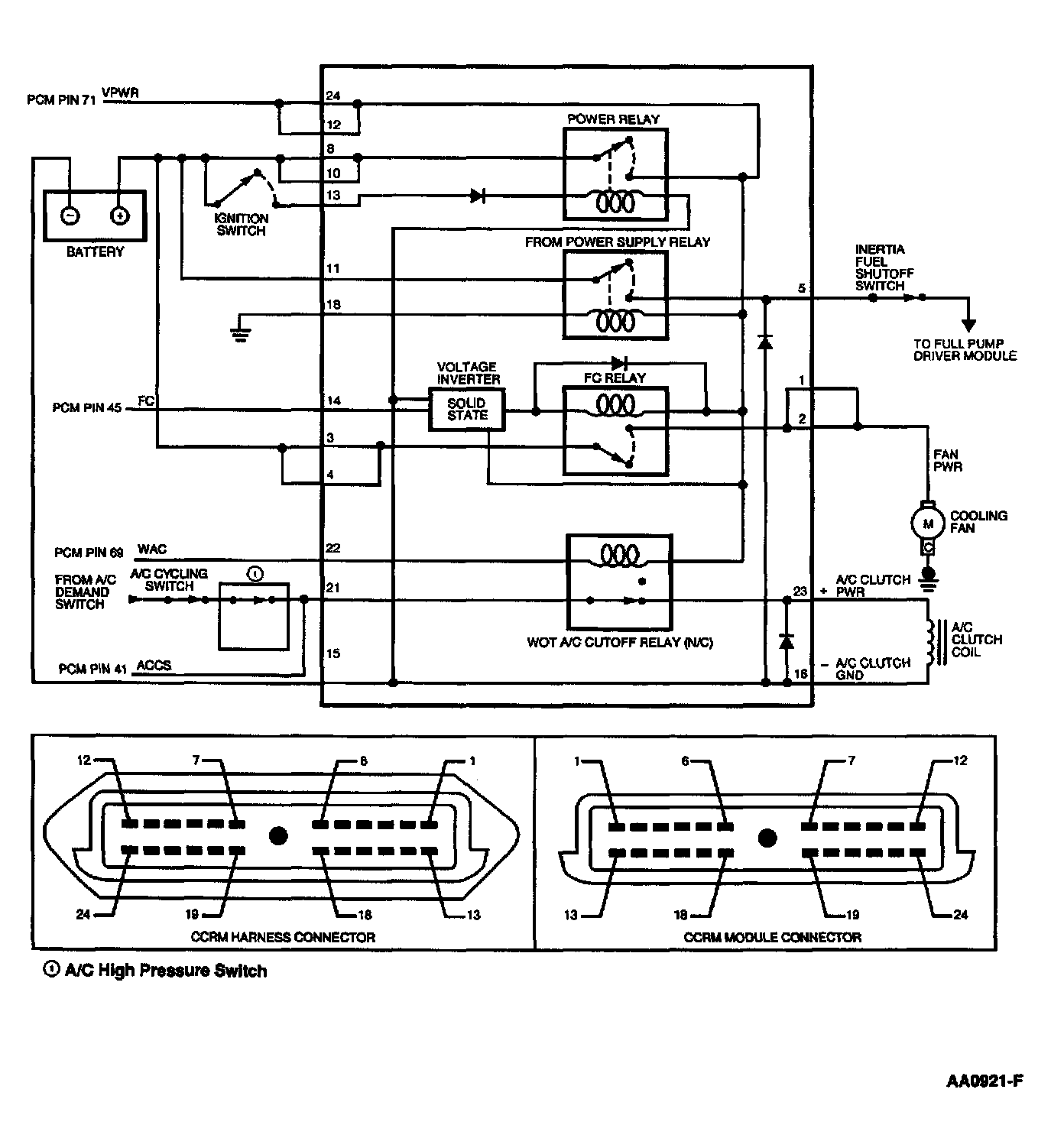

Pinpoint Test Schematics and Connectors
Escort (CCRM System):
3.8L Mustang (CCRM) System):
4.6L Mustang (CCRM System):

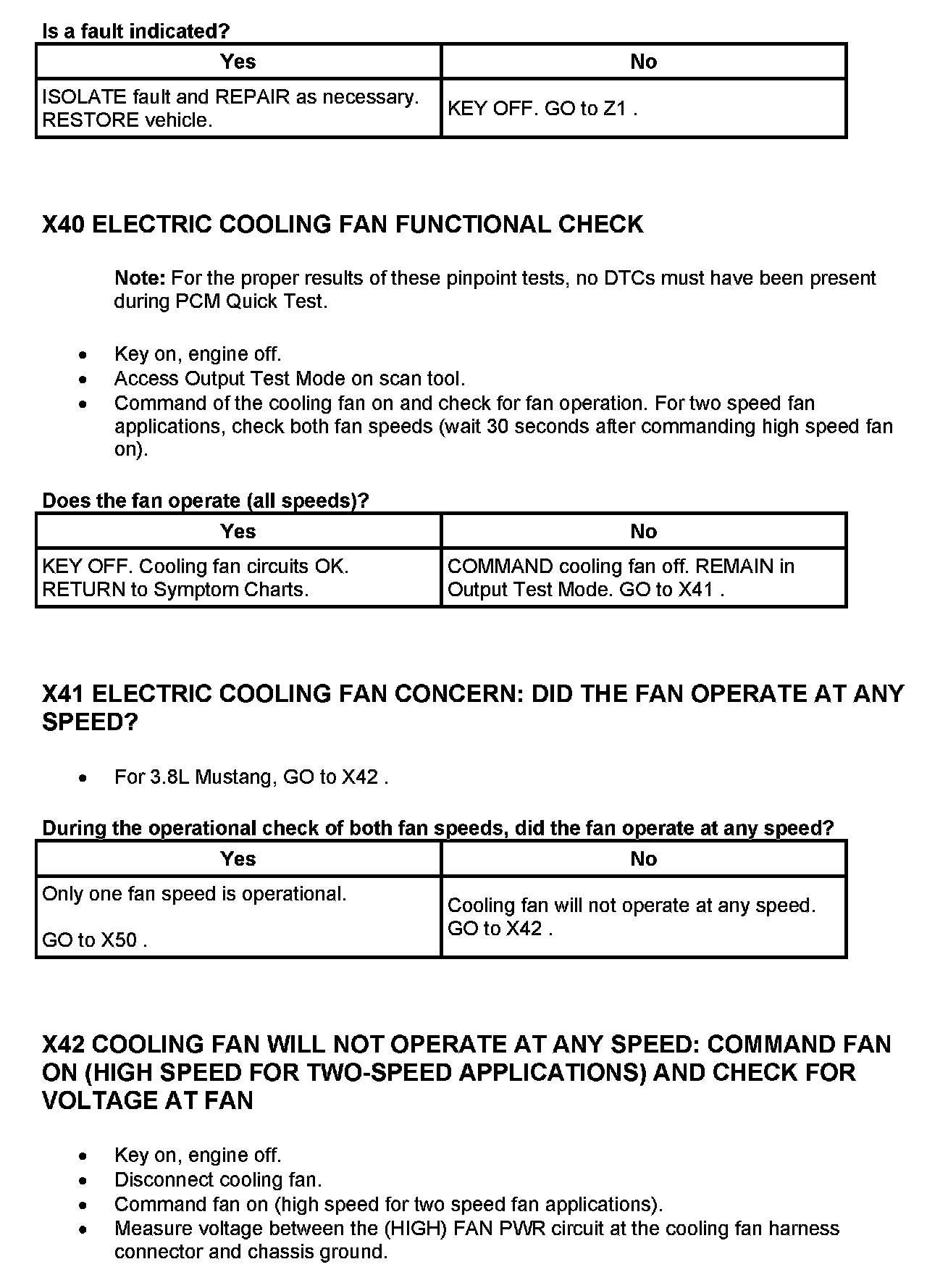

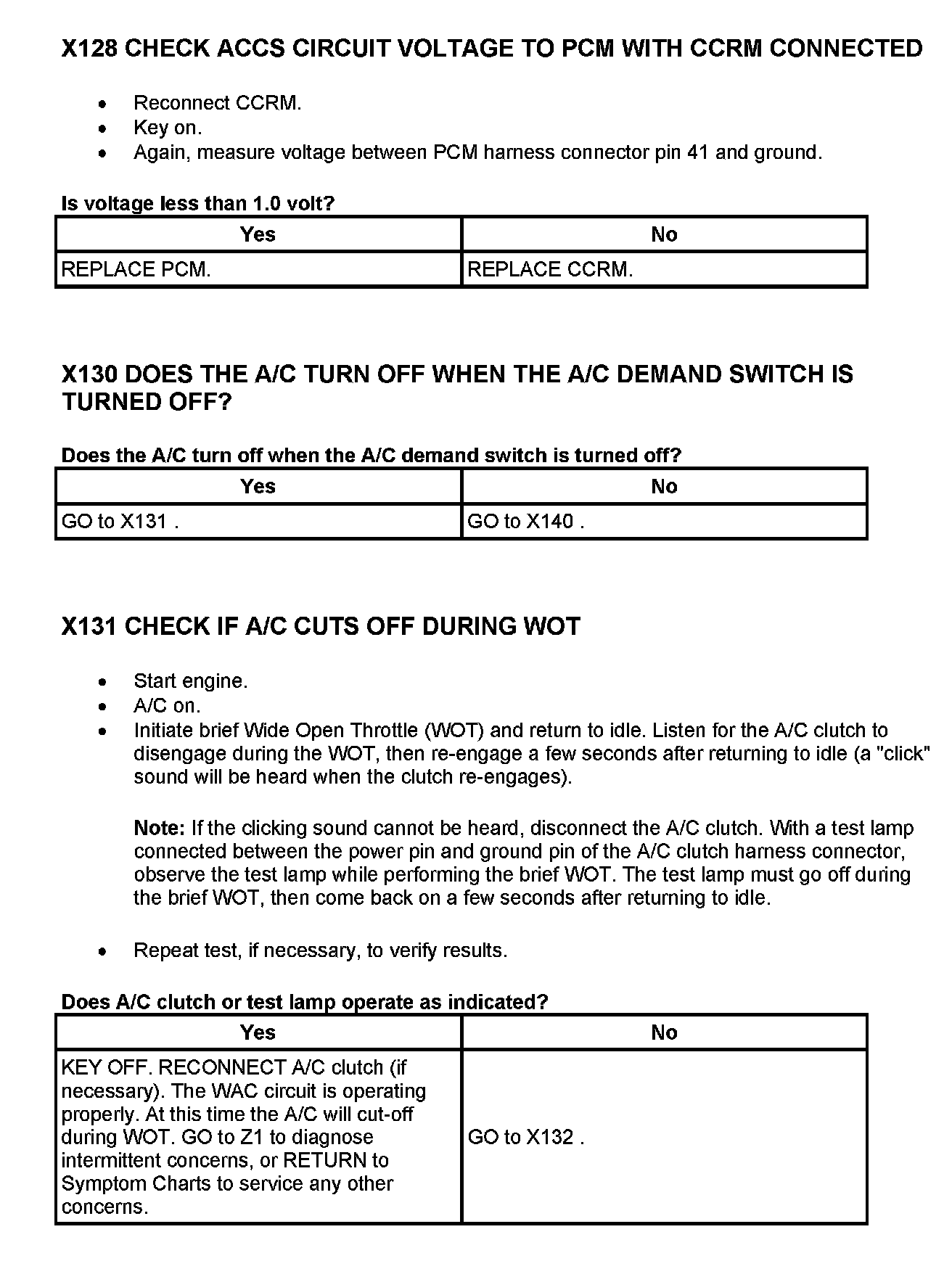

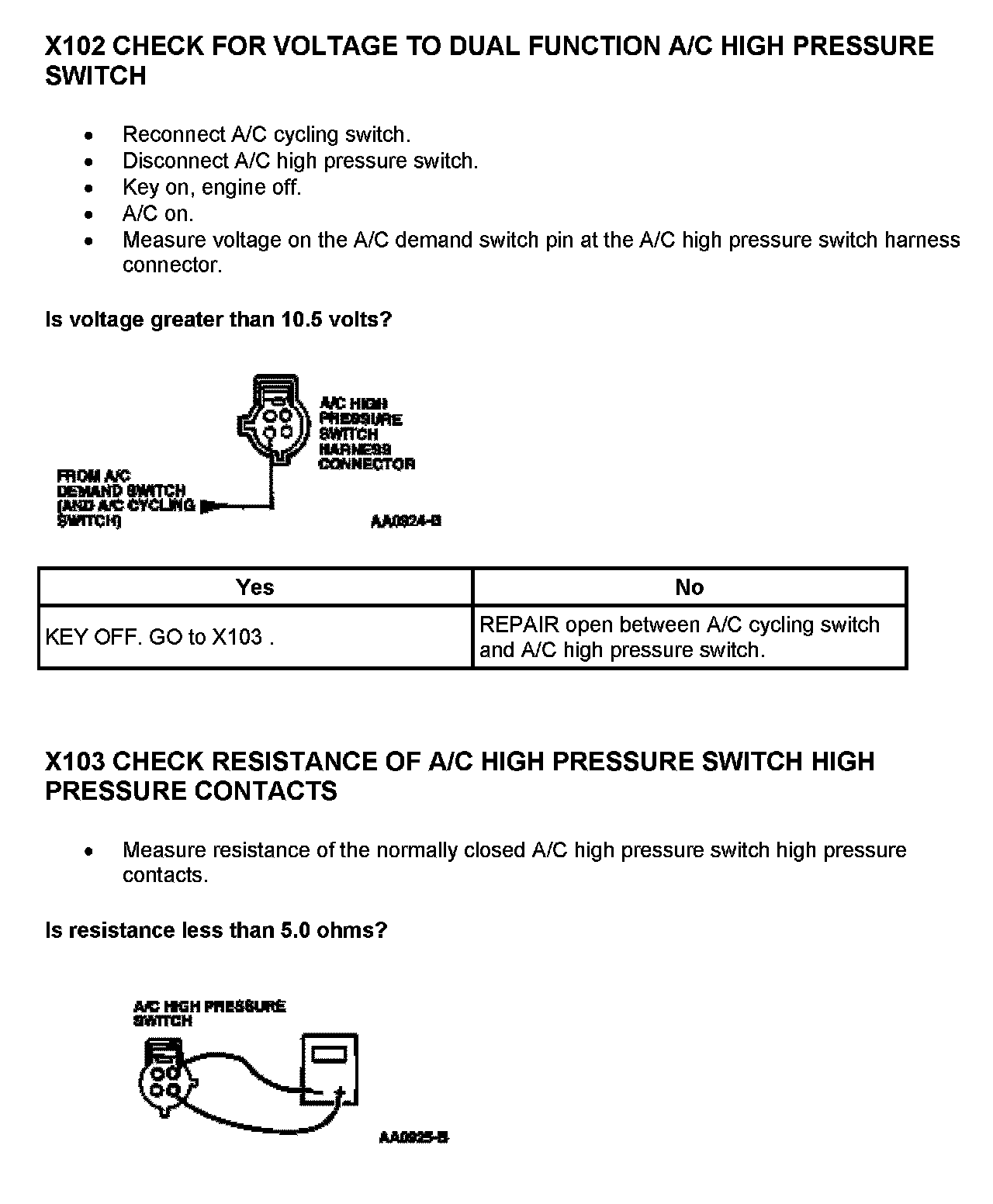

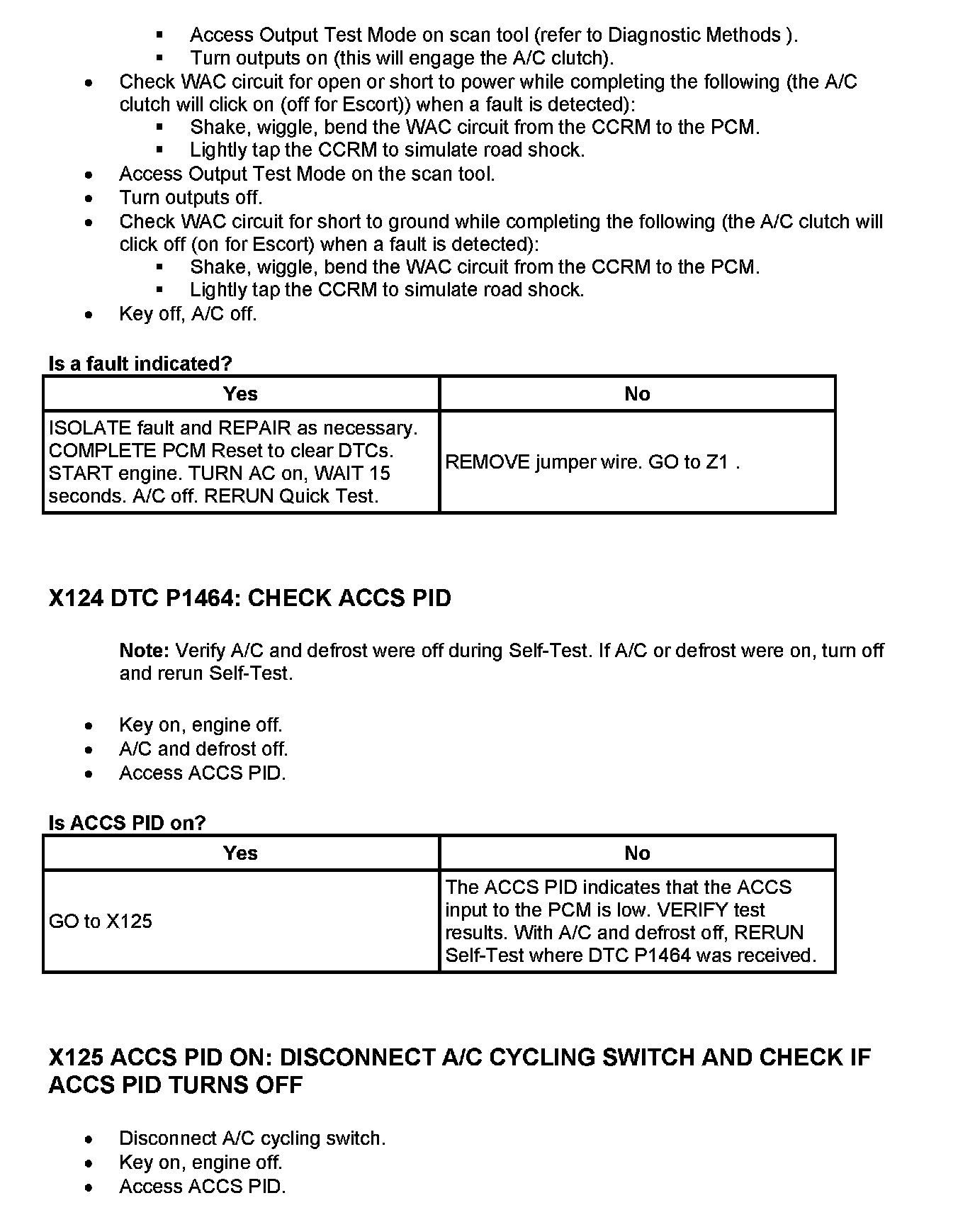

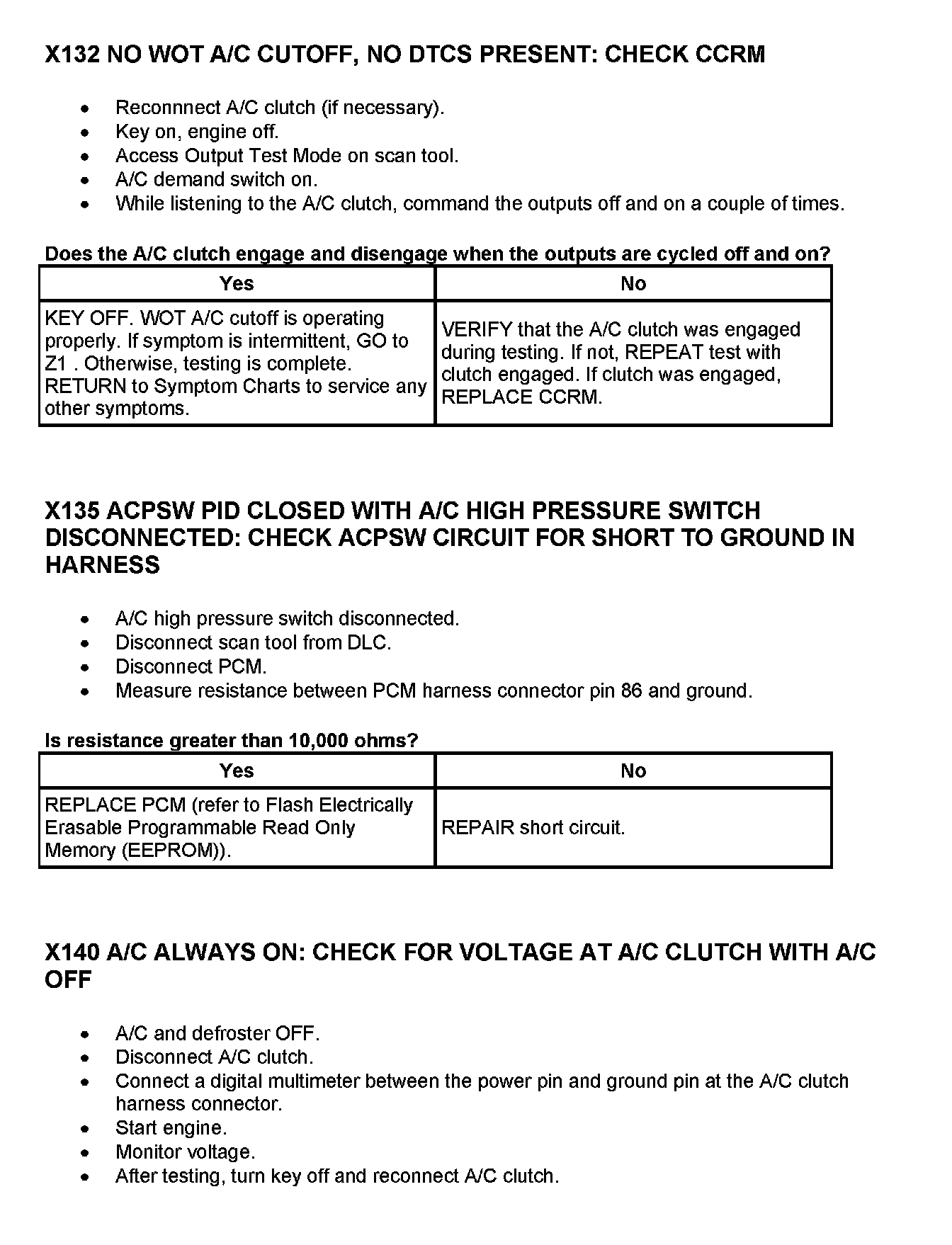

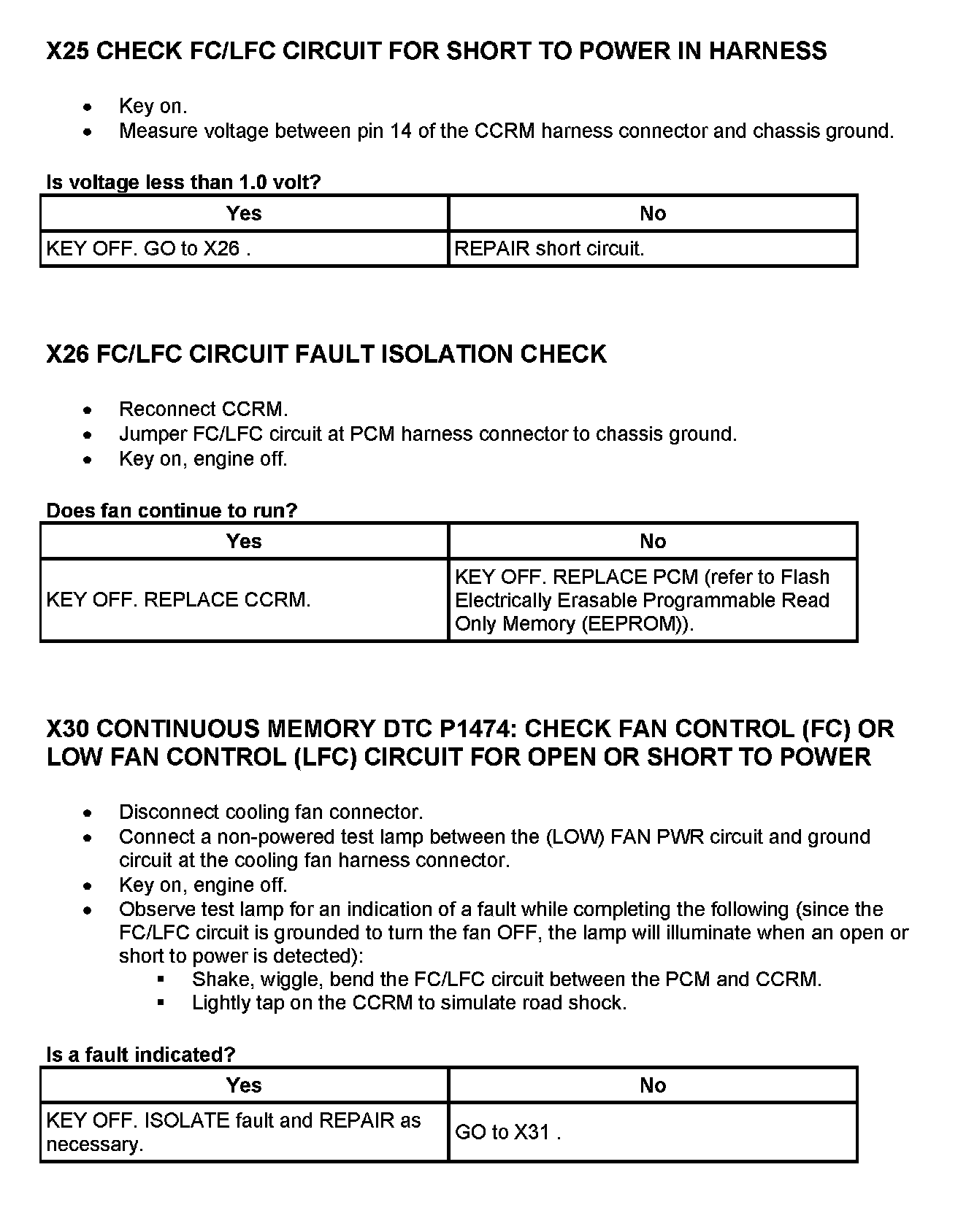

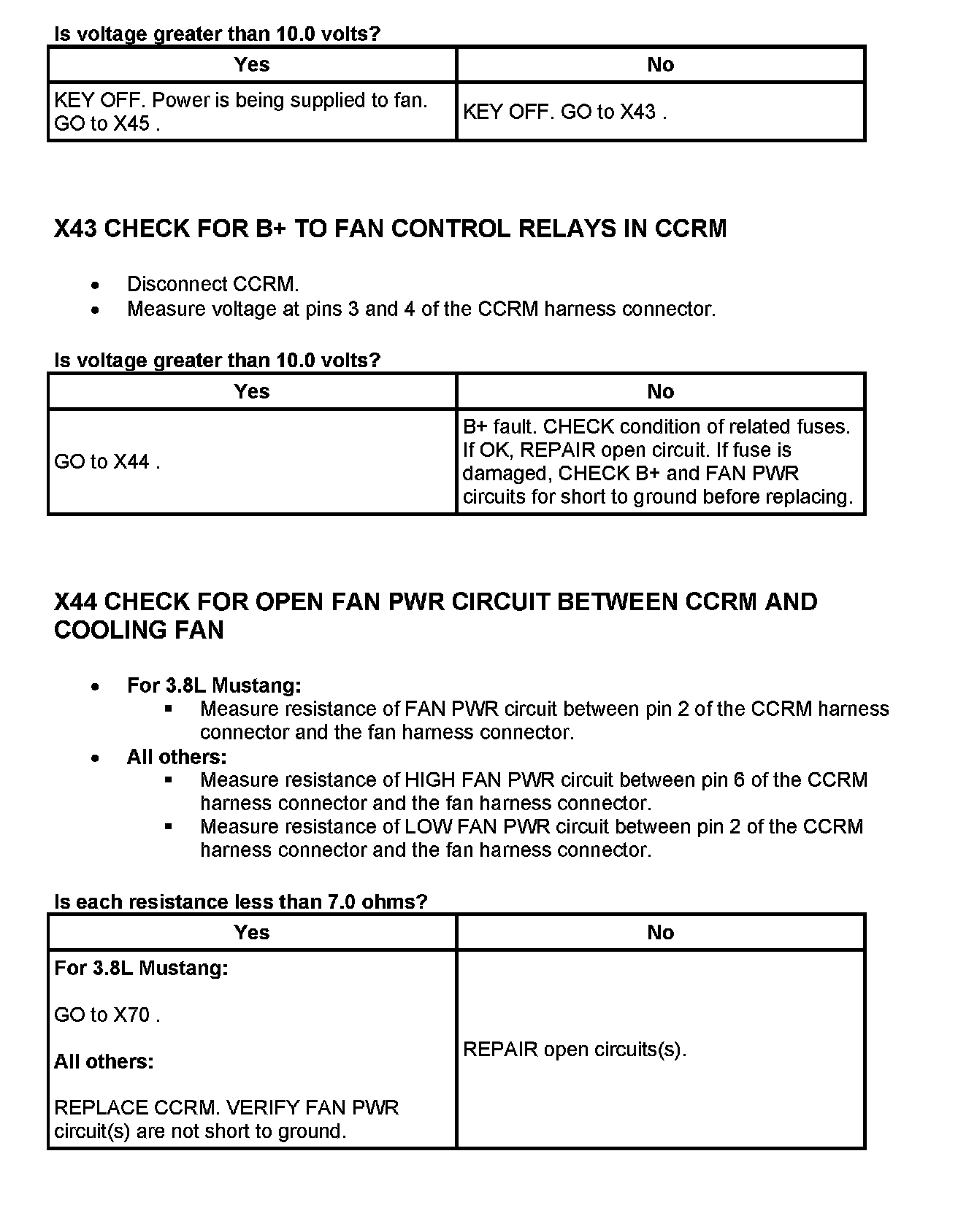

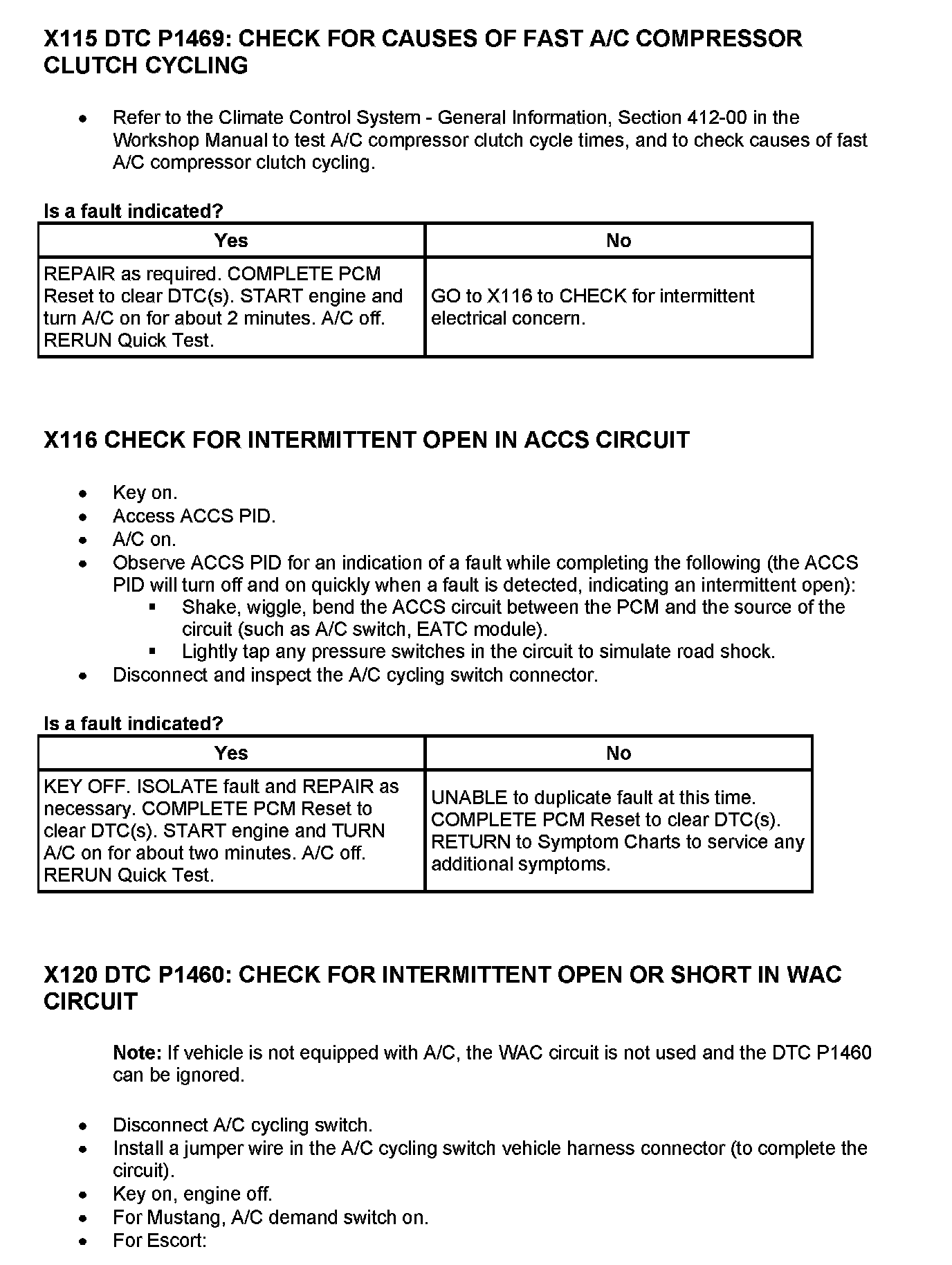

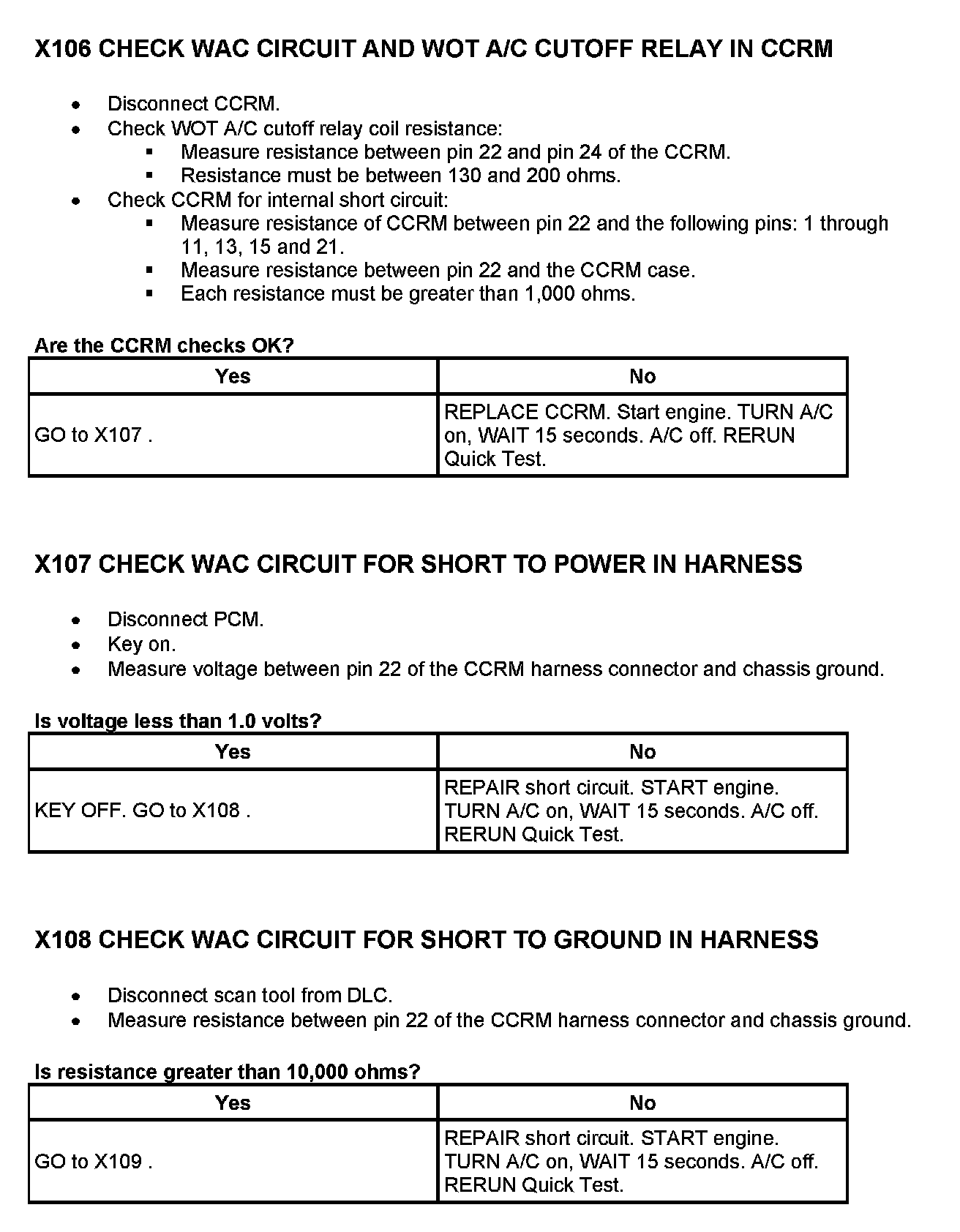

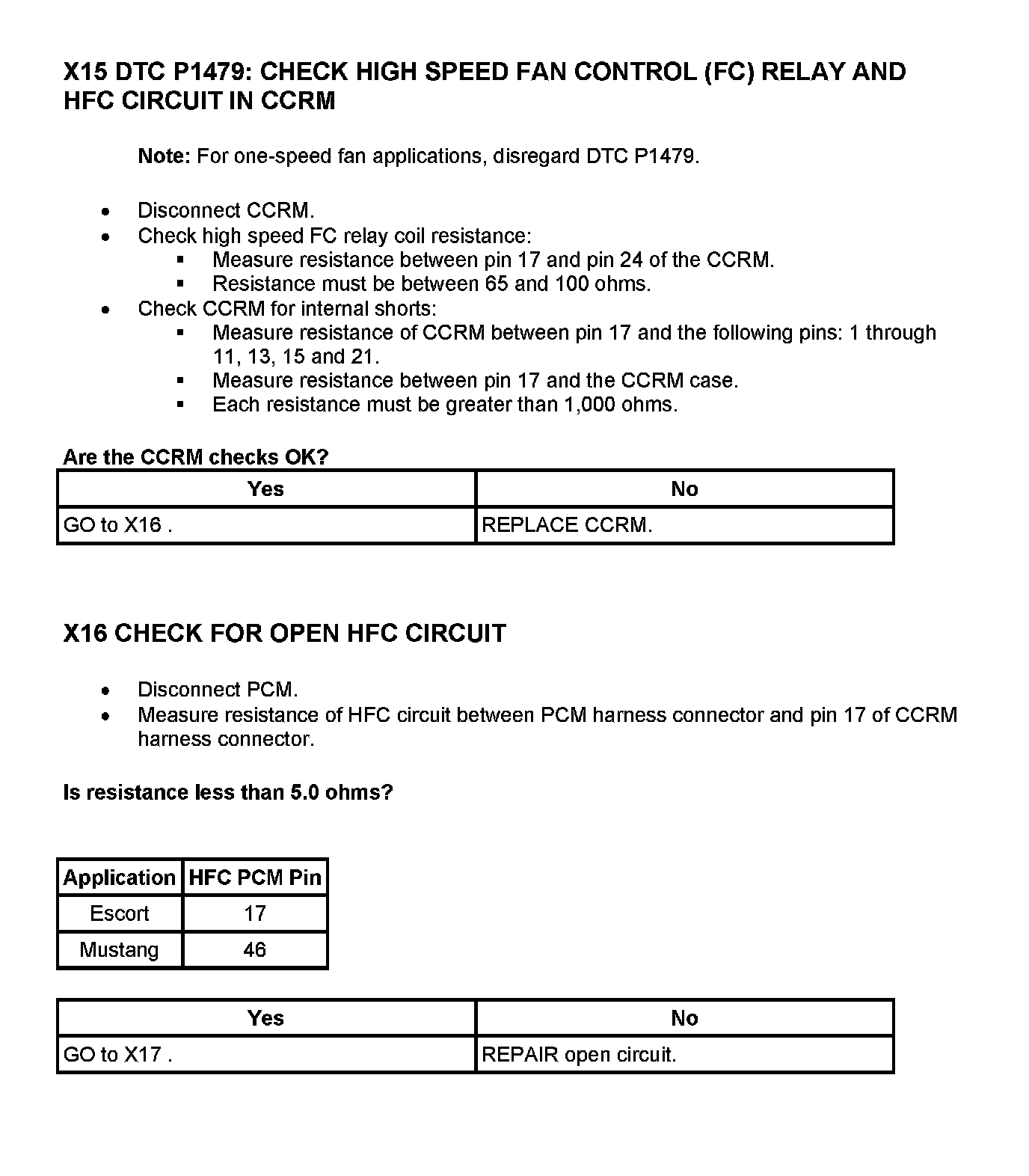

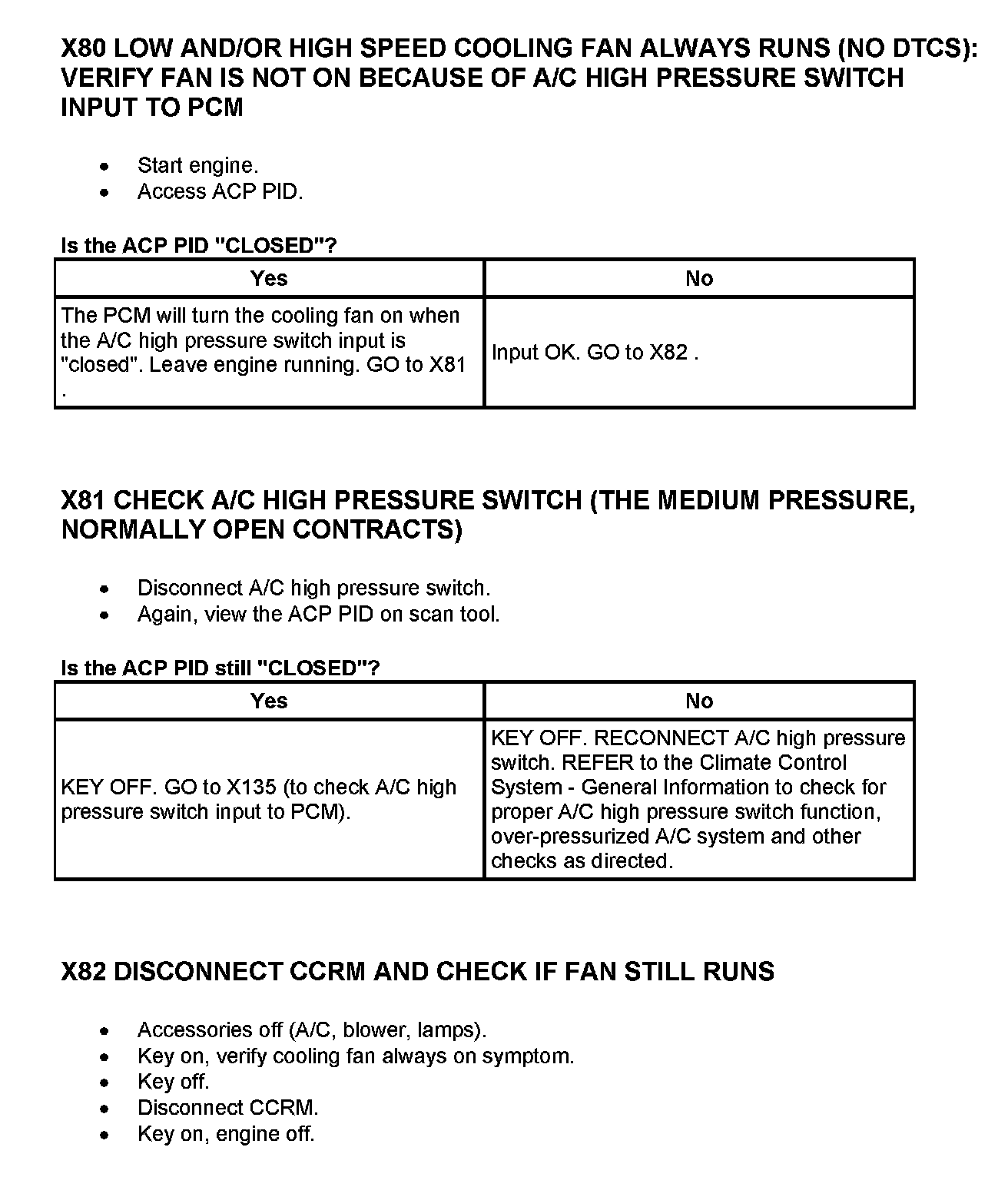

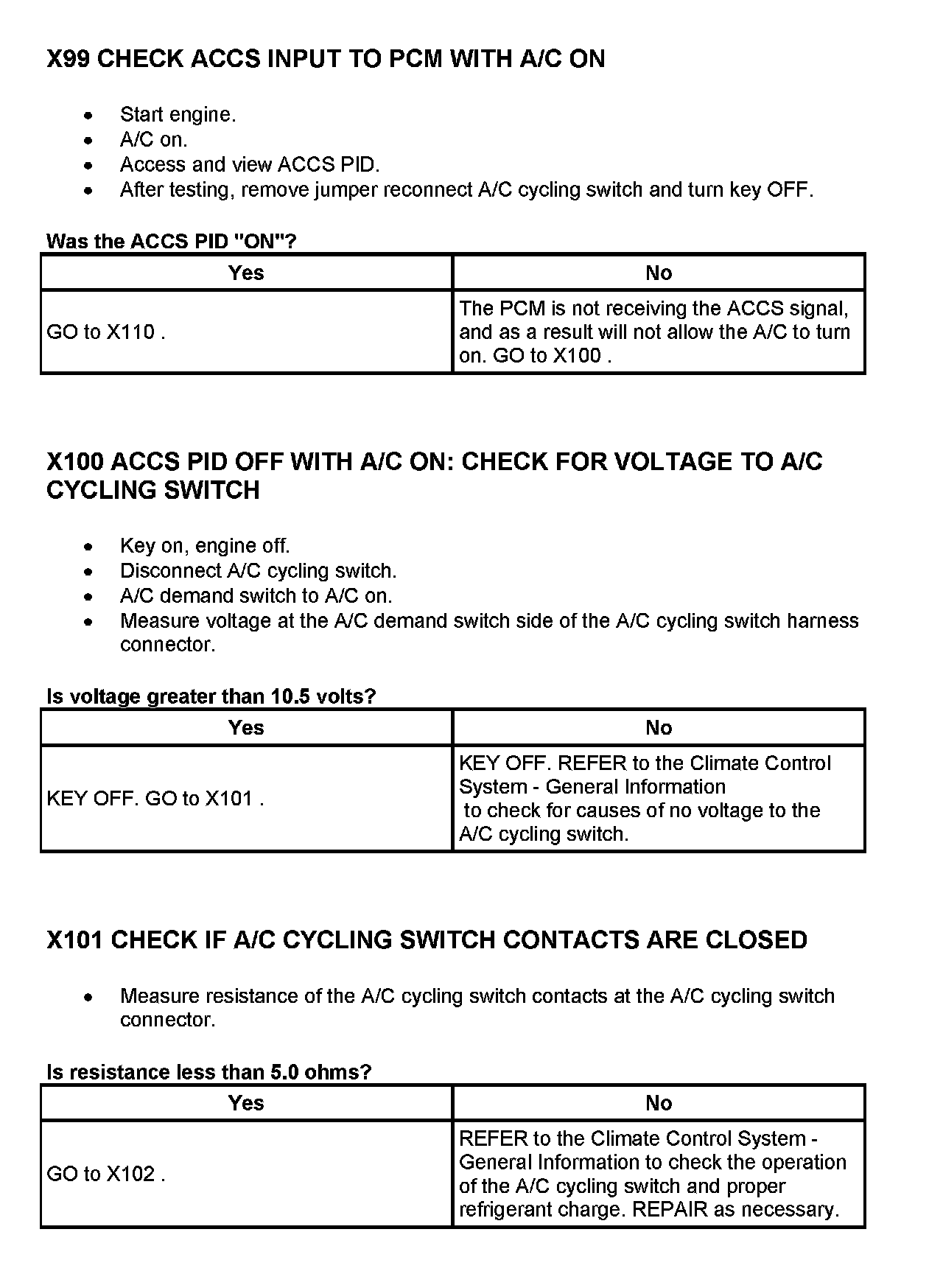

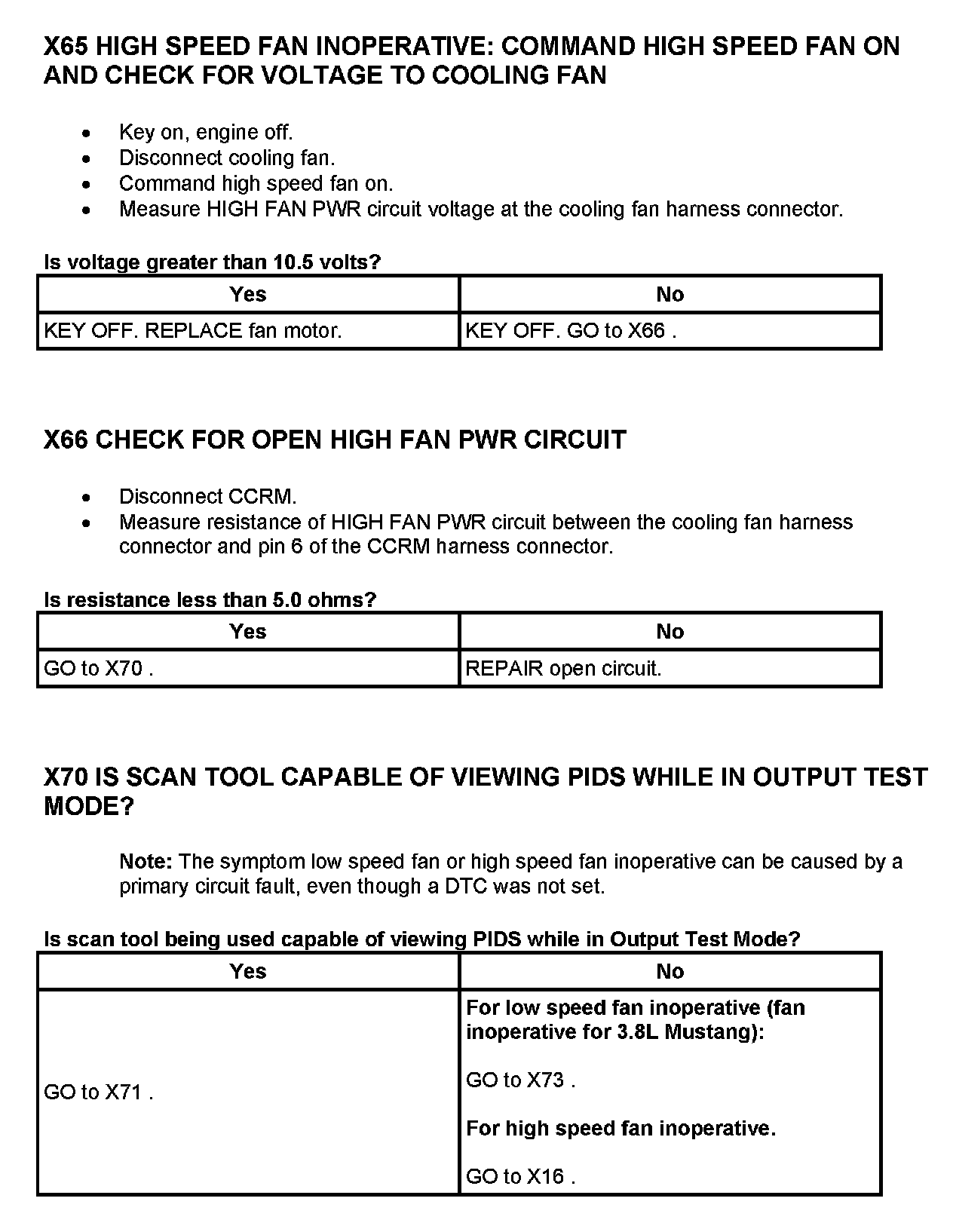

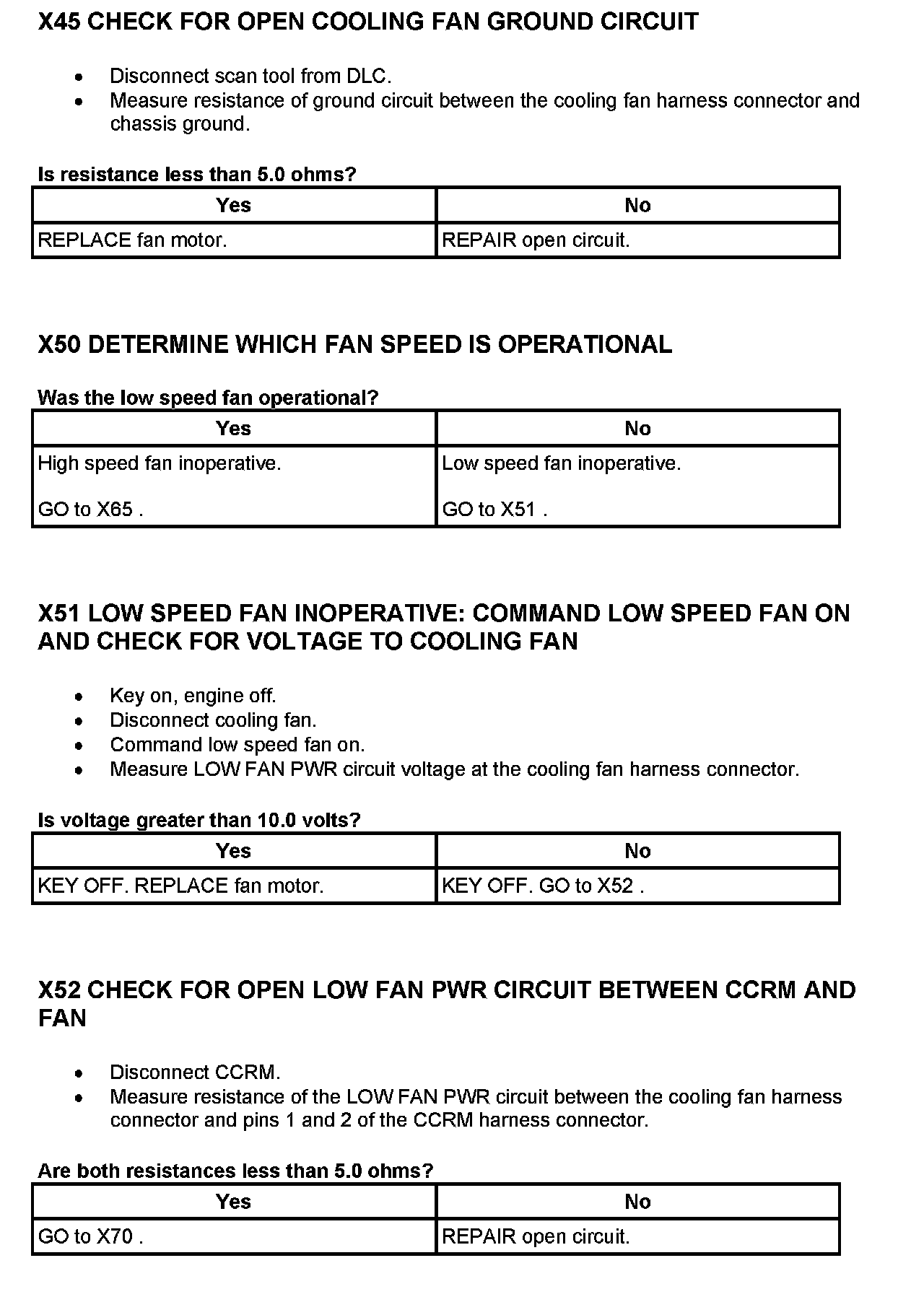

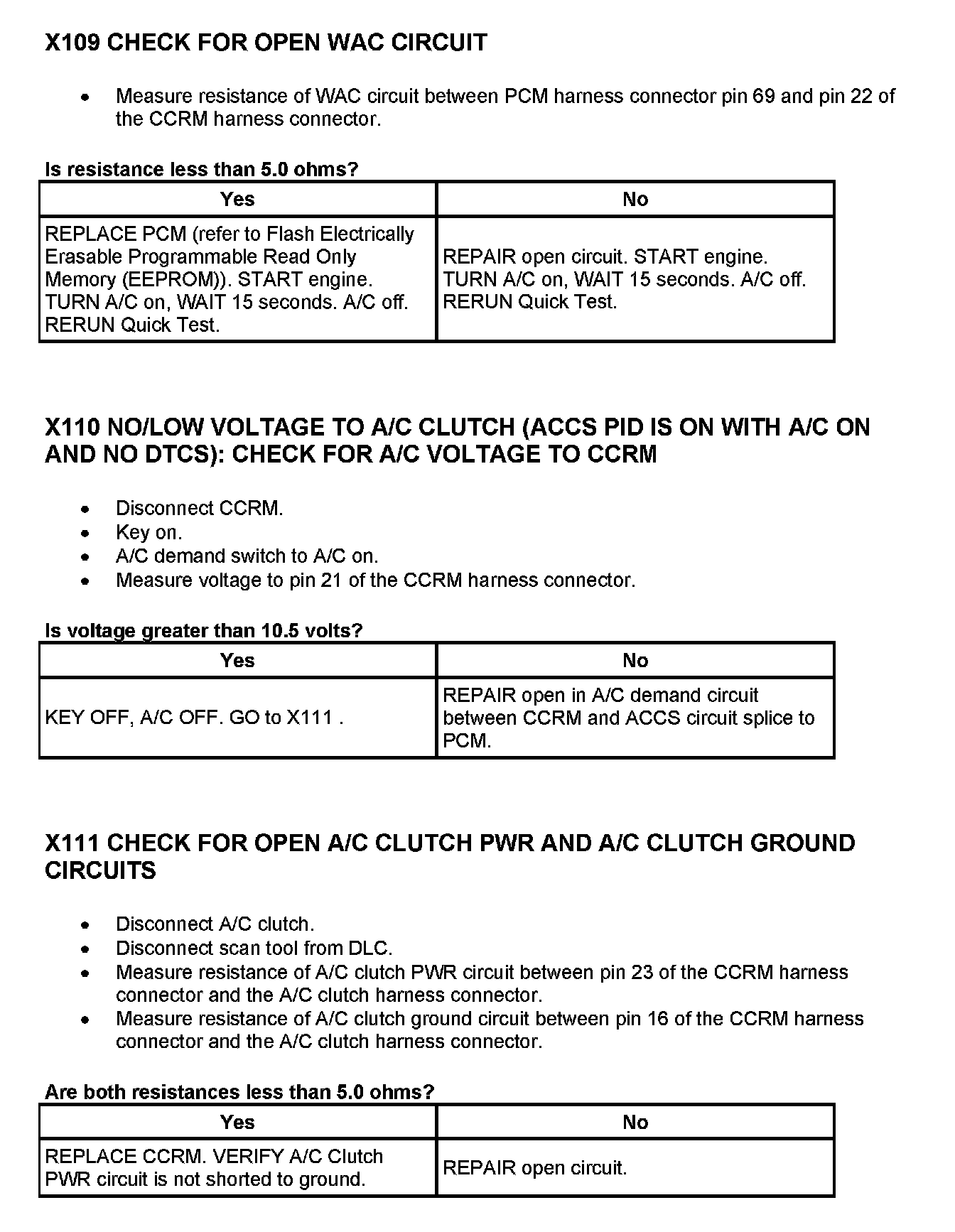

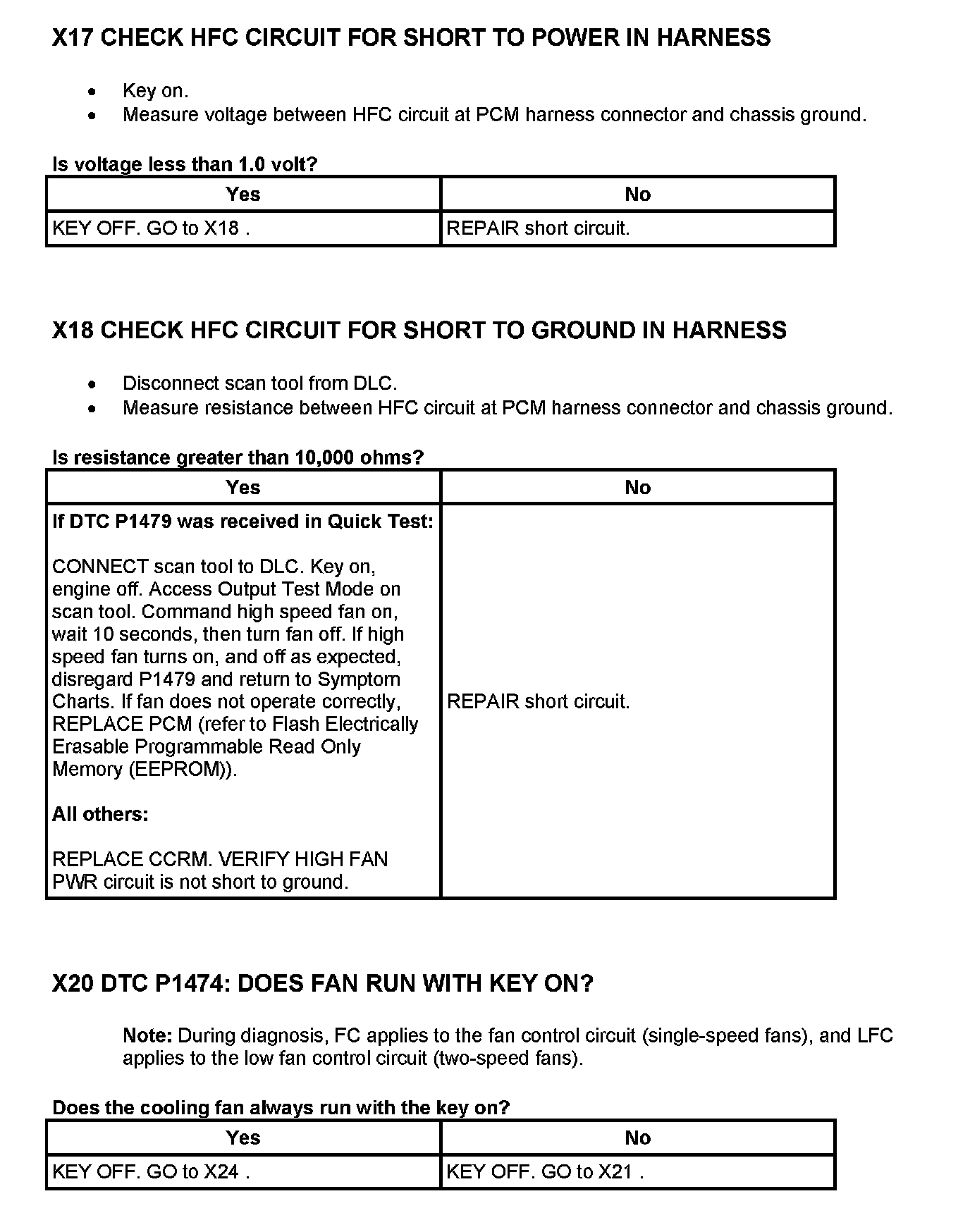

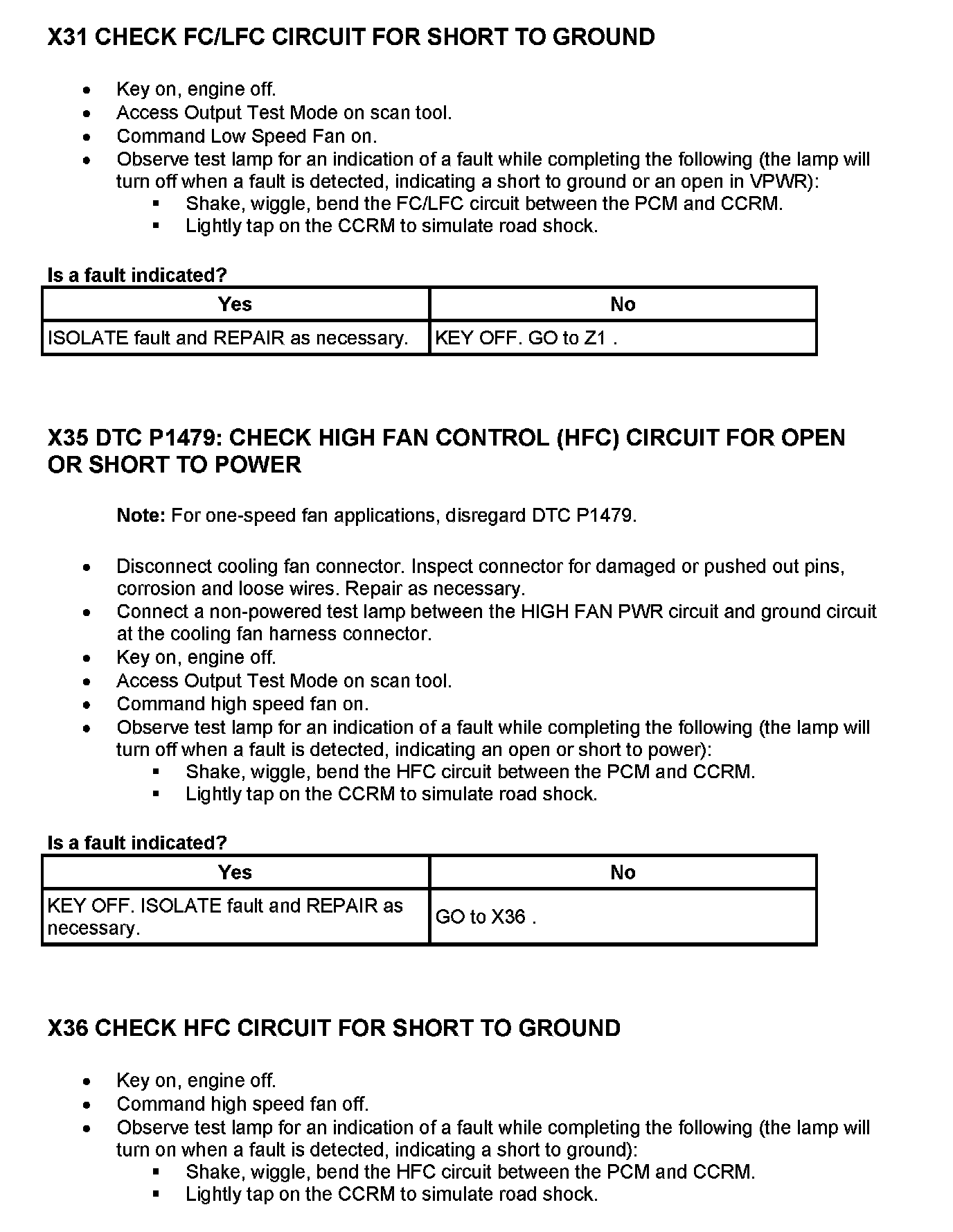

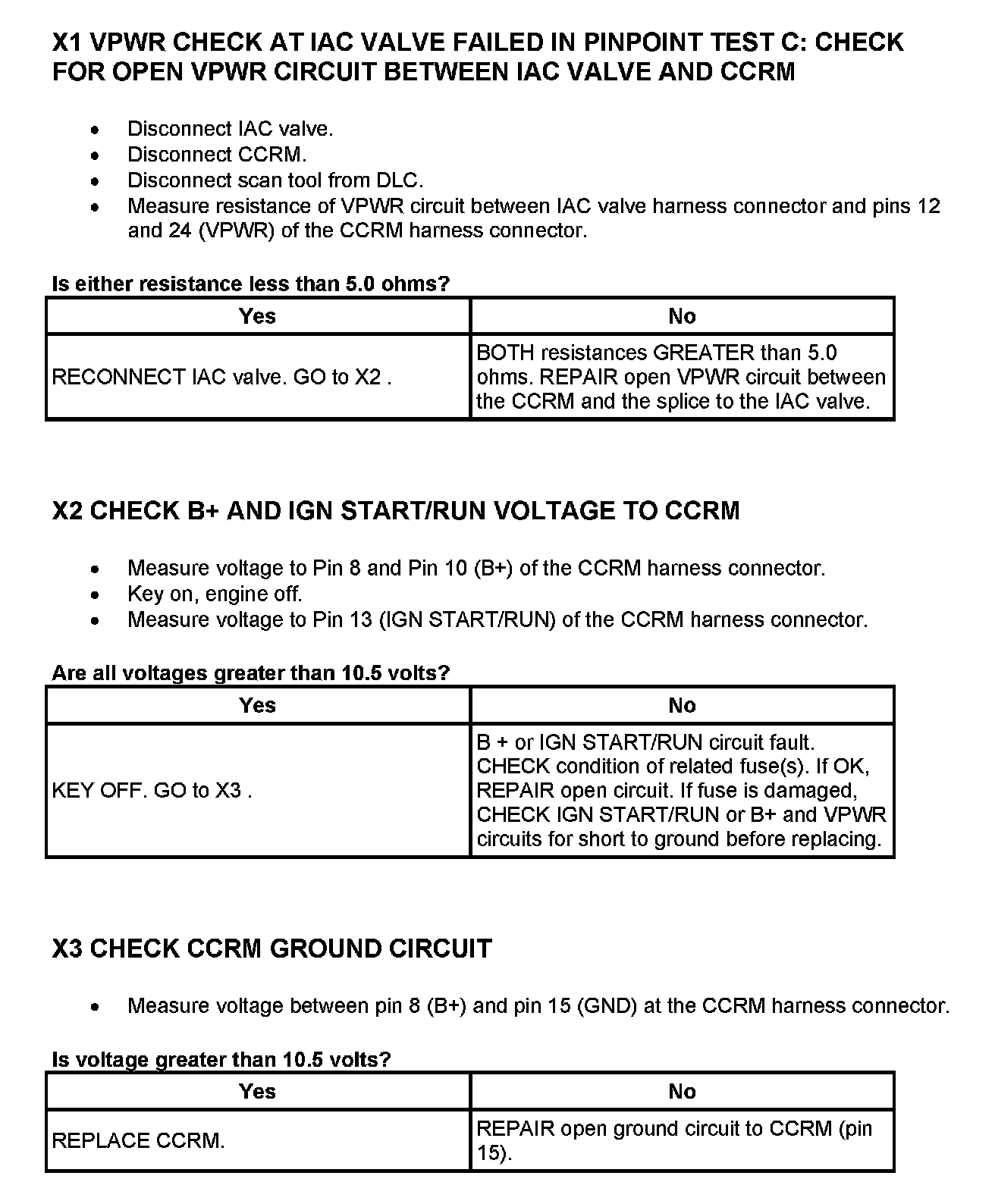

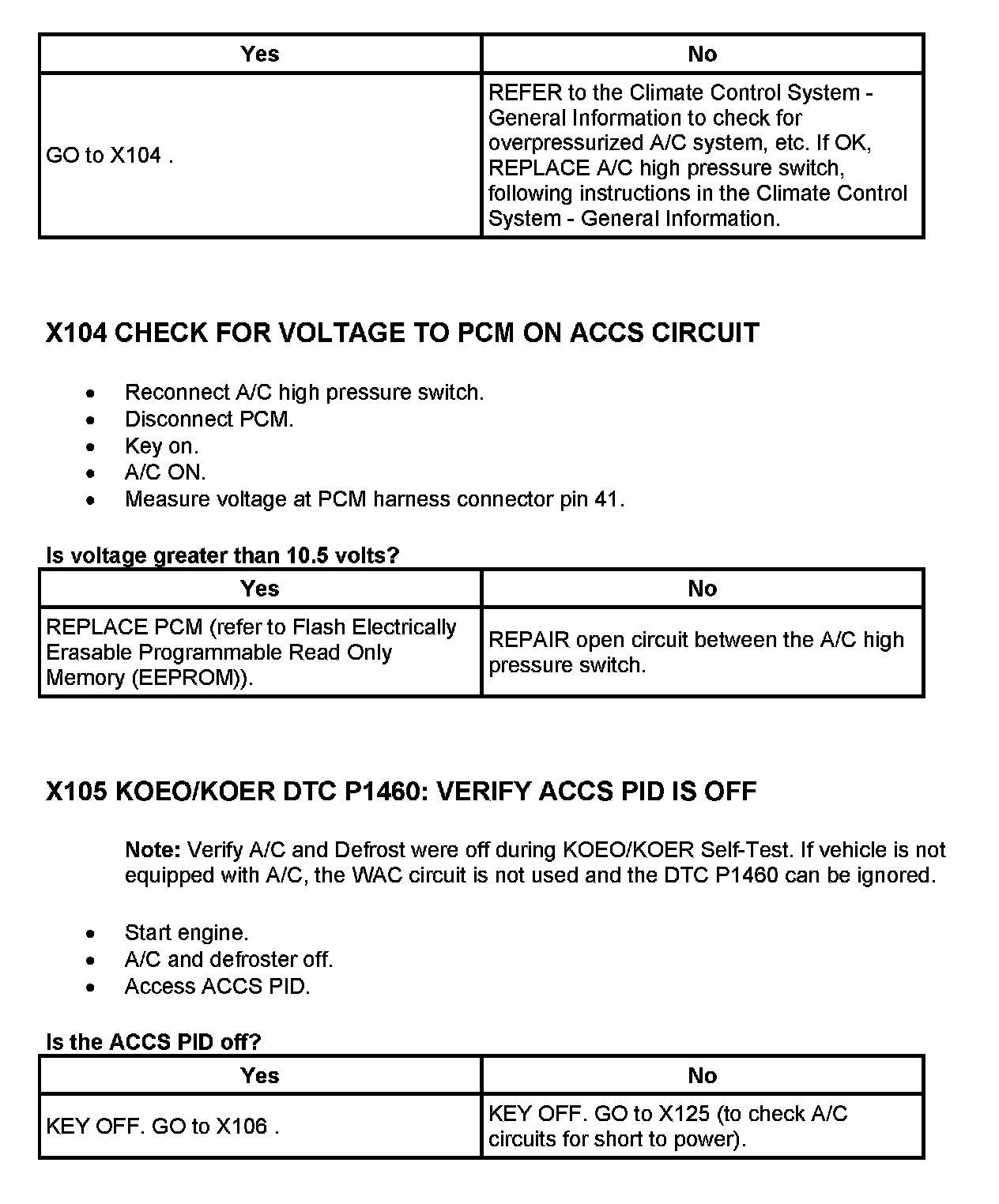

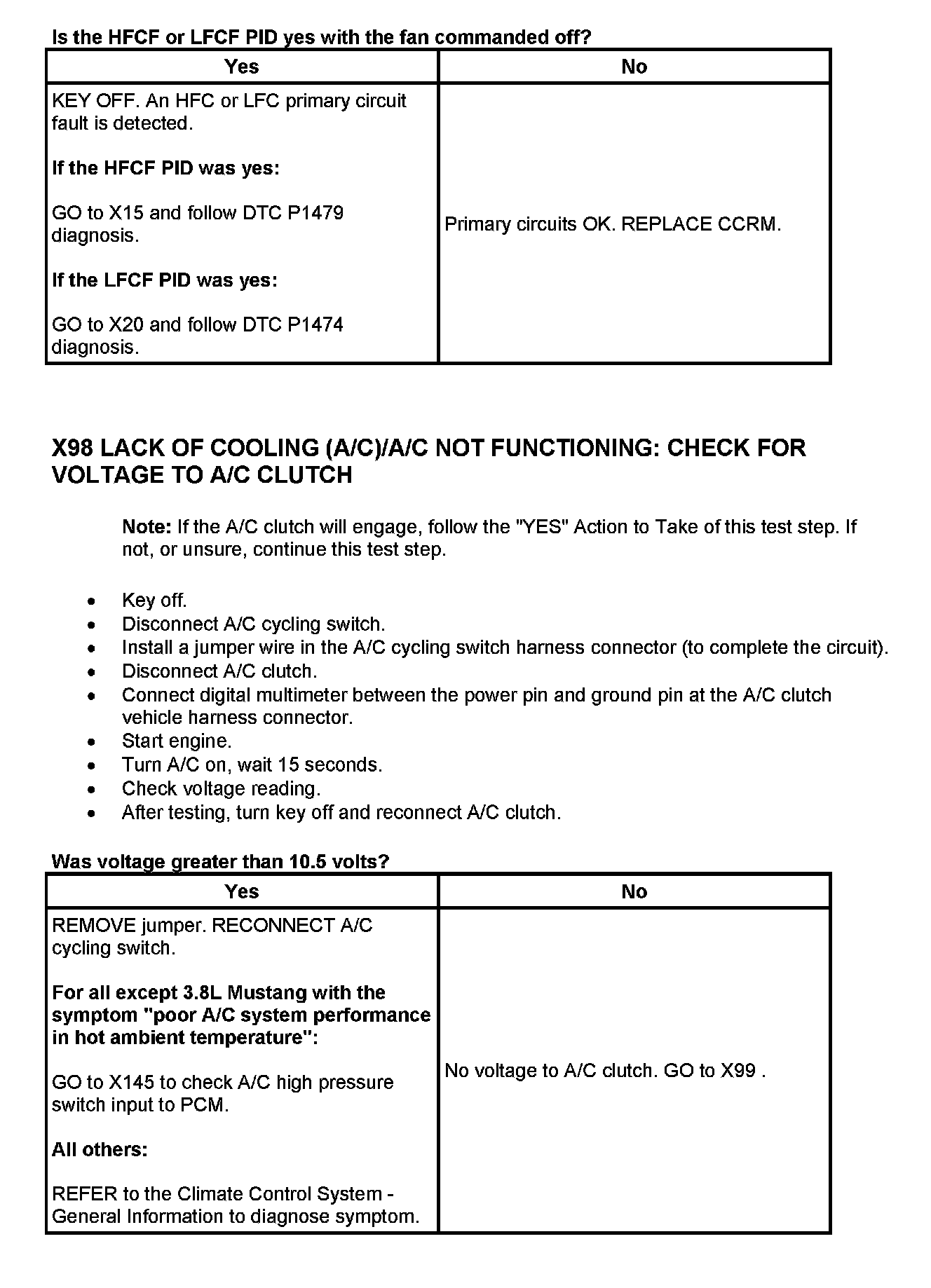

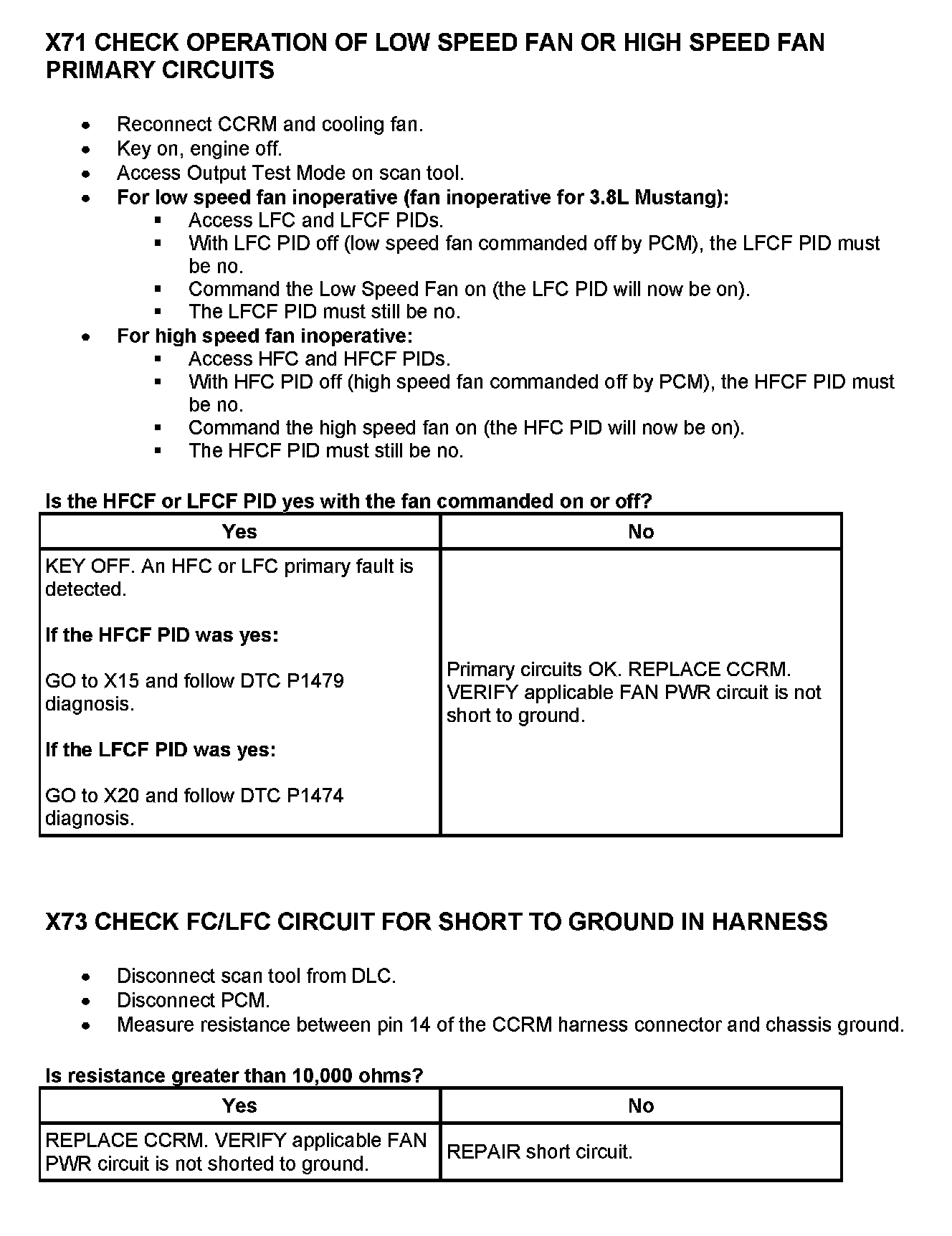

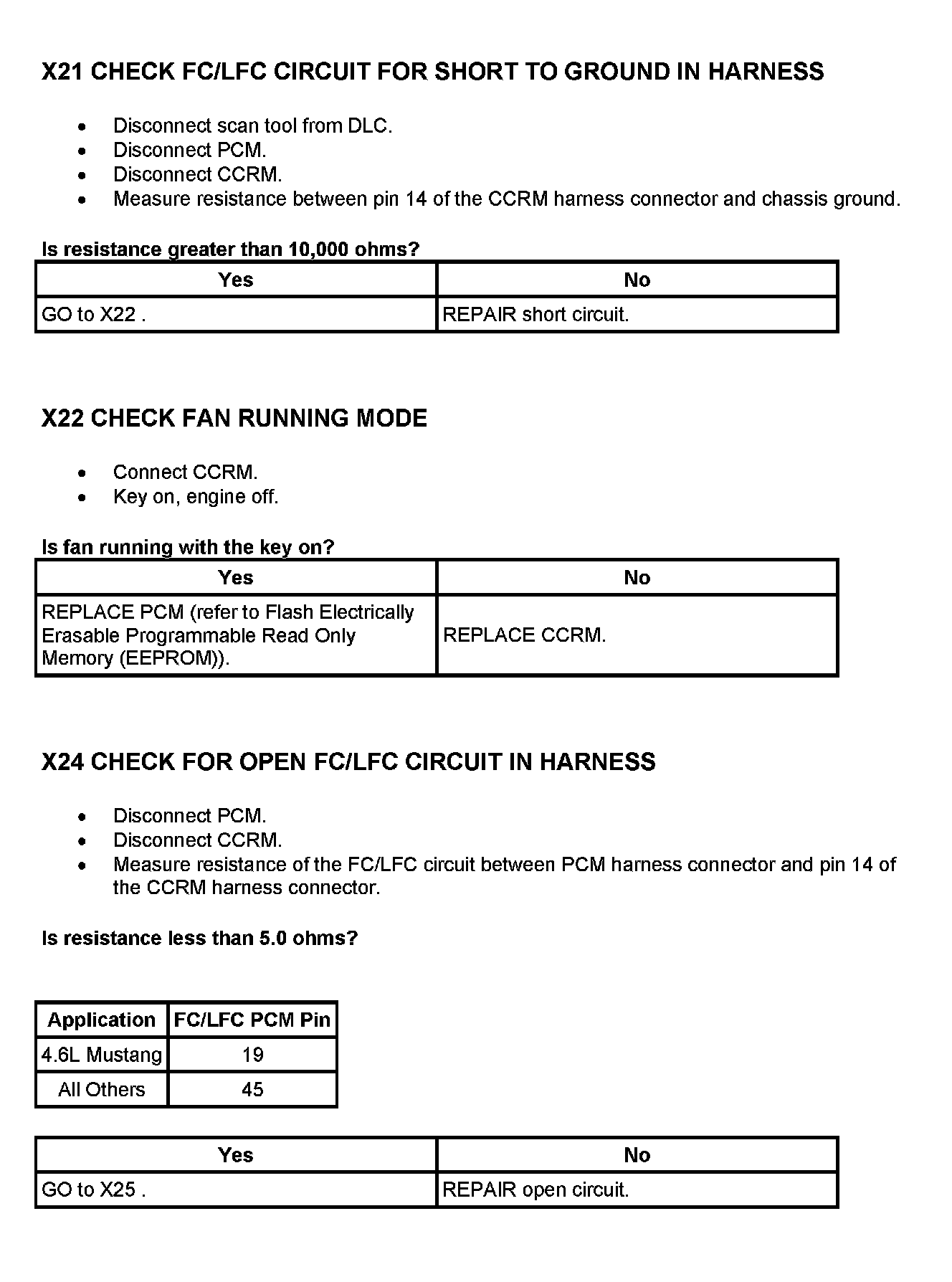

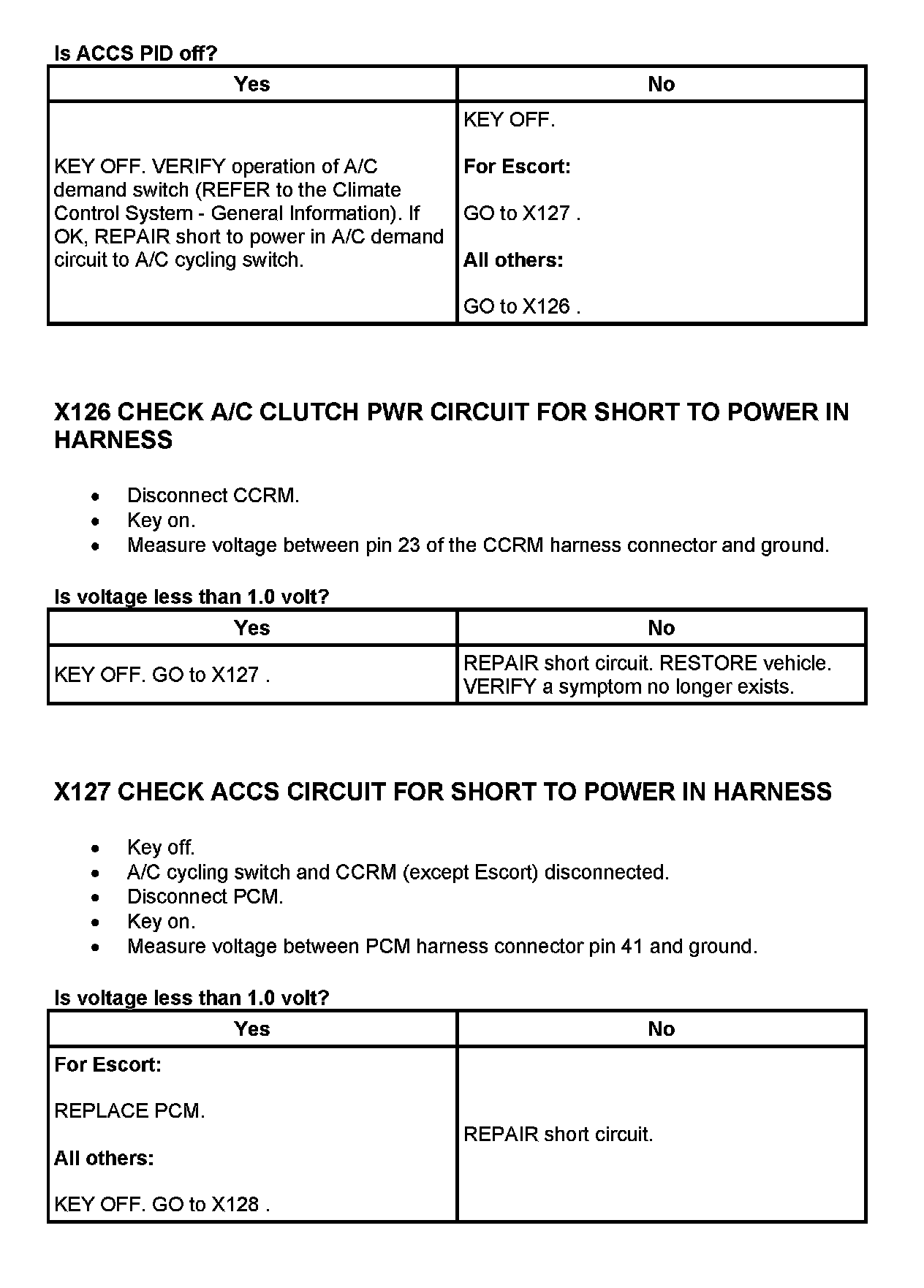

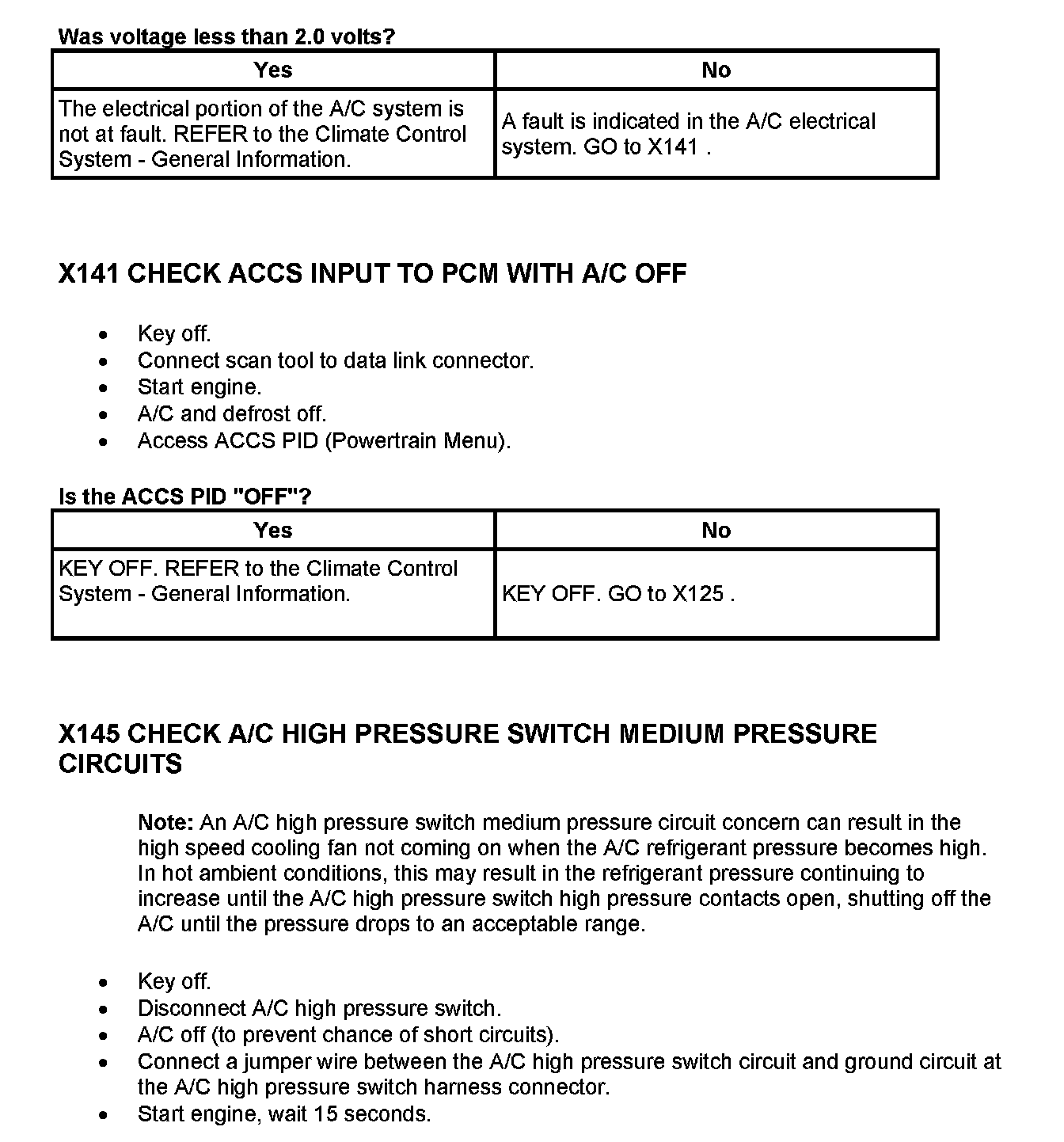

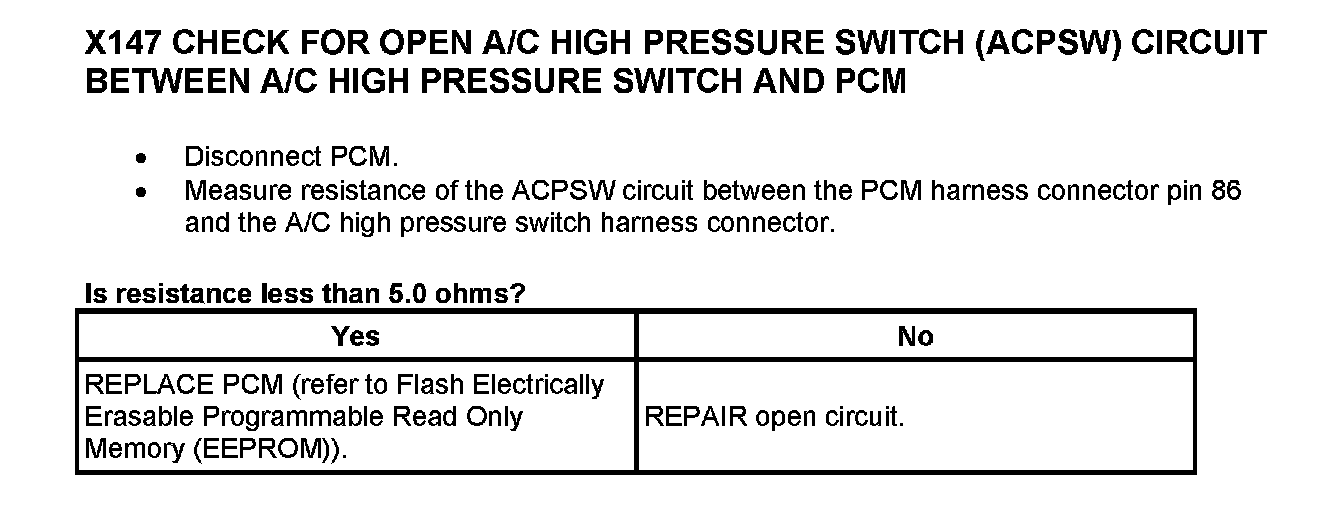

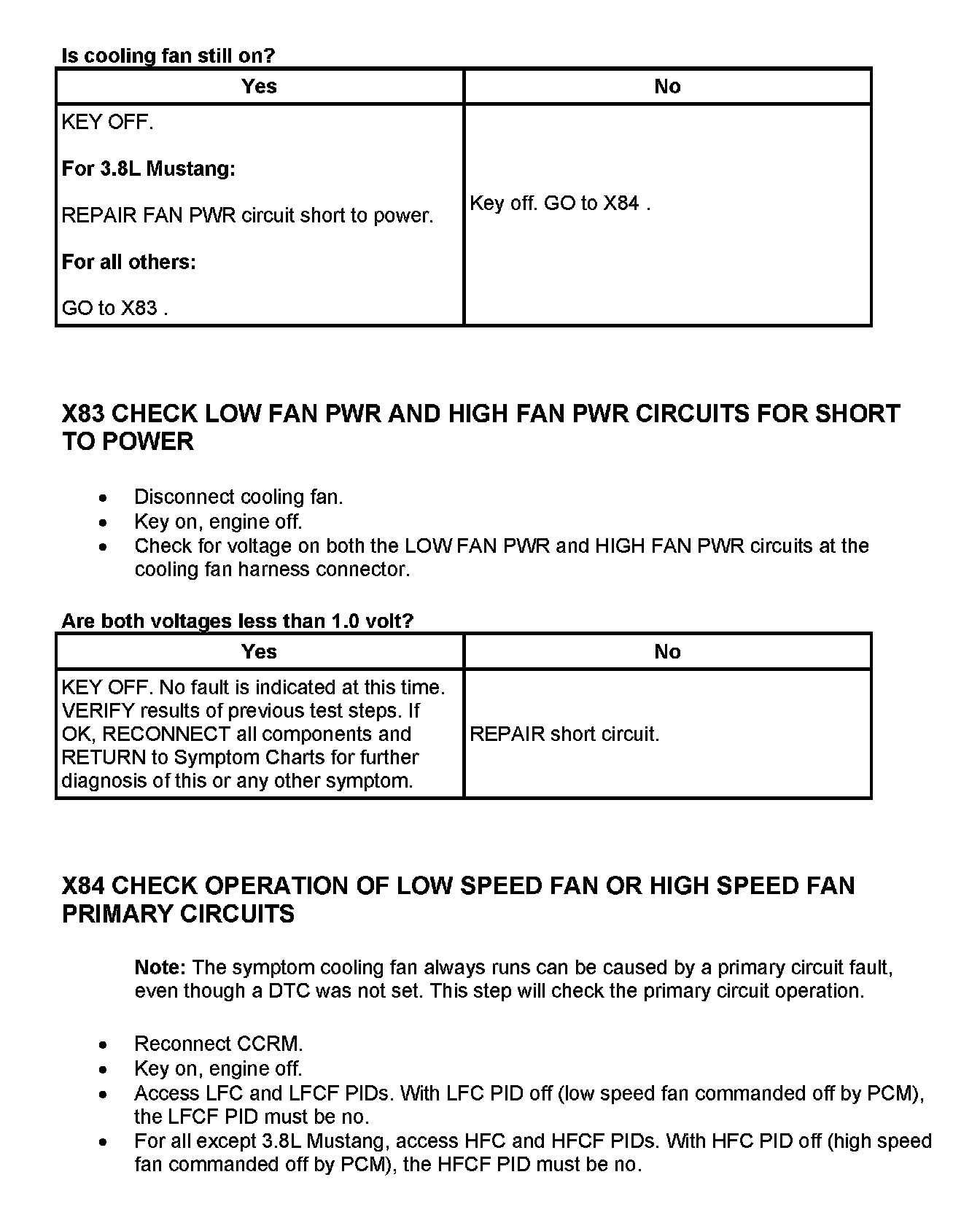

Pinpoint Tests
Factory Service Tools
