2000 Ford Excursion 2WD V10-6.8L VIN SFACTORY OEM SERVICE PROCEDURE
Main Climate Control

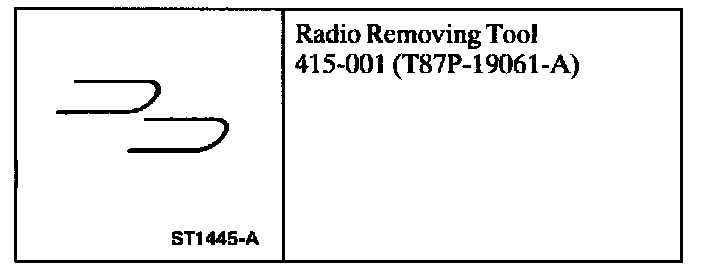

Radio Removing Tool:
SPECIAL SERVICE TOOL(S)
REMOVAL
1. Disconnect the battery ground cable.

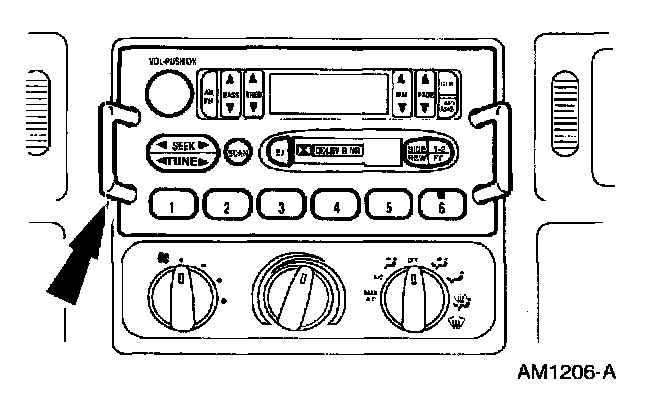

2. Use the Radio Removing Tool to remove the radio chassis.
3. Remove the cluster opening finish panel.

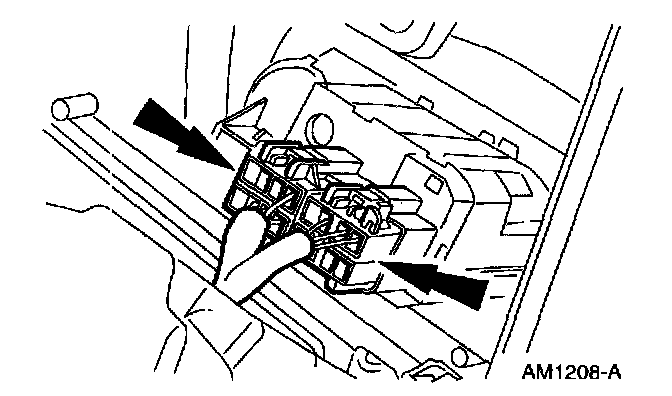

4. Disconnect the headlight and dimmer switch wire harness connectors.

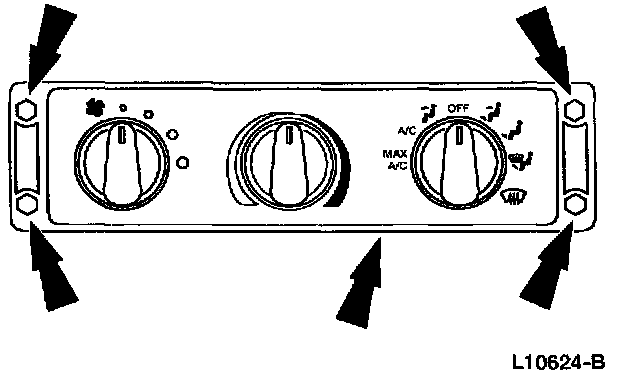

5. Remove the screws and remove the climate control assembly.
6. Disconnect the climate control assembly.

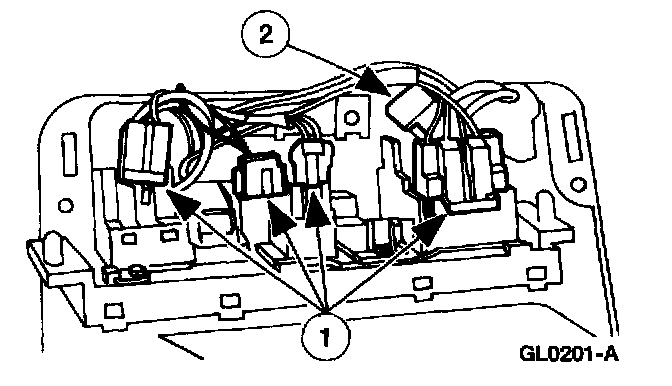

1 Disconnect the electrical connectors.
2 Disconnect the vacuum harness connector.
INSTALLATION
1. Follow the removal procedure in reverse order.
