2000 Ford Excursion 2WD V10-6.8L VIN SFACTORY OEM SERVICE PROCEDURE

Components

1st-Au:

Factory service manual diagram





Au-Ca:

Factory service manual diagram

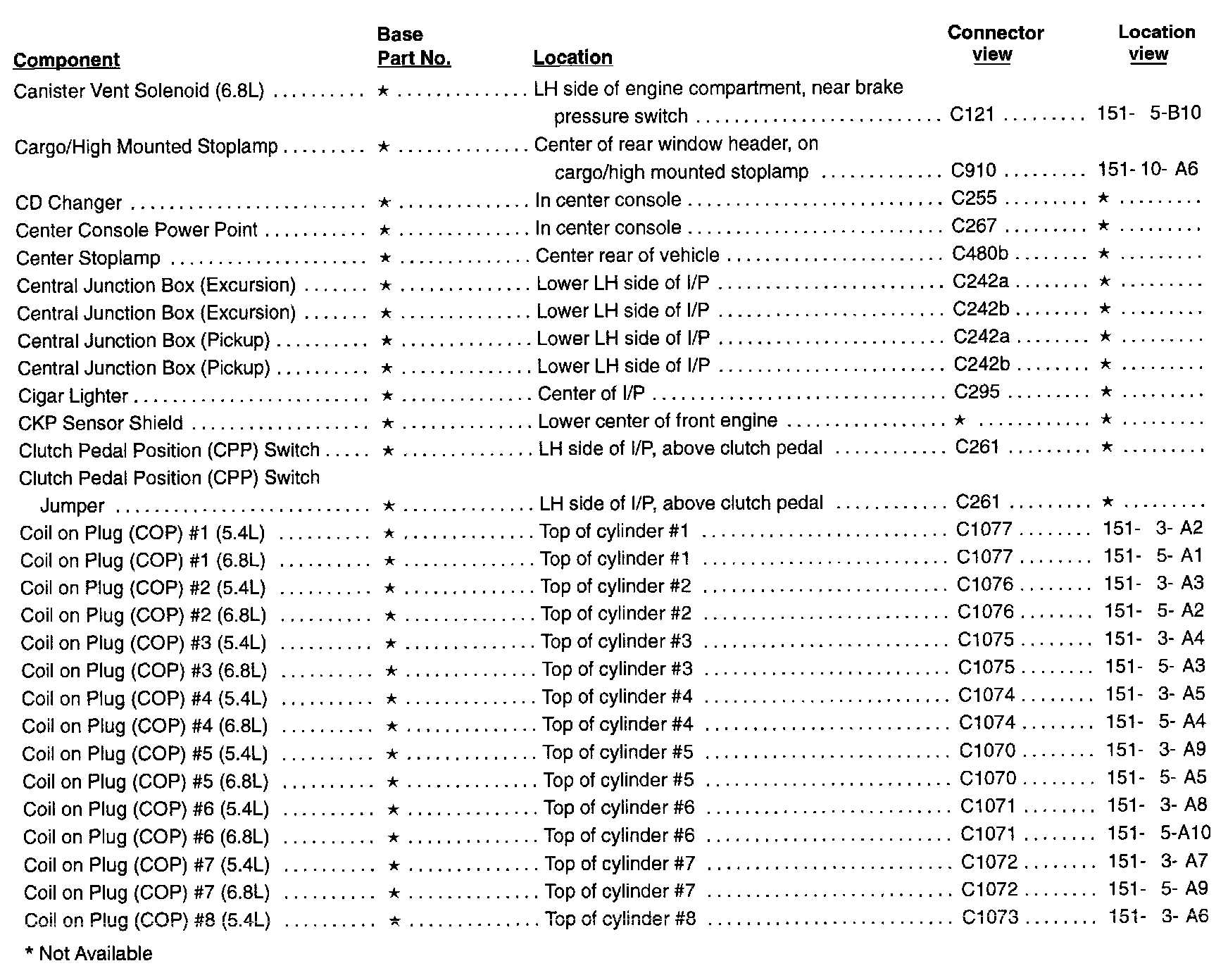

Ca-Co:

Factory service manual diagram





Co-Dr:

Factory service manual diagram

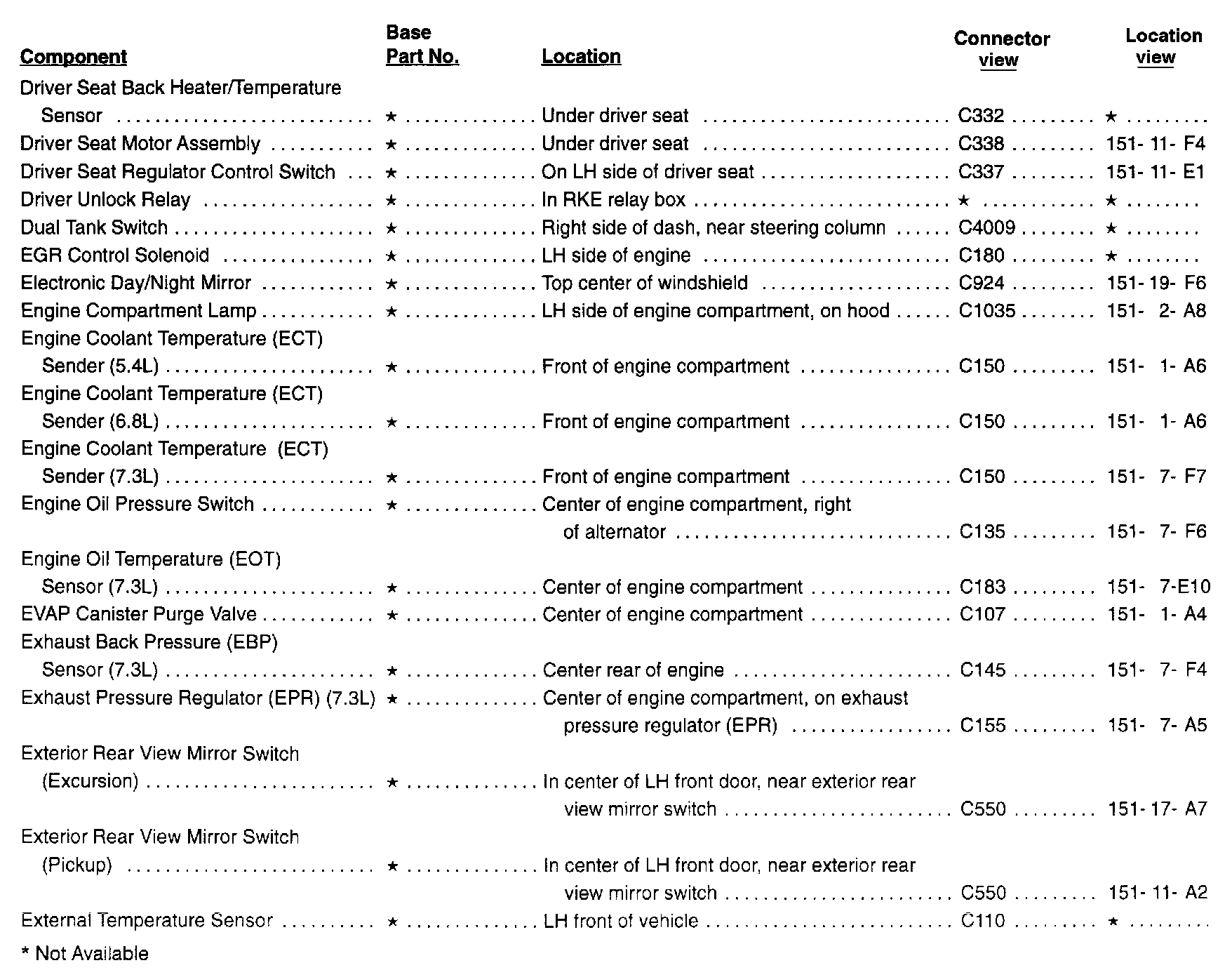

Dr-Ex:

Factory service manual diagram

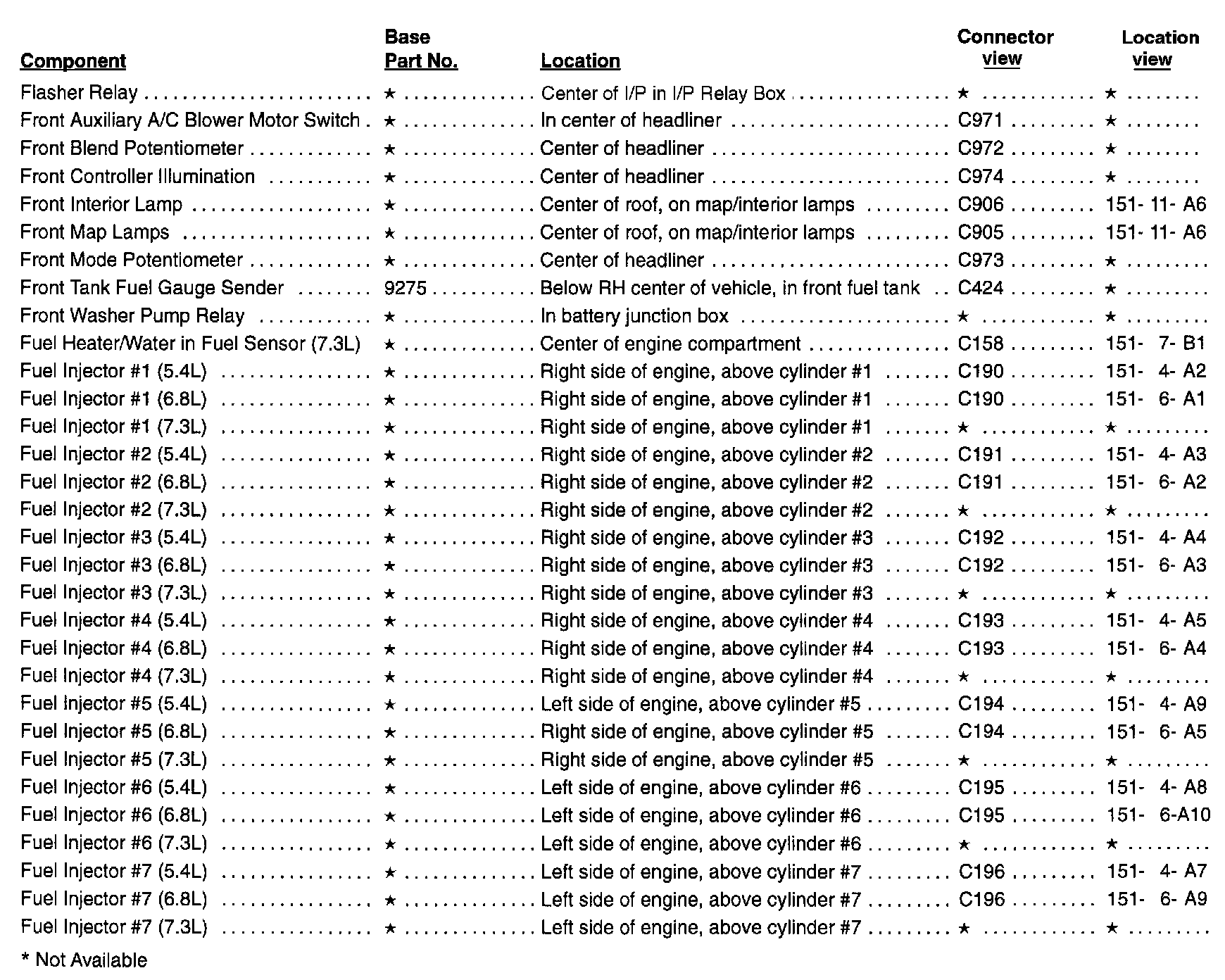

Fl-Fu:

Factory service manual diagram

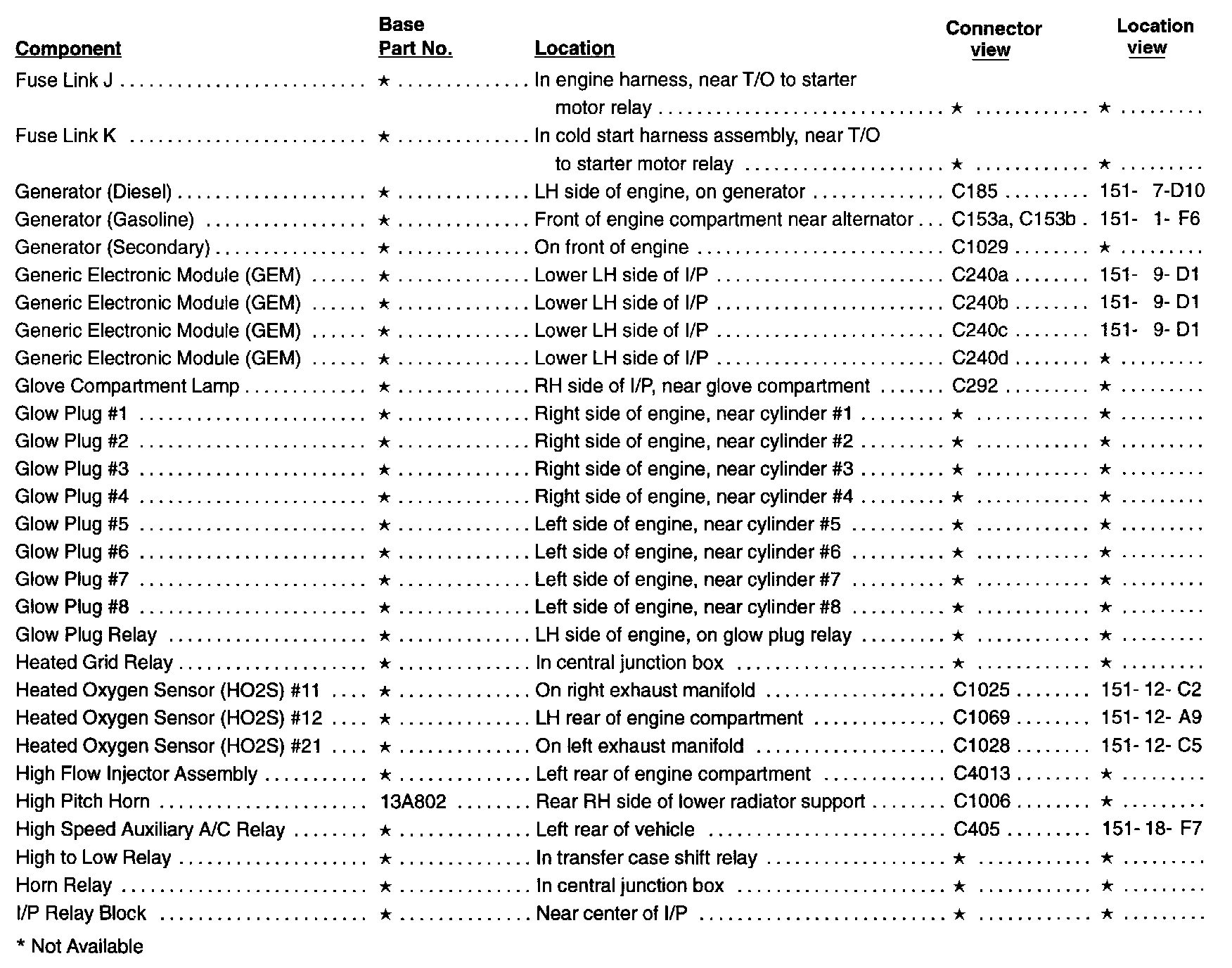

Fuel-Fuse:

Factory service manual diagram





Fu-I/p:

Factory service manual diagram

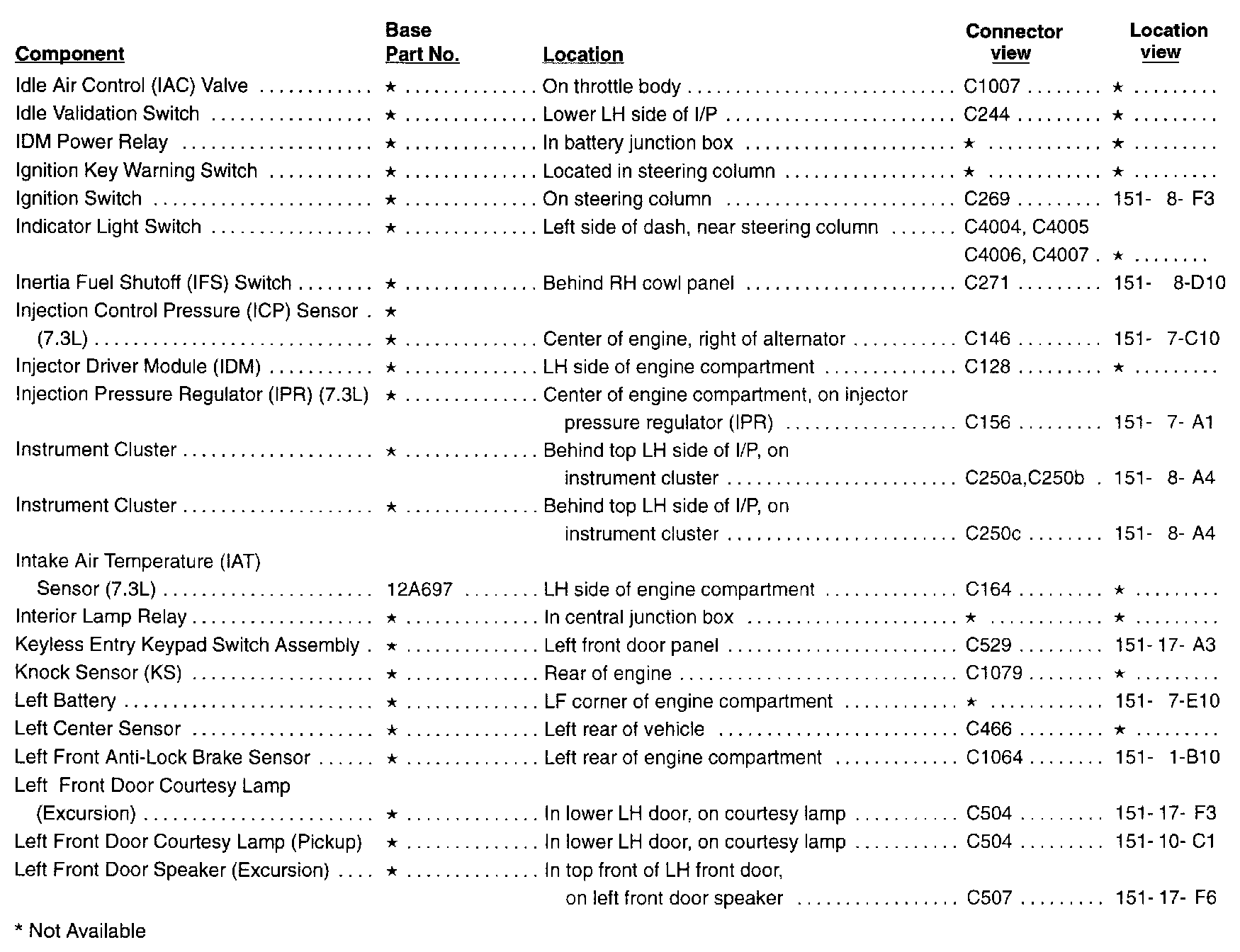

Id/Le:

Factory service manual diagram

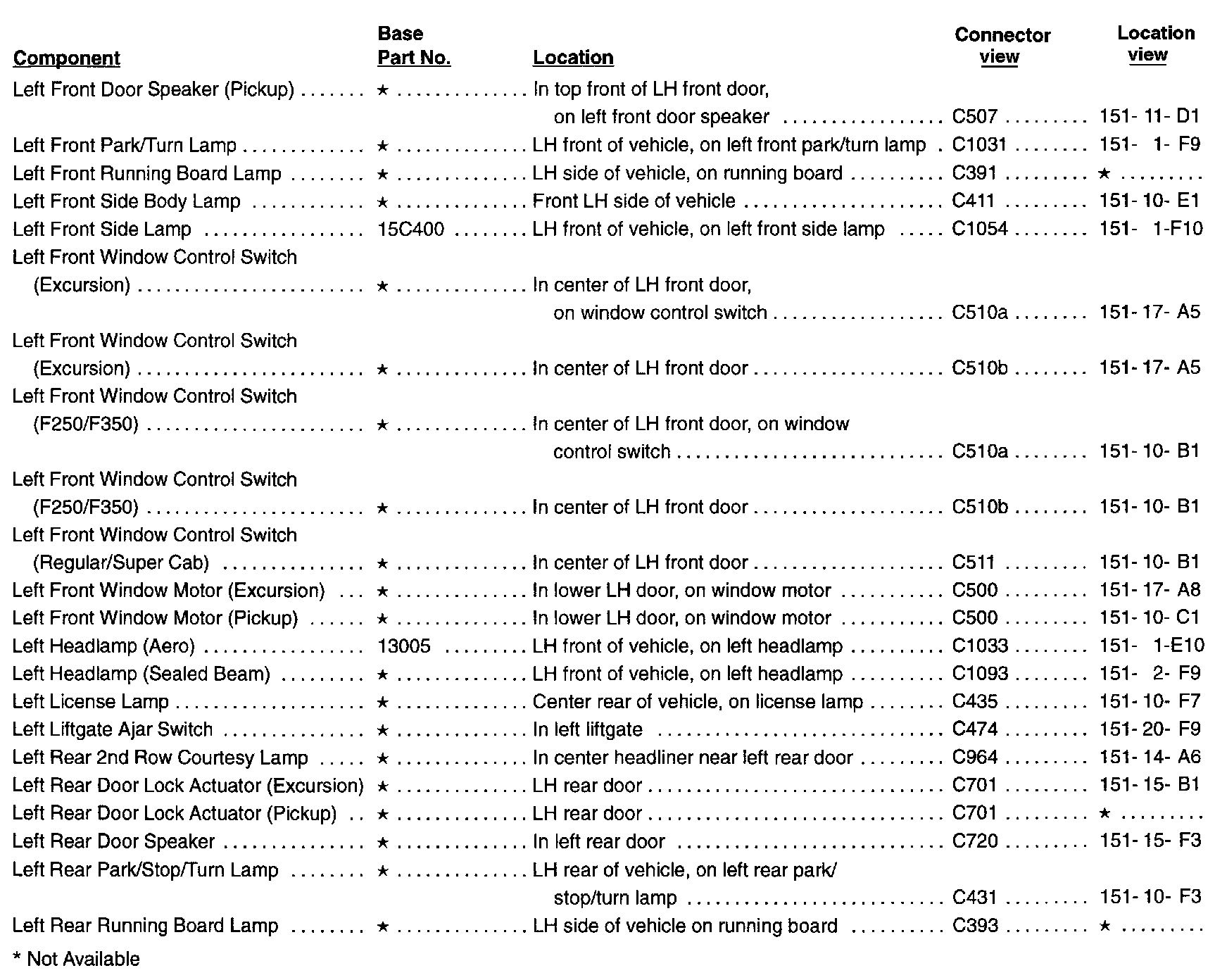

Left Front-left Rear:

Factory service manual diagram

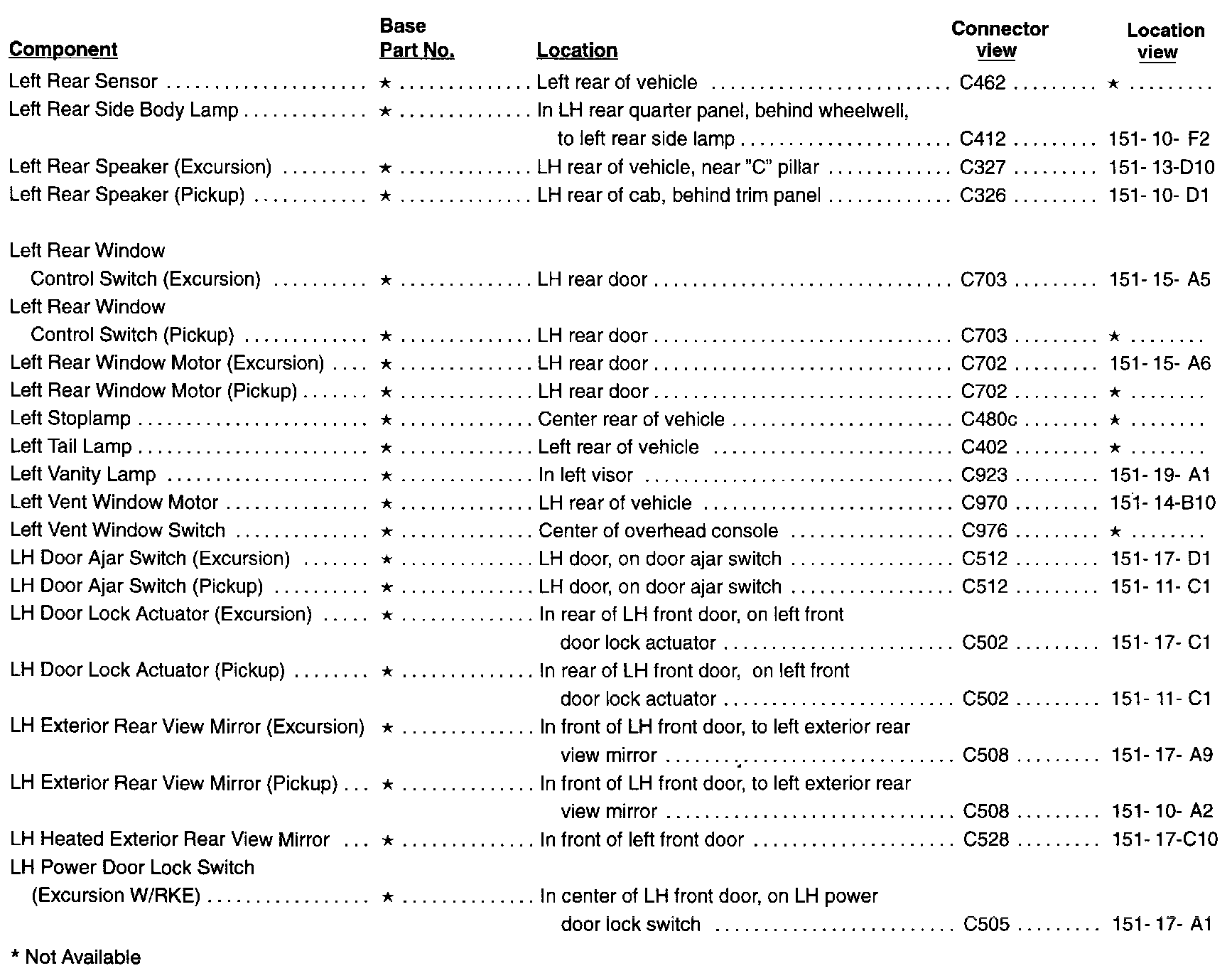

Le-Lh:

Factory service manual diagram

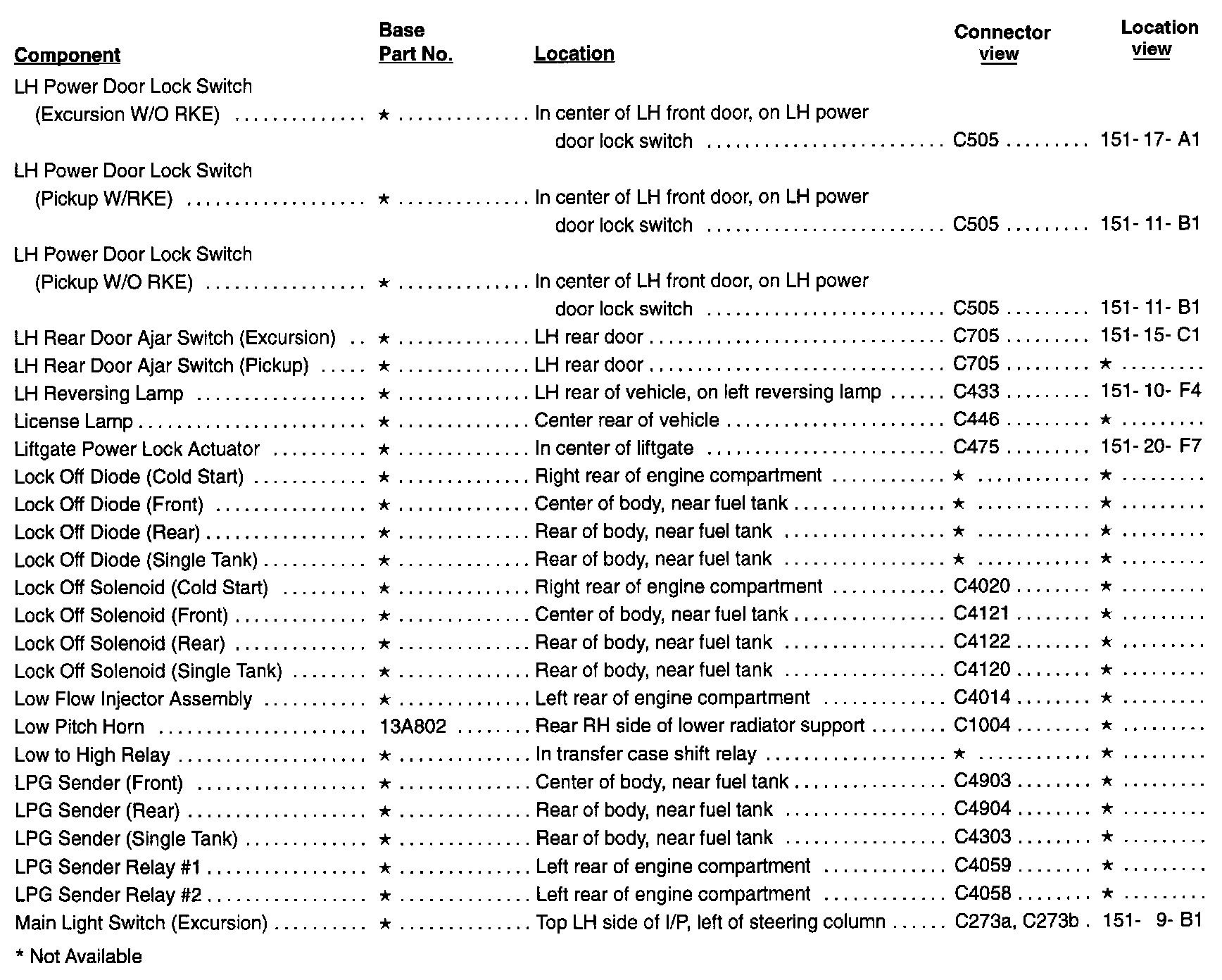

LH-Ma:

Factory service manual diagram

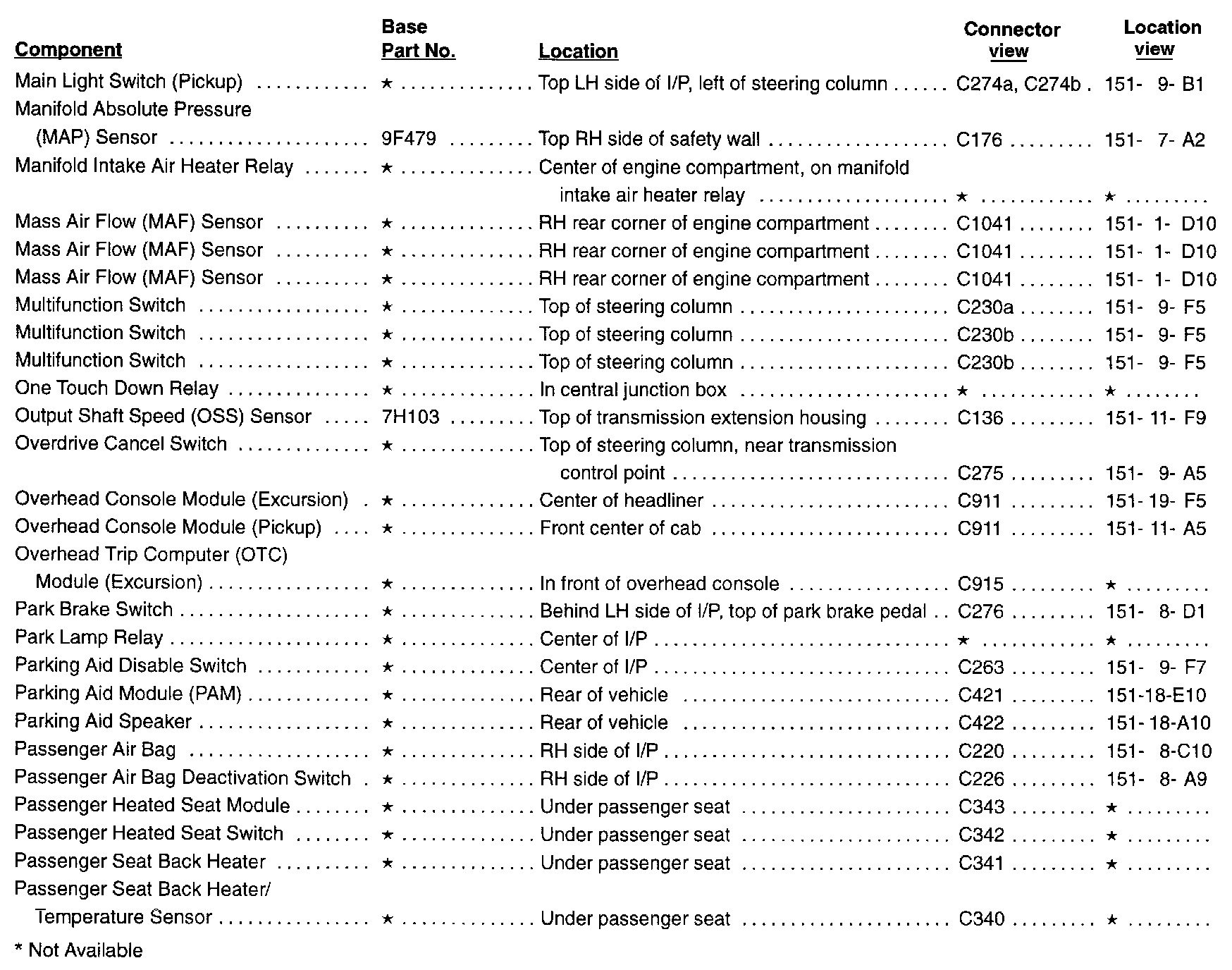

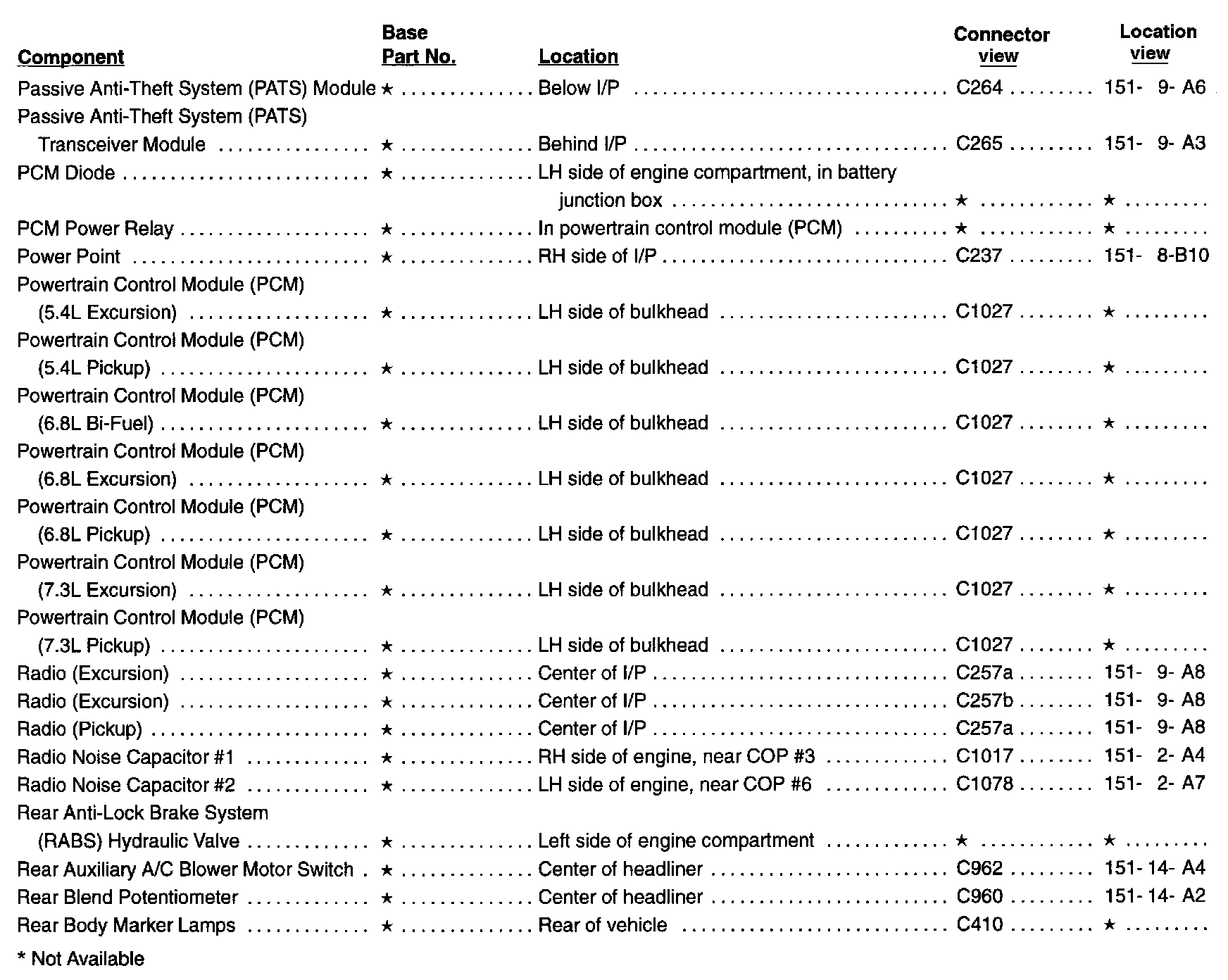

Ma-Te:

Factory service manual diagram





Pa-Re:

Factory service manual diagram

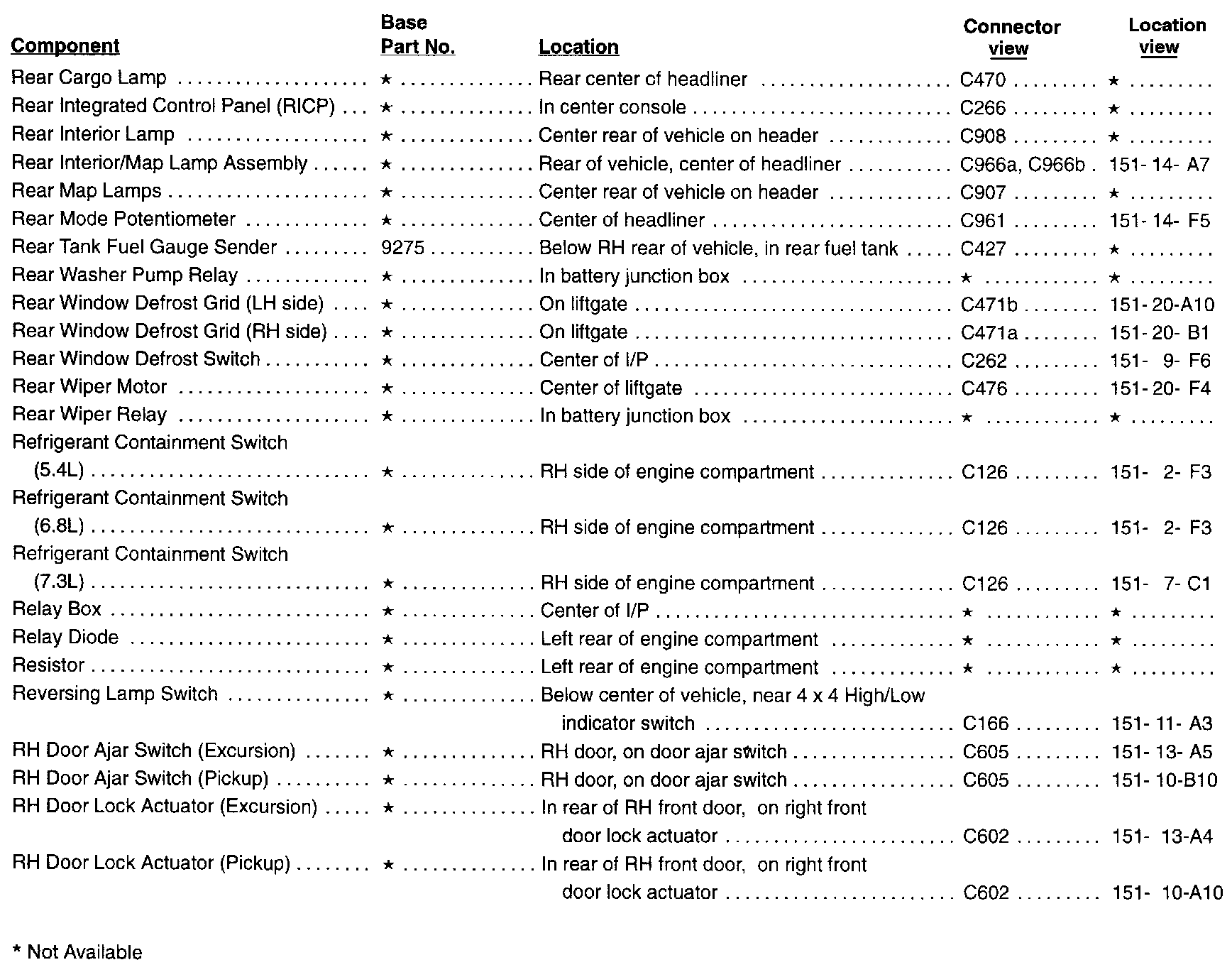

Re-Rh:

Factory service manual diagram

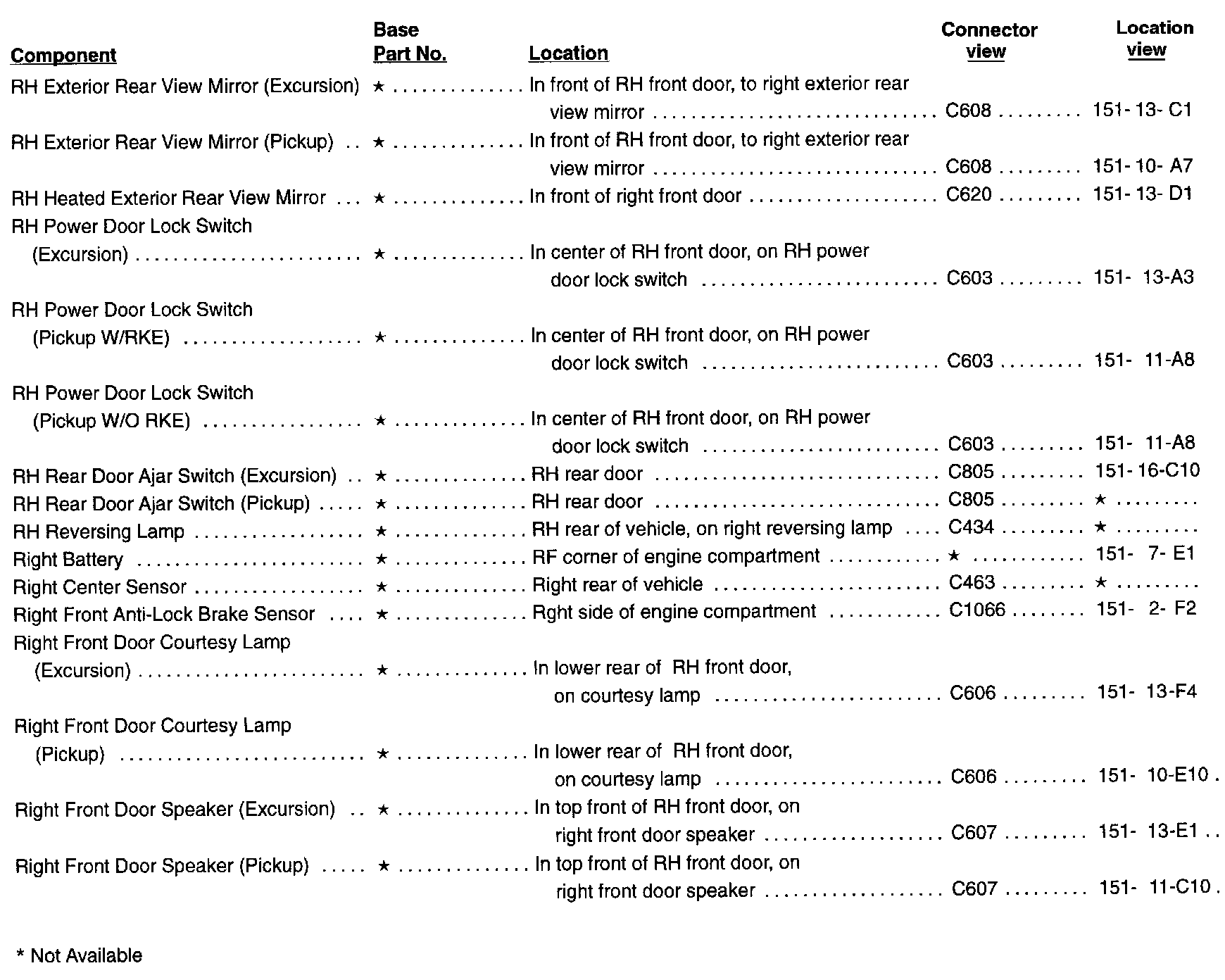

Rh-Ri:

Factory service manual diagram





Right Front-Right Rear:

Factory service manual diagram





Ri-Tr:

Factory service manual diagram





Tu-Wi:

Factory service manual diagram
