1996 Ford Crown Victoria V8-4.6L VIN W
System Specifications
1996 Ford Crown Victoria V8-4.6L VIN WSECTION System Specifications
Static Resistance Values

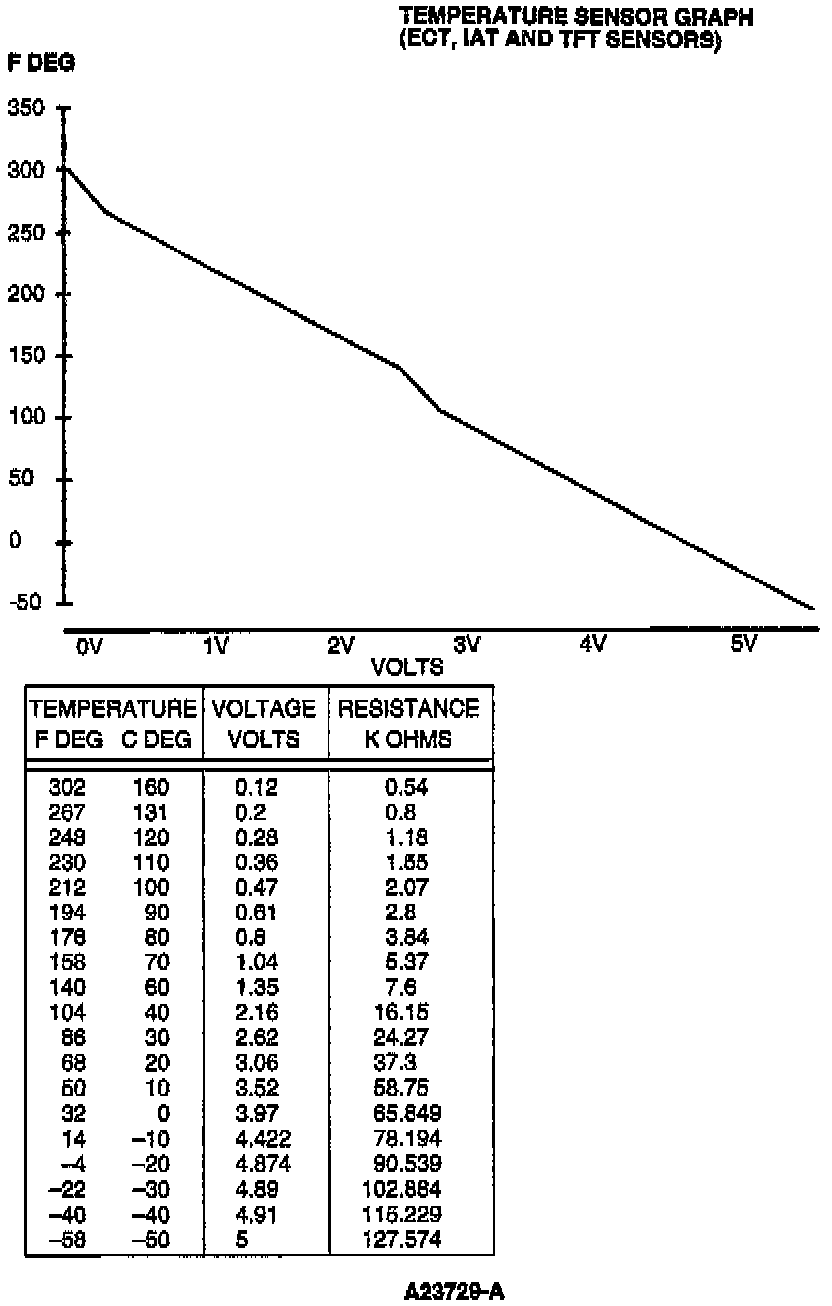

Temperature Sensor Graph (ECT, IAT, and TFT Sensors)

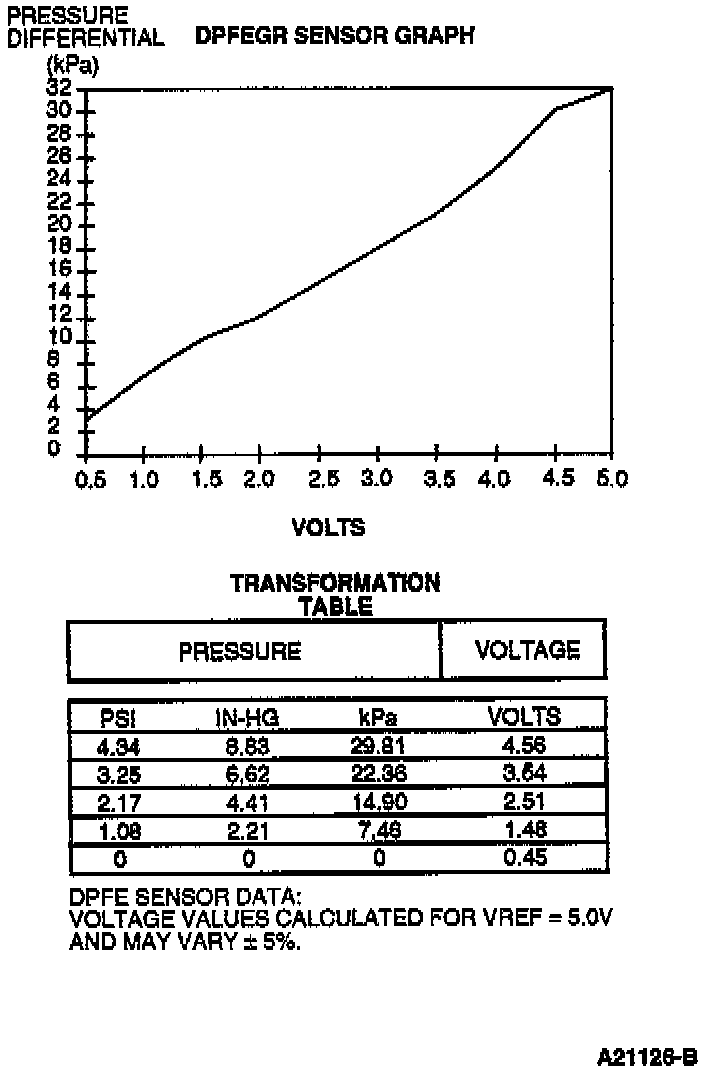

Differential Pressure Feedback EGR Sensor Graph

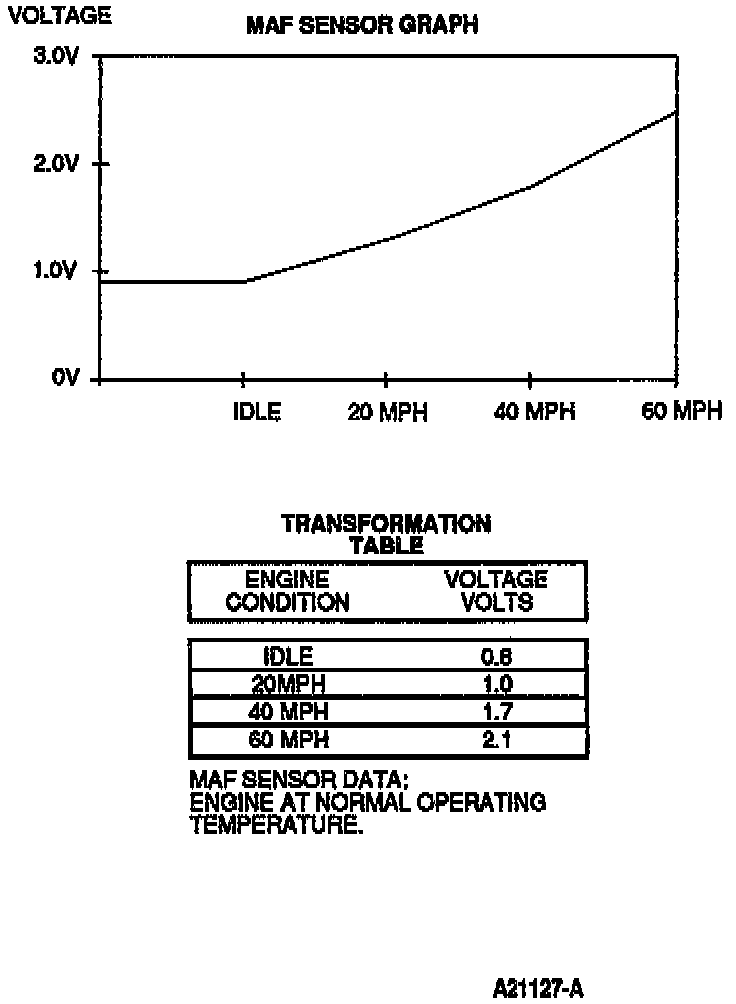

Mass Air Flow Sensor Graph
Transmission Range Sensor Graph
