1996 Ford Crown Victoria V8-4.6L VIN WFACTORY OEM SERVICE PROCEDURE
A/T Technical Data

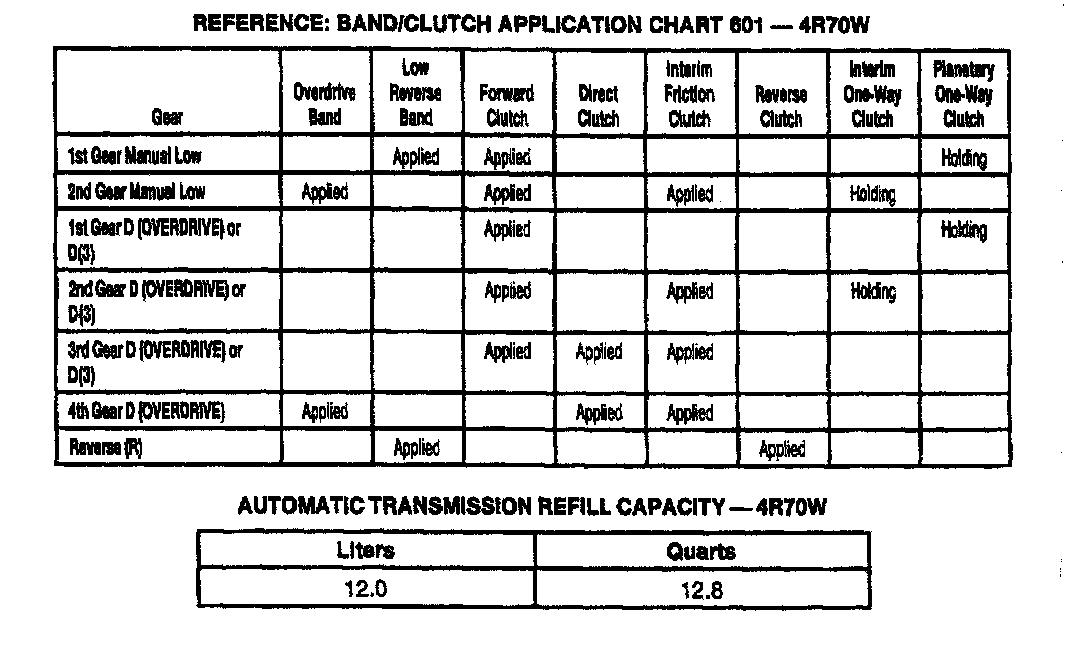

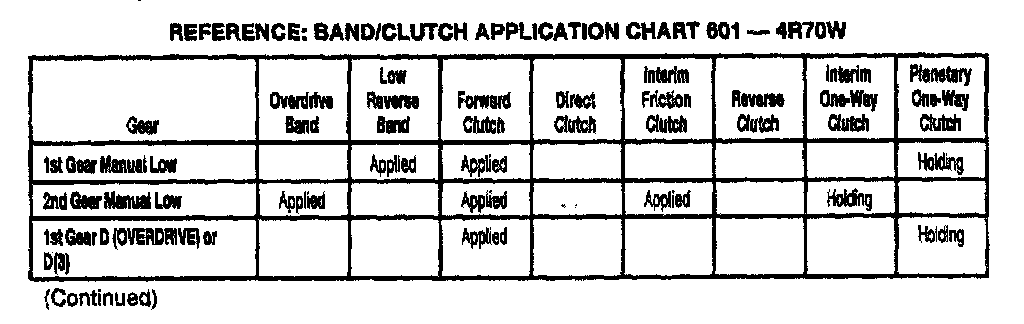

4r70W 4-spd A/T, Band/Clutch Application (Mark VIII):

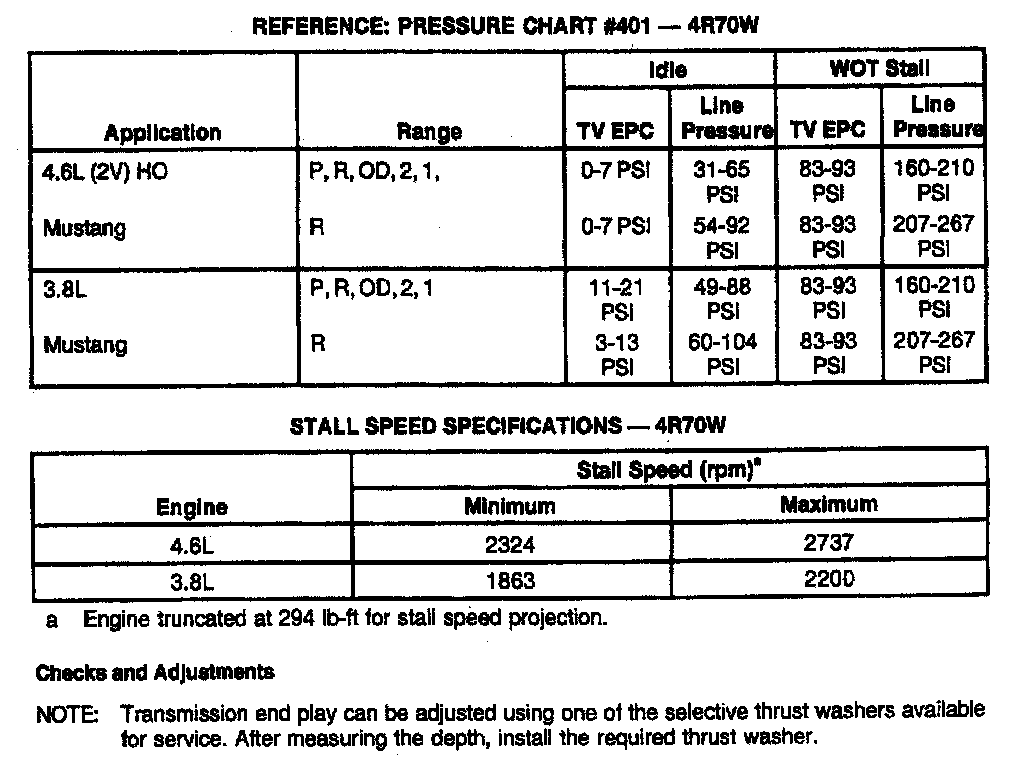

4R70W 4-spd A/T, Pressure/Stall Speed/End Play (Mark VIII):

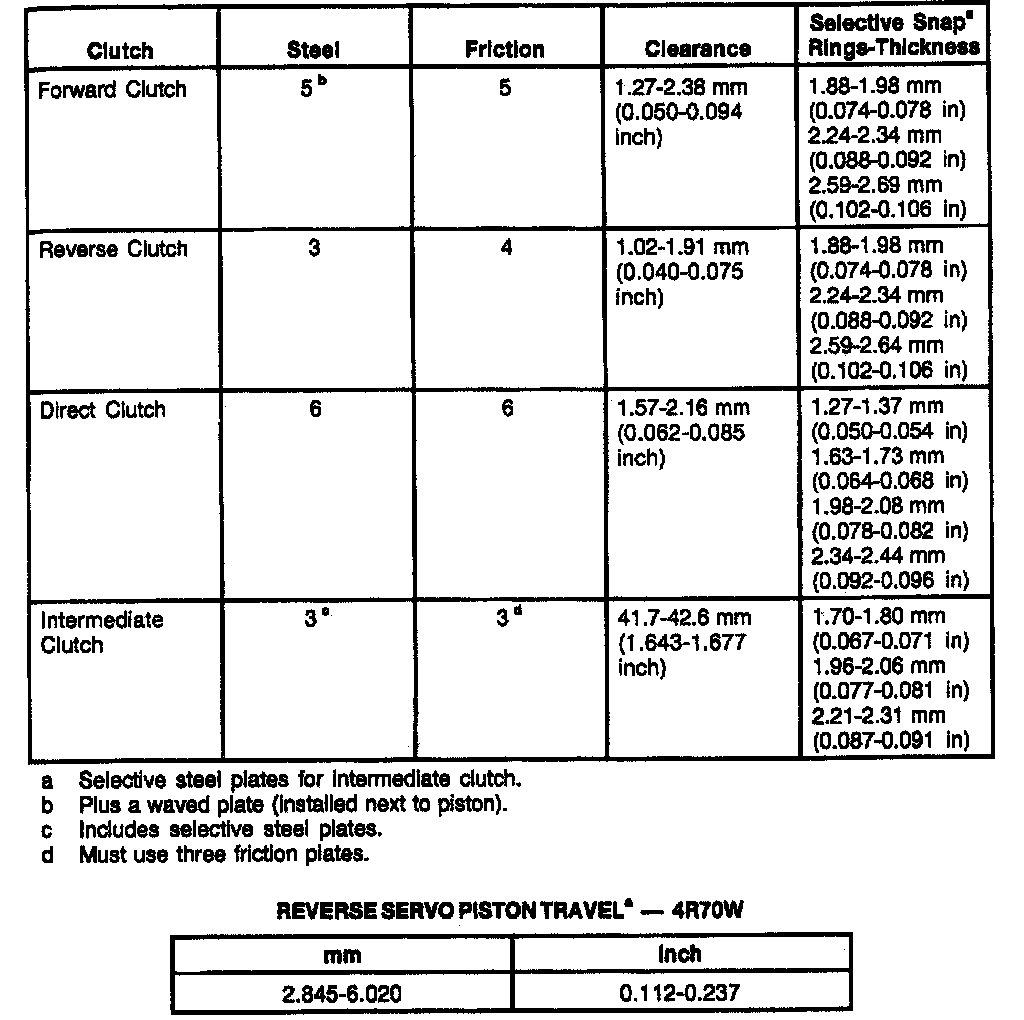

4R70W 4-spd A/T, Snap Rings/Reverse Servo/Piston:

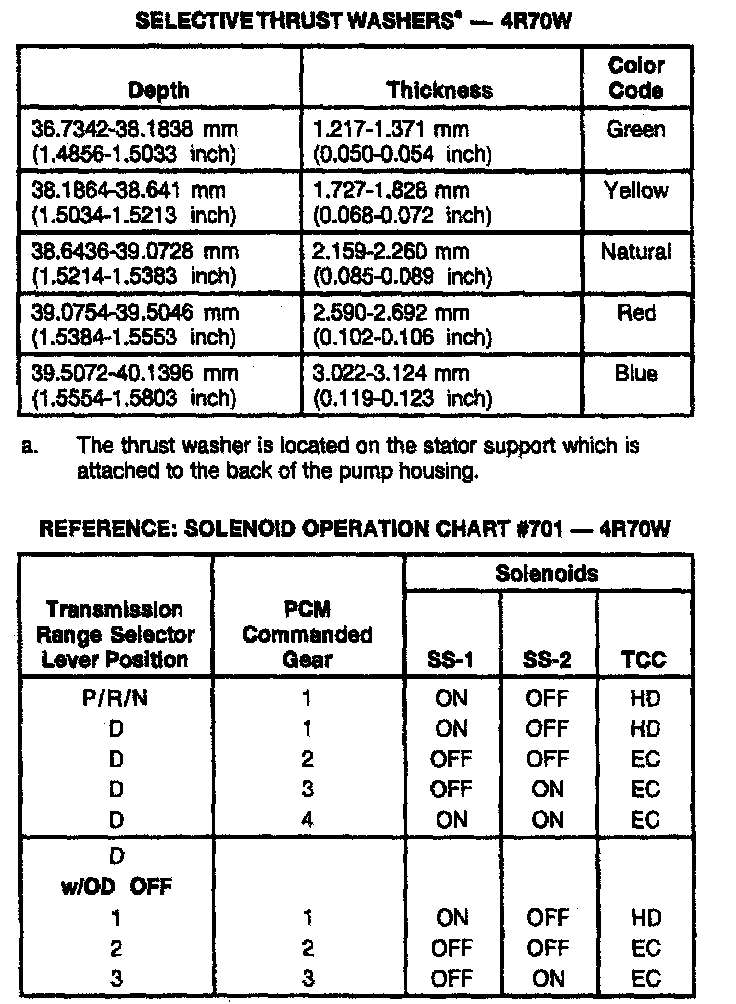

4R70W 4-spd A/T, Thrust/Solenoid Chart:

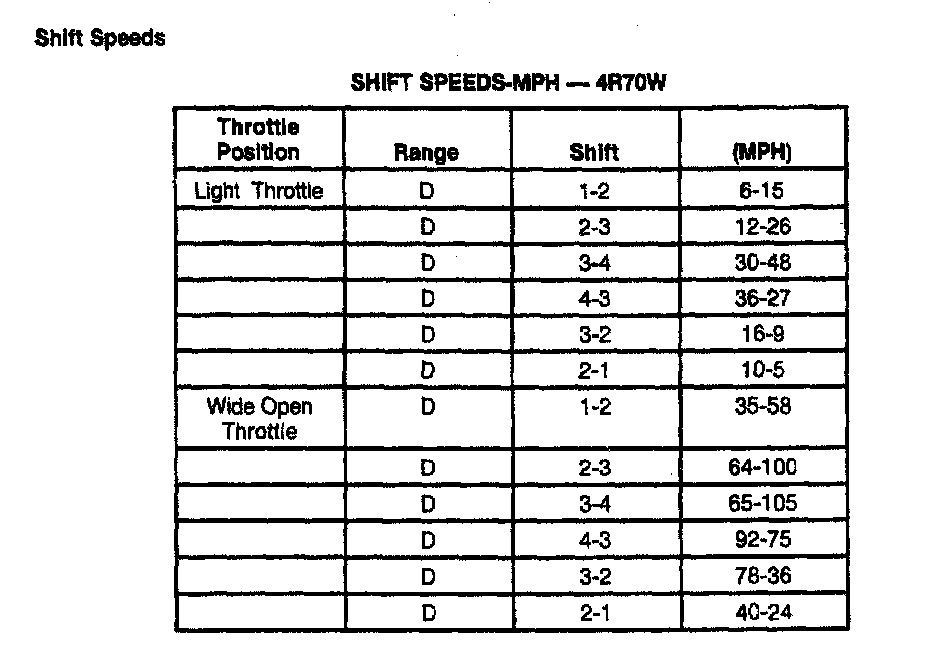

4R70W 4-spd A/T, Shift Speeds:

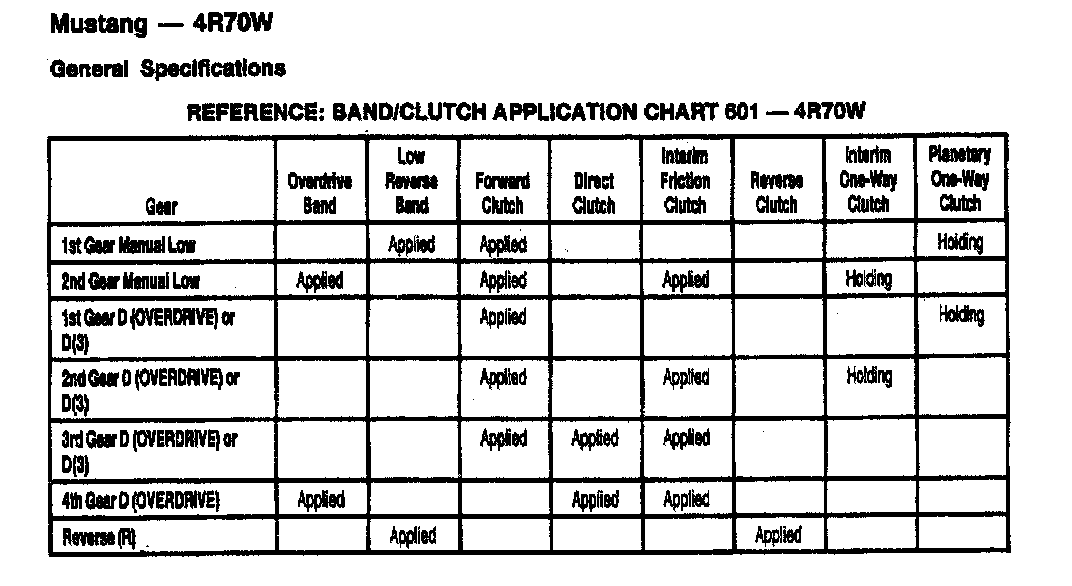

4R70W 4-spd A/T, Band/Clutch Application (Mustang):
4R70W 4-spd A/T, Pressure Chart/Stall Speed (Mustang):
4R70W 4-spd A/T, Converter End Play/ Reverse Servo (Mustang):
4R70W 4-spd A/T, Servo Pistons/Solenoid Chart (Mustang):

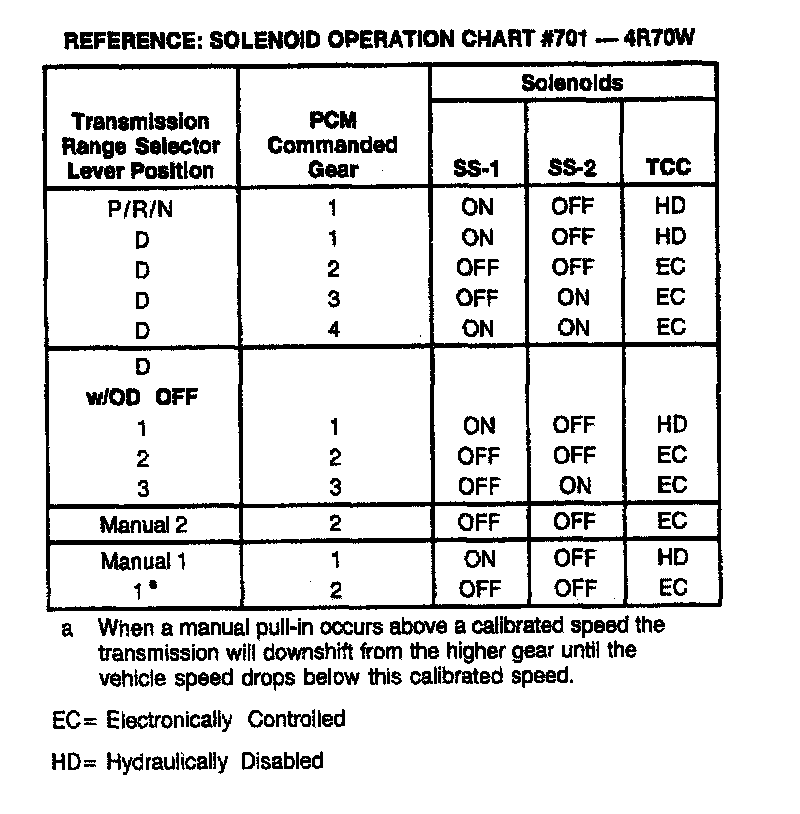

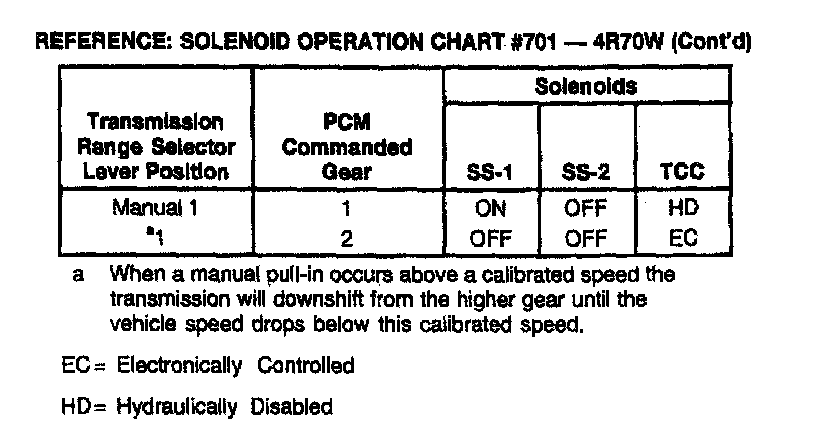

4R70W 4-spd A/T, Solenoid Operation Chart (Mustang):

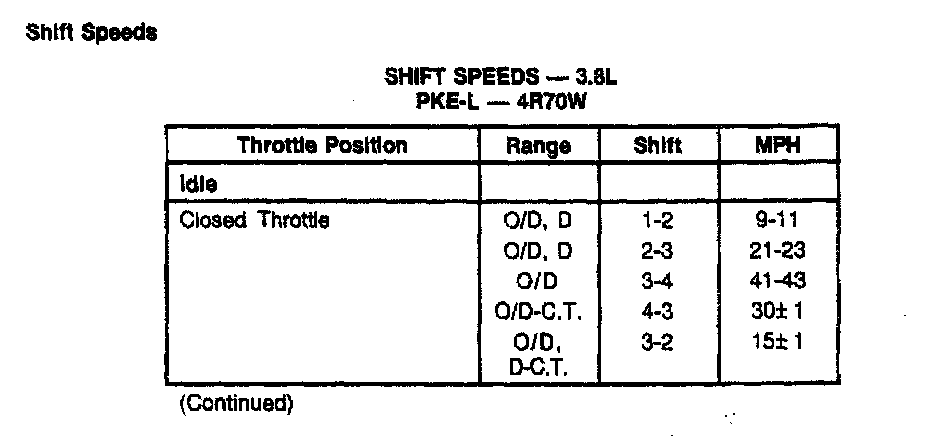

4R70W 4-spd A/T, Shift Speeds (3.8L Mustang):

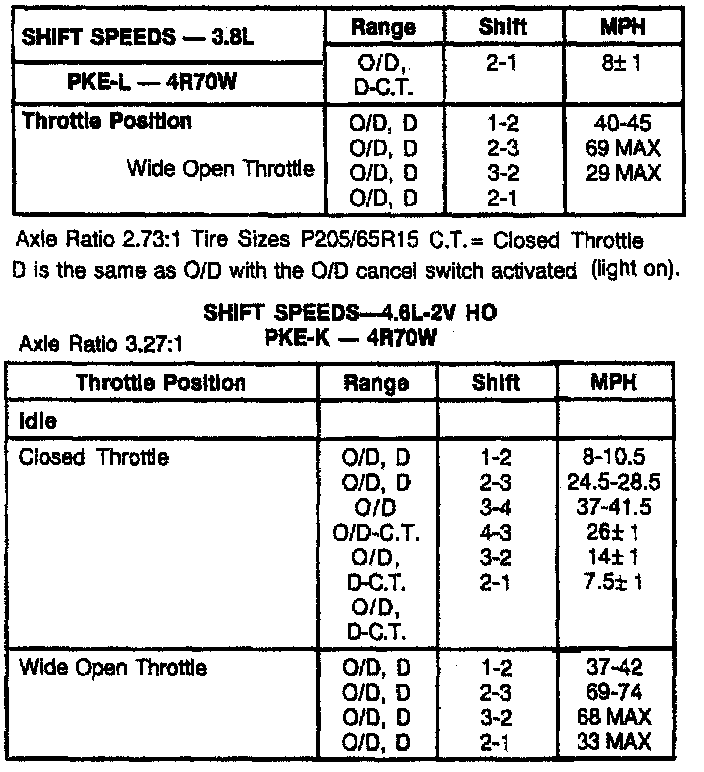

4R70W 4-spd A/T, Shift Speeds (3.8L & 4.6L Mustang):

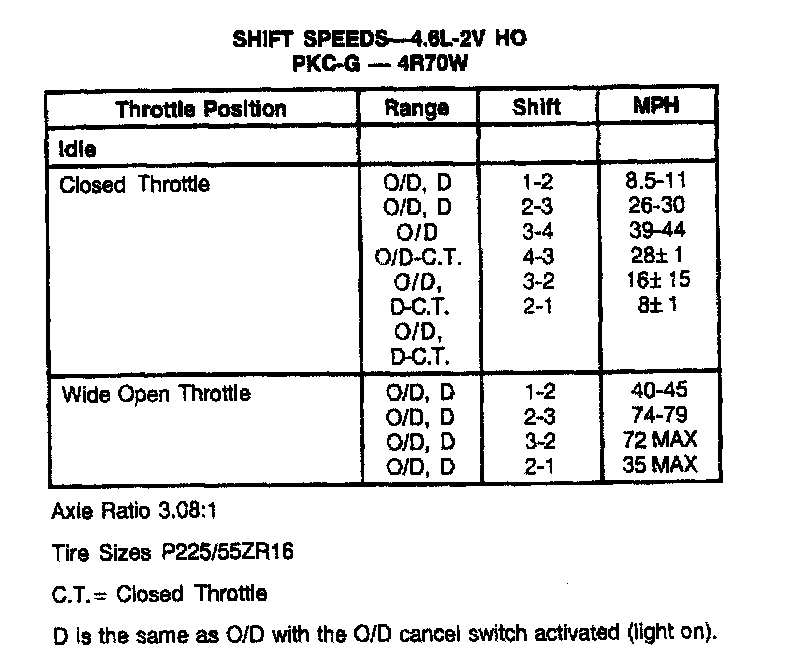

4R70W 4-spd A/T, Shift Speeds (4.6L-2v HO Mustang):
4R70W 4-spd A/T, Band/Clutch Application (T-bird/Cougar):

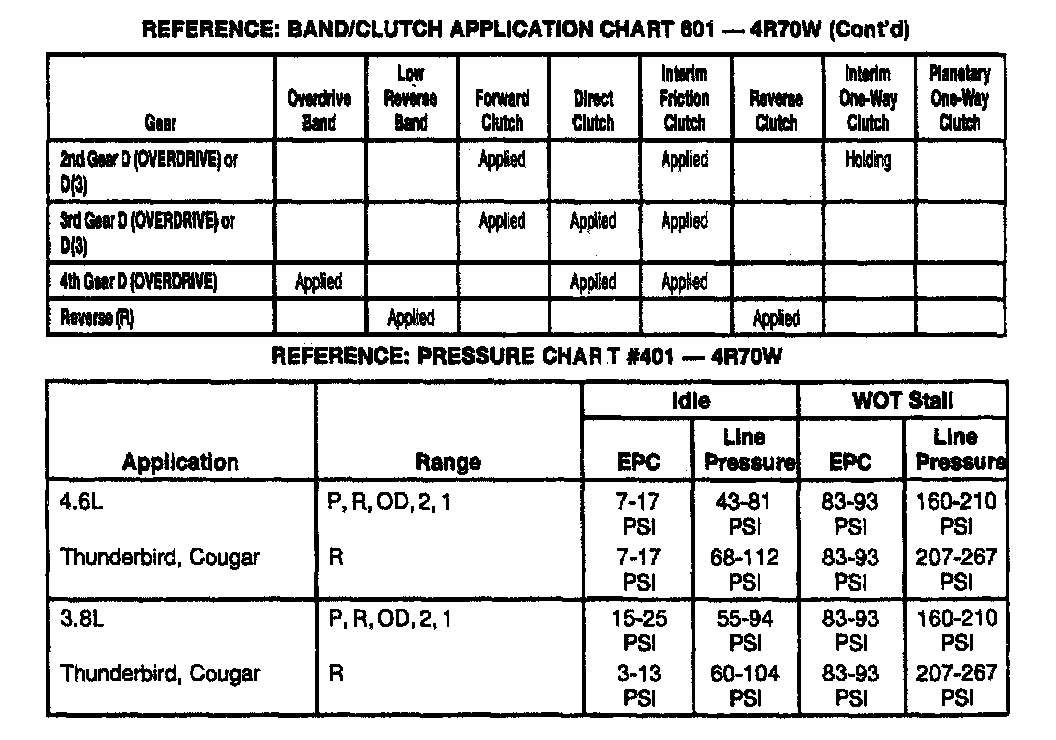

4R70W 4-spd A/T, Band/Clutch Application-Pressure (T-bird/Cougar):

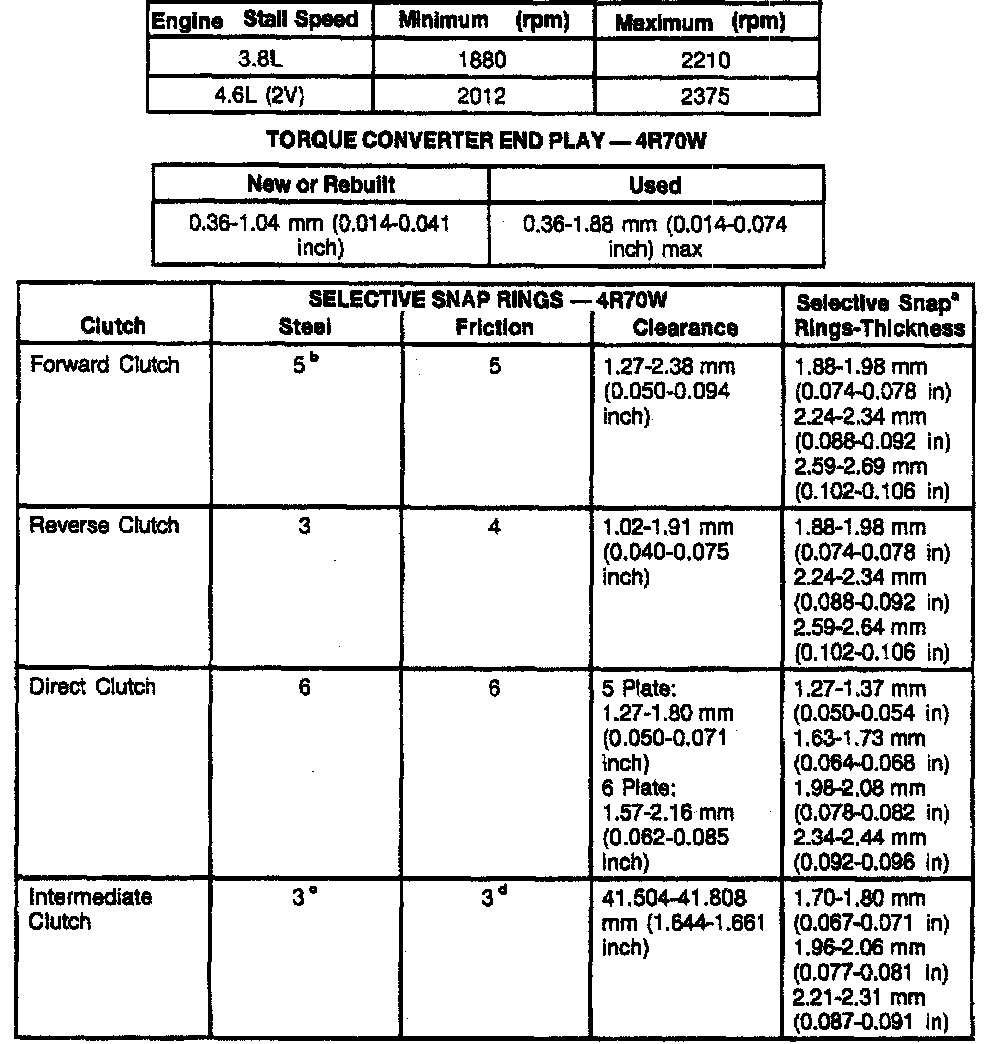

4R70W 4-spd A/T, Stall Speed/End Play/Snap Rings (T-bird/Cougar):
4R70W 4-spd A/T, Reverse Servo/Solenoid Chart (T-bird/Cougar):

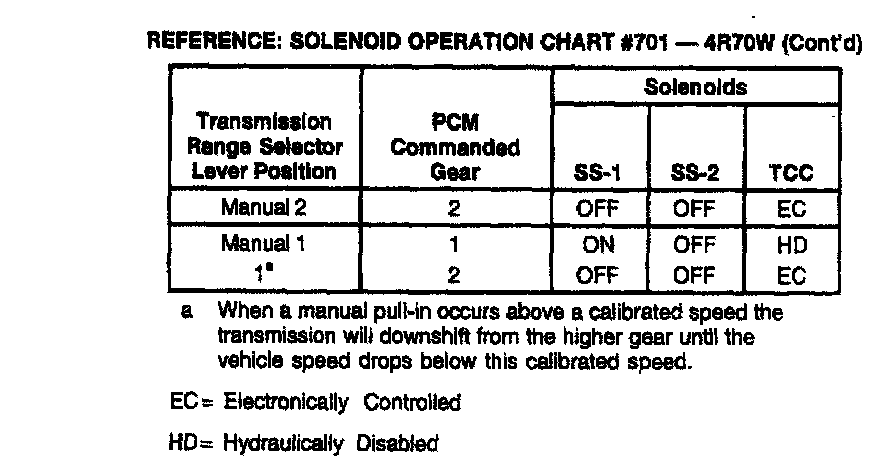

4R70W 4-spd A/T, Solenoid Operation Chart (T-bird/Cougar):

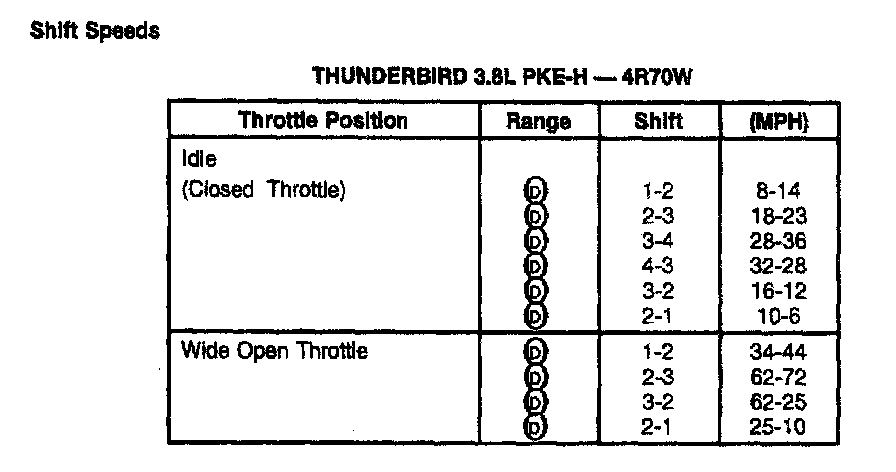

4R70W 4-spd A/T, Shift Speeds (3.8L T-bird):

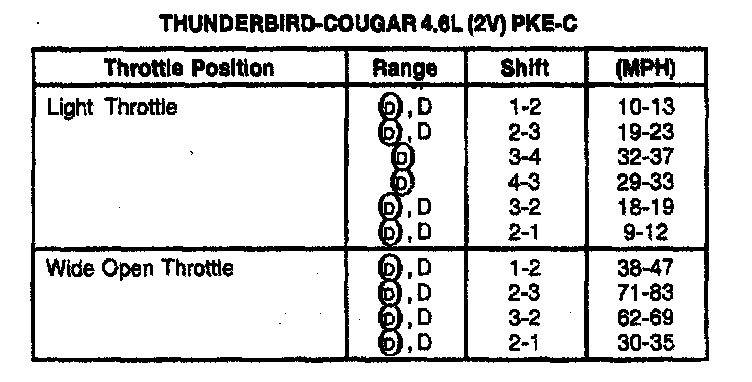

4R70W 4-spd A/T, Shift Speeds (4.6L T-bird/Cougar):

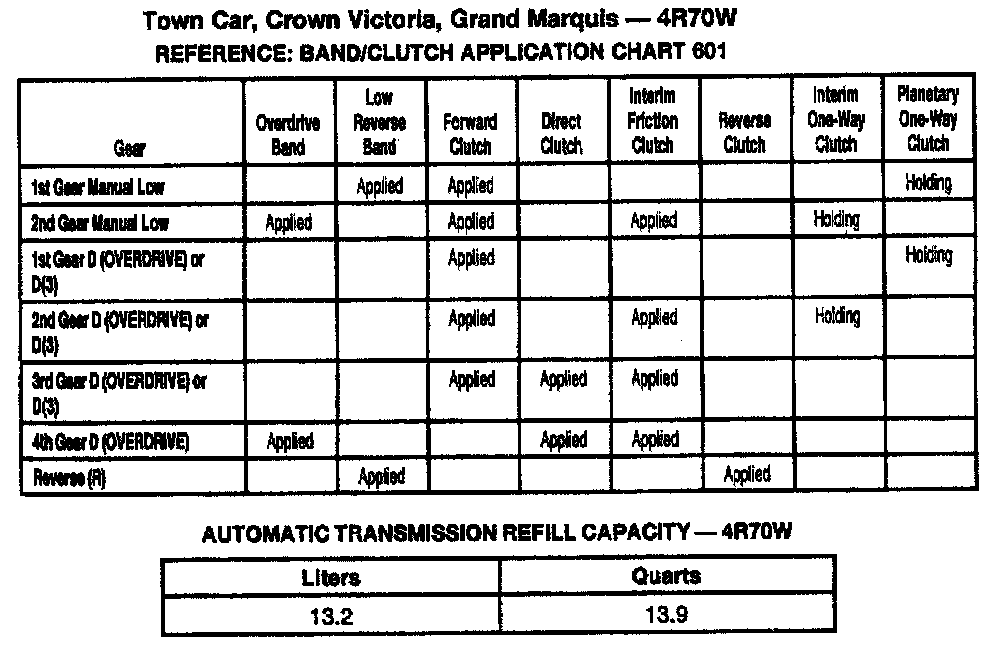

4R70W 4-spd A/T, Band/Clutch (Town Car/Crown Vic/Grand Marquis):

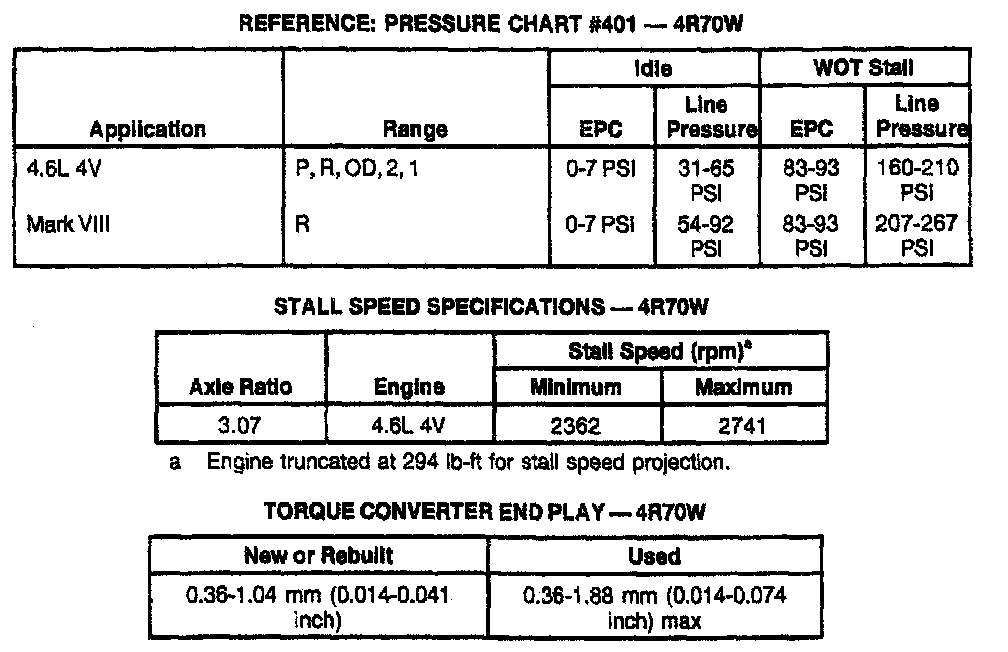

4R70W 4-spd A/T, Pressure/Stall Speed (Town Car/Crown Vic/Grand Marquis):

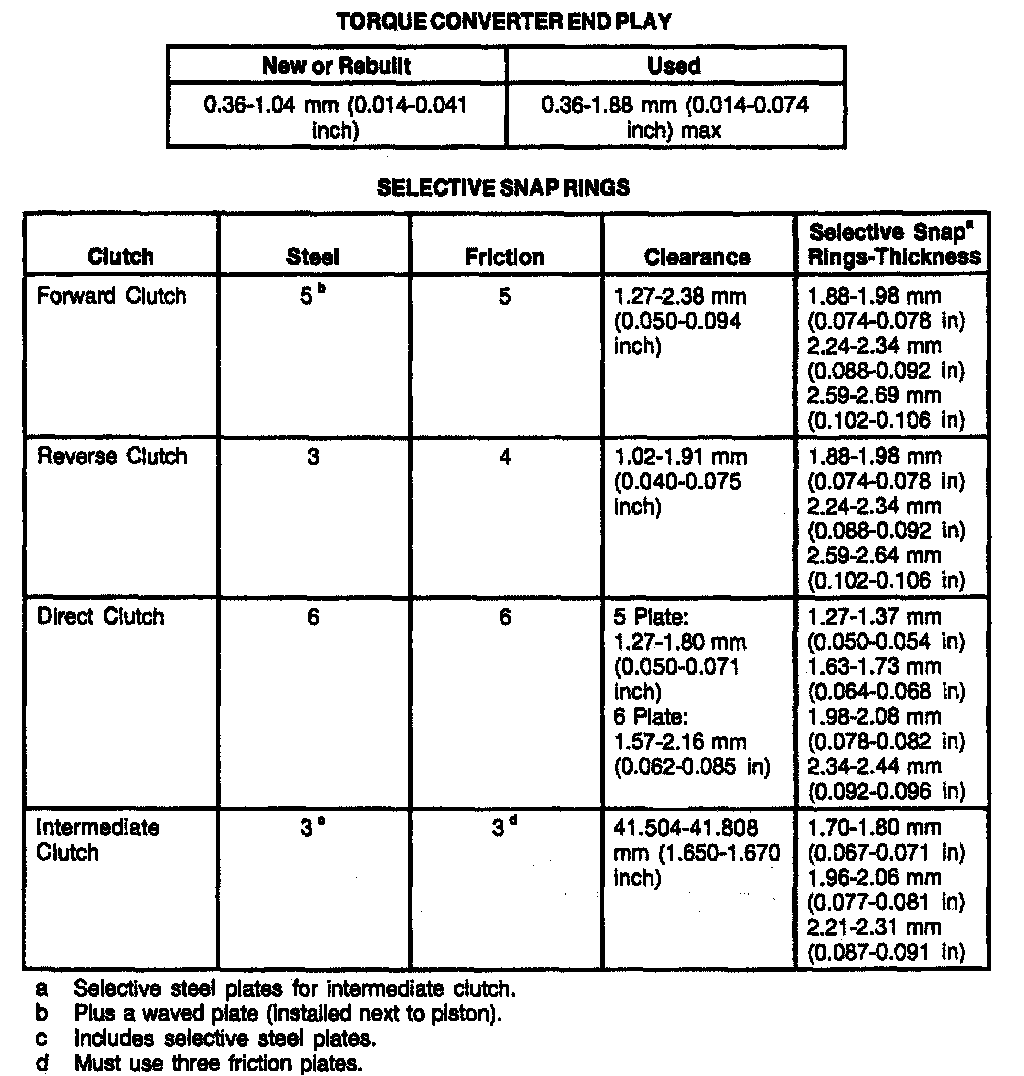

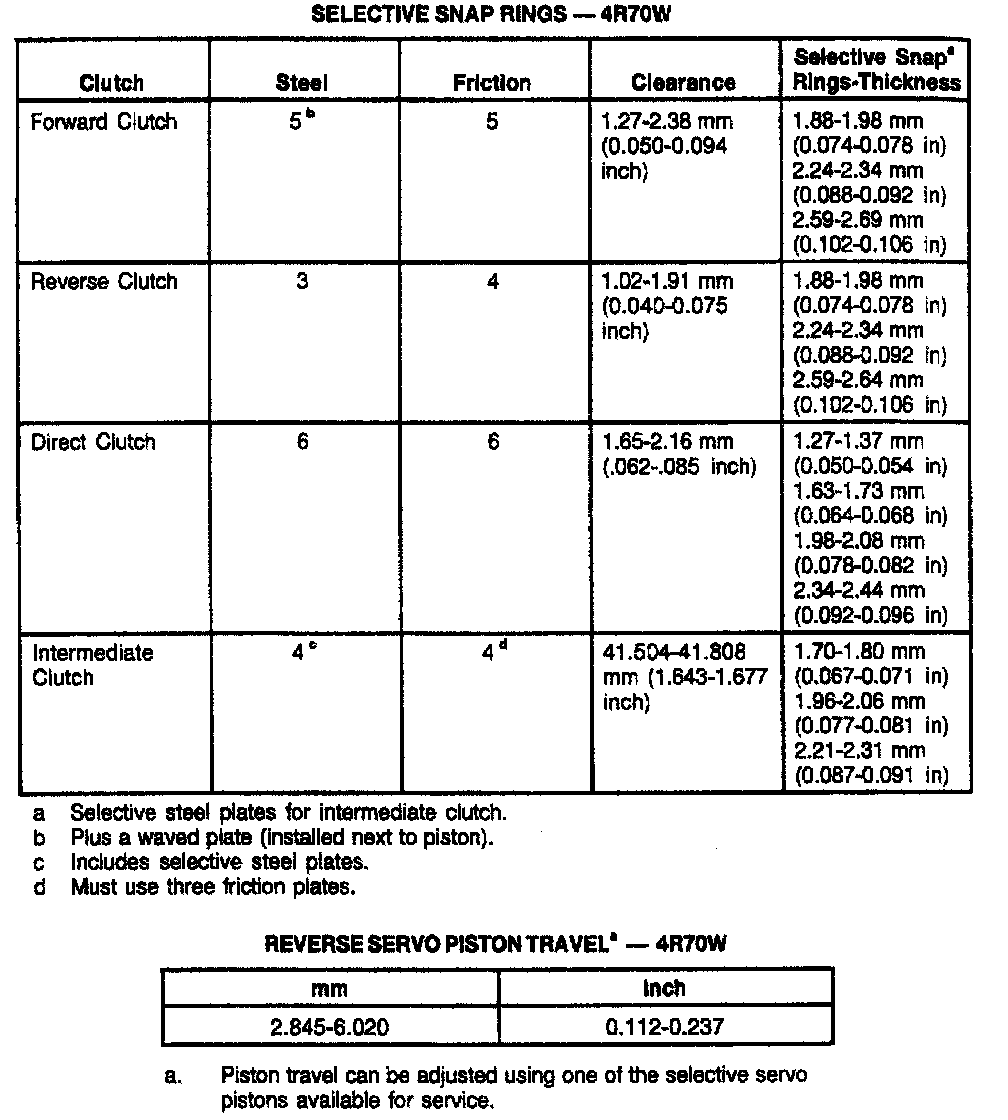

4R70W 4-spd A/T, Snap Rings/Reverse Servo (Town Car/Crown Vic/Grand Marquis):

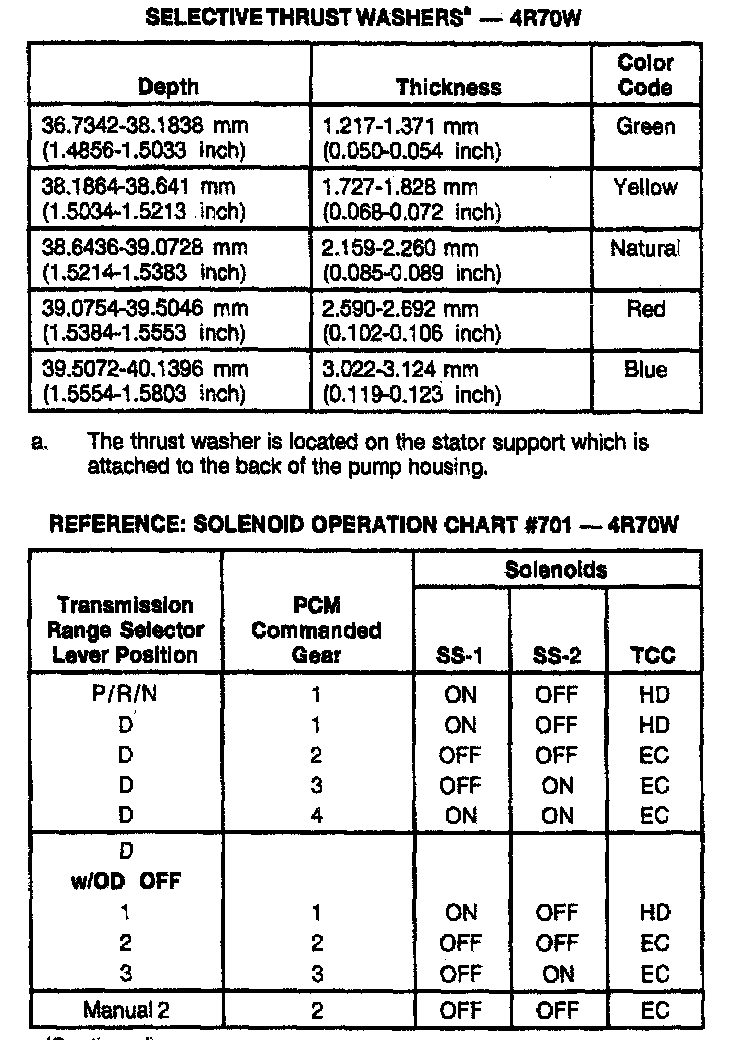

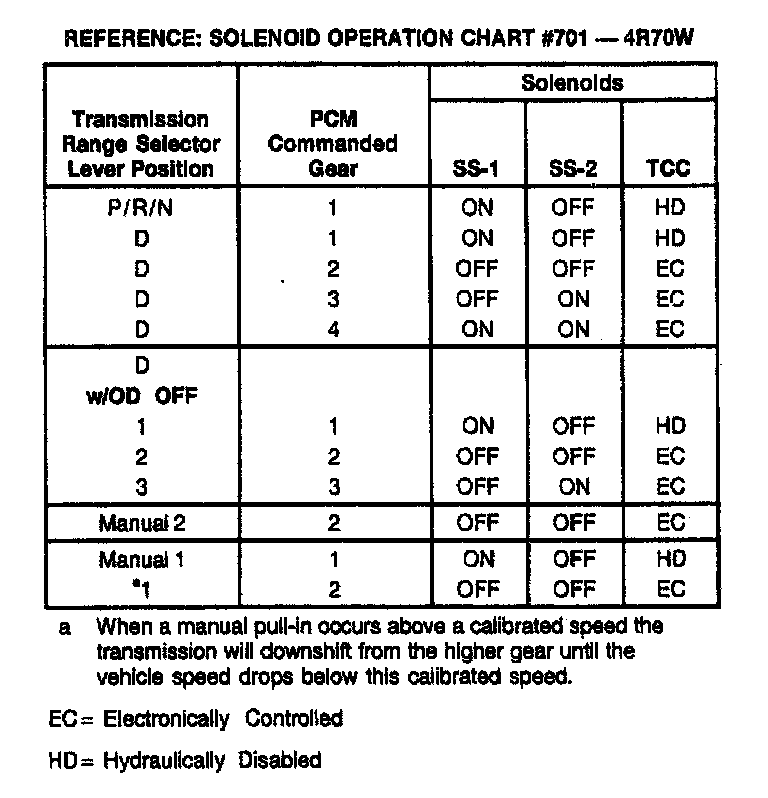

4R70W 4-spd A/T, Thrust/Solenoid Chart (T.C/Crown Vic/G.Marquis):

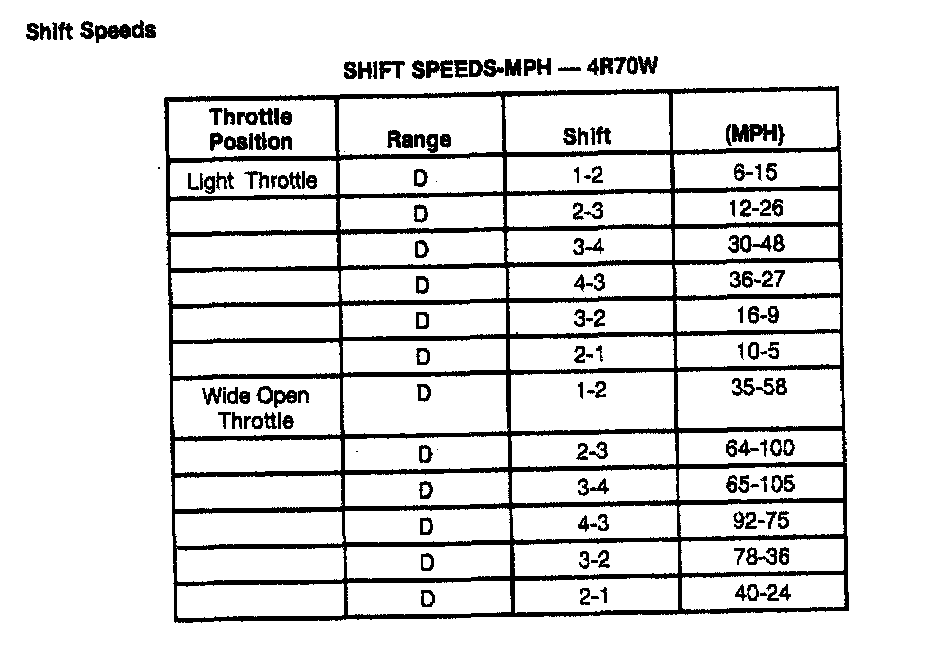

4R70W 4-spd A/T, Shift Speeds (Town Car/Crown Vic/G. Marquis):
