1996 Ford Crown Victoria V8-4.6L VIN WFACTORY OEM SERVICE PROCEDURE
Tables and Graphs

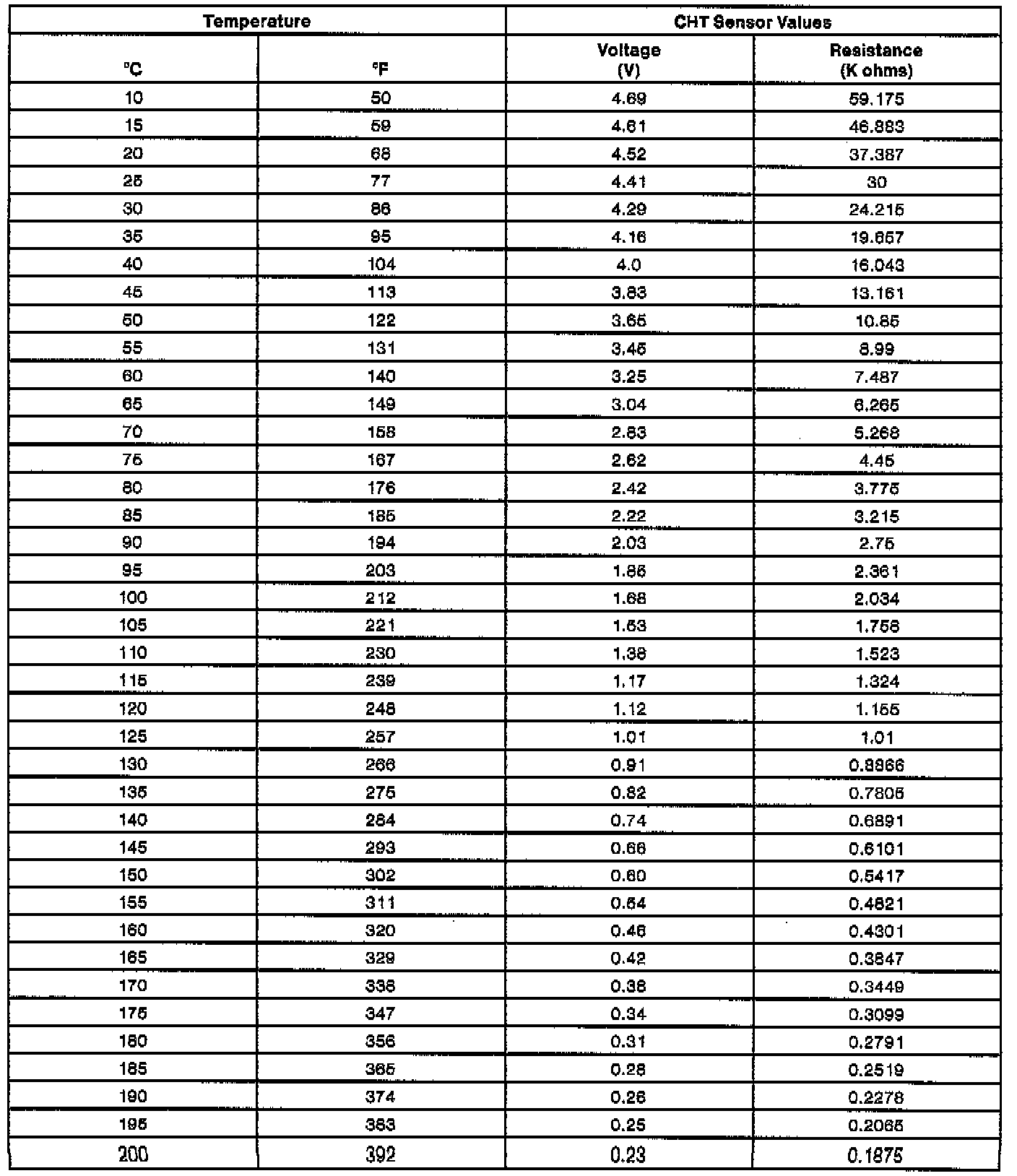

CHT Sensor Temperature/Voltage Chart (Part 1 0f 2):

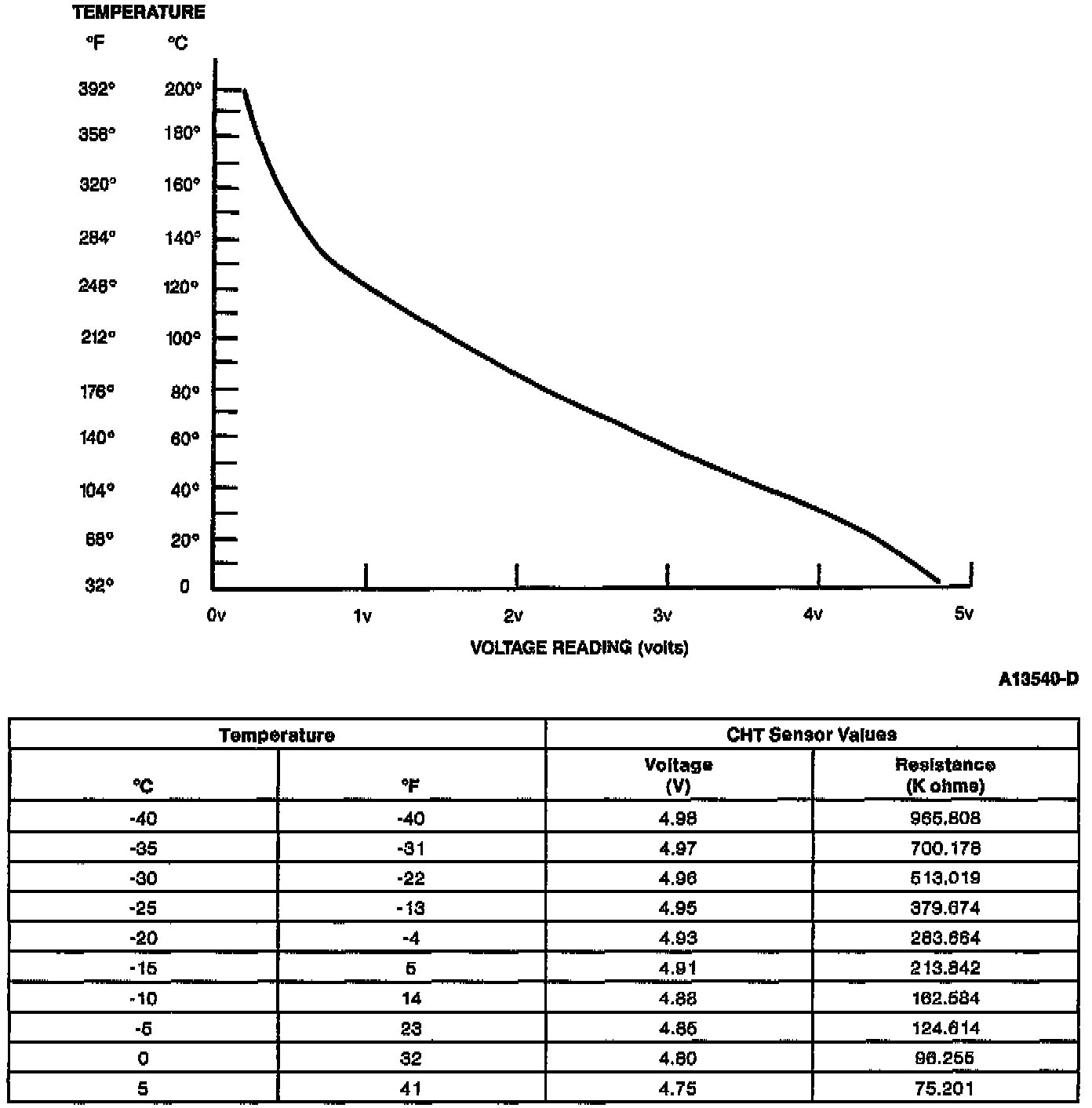

Part 2 Of 2:
Voltage values were calculated for Reference Voltage (VREF) = 5.0 volts. These values may vary 15 percent due to sensor and VREF variations.
Cylinder head temperature must be greater than 49°C (120°F) to pass the KOEO Self-Test and greater than 115°C (240°F) to pass the KOER Self-Test. To accomplish this, the engine should be at normal operating temperature.
