Turn ignition off. Disconnect ABS relay. Using DVOM, measure resistance between ABS relay terminals indicated. See ABS RELAY RESISTANCE table. See Fig 1 .

ABS RELAY RESISTANCE

Terminals	Ohms
"d" and "e"	60-100
"b" and "c"	More Than 10,000
"b" and "f"	Less Than 5
"f" and "j"	Less Than 50-90
"b" and "j"	Less Than 50-90
"c" and "g"	More Than 10,000

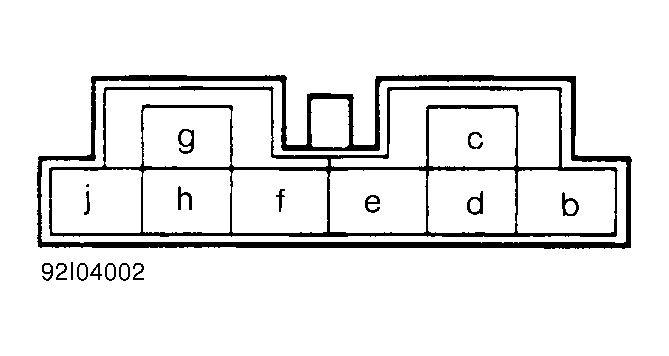

Fig 1: Identifying ABS Relay Terminals

Apply 12 volts to ABS relay terminal "e" and ground to terminal "d". Set DVOM on 20-k/ohm scale. Measure resistance between ABS relay terminals "b" and "f". See Fig 1 . Resistance should be more than 10,000 ohms.
Set DVOM on 200-ohm scale. Measure resistance between ABS relay terminals "c" and "f". See Fig 1 . Resistance should be less than 5 ohms.
Apply 12 volts to ABS relay terminal "h" and ground to terminal "j". Set DVOM on 200-ohm scale. Measure resistance between ABS relay terminals "c" and "g". See Fig 1 . Resistance should be less than 5 ohms. Remove 12 volts and ground from relay terminals.
Set DVOM to diode check mode. Connect DVOM negative lead to terminal "f" and positive lead to terminal "h". See Fig 1 . Continuity should be present. Connect DVOM positive lead to terminal "f" and negative lead to terminal "h". See Fig 1 . Continuity should not be present. If ABS relay fails any test, replace relay.
