1991 Ford Taurus L4-153 2.5L HSCFACTORY OEM SERVICE PROCEDURE
Connector Locations

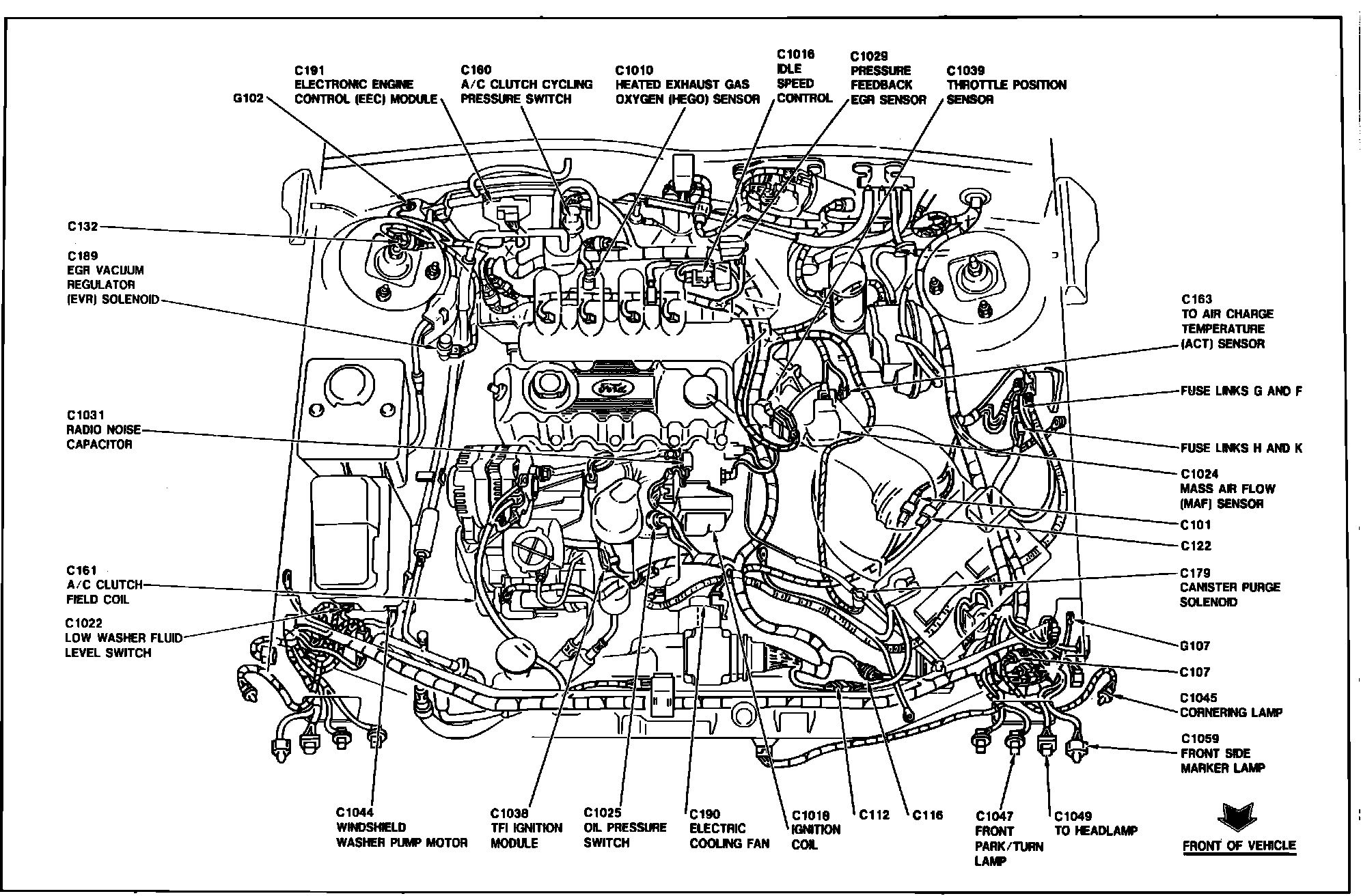

Engine Compartment View:
A/C CLUTCH CYCLING PRESSURE SWITCH
AIR CHARGE TEMPERATURE SENSOR
CANISTER PURGE SOLENOID
EGR VACUUM REGULATOR (EVR) SOLENOID
ELECTRONIC ENGINE CONTROL MODULE (ECA)
HEATED EXHAUST GAS OXYGEN (HEGO) SENSOR
IDLE SPEED CONTROL
IGNITION COIL
MASS AIR FLOW (MAF) SENSOR
OIL PRESSURE SWITCH
PRESSURE FEEDBACK EGR SENSOR
RADIO NOISE CAPACITOR
TFI IGNITION MODULE
THROTTLE POSITION SENSOR
Engine Compartment View:
AIR BAG REAR SENSOR
AMBIENT TEMPERATURE SENSOR
BRAKE FLUID LEVEL SWITCH
CENTER LINE FORWARD CRASH SENSOR
COOLANT TEMPERATURE SENDER
DAYTIME RUNNING LAMPS (DRL) MODULE
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
FUEL INJECTORS
INTEGRATED RELAY CONTROL MODULE
LEFT FORWARD CRASH SENSOR
RIGHT FORWARD CRASH SENSOR
SPOUT CHECK CONNECTOR
VIP (DIAGNOSTIC) CONNECTORS
