1990 Ford Taurus V6-232 3.8LFACTORY OEM SERVICE PROCEDURE
Intake Manifold
This article has been updated by technical service bulletin (TSB) 94-10-10 dated 05/18/94.

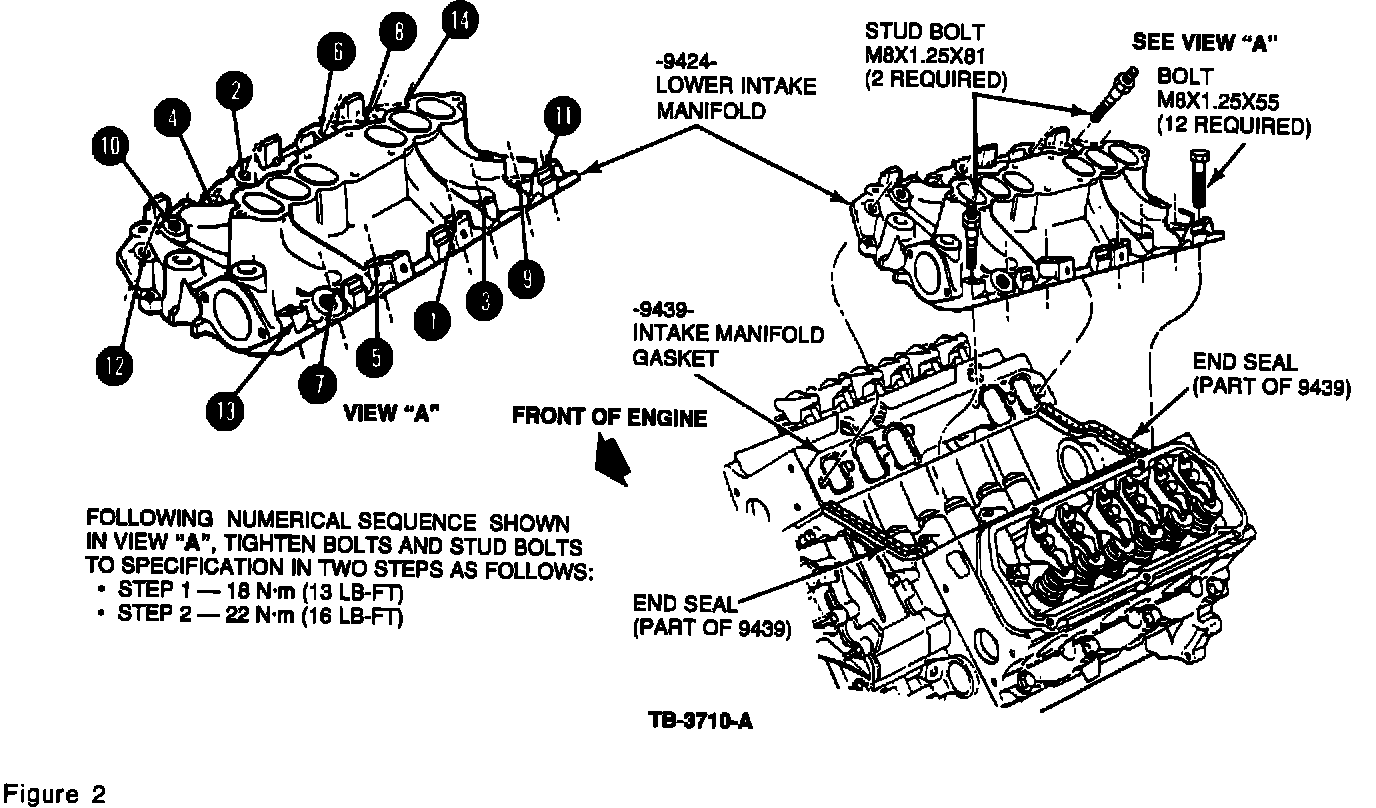

Lower Intake Manifold
Tighten in two steps in numerical sequence to the following specifications:
Step 1 18 Nm (13 ft. lbs.)
Step 2 22 Nm (16 ft. lbs.)

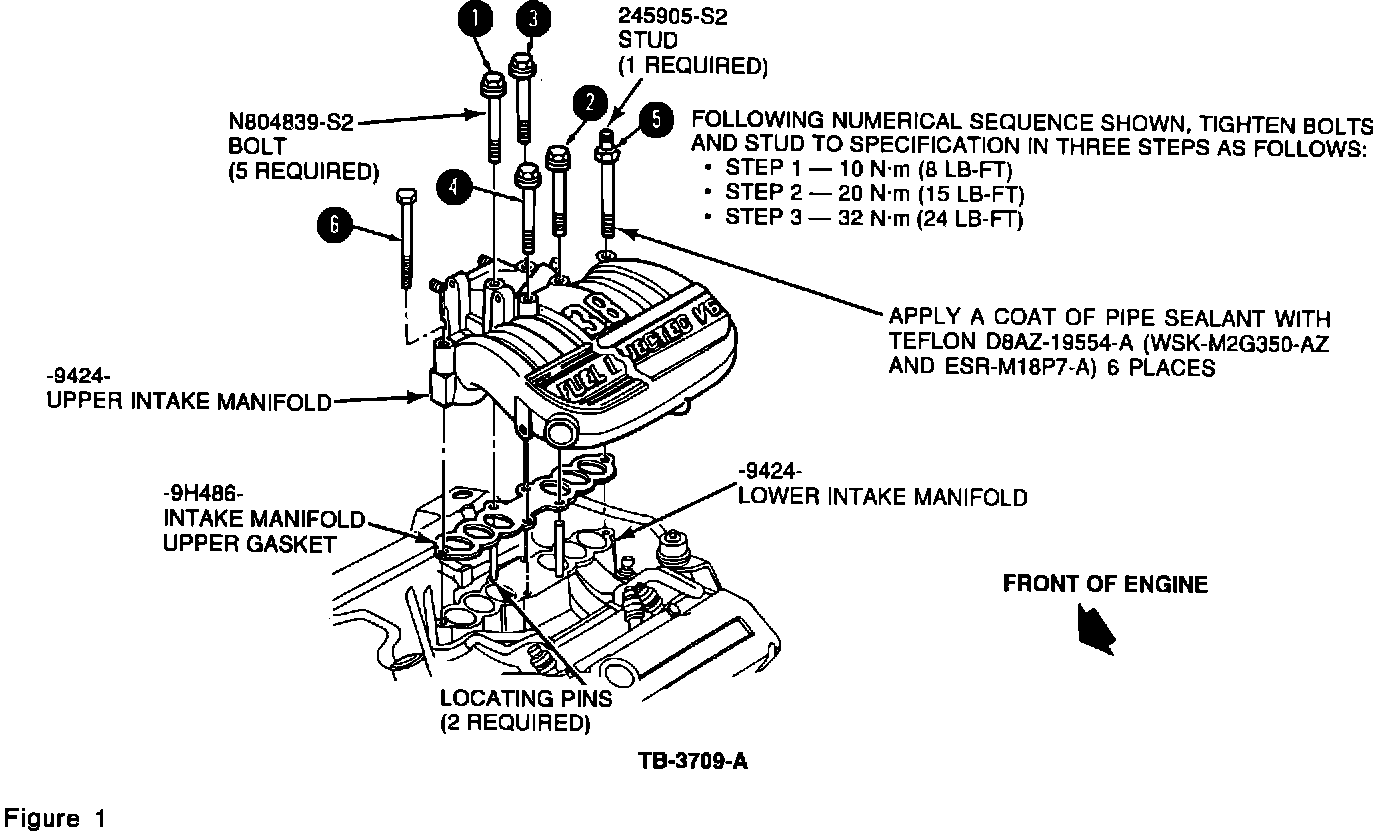

Upper Intake Manifold
Tighten in sequence in three (3) steps starting with the four center bolts to the following specifications: Step 1 10 N-m (8 ft. lbs.), Step 2 20 N-m (15 ft. lbs.), Step 3 32 N-m (24 ft. lbs.)
