1990 Ford Taurus V6-232 3.8LFACTORY OEM SERVICE PROCEDURE
Control Module HVAC: Testing and Inspection

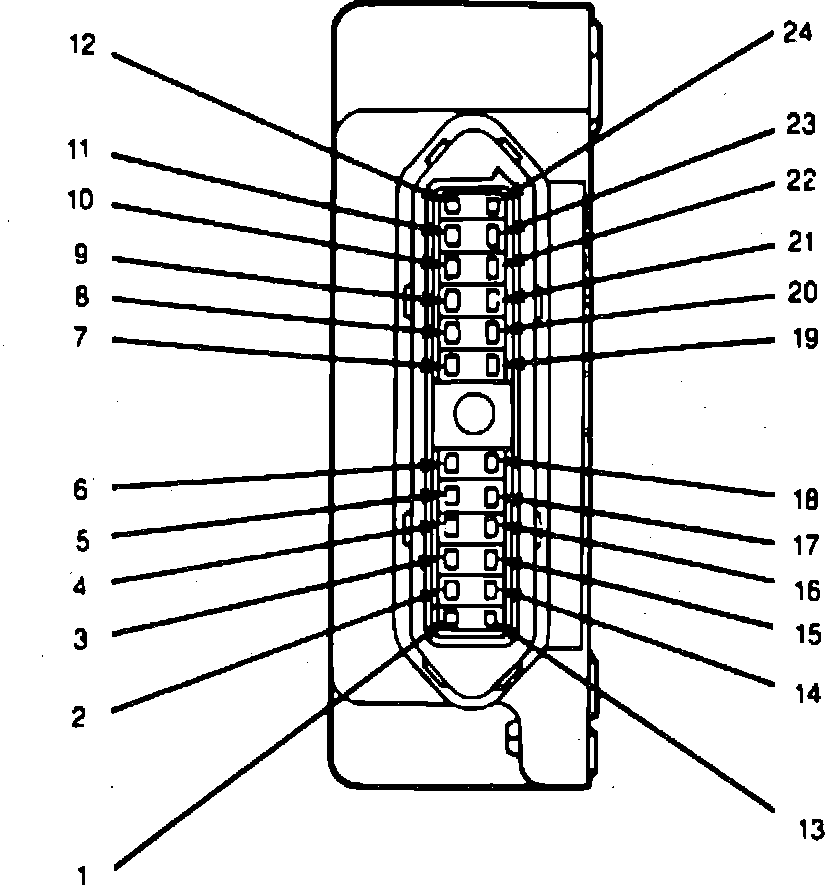

Fig. 10 IRCM Pin Location:
Diagnosis of blower speed requires a digital volt-ohmmeter. Refer to Fig. 10 for IRCM pin location.

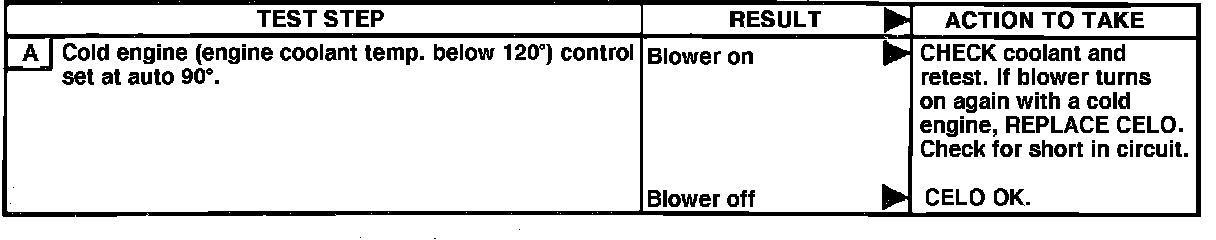

Fig. 11 Blower Speed Controler Diagnosis - No Blower:
1. No blower, ignition in run position. Refer to Fig. 11.

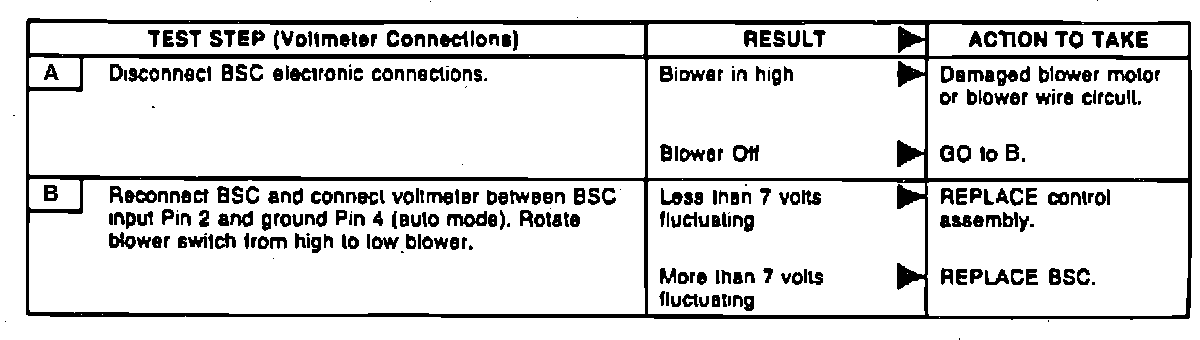

Fig. 12 Blower Speed Controler Diagnosis - High Blower Only:
2. High blower only, blower switch in low position. Refer to Fig. 12.

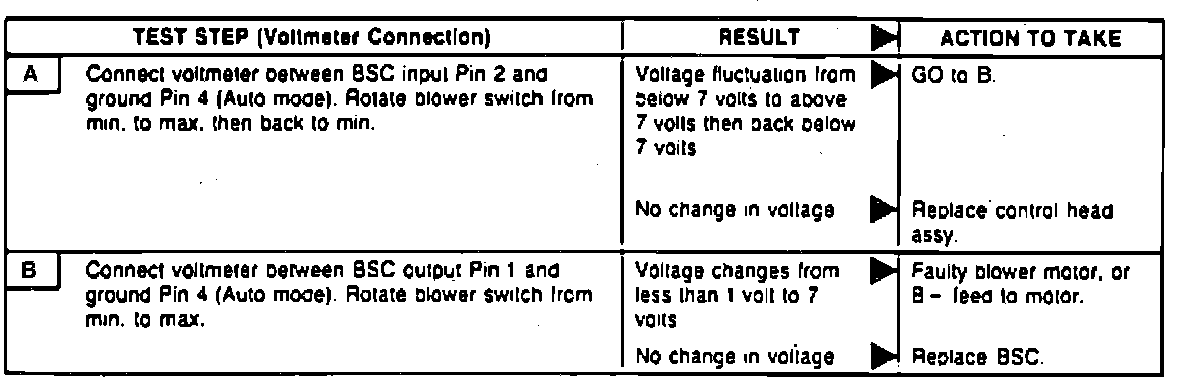

Fig. 13 Blower Speed Controler Diagnosis - No Variation With Blower Switch:
3. Blower operates, no variation with blower control switch. Refer to Fig. 13.

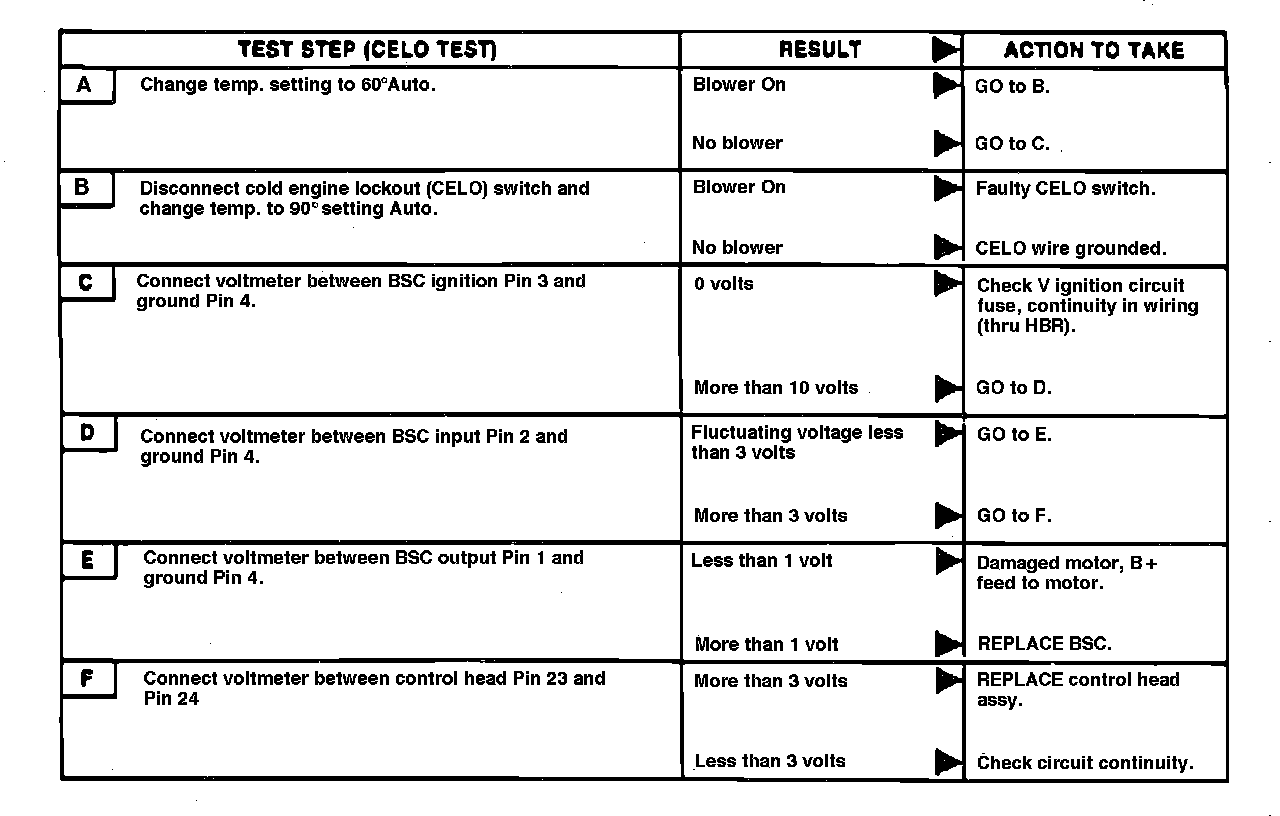

Fig. 14 Blower Speed Controler Diagnosis - CELO Inoperative:
4. Cold engine lockout inoperative. Refer to Fig. 14.
