1996 Eagle Summit BaseFACTORY OEM SERVICE PROCEDURE
Using Voltmeter

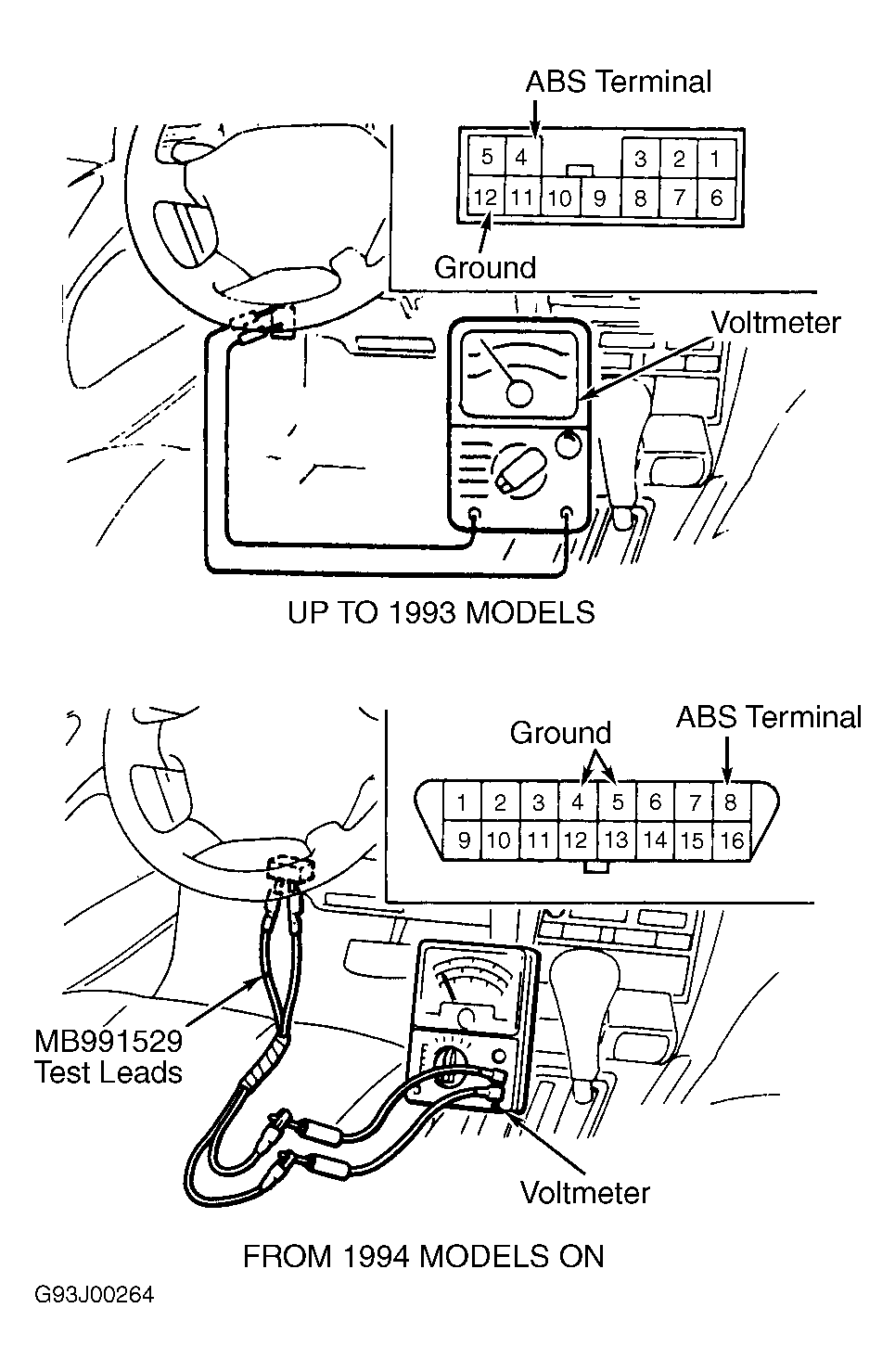

- To retrieve stored DTCs, locate Data Link Connector (DLC) located under driver side of dash. Turn ignition off. Connect analog voltmeter between DLC terminal No. 8 (ABS) and either terminal No. 4 or 5 (ground). See Fig 1. Go to next step.
- Start engine. Stored DTCs will be indicated by sweeps of voltmeter needle. Long sweeps indicate first digit of DTC; short sweeps indicate second digit. If more than one fault is present, lowest number DTC will be given first. After DTC(s) has been retrieved, test indicated component and/or related circuit (if necessary). See DTC DEFINITION table under DIAGNOSIS & TESTING.
